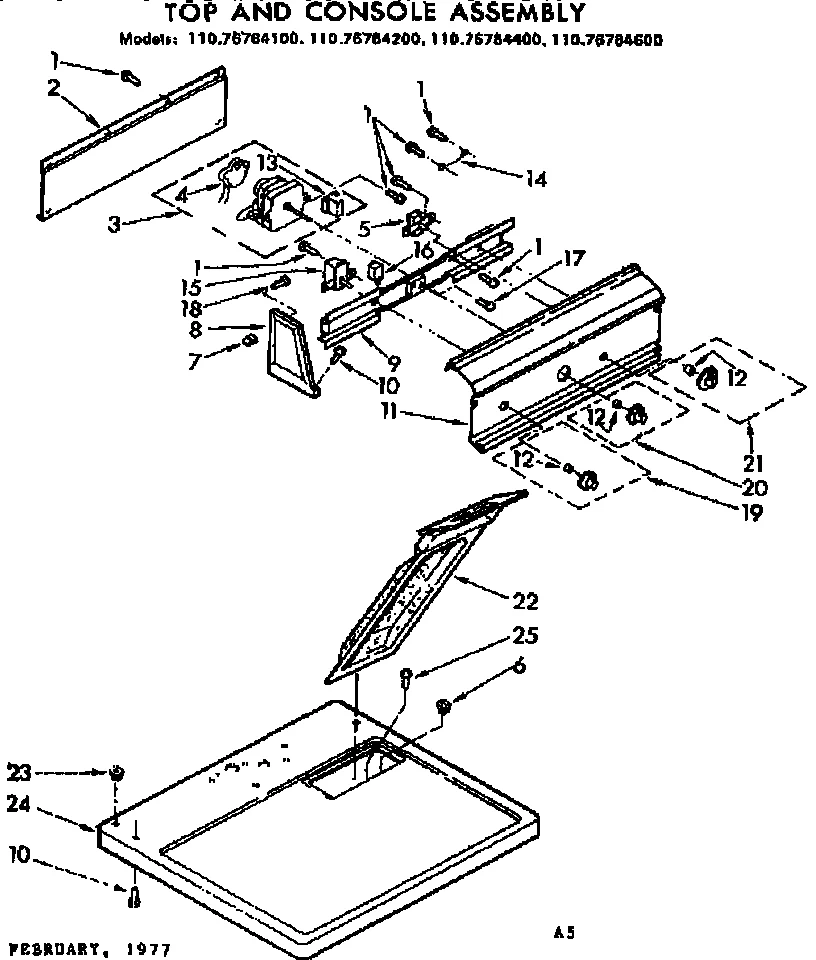

Whirlpool 110.76784400 Electric Dryer (Kenmore 11076784400) Parts List

1

Reflector WPL 348618 Contact Us For Availability

View on Model

2

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.46

View on Model

2

Panel WPL 357421 Contact Us For Availability

View on Model

3

Timer WPL 688124 Contact Us For Availability

View on Model

4

279771 Whirlpool Clip Backorder WPL 279771 $9.33

View on Model

4

(338471) (ALT.) WPL N/P Contact Us For Availability

View on Model

5

Switch WPL 345775 Contact Us For Availability

View on Model

5

Box WPL 685457 Contact Us For Availability

View on Model

6

98460 Whirlpool Nut Backorder WPL 98460 $8.89

View on Model

7

Clip WPL 98084 Contact Us For Availability

View on Model

8A

Cap (Chestnut) WPL 372134 Contact Us For Availability

View on Model

8B

Cap (Chestnut) WPL 372127 Contact Us For Availability

View on Model

9

Bracket WPL 687072 Contact Us For Availability

View on Model

10

Screw WPL 358225 Contact Us For Availability

View on Model

11

Panel WPL 688515 Contact Us For Availability

View on Model

12

Compression Ring WPL 90015 Contact Us For Availability

View on Model

13

279872 Whirlpool Resistor In Stock WPL 279872 $36.07

View on Model

14

WP4391960 Whirlpool Dryer Heating Element In Stock WPL WP4391960 $27.66

View on Model

14

Ground Wire WPL 340025 Contact Us For Availability

View on Model

15

Switch WPL 686727 Contact Us For Availability

View on Model

16

Buzzer WPL 686864 Contact Us For Availability

View on Model

17

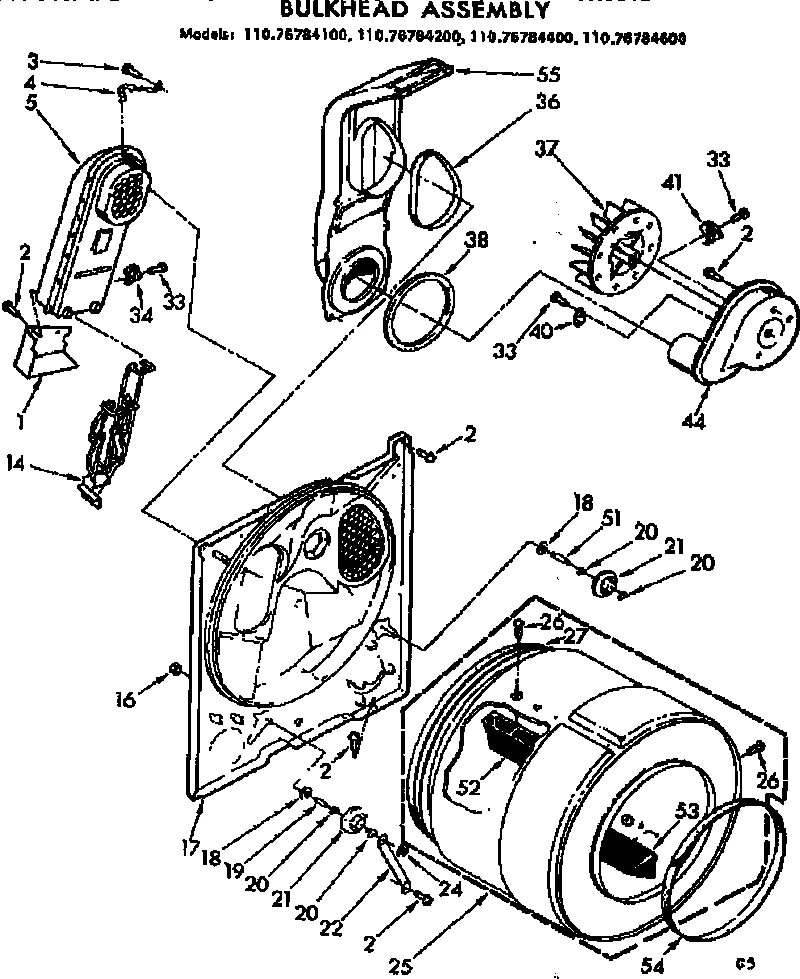

W11178667 Whirlpool Bulkhead Assembly In Stock WPL W11178667 $128.71

View on Model

17

WP297092 Whirlpool Clip In Stock WPL WP297092 $5.30

View on Model

17

Screw, Nibbed WPL 339607 Contact Us For Availability

View on Model

18

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $70.41

View on Model

18

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $4.82

View on Model

18

Screw WPL 355326 Contact Us For Availability

View on Model

19

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $48.95

View on Model

19

Clip WPL 342601 Contact Us For Availability

View on Model

19

Knob WPL 357814 Contact Us For Availability

View on Model

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $7.98

View on Model

20

Clip WPL 341776 Contact Us For Availability

View on Model

20

Knob WPL 688228 Contact Us For Availability

View on Model

21

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $19.45

View on Model

21

Dryer Control Knob WPL 349796 Contact Us For Availability

View on Model

21A

Dryer Hinge WPL 687905 Contact Us For Availability

View on Model

21B

Hinge WPL 687906 Contact Us For Availability

View on Model

22

W11684613 Whirlpool Bracket Backorder WPL W11684613 $13.15

View on Model

22

Door Spring WPL 237979 Contact Us For Availability

View on Model

22A

WPW10717210 Whirlpool Dryer Lint Screen Filte In Stock WPL WPW10717210 $39.87

View on Model

22B

Screen WPL 348853 Contact Us For Availability

View on Model

22C

Screen WPL 348852 Contact Us For Availability

View on Model

23

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

View on Model

23

Harness WPL 688148 Contact Us For Availability

View on Model

24

WP90296 Whirlpool Clip Backorder WPL WP90296 $4.82

View on Model

24A

Top (White) WPL 685958 Contact Us For Availability

View on Model

24B

Top WPL 685959 Contact Us For Availability

View on Model

24C

Top WPL 685960 Contact Us For Availability

View on Model

24D

Top WPL 685961 Contact Us For Availability

View on Model

25

8528351 Whirlpool Clip Backorder WPL 8528351 $54.39

View on Model

25

Screw WPL 128060 Contact Us For Availability

View on Model

25

Drum WPL 347875 Contact Us For Availability

View on Model

26

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $4.99

View on Model

26A

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $78.97

View on Model

26B

Motor Switch WPL 298699 Contact Us For Availability

View on Model

27

279408 Whirlpool Dryer Rear Drum Seal In Stock WPL 279408 $36.85

View on Model

28

Screw WPL 90193 Contact Us For Availability

View on Model

29

Pulley WPL 348946 Contact Us For Availability

View on Model

30

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $16.28

View on Model

31

3400500 Whirlpool Screw In Stock WPL 3400500 $8.89

View on Model

32

WP348780 Whirlpool Base In Stock WPL WP348780 $80.94

View on Model

33

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.92

View on Model

34

279054 Whirlpool Dryer High Limit Thermostat Backorder WPL 279054 $98.57

View on Model

36

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $5.30

View on Model

37

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $16.81

View on Model

37

Dryer Cabinet Panel Guide Pin WPL 98669 Contact Us For Availability

View on Model

38

W11415783 Whirlpool Seal In Stock WPL W11415783 $12.37

View on Model

38

WP98234 Whirlpool Nut In Stock WPL WP98234 $7.88

View on Model

39

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $16.43

View on Model

40

WP691581 Whirlpool Actuator In Stock WPL WP691581 $5.30

View on Model

40

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $29.98

View on Model

41

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $15.30

View on Model

42

WP98129 Whirlpool Screw Backorder WPL WP98129 $4.82

View on Model

43

279220 Whirlpool Clip Backorder WPL 279220 $18.99

View on Model

44

279264 Whirlpool Bearing and Seal Kit In Stock WPL 279264 $52.39

View on Model

44

Housing WPL 348495 Contact Us For Availability

View on Model

45

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $5.30

View on Model

46

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $14.02

View on Model

47A

Door (White) WPL 346370 Contact Us For Availability

View on Model

47B

Door WPL 687381 Contact Us For Availability

View on Model

47C

Door WPL 687382 Contact Us For Availability

View on Model

47D

Door (Gold) WPL 687383 Contact Us For Availability

View on Model

48

Screw WPL 9425761 Contact Us For Availability

View on Model

49A

Door (White) WPL 348728 Contact Us For Availability

View on Model

49B

Door WPL 687375 Contact Us For Availability

View on Model

49C

Door WPL 687376 Contact Us For Availability

View on Model

49D

Door (Gold) WPL 687377 Contact Us For Availability

View on Model

50

WP18776 Whirlpool Lock In Stock WPL WP18776 $7.90

View on Model

51

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $33.99

View on Model

51A

Panel (White) WPL 338012 Contact Us For Availability

View on Model

51B

Panel WPL 687421 Contact Us For Availability

View on Model

51C

Panel WPL 687422 Contact Us For Availability

View on Model

51D

Panel (Gold) WPL 687423 Contact Us For Availability

View on Model

52

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $6.56

View on Model

52

Baffle WPL 348868 Contact Us For Availability

View on Model

53

Baffle WPL 347892 Contact Us For Availability

View on Model

54

WP3394509 Whirlpool Bearing Ring In Stock WPL WP3394509 $52.32

View on Model

54

Screw WPL 342043 Contact Us For Availability

View on Model

55

W11117429 Whirlpool Chute Assembly In Stock WPL W11117429 $111.01

View on Model

56A

Toe Panel (White) WPL 237035 Contact Us For Availability

View on Model

56B

Panel WPL 687400 Contact Us For Availability

View on Model

56C

Panel WPL 687401 Contact Us For Availability

View on Model

56D

Panel (Gold) WPL 687402 Contact Us For Availability

View on Model

57

WP3390733 Whirlpool Door Seal Assembly Backorder WPL WP3390733 $82.97

View on Model

59

Wire WPL 687261 Contact Us For Availability

View on Model

60A

WP348721 Whirlpool Handle In Stock WPL WP348721 $45.66

View on Model

60B

Handle WPL 687369 Contact Us For Availability

View on Model

60D

Handle (Gold) WPL 687371 Contact Us For Availability

View on Model

NI

W10851673 Whirlpool Transformer Backorder WPL W10851673 $309.80

View on Model

NI

Wiring Diagram WPL LIT230083 Contact Us For Availability

View on Model

NI

Instructions WPL LIT339896 Contact Us For Availability

View on Model

NI

Installation Instructions WPL LIT340704 Contact Us For Availability

View on Model

NI

Parts List WPL LIT688105 Contact Us For Availability

View on Model

NI

Label WPL LIT688146 Contact Us For Availability

View on Model

NI

Owner's Manual WPL LIT688221 Contact Us For Availability

View on Model

NI

Operating Instructions WPL LIT688244 Contact Us For Availability

View on Model

NI

Service Manual WPL LIT828693 Contact Us For Availability

View on Model
