Model Whirlpool 110.45992400 Automatic Washer – Common Parts &amp; Diagrams

1

WP8181694 Whirlpool Washer Inlet Valve In Stock WPL WP8181694 $49.08

1

WPW10283361 Whirlpool Nut In Stock WPL WPW10283361 $54.52

1

Panel, Control — White WPL 8182642 Contact Us For Availability

1

Panel, Control — White/Graphite WPL 8182249 Contact Us For Availability

1

Panel, Control — Bisque WPL 8182250 Contact Us For Availability

1

Panel, Control — Graphite WPL 8182251 Contact Us For Availability

1

Panel, Control — Pacific Blue WPL 8182561 Contact Us For Availability

1

Panel, Control — Champagne WPL 8182562 Contact Us For Availability

1

Panel, Control — Sedona WPL 8182563 Contact Us For Availability

1

Installation Instructions WPL 8537141 Contact Us For Availability

1

Parts List WPL 8537342 Contact Us For Availability

1

Installation Instructions WPL 8563589 Contact Us For Availability

1

Parts List WPL 8563590 Contact Us For Availability

2

WP8181710 Whirlpool Hose Assembly Backorder WPL WP8181710 $17.05

2

WP8182650 Whirlpool Pulley In Stock WPL WP8182650 $103.99

2

Top — White WPL 8181641 Contact Us For Availability

2

Drawer Front Assembly — White WPL 8537870 Contact Us For Availability

2

Drawer Front Assembly — Bisque WPL 8537871 Contact Us For Availability

2

Drawer Front Assembly — Graphite WPL 8537872 Contact Us For Availability

2

Drawer Front Assembly — White WPL 8559543 Contact Us For Availability

2

Drawer Front Assembly — Bisque WPL 8563542 Contact Us For Availability

2

Drawer Front Assembly — Graphite WPL 8563543 Contact Us For Availability

2

Drawer Front Assembly — Spa Blue WPL 8563544 Contact Us For Availability

2

Drawer Front Assembly — Champagne WPL 8563545 Contact Us For Availability

2

Drawer Front Assembly — Sedona WPL 8563546 Contact Us For Availability

3

WP489503 Whirlpool Refrigerator Clamp Backorder WPL WP489503 $7.20

3

WPW10388414 Whirlpool Washer Drive Belt In Stock WPL WPW10388414 $36.58

3

User Interface WPL 8182255 Contact Us For Availability

3

Drawer Bin WPL 8537883 Contact Us For Availability

4

W10121657 Whirlpool Ball Backorder WPL W10121657 $13.89

4

WPW10110225 Whirlpool Flowmeter In Stock WPL WPW10110225 $75.17

4

Grid, Ventilation WPL 8181745 Contact Us For Availability

4

Button Set, Cycle — White WPL 8182252 Contact Us For Availability

4

Button Set, Cycle — Graphite WPL 8182253 Contact Us For Availability

4

Button Set, Cycle — Black WPL 8182254 Contact Us For Availability

4

Button Set, Cycle — Spa Blue WPL 8182544 Contact Us For Availability

4

Button Set, Cycle — Autumn Pearl WPL 8182545 Contact Us For Availability

4

Divider, Drawer WPL 8537875 Contact Us For Availability

4

Divider, Drawer WPL 8559547 Contact Us For Availability

5

WP696392 Whirlpool Hose Clamp Backorder WPL WP696392 $4.58

5

WP8182119 Whirlpool Washer Door Boot Bellows In Stock WPL WP8182119 $101.66

5

WP8578394 Whirlpool Slide Assembly Backorder WPL WP8578394 $72.49

5

Button Set, Program — Graphite WPL 8181677 Contact Us For Availability

5

Pipe, Ventilation WPL 8181744 Contact Us For Availability

5

Button Set, Program — White WPL 8182100 Contact Us For Availability

5

Button Set, Program — Black WPL 8181835 Contact Us For Availability

5

Button Set, Program — Spa Blue WPL 8182582 Contact Us For Availability

5

Button Set, Program — Autumn Pearl WPL 8182583 Contact Us For Availability

6

WP8182210 Whirlpool Clamp In Stock WPL WP8182210 $21.95

6

WPW10346892 Whirlpool Screw In Stock WPL WPW10346892 $3.92

6

WPW10467168 Whirlpool Hose Assembly In Stock WPL WPW10467168 $30.21

6

Foot, Leveling WPL 8181636 Contact Us For Availability

6

Hose, Flowmeter WPL 8181708 Contact Us For Availability

6

Button Set, Cancel — Black WPL 8181817 Contact Us For Availability

6

Button Set, Cancel — Graphite WPL 8181681 Contact Us For Availability

6

Button Set, Cancel — White WPL 8182099 Contact Us For Availability

6

Button Set, Cancel — Spa Blue WPL 8182584 Contact Us For Availability

6

Button Set, Cancel — Autumn Pearl WPL 8182585 Contact Us For Availability

6

Clamp WPL 8181746 Contact Us For Availability

7

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $5.30

7

WP8181743 Whirlpool Hose Assembly Backorder WPL WP8181743 $80.03

7

WP8563585 Whirlpool Foot Assembly In Stock WPL WP8563585 $9.19

7

Button Set, Options — Graphite WPL 8181837 Contact Us For Availability

7

Button Set, Options — White WPL 8181680 Contact Us For Availability

7

Button Set, Options — Biscuit WPL 8181836 Contact Us For Availability

7

Button Set, Options — Spa Blue WPL 8182564 Contact Us For Availability

7

Button Set, Options — Autumn Pearl WPL 8182565 Contact Us For Availability

7

Nozzle, Inlet WPL 8182121 Contact Us For Availability

8

W10772618 Whirlpool Outer Tub Assembly Backorder WPL W10772618 $395.20

8

WP3388228 Whirlpool Screw In Stock WPL WP3388228 $4.99

8

Button Set, Temperature — White WPL 8181678 Contact Us For Availability

8

Button Set, Temperature — Biscuit WPL 8181821 Contact Us For Availability

8

Button Set, Temperature — Graphite WPL 8181822 Contact Us For Availability

8

Button Set, Temperature — Spa Blue WPL 8182536 Contact Us For Availability

8

Button Set, Temperature — Autumn Pearl WPL 8182537 Contact Us For Availability

8

Damper, Rubber WPL 8181786 Contact Us For Availability

9

WP8181651 Whirlpool Door Strike In Stock WPL WP8181651 $12.94

9

Counterweight, Rear WPL 8181644 Contact Us For Availability

9

O−Ring WPL 8181714 Contact Us For Availability

10

280187 Whirlpool Washer Electronic Water Drai In Stock WPL 280187 $138.95

10

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $4.82

10

Gasket, Tub WPL 8181673 Contact Us For Availability

Cam, Actuator WPL 8181726 Contact Us For Availability

Pad (4) WPL 8537863 Contact Us For Availability

Basket WPL 8182247 Contact Us For Availability

Damper, Rubber WPL 8181787 Contact Us For Availability

WP8182233 Whirlpool Baffle Assembly In Stock WPL WP8182233 $43.85

Lever, Water Distribution WPL 8181725 Contact Us For Availability

Screw WPL 8181780 Contact Us For Availability

Pan, Bottom WPL 8537853 Contact Us For Availability

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $4.82

WPW10250553 Whirlpool O-Ring Backorder WPL WPW10250553 $4.82

WPW10665207 Whirlpool Washer Switch Backorder WPL WPW10665207 $133.75

Seal, Filter Cap WPL 8181736 Contact Us For Availability

Brace, Front Top WPL 8181639 Contact Us For Availability

W10902779 Whirlpool Clamp Assembly In Stock WPL W10902779 $13.32

WP3400805 Whirlpool Screw Assembly Backorder WPL WP3400805 $4.82

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.92

Airtrap WPL 8181731 Contact Us For Availability

Channel, Water WPL 8181640 Contact Us For Availability

Cap, Filter WPL 8181735 Contact Us For Availability

WP8182689-includeCORE Whirlpool WP8182689 Was Backorder WPL WP8182689-includeCORE $321.56

WPW10008880 Whirlpool Counterweight Assembly Backorder WPL WPW10008880 $134.45

Spring, Lever WPL 8181727 Contact Us For Availability

Cover, Motor WPL 8181766 Contact Us For Availability

Faceplate — White WPL 8563573 Contact Us For Availability

Faceplate — Bisque WPL 8563574 Contact Us For Availability

Faceplate — Graphite WPL 8563575 Contact Us For Availability

Faceplate — Spa Blue WPL 8563576 Contact Us For Availability

Faceplate — Champagne WPL 8563577 Contact Us For Availability

Faceplate — Sedona WPL 8563578 Contact Us For Availability

W10135004 Whirlpool Spring Assembly In Stock WPL W10135004 $39.30

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $5.30

Connection, Lever WPL 8181724 Contact Us For Availability

Medallion WPL 9744397 Contact Us For Availability

Motor WPL 8181682 Contact Us For Availability

For Models: 110.45981400, 110.45986400, 110.4 WPL N/S Contact Us For Availability

Screw WPL 8181785 Contact Us For Availability

Harness, Wiring WPL 8182212 Contact Us For Availability

Dispenser WPL 8182122 Contact Us For Availability

Bolt WPL 8181647 Contact Us For Availability

Harness, Motor WPL 8181782 Contact Us For Availability

Shelf, U Asy. WPL 8559423 Contact Us For Availability

WP3367052 Whirlpool Hose Clamp Backorder WPL WP3367052 $4.82

WP8181712 Whirlpool Nozzle Backorder WPL WP8181712 $65.80

WP8181737 Whirlpool Hose In Stock WPL WP8181737 $33.65

Bolt, Motor WPL 8181761 Contact Us For Availability

Box, U Shelf PED2702 FOR 15 1/2" PEDESTALS ON WPL 8559421 Contact Us For Availability

8182209 Whirlpool Clip Backorder WPL 8182209 $13.52

WP8181747 Whirlpool Seal Assembly In Stock WPL WP8181747 $18.07

WP8181794 Whirlpool Dispenser Hose In Stock WPL WP8181794 $18.68

Connector, Drain Hose WPL 8181738 Contact Us For Availability

WP8540092 Whirlpool Clamp In Stock WPL WP8540092 $5.99

WPW10003250 Whirlpool Hose In Stock WPL WPW10003250 $33.06

Door Frame Asm — Graphite WPL 8182231 Contact Us For Availability

Door Frame Asm — Black WPL 8182246 Contact Us For Availability

Handle, Drawer (Included With Control Panel) WPL 8181823 Contact Us For Availability

Door Frame Asm — Spa Blue WPL 8182559 Contact Us For Availability

Door Frame Asm — Autumn Pearl WPL 8182560 Contact Us For Availability

Handle, Drawer (Included With Control Panel) WPL 8181675 Contact Us For Availability

Handle, Drawer (Included With Control Panel) WPL 8181824 Contact Us For Availability

Handle, Drawer (Included With Control Panel) WPL 8182586 Contact Us For Availability

Handle, Drawer (Included With Control Panel) WPL 8182587 Contact Us For Availability

Handle, Drawer (Included With Control Panel) WPL 8182588 Contact Us For Availability

W10772607 Whirlpool Outer Tub Backorder WPL W10772607 $274.08

WP8181720 Whirlpool Drawer Assembly Backorder WPL WP8181720 $81.24

Glass, Door WPL 8181655 Contact Us For Availability

Screw, Motor Shield WPL 8181757 Contact Us For Availability

22

WP8182512 Whirlpool Nut Assembly Backorder WPL WP8182512 $4.82

22

Container, Detergent WPL 8181722 Contact Us For Availability

22

Door, Back Support WPL 8182646 Contact Us For Availability

23

WP8182703 Whirlpool Shock Absorber In Stock WPL WP8182703 $31.21

23

Hinge, Door WPL 8181642 Contact Us For Availability

23

Siphon, Bleach/Softener WPL 8181729 Contact Us For Availability

24

W10250558 Whirlpool Bracket Assembly Backorder WPL W10250558 $8.61

24

WP8181660 Whirlpool Screw In Stock WPL WP8181660 $4.99

24

Separator WPL 8181730 Contact Us For Availability

25

WP8540282 Whirlpool Screw Backorder WPL WP8540282 $7.75

25

WPW10426377 Whirlpool Heater Assembly Backorder WPL WPW10426377 $232.20

25

Hook, Drawer WPL 8181721 Contact Us For Availability

26

WPW10005300 Whirlpool Hose In Stock WPL WPW10005300 $12.91

26

WPW10467289 Whirlpool Sensor In Stock WPL WPW10467289 $28.17

26

Cap WPL 8182123 Contact Us For Availability

27

WPY706189 Whirlpool Stove Screw In Stock WPL WPY706189 $4.99

27

Harness, Wiring WPL 8181781 Contact Us For Availability

27

Screw Following Parts Not Illustrated WPL 8182214 Contact Us For Availability

31

8182201 Whirlpool Screw Backorder WPL 8182201 $8.89

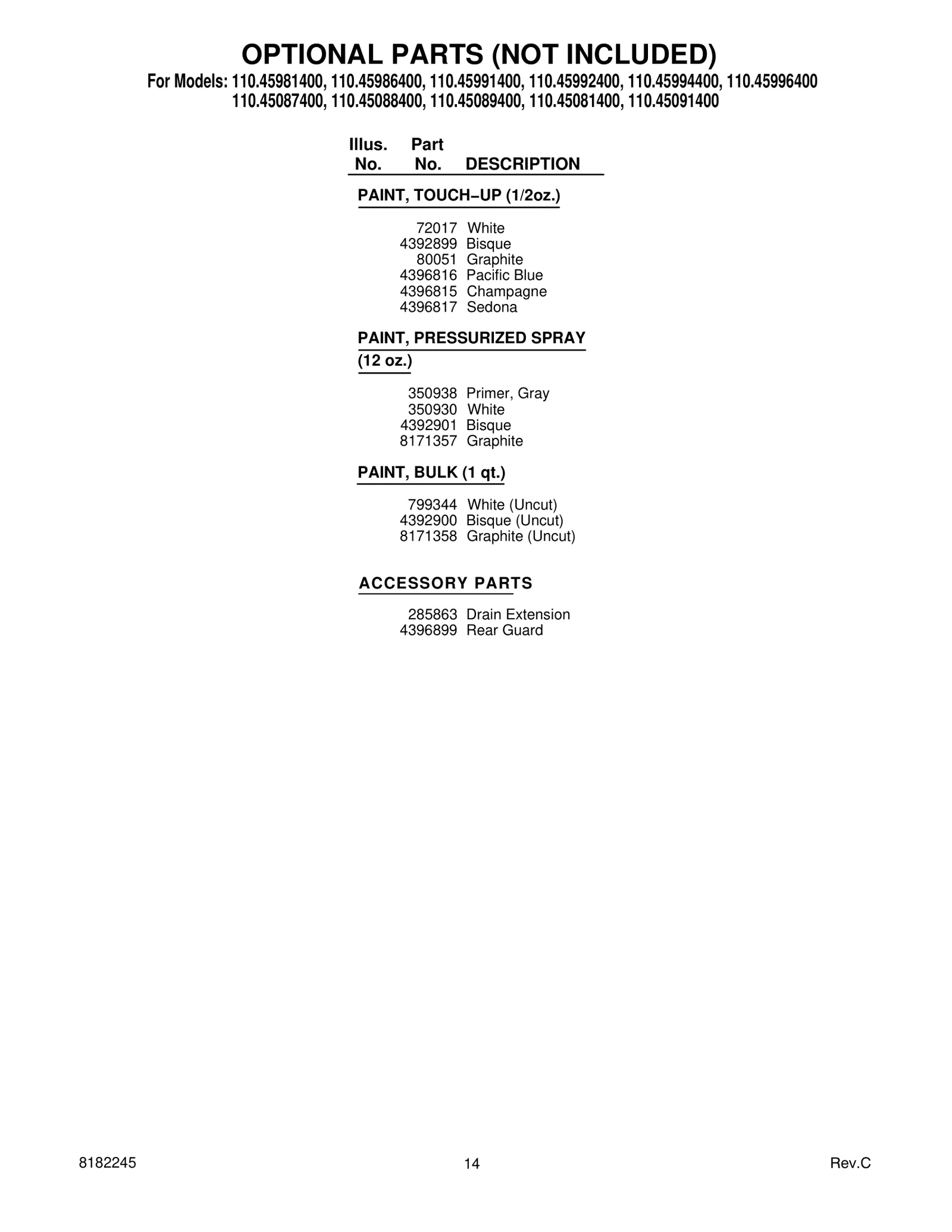

OPT-1

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

OPT-2

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $13.08

OPT-3

Graphite WPL 80051 Contact Us For Availability

OPT-4

4396816 Whirlpool Touch-Up Backorder WPL 4396816 $8.00

OPT-5

Champagne WPL 4396815 Contact Us For Availability

OPT-6

Sedona WPL 4396817 Contact Us For Availability

OPT-7

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

OPT-8

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

OPT-9

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $52.10

OPT-10

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $58.79

OPT-11

White (Uncut) WPL 799344 Contact Us For Availability

OPT-12

Bisque (Uncut) WPL 4392900 Contact Us For Availability

OPT-13

Graphite (Uncut) WPL 8171358 Contact Us For Availability

OPT-14

285863 Whirlpool Drain Hose Extension 4' In Stock WPL 285863 $24.96

OPT-15

Rear Guard WPL 4396899 Contact Us For Availability
