Model Whirlpool 106.9650411 Sears, Roebuck And Co., U.S.A. Refrigerator C 1995 Sears, Roebuck And Co. – Common Parts & Diagrams
COVER

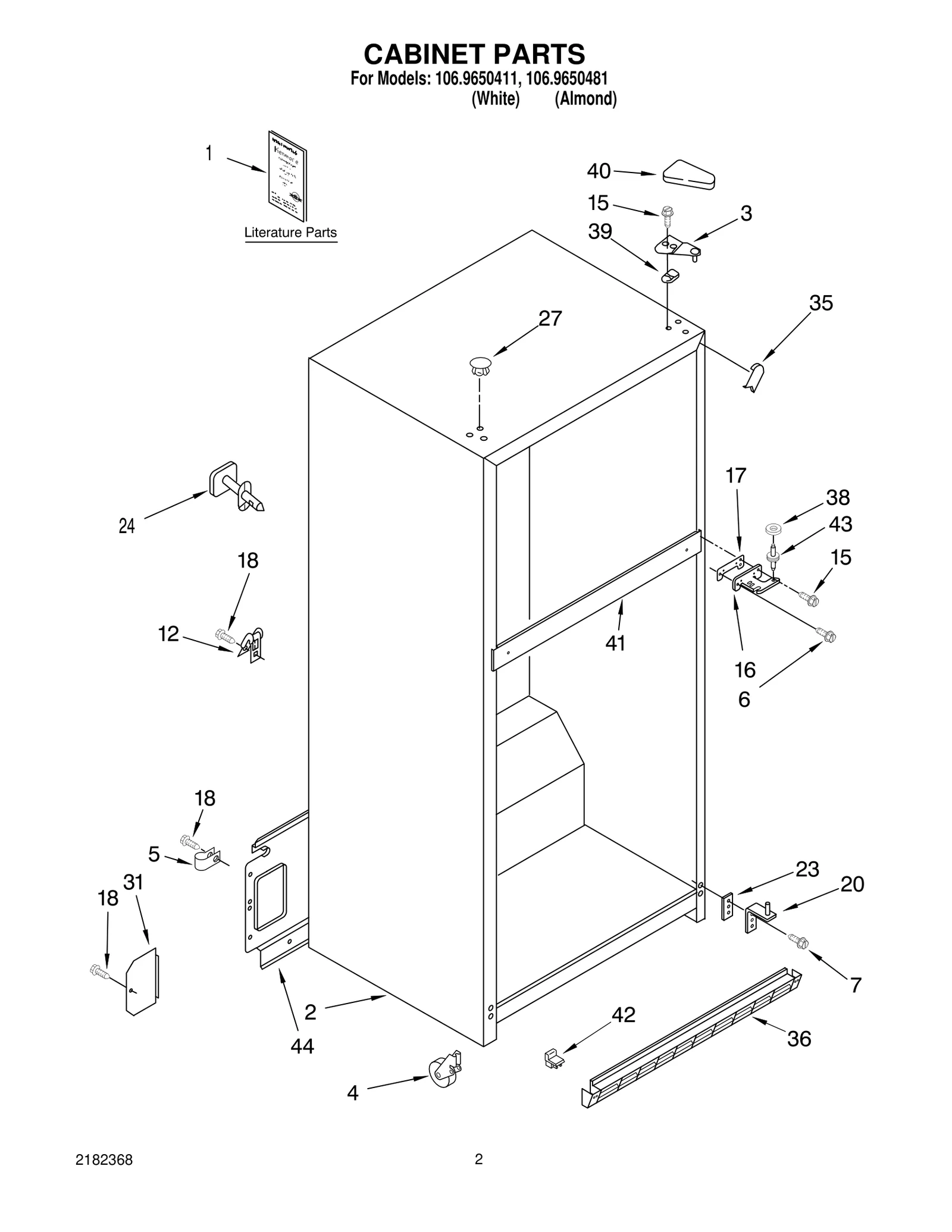

CABINET PARTS

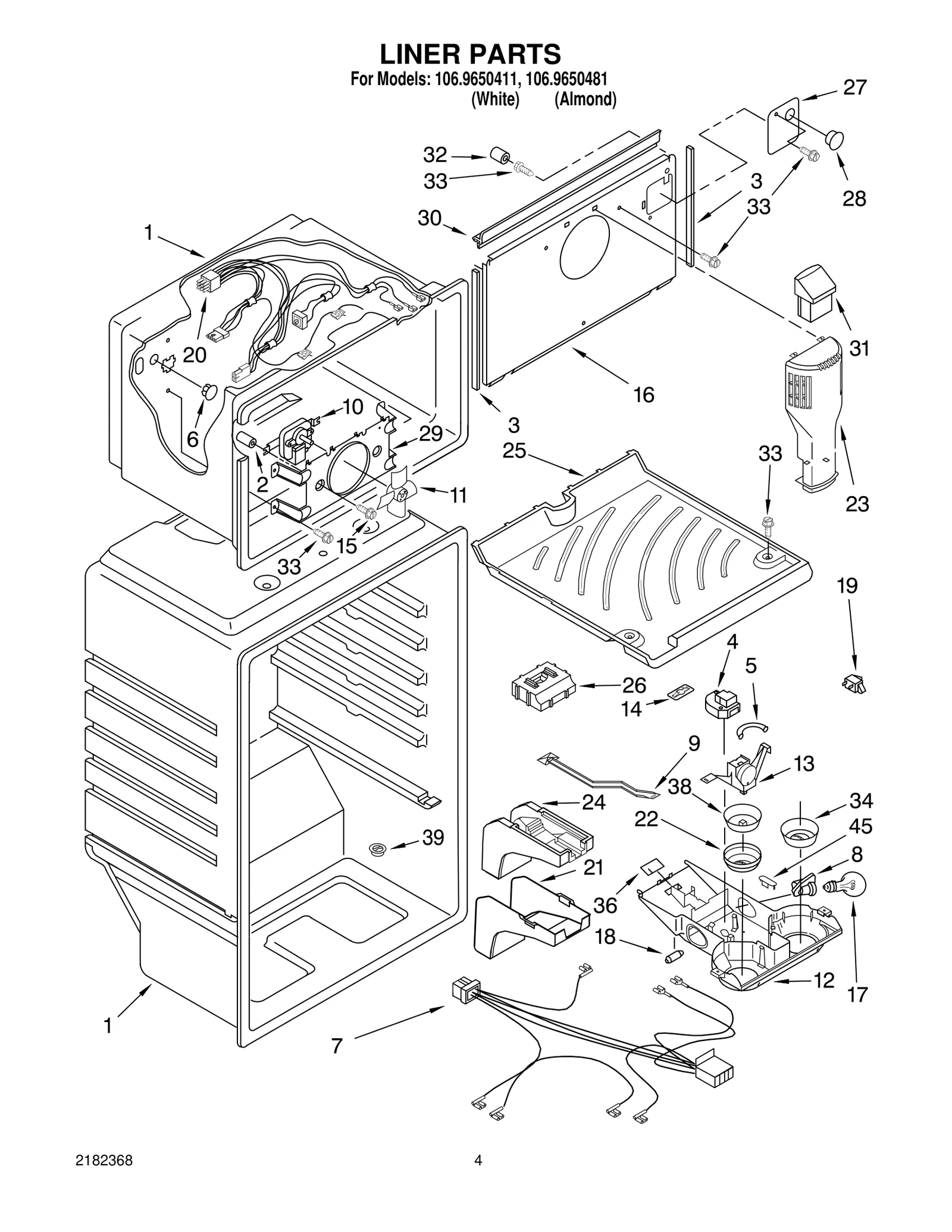

LINER PARTS

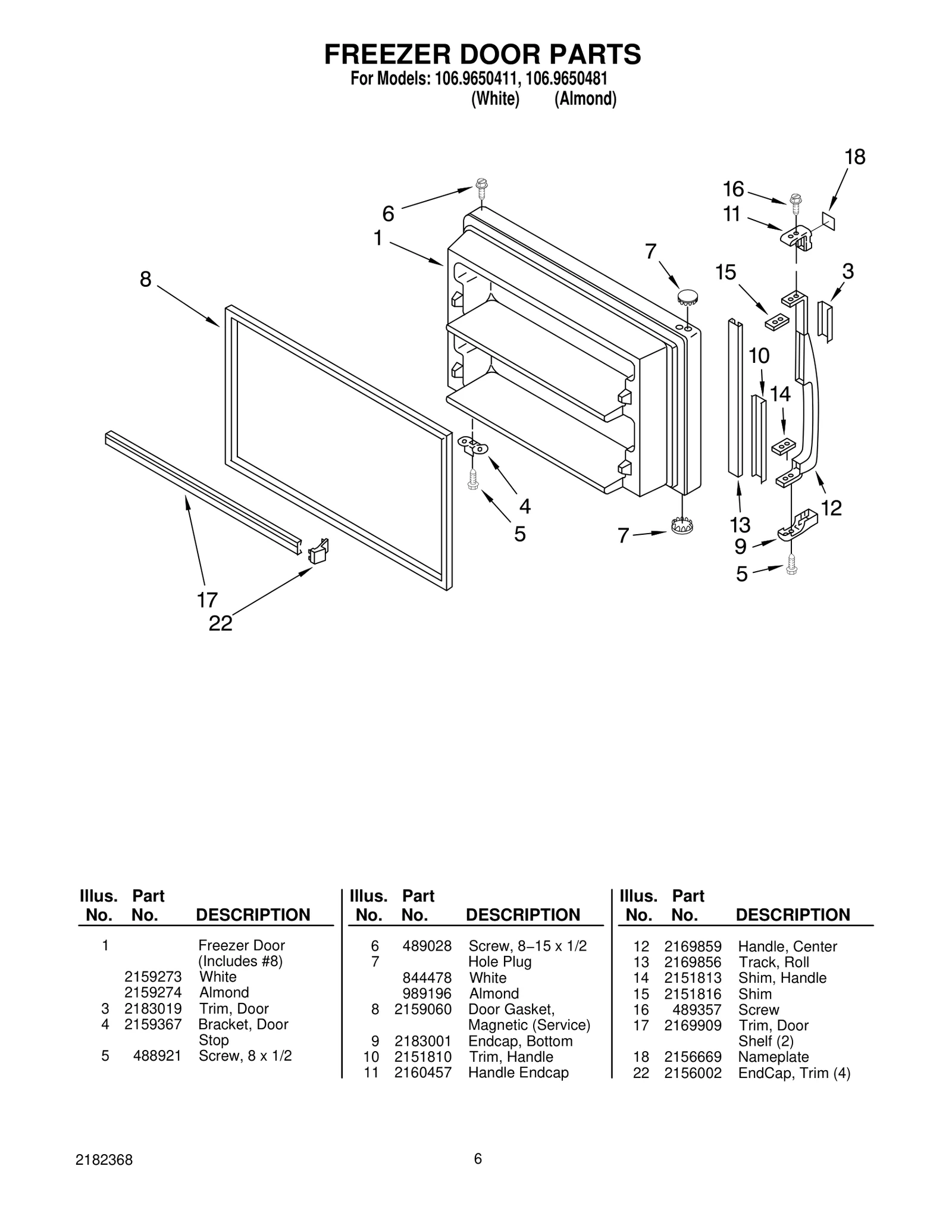

FREEZER DOOR PARTS

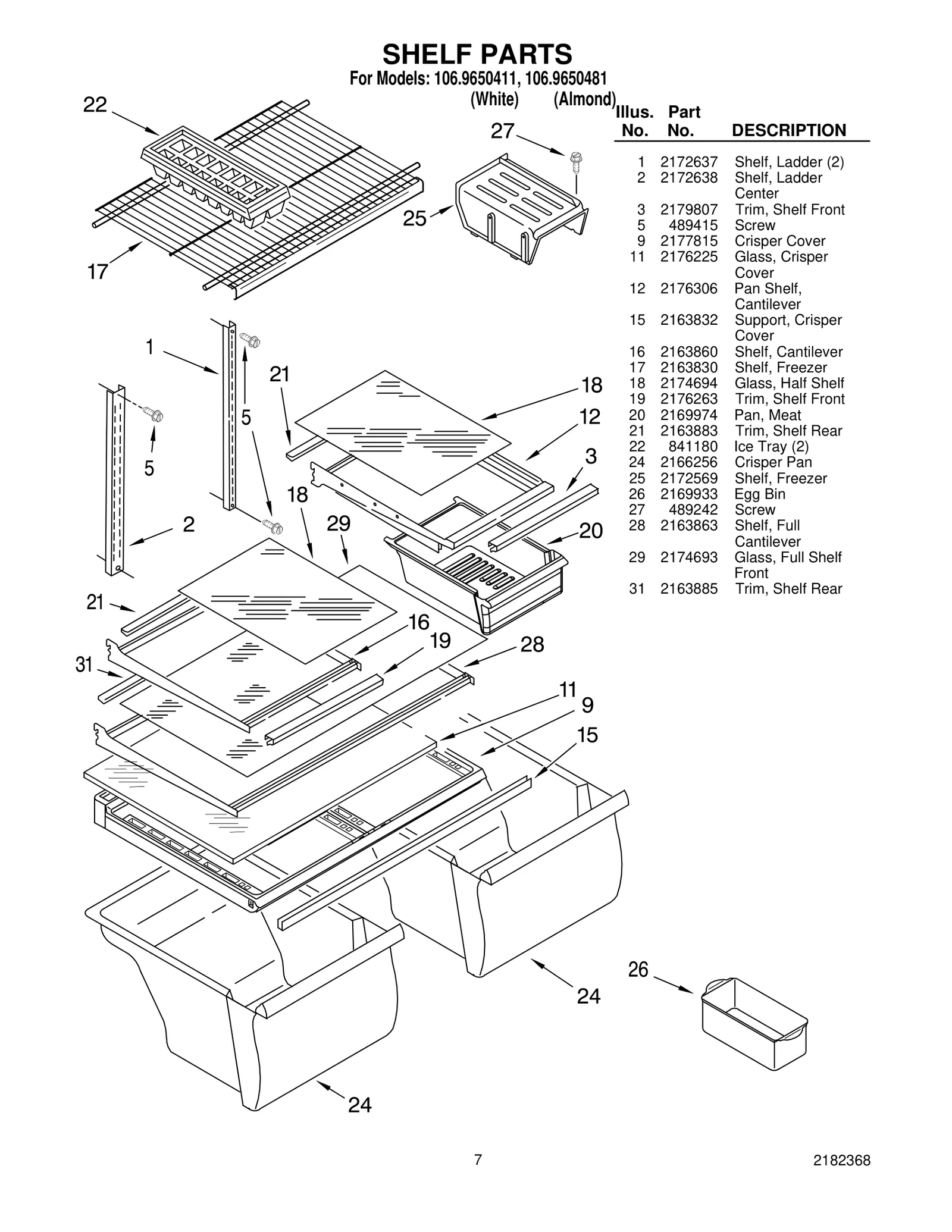

SHELF PARTS

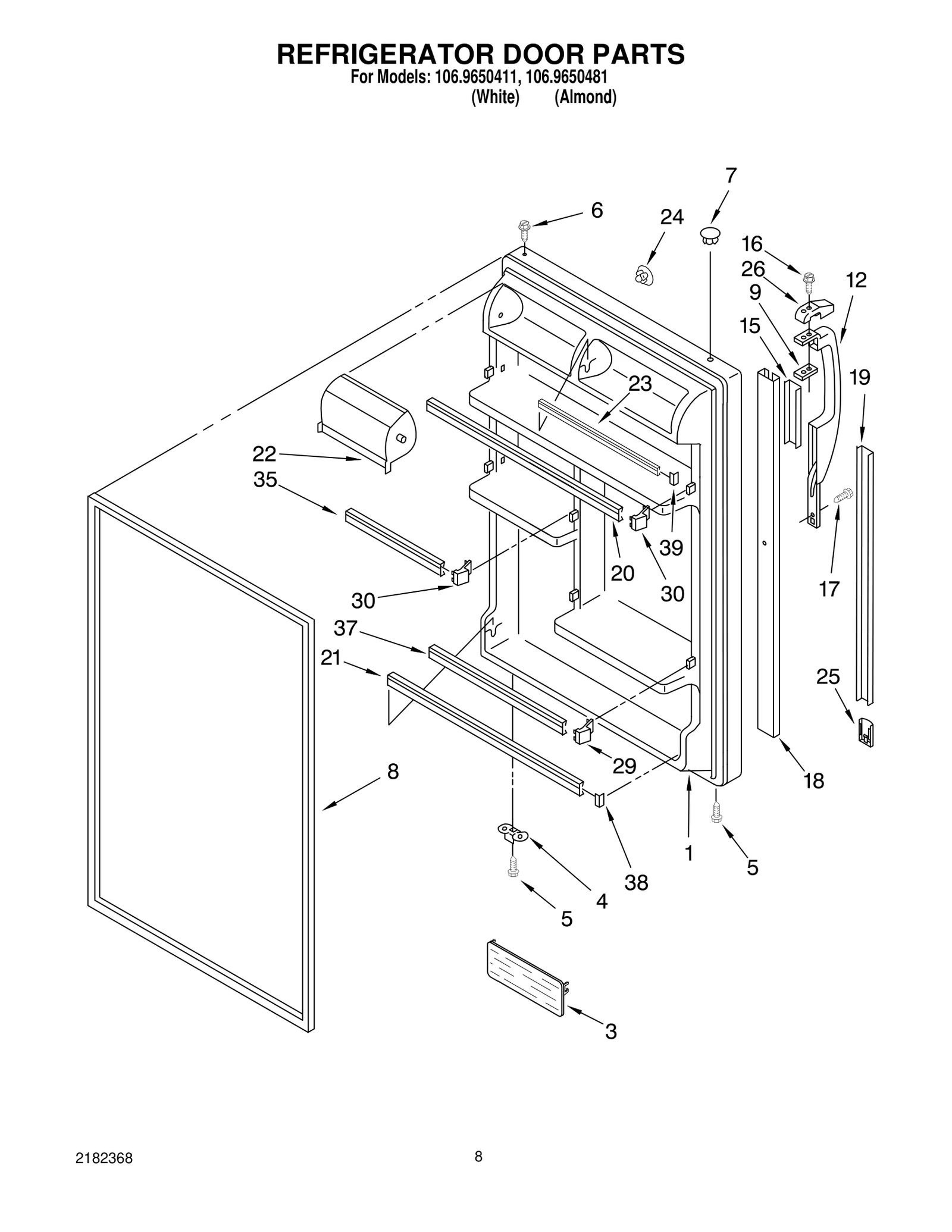

REFRIGERATOR DOOR PARTS

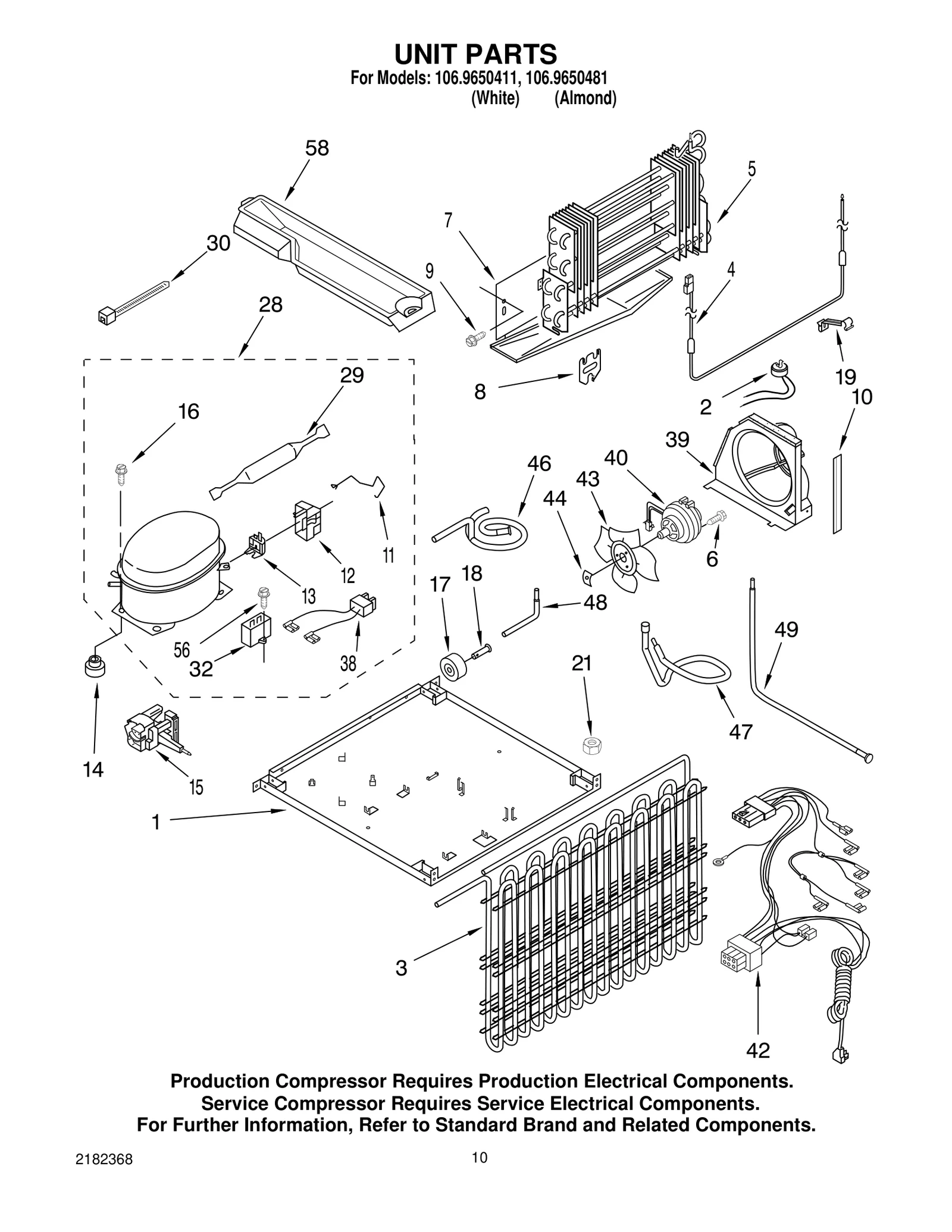

UNIT PARTS

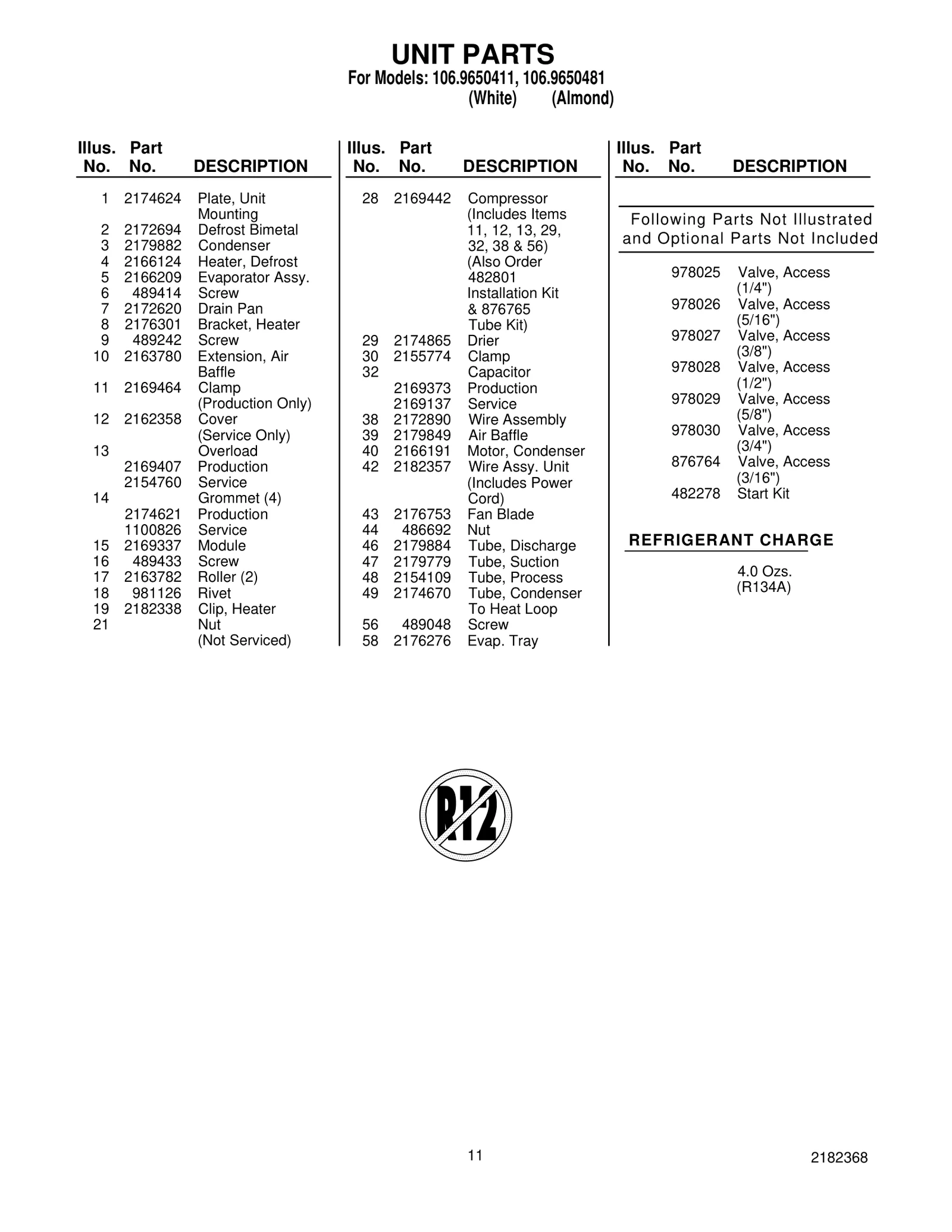

UNIT PARTS

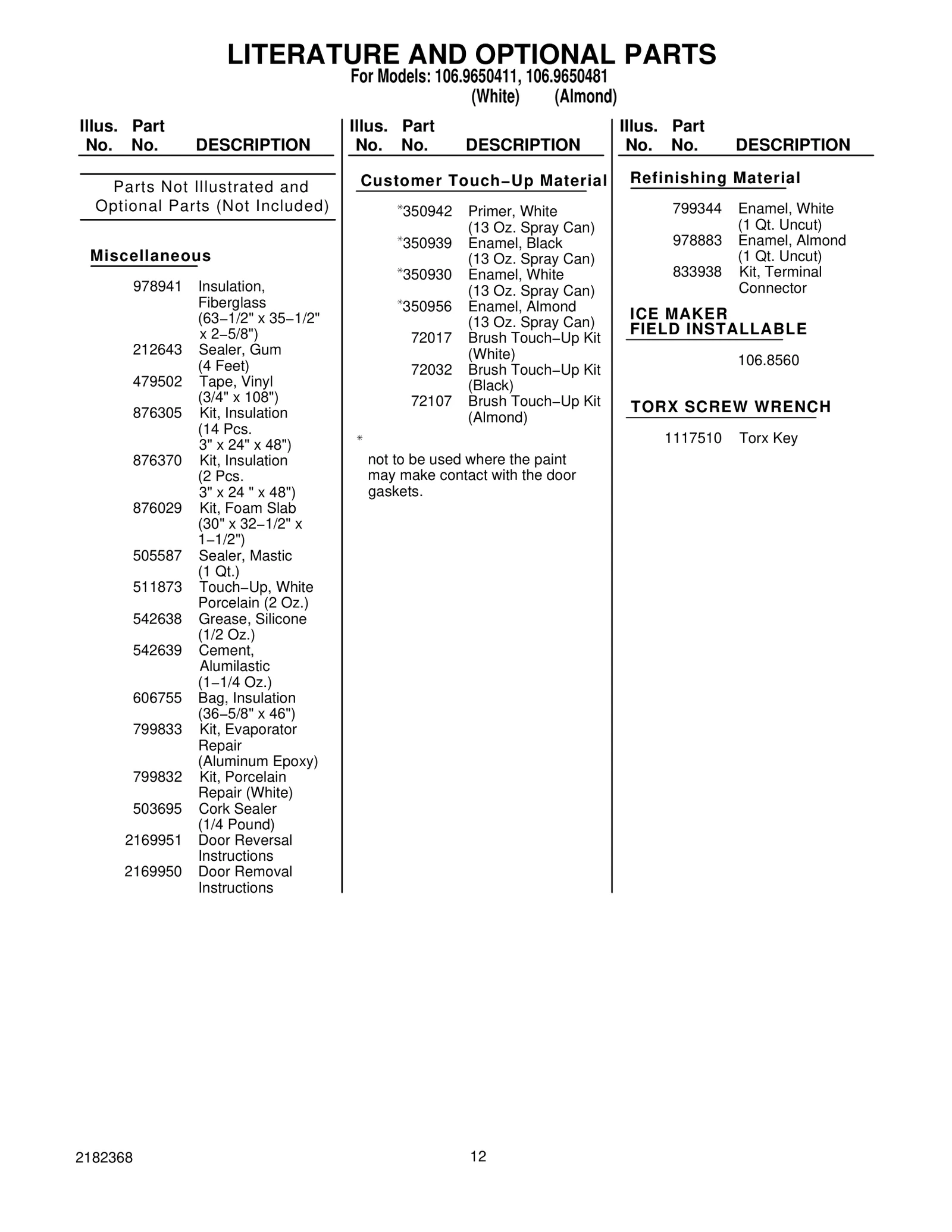

LITERATURE AND OPTIONAL PARTS
Common parts from model Whirlpool 106.9650411 Sears, Roebuck And Co., U.S.A. Refrigerator C 1995 Sears, Roebuck And Co.
1
Freezer Door — White WPL 2159273 Contact Us For Availability
1
Freezer Door — Almond WPL 2159274 Contact Us For Availability
1
Shelf, Ladder (2) WPL 2172637 Contact Us For Availability
1
Refrigerator Door — White WPL 2159276 Contact Us For Availability
1
Refrigerator Door — Almond WPL 2159277 Contact Us For Availability
1
Plate, Unit Mounting WPL 2174624 Contact Us For Availability
2
Shelf, Ladder Center WPL 2172638 Contact Us For Availability
3
Trim, Door WPL 2183019 Contact Us For Availability
3
Trim, Shelf Front WPL 2179807 Contact Us For Availability
3
Condenser WPL 2179882 Contact Us For Availability
4
Bracket, Door Stop WPL 2159367 Contact Us For Availability
5
Evaporator Assy. WPL 2166209 Contact Us For Availability
6
Screw WPL 489414 Contact Us For Availability
7
Hole Plug — Almond WPL 989196 Contact Us For Availability
7
Drain Pan WPL 2172620 Contact Us For Availability
8
Bracket, Heater WPL 2176301 Contact Us For Availability
9
Shim, Handle WPL 2151813 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
11
Handle Endcap WPL 2160457 Contact Us For Availability
11
Clamp WPL 2169464 Contact Us For Availability
12
Handle, Center WPL 2169859 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 2176306 Contact Us For Availability
12
Handle, Center WPL 2169778 Contact Us For Availability
13
Track, Roll WPL 2169856 Contact Us For Availability
13
Overload — Production WPL 2169407 Contact Us For Availability
14
Grommet (4) — Production WPL 2174621 Contact Us For Availability
15
Trim, Handle WPL 2151810 Contact Us For Availability
15
Shim WPL 2151816 Contact Us For Availability
15
Module WPL 2169337 Contact Us For Availability
16
Shelf, Cantilever WPL 2163860 Contact Us For Availability
16
Screw WPL 489433 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2169909 Contact Us For Availability
17
Shelf, Freezer WPL 2163830 Contact Us For Availability
17
Roller (2) WPL 2163782 Contact Us For Availability
18
Glass, Half Shelf WPL 2174694 Contact Us For Availability
18
Nameplate WPL 2156669 Contact Us For Availability
18
Track, Roll Section WPL 2169855 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Trim, Shelf Front WPL 2176263 Contact Us For Availability
19
Trim, Door WPL 2169861 Contact Us For Availability
20
Pan, Meat WPL 2169974 Contact Us For Availability
20
Trim, Door Shelf WPL 2169907 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Trim, Shelf Rear WPL 2163883 Contact Us For Availability
21
Trim, Door Shelf WPL 2169914 Contact Us For Availability
21
Nut WPL N/S Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
24
Hole Plug, Handle — Almond WPL 1122654 Contact Us For Availability
25
Shelf, Freezer WPL 2172569 Contact Us For Availability
25
Endcap, Bottom WPL 2151819 Contact Us For Availability
26
Endcap, Top WPL 2183001 Contact Us For Availability
28
Installation Kit & 876765 Tube Kit) WPL 482801 Contact Us For Availability
28
Shelf, Full Cantilever WPL 2163863 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
29
Glass, Full Shelf Front WPL 2174693 Contact Us For Availability
29
Endcap, Trim (2) WPL 2156001 Contact Us For Availability
31
Trim, Shelf Rear For Models: 106.9650411, 106 WPL 2163885 Contact Us For Availability
32
Capacitor — Service WPL 2169137 Contact Us For Availability
34
Knob, Damper WPL 2174669 Contact Us For Availability
35
Trim, Door Shelf WPL 2169908 Contact Us For Availability
37
Trim−Door Shelf WPL 2169912 Contact Us For Availability
39
Valve, Release WPL 2171846 Contact Us For Availability
39
Air Baffle WPL 2179849 Contact Us For Availability
42
Wire Assy. Unit (Includes Power Cord) WPL 2182357 Contact Us For Availability
43
Fan Blade WPL 2176753 Contact Us For Availability
45
Hole Plug For Models: 106.9650411, 106.965048 WPL 2174667 Contact Us For Availability
46
Tube, Discharge WPL 2179884 Contact Us For Availability
47
Tube, Suction WPL 2179779 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
58
Valve, Access WPL 978029 Contact Us For Availability
58
Evap. Tray Following Parts Not Illustrated an WPL 2176276 Contact Us For Availability
58
Valve, Access WPL 978028 Contact Us For Availability
58
Start Kit REFRIGERANT CHARGE 4.0 Ozs. For Mod WPL 482278 Contact Us For Availability
OPT-3
(4 Feet) WPL 479502 Contact Us For Availability
OPT-6
(2 Pcs. WPL 876029 Contact Us For Availability
OPT-10
(1/2 Oz.) WPL 542639 Contact Us For Availability
OPT-12
(36−5/8" x 46") WPL 799833 Contact Us For Availability
OPT-13
(Aluminum Epoxy) WPL 799832 Contact Us For Availability
OPT-15
(1/4 Pound) WPL 2169951 Contact Us For Availability
OPT-16
Instructions WPL 2169950 Contact Us For Availability
OPT-24
Refinishing Material WPL 799344 Contact Us For Availability
OPT-25
(1 Qt. Uncut) WPL 978883 Contact Us For Availability
OPT-27
TORX SCREW WRENCH WPL 1117510 Contact Us For Availability
× ![]()
