Model Whirlpool 106.78202890 Refrigerator (Kenmore 10678202890) – Common Parts & Diagrams
UNIT

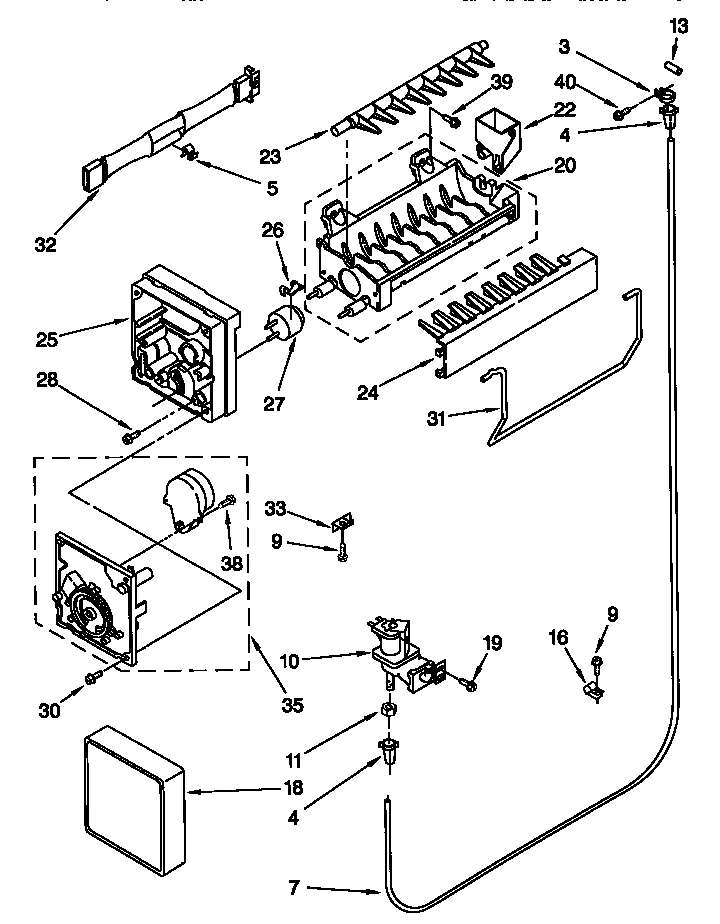

ICEMAKER

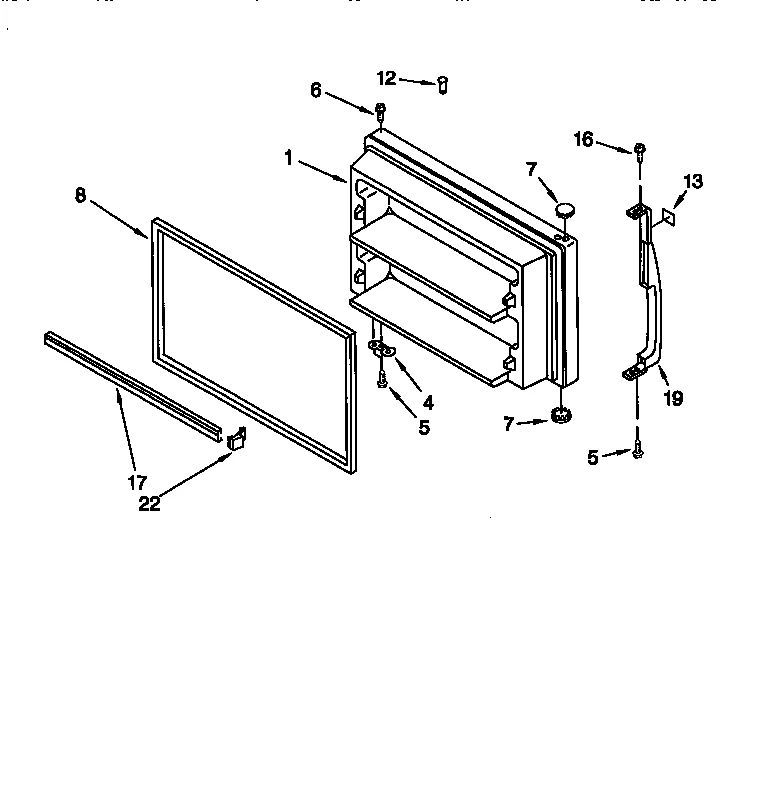

FREEZER DOOR

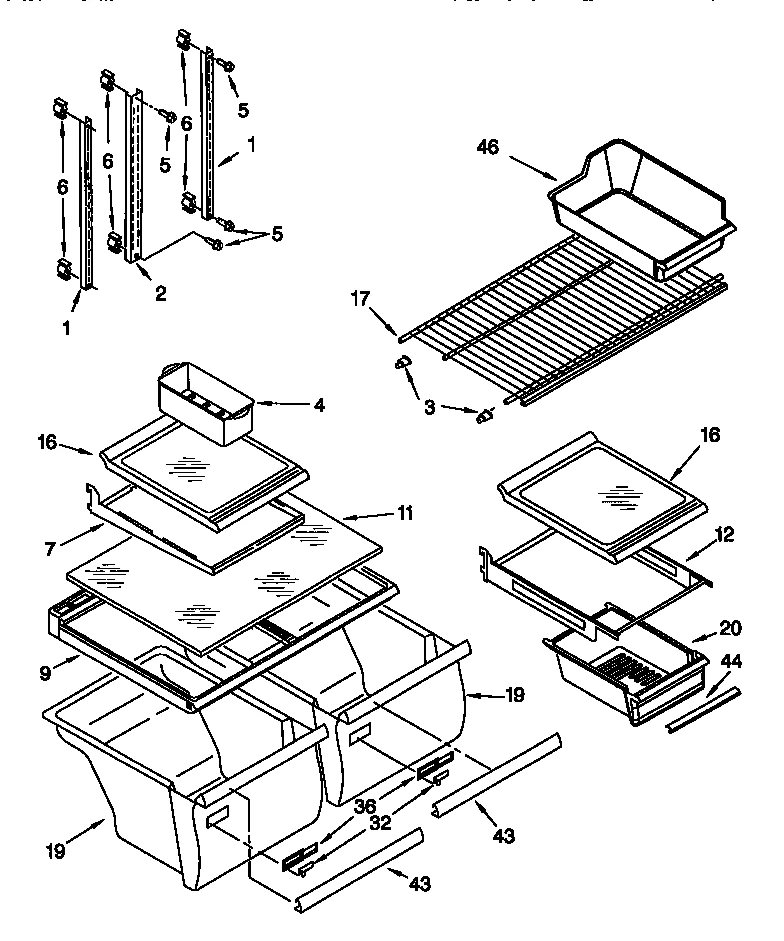

SHELF

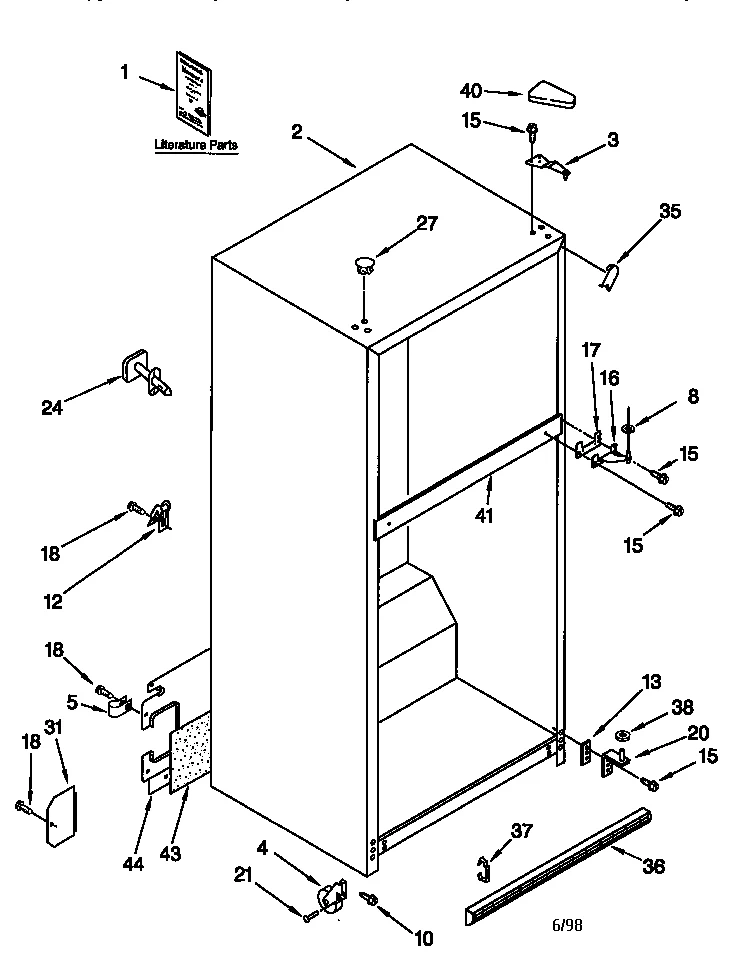

CABINET

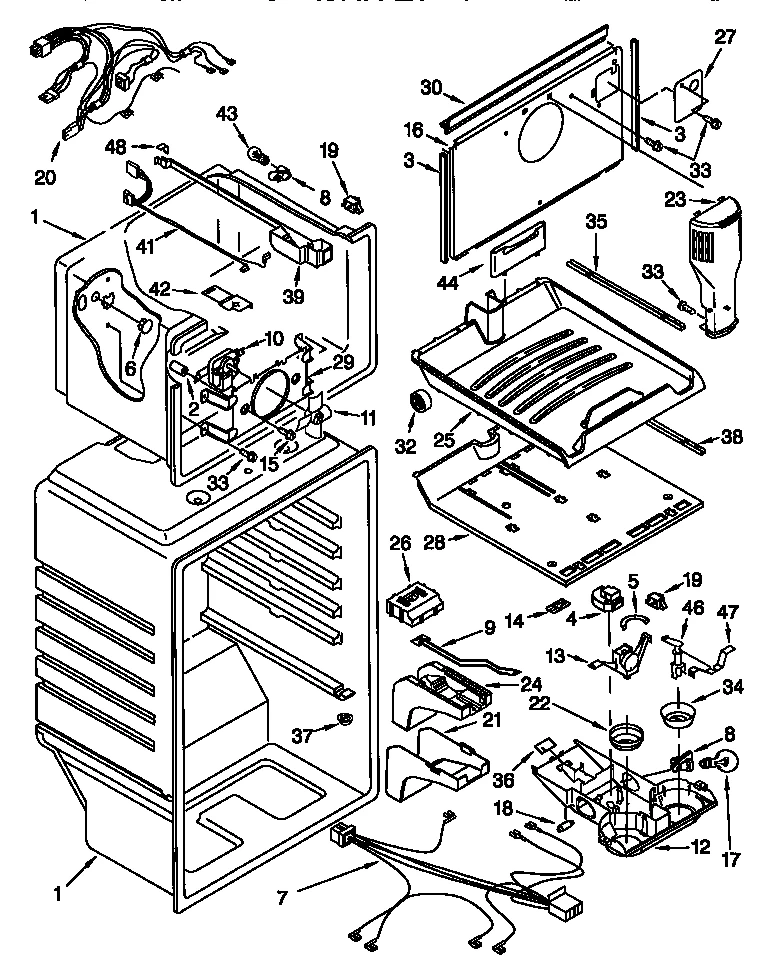

LINER
All Parts

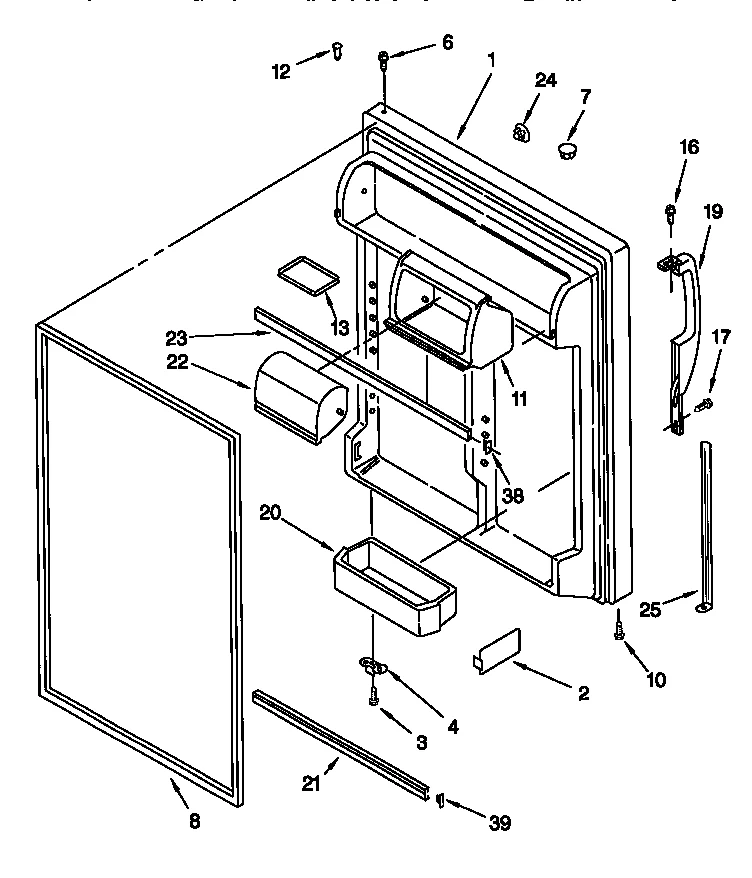

REFRIGERATOR DOOR
Common parts from model Whirlpool 106.78202890 Refrigerator (Kenmore 10678202890)
1
Refrigerator Technical Sheet WPL LIT2195481 Contact Us For Availability
1
FOR FIELD INSTALLABLE ICEMAKER REPAIR PARTS L WPL N/P Contact Us For Availability
1
Refrigerator Door Assembly (White) WPL 2183868 Contact Us For Availability
1A
Refrigerator Energy Guide WPL LIT2200732 Contact Us For Availability
1A
Refrigerator Door Assembly (Almond) WPL 2183869 Contact Us For Availability
1B
Refrigerator Energy Guide WPL LIT2200736 Contact Us For Availability
1B
Refrigerator Door Assembly (Black) WPL 2200615 Contact Us For Availability
1C
Refrigerator Owner's Manual WPL LIT2199013 Contact Us For Availability
1D
Service Sheet WPL LIT628370 Contact Us For Availability
1E
Refrigerator Parts List WPL LIT2200728 Contact Us For Availability
1F
Refrigerator Installation Instructions WPL 2195516 Contact Us For Availability
2
Grommet WPL 531933 Contact Us For Availability
2
Refrigerator Divider WPL 1123293 Contact Us For Availability
4
Refrigerator Defrost Timer WPL 2193084 Contact Us For Availability
6
Refrigerator Support WPL 2189314 Contact Us For Availability
7
Refrigerator Wire Harness WPL 2193493 Contact Us For Availability
7A
Refrigerator Plug (Almond) WPL 989196 Contact Us For Availability
9
Refrigerator Air Damper WPL 2179858 Contact Us For Availability
10
Refrigerator Door Trim Screw WPL 489487 Contact Us For Availability
10
Refrigerator Screw WPL 2174650 Contact Us For Availability
10
Evaporator Motor WPL 2200546 Contact Us For Availability
11
Refrigerator Housing WPL 2156062 Contact Us For Availability
12
Refrigerator Control Box WPL 2179790 Contact Us For Availability
13
Shim WPL 2172743 Contact Us For Availability
13
Refrigerator Inlet Tube WPL 2174755 Contact Us For Availability
13
Refrigerator Door Tray WPL 2195388 Contact Us For Availability
14
Refrigerator Defrost Timer Clip WPL 2176341 Contact Us For Availability
15
Refrigerator Screw WPL 489412 Contact Us For Availability
16
Refrigerator Evaporator Cover WPL 2189833 Contact Us For Availability
17
Refrigerator Freezer Door Shelf Trim WPL 2195947 Contact Us For Availability
18
Thermal Weight WPL 2163802 Contact Us For Availability
19
Refrigerator Defrost Heater Bracket WPL 2182338 Contact Us For Availability
19A
Refrigerator Door Handle WPL 2195248N Contact Us For Availability
19B
Refrigerator Handle WPL 2195248B Contact Us For Availability
20
Refrigerator Wire Harness WPL 2195656 Contact Us For Availability
21
Refrigerator Air Damper Cover WPL 2176281 Contact Us For Availability
22
Refrigerator Butter Door Cover WPL 2218109 Contact Us For Availability
22
Refrigerator Thermostat Knob WPL 2193455 Contact Us For Availability
23
Refrigerator Freezer Air Tower WPL 2182340 Contact Us For Availability
23
Refrigerator Door Shelf Trim WPL 2159306 Contact Us For Availability
24A
Plug-hndle WPL 2189008 Contact Us For Availability
25
Refrigerator Door Trim (White) WPL 2193144W Contact Us For Availability
25
Refrigerator Freezer Floor WPL 2190589 Contact Us For Availability
25A
Refrigerator Extension WPL 2193144N Contact Us For Availability
25B
Refrigerator Extension WPL 2193144B Contact Us For Availability
26
Refrigerator Diffuser WPL 2179877 Contact Us For Availability
27A
Refrigerator Button Plug WPL 2201013 Contact Us For Availability
28
Refrigerator Freezer Floor WPL 2189449 Contact Us For Availability
29
Refrigerator Motor Bracket WPL 2200511 Contact Us For Availability
31
Refrigerator Water Inlet Valve Cover WPL 2166251 Contact Us For Availability
32
Refrigerator Crisper Drawer Humidity Control WPL 2176222 Contact Us For Availability
32
Refrigerator Roller WPL 2176246 Contact Us For Availability
34
Refrigerator Knob Damper WPL 2176297 Contact Us For Availability
35
Refrigerator Support WPL 2179713 Contact Us For Availability
35A
Filler Al WPL 2201015 Contact Us For Availability
36
Refrigerator Grille WPL 2201006 Contact Us For Availability
36A
Refrigerator Grille WPL 2201007 Contact Us For Availability
36B
Refrigerator Grille WPL 2201008 Contact Us For Availability
37
Refrigerator Toe Grille Clip WPL 2189356 Contact Us For Availability
38
Refrigerator Support WPL 2179714 Contact Us For Availability
38
Trim End Cap WPL 2177340 Contact Us For Availability
39
Refrigerator Housing WPL 2184633 Contact Us For Availability
40A
Refrigerator Hinge Cover (Almond) WPL 2160404 Contact Us For Availability
41
Refrigerator Freezer Light Wire Harness WPL 2198892 Contact Us For Availability
42
Insulation WPL 2193491 Contact Us For Availability
43
Refrigerator Condenser Fan WPL 2190685 Contact Us For Availability
43
Refrigerator Insulation WPL 2200778 Contact Us For Availability
44
Refrigerator Fence WPL 2198768 Contact Us For Availability
44
Refrigerator Cover Unit WPL 2200508 Contact Us For Availability
46
Post Damper WPL 2179859 Contact Us For Availability
47
Refrigerator Bracket WPL 2163810 Contact Us For Availability
48
Refrigerator Freezer Door Switch Housing Seal WPL 2166284 Contact Us For Availability
58
Refrigerator Drain Pan WPL 2189433 Contact Us For Availability
100
Kit-int WPL 2200722 Contact Us For Availability
NI
Refrigerator Service Valve WPL 978029 Contact Us For Availability
NI
Foam Slab WPL 876029 Contact Us For Availability
NI
Refrigerator Vinyl Tape WPL 479502 Contact Us For Availability
NI
Appliance Porcelain Touch-Up Paint, 1-qt (Whi WPL 799344 Contact Us For Availability
NI
Start Kit WPL 482278 Contact Us For Availability
NI
Adhesive WPL 542639 Contact Us For Availability
NI
Epoxy WPL 799832 Contact Us For Availability
NI
Epoxy WPL 799833 Contact Us For Availability
NI
Refrigerator Service Valve WPL 978028 Contact Us For Availability
NI
Touch-Up Paint (Almond) WPL 978883 Contact Us For Availability
× ![]()
