Whirlpool 106.77821790 Refrigerator (Kenmore 10677821790) Parts List

1

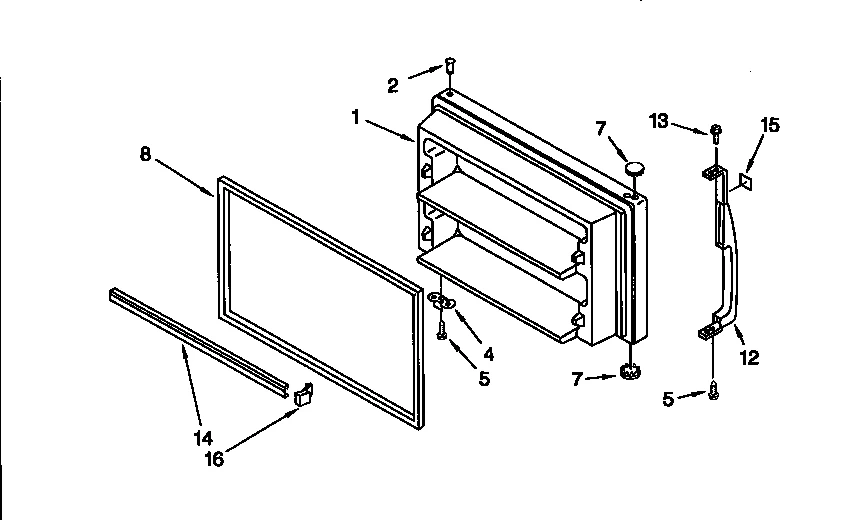

FREEZER DOOR (INCLUDES #2 AND #8), WHITE WPL 2185487 Contact Us For Availability

View on Model

1

Refrigerator Technical Sheet WPL LIT2195481 Contact Us For Availability

View on Model

1

Refrigerator Mounting Plate WPL 2195273 Contact Us For Availability

View on Model

1A

Freezer Door Assembly (Almond) WPL 2182491 Contact Us For Availability

View on Model

1A

Refrigerator Energy Guide WPL LIT2195589 Contact Us For Availability

View on Model

1B

Refrigerator Energy Guide WPL LIT2195590 Contact Us For Availability

View on Model

1C

Refrigerator Owner's Manual WPL LIT2195464 Contact Us For Availability

View on Model

1D

Service Sheet WPL LIT628370 Contact Us For Availability

View on Model

1E

Refrigerator Parts List WPL LIT2195470 Contact Us For Availability

View on Model

2

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $4.53

View on Model

3

WP2189412 Whirlpool Refrigerator Door Hinge Backorder WPL WP2189412 $83.42

View on Model

3

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $7.20

View on Model

3

Refrigerator Condenser WPL 2195400 Contact Us For Availability

View on Model

4

W11745278 Whirlpool Bracket In Stock WPL W11745278 $9.42

View on Model

4

WP2163835 Whirlpool Track Assembly In Stock WPL WP2163835 $14.59

View on Model

4

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $18.65

View on Model

4

WP2315531 Whirlpool Refrigerator Heater In Stock WPL WP2315531 $72.54

View on Model

4

Refrigerator Bracket WPL 944035 Contact Us For Availability

View on Model

5

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $7.20

View on Model

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $4.82

View on Model

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

View on Model

5

Refrigerator Evaporator WPL 2195391 Contact Us For Availability

View on Model

6

WP8281196 Whirlpool Screw Backorder WPL WP8281196 $4.82

View on Model

6

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $5.99

View on Model

6

Refrigerator Door Handle Trim WPL 2193143B Contact Us For Availability

View on Model

6

Refrigerator Screw WPL 489426 Contact Us For Availability

View on Model

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $4.82

View on Model

7

Refrigerator Screw WPL 489459 Contact Us For Availability

View on Model

7

Refrigerator Shield WPL 2172619 Contact Us For Availability

View on Model

7A

Refrigerator Plug (Almond) WPL 989196 Contact Us For Availability

View on Model

8

2159057 Whirlpool Refrigerator Fresh Food Doo In Stock WPL 2159057 $111.95

View on Model

8

2159327 Whirlpool Refrigerator Door Gasket In Stock WPL 2159327 $89.78

View on Model

8

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $26.89

View on Model

8

Refrigerator Screw WPL 2174650 Contact Us For Availability

View on Model

9

Refrigerator Defrost Heater Bracket WPL 2176301 Contact Us For Availability

View on Model

10

Extension WPL 2163780 Contact Us For Availability

View on Model

11

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $45.89

View on Model

11

WP2169921 Whirlpool Refrigerator Glass Shelf Backorder WPL WP2169921 $210.00

View on Model

11

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $7.60

View on Model

11

Refrigerator Retainer WPL 2169464 Contact Us For Availability

View on Model

12

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $8.91

View on Model

12

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $69.36

View on Model

12

Refrigerator Pan Cover WPL 2163848 Contact Us For Availability

View on Model

12

Refrigerator Handle WPL 2195248B Contact Us For Availability

View on Model

12

Refrigerator Door Handle (Black) WPL 2195276B Contact Us For Availability

View on Model

13

WP2149959 Whirlpool Refrigerator Overload Backorder WPL WP2149959 $93.89

View on Model

13

Refrigerator Inlet Tube WPL 2174755 Contact Us For Availability

View on Model

13A

4387913 Whirlpool Refrigerator Primary Overlo In Stock WPL 4387913 $34.39

View on Model

14

W11661108 Whirlpool Grommet Backorder WPL W11661108 $9.12

View on Model

14

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

View on Model

14

Refrigerator Door Trim WPL 2171282 Contact Us For Availability

View on Model

14A

876811 Whirlpool Grommet Backorder WPL 876811 $4.82

View on Model

15

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $4.82

View on Model

15

Refrigerator Insert WPL 2193145B Contact Us For Availability

View on Model

16

WP2195916K Whirlpool End Cap In Stock WPL WP2195916K $8.58

View on Model

16

WP489357 Whirlpool Recessed Screw In Stock WPL WP489357 $5.30

View on Model

16

SCREW WPL 489473 Contact Us For Availability

View on Model

17

4388239 Whirlpool Refrigerator Primary Cabine Backorder WPL 4388239 $48.16

View on Model

17

WP2176275 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2176275 $92.46

View on Model

17

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $5.30

View on Model

17

Refrigerator Shim WPL 2163757 Contact Us For Availability

View on Model

18

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $6.49

View on Model

18

W11594405 Whirlpool Axle In Stock WPL W11594405 $9.85

View on Model

19

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $23.68

View on Model

19

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

View on Model

19

Refrigerator Defrost Heater Bracket WPL 2182338 Contact Us For Availability

View on Model

20

Refrigerator Door Trim WPL 2195365 Contact Us For Availability

View on Model

20

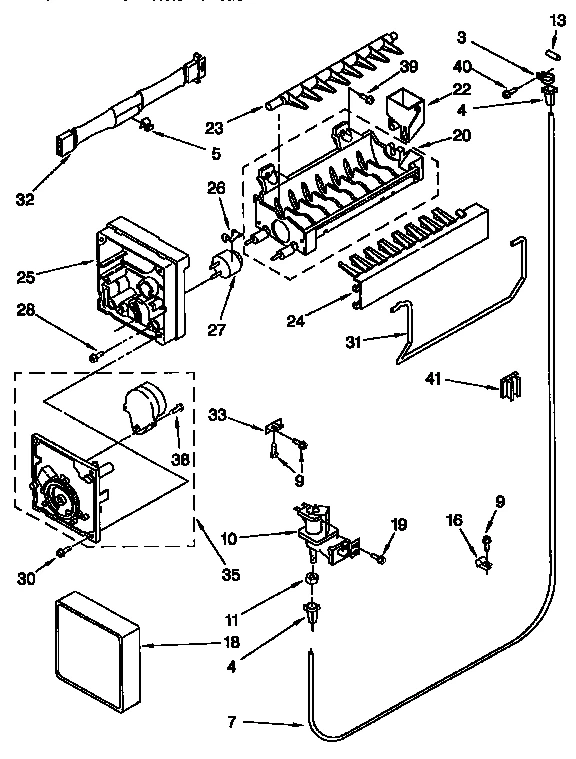

FOR FIELD INSTALLABLE ICEMAKER REPAIR PARTS L WPL N/P Contact Us For Availability

View on Model

20

Refrigerator Door Hinge WPL 2179829 Contact Us For Availability

View on Model

21

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $19.90

View on Model

21

Refrigerator Air Damper Cover WPL 2176281 Contact Us For Availability

View on Model

21

Refrigerator Door Trim WPL 2193216 Contact Us For Availability

View on Model

22

WP2218113 Whirlpool Dairy Door In Stock WPL WP2218113 $42.95

View on Model

22

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

View on Model

22

Refrigerator Support Evaporator WPL 2176302 Contact Us For Availability

View on Model

23

WP2201061 Whirlpool Refrigerator Door Trim In Stock WPL WP2201061 $51.27

View on Model

23

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $63.89

View on Model

23

Refrigerator Freezer Air Tower WPL 2182340 Contact Us For Availability

View on Model

23

Refrigerator Shim WPL 2172745 Contact Us For Availability

View on Model

24

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $59.60

View on Model

24

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $4.82

View on Model

24A

Plug-hndle WPL 2189008 Contact Us For Availability

View on Model

27

WP2151652 Whirlpool Refrigerator Button Plug In Stock WPL WP2151652 $14.52

View on Model

27A

Refrigerator Button Plug (Almond) WPL 2151653 Contact Us For Availability

View on Model

28

W10823815 Whirlpool Refrigerator Compressor In Stock WPL W10823815 $294.95

View on Model

29

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $29.43

View on Model

30

WP2195915 Whirlpool Door Shelf Support In Stock WPL WP2195915 $9.99

View on Model

30

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

View on Model

31

WP627792 Whirlpool Refrigerator Shut Off Arm In Stock WPL WP627792 $61.68

View on Model

31

Refrigerator Water Inlet Valve Cover WPL 2166251 Contact Us For Availability

View on Model

32

Refrigerator Run Capacitor WPL 2169137 Contact Us For Availability

View on Model

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $22.41

View on Model

35

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $5.99

View on Model

35

Refrigerator Door Trim WPL 2195366 Contact Us For Availability

View on Model

35A

Filler Al WPL 2166187 Contact Us For Availability

View on Model

36

Refrigerator Grille WPL 2189158 Contact Us For Availability

View on Model

36A

Refrigerator Grille WPL 2189157 Contact Us For Availability

View on Model

37

WP2195943 Whirlpool Shelf Retainer Bar Backorder WPL WP2195943 $62.10

View on Model

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

View on Model

38

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $7.04

View on Model

38

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $4.82

View on Model

38

WP487576 Whirlpool Washer In Stock WPL WP487576 $7.54

View on Model

39

WP2156007 Whirlpool Refrigerator Endcap Trim In Stock WPL WP2156007 $4.08

View on Model

39

Refrigerator Shim WPL 1123517 Contact Us For Availability

View on Model

39

Refrigerator Air Baffle WPL 2195287 Contact Us For Availability

View on Model

40

W10822259 Whirlpool Refrigerator Condenser Fa In Stock WPL W10822259 $142.80

View on Model

40

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $12.19

View on Model

40A

Refrigerator Hinge Cover (Almond) WPL 2160404 Contact Us For Availability

View on Model

42

Refrigerator Filler WPL 2166204 Contact Us For Availability

View on Model

42

Refrigerator Wire Harness WPL 2184584 Contact Us For Availability

View on Model

42A

Corner Filter WPL 2166156 Contact Us For Availability

View on Model

43

WP2254618 Whirlpool Center Door Hinge In Stock WPL WP2254618 $27.11

View on Model

43

Refrigerator Condenser Fan WPL 2190685 Contact Us For Availability

View on Model

44

COVER-UNIT Backorder WPL 2254582 $92.35

View on Model

44

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

View on Model

46

Refrigerator Tube WPL 2179722 Contact Us For Availability

View on Model

47

Refrigerator Tube WPL 2184550 Contact Us For Availability

View on Model

48

W10528578 Whirlpool Refrigerator Tube Backorder WPL W10528578 $25.40

View on Model

49

Refrigerator Tube WPL 2174670 Contact Us For Availability

View on Model

56

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

View on Model

58

Refrigerator Evaporator Tray WPL 2163795 Contact Us For Availability

View on Model

99

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $108.21

View on Model

NI

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $34.42

View on Model

NI

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

View on Model

NI

350942 Whirlpool Spray Paint Backorder WPL 350942 $64.04

View on Model

NI

350956 Whirlpool Spray Assembly In Stock WPL 350956 $26.25

View on Model

NI

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

View on Model

NI

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $56.74

View on Model

NI

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

View on Model

NI

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $12.67

View on Model

NI

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

View on Model

NI

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $29.55

View on Model

NI

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

View on Model

NI

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $87.85

View on Model

NI

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $92.18

View on Model

NI

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $80.29

View on Model

NI

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $119.63

View on Model

NI

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $39.72

View on Model

NI

WP72107 Whirlpool Touchup In Stock WPL WP72107 $10.96

View on Model

NI

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

View on Model

NI

Refrigerator Service Valve WPL 978029 Contact Us For Availability

View on Model

NI

Foam Slab WPL 876029 Contact Us For Availability

View on Model

NI

Refrigerator Vinyl Tape WPL 479502 Contact Us For Availability

View on Model

NI

Appliance Porcelain Touch-Up Paint, 1-qt (Whi WPL 799344 Contact Us For Availability

View on Model

NI

Refrigerator Ice Maker Torx Key Wrench WPL 1117510 Contact Us For Availability

View on Model

Model Whirlpool 106.77821790 Refrigerator (Kenmore 10677821790) – Common Parts & Diagrams

Common parts from model Whirlpool 106.77821790 Refrigerator (Kenmore 10677821790)

Search result for :

Help

Customer Service

Company

Model Whirlpool 106.77821790 Refrigerator (Kenmore 10677821790) – Common Parts & Diagrams

Common parts from model Whirlpool 106.77821790 Refrigerator (Kenmore 10677821790)

Search result for :

Be the First to Know

Help

Customer Service

Company
