Whirlpool 106.73289301 Refrigerator Parts List

1

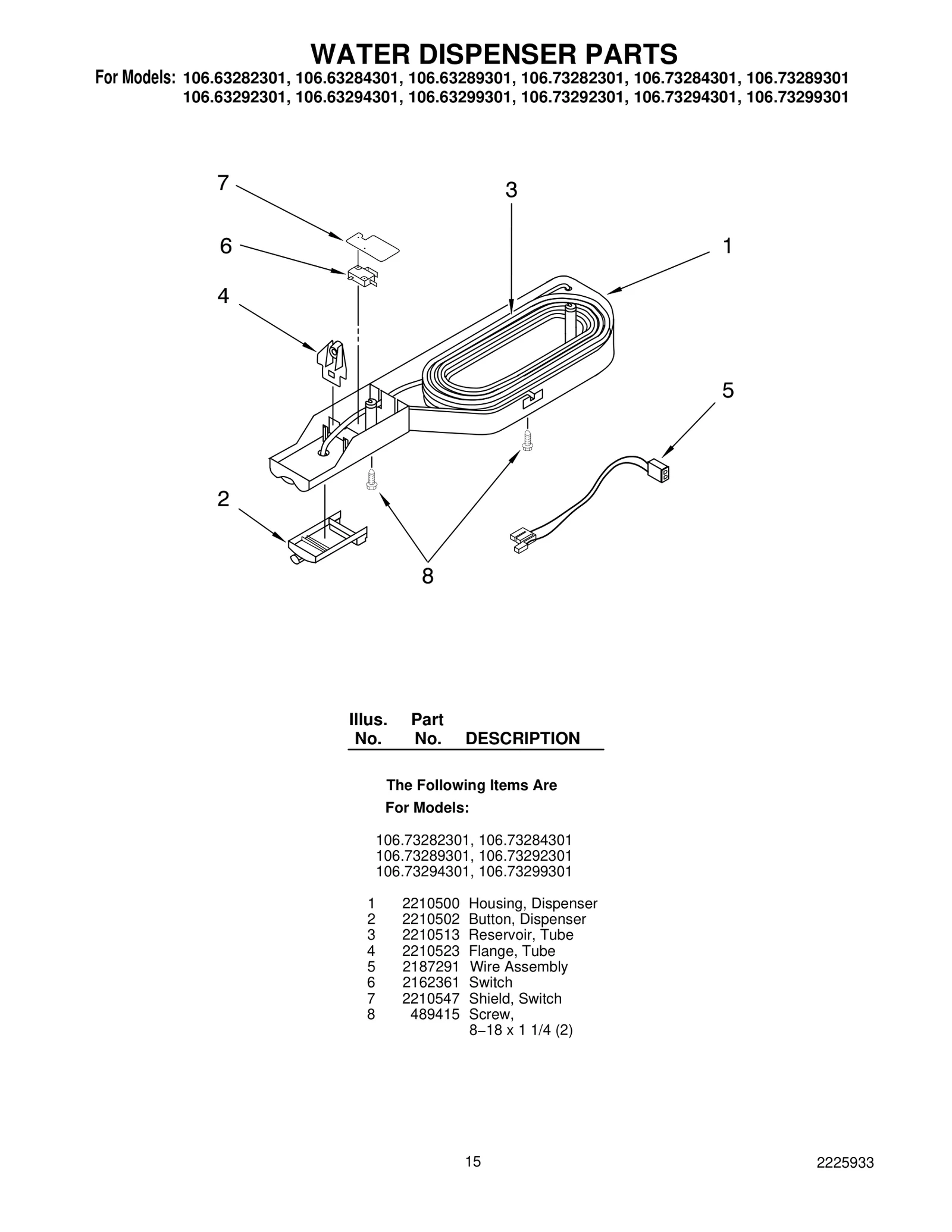

Housing, Dispenser WPL 2210500 Contact Us For Availability

View on Model

1

For Field Installable Icemaker Repair Parts L WPL N/S Contact Us For Availability

View on Model

1

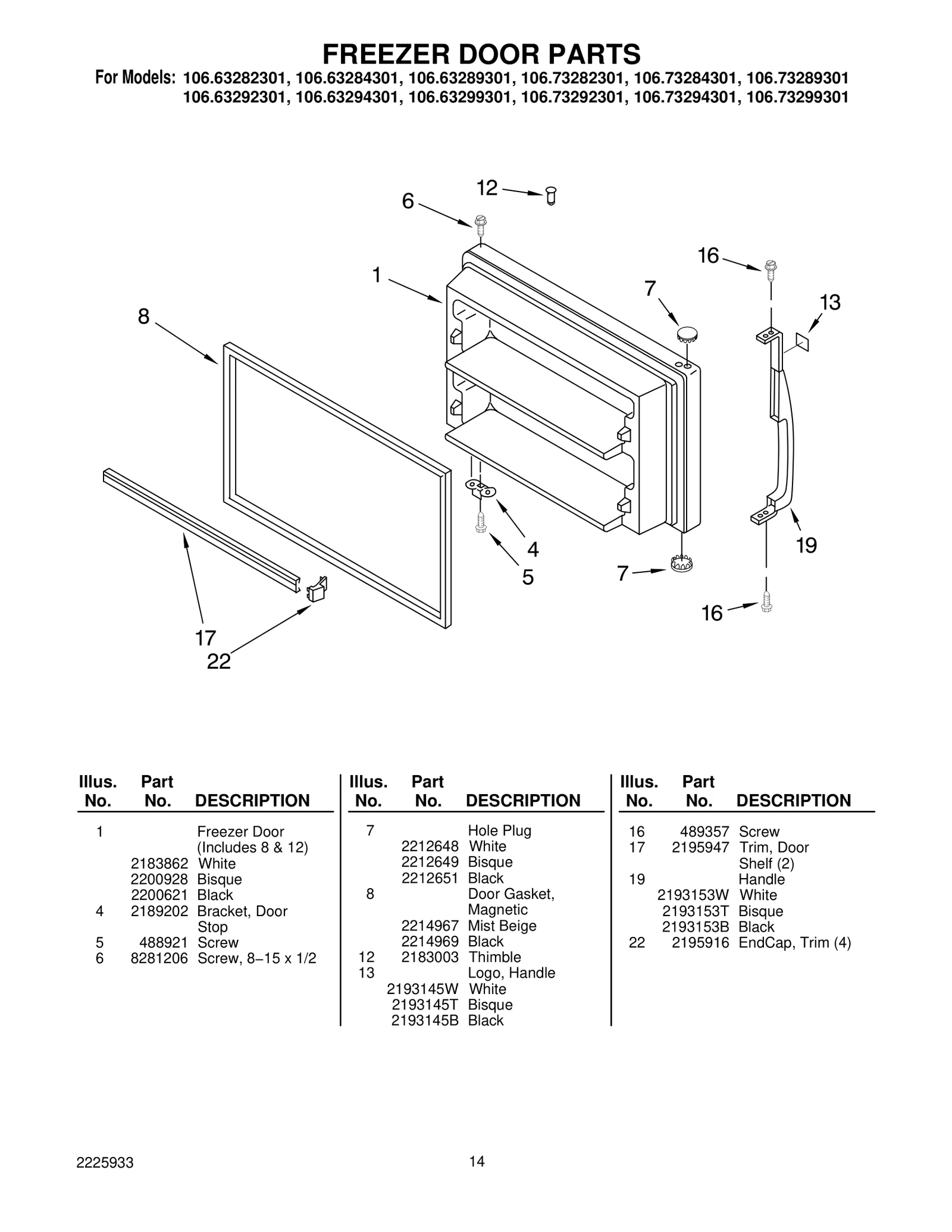

Freezer Door — White WPL 2183862 Contact Us For Availability

View on Model

1

Freezer Door — Bisque WPL 2200928 Contact Us For Availability

View on Model

1

Freezer Door — Black WPL 2200621 Contact Us For Availability

View on Model

2

Button, Dispenser WPL 2210502 Contact Us For Availability

View on Model

3

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $6.49

View on Model

3

WP2254360 Whirlpool Refrigerator Gasket Backorder WPL WP2254360 $16.47

View on Model

3

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $7.20

View on Model

3

Condenser WPL 2214960 Contact Us For Availability

View on Model

3

Reservoir, Tube WPL 2210513 Contact Us For Availability

View on Model

4

4387491 Whirlpool Refrigerator Insert In Stock WPL 4387491 $5.99

View on Model

4

W11745278 Whirlpool Bracket In Stock WPL W11745278 $9.42

View on Model

4

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $18.65

View on Model

4

Flange, Tube WPL 2210523 Contact Us For Availability

View on Model

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $4.82

View on Model

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

View on Model

5

Evaporator Assy. WPL 2254249 Contact Us For Availability

View on Model

5

Wire Assembly WPL 2187291 Contact Us For Availability

View on Model

6

8281197 Whirlpool Refrigerator Screw Backorder WPL 8281197 $5.51

View on Model

6

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $13.13

View on Model

6

WP8281206 Whirlpool Refrigerator Screw Backorder WPL WP8281206 $4.82

View on Model

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $17.24

View on Model

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $4.82

View on Model

7

WP2212649 Whirlpool Refrigerator Button Plug Backorder WPL WP2212649 $4.82

View on Model

7

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $14.62

View on Model

7

Drain Pan WPL 2254295 Contact Us For Availability

View on Model

7

Wire Assembly, Control Box WPL 2187352 Contact Us For Availability

View on Model

7

Shield, Switch WPL 2210547 Contact Us For Availability

View on Model

8

2159060 Whirlpool Refrigerator Gasket In Stock WPL 2159060 $151.99

View on Model

8

2177310 Whirlpool Refrigerator Door Gasket In Stock WPL 2177310 $143.75

View on Model

8

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $8.89

View on Model

8

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $6.83

View on Model

10

WP2188785 Whirlpool Water Inlet Valve Backorder WPL WP2188785 $179.86

View on Model

10

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $4.82

View on Model

10

Screw, Shoulder WPL 489487 Contact Us For Availability

View on Model

11

4387913 Whirlpool Refrigerator Primary Overlo In Stock WPL 4387913 $34.39

View on Model

11

WP2176225 Whirlpool Glass Shelf Backorder WPL WP2176225 $214.54

View on Model

12

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $69.36

View on Model

12

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $4.53

View on Model

12

WPW10498990 Whirlpool Refrigerator Inlet Valv In Stock WPL WPW10498990 $101.30

View on Model

13

Shim WPL 2172743 Contact Us For Availability

View on Model

13

Start−Device, Combination (Start Relay and WPL 2255968 Contact Us For Availability

View on Model

13

Logo, Handle — White WPL 2193145W Contact Us For Availability

View on Model

13

Logo, Handle — Bisque WPL 2193145T Contact Us For Availability

View on Model

13

Logo, Handle — Black WPL 2193145B Contact Us For Availability

View on Model

14

876811 Whirlpool Grommet Backorder WPL 876811 $4.82

View on Model

14

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $4.82

View on Model

15

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $14.29

View on Model

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.10

View on Model

16

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $7.20

View on Model

16

WP489357 Whirlpool Recessed Screw In Stock WPL WP489357 $5.30

View on Model

16

Clip, Retaining WPL 2255199 Contact Us For Availability

View on Model

17

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $6.78

View on Model

17

WP8281146 Whirlpool Screw Backorder WPL WP8281146 $4.82

View on Model

17

WPW10475495 Whirlpool Roller Assembly In Stock WPL WPW10475495 $11.13

View on Model

17

Trim, Door Shelf (2) WPL 2195947 Contact Us For Availability

View on Model

18

Clamp Tube WPL 2210315 Contact Us For Availability

View on Model

19

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $23.68

View on Model

19

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

View on Model

19

Clip, Heater WPL 2182338 Contact Us For Availability

View on Model

19

Handle — White WPL 2193153W Contact Us For Availability

View on Model

19

Handle — Bisque WPL 2193153T Contact Us For Availability

View on Model

19

Handle — Black WPL 2193153B Contact Us For Availability

View on Model

20

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $187.20

View on Model

21

W11594405 Whirlpool Axle In Stock WPL W11594405 $9.85

View on Model

21

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

View on Model

22

WP2195916K Whirlpool End Cap In Stock WPL WP2195916K $8.58

View on Model

22

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

View on Model

22

Door Compartment WPL 2218109 Contact Us For Availability

View on Model

22

Support Block WPL 2201185 Contact Us For Availability

View on Model

23

WP2254354 Whirlpool Refrigerator Air Tower Backorder WPL WP2254354 $76.11

View on Model

23

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $63.89

View on Model

23

Trim, Door Shelf WPL 2159306 Contact Us For Availability

View on Model

23

Grommet WPL 531933 Contact Us For Availability

View on Model

24

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $59.60

View on Model

24

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $4.82

View on Model

24

WP2189009 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189009 $4.55

View on Model

24

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $87.86

View on Model

24

Insulation WPL 2214857 Contact Us For Availability

View on Model

25

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $73.20

View on Model

25

Trim Handle — White WPL 2193144W Contact Us For Availability

View on Model

26

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $6.88

View on Model

26

Air Diffuser, Top WPL 2204690 Contact Us For Availability

View on Model

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $52.34

View on Model

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

View on Model

28

W10309989 Whirlpool Refrigerator Compressor In Stock WPL W10309989 $345.45

View on Model

29

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $29.43

View on Model

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.46

View on Model

30

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

View on Model

30

Bracket Evap. Fan, Front WPL 2214979 Contact Us For Availability

View on Model

31

WP2184574 Whirlpool Refrigerator Gear Wheel Backorder WPL WP2184574 $48.18

View on Model

31

WP627792 Whirlpool Refrigerator Shut Off Arm In Stock WPL WP627792 $61.68

View on Model

32

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $95.20

View on Model

32

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $45.27

View on Model

32

Slide, Crisper WPL 2176222 Contact Us For Availability

View on Model

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $22.41

View on Model

33

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

View on Model

35

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $62.13

View on Model

35

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $5.99

View on Model

35

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $5.99

View on Model

36

WP2212446 Whirlpool Refrigerator Control Body In Stock WPL WP2212446 $46.03

View on Model

36

Grille — White WPL 2254313 Contact Us For Availability

View on Model

36

Grille — Bisque WPL 2254316 Contact Us For Availability

View on Model

37

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $66.62

View on Model

37

WP8281196 Whirlpool Screw Backorder WPL WP8281196 $4.82

View on Model

37

Clip, Grille WPL 2189356 Contact Us For Availability

View on Model

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

View on Model

38

WP487576 Whirlpool Washer In Stock WPL WP487576 $7.54

View on Model

39

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $7.04

View on Model

39

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $4.82

View on Model

39

Air Baffle WPL 2198921 Contact Us For Availability

View on Model

40

2213364 Whirlpool Refrigerator Cover Backorder WPL 2213364 $11.82

View on Model

40

W10181323 Whirlpool Refrigerator Condenser Fa In Stock WPL W10181323 $170.89

View on Model

40

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $12.19

View on Model

40

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $6.83

View on Model

41

Plate WPL 2210750 Contact Us For Availability

View on Model

42

Wire Assembly Unit WPL 2187383 Contact Us For Availability

View on Model

43

WP2195341 Whirlpool Refrigerator Pan Trim Backorder WPL WP2195341 $59.83

View on Model

43

Fan Blade WPL 2190685 Contact Us For Availability

View on Model

44

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

View on Model

44

Screw, 8−18 x 1/2 WPL 2204881 Contact Us For Availability

View on Model

46

2205533 Whirlpool Refrigerator Tube Backorder WPL 2205533 $66.59

View on Model

47

2214924 Whirlpool Refrigerator Tube Backorder WPL 2214924 $75.12

View on Model

48

2154109 Whirlpool Refrigerator Tube Backorder WPL 2154109 $53.08

View on Model

56

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

View on Model

57

3400518 Whirlpool Oven Foot Mount Screw Backorder WPL 3400518 $8.39

View on Model

57

W10853646 Whirlpool Indicator Light In Stock WPL W10853646 $95.20

View on Model

58

8201826 Whirlpool Refrigerator Evaporator Tra Backorder WPL 8201826 $107.80

View on Model

58

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $29.55

View on Model

58

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

View on Model

58

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $87.85

View on Model

58

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $92.18

View on Model

58

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

View on Model

58

Valve, Access WPL 978029 Contact Us For Availability

View on Model

58

Valve, Access WPL 978028 Contact Us For Availability

View on Model

99

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $108.21

View on Model

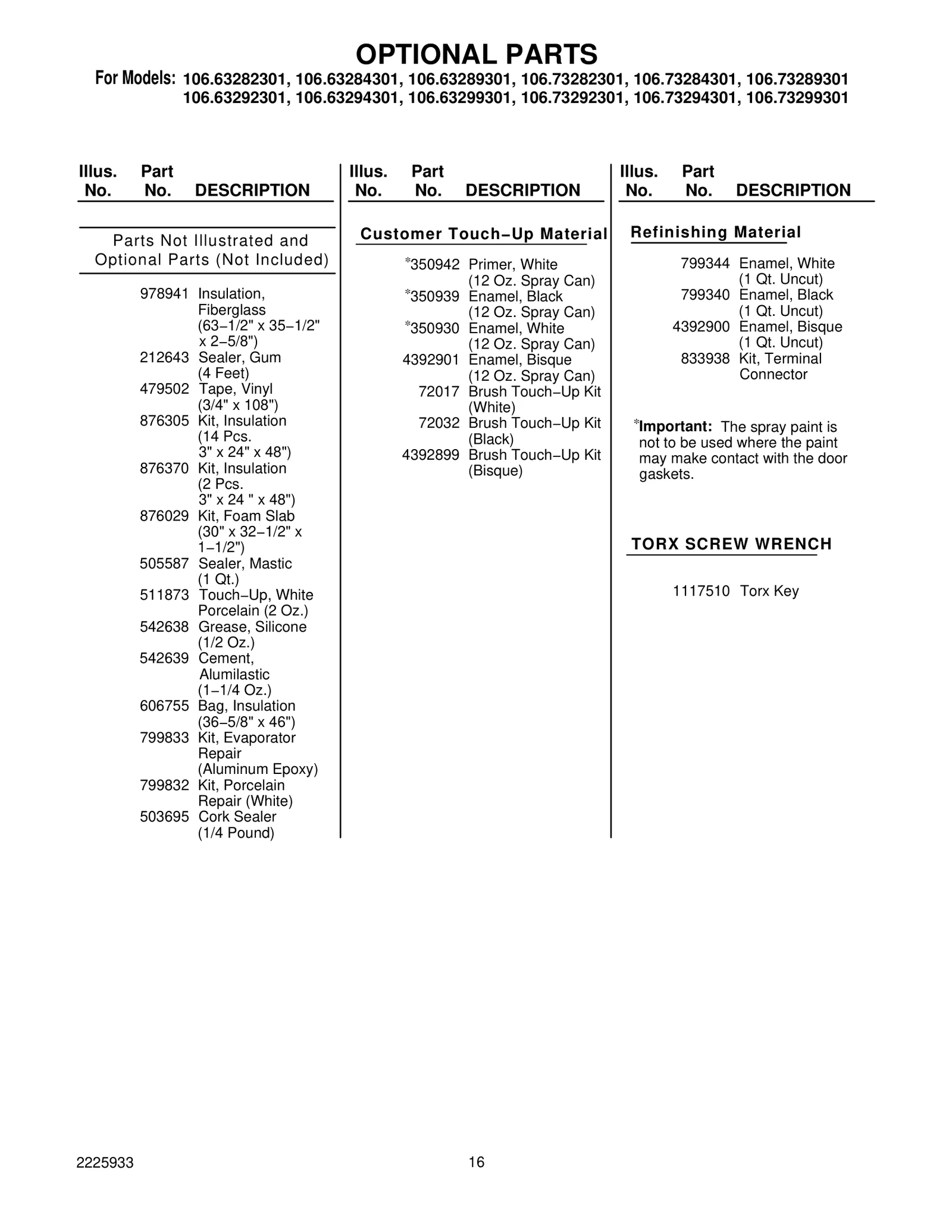

OPT-2

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $34.42

View on Model

OPT-3

Tape, Vinyl WPL 479502 Contact Us For Availability

View on Model

OPT-4

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $151.82

View on Model

OPT-6

Kit, Foam Slab WPL 876029 Contact Us For Availability

View on Model

OPT-7

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $119.63

View on Model

OPT-8

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

View on Model

OPT-9

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $39.72

View on Model

OPT-10

Cement, WPL 542639 Contact Us For Availability

View on Model

OPT-11

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $56.74

View on Model

OPT-12

Kit, Evaporator WPL 799833 Contact Us For Availability

View on Model

OPT-13

Kit, Porcelain WPL 799832 Contact Us For Availability

View on Model

OPT-14

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $80.29

View on Model

OPT-15

350942 Whirlpool Spray Paint Backorder WPL 350942 $64.04

View on Model

OPT-16

285006 Whirlpool Spray In Stock WPL 285006 $52.65

View on Model

OPT-17

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

View on Model

OPT-18

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $52.10

View on Model

OPT-19

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

View on Model

OPT-20

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $12.67

View on Model

OPT-21

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $13.08

View on Model

OPT-22

Enamel, White WPL 799344 Contact Us For Availability

View on Model

OPT-23

Enamel, Black WPL 799340 Contact Us For Availability

View on Model

OPT-24

Enamel, Bisque WPL 4392900 Contact Us For Availability

View on Model

OPT-25

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

View on Model

OPT-26

Torx Key WPL 1117510 Contact Us For Availability

View on Model

Model Whirlpool 106.73289301 Refrigerator – Common Parts & Diagrams

Common parts from model Whirlpool 106.73289301 Refrigerator

Search result for :

Help

Customer Service

Company

Model Whirlpool 106.73289301 Refrigerator – Common Parts & Diagrams

Common parts from model Whirlpool 106.73289301 Refrigerator

Search result for :

Be the First to Know

Help

Customer Service

Company
