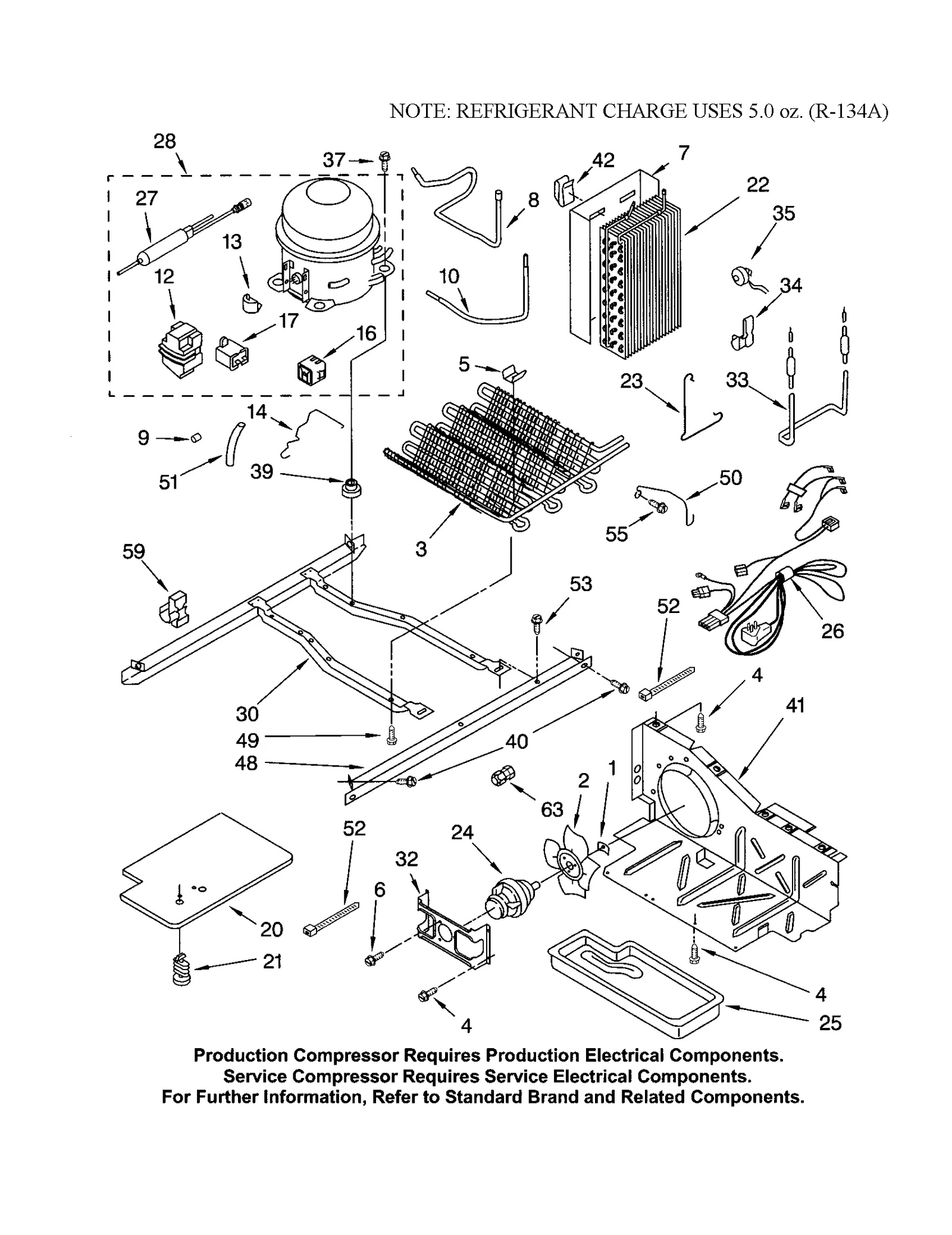

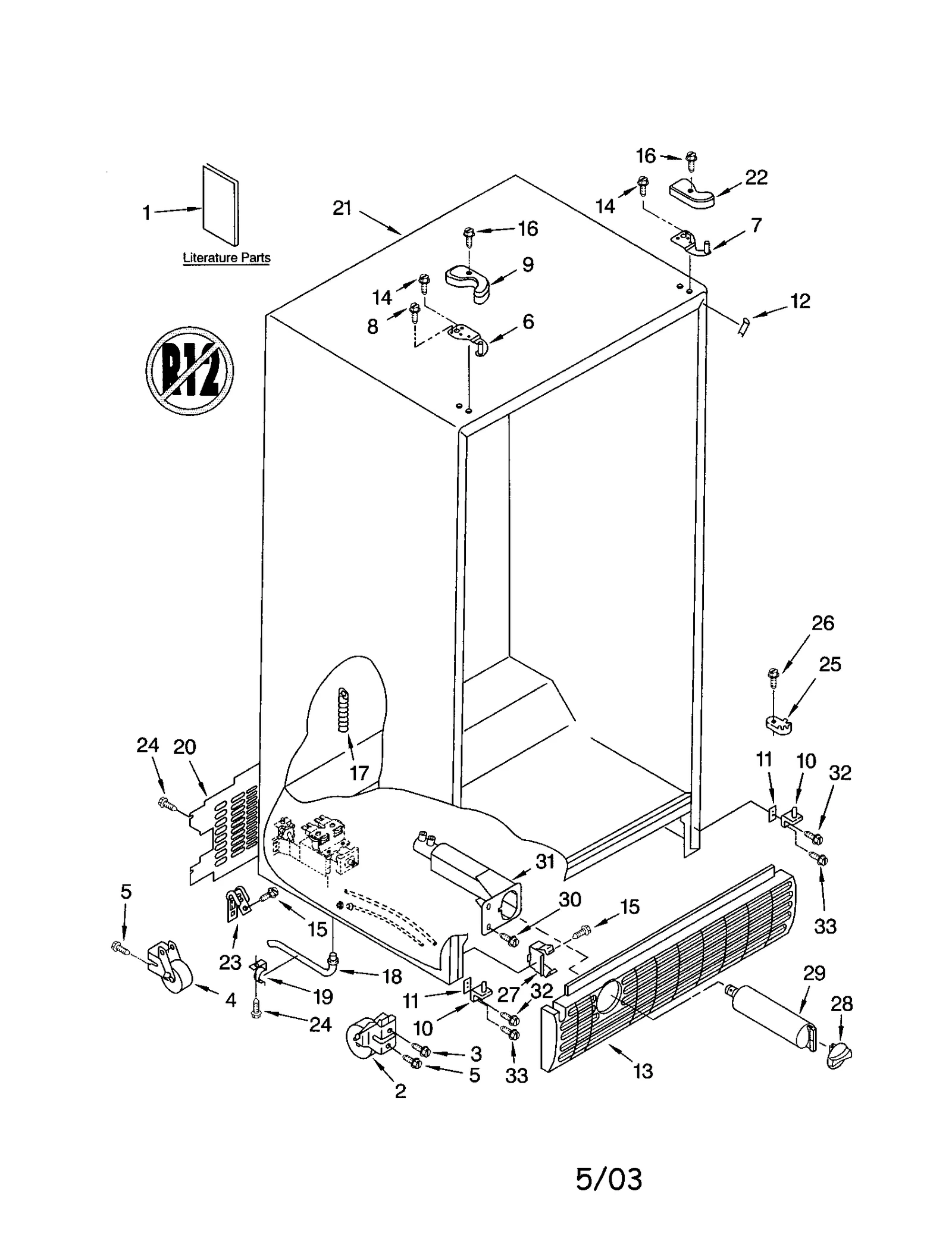

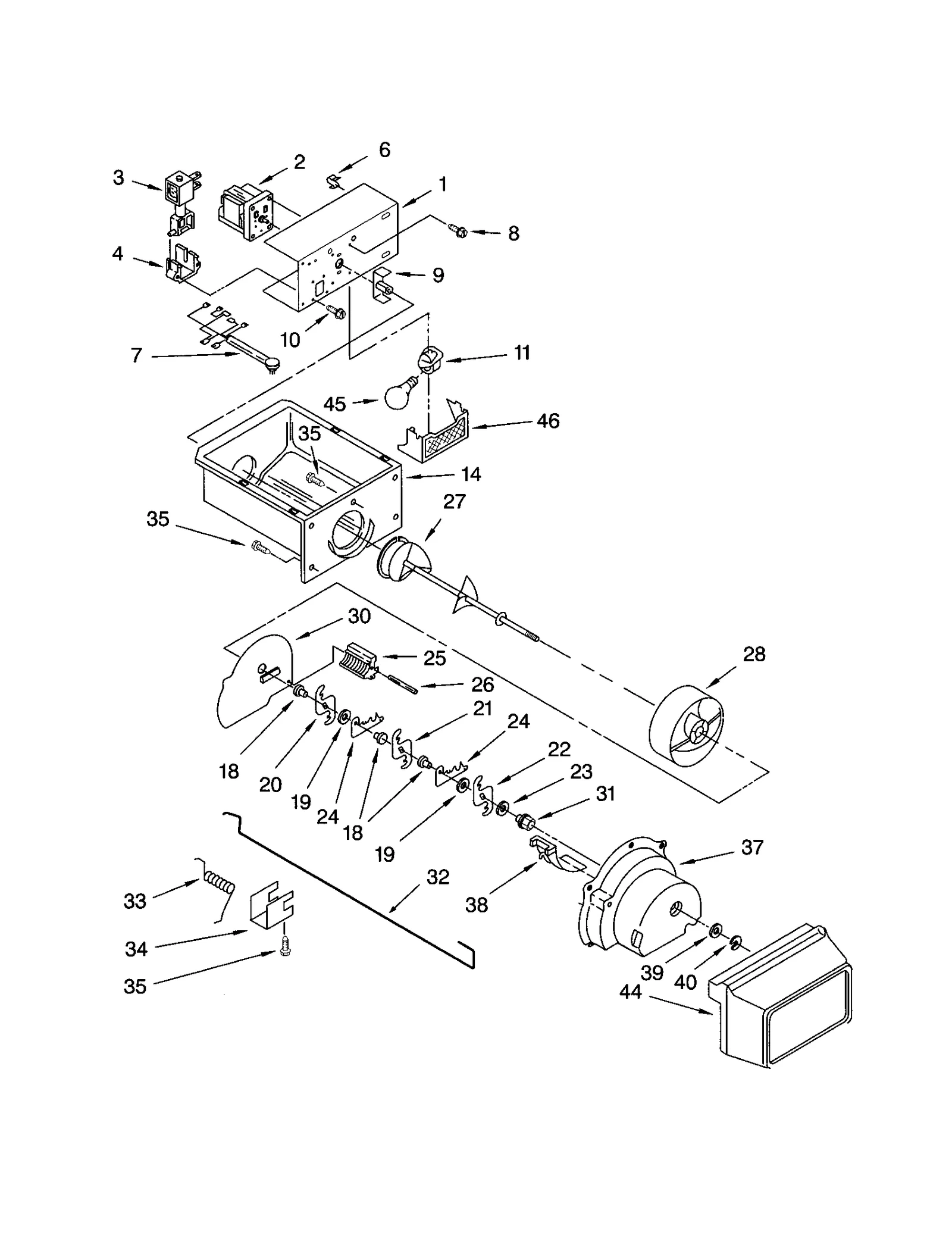

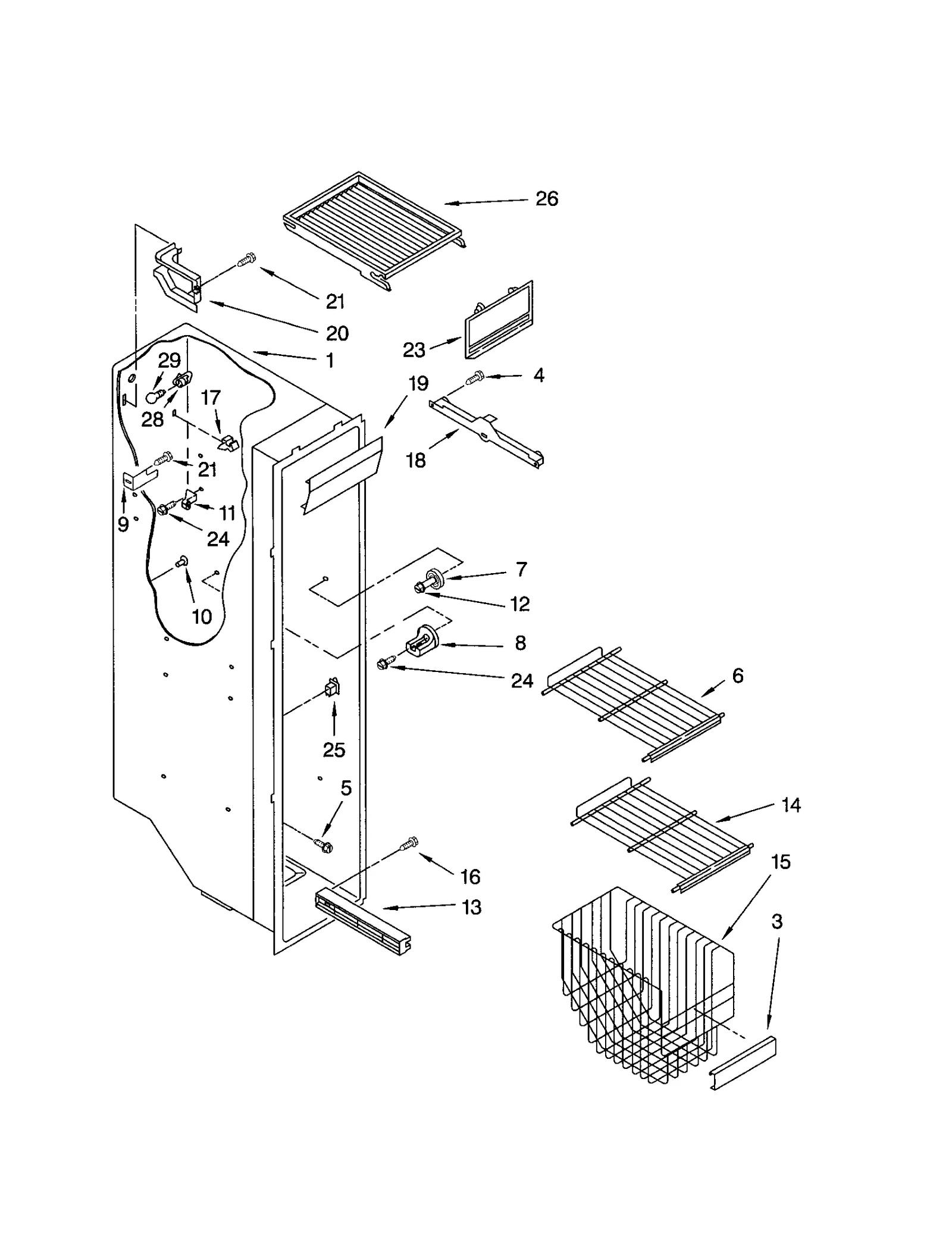

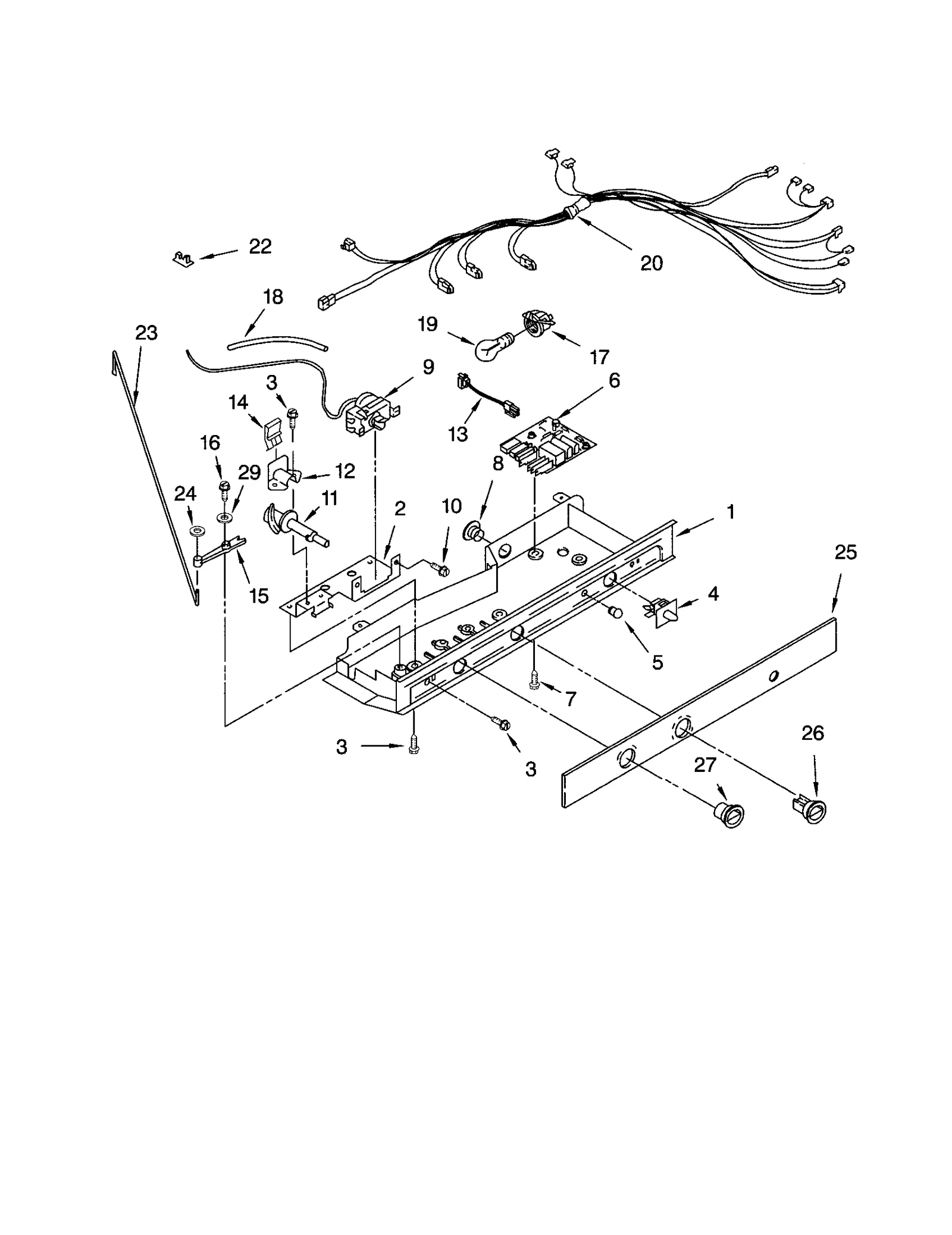

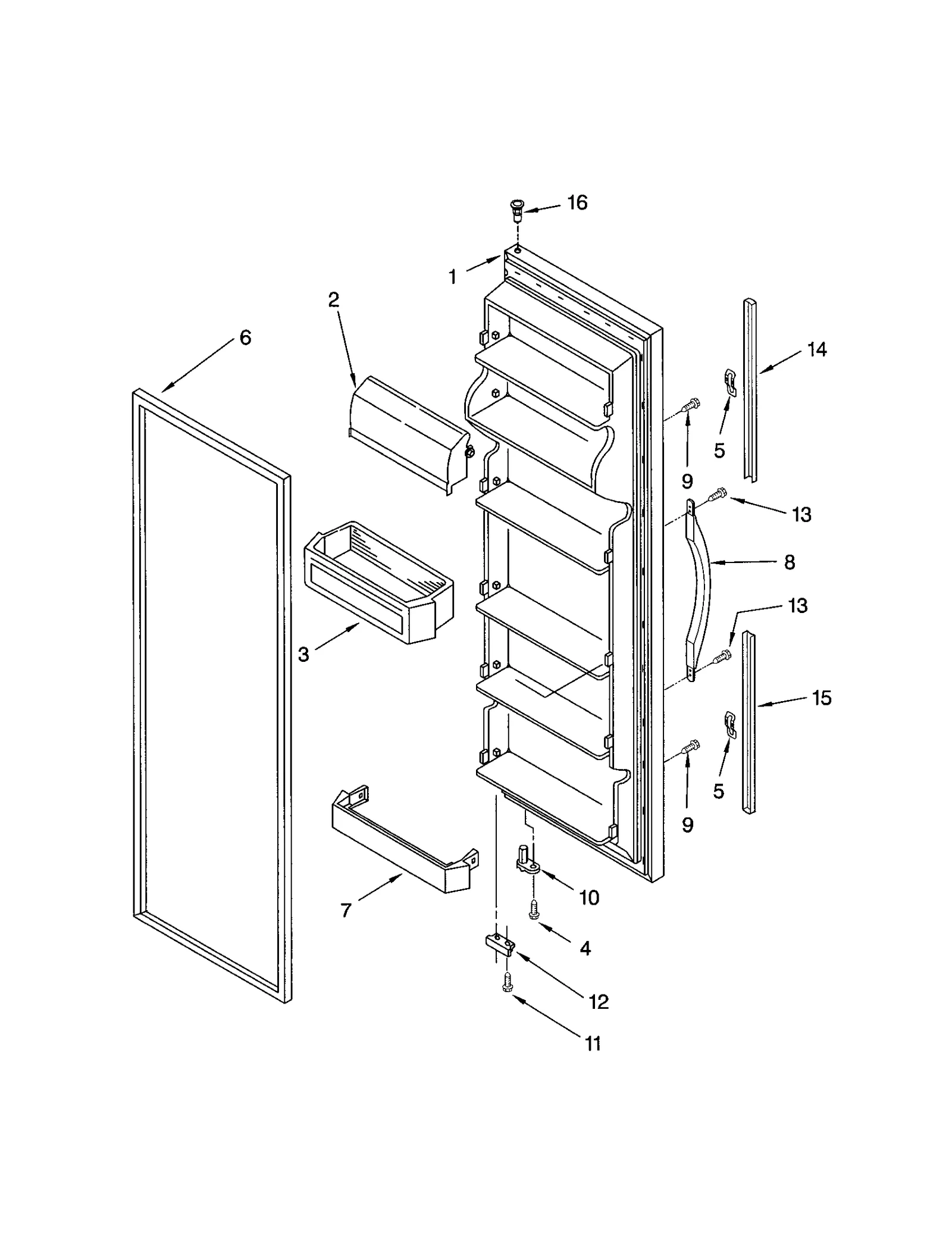

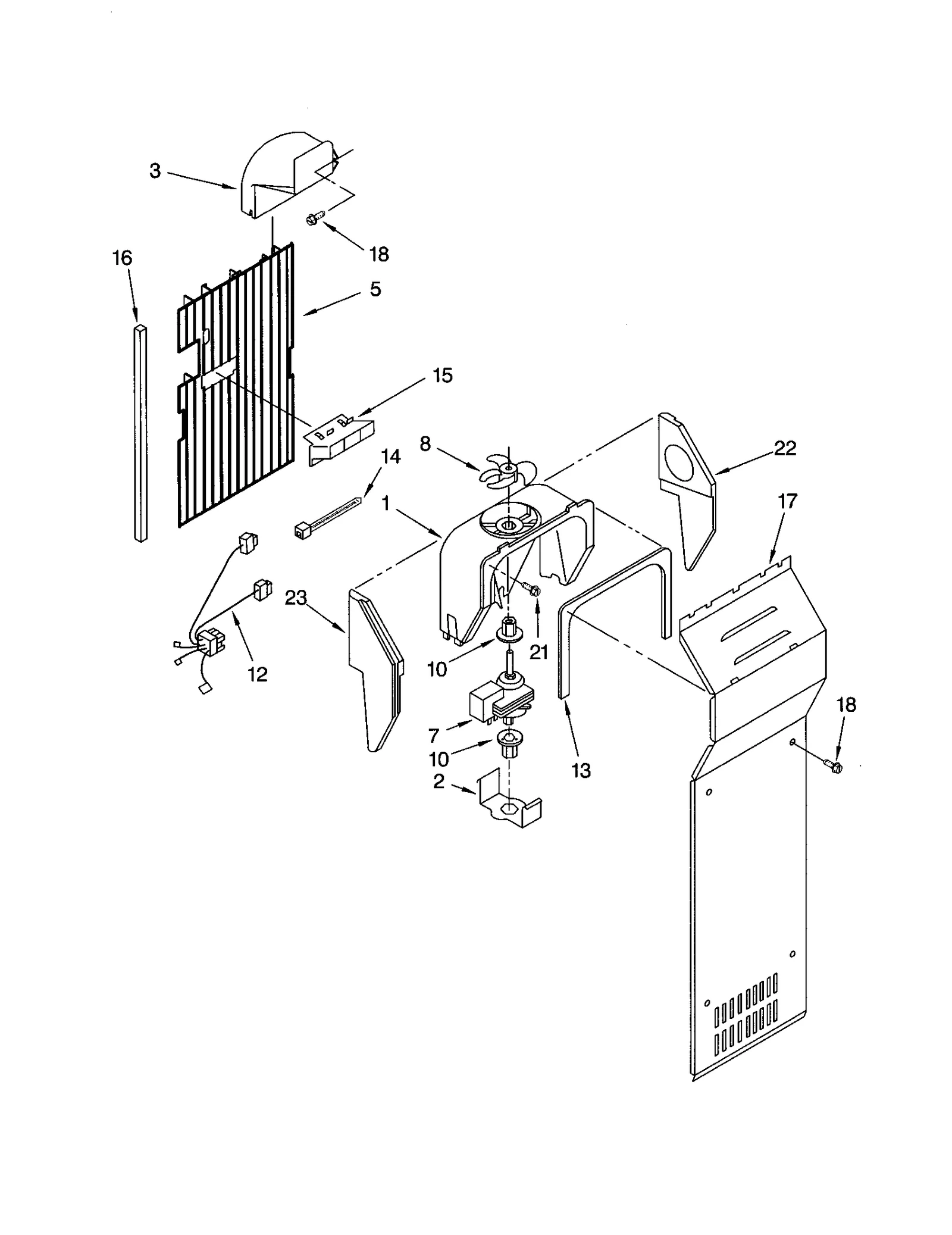

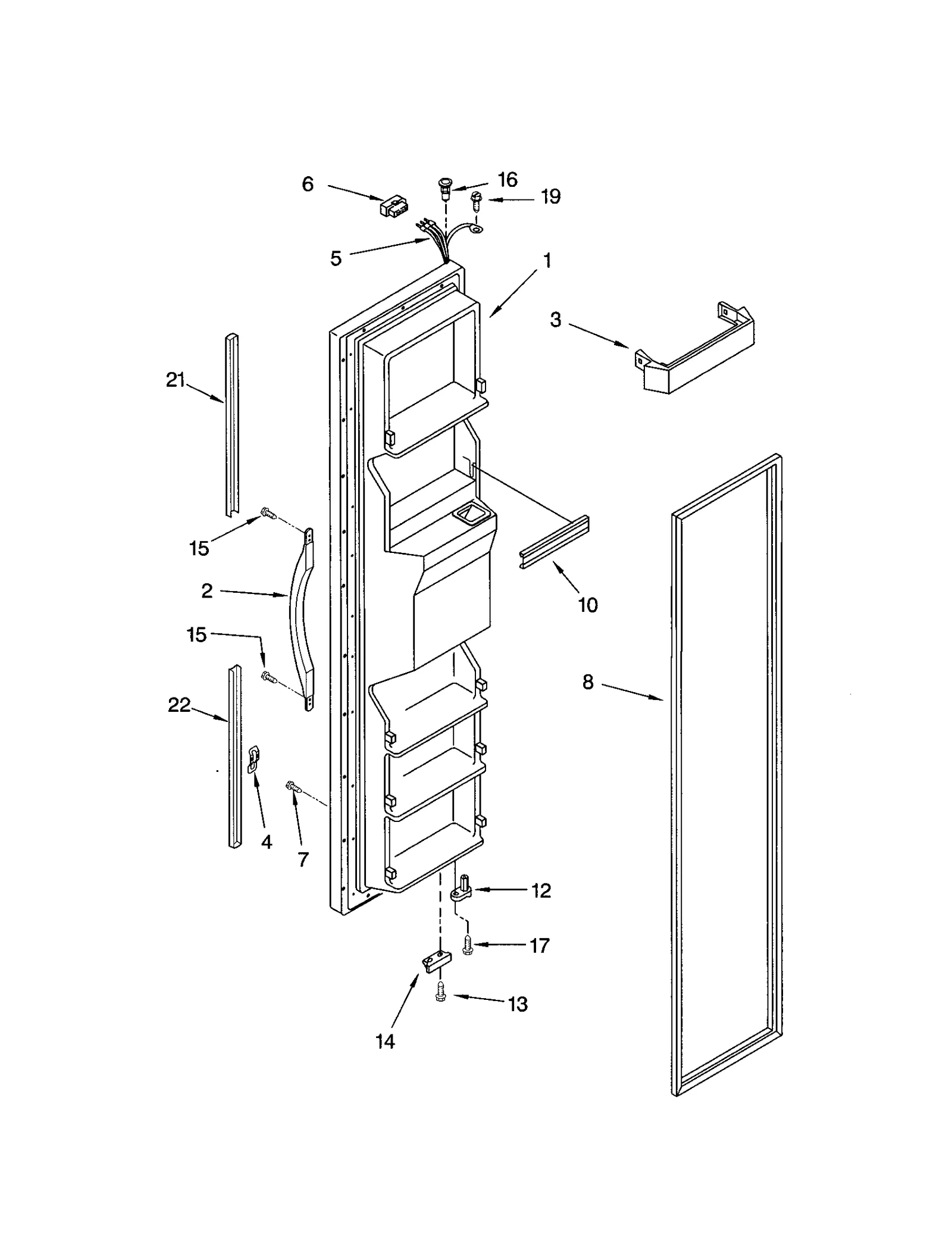

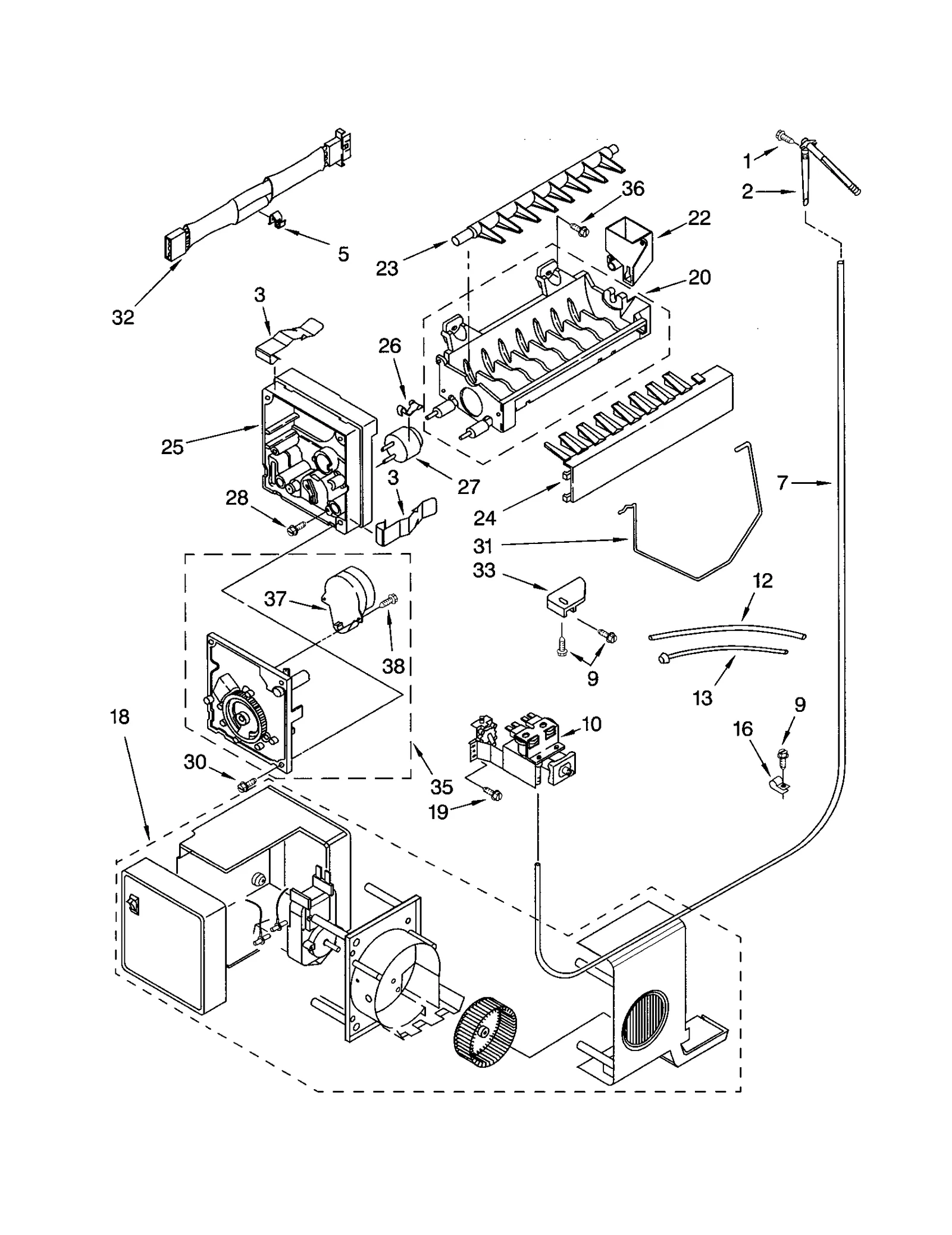

Model Whirlpool 106.52584201 Side-By-Side Refrigerator (Kenmore 10652584201) – Common Parts &amp; Diagrams

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $76.14

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

1

NLA:SCREW Backorder WPL WPW10141645 $4.82

1

FOR FIELD INSTALLABLE ICEMAKER REPAIR PARTS L WPL N/P Contact Us For Availability

1A

Freezer Door Assembly (Bisque) WPL 2220156T Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $66.63

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $5.22

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $66.67

2

Refrigerator Condenser Fan WPL 2190685 Contact Us For Availability

2

Refrigerator Evaporator Fan Motor Retainer WPL 2155590 Contact Us For Availability

2

Refrigerator Thermistor Bracket WPL 1110629 Contact Us For Availability

2

Refrigerator Door Handle Assembly WPL 2207206W Contact Us For Availability

2A

Refrigerator Handle (Off-White) WPL 2207206T Contact Us For Availability

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $102.11

3

WP2171157 Whirlpool Shelf Trim Backorder WPL WP2171157 $46.37

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $7.91

3

WP2203828 Whirlpool Door Shelf Bin In Stock WPL WP2203828 $64.94

3

Refrigerator Deli Drawer Temperature Control WPL 2182757 Contact Us For Availability

3

Refrigerator Ice Maker Module Support Clip WPL 2204881 Contact Us For Availability

3

Refrigerator Freezer Basket Trim WPL 2195905 Contact Us For Availability

3

Refrigerator Air Scoop WPL 2161231 Contact Us For Availability

4

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $8.89

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.69

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

5

2311641 Whirlpool Refrigerator Wire Harness Backorder WPL 2311641 $163.32

5

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $22.47

5

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $4.82

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $11.99

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

5

Refrigerator Light Cover WPL 2200096 Contact Us For Availability

5

Air Duct WPL 2203593 Contact Us For Availability

6

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $15.58

6

WP2174267 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174267 $63.01

6

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $20.20

6

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $66.95

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $17.24

7

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $55.36

7

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $6.50

7

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $34.12

7

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.83

7

WP4389147 Whirlpool Refrigerator Evaporator M In Stock WPL WP4389147 $99.41

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $157.12

8

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $14.99

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $22.25

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.46

8

Refrigerator Shelf Stud WPL 2196207 Contact Us For Availability

8

Refrigerator Suction Line WPL 2205765 Contact Us For Availability

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $53.12

9

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $14.39

9

WP2206670W Whirlpool Dispenser Tray Backorder WPL WP2206670W $58.02

9

Refrigerator Bracket WPL 2209674 Contact Us For Availability

9A

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $12.83

9A

WP2206670T Whirlpool Refrigerator Grille Backorder WPL WP2206670T $47.45

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $60.06

W10408179 Whirlpool Ice Maker Water Inlet Fil In Stock WPL W10408179 $76.67

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $5.30

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $13.16

Refrigerator Freezer Shelf Support Grommet WPL 2176134 Contact Us For Availability

11

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $6.63

11A

Refrigerator Dispenser Level WPL 2195089T Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $7.12

8201597 Whirlpool Inlet Water Fill Tube Kit F In Stock WPL 8201597 $45.77

W11234406 Whirlpool Refrigerator Wire Harness In Stock WPL W11234406 $89.38

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $9.64

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $5.19

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $4.99

Refrigerator Trim Cap WPL 2196094 Contact Us For Availability

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $72.32

W10853646 Whirlpool Indicator Light In Stock WPL W10853646 $95.20

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $4.82

WP4387835 Whirlpool Refrigerator Overload In Stock WPL WP4387835 $76.45

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

WPW10350006 Whirlpool Refrigerator Water Tube In Stock WPL WPW10350006 $76.73

13A

Refrigerator Grille WPL 2198468T Contact Us For Availability

13A

Refrigerator Track WPL 2223704 Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $13.13

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $23.94

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

Refrigerator Wire Shelf WPL 2174268 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $69.10

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $4.82

Refrigerator Damper Control Pivot Arm WPL 1110559 Contact Us For Availability

Refrigerator Freezer Basket WPL 2181764 Contact Us For Availability

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $61.18

W10759522 Whirlpool Screw Backorder WPL W10759522 $4.82

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $5.30

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $7.20

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

17

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $6.90

17

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $4.82

17

Refrigerator Evaporator Cover WPL 2203841 Contact Us For Availability

17A

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $130.74

17A

Refrigerator Dispenser Level WPL 2195090T Contact Us For Availability

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $87.65

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $19.72

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $6.99

Refrigerator Acceler-Ice Module WPL 2210315 Contact Us For Availability

18A

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $97.31

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $8.89

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

Refrigerator Light Lens WPL 2171705 Contact Us For Availability

20

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $187.20

20

Refrigerator Wire Cover WPL 2155572 Contact Us For Availability

21

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

21

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

21

Refrigerator Door Handle Trim WPL 2194707W Contact Us For Availability

21A

Refrigerator Extension WPL 2194707T Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $20.18

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $14.54

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

Refrigerator Door Handle Trim WPL 2194705W Contact Us For Availability

22A

Refrigerator Extension WPL 2194705T Contact Us For Availability

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $6.87

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $63.89

Refrigerator Defrost Clip WPL 2161324 Contact Us For Availability

Refrigerator Ice Door WPL 2204285 Contact Us For Availability

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $6.10

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $59.60

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

Spacer WPL 625834 Contact Us For Availability

Refrigerator Air Damper Control Clip WPL 489285 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $62.95

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $14.02

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $27.54

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $7.19

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $73.20

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $33.86

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $6.88

Refrigerator Temperature Control Knob WPL 2182111 Contact Us For Availability

Refrigerator Shelf WPL 2194297 Contact Us For Availability

27

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $52.34

27

Refrigerator Temperature Control Knob WPL 2197871 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $16.09

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $47.85

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $38.88

28A

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $7.35

29

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $16.02

29

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $121.07

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $20.97

30

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $4.82

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.46

31

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $43.89

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $4.82

31

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $57.30

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $4.82

W11596045 Whirlpool Refrigerator Control Arm Backorder WPL W11596045 $20.03

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $95.20

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $12.12

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $22.41

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $6.92

34

Refrigerator Light Lens WPL 2254920 Contact Us For Availability

36

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $4.82

37

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $62.13

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $4.82

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $8.89

40

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $7.64

42

W11497323 Whirlpool Snack Pan Backorder WPL W11497323 $148.38

45

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $71.83

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $69.80

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $8.89

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

NI01

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

NI02

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

NI03

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $87.85

NI05

Refrigerator Service Valve WPL 978029 Contact Us For Availability

NI06

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $92.18

NI07

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $29.55

NI08

350942 Whirlpool Spray Paint Backorder WPL 350942 $64.04

NI10

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

NI11

350956 Whirlpool Spray Assembly In Stock WPL 350956 $26.25

NI12

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

NI13

WP72107 Whirlpool Touchup In Stock WPL WP72107 $10.96

NI14

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $12.67

NI16

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $34.42

NI17

Refrigerator Vinyl Tape WPL 479502 Contact Us For Availability

NI21

Foam Slab WPL 876029 Contact Us For Availability

NI22

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $119.63

NI23

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $80.29

NI24

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

NI25

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $39.72

NI27

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $56.74

NI29

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

NI32

Appliance Porcelain Touch-Up Paint, 1-qt (Whi WPL 799344 Contact Us For Availability

NI34

Refrigerator Ice Maker Torx Key Wrench WPL 1117510 Contact Us For Availability
