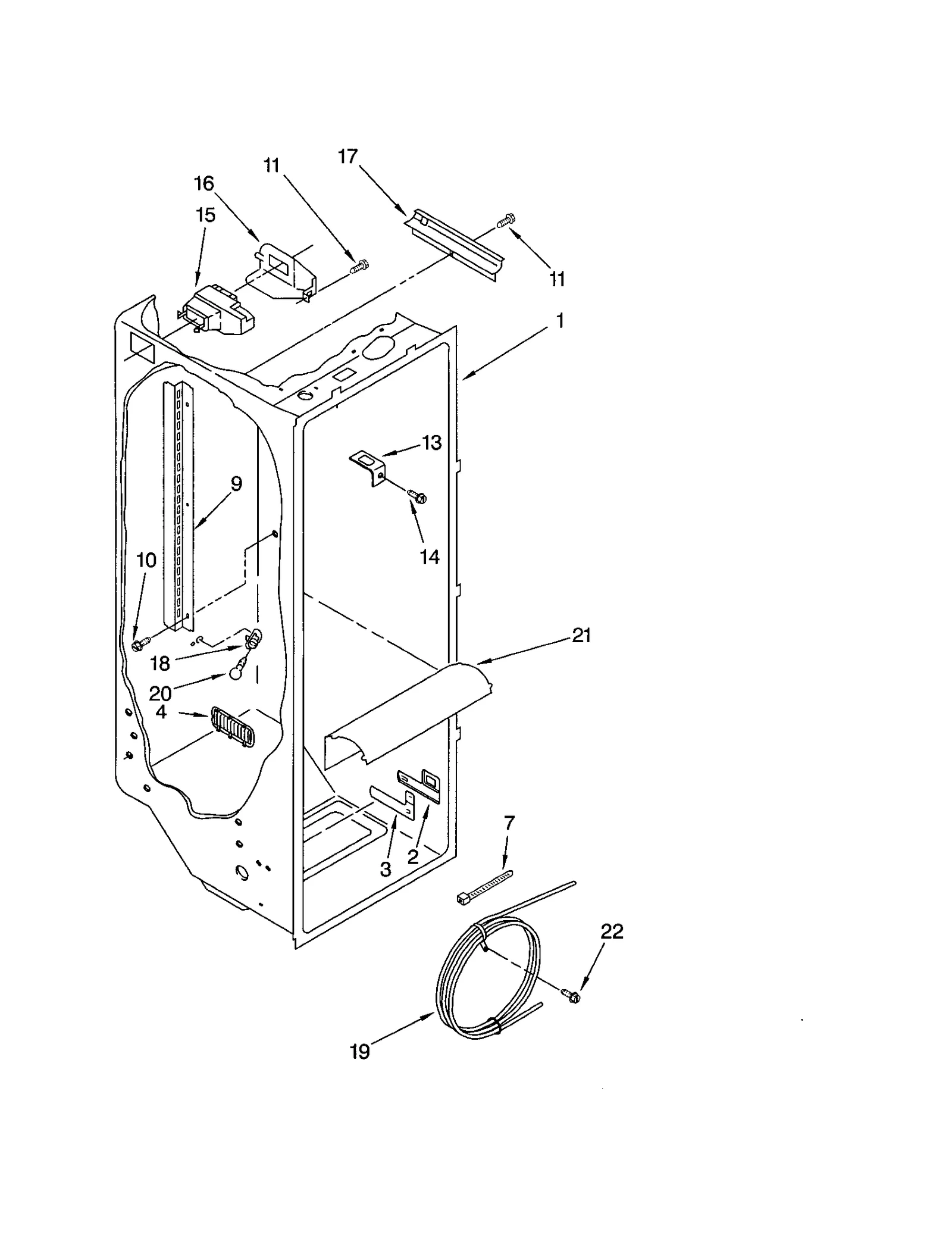

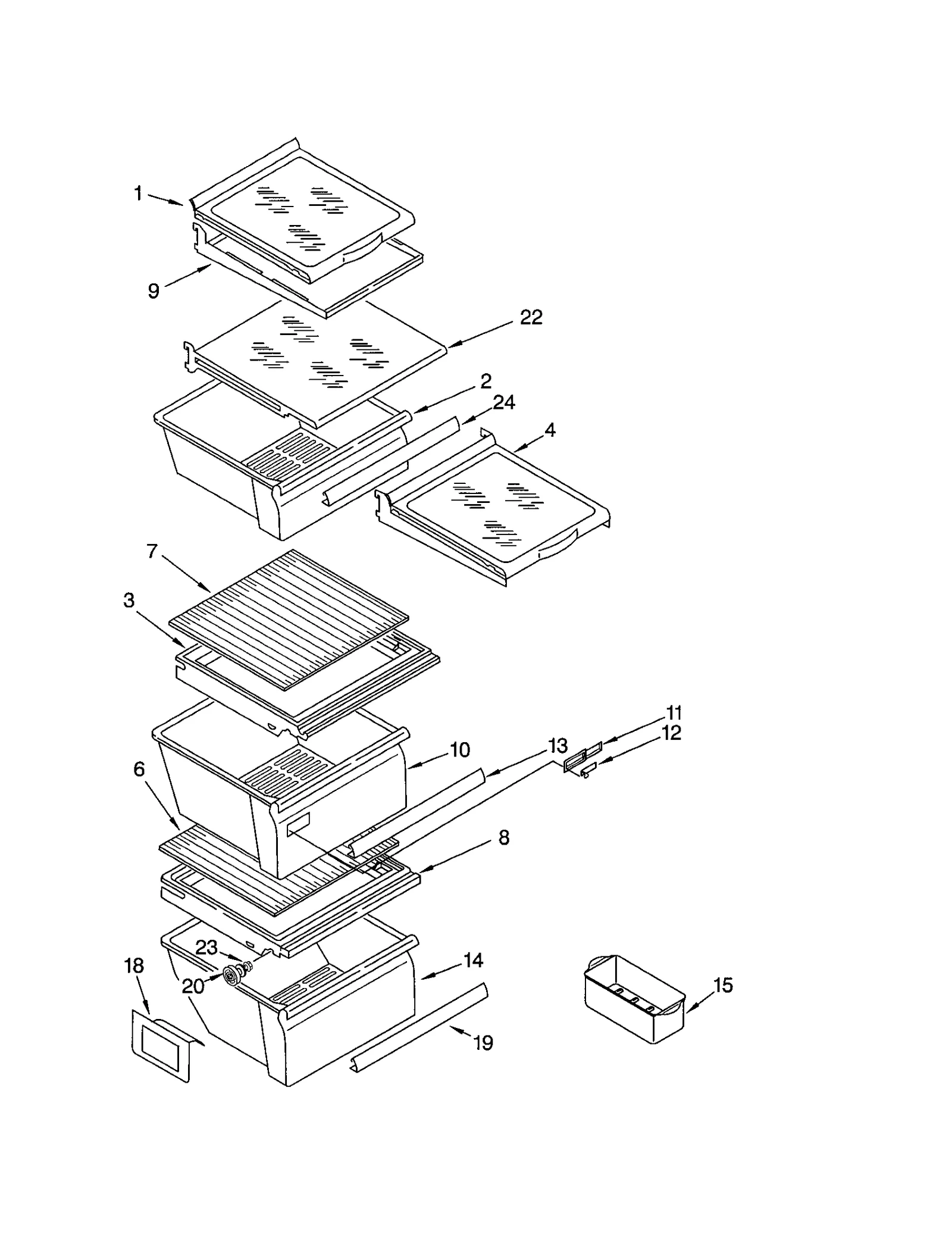

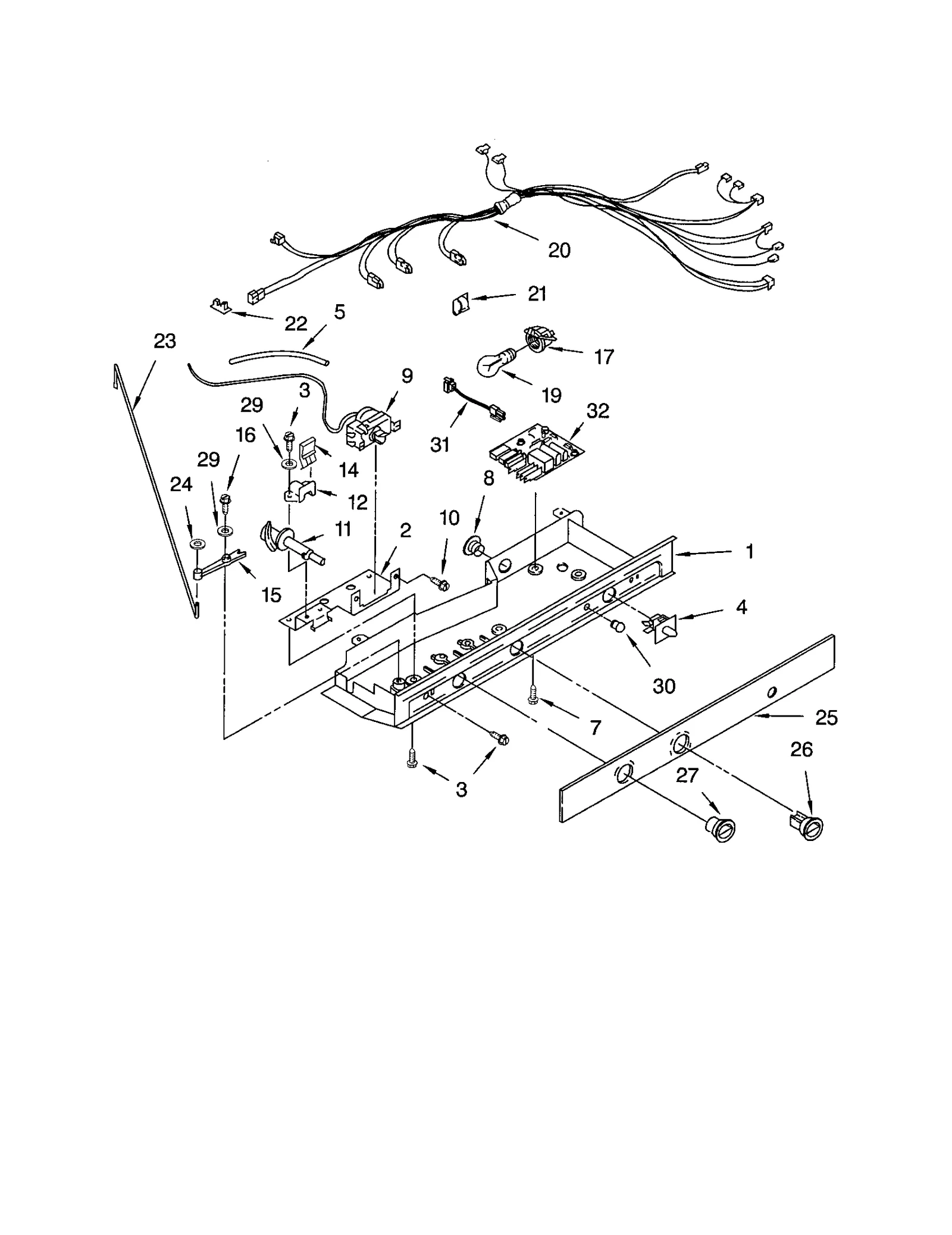

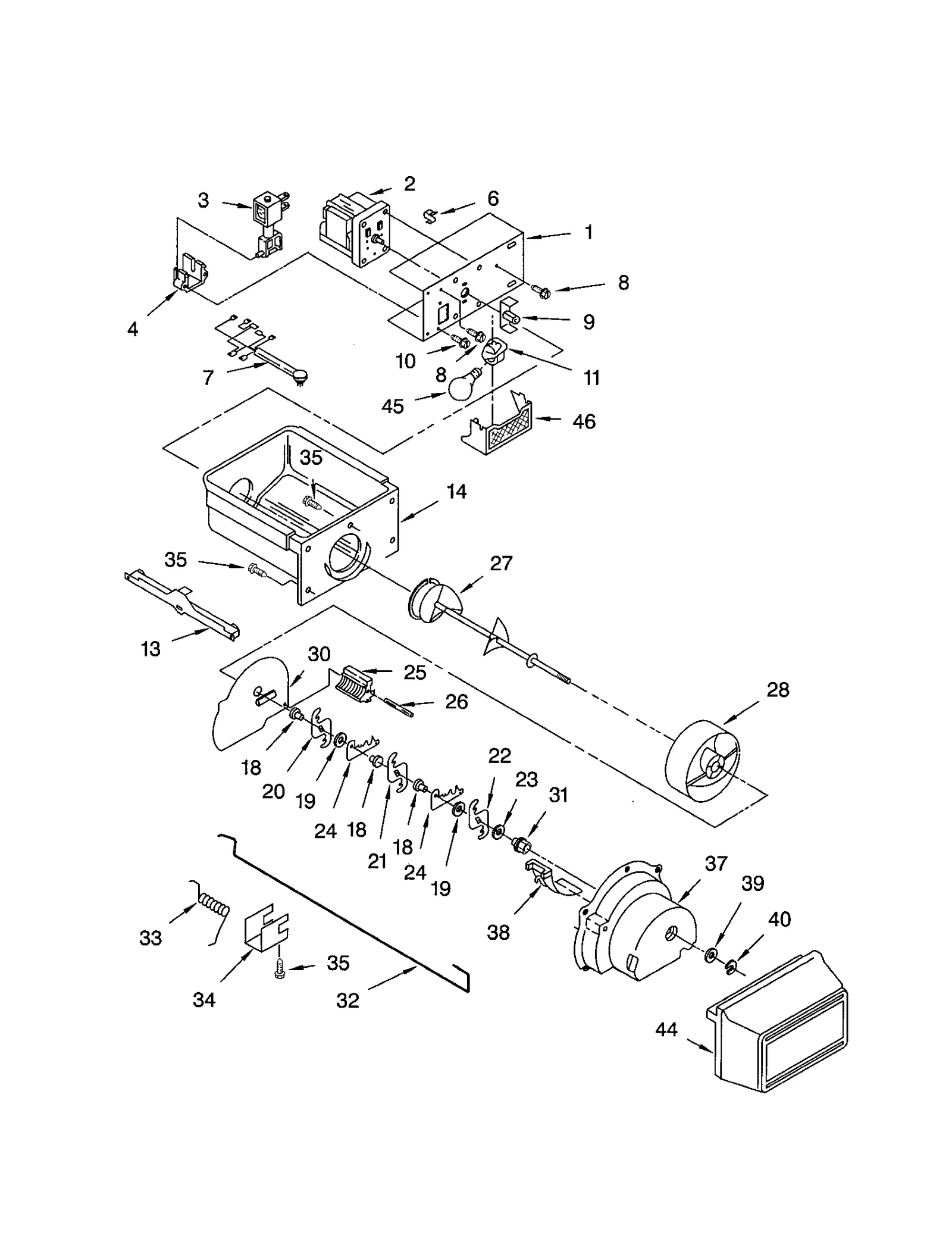

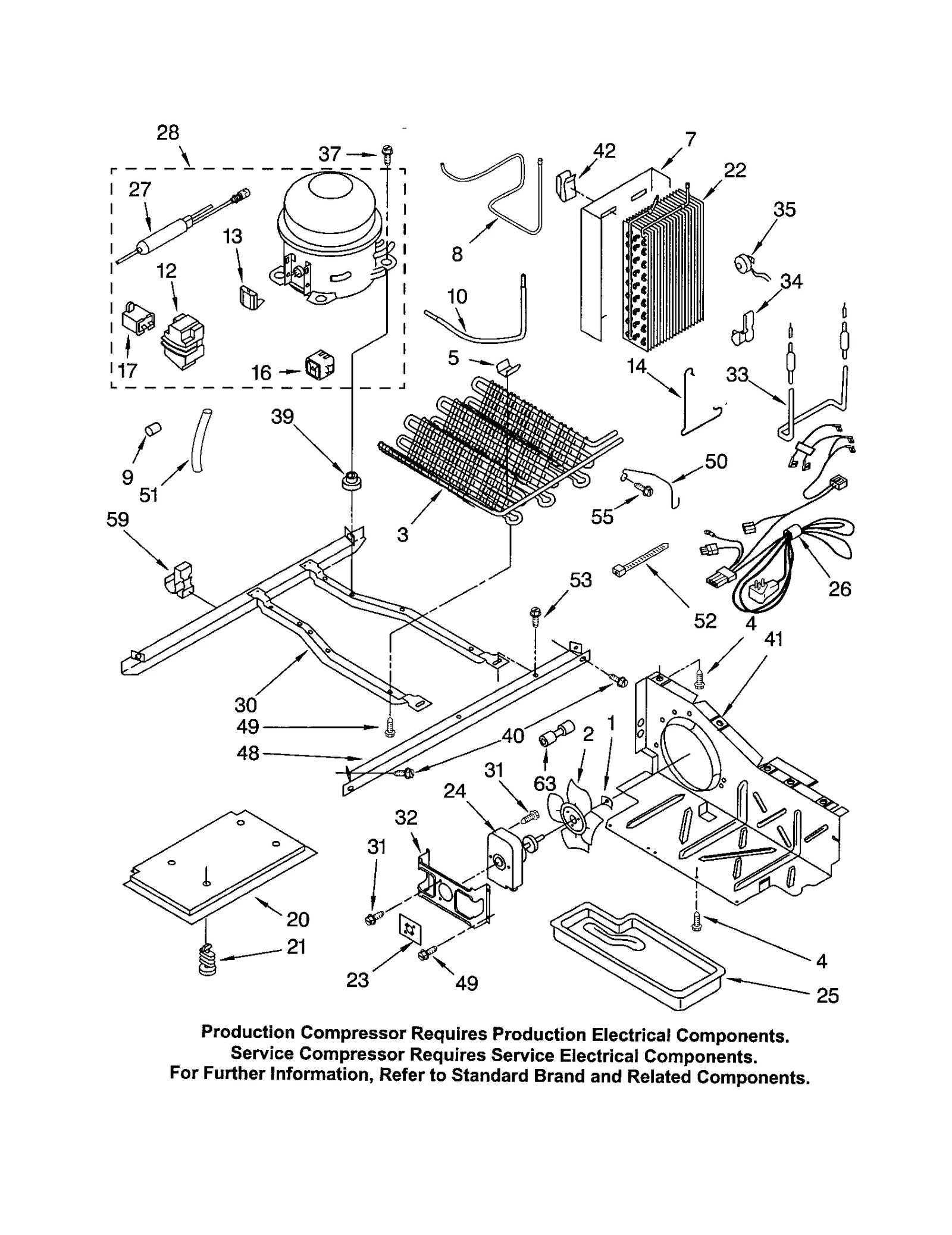

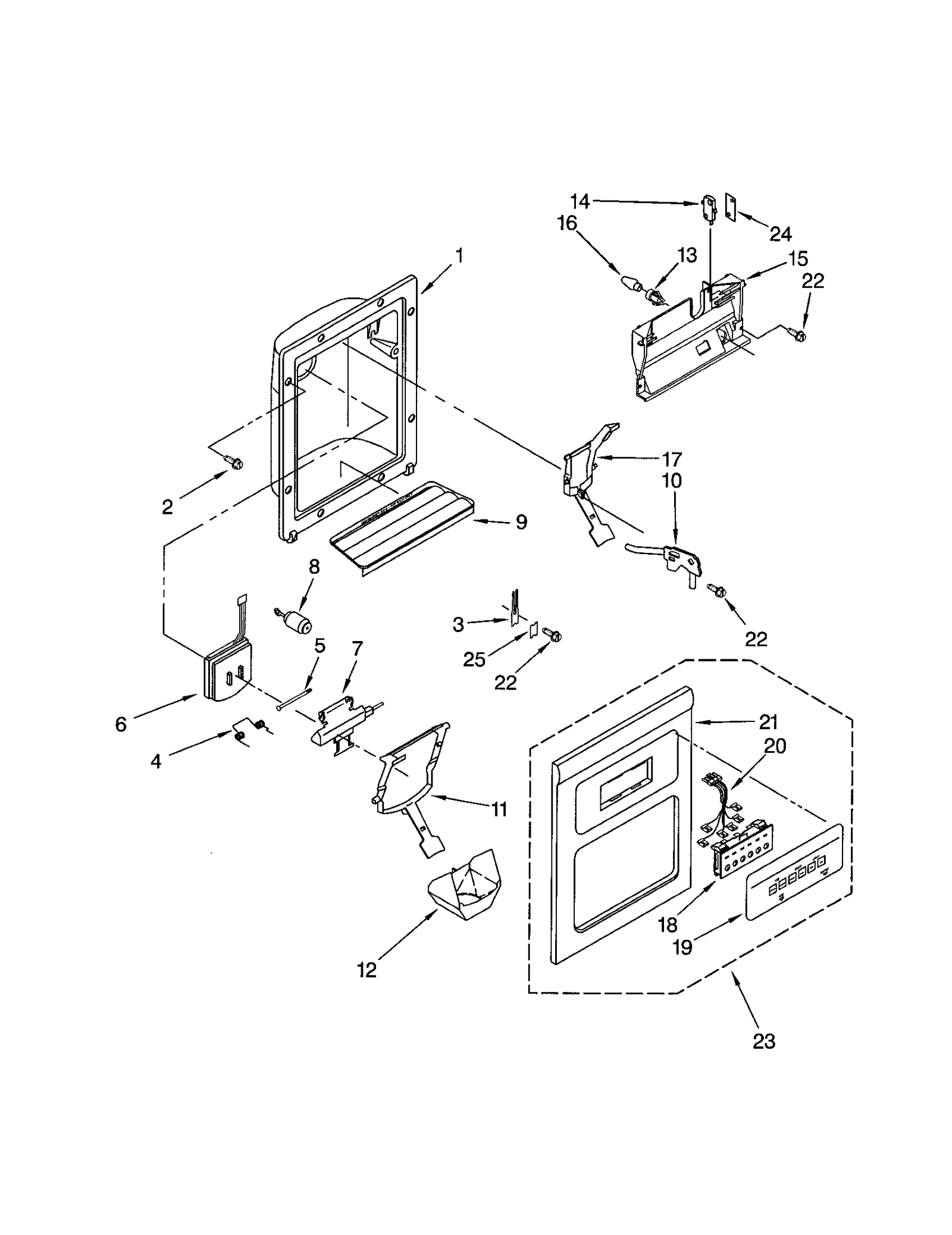

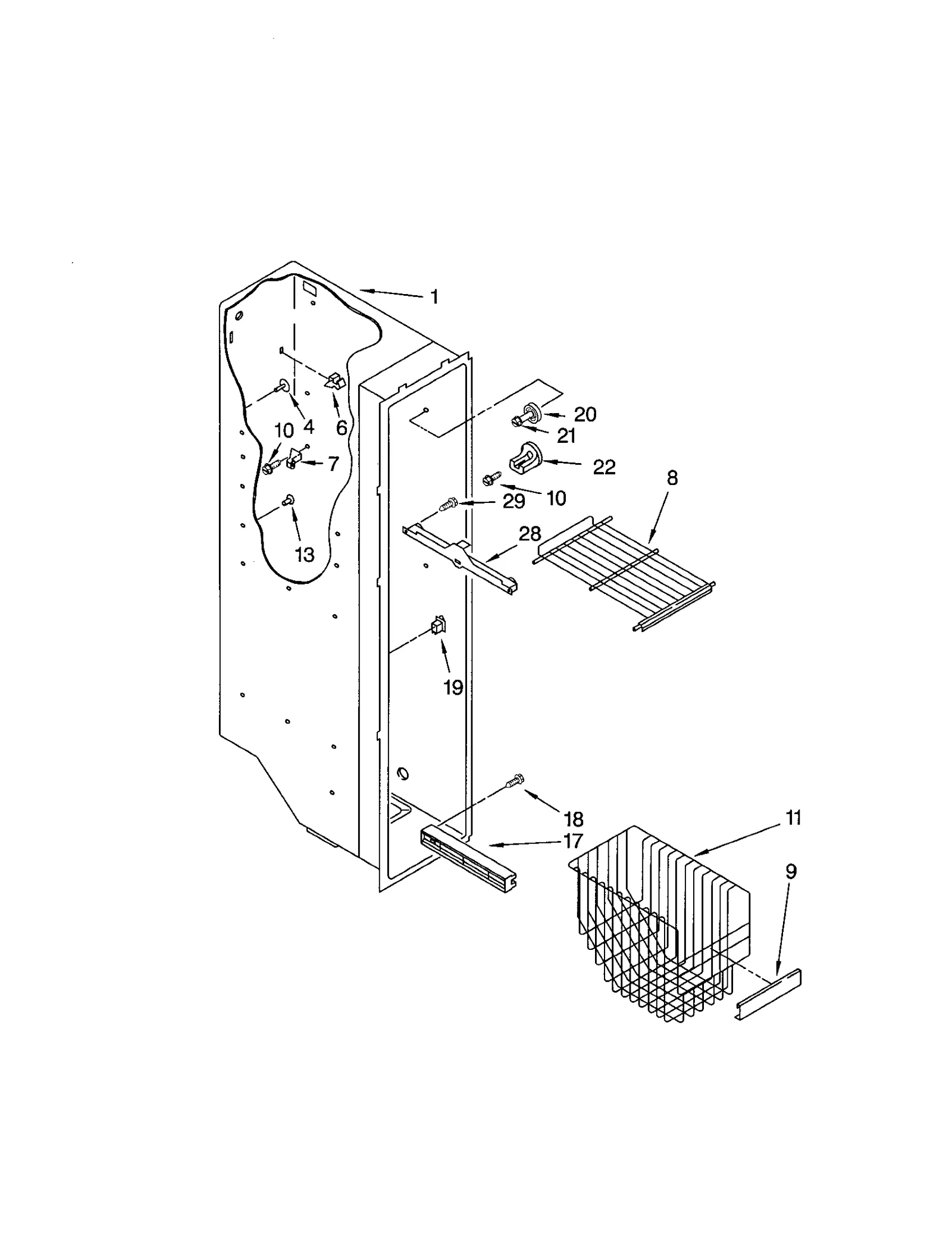

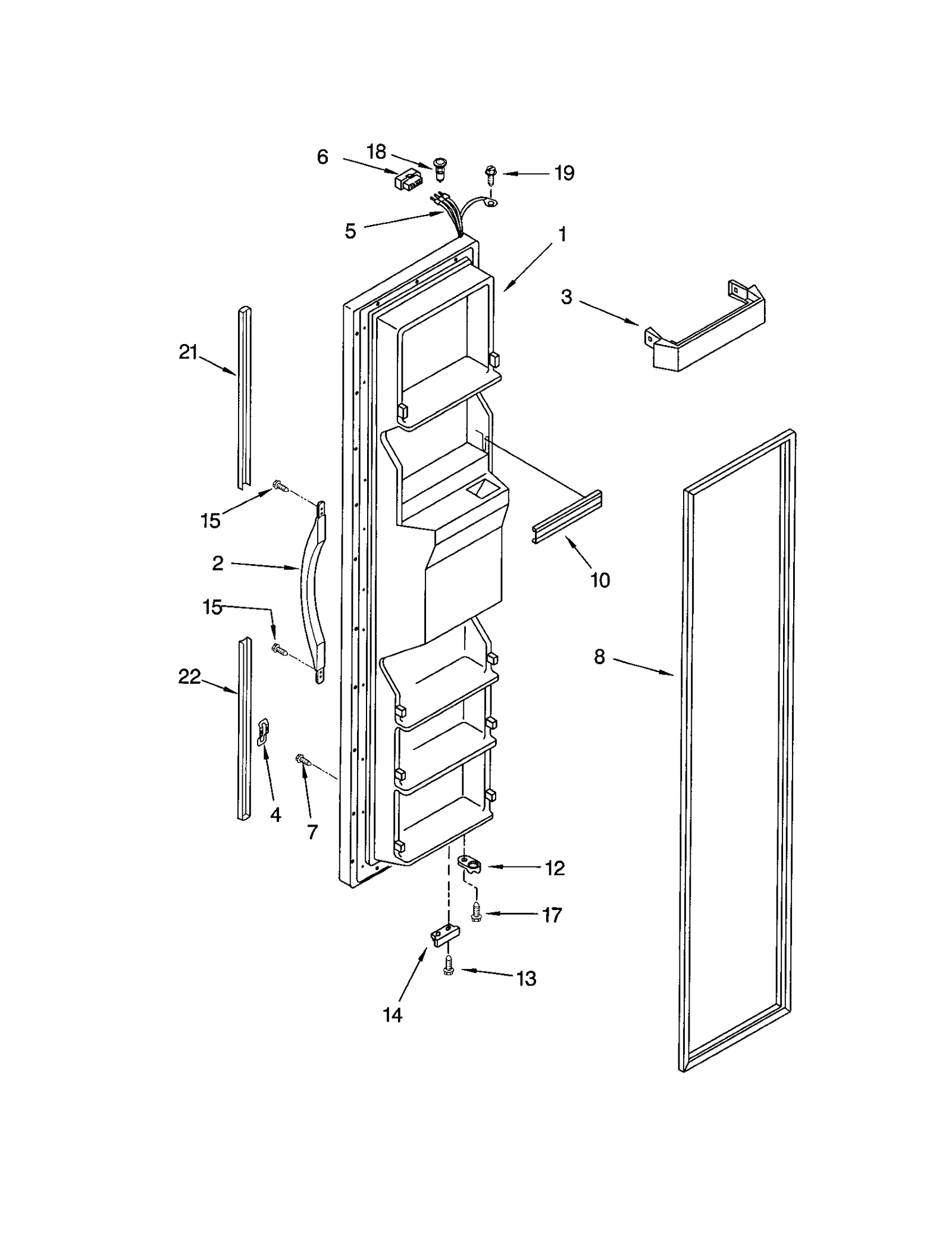

Model Whirlpool 106.52222102 Side-By-Side Refrigerator (Kenmore 10652222102) – Common Parts &amp; Diagrams

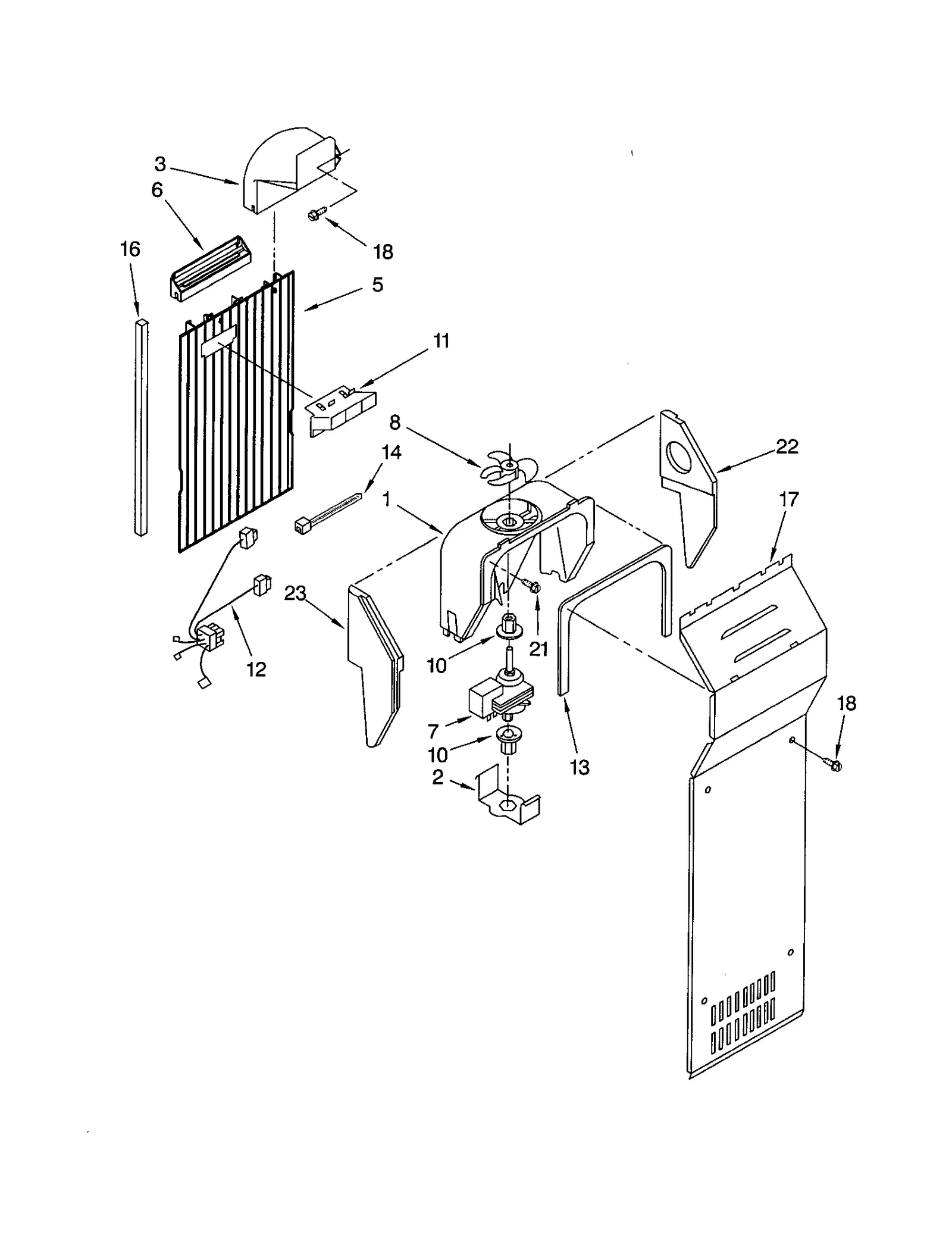

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $227.38

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

1

Refrigerator Energy Guide WPL LIT2220333 Contact Us For Availability

1

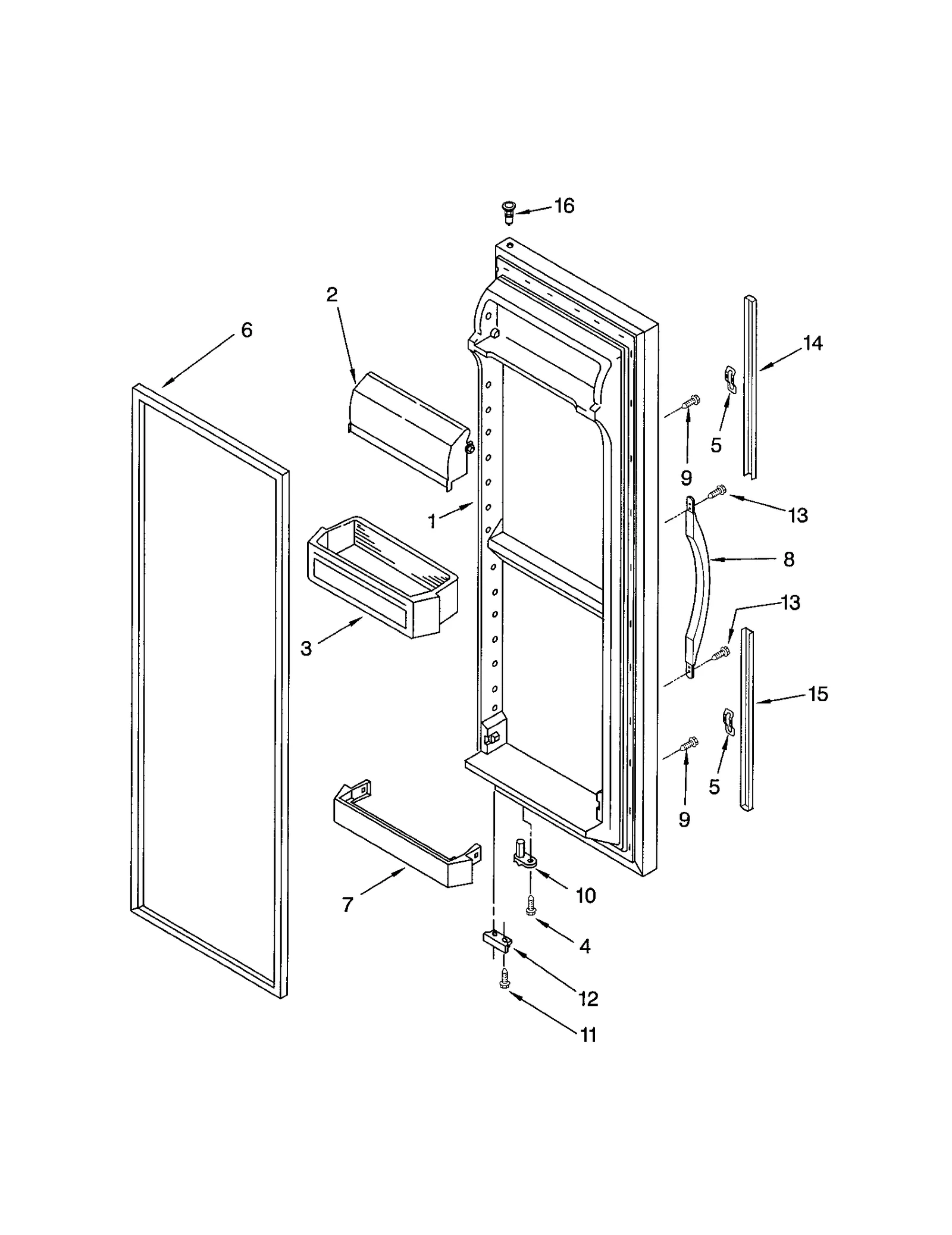

Refrigerator Door Assembly (White) WPL 2206716W Contact Us For Availability

1A

Refrigerator Energy Guide WPL LIT2220352 Contact Us For Availability

1A

Refrigerator Door Assembly (Biscuit) WPL 2206716T Contact Us For Availability

1B

Refrigerator Owner's Manual WPL LIT2220695 Contact Us For Availability

1C

Refrigerator Technical Sheet WPL LIT2255050 Contact Us For Availability

1D

Service Sheet WPL LIT628370 Contact Us For Availability

1E

Refrigerator Parts List WPL LIT2254980 Contact Us For Availability

1F

Owner's Manual WPL LIT787808 Contact Us For Availability

1G

Ice Maker Repair Manual WPL LIT787316 Contact Us For Availability

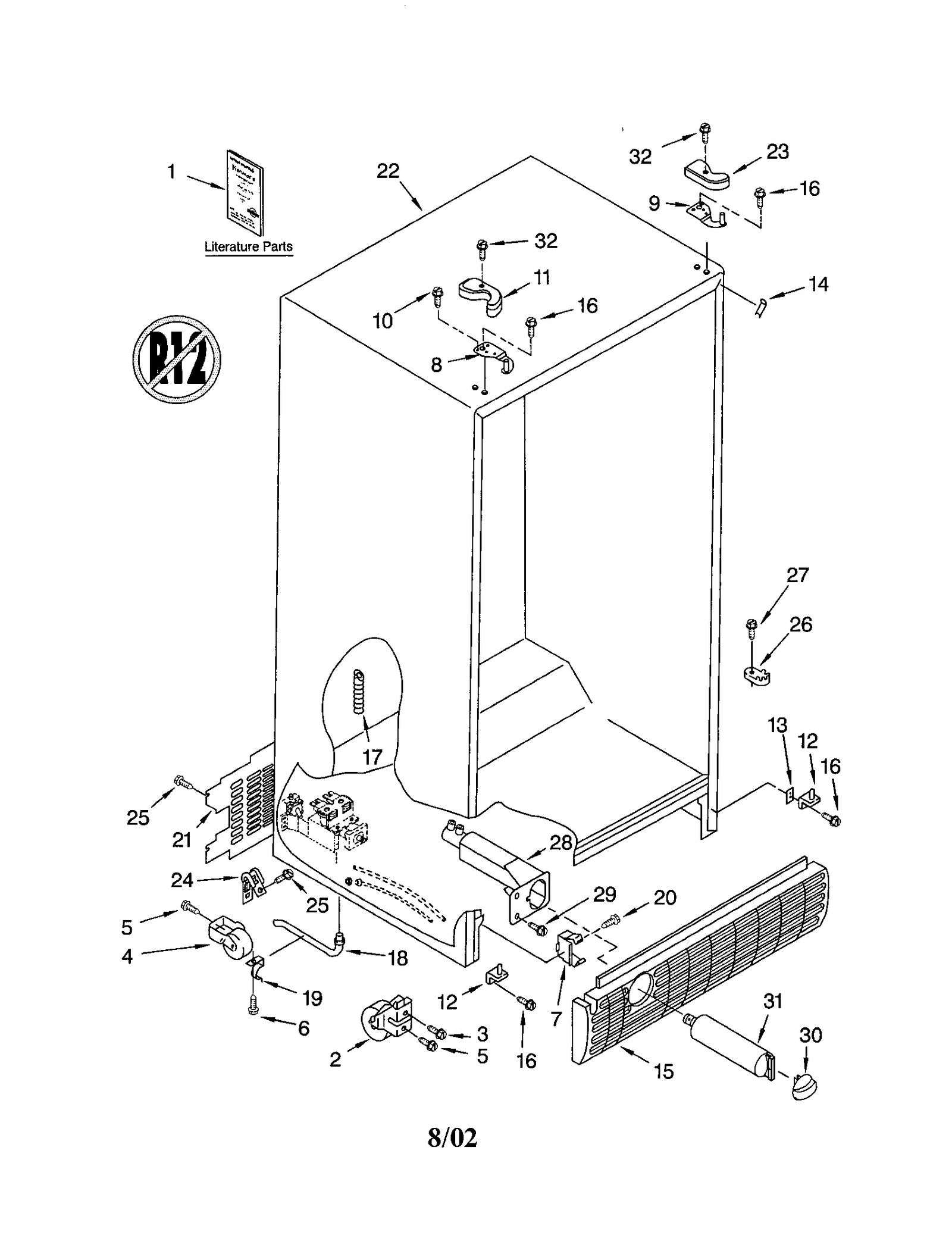

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $66.63

2

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $14.48

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $66.67

2

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $4.99

2

Refrigerator Condenser Fan WPL 2190685 Contact Us For Availability

2

Refrigerator Evaporator Fan Motor Retainer WPL 2155590 Contact Us For Availability

2

Refrigerator Thermistor Bracket WPL 1110629 Contact Us For Availability

2

Refrigerator Cabinet Roller WPL 2174748 Contact Us For Availability

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $7.08

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $102.11

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $7.91

3

WP2203828 Whirlpool Door Shelf Bin In Stock WPL WP2203828 $64.94

3

Refrigerator Deli Drawer Temperature Control WPL 2182757 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.69

4

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $5.99

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

5

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $4.82

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $11.99

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

6

2159073 Whirlpool Refrigerator Door Gasket In Stock WPL 2159073 $101.72

6

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $121.07

6

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $15.58

6

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

7

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

7

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $55.36

8

2205764 Whirlpool Refrigerator Tube Backorder WPL 2205764 $60.78

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $22.25

8

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $66.95

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.46

8

Refrigerator Door Handle Assembly WPL 2207206W Contact Us For Availability

8A

Refrigerator Handle (Off-White) WPL 2207206T Contact Us For Availability

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $53.12

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $34.12

9

WP2206671W Whirlpool Refrigerator Grille In Stock WPL WP2206671W $45.36

9

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.83

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $5.30

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $5.19

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

Refrigerator Tube WPL 2211760 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $69.10

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $22.47

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $6.63

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $14.39

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $7.60

11A

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $12.83

11A

Refrigerator Dispenser Level WPL 2195089T Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $7.12

8201707 Whirlpool Door Hinge In Stock WPL 8201707 $56.99

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $20.20

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $9.64

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $72.32

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $87.65

Refrigerator Freezer Shelf Support Grommet WPL 2176134 Contact Us For Availability

Refrigerator Shim WPL 2209697 Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $13.13

WP2196089 Whirlpool Refrigerator Container In Stock WPL WP2196089 $90.95

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $23.94

Refrigerator Extension WPL 2194706W Contact Us For Availability

Refrigerator Defrost Clip WPL 2161324 Contact Us For Availability

Refrigerator Trim Cap WPL 2196094 Contact Us For Availability

14A

Refrigerator Filler WPL 2196150 Contact Us For Availability

14A

Refrigerator Extension WPL 2194706T Contact Us For Availability

15

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $4.82

15

Refrigerator Door Handle Trim WPL 2194705W Contact Us For Availability

15

Refrigerator Damper Control Pivot Arm WPL 1110559 Contact Us For Availability

15A

W10802713 Whirlpool Refrigerator Grille Backorder WPL W10802713 $86.44

15A

Refrigerator Extension WPL 2194705T Contact Us For Availability

16

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $62.95

16

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $5.30

16

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.10

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $16.09

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $47.85

W11566763 Whirlpool Fitting In Stock WPL W11566763 $31.99

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $4.82

17A

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $130.74

17A

Refrigerator Dispenser Level WPL 2195090T Contact Us For Availability

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $60.06

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $19.72

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $6.99

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $16.02

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $6.93

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $8.89

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

20

2311632 Whirlpool Refrigerator Wire Harness Backorder WPL 2311632 $135.74

20

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $14.99

20

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $6.50

21

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

21

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $4.82

21

WP2188756 Whirlpool Refrigerator Unit Cover Backorder WPL WP2188756 $95.55

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

Refrigerator Shelf Stud WPL 2196207 Contact Us For Availability

Refrigerator Retainer Clip WPL 1115375 Contact Us For Availability

FOR FIELD INSTALLABLE ICEMAKER REPAIR PARTS L WPL N/P Contact Us For Availability

23

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $14.54

23

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $6.87

23

Refrigerator Damper Control Rod WPL 1123960 Contact Us For Availability

23A

Refrigerator Cover WPL 2203408T Contact Us For Availability

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $8.91

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $71.83

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $59.60

Spacer WPL 625834 Contact Us For Availability

Refrigerator Air Damper Control Clip WPL 489285 Contact Us For Availability

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $14.02

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $7.19

NLA:SCREW Backorder WPL WPW10141645 $4.82

Refrigerator Escutcheon WPL 2216977 Contact Us For Availability

26

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $33.86

26

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $4.10

26

Refrigerator Temperature Control Knob WPL 2182111 Contact Us For Availability

27

Refrigerator Temperature Control Knob WPL 2197871 Contact Us For Availability

28

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $97.31

28

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $57.30

29

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $6.47

29

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $4.82

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $20.97

30

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $38.88

30

Refrigerator Light Cover WPL 2200096 Contact Us For Availability

30A

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $7.35

31

W10853646 Whirlpool Indicator Light In Stock WPL W10853646 $95.20

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $4.82

31

Refrigerator Water Filter WPL 2203980 Contact Us For Availability

W11596045 Whirlpool Refrigerator Control Arm Backorder WPL W11596045 $20.03

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

WPW10366605-includeCORE Whirlpool WPW10366605 Backorder WPL WPW10366605-includeCORE $267.52

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $12.12

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $22.41

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $6.92

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $4.82

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $8.89

40

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $7.64

44

Refrigerator Ice Bin Cover, Front WPL 2171709 Contact Us For Availability

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $69.80

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $8.89

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

NI01

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

NI02

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

NI03

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $87.85

NI04

Refrigerator Service Valve WPL 978028 Contact Us For Availability

NI05

Refrigerator Service Valve WPL 978029 Contact Us For Availability

NI06

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $92.18

NI07

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $29.55

NI08

350942 Whirlpool Spray Paint Backorder WPL 350942 $64.04

NI09

285006 Whirlpool Spray In Stock WPL 285006 $52.65

NI10

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

NI11

350956 Whirlpool Spray Assembly In Stock WPL 350956 $26.25

NI12

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $52.10

NI13

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

NI14

WP72107 Whirlpool Touchup In Stock WPL WP72107 $10.96

NI15

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $12.67

NI16

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $13.08

NI17

Pnt-blk-qrt WPL 799340 Contact Us For Availability

NI18

Appliance Porcelain Touch-Up Paint, 1-qt (Whi WPL 799344 Contact Us For Availability

NI19

Touch-Up Paint (Almond) WPL 978883 Contact Us For Availability

NI20

Paint, Bsq WPL 4392900 Contact Us For Availability

NI21

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $34.42

NI22

Refrigerator Vinyl Tape WPL 479502 Contact Us For Availability

NI24

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $151.82

NI26

Foam Slab WPL 876029 Contact Us For Availability

NI27

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $119.63

NI28

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $80.29

NI29

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

NI30

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $39.72

NI31

Adhesive WPL 542639 Contact Us For Availability

NI32

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $56.74

NI33

Epoxy WPL 799833 Contact Us For Availability

NI34

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

NI35

WPW10312301 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10312301 $228.43

NI36

Refrigerator Ice Maker Torx Key Wrench WPL 1117510 Contact Us For Availability
