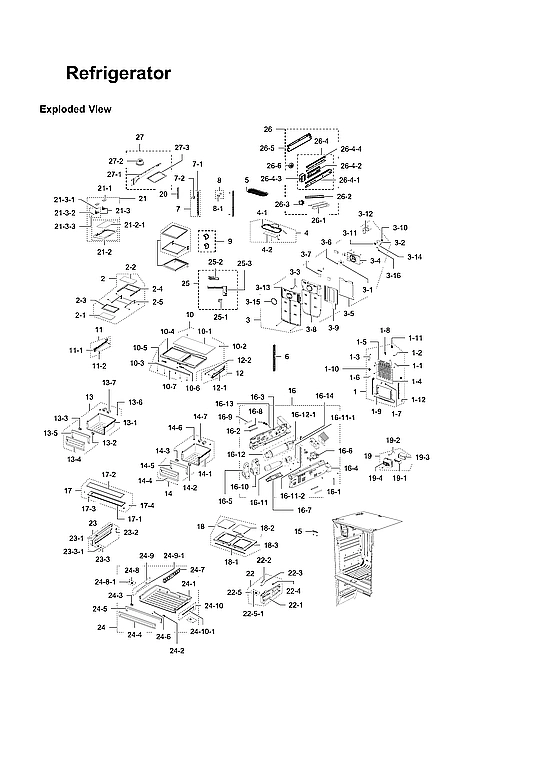

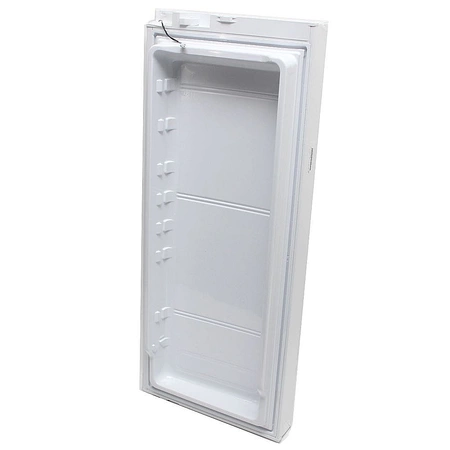

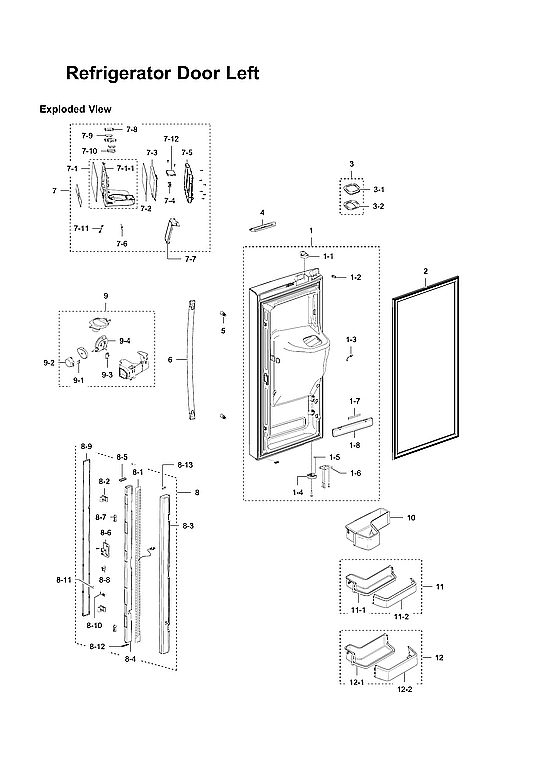

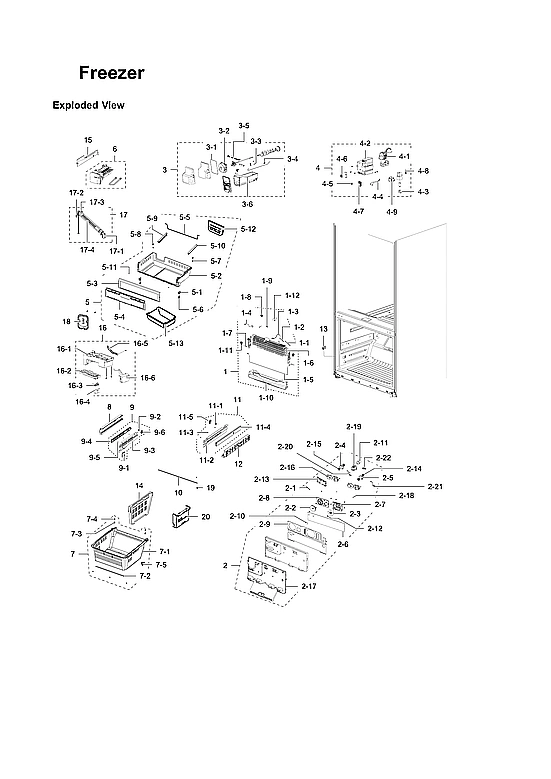

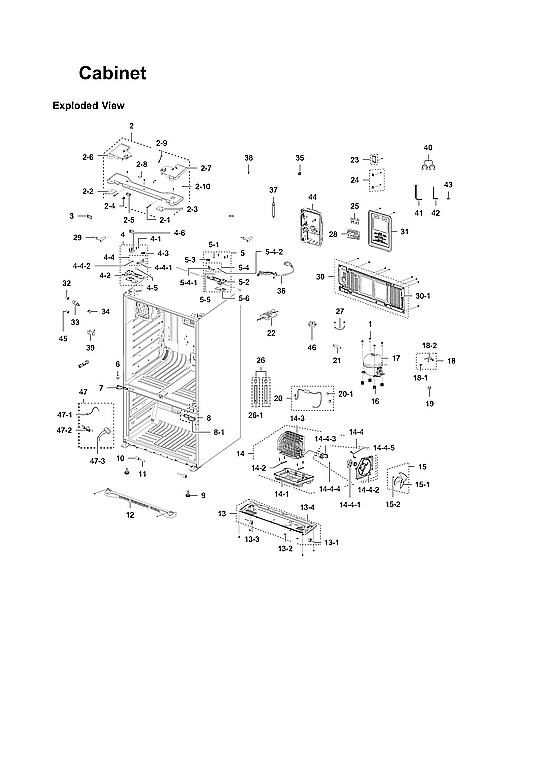

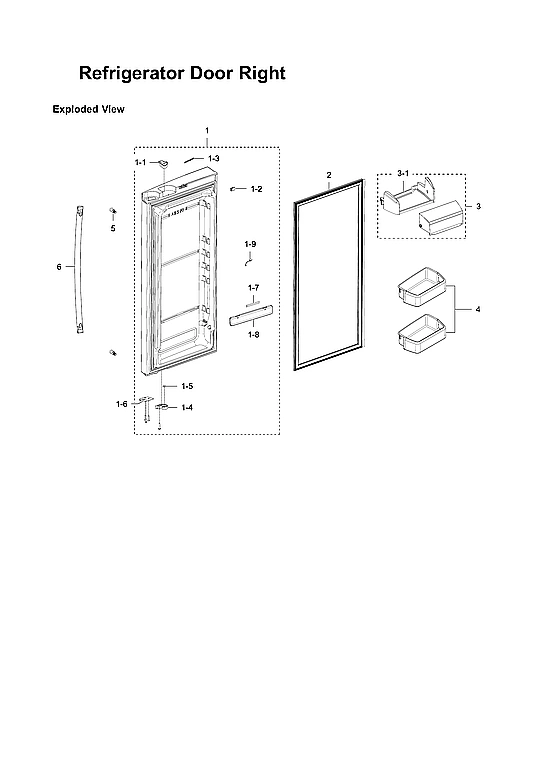

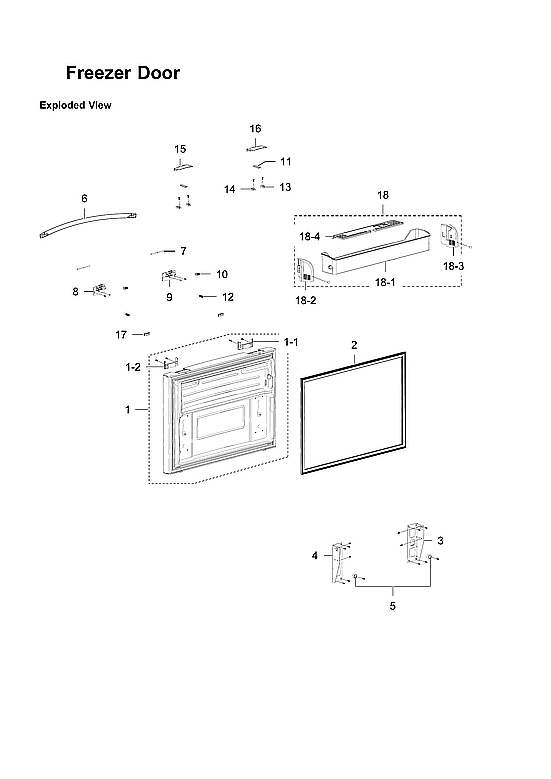

Model Samsung RFG29THDWP/XAA-00 Refrigerator – Common Parts &amp; Diagrams

1

DA96-00462D Samsung Refrigerator Evaporator A Backorder SMG DA96-00462D $191.27

1

DA96-00762L Samsung Refrigerator Evaporator A In Stock SMG DA96-00762L $167.30

1-1

DA66-00441C Samsung Refrigerator Auto Close C Backorder SMG DA66-00441C $5.48

1-2

DA61-02738A Samsung Refrigerator Magnet-Assem Backorder SMG DA61-02738A $6.71

1-3

DA32-00006S Samsung Refrigerator Freezer Defr In Stock SMG DA32-00006S $29.50

1-3

DA64-03806A Samsung Refrigerator Mascot Backorder SMG DA64-03806A $22.89

1-4

DA61-02383C Samsung Refrigerator Door Support Backorder SMG DA61-02383C $6.15

1-4

Refrigerator Defrost Heater SMG DA47-00424N Contact Us For Availability

1-5

DA47-00424M Samsung Refrigerator Metal Sheath In Stock SMG DA47-00424M $116.66

1-5

DA63-40294A Samsung Refrigerator Stopper Grom Backorder SMG DA63-40294A $1.69

1-6

DA61-03211A Samsung Refrigerator Door Stopper Backorder SMG DA61-03211A $29.82

1-6

DA61-03212A Samsung Refrigerator Door Stopper Backorder SMG DA61-03212A $30.79

1-7

DA41-00519X Samsung Refrigerator LED Lamp Ass Backorder SMG DA41-00519X $26.86

1-8

DA61-02901A Samsung Refrigerator Evaporator S In Stock SMG DA61-02901A $1.72

1-8

DA61-03683A Samsung Refrigerator Sensor Fixer Backorder SMG DA61-03683A $1.69

1-8

DA63-05524A Samsung Refrigerator Door LED Cap Backorder SMG DA63-05524A $41.02

1-9

DA61-03644A Samsung Refrigerator Defrost Evap Backorder SMG DA61-03644A $10.06

1-9

DA61-06186B Samsung Refrigerator Drain Plate Backorder SMG DA61-06186B $55.84

1-9

DA96-00478Y Samsung Door Wire Harness Assembl Backorder SMG DA96-00478Y $25.03

1-10

DA61-05835B Samsung Refrigerator Heater Fixer Backorder SMG DA61-05835B $6.39

1-11

DA61-05160A Samsung Refrigerator Fuse Holder In Stock SMG DA61-05160A $1.76

1-11

DA61-05689A Samsung Refrigerator Heater Fixer Backorder SMG DA61-05689A $23.43

2

DA97-05253E Samsung Refrigerator Door Gasket In Stock SMG DA97-05253E $202.94

2

DA97-07656A Samsung Refrigerator Ice Evaporat Backorder SMG DA97-07656A $267.80

2-1

DA34-00043B Samsung Refrigerator Reed Switch Backorder SMG DA34-00043B $32.41

2-3

Refrigerator Evaporator Fan Blade SMG DA31-00124A Contact Us For Availability

2-4

DA34-00066A Samsung Refrigerator Door Interlo Backorder SMG DA34-00066A $37.30

2-5

DA31-00146E Samsung Refrigerator Evaporator F In Stock SMG DA31-00146E $146.83

2-5

DA61-05274A Samsung Refrigerator Door Switch Backorder SMG DA61-05274A $11.73

2-8

DA32-00034B Samsung Refrigerator Humidity Sen Backorder SMG DA32-00034B $79.96

2-10

DA61-04522A Samsung Refrigerator Clip Lock Fi Backorder SMG DA61-04522A $1.69

2-20

DA96-00042D Samsung Refrigerator Motor Harnes Backorder SMG DA96-00042D $21.29

2-21

DA96-00042N Samsung Refrigerator Motor Wire H Backorder SMG DA96-00042N $17.04

3

DA61-03153B Samsung Refrigerator Front Hanger Backorder SMG DA61-03153B $98.61

3

DA97-05353A Samsung Refrigerator Ice Chute Ca Backorder SMG DA97-05353A $54.85

3

DA97-06426B Samsung Refrigerator Dairy Bin As Backorder SMG DA97-06426B $76.83

3

DA97-11117A Samsung Refrigerator Freezer Ice In Stock SMG DA97-11117A $194.82

3

DA97-11772A Samsung Freezer Refrigerator Evap In Stock SMG DA97-11772A $202.87

3-1

DA63-03698A Samsung Refrigerator Ice Chute Ca Backorder SMG DA63-03698A $58.68

3-1

DA63-04319A Samsung Refrigerator Dairy Guard Backorder SMG DA63-04319A $62.04

3-1

Refrigerator Ice Container Front Cover Gasket SMG DA63-03737A Contact Us For Availability

3-2

DA31-00146H Samsung Refrigerator Freezer Evap In Stock SMG DA31-00146H $133.46

3-2

DA67-01729A Samsung Refrigerator Ice Chute Ca Backorder SMG DA67-01729A $7.45

3-3

DA32-10105X Samsung Refrigerator Temperature In Stock SMG DA32-10105X $20.09

3-4

DA61-05890C Samsung Refrigerator Case Motor A Backorder SMG DA61-05890C $19.69

3-4

DA61-20124D Samsung Refrigerator Dispenser Sp Backorder SMG DA61-20124D $7.82

3-5

DA61-03186C Samsung Refrigerator Evaporator I Backorder SMG DA61-03186C $36.45

3-10

DA63-01146A Samsung Refrigerator Rear Motor G Backorder SMG DA63-01146A $4.79

3-11

DA63-01808A Samsung Refrigerator Front Motor Backorder SMG DA63-01808A $4.25

3-13

DA63-04218A Samsung Refrigerator Evaporator C Backorder SMG DA63-04218A $82.64

3-16

DA39-00060K Samsung Refrigerator Motor with H Backorder SMG DA39-00060K $157.57

4

DA61-03155B Samsung Refrigerator Hanger Rail Backorder SMG DA61-03155B $109.77

4

DA63-05506C Samsung Refrigerator Dispenser Tr Backorder SMG DA63-05506C $13.42

4

DA97-05246G Samsung Refrigerator Auger Motor In Stock SMG DA97-05246G $228.74

4

DA97-06419C Samsung Refrigerator Door Shelf B In Stock SMG DA97-06419C $86.13

4-1

DA31-00105G Samsung Refrigerator Geared Auger Backorder SMG DA31-00105G $211.21

4-2

DA96-00398J Samsung Refrigerator Led Lamp Ass Backorder SMG DA96-00398J $154.21

4-3

DA61-60001A Samsung Refrigerator Dispenser So Backorder SMG DA61-60001A $1.18

4-4

DA96-00036W Samsung Refrigerator Assembly wit Backorder SMG DA96-00036W $73.46

4-8

DA66-90003A Samsung Refrigerator Solenoid Gea Backorder SMG DA66-90003A $1.18

4-9

DA74-40151G Samsung Refrigerator Ice Dispense Backorder SMG DA74-40151G $110.76

5

DA97-07638L Samsung Refrigerator Upper Tray A Backorder SMG DA97-07638L $190.84

5-1

DA61-04154A Samsung Refrigerator Upper Freeze Backorder SMG DA61-04154A $9.50

5-3

DA61-03301A Samsung Refrigerator Door Auto Cl Backorder SMG DA61-03301A $7.82

5-5

DA66-00816A Samsung Assembly Refrigerator Sha Backorder SMG DA66-00816A $30.79

5-6

DA66-00554A Samsung Refrigerator Upper Freeze Backorder SMG DA66-00554A $5.59

5-8

DA71-20277A Samsung Refrigerator Fixer-Roller Backorder SMG DA71-20277A $1.60

5-9

DA61-05186A Samsung Refrigerator Upper Tray G Backorder SMG DA61-05186A $19.18

5-11

DA67-02795C Samsung Refrigerator Shaft Hole C Backorder SMG DA67-02795C $1.69

5-13

DA61-05300A Samsung Refrigerator Ice Cube Cas Backorder SMG DA61-05300A $68.26

6

DA63-06410A Samsung Refrigerator Door Hinge B In Stock SMG DA63-06410A $1.86

6

DA64-04014B Samsung Refrigerator Handle Bar A Backorder SMG DA64-04014B $131.67

7

DA66-00579A Samsung Refrigerator Freezer Hand Backorder SMG DA66-00579A $9.50

7

DA97-06372A Samsung Refrigerator Angle Shelf Backorder SMG DA97-06372A $87.28

7

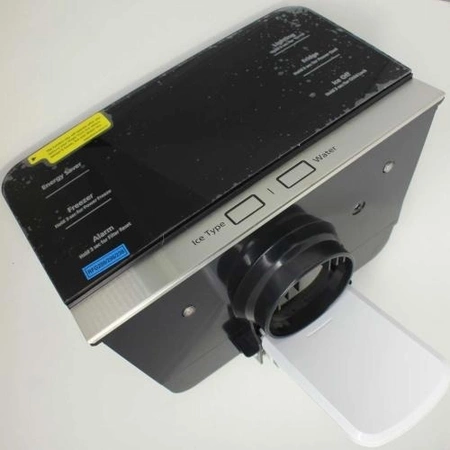

DA97-12088V Samsung Refrigerator Dispenser Co Backorder SMG DA97-12088V $328.06

7-1

DA97-12275A Samsung Refrigerator Dispenser Co Backorder SMG DA97-12275A $104.39

7-3

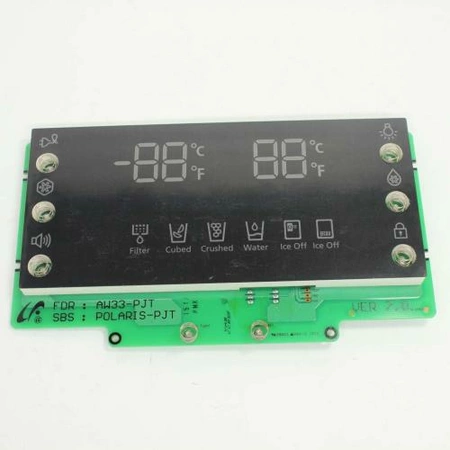

DA92-00153B Samsung Refrigerator LED Printed Backorder SMG DA92-00153B $282.68

7-4

DA34-00011B Samsung Refrigerator Micro Switch Backorder SMG DA34-00011B $17.88

7-5

DA63-06377A Samsung Refrigerator Rear PCB Cov Backorder SMG DA63-06377A $11.70

7-6

DA61-06033B Samsung Refrigerator Ice Dispense Backorder SMG DA61-06033B $3.35

7-7

DA66-00866A Samsung Refrigerator Dispenser Le Backorder SMG DA66-00866A $19.55

7-9

DA41-00217A Samsung Refrigerator Printed Circ Backorder SMG DA41-00217A $46.41

7-11

DA96-00106G Samsung Refrigerator Dispenser Wi Backorder SMG DA96-00106G $40.27

8

DA63-03414A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-03414A $44.04

8

DA97-06417R Samsung Refrigerator French Assem Backorder SMG DA97-06417R $175.73

8-1

DA67-01688A Samsung Refrigerator Angle Cap As Backorder SMG DA67-01688A $1.18

8-2

DA61-03230B Samsung Refrigerator French Door In Stock SMG DA61-03230B $3.68

8-3

DA61-04286A Samsung Refrigerator French Case In Stock SMG DA61-04286A $57.17

8-6

DA63-03454B Samsung Refrigerator Center Hinge Backorder SMG DA63-03454B $8.38

8-7

DA67-01650A Samsung Refrigerator French End C Backorder SMG DA67-01650A $5.04

8-8

DA67-01701A Samsung Refrigerator Cap Case Fre Backorder SMG DA67-01701A $5.33

8-10

DA81-01345B Samsung Refrigerator Door Spring In Stock SMG DA81-01345B $4.93

8-11

DA81-01346A Samsung Refrigerator French Sprin In Stock SMG DA81-01346A $1.69

8-13

DA67-02306A Samsung Refrigerator French Door Backorder SMG DA67-02306A $1.69

9

DA97-08680C Samsung Refrigerator Ice Dispense Backorder SMG DA97-08680C $55.16

9-1

DA34-00047B Samsung Refrigerator Pressure Coo Backorder SMG DA34-00047B $4.48

9-2

DA31-00079D Samsung Refrigerator Geared Dispe Backorder SMG DA31-00079D $99.68

9-2

DA61-03154A Samsung Refrigerator Gear Fixer Backorder SMG DA61-03154A $1.69

9-4

DA97-05368A Samsung Refrigerator Ice Route Co Backorder SMG DA97-05368A $54.71

9-6

Refrigerator Freezer Drawer Gear SMG DA66-00751A Contact Us For Availability

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $7.99

DA61-11161A Samsung Refrigerator Door Handle In Stock SMG DA61-11161A $6.77

DA66-00437B Samsung Refrigerator Gear Shaft Backorder SMG DA66-00437B $38.35

DA97-06425C Samsung Refrigerator Freezer Uppe Backorder SMG DA97-06425C $70.02

10-2

DA61-03166A Samsung Refrigerator Vegetable Co In Stock SMG DA61-03166A $1.69

10-3

DA61-04292A Samsung Refrigerator Vegetable Re Backorder SMG DA61-04292A $166.73

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.07

DA61-04258A Samsung Refrigerator Handle Slide Backorder SMG DA61-04258A $2.00

DA97-04839A Samsung Refrigerator Vegetable Dr Backorder SMG DA97-04839A $30.34

DA97-11478A Samsung Refrigerator Shelf Bin Do In Stock SMG DA97-11478A $69.60

11-1

DA61-03172A Samsung Refrigerator Crisper Draw Backorder SMG DA61-03172A $27.95

11-5

Refrigerator Gear Rail SMG DA66-00750A Contact Us For Availability

DA61-04335B Samsung E Assembly Handle Spring In Stock SMG DA61-04335B $2.66

DA63-03415A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-03415A $54.92

DA97-04840A Samsung Refrigerator Vegetable Dr Backorder SMG DA97-04840A $28.51

DA97-11483A Samsung Refrigerator Door Shelf B Backorder SMG DA97-11483A $80.98

12-1

DA61-03177A Samsung Refrigerator Vegetable Cr Backorder SMG DA61-03177A $29.63

12-2

DA63-06472A Samsung Refrigerator Door Bin She In Stock SMG DA63-06472A $54.06

13

DA34-10120E Samsung Refrigerator Door Switch Backorder SMG DA34-10120E $34.81

13

DA97-07547A Samsung Refrigerator Compressor C Backorder SMG DA97-07547A $145.51

13

Refrigerator freezer door handle mounting blo SMG DA61-04254A Contact Us For Availability

13-1

DA66-00649A Samsung Refrigerator Caster Shaft Backorder SMG DA66-00649A $3.97

13-3

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $6.77

14

DA61-04255A Samsung Refrigerator Handle Shaft Backorder SMG DA61-04255A $1.18

14

DA97-07756F Samsung Refrigerator Water Drain Backorder SMG DA97-07756F $209.08

14-3

DA97-05093E Samsung Refrigerator Assembly Spi Backorder SMG DA97-05093E $186.07

14-4

DA97-07754D Samsung Refrigerator Motor Suppor Backorder SMG DA97-07754D $172.30

14-4-1

DA31-00146B Samsung Refrigerator Condenser Fa In Stock SMG DA31-00146B $137.35

DA31-00010D Samsung Refrigerator Fan Blade In Stock SMG DA31-00010D $19.08

DA61-04285A Samsung Refrigerator French Guide Backorder SMG DA61-04285A $6.15

DA63-03691A Samsung Refrigerator Ice Room Har Backorder SMG DA63-03691A $11.70

Refrigerator freezer handle cover, right SMG DA63-04248C Contact Us For Availability

16

DA97-11435A Samsung Refrigerator Water Filter In Stock SMG DA97-11435A $315.56

16

Refrigerator Ice Maker SMG DA97-07603A Contact Us For Availability

16-1

DA61-05227A Samsung Refrigerator Ice Maker Su Backorder SMG DA61-05227A $44.26

16-2

DA41-00519S Samsung Refrigerator LED Lamp PCB Backorder SMG DA41-00519S $63.71

16-2

DA63-02284B Samsung Refrigerator Ice Cube Tra Backorder SMG DA63-02284B $30.17

16-3

DA63-02183A Samsung Refrigerator Sensor Cover In Stock SMG DA63-02183A $3.07

16-4

DA61-01800A Samsung Refrigerator Ice Maker Fi In Stock SMG DA61-01800A $35.66

16-4

DA61-07497A Samsung Refrigerator Case Filter Backorder SMG DA61-07497A $42.61

16-5

DA61-05435A Samsung Refrigerator Ice Maker Sh In Stock SMG DA61-05435A $6.77

16-5

DA67-02505B Samsung Refrigerator Tank Filter Backorder SMG DA67-02505B $10.11

16-6

DA59-00294B Samsung Refrigerator Ice Maker As In Stock SMG DA59-00294B $181.86

16-10

DA63-05406B Samsung Refrigerator Cover Filter Backorder SMG DA63-05406B $21.83

16-11

DA97-08006D Samsung Refrigerator White Case F Backorder SMG DA97-08006D $125.94

16-11-2

DA62-02429G Samsung Refrigerator Water Line P Backorder SMG DA62-02429G $7.99

16-14

DA62-03103A Samsung Refrigerator Gray Tube Fi Backorder SMG DA62-03103A $22.92

DA61-05215A Samsung Refrigerator Freezer Door Backorder SMG DA61-05215A $4.79

DA97-00209Z Samsung Refrigerator Water Pipe F In Stock SMG DA97-00209Z $92.52

MKV190CL2B/ASH Samsung Refrigerator Compresso In Stock SMG MKV190CL2B/ASH $334.64

Refrigerator Drawer Cover SMG DA97-06327A Contact Us For Availability

17-3

DA73-00134D Samsung Refrigerator Water Pipe A Backorder SMG DA73-00134D $56.28

17-4

DA47-00192E Samsung Refrigerator Ice Maker Fi Backorder SMG DA47-00192E $62.68

18

DA97-08175B Samsung Refrigerator Guard Assemb Backorder SMG DA97-08175B $97.41

18

DA97-08310E Samsung Refrigerator Compressor A Backorder SMG DA97-08310E $84.91

18

DA97-08417A Samsung Refrigerator Pantry Shelf Backorder SMG DA97-08417A $209.90

18-1

DA34-00004D Samsung Refrigerator Compressor O In Stock SMG DA34-00004D $35.00

18-1

DA63-05162A Samsung Refrigerator White Cool G Backorder SMG DA63-05162A $87.37

18-2

DA39-00154D Samsung Refrigerator Wire Harness Backorder SMG DA39-00154D $58.68

18-2

DA64-02235A Samsung Refrigerator Pantry Shelf Backorder SMG DA64-02235A $50.72

18-3

DA67-02519A Samsung Refrigerator Pantry Shelf Backorder SMG DA67-02519A $101.97

19

DA63-01866A Samsung Refrigerator Compressor O Backorder SMG DA63-01866A $14.90

19

DA97-06324C Samsung Refrigerator Motor Damper Backorder SMG DA97-06324C $137.66

19-1

DA31-00071G Samsung Refrigerator DC Motor Dam Backorder SMG DA31-00071G $188.79

19-2

DA32-00006R Samsung Refrigerator Defrost Sens In Stock SMG DA32-00006R $23.97

20

DA63-04974A Samsung Refrigerator Cover-Ice Ma Backorder SMG DA63-04974A $14.38

21-1

DA61-03571A Samsung Refrigerator Upper Shelf Backorder SMG DA61-03571A $3.90

21-3

DA97-05251B Samsung Refrigerator Shelf Hinge Backorder SMG DA97-05251B $32.19

22

DA27-00019K Samsung Refrigerator Coil Filter Backorder SMG DA27-00019K $112.17

22

DA97-11542A Samsung Refrigerator Pantry Rail Backorder SMG DA97-11542A $116.22

22-1

DA63-06520A Samsung Refrigerator Right Pantry Backorder SMG DA63-06520A $75.44

22-2

DA92-00151A Samsung Refrigerator Printed Circ Backorder SMG DA92-00151A $49.73

22-5

DA97-05932A Samsung Refrigerator Roller Assem Backorder SMG DA97-05932A $20.13

23

DA97-11541A Samsung Refrigerator Pantry Rail Backorder SMG DA97-11541A $54.43

23-1

DA63-06521A Samsung Refrigerator Pantry Cover Backorder SMG DA63-06521A $55.27

24

DA97-11540A Samsung Refrigerator Pantry Drawe Backorder SMG DA97-11540A $244.61

24-1

Refrigerator Pantry Drawer SMG DA61-07602A Contact Us For Availability

24-2

Refrigerator Support SMG DA61-04288A Contact Us For Availability

24-3

Suprt.trim SMG DA61-04289A Contact Us For Availability

24-4

DA63-04275B Samsung Refrigerator Pantry Front Backorder SMG DA63-04275B $63.38

24-5

DA63-04276B Samsung Refrigerator Pantry Trim Backorder SMG DA63-04276B $43.10

24-6

DA66-00580A Samsung Refrigerator Pantry Rolle Backorder SMG DA66-00580A $2.23

24-7

DA61-04290A Samsung Refrigerator Pantry Guide Backorder SMG DA61-04290A $134.51

24-8

DA97-05931A Samsung Refrigerator Freezer Shel Backorder SMG DA97-05931A $15.09

24-9

DA97-11538A Samsung Refrigerator Left Pantry Backorder SMG DA97-11538A $62.04

24-9-1

DA61-07607A Samsung Refrigerator Pantry Rail Backorder SMG DA61-07607A $127.28

24-10

DA97-11539A Samsung Refrigerator Right Pantry Backorder SMG DA97-11539A $54.20

24-10-1

DA61-07601A Samsung Refrigerator Pantry Rail Backorder SMG DA61-07601A $167.77

25

DA97-11806A Samsung Refrigerator Shelf Insert Backorder SMG DA97-11806A $183.67

25

Refrigerator Electronic Control Board SMG DA41-00614B Contact Us For Availability

25-1

DA61-07696A Samsung Shelf Stopper Backorder SMG DA61-07696A $2.52

25-2

Samsung Refrigerator Shelf Wire SMG DA66-00871A Contact Us For Availability

25-3

DA67-03161A Samsung Assembly Refrigerator She Backorder SMG DA67-03161A $63.50

26

DA97-04049H Samsung Refrigerator Drain Cap As Backorder SMG DA97-04049H $15.91

26

DA97-11807A Samsung Refrigerator Assembly Rai Backorder SMG DA97-11807A $151.27

26-1

DA61-07704A Samsung Refrigerator Reinforcemen Backorder SMG DA61-07704A $28.36

26-1

DA62-01266D Samsung Refrigerator PVC Tube Backorder SMG DA62-01266D $4.79

26-2

Samsung REINF-COVE SMG DA61-07705A Contact Us For Availability

26-3

Samsung FIXER-RIVE SMG DA61-07725A Contact Us For Availability

26-4

Samsung RAIL-SLIDE SMG DA61-07726A Contact Us For Availability

26-4-1

Samsung RAIL-OUTER SMG DA61-07706A Contact Us For Availability

26-4-2

Samsung RAIL-MID M SMG DA61-07707A Contact Us For Availability

26-4-3

Samsung STOPPER-RA SMG DA61-07724A Contact Us For Availability

26-4-4

Samsung RAIL-RETAI SMG DA61-07727A Contact Us For Availability

26-5

DA63-06617A Samsung Cover Rail IRP Backorder SMG DA63-06617A $30.28

26-6

Samsung ROLLER-IRP SMG DA66-00873A Contact Us For Availability

27

DA97-11808A Samsung Refrigerator Mid Shelf As Backorder SMG DA97-11808A $148.43

27-1

Samsung HANGER-SLI SMG DA61-07702A Contact Us For Availability

27-2

DA66-00151A Samsung Front Roller Backorder SMG DA66-00151A $1.60

27-3

DA67-03162A Samsung Mid Shelf Backorder SMG DA67-03162A $79.85

28

Refrigerator Electronic Control Board SMG DA92-00147A Contact Us For Availability

29

DA61-04932A Samsung Refrigerator Door Hinge F Backorder SMG DA61-04932A $8.46

31

DA97-08442A Samsung Refrigerator Printed Circ Backorder SMG DA97-08442A $50.01

32

DA71-20207A Samsung Refrigerator Water Valve Backorder SMG DA71-20207A $1.18

33

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $31.82

34

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $21.80

40

DA60-00143B Samsung Refrigerator Housing Reta In Stock SMG DA60-00143B $1.69

47-1

DA32-00033C Samsung Refrigerator Temperature In Stock SMG DA32-00033C $26.43

47-2

DA63-05470B Samsung Refrigerator Sensor Cover Backorder SMG DA63-05470B $5.04
