Model Samsung RF4289HARS/XAA-00 Refrigerator – Common Parts &amp; Diagrams

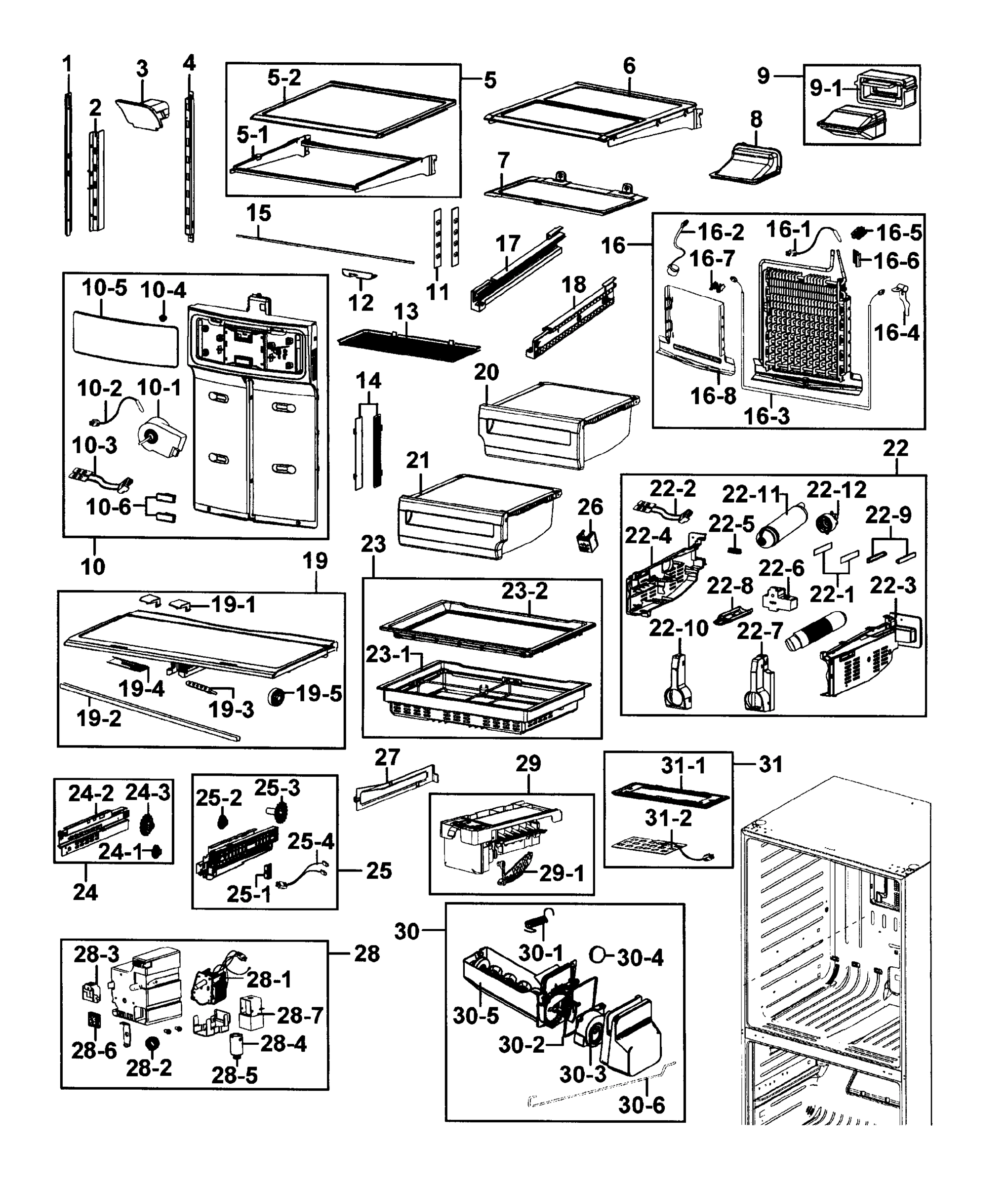

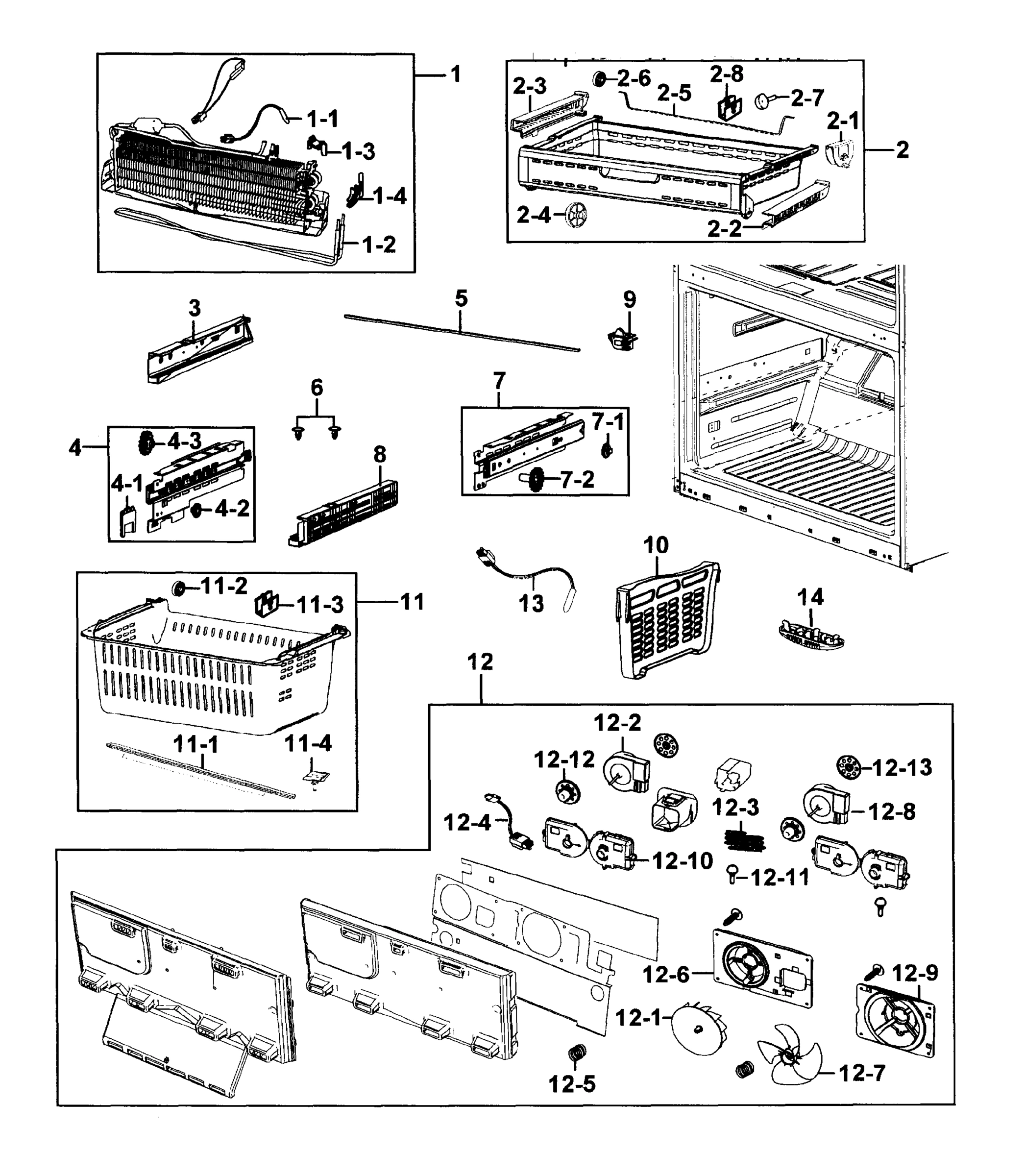

1

DA97-08407A Samsung Refrigerator Guard Assemb Backorder SMG DA97-08407A $104.55

1-1

DA61-05846A Samsung Refrigerator Support Guar Backorder SMG DA61-05846A $18.64

1-2

DA61-05847A Samsung Refrigerator Support Guar Backorder SMG DA61-05847A $28.22

1-3

DA61-05845A Samsung Refrigerator Heater Fixer Backorder SMG DA61-05845A $9.59

1-4

DA61-06182A Samsung Refrigerator Freezer Sens Backorder SMG DA61-06182A $10.11

2

DA97-08439B Samsung Refrigerator Upper Freeze Backorder SMG DA97-08439B $209.90

2-1

DA61-04154A Samsung Refrigerator Upper Freeze Backorder SMG DA61-04154A $9.50

2-1

DA97-04903B Samsung Refrigerator Auto Close L Backorder SMG DA97-04903B $25.03

2-3

DA61-03301A Samsung Refrigerator Door Auto Cl Backorder SMG DA61-03301A $7.82

2-3

DA61-05186A Samsung Refrigerator Upper Tray G Backorder SMG DA61-05186A $19.18

2-4

DA66-00554A Samsung Refrigerator Upper Freeze Backorder SMG DA66-00554A $5.59

2-5

DA66-00816A Samsung Assembly Refrigerator Sha Backorder SMG DA66-00816A $30.79

2-7

DA67-02795B Samsung Refrigerator Shaft Hole C Backorder SMG DA67-02795B $33.53

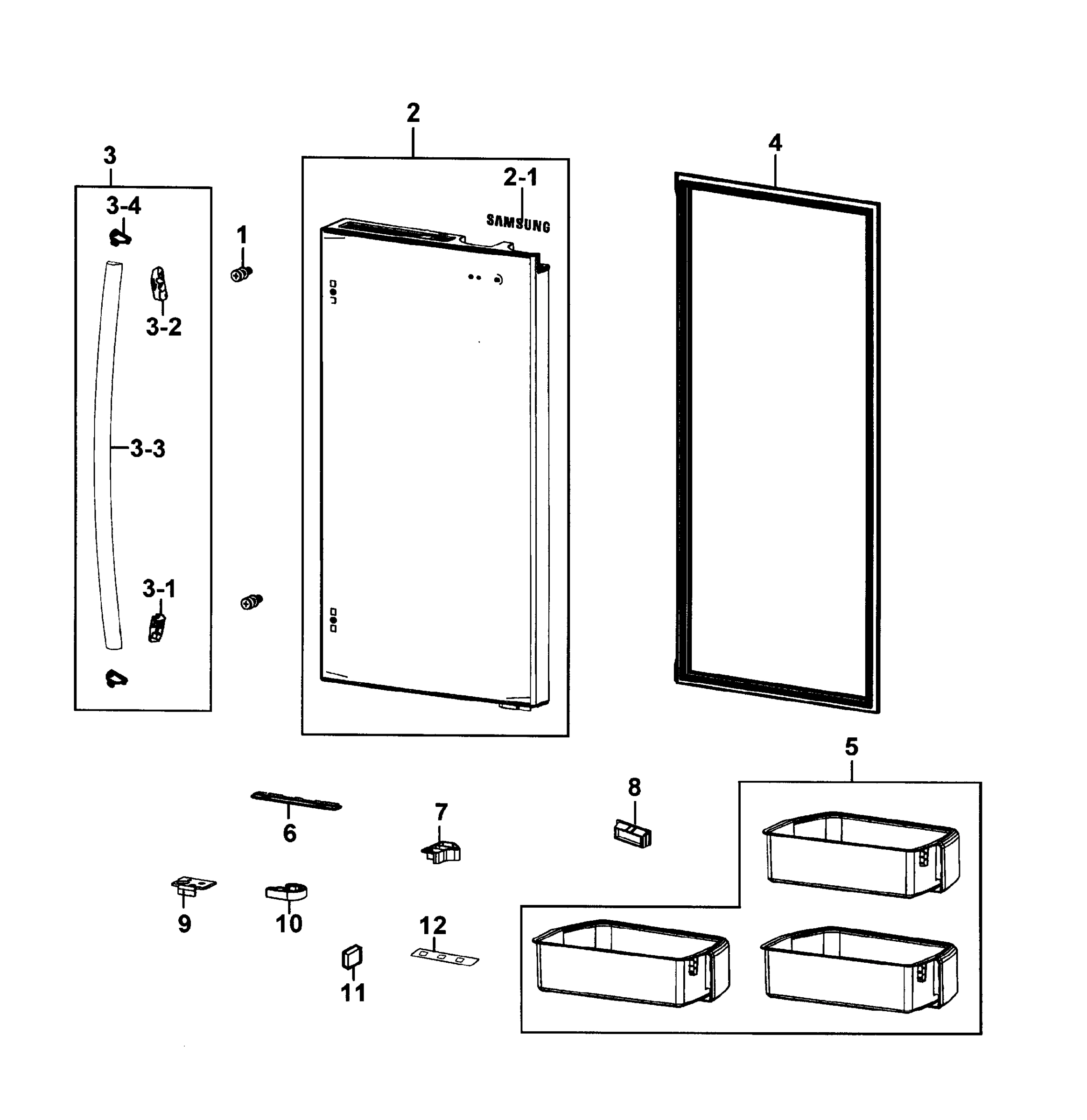

3

DA63-05400A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-05400A $59.93

3

DA97-07822F Samsung Refrigerator Upper Hinge Backorder SMG DA97-07822F $107.49

3

Refrigerator door handle SMG DA97-12714C Contact Us For Availability

3-1

DA61-08228A Samsung Refrigerator Handle Suppo Backorder SMG DA61-08228A $12.30

3-2

DA61-08246A Samsung Refrigerator Upper Handle Backorder SMG DA61-08246A $27.95

3-4

DA67-02788A Samsung Refrigerator Handle Suppo Backorder SMG DA67-02788A $14.53

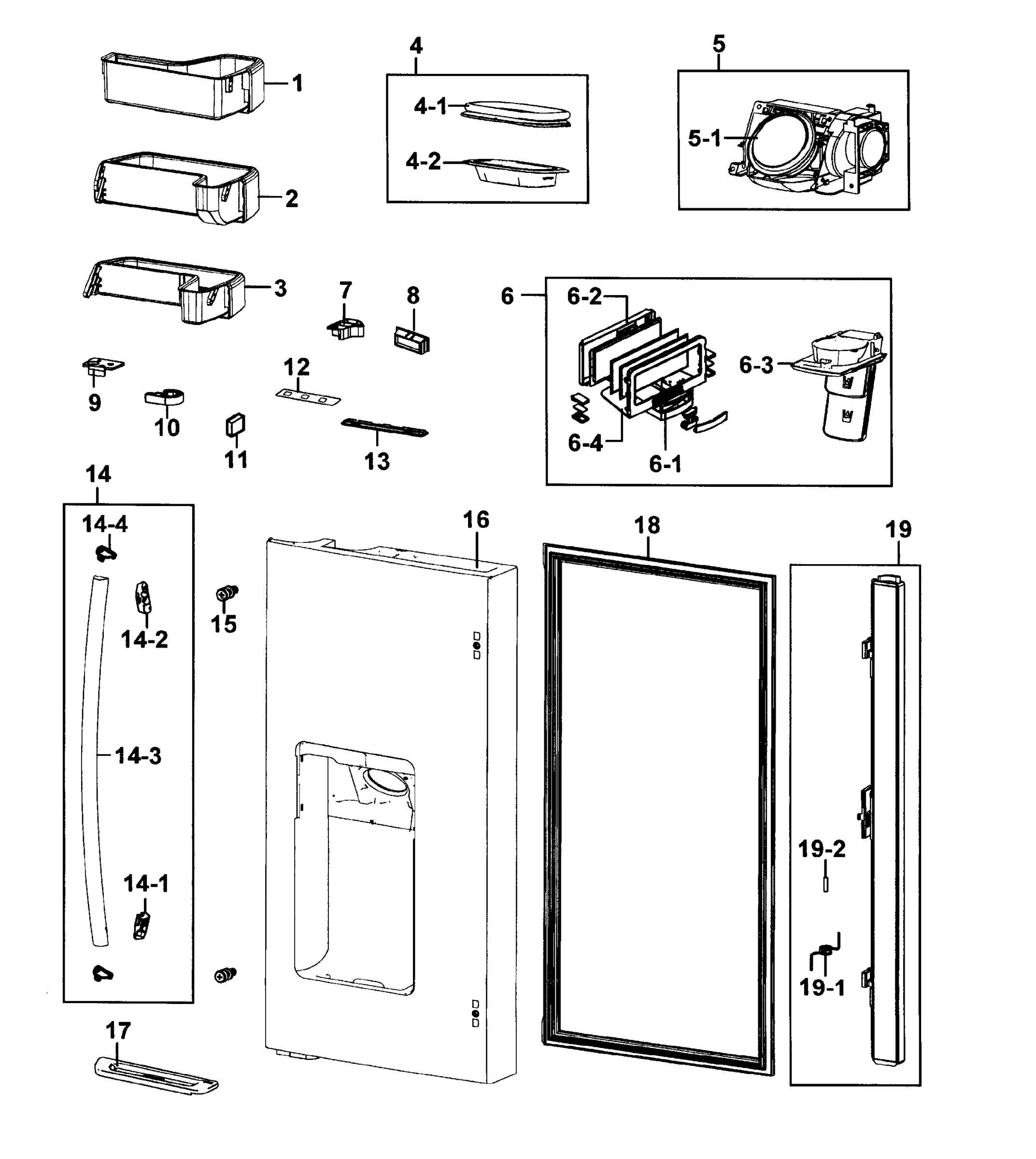

4

DA61-06014A Samsung Refrigerator Handle Assem Backorder SMG DA61-06014A $3.35

4

DA63-05630A Samsung Refrigerator Control Cove Backorder SMG DA63-05630A $12.78

4

DA97-05353A Samsung Refrigerator Ice Chute Ca Backorder SMG DA97-05353A $54.85

4

DA97-08459A Samsung Refrigerator Mid Shelf As Backorder SMG DA97-08459A $124.86

4-1

DA34-00047B Samsung Refrigerator Pressure Coo Backorder SMG DA34-00047B $4.48

4-1

DA63-03698A Samsung Refrigerator Ice Chute Ca Backorder SMG DA63-03698A $58.68

4-2

DA61-03154A Samsung Refrigerator Gear Fixer Backorder SMG DA61-03154A $1.69

4-2

DA67-01729A Samsung Refrigerator Ice Chute Ca Backorder SMG DA67-01729A $7.45

4-3

Refrigerator Freezer Drawer Gear SMG DA66-00751A Contact Us For Availability

5

DA63-05432A Samsung Refrigerator Handle Cover Backorder SMG DA63-05432A $16.21

5

DA64-03273A Samsung Refrigerator Control Inla Backorder SMG DA64-03273A $30.32

5

DA66-00437B Samsung Refrigerator Gear Shaft Backorder SMG DA66-00437B $38.35

5

DA92-00146D Samsung Refrigerator Main PCB Ass Backorder SMG DA92-00146D $313.39

5

DA97-08461A Samsung Refrigerator Shelf Slide Backorder SMG DA97-08461A $159.82

5

DA97-08680C Samsung Refrigerator Ice Dispense Backorder SMG DA97-08680C $55.16

5-1

DA97-05368A Samsung Refrigerator Ice Route Co Backorder SMG DA97-05368A $54.71

6

DA97-08463A Samsung Refrigerator Quick Space Backorder SMG DA97-08463A $195.17

6

DA97-11828A Samsung Refrigerator Dispenser As Backorder SMG DA97-11828A $692.11

6-3

DA97-08519A Samsung Refrigerator Dispenser Le In Stock SMG DA97-08519A $181.71

7

DA63-05462C Samsung Refrigerator Convection D Backorder SMG DA63-05462C $100.09

7

DA66-00442B Samsung Refrigerator Auto Close C Backorder SMG DA66-00442B $4.79

7

DA66-00579A Samsung Refrigerator Freezer Hand Backorder SMG DA66-00579A $9.50

7

Refrigerator Folding Shelf SMG DA97-08609A Contact Us For Availability

7-2

Refrigerator Gear Rail SMG DA66-00750A Contact Us For Availability

8

DA61-03769A Samsung Refrigerator Door Magnet In Stock SMG DA61-03769A $3.07

8

DA63-05409A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-05409A $53.98

8

DA63-05433A Samsung Refrigerator Handle Cover Backorder SMG DA63-05433A $16.50

8

DA97-05362C Samsung Refrigerator Water Pipe A Backorder SMG DA97-05362C $27.95

9

DA34-10120E Samsung Refrigerator Door Switch Backorder SMG DA34-10120E $34.81

9

DA60-00259B Samsung Refrigerator Tube Fitting Backorder SMG DA60-00259B $30.34

9

DA61-03211A Samsung Refrigerator Door Stopper Backorder SMG DA61-03211A $29.82

9

DA61-03212A Samsung Refrigerator Door Stopper Backorder SMG DA61-03212A $30.79

9

DA97-08430A Samsung Refrigerator Convection I Backorder SMG DA97-08430A $237.39

9-1

DA31-00101C Samsung Refrigerator DC Motor Dam Backorder SMG DA31-00101C $186.37

10

DA61-02383E Samsung Refrigerator Door Closing Backorder SMG DA61-02383E $6.05

10

DA61-05930A Samsung Refrigerator Fixer Shaft In Stock SMG DA61-05930A $2.23

10

DA82-03588A Samsung Refrigerator Evaporator C In Stock SMG DA82-03588A $219.27

10-2

DA32-00033C Samsung Refrigerator Temperature In Stock SMG DA32-00033C $26.43

11

DA61-04335B Samsung E Assembly Handle Spring In Stock SMG DA61-04335B $2.66

11

DA61-05899A Samsung Refrigerator Shaft Fixer In Stock SMG DA61-05899A $1.72

11

DA63-40294A Samsung Refrigerator Stopper Grom Backorder SMG DA63-40294A $1.69

12

DA61-04285A Samsung Refrigerator French Guide Backorder SMG DA61-04285A $6.15

12

DA66-00579B Samsung Refrigerator Handle Cap S In Stock SMG DA66-00579B $7.82

12

DA97-08434C Samsung Refrigerator Freezer Evap In Stock SMG DA97-08434C $227.52

12-3

DA47-00261E Samsung Refrigerator Duct Heater Backorder SMG DA47-00261E $54.52

12-4

DA96-00042A Samsung Refrigerator Motor Harnes Backorder SMG DA96-00042A $14.90

12-7

Refrigerator Evaporator Fan Blade SMG DA31-00124A Contact Us For Availability

12-8

DA31-00146E Samsung Refrigerator Evaporator F In Stock SMG DA31-00146E $146.83

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.07

DA63-05524A Samsung Refrigerator Door LED Cap Backorder SMG DA63-05524A $41.02

DA97-10605B Samsung Refrigerator Display Cont Backorder SMG DA97-10605B $107.86

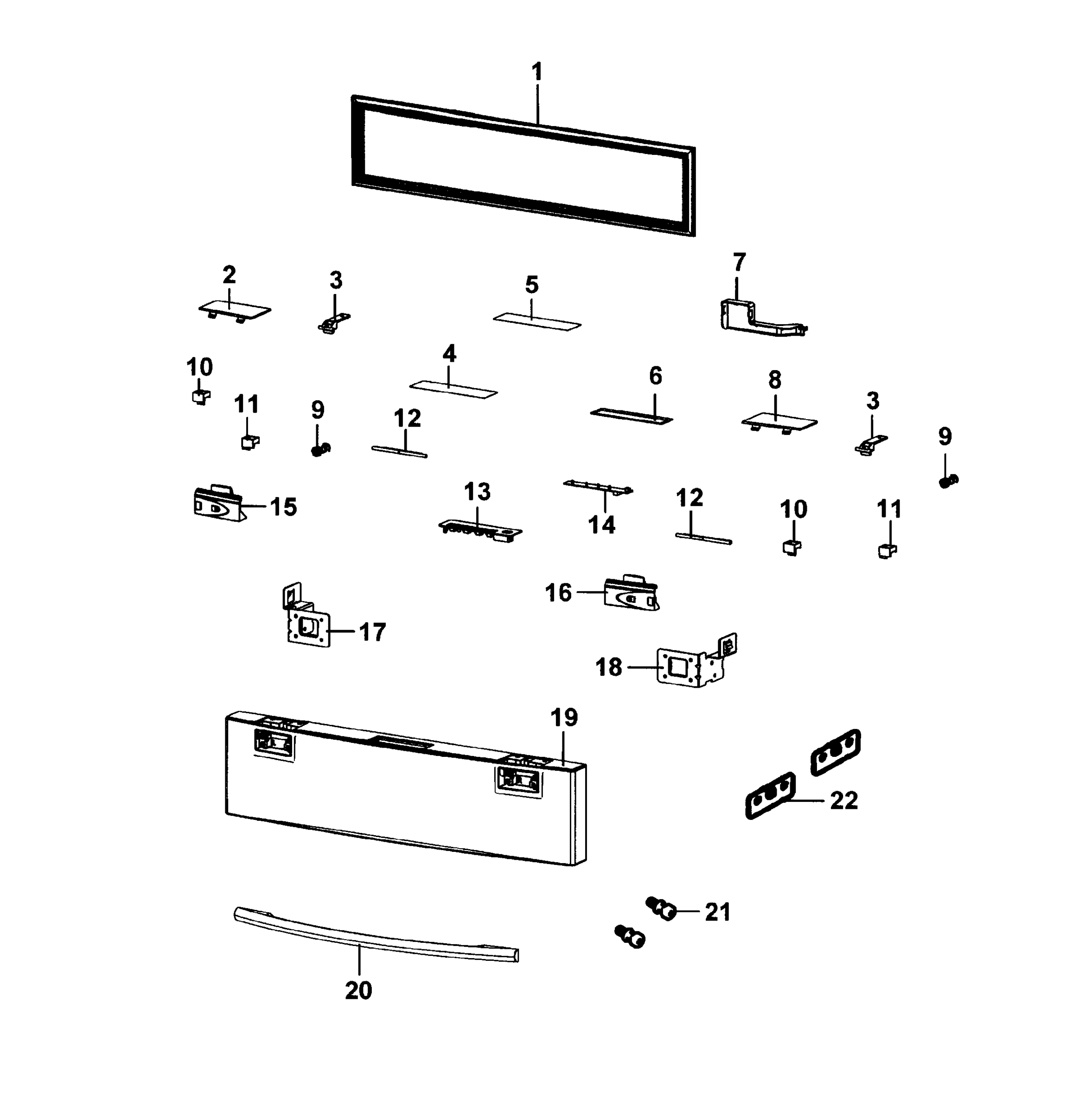

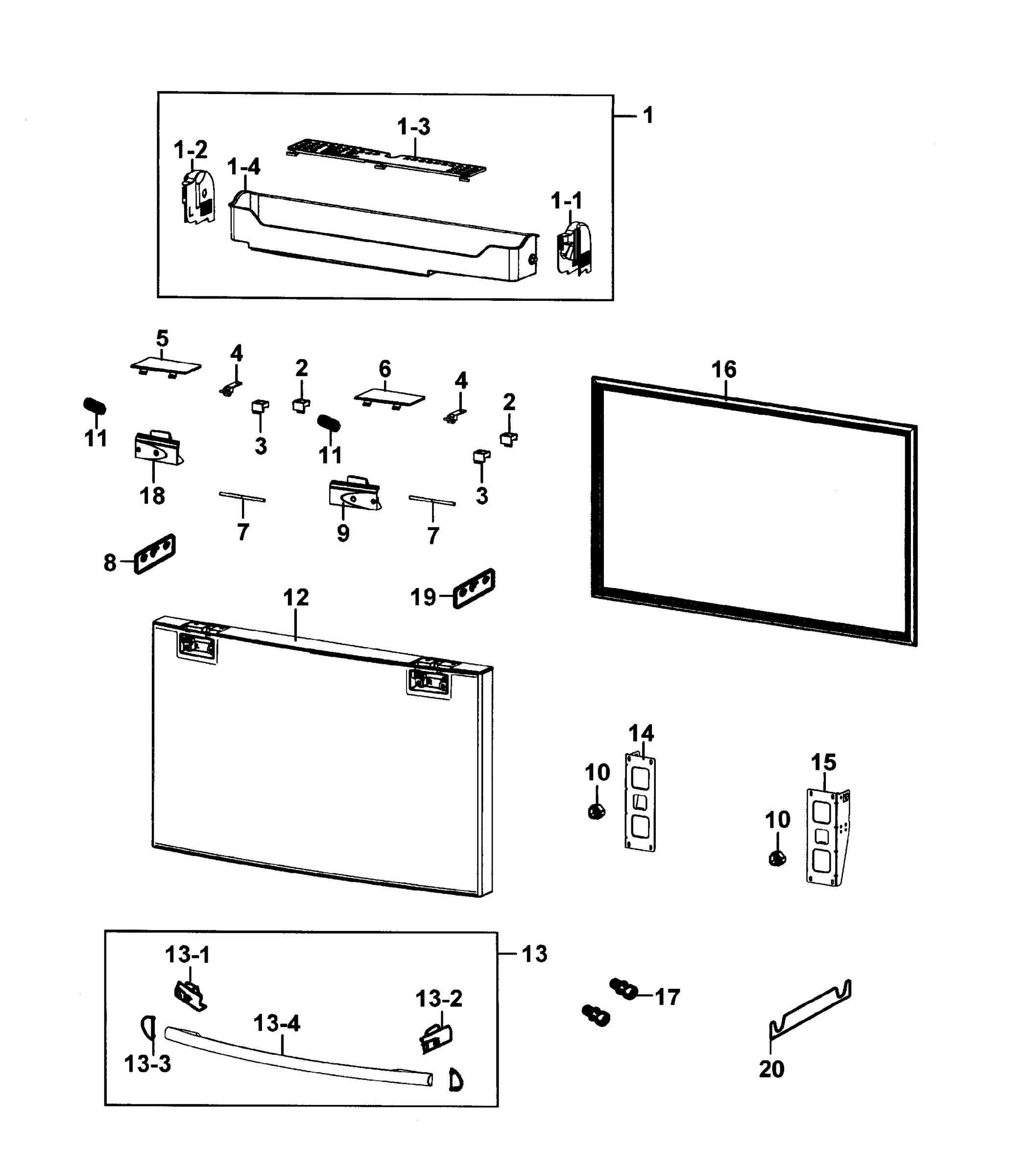

DA97-12712C Samsung Refrigerator Freezer Door Backorder SMG DA97-12712C $200.55

13-1

DA61-08229A Samsung Refrigerator Freezer Hand In Stock SMG DA61-08229A $12.29

13-2

DA61-08247A Samsung Refrigerator Freezer Door In Stock SMG DA61-08247A $27.41

13-3

DA67-02787A Samsung Refrigerator Freezer Door In Stock SMG DA67-02787A $12.90

13-4

DA64-03945C Samsung Refrigerator Freezer Door Backorder SMG DA64-03945C $159.19

DA41-00519Q Samsung Refrigerator LED Lamp PBA Backorder SMG DA41-00519Q $26.25

DA61-03153B Samsung Refrigerator Front Hanger Backorder SMG DA61-03153B $98.61

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $7.99

DA63-05470B Samsung Refrigerator Sensor Cover Backorder SMG DA63-05470B $5.04

Refrigerator Door Handle SMG DA97-12715C Contact Us For Availability

15

DA61-03155B Samsung Refrigerator Hanger Rail Backorder SMG DA61-03155B $109.77

16

DA67-02784A Samsung Refrigerator Freezer Door Backorder SMG DA67-02784A $30.18

16

DA96-00660E Samsung Refrigerator Evaporator A In Stock SMG DA96-00660E $168.64

16

DA97-12522A Samsung Refrigerator Freezer Door In Stock SMG DA97-12522A $106.33

16-3

DA47-00244W Samsung Refrigerator Defrost Heat In Stock SMG DA47-00244W $103.23

16-4

DA61-03644A Samsung Refrigerator Defrost Evap Backorder SMG DA61-03644A $10.06

16-5

DA61-03683A Samsung Refrigerator Sensor Fixer Backorder SMG DA61-03683A $1.69

16-6

DA61-05160A Samsung Refrigerator Fuse Holder In Stock SMG DA61-05160A $1.76

16-7

DA61-05835B Samsung Refrigerator Heater Fixer Backorder SMG DA61-05835B $6.39

16-8

DA61-06186B Samsung Refrigerator Drain Plate Backorder SMG DA61-06186B $55.84

17

DA63-05506A Samsung Assembly Refrigerator Dis In Stock SMG DA63-05506A $32.97

17

DA97-04839A Samsung Refrigerator Vegetable Dr Backorder SMG DA97-04839A $30.34

17

DA97-07547A Samsung Refrigerator Compressor C Backorder SMG DA97-07547A $145.51

17-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $6.77

17-2

DA66-00649A Samsung Refrigerator Caster Shaft Backorder SMG DA66-00649A $3.97

18

DA67-02785A Samsung Left Endcap Freezer Handl Backorder SMG DA67-02785A $30.74

18

DA97-04840A Samsung Refrigerator Vegetable Dr Backorder SMG DA97-04840A $28.51

18

DA97-05253R Samsung Refrigerator Door Gasket In Stock SMG DA97-05253R $202.94

19

DA97-08402A Samsung Refrigerator Vegetable Co Backorder SMG DA97-08402A $252.57

19

DA97-08512G Samsung Refrigerator French Door In Stock SMG DA97-08512G $152.27

19-1

DA61-03166A Samsung Refrigerator Vegetable Co In Stock SMG DA61-03166A $1.69

19-1

DA81-01345B Samsung Refrigerator Door Spring In Stock SMG DA81-01345B $4.93

19-2

DA61-04292A Samsung Refrigerator Vegetable Re Backorder SMG DA61-04292A $166.73

19-2

DA81-01346A Samsung Refrigerator French Sprin In Stock SMG DA81-01346A $1.69

19-4

DA66-00718A Samsung Refrigerator Humidity Lev Backorder SMG DA66-00718A $6.39

19-4

DA97-08462H Samsung Refrigerator Circuit Moto Backorder SMG DA97-08462H $170.50

19-5

DA31-00146B Samsung Refrigerator Condenser Fa In Stock SMG DA31-00146B $137.35

21

DA61-11161A Samsung Refrigerator Door Handle In Stock SMG DA61-11161A $6.77

21

MKV190CL2B/ASH Samsung Refrigerator Compresso In Stock SMG MKV190CL2B/ASH $334.64

22

DA61-06658A Samsung Refrigerator Reinforcemen In Stock SMG DA61-06658A $3.74

22-7

DA63-05406B Samsung Refrigerator Cover Filter Backorder SMG DA63-05406B $21.83

23

DA39-00154J Samsung Refrigerator Compressor W Backorder SMG DA39-00154J $41.20

23

DA97-11930A Samsung Refrigerator Drawer Divid Backorder SMG DA97-11930A $297.36

24

DA34-00004D Samsung Refrigerator Compressor O In Stock SMG DA34-00004D $35.00

25

DA97-08809A Samsung Refrigerator Convection S Backorder SMG DA97-08809A $229.78

25-1

DA61-02738A Samsung Refrigerator Magnet-Assem Backorder SMG DA61-02738A $6.71

27

DA27-00022A Samsung Refrigerator Coil Filter Backorder SMG DA27-00022A $143.63

27

DA63-03691A Samsung Refrigerator Ice Room Har Backorder SMG DA63-03691A $11.70

28

DA97-05246G Samsung Refrigerator Auger Motor In Stock SMG DA97-05246G $228.74

28-1

DA96-00036W Samsung Refrigerator Assembly wit Backorder SMG DA96-00036W $73.46

28-3

DA61-60001A Samsung Refrigerator Dispenser So Backorder SMG DA61-60001A $1.18

28-5

DA66-90003A Samsung Refrigerator Solenoid Gea Backorder SMG DA66-90003A $1.18

28-7

DA74-40151G Samsung Refrigerator Ice Dispense Backorder SMG DA74-40151G $110.76

29

DA63-01866A Samsung Refrigerator Compressor O Backorder SMG DA63-01866A $14.90

29

DA97-07365G Samsung Refrigerator Ice Maker As In Stock SMG DA97-07365G $174.64

29-1

DA61-05023A Samsung Refrigerator Ice Full Gui Backorder SMG DA61-05023A $13.98

30

DA31-00010D Samsung Refrigerator Fan Blade In Stock SMG DA31-00010D $19.08

30

DA97-11117A Samsung Refrigerator Freezer Ice In Stock SMG DA97-11117A $194.82

30-1

DA61-20124D Samsung Refrigerator Dispenser Sp Backorder SMG DA61-20124D $7.82

30-2

Refrigerator Ice Container Front Cover Gasket SMG DA63-03737A Contact Us For Availability

31

DA63-06410A Samsung Refrigerator Door Hinge B In Stock SMG DA63-06410A $1.86

35

DA97-07827B Samsung Refrigerator Water Inlet Backorder SMG DA97-07827B $174.08

37

Refrigerator Drain Cap SMG DA97-04049J Contact Us For Availability

1212

DA63-01808A Samsung Refrigerator Front Motor Backorder SMG DA63-01808A $4.25

1213

DA63-01146A Samsung Refrigerator Rear Motor G Backorder SMG DA63-01146A $4.79

2210

DA67-02505B Samsung Refrigerator Tank Filter Backorder SMG DA67-02505B $10.11

2211

DA97-08005D Samsung Refrigerator Water Tank A Backorder SMG DA97-08005D $101.21

2212

DA97-08006B Samsung Refrigerator Case Filter Backorder SMG DA97-08006B $121.76
