Model Samsung RF30KMEDBSR/AA-03 Refrigerator – Common Parts &amp; Diagrams

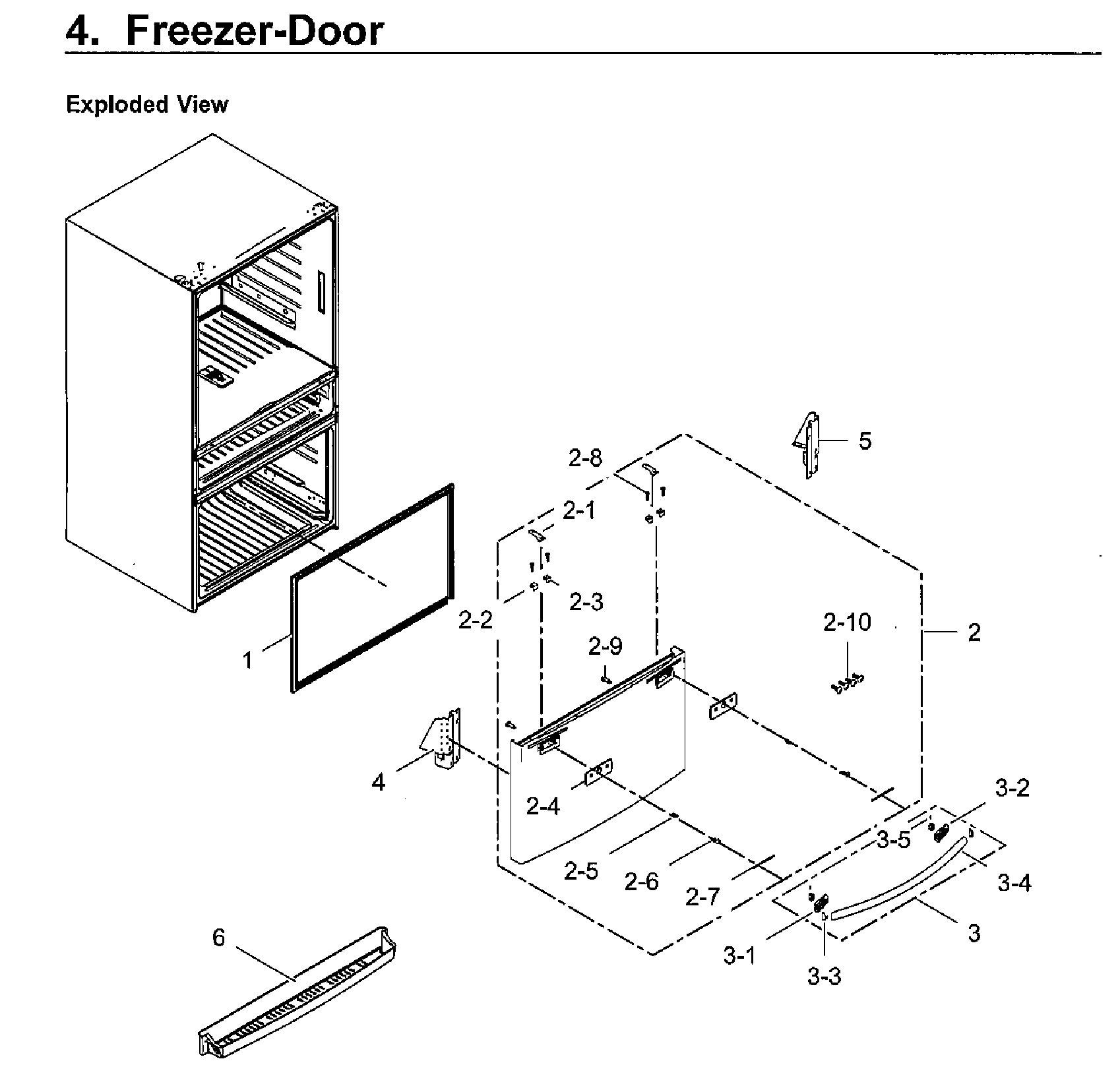

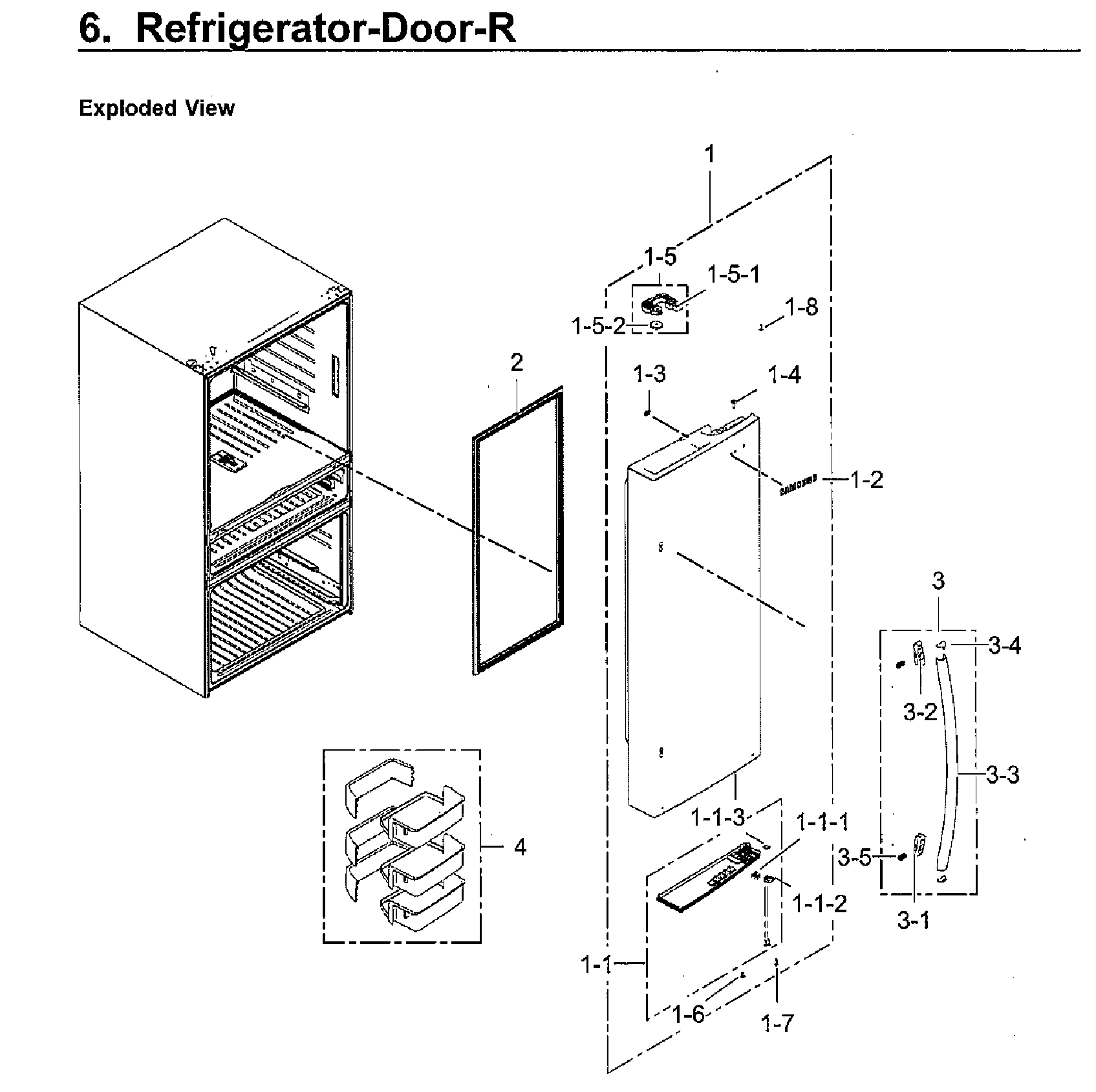

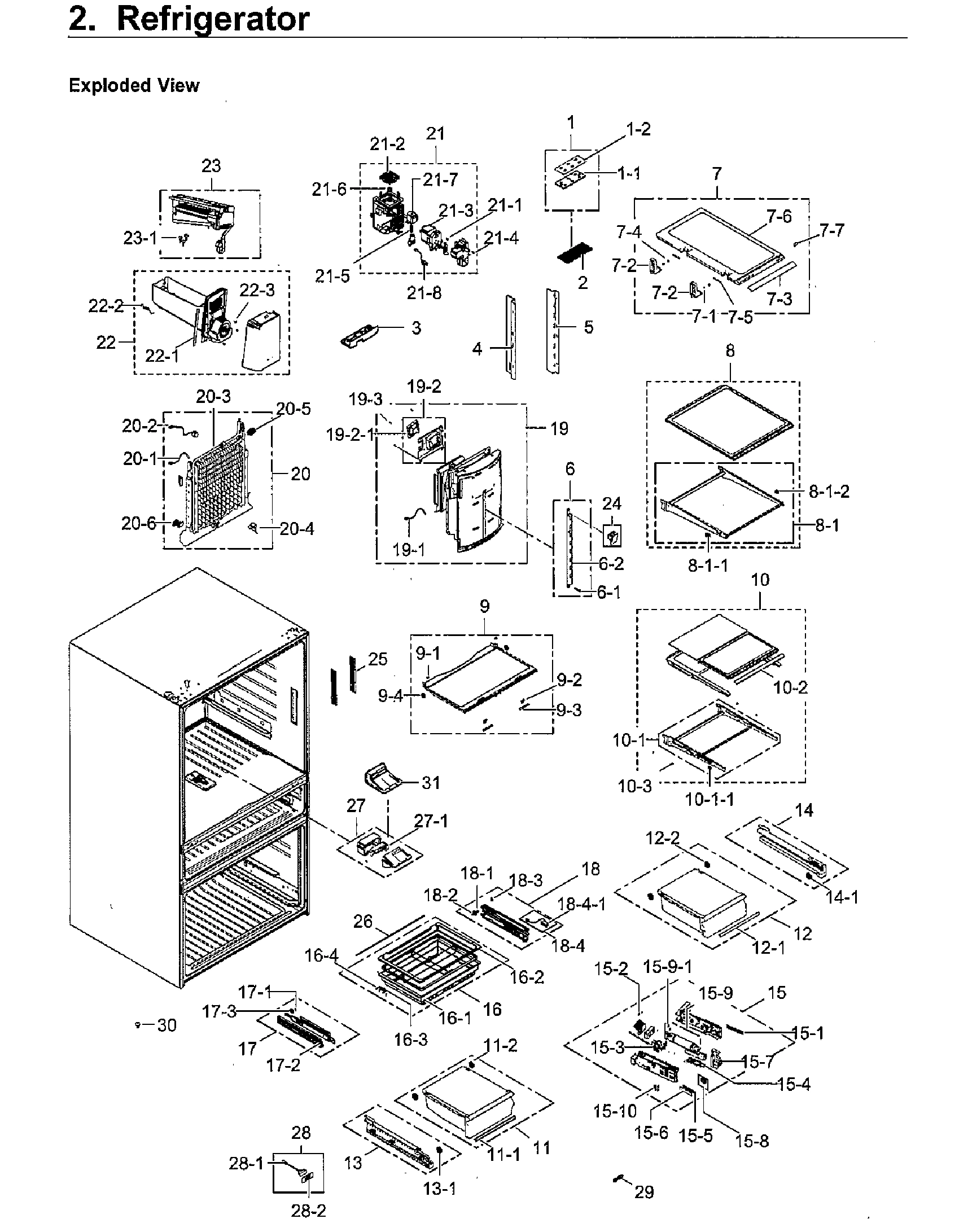

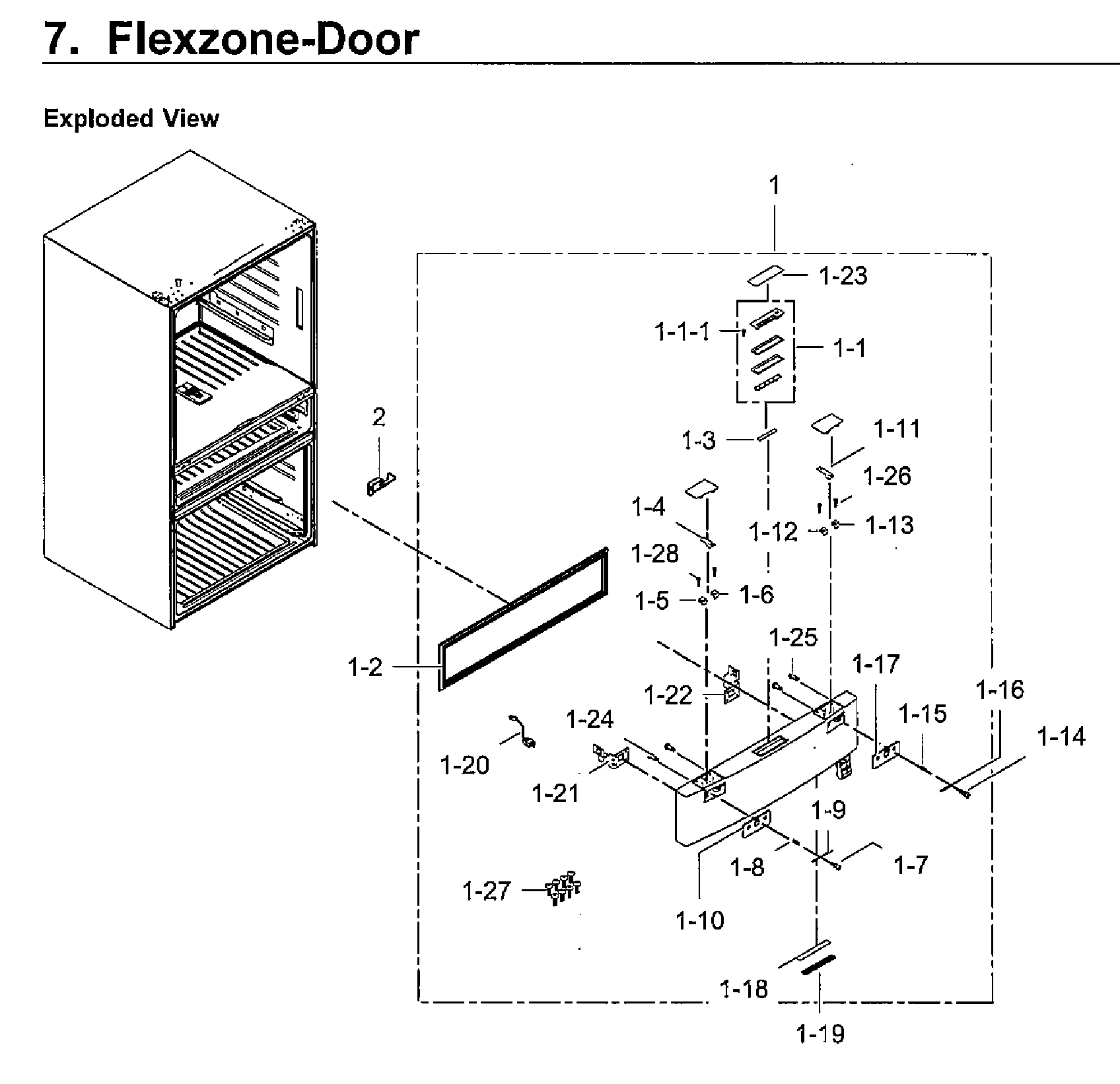

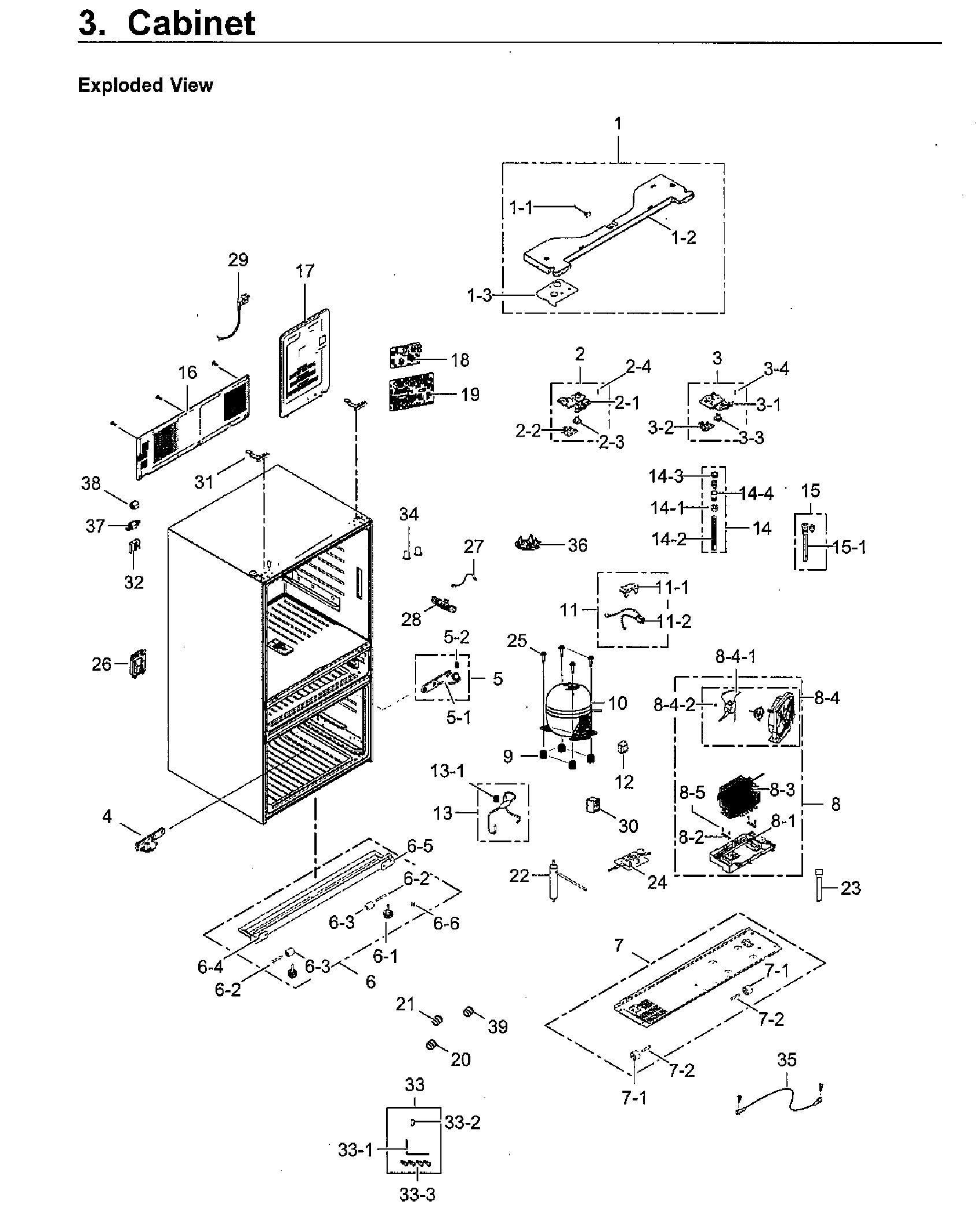

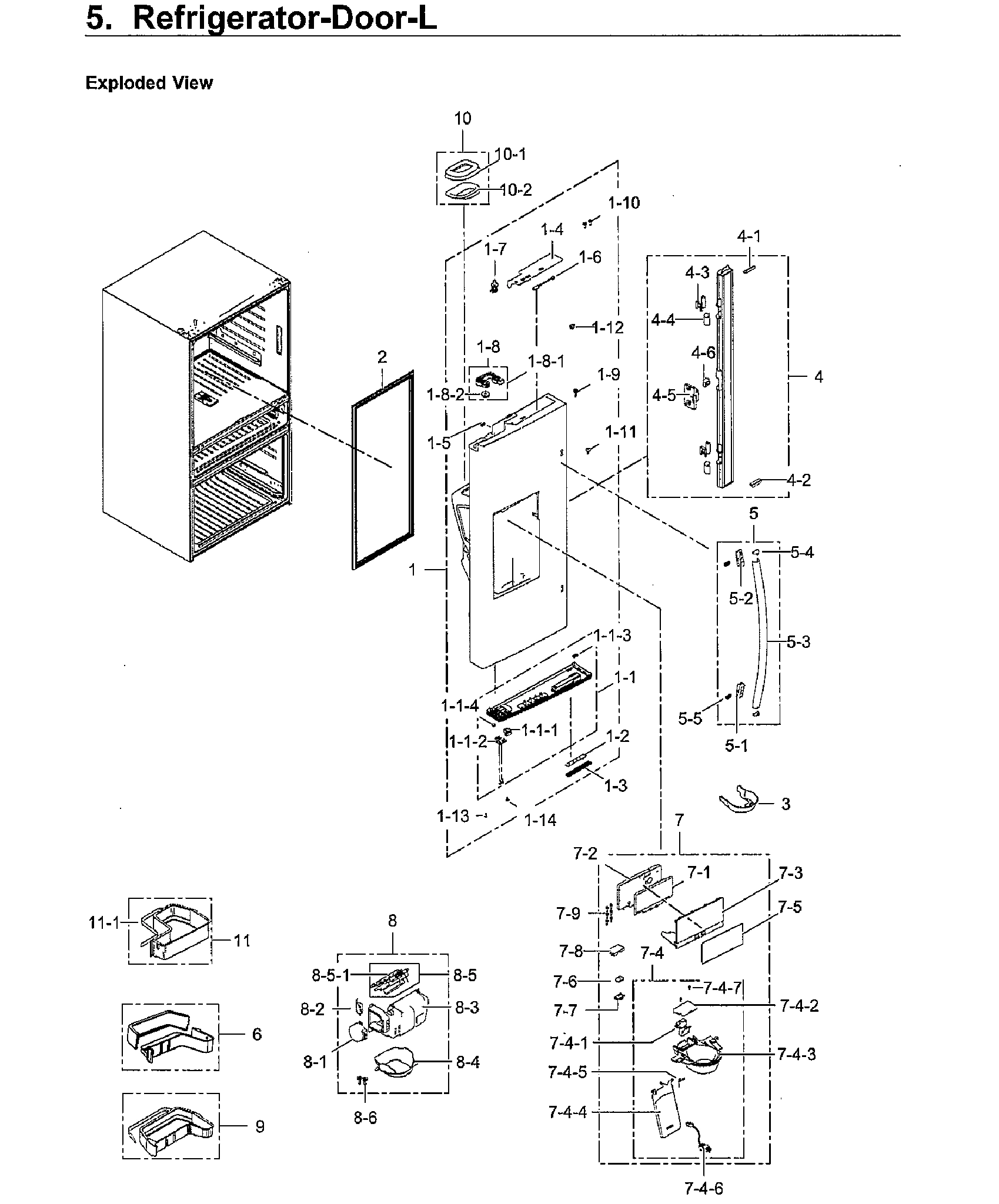

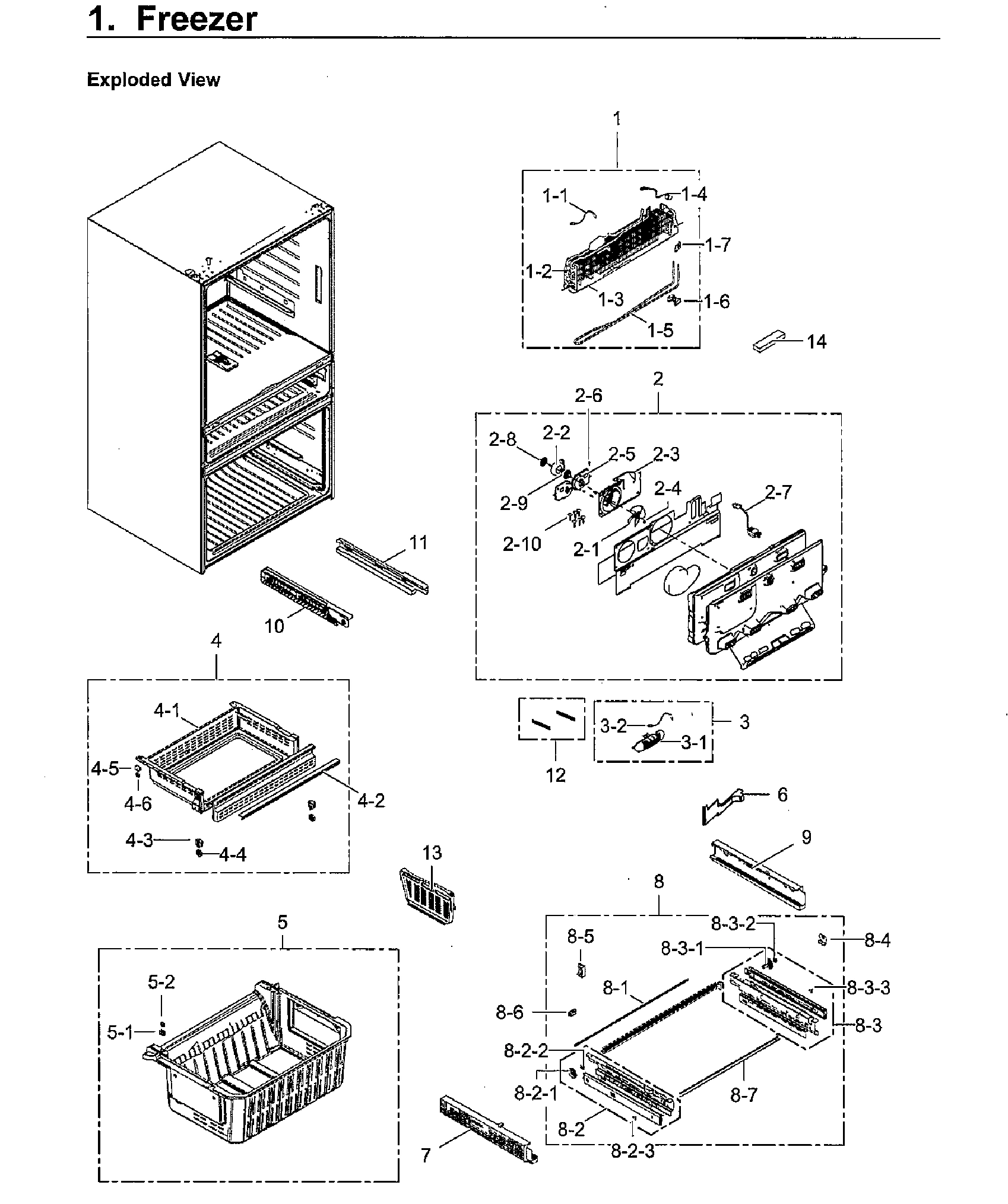

1

DA91-04145D Samsung Refrigerator Left Hand Do Backorder SMG DA91-04145D $371.80

1

DA96-00631D Samsung Refrigerator Evaporator A Backorder SMG DA96-00631D $257.34

1

DA97-12522S Samsung Refrigerator Gasket Assem Backorder SMG DA97-12522S $155.80

1

DA97-12606B Samsung Refrigerator Lamp Case As Backorder SMG DA97-12606B $112.55

1

DA97-13703D Samsung Refrigerator Romanee Cont In Stock SMG DA97-13703D $145.31

1

Refrigerator Door Assembly, Right SMG DA91-04146A Contact Us For Availability

1

Refrigerator Door Assembly SMG DA97-13797A Contact Us For Availability

1-1

DA34-00043K Samsung Refrigerator Reed Switch Backorder SMG DA34-00043K $62.50

1-1

DA97-10605C Samsung Refrigerator Cover Contro Backorder SMG DA97-10605C $165.48

DA41-00676J Samsung Refrigerator LED Lamp Ass In Stock SMG DA41-00676J $21.17

DA41-00676K Samsung Refrigerator LED Lamp Ass Backorder SMG DA41-00676K $129.15

DA64-04477B Samsung Refrigerator Table Top As Backorder SMG DA64-04477B $78.89

DA97-12522Q Samsung Refrigerator Middle Gaske Backorder SMG DA97-12522Q $139.63

1-3

DA61-08227A Samsung Refrigerator Hinge Cover Backorder SMG DA61-08227A $18.64

1-3

DA63-05524A Samsung Refrigerator Door LED Cap Backorder SMG DA63-05524A $41.02

1-4

6002-001122 Samsung Refrigerator Tapping Scre In Stock SMG 6002-001122 $1.69

1-4

DA63-06916F Samsung Refrigerator Door Upper L Backorder SMG DA63-06916F $15.44

1-5

DA47-00318H Samsung Refrigerator Metal Sheath Backorder SMG DA47-00318H $128.19

1-5

DA61-03769A Samsung Refrigerator Door Magnet In Stock SMG DA61-03769A $3.07

1-6

6001-001377 Samsung Refrigerator Machine Scre Backorder SMG 6001-001377 $1.69

1-6

DA32-00034B Samsung Refrigerator Humidity Sen Backorder SMG DA32-00034B $79.96

1-6

DA61-05845A Samsung Refrigerator Heater Fixer Backorder SMG DA61-05845A $9.59

1-7

DA34-00066C Samsung Refrigerator Door Interlo In Stock SMG DA34-00066C $24.11

1-7

DA61-06182A Samsung Refrigerator Freezer Sens Backorder SMG DA61-06182A $10.11

1-8

DA61-04335A Samsung Refrigerator Handle Sprin Backorder SMG DA61-04335A $1.50

1-8

DA97-12625A Samsung Refrigerator Auto Close L In Stock SMG DA97-12625A $22.75

1-11

DA61-02383E Samsung Refrigerator Door Closing Backorder SMG DA61-02383E $6.05

1-12

DA61-08196A Samsung Refrigerator Door Stopper Backorder SMG DA61-08196A $25.15

1-13

DA63-04825A Samsung Refrigerator Grommet Chas Backorder SMG DA63-04825A $3.20

1-14

DA63-40294A Samsung Refrigerator Stopper Grom Backorder SMG DA63-40294A $1.69

1-20

DA96-00641B Samsung Refrigerator Display Wire In Stock SMG DA96-00641B $28.48

1-22

DA61-09249A Samsung Refrigerator Hanger Front Backorder SMG DA61-09249A $40.26

1-82

DA66-00440A Samsung Refrigerator Auto Close R Backorder SMG DA66-00440A $1.69

2

DA63-05462C Samsung Refrigerator Convection D Backorder SMG DA63-05462C $100.09

2

DA63-07816A Samsung Refrigerator Lamp Cover O Backorder SMG DA63-07816A $35.04

2

DA91-04290A Samsung Refrigerator Freezer Door Backorder SMG DA91-04290A $292.81

2

DA97-08434E Samsung Refrigerator Evaporator C Backorder SMG DA97-08434E $184.03

2

DA97-12573A Samsung Refrigerator Upper Left H In Stock SMG DA97-12573A $77.03

2

DA97-13015C Samsung Refrigerator Gray Door Ga In Stock SMG DA97-13015C $123.55

2-1

DA61-08234A Samsung Refrigerator Slider Assem Backorder SMG DA61-08234A $4.79

2-1

DA61-08309A Samsung Refrigerator Door Hinge A Backorder SMG DA61-08309A $59.18

2-1

Refrigerator Evaporator Fan Blade SMG DA31-00124A Contact Us For Availability

2-2

DA31-00146H Samsung Refrigerator Freezer Evap In Stock SMG DA31-00146H $133.46

2-2

DA61-05930A Samsung Refrigerator Fixer Shaft In Stock SMG DA61-05930A $2.23

2-2

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.60

2-3

DA61-05899A Samsung Refrigerator Shaft Fixer In Stock SMG DA61-05899A $1.72

2-3

DA66-00950A Samsung Refrigerator Left Auto Cl Backorder SMG DA66-00950A $5.04

2-4

DA61-06658A Samsung Refrigerator Reinforcemen In Stock SMG DA61-06658A $3.74

2-5

DA61-04335B Samsung E Assembly Handle Spring In Stock SMG DA61-04335B $2.66

2-7

DA66-00579A Samsung Refrigerator Freezer Hand Backorder SMG DA66-00579A $9.50

2-7

DA96-00042D Samsung Refrigerator Motor Harnes Backorder SMG DA96-00042D $21.29

2-8

DA63-01146A Samsung Refrigerator Rear Motor G Backorder SMG DA63-01146A $4.79

2-9

DA63-01808A Samsung Refrigerator Front Motor Backorder SMG DA63-01808A $4.25

3

DA61-04285A Samsung Refrigerator French Guide Backorder SMG DA61-04285A $6.15

3

DA97-08608A Samsung Refrigerator Sensor Cover Backorder SMG DA97-08608A $32.41

3

DA97-12574A Samsung Refrigerator Upper Right Backorder SMG DA97-12574A $88.64

3

DA97-12712C Samsung Refrigerator Freezer Door Backorder SMG DA97-12712C $200.55

3

Refrigerator Door Handle SMG DA97-12714C Contact Us For Availability

3-1

DA61-08229A Samsung Refrigerator Freezer Hand In Stock SMG DA61-08229A $12.29

3-1

DA63-05470B Samsung Refrigerator Sensor Cover Backorder SMG DA63-05470B $5.04

3-2

DA32-00033C Samsung Refrigerator Temperature In Stock SMG DA32-00033C $26.43

3-2

DA61-08247A Samsung Refrigerator Freezer Door In Stock SMG DA61-08247A $27.41

3-3

DA66-00951A Samsung Refrigerator Auto Close D Backorder SMG DA66-00951A $5.04

3-3

DA67-02787A Samsung Refrigerator Freezer Door In Stock SMG DA67-02787A $12.90

4

DA97-12627A Samsung Refrigerator Door Bin She In Stock SMG DA97-12627A $124.01

4

DA97-12684D Samsung Refrigerator French Door In Stock SMG DA97-12684D $202.16

4-1

DA63-06959A Samsung Refrigerator Upper French Backorder SMG DA63-06959A $5.85

4-3

DA61-04154A Samsung Refrigerator Upper Freeze Backorder SMG DA61-04154A $9.50

4-3

DA61-08305A Samsung Refrigerator French Door In Stock SMG DA61-08305A $6.77

4-4

DA66-00554A Samsung Refrigerator Upper Freeze Backorder SMG DA66-00554A $5.59

4-4

DA67-01650A Samsung Refrigerator French End C Backorder SMG DA67-01650A $5.04

4-5

DA63-03454B Samsung Refrigerator Center Hinge Backorder SMG DA63-03454B $8.38

4-5

DA71-20277A Samsung Refrigerator Fixer-Roller Backorder SMG DA71-20277A $1.60

4-6

DA67-01701A Samsung Refrigerator Cap Case Fre Backorder SMG DA67-01701A $5.33

5

DA61-08294A Samsung Refrigerator Front Hanger Backorder SMG DA61-08294A $98.61

5

DA97-12612B Samsung Assembly Refrigerator Mid Backorder SMG DA97-12612B $157.85

5

DA97-13821A Samsung Refrigerator Low Tray Ass Backorder SMG DA97-13821A $118.30

5

Refrigerator Door Handle SMG DA97-12715C Contact Us For Availability

5-1

DA61-08228A Samsung Refrigerator Handle Suppo Backorder SMG DA61-08228A $12.30

5-2

DA61-08246A Samsung Refrigerator Upper Handle Backorder SMG DA61-08246A $27.95

5-4

DA67-02788A Samsung Refrigerator Handle Suppo Backorder SMG DA67-02788A $14.53

5-5

Refrigerator Door Handle Set Screw SMG 6009-001526 Contact Us For Availability

6

DA63-06894A Samsung Refrigerator Ice Maker Wi Backorder SMG DA63-06894A $14.58

6

DA63-07512A Samsung Refrigerator Freezer Guar Backorder SMG DA63-07512A $72.69

6

DA97-13802A Samsung Refrigerator Middle Guard Backorder SMG DA97-13802A $155.62

6-1

DA61-00805F Samsung Refrigerator Black Front Backorder SMG DA61-00805F $7.45

6-2

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.07

6-3

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $7.99

6-4

DA63-06389E Samsung Refrigerator Front Left C Backorder SMG DA63-06389E $4.25

6-5

DA63-06405D Samsung Refrigerator Front Right In Stock SMG DA63-06405D $4.25

7

DA63-06952A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-06952A $45.65

7

DA97-12682A Samsung Refrigerator Folding Shel Backorder SMG DA97-12682A $134.37

7

DA97-13809F Samsung Refrigerator Assembly Dis In Stock SMG DA97-13809F $230.22

7-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $6.77

7-1

DA92-00596A Samsung Refrigerator Module Assem Backorder SMG DA92-00596A $257.49

7-2

DA63-06377A Samsung Refrigerator Rear PCB Cov Backorder SMG DA63-06377A $11.70

7-2

DA66-00649B Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649B $5.54

7-3

DA97-13808F Samsung Refrigerator Dispenser Co Backorder SMG DA97-13808F $194.28

7-4

Refrigerator Dispenser Lever SMG DA97-12628H Contact Us For Availability

7-6

DA41-00217A Samsung Refrigerator Printed Circ Backorder SMG DA41-00217A $46.41

7-9

6002-000630 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000630 $1.18

7-41

3405-001119 Samsung Refrigerator Micro Switch Backorder SMG 3405-001119 $6.46

7-46

DA96-00106G Samsung Refrigerator Dispenser Wi Backorder SMG DA96-00106G $40.27

8

DA97-12861B Samsung Refrigerator Low Hanger Backorder SMG DA97-12861B $278.26

8

DA97-13829C Samsung Refrigerator Ice Route Gu In Stock SMG DA97-13829C $148.84

8-1

DA31-00079D Samsung Refrigerator Geared Dispe Backorder SMG DA31-00079D $99.68

8-1

DA63-06897A Samsung Refrigerator Drain Water Backorder SMG DA63-06897A $34.57

8-1

DA66-00437F Samsung Gear Shaft Refrigerator Backorder SMG DA66-00437F $64.13

8-2

3405-001117 Samsung Refrigerator Dispenser Sw In Stock SMG 3405-001117 $17.83

8-3

Refrigerator Condenser Coil SMG DA97-08464F Contact Us For Availability

8-4

DA97-15765C Samsung Refrigerator Circuit Moto In Stock SMG DA97-15765C $201.27

8-5

DA97-05368A Samsung Refrigerator Ice Route Co Backorder SMG DA97-05368A $54.71

8-6

DA61-02738A Samsung Refrigerator Magnet-Assem Backorder SMG DA61-02738A $6.71

8-21

Refrigerator Freezer Drawer Gear SMG DA66-00751A Contact Us For Availability

8-22

DA61-03154A Samsung Refrigerator Gear Fixer Backorder SMG DA61-03154A $1.69

8-31

Refrigerator Gear Rail SMG DA66-00750A Contact Us For Availability

8-41

DA31-00320A Samsung Refrigerator Fan Blade As Backorder SMG DA31-00320A $26.26

8-51

DA63-04647A Samsung Refrigerator Ice Route Co Backorder SMG DA63-04647A $21.24

9

DA63-06953A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-06953A $45.65

9-1

DA61-03166A Samsung Refrigerator Vegetable Co In Stock SMG DA61-03166A $1.69

9-3

DA66-00718A Samsung Refrigerator Humidity Lev Backorder SMG DA66-00718A $6.39

10

DA61-07328A Samsung Refrigerator Freezer Rail Backorder SMG DA61-07328A $227.32

10

DA97-12594A Samsung Refrigerator Ice Chute Ca In Stock SMG DA97-12594A $60.04

10

MKV190CL2B/ASH Samsung Refrigerator Compresso In Stock SMG MKV190CL2B/ASH $334.64

10-1

DA63-08248A Samsung Gasket Refrigerator Backorder SMG DA63-08248A $37.30

10-2

DA67-03312A Samsung Refrigerator Ice Cap Chut Backorder SMG DA67-03312A $11.73

DA61-07329A Samsung Refrigerator Right Hand U Backorder SMG DA61-07329A $227.57

DA97-10848N Samsung Refrigerator All Wire Com Backorder SMG DA97-10848N $82.59

DA97-12626A Samsung Refrigerator Dispenser Gu Backorder SMG DA97-12626A $123.30

DA97-12687F Samsung Refrigerator Left Vegetab Backorder SMG DA97-12687F $182.79

11-1

DA34-00004D Samsung Refrigerator Compressor O In Stock SMG DA34-00004D $35.00

11-2

DA39-00154M Samsung Refrigerator Compressor W Backorder SMG DA39-00154M $25.10

12

DA41-00519Q Samsung Refrigerator LED Lamp PBA Backorder SMG DA41-00519Q $26.25

12

DA97-12686F Samsung Refrigerator Right Vegeta Backorder SMG DA97-12686F $163.09

14

DA72-60040W Samsung Refrigerator Seal-Cutt Ru Backorder SMG DA72-60040W $1.69

14

Refrigerator Drain Tube Kit SMG DA97-04049E No Longer Available

14

DA97-11291A Samsung Refrigerator Right Vegeta Backorder SMG DA97-11291A $42.61

15

DA97-13850D Samsung Refrigerator Water Filter Backorder SMG DA97-13850D $294.92

15

Refrigerator Drain Cap SMG DA97-04049J Contact Us For Availability

15-1

DA41-00519S Samsung Refrigerator LED Lamp PCB Backorder SMG DA41-00519S $63.71

15-1

DA62-01266E Samsung Refrigerator PVC Tube Backorder SMG DA62-01266E $4.25

15-2

DA61-04522A Samsung Refrigerator Clip Lock Fi Backorder SMG DA61-04522A $1.69

16

DA97-11930A Samsung Refrigerator Drawer Divid Backorder SMG DA97-11930A $297.36

18

DA92-00215C Samsung Refrigerator Inverter Pow In Stock SMG DA92-00215C $255.37

18

Refrigerator Crisper Drawer Slide Rail SMG DA97-13780A Contact Us For Availability

18-4

DA96-00640A Samsung Refrigerator Wire Harness Backorder SMG DA96-00640A $178.74

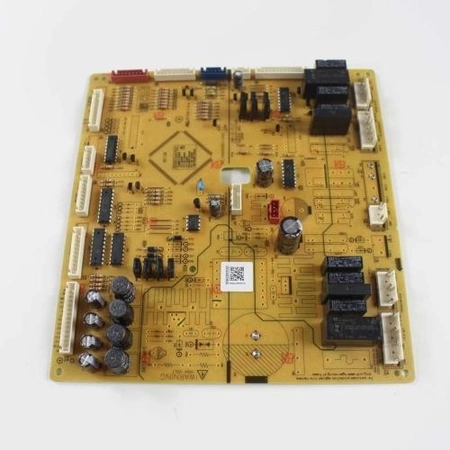

19

DA94-02963A Samsung Refrigerator PCB EEPROM 0 Backorder SMG DA94-02963A $306.09

19

DA97-13757A Samsung Refrigerator Evaporator C In Stock SMG DA97-13757A $167.08

19-1

DA32-00011D Samsung Refrigerator Temperature In Stock SMG DA32-00011D $13.61

19-2

DA97-13756A Samsung Refrigerator Motor Case A In Stock SMG DA97-13756A $114.12

20

DA60-00280A Samsung Refrigerator Fitting-Lokr Backorder SMG DA60-00280A $6.91

20

DA96-00842A Samsung Refrigerator Evaporator A In Stock SMG DA96-00842A $233.01

20-1

DA32-10104N Samsung Refrigerator Temperature In Stock SMG DA32-10104N $24.87

20-3

DA47-00434A Samsung Refrigerator Metal Sheath In Stock SMG DA47-00434A $160.60

20-4

DA61-03644A Samsung Refrigerator Defrost Evap Backorder SMG DA61-03644A $10.06

20-5

DA61-03683A Samsung Refrigerator Sensor Fixer Backorder SMG DA61-03683A $1.69

20-6

DA61-05835B Samsung Refrigerator Heater Fixer Backorder SMG DA61-05835B $6.39

21

DA97-12540G Samsung Refrigerator Ice Maker Au In Stock SMG DA97-12540G $267.70

21-2

DA31-00070E Samsung Refrigerator DC Motor Box In Stock SMG DA31-00070E $94.45

21-3

DA31-00105M Samsung Refrigerator Geared Auger Backorder SMG DA31-00105M $191.13

21-7

DA74-40151G Samsung Refrigerator Ice Dispense Backorder SMG DA74-40151G $110.76

21-8

DA96-00682D Samsung Refrigerator Auger Motor In Stock SMG DA96-00682D $112.69

22

DA97-14474C Samsung Refrigerator Ice Bucket T In Stock SMG DA97-14474C $182.51

22-1

DA63-07185A Samsung Refrigerator Ice Bucket T Backorder SMG DA63-07185A $3.35

22-2

DA61-20124D Samsung Refrigerator Dispenser Sp Backorder SMG DA61-20124D $7.82

23

DA97-15217D Samsung Refrigerator Ice Maker As In Stock SMG DA97-15217D $129.98

24

DA27-00022B Samsung Refrigerator Coil Filter In Stock SMG DA27-00022B $142.41

24

DA97-12654A Samsung Refrigerator Cap Angle As Backorder SMG DA97-12654A $7.99

26

DA97-08413B Samsung Refrigerator Assembly Cov Backorder SMG DA97-08413B $17.32

27

DA32-10109B Samsung Refrigerator Temperature Backorder SMG DA32-10109B $30.32

27

DA97-08430A Samsung Refrigerator Convection I Backorder SMG DA97-08430A $237.39

27-1

DA31-00101C Samsung Refrigerator DC Motor Dam Backorder SMG DA31-00101C $186.37

28-1

DA34-00043J Samsung Refrigerator Door Reed Sw In Stock SMG DA34-00043J $30.12

29

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $63.58

29

DA62-03914A Samsung Refrigerator Water Tube F In Stock SMG DA62-03914A $46.24

30

DA67-02795C Samsung Refrigerator Shaft Hole C Backorder SMG DA67-02795C $1.69

31

DA61-04932A Samsung Refrigerator Door Hinge F Backorder SMG DA61-04932A $8.46

33-3

DA61-11161A Samsung Refrigerator Door Handle In Stock SMG DA61-11161A $6.77

34

DA63-06410A Samsung Refrigerator Door Hinge B In Stock SMG DA63-06410A $1.86

37

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $31.82

38

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $21.80

1921

DA81-06013A Samsung Refrigerator Evaporator F Backorder SMG DA81-06013A $126.54
