Model Samsung RF28HFEDBSR/AA-04 Refrigerator – Common Parts &amp; Diagrams

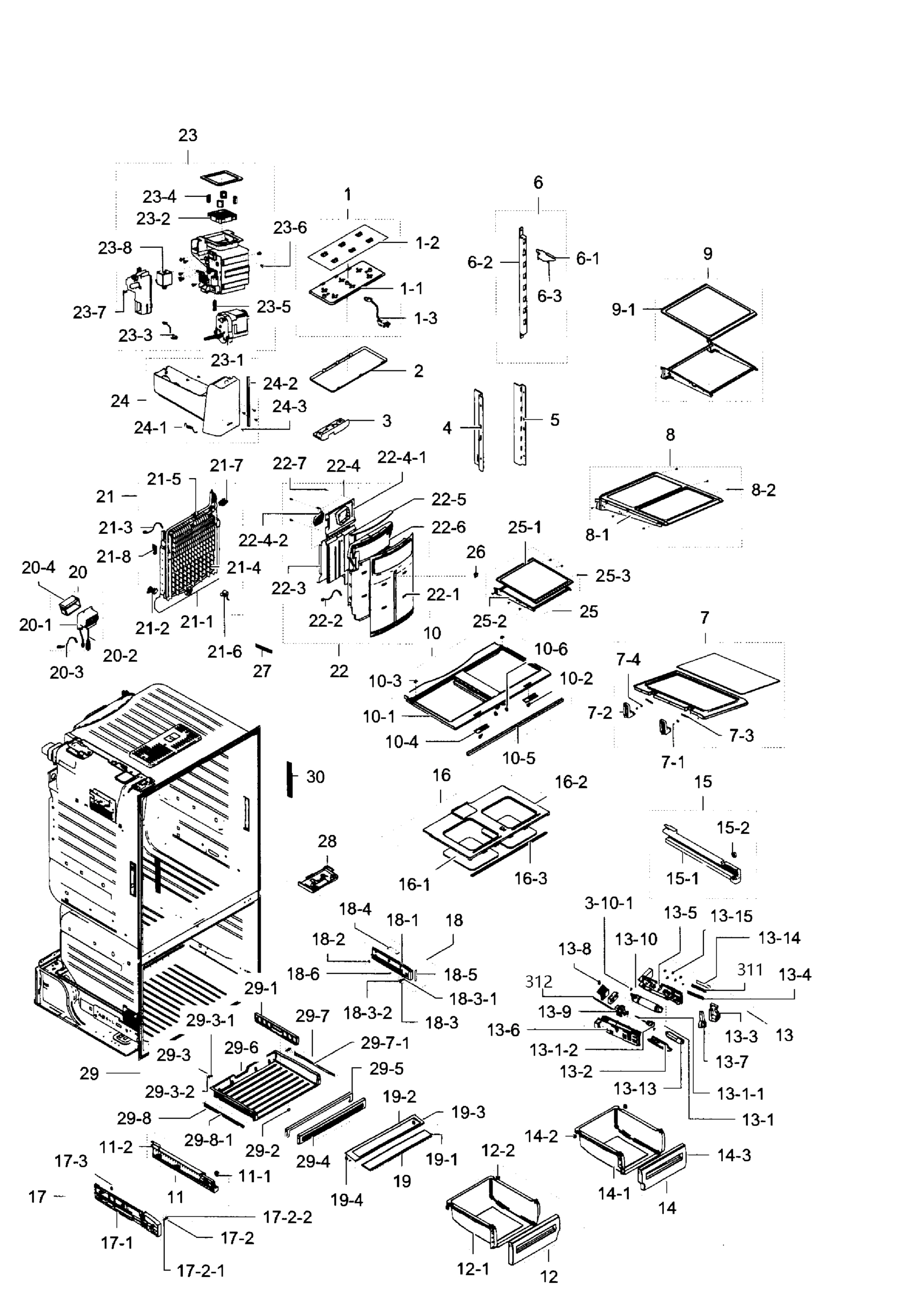

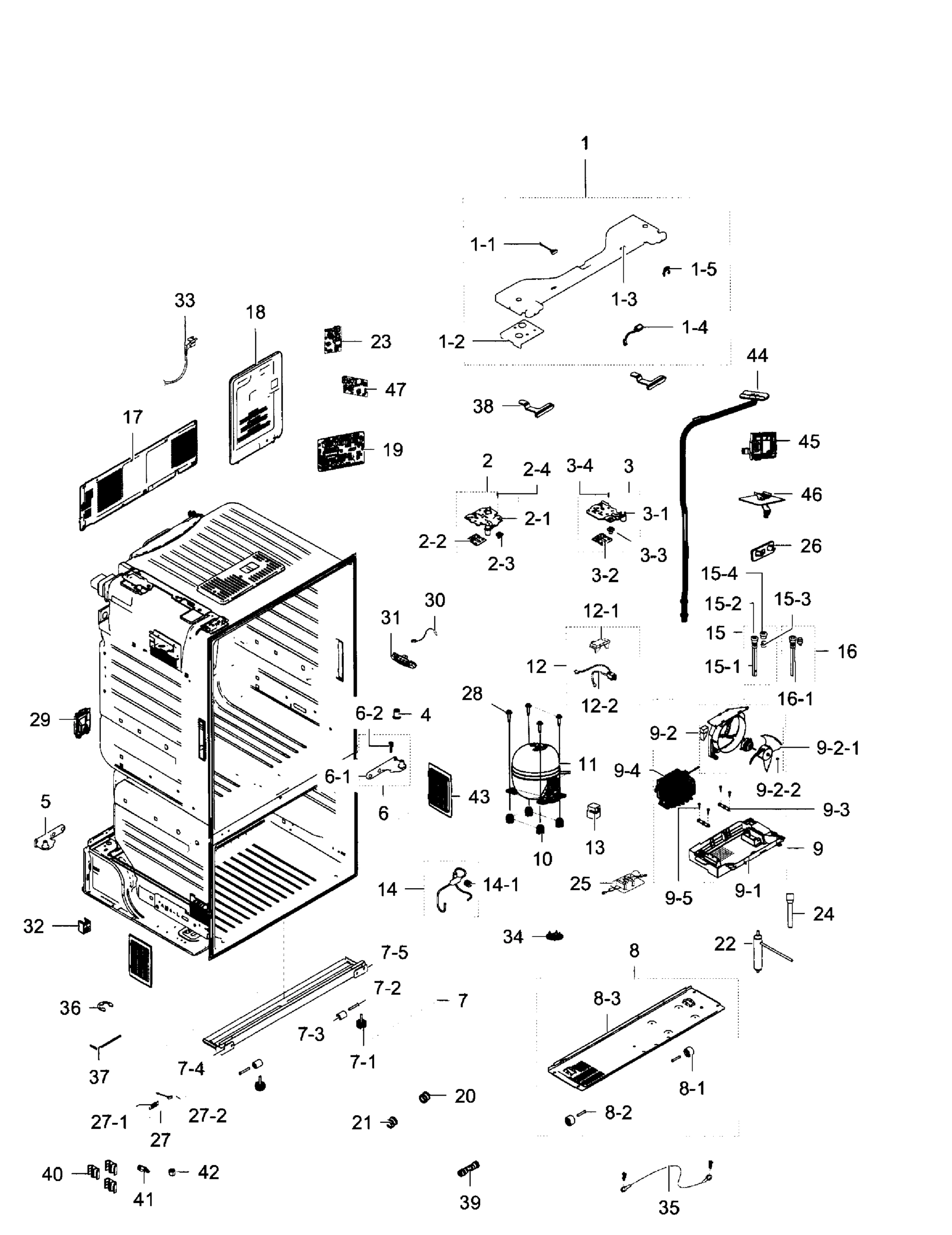

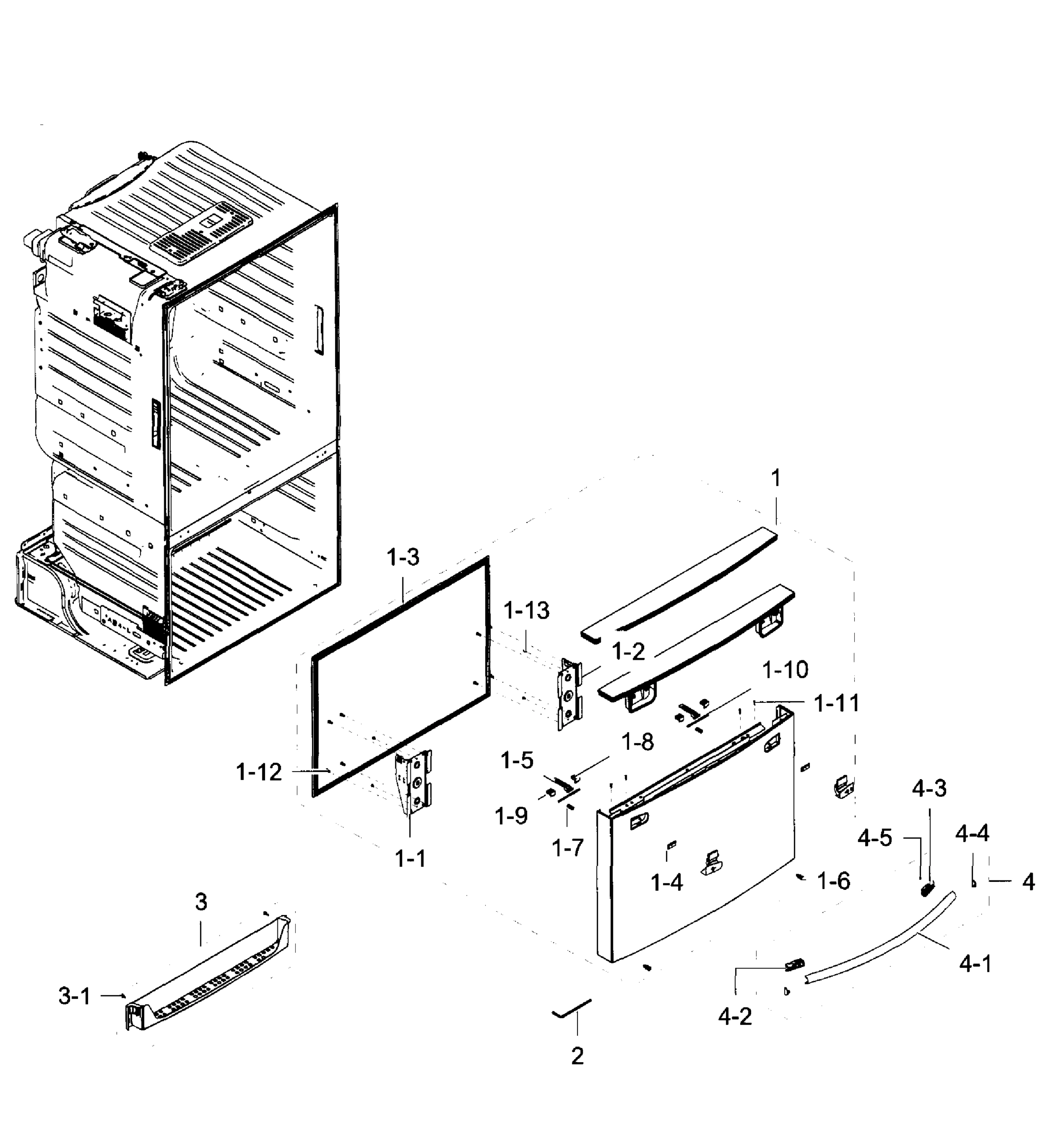

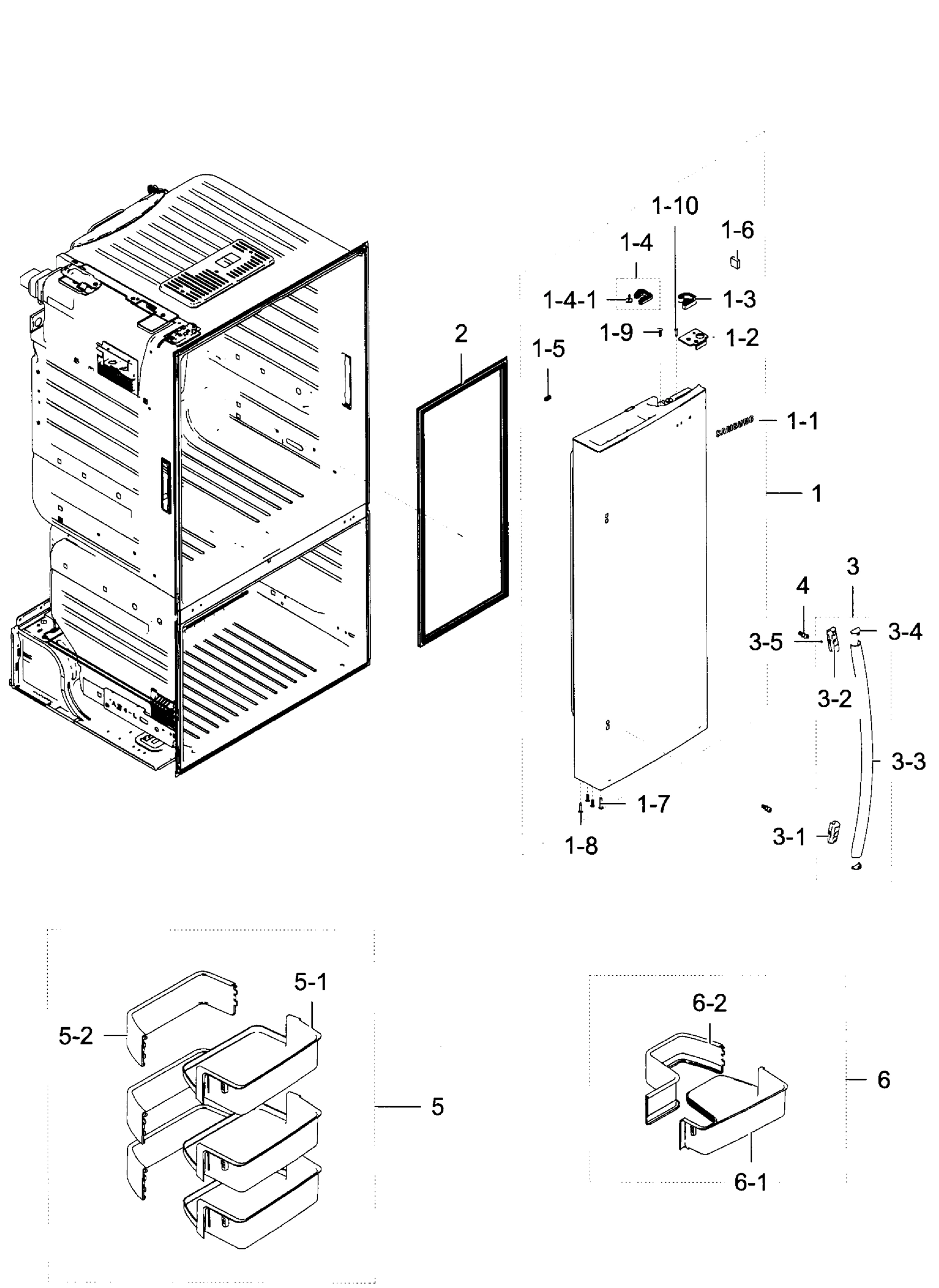

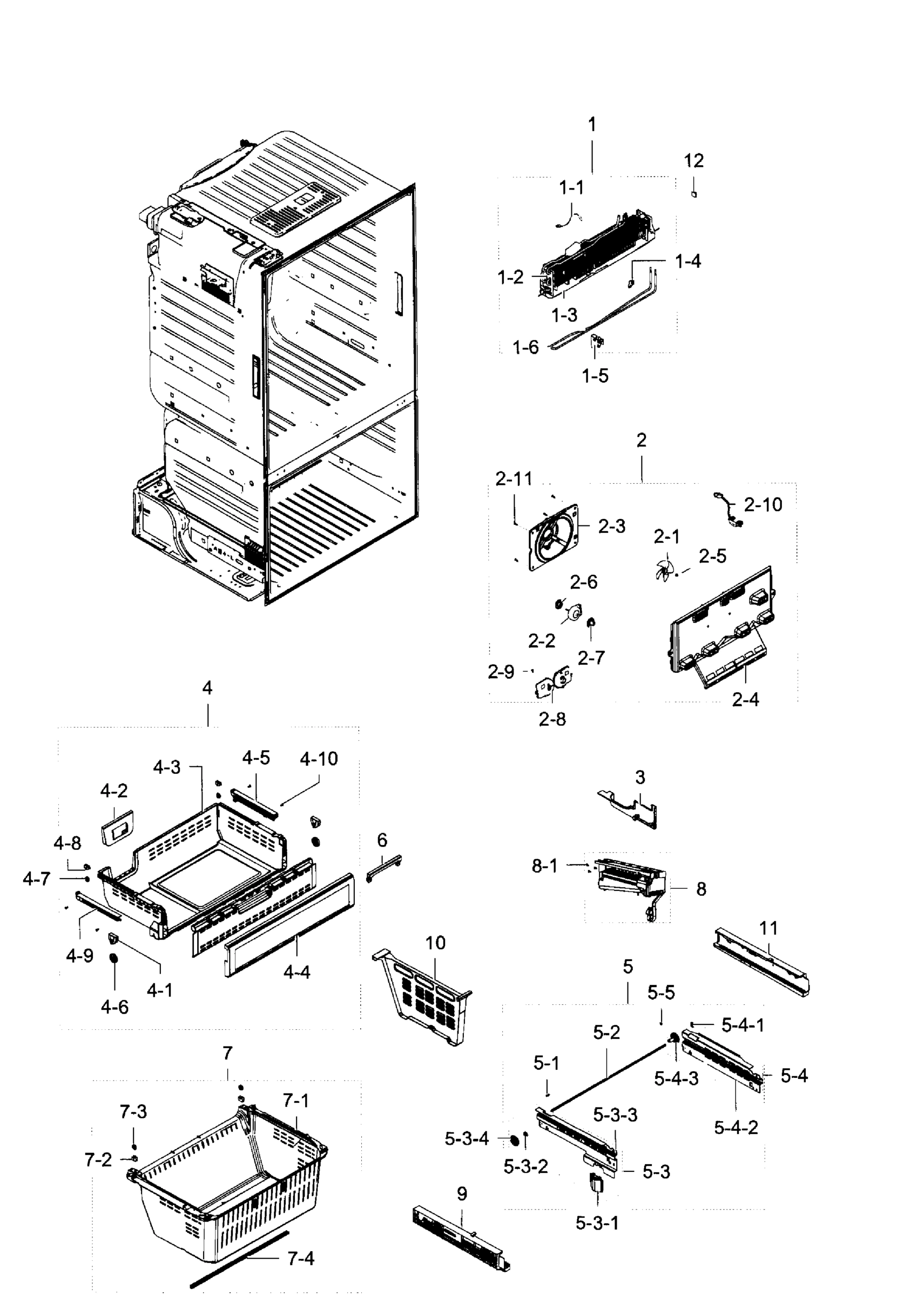

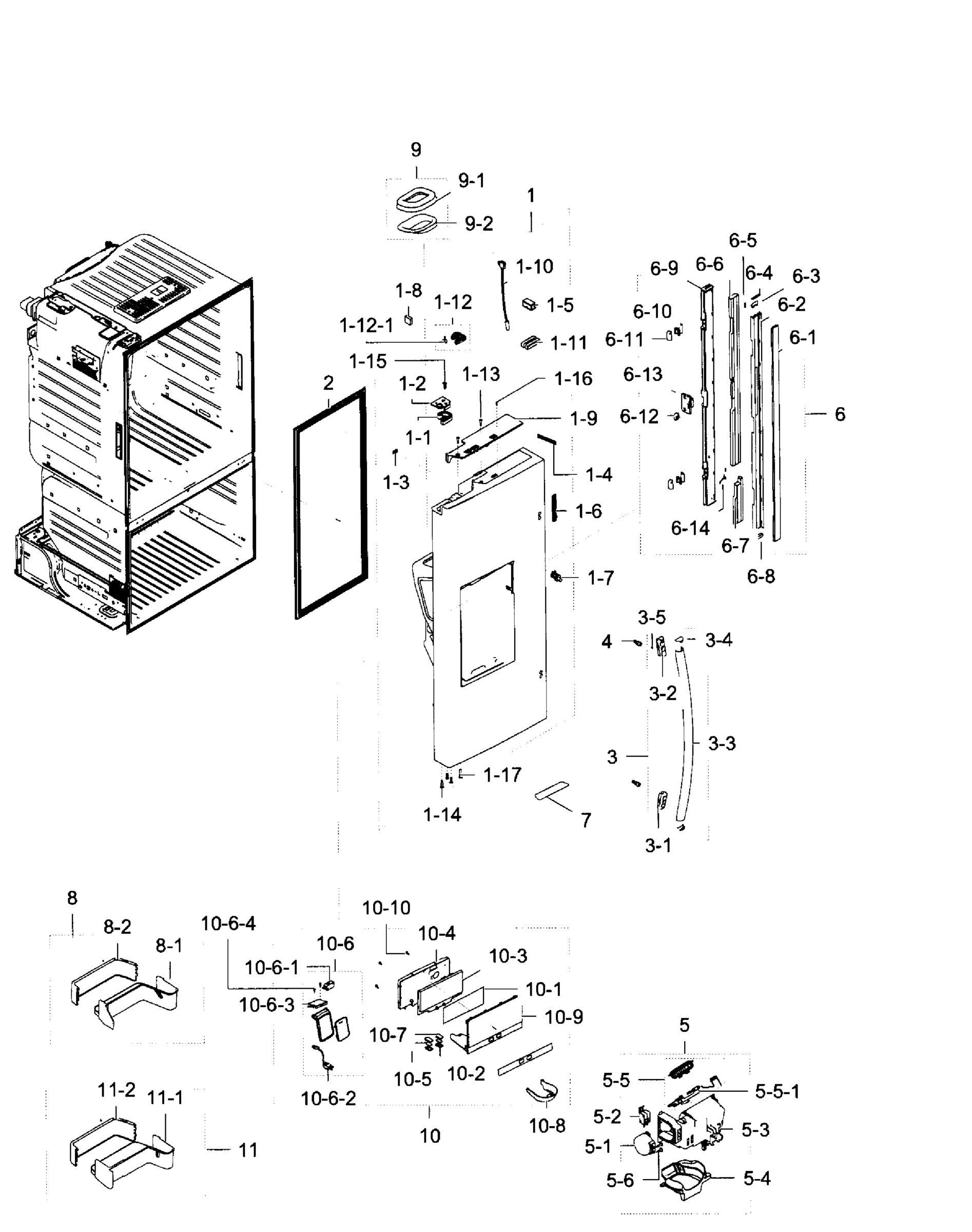

1

DA96-00632C Samsung Refrigerator Evaporator A Backorder SMG DA96-00632C $330.26

1

Refrigerator door assembly, right SMG DA91-04158A Contact Us For Availability

1-1

DA34-00043A Samsung Refrigerator Switch Reed- Backorder SMG DA34-00043A $31.86

1-1

DA61-03153B Samsung Refrigerator Front Hanger Backorder SMG DA61-03153B $100.06

1-1

DA64-04021C Samsung Refrigerator Mascot Assem Backorder SMG DA64-04021C $30.23

1-2

DA61-03155B Samsung Refrigerator Hanger Rail Backorder SMG DA61-03155B $111.39

1-2

DA61-08196A Samsung Refrigerator Door Stopper Backorder SMG DA61-08196A $35.07

1-2

DA61-08227A Samsung Refrigerator Hinge Cover Backorder SMG DA61-08227A $18.89

1-3

DA61-02383E Samsung Refrigerator Door Closing Backorder SMG DA61-02383E $6.05

1-3

DA64-04477B Samsung Refrigerator Table Top As Backorder SMG DA64-04477B $86.68

1-3

DA97-12522J Samsung Refrigerator Freezer Door Backorder SMG DA97-12522J $184.08

DA41-00676G Samsung Refrigerator LED Lamp PBA Backorder SMG DA41-00676G $54.38

DA61-06182A Samsung Refrigerator Freezer Sens Backorder SMG DA61-06182A $10.26

DA61-06658A Samsung Refrigerator Reinforcemen In Stock SMG DA61-06658A $3.79

DA96-00962A Samsung Refrigerator Reed Switch Backorder SMG DA96-00962A $20.52

DA97-12625A Samsung Refrigerator Auto Close L In Stock SMG DA97-12625A $31.34

1-5

DA61-03769A Samsung Refrigerator Door Magnet In Stock SMG DA61-03769A $6.05

1-5

DA61-05274A Samsung Refrigerator Door Switch Backorder SMG DA61-05274A $11.34

1-5

DA61-08234A Samsung Refrigerator Slider Assem Backorder SMG DA61-08234A $4.87

1-6

DA47-00318M Samsung Refrigerator Metal Sheath Backorder SMG DA47-00318M $157.29

1-6

DA63-05524A Samsung Refrigerator Door LED Cap Backorder SMG DA63-05524A $39.63

1-7

6001-001377 Samsung Refrigerator Machine Scre Backorder SMG 6001-001377 $1.69

1-7

DA34-00066C Samsung Refrigerator Door Interlo In Stock SMG DA34-00066C $30.78

1-7

DA61-04335A Samsung Refrigerator Handle Sprin Backorder SMG DA61-04335A $1.50

1-8

DA61-05899A Samsung Refrigerator Shaft Fixer In Stock SMG DA61-05899A $1.69

1-8

DA63-40294A Samsung Refrigerator Stopper Grom Backorder SMG DA63-40294A $1.69

1-9

DA61-05930A Samsung Refrigerator Fixer Shaft In Stock SMG DA61-05930A $2.16

1-10

DA32-00034B Samsung Refrigerator Humidity Sen Backorder SMG DA32-00034B $73.53

1-10

DA66-00579A Samsung Refrigerator Freezer Hand Backorder SMG DA66-00579A $9.18

1-11

DA63-04825A Samsung Refrigerator Grommet Chas Backorder SMG DA63-04825A $3.24

1-13

6002-000217 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000217 $1.69

1-13

6002-001122 Samsung Refrigerator Tapping Scre In Stock SMG 6002-001122 $1.69

2

DA63-07816A Samsung Refrigerator Lamp Cover O Backorder SMG DA63-07816A $35.56

2

DA97-05253W Samsung Refrigerator Door Gasket In Stock SMG DA97-05253W $184.08

2

DA97-08541A Samsung Refrigerator Evaporator C Backorder SMG DA97-08541A $367.81

2

DA97-12573A Samsung Refrigerator Upper Left H Backorder SMG DA97-12573A $77.03

2-1

DA61-08309A Samsung Refrigerator Door Hinge A Backorder SMG DA61-08309A $64.66

2-1

Refrigerator evaporator fan blade SMG DA31-00124A Contact Us For Availability

2-2

DA31-00146H Samsung Refrigerator Freezer Evap In Stock SMG DA31-00146H $142.77

2-3

DA66-00950A Samsung Refrigerator Left Auto Cl In Stock SMG DA66-00950A $5.93

2-6

DA63-01146A Samsung Refrigerator Rear Motor G Backorder SMG DA63-01146A $4.87

2-7

DA63-01808A Samsung Refrigerator Front Motor Backorder SMG DA63-01808A $4.33

2-10

DA96-00042D Samsung Refrigerator Motor Harnes Backorder SMG DA96-00042D $21.60

3

DA61-04285A Samsung Refrigerator French Guide Backorder SMG DA61-04285A $7.55

3

DA63-06894A Samsung Refrigerator Ice Maker Wi Backorder SMG DA63-06894A $14.58

3

DA97-12574A Samsung Refrigerator Upper Right In Stock SMG DA97-12574A $71.20

3

DA97-12963A Samsung Refrigerator Freezer Guar Backorder SMG DA97-12963A $86.68

3

Refrigerator door handle SMG DA97-12714C Contact Us For Availability

3

Refrigerator door handle SMG DA97-12715C Contact Us For Availability

3-1

DA61-08228A Samsung Refrigerator Handle Suppo Backorder SMG DA61-08228A $11.88

3-1

DA63-02750A Samsung Refrigerator Cover Slide Backorder SMG DA63-02750A $2.16

3-2

DA61-08246A Samsung Refrigerator Upper Handle Backorder SMG DA61-08246A $29.15

3-3

DA66-00951A Samsung Refrigerator Auto Close D Backorder SMG DA66-00951A $5.41

3-4

DA67-02788A Samsung Refrigerator Handle Suppo Backorder SMG DA67-02788A $14.04

3-5

Refrigerator door handle set screw SMG 6009-001526 No Longer Available

4

DA61-11161A Samsung Refrigerator Door Handle In Stock SMG DA61-11161A $9.78

4

DA63-06410A Samsung Refrigerator Door Hinge B In Stock SMG DA63-06410A $6.05

4

DA97-12712C Samsung Refrigerator Freezer Door In Stock SMG DA97-12712C $162.83

4-1

DA61-04154A Samsung Refrigerator Upper Freeze Backorder SMG DA61-04154A $9.72

4-2

DA61-08229A Samsung Refrigerator Freezer Hand In Stock SMG DA61-08229A $18.60

4-3

DA61-08247A Samsung Refrigerator Freezer Door In Stock SMG DA61-08247A $40.17

4-4

DA67-02787A Samsung Refrigerator Freezer Door In Stock SMG DA67-02787A $20.57

4-6

DA66-00554A Samsung Refrigerator Upper Freeze Backorder SMG DA66-00554A $5.93

4-8

DA71-20277A Samsung Refrigerator Fixer-Roller Backorder SMG DA71-20277A $1.69

4-9

DA61-05186A Samsung Refrigerator Upper Tray G Backorder SMG DA61-05186A $19.44

5

DA97-13805B Samsung Refrigerator Bin Assembly Backorder SMG DA97-13805B $178.60

5

DA97-13829C Samsung Refrigerator Ice Route Gu In Stock SMG DA97-13829C $164.88

5

DA97-14383A Samsung Refrigerator Lower Hanger Backorder SMG DA97-14383A $260.78

5-1

DA31-00079D Samsung Refrigerator Geared Dispe In Stock SMG DA31-00079D $104.59

5-2

DA66-00437B Samsung Refrigerator Gear Shaft Backorder SMG DA66-00437B $38.92

5-3

DA97-13661C Samsung Refrigerator Left Rail As In Stock SMG DA97-13661C $184.65

5-4

DA97-13662A Samsung Refrigerator Lower Slide Backorder SMG DA97-13662A $171.86

5-5

DA67-02795C Samsung Refrigerator Shaft Hole C Backorder SMG DA67-02795C $1.69

5-5

DA97-05368A Samsung Refrigerator Ice Route Co Backorder SMG DA97-05368A $53.52

5-31

DA34-00047B Samsung Refrigerator Pressure Coo Backorder SMG DA34-00047B $4.33

5-34

Refrigerator freezer drawer gear SMG DA66-00751A Contact Us For Availability

5-43

Refrigerator gear rail SMG DA66-00750A Contact Us For Availability

5-51

DA63-04647A Samsung Refrigerator Ice Route Co Backorder SMG DA63-04647A $20.52

6

DA97-12612A Samsung Refrigerator Mid Right Hi Backorder SMG DA97-12612A $99.30

6

DA97-12624A Samsung Refrigerator French Door In Stock SMG DA97-12624A $168.84

6

DA97-13804B Samsung Refrigerator Assembly Gua Backorder SMG DA97-13804B $110.15

6-2

6011-001442 Samsung Refrigerator Socket Bolt Backorder SMG 6011-001442 $1.69

6-4

DA63-06959A Samsung Refrigerator Upper French Backorder SMG DA63-06959A $5.93

6-10

DA61-08305A Samsung Refrigerator French Door In Stock SMG DA61-08305A $11.82

6-11

DA67-01650A Samsung Refrigerator French End C Backorder SMG DA67-01650A $5.41

6-12

DA67-01701A Samsung Refrigerator Cap Case Fre Backorder SMG DA67-01701A $5.41

6-13

DA63-03454B Samsung Refrigerator Center Hinge Backorder SMG DA63-03454B $8.10

7

DA63-07931D Samsung Refrigerator Dispenser Tr Backorder SMG DA63-07931D $78.65

7

DA97-06276E Samsung Refrigerator Drawer Tray Backorder SMG DA97-06276E $177.62

7

DA97-14318A Samsung Refrigerator Shelf Assemb Backorder SMG DA97-14318A $189.45

7-1

DA61-00805F Samsung Refrigerator Black Front Backorder SMG DA61-00805F $7.55

7-2

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $7.46

7-3

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $15.67

7-4

DA63-06389E Samsung Refrigerator Front Left C Backorder SMG DA63-06389E $4.33

7-5

DA63-06405D Samsung Refrigerator Front Right Backorder SMG DA63-06405D $4.33

8

DA97-15217D Samsung Refrigerator Ice Maker As In Stock SMG DA97-15217D $118.12

8-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $12.73

8-2

DA66-00649B Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649B $8.27

9

DA63-03414A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-03414A $44.68

9

DA97-10634A Samsung Refrigerator Slide Shelf Backorder SMG DA97-10634A $164.03

9

DA97-12594A Samsung Refrigerator Ice Chute Ca In Stock SMG DA97-12594A $66.65

9-1

DA63-06897A Samsung Refrigerator Drain Water Backorder SMG DA63-06897A $35.07

9-1

DA63-06945A Samsung Refrigerator Ice Chute Ca Backorder SMG DA63-06945A $75.36

9-2

DA67-03312A Samsung Refrigerator Ice Cap Chut Backorder SMG DA67-03312A $12.96

9-2

DA97-15765C Samsung Refrigerator Circuit Moto In Stock SMG DA97-15765C $186.43

9-4

Refrigerator condenser coil SMG DA97-08464F Contact Us For Availability

9-21

DA31-00320A Samsung Refrigerator Fan Blade As Backorder SMG DA31-00320A $26.47

10

DA97-13809F Samsung Refrigerator Assembly Dis In Stock SMG DA97-13809F $248.09

10-3

DA61-03166A Samsung Refrigerator Vegetable Co In Stock SMG DA61-03166A $1.69

10-3

DA92-00596A Samsung Refrigerator Module Assem Backorder SMG DA92-00596A $294.54

10-4

DA63-06377A Samsung Refrigerator Rear PCB Cov Backorder SMG DA63-06377A $11.88

10-5

DA41-00217A Samsung Refrigerator Printed Circ In Stock SMG DA41-00217A $47.08

10-5

DA61-04292A Samsung Refrigerator Vegetable Re Backorder SMG DA61-04292A $158.35

10-6

Refrigerator dispenser lever SMG DA97-12628H Contact Us For Availability

10-9

DA97-13808F Samsung Refrigerator Dispenser Co Backorder SMG DA97-13808F $188.82

11

DA63-03415A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-03415A $55.74

11

DA97-14302A Samsung Refrigerator Guard Assemb Backorder SMG DA97-14302A $109.12

11

MKV190CL2B/ASH Samsung Refrigerator Compresso In Stock SMG MKV190CL2B/ASH $358.01

12

DA72-60040W Samsung Refrigerator Seal-Cutt Ru Backorder SMG DA72-60040W $1.69

12

DA97-08438D Samsung Refrigerator Vegetable Cr Backorder SMG DA97-08438D $213.85

12

DA97-10848N Samsung Refrigerator All Wire Com In Stock SMG DA97-10848N $64.60

12-1

DA34-00004D Samsung Refrigerator Compressor O In Stock SMG DA34-00004D $40.19

12-2

DA39-00154M Samsung Refrigerator Compressor W Backorder SMG DA39-00154M $24.25

13

DA63-01866A Samsung Refrigerator Compressor O Backorder SMG DA63-01866A $15.13

13

DA97-14487A Samsung Refrigerator Water Filter Backorder SMG DA97-14487A $272.16

13-1

DA97-08006D Samsung Refrigerator White Case F In Stock SMG DA97-08006D $116.92

13-3

DA63-05406B Samsung Refrigerator Cover Filter Backorder SMG DA63-05406B $22.14

13-4

DA41-00519S Samsung Refrigerator LED Lamp PCB Backorder SMG DA41-00519S $64.66

13-6

DA61-07497A Samsung Refrigerator Case Filter Backorder SMG DA61-07497A $43.25

13-7

DA67-02505B Samsung Refrigerator Tank Filter Backorder SMG DA67-02505B $10.26

13-8

DA62-03103A Samsung Refrigerator Gray Tube Fi Backorder SMG DA62-03103A $24.30

13-9

DA62-04027A Samsung Refrigerator 2-Way Water In Stock SMG DA62-04027A $180.05

14

DA97-08437D Samsung Refrigerator Vegetable Dr Backorder SMG DA97-08437D $157.29

14

DA97-08458G Samsung Refrigerator Pipe Connect Backorder SMG DA97-08458G $96.65

15

DA97-11291A Samsung Refrigerator Right Vegeta Backorder SMG DA97-11291A $43.25

16

DA97-04049E Samsung Refrigerator Drain Cap As In Stock SMG DA97-04049E $37.30

16

DA97-08417A Samsung Refrigerator Pantry Shelf Backorder SMG DA97-08417A $202.80

16-1

DA62-01266E Samsung Refrigerator PVC Tube Backorder SMG DA62-01266E $4.33

16-1

DA64-02235A Samsung Refrigerator Pantry Shelf Backorder SMG DA64-02235A $49.01

16-2

DA67-02519A Samsung Refrigerator Pantry Shelf Backorder SMG DA67-02519A $118.30

17

DA97-11541A Samsung Refrigerator Pantry Rail Backorder SMG DA97-11541A $54.43

18

DA97-08442A Samsung Refrigerator Printed Circ Backorder SMG DA97-08442A $50.01

18

DA97-11542D Samsung Refrigerator Right Pantry Backorder SMG DA97-11542D $130.84

18-1

DA63-06520A Samsung Refrigerator Right Pantry Backorder SMG DA63-06520A $76.64

19

Refrigerator drawer cover SMG DA97-06327A Contact Us For Availability

20

DA60-00280A Samsung Refrigerator Fitting-Lokr Backorder SMG DA60-00280A $7.01

20

DA97-06324C Samsung Refrigerator Motor Damper In Stock SMG DA97-06324C $127.14

20-2

DA31-00071G Samsung Refrigerator DC Motor Dam Backorder SMG DA31-00071G $183.59

20-3

DA32-00006R Samsung Refrigerator Defrost Sens In Stock SMG DA32-00006R $35.34

21-1

DA61-06186B Samsung Refrigerator Drain Plate In Stock SMG DA61-06186B $51.41

21-2

DA61-05835B Samsung Refrigerator Heater Fixer Backorder SMG DA61-05835B $6.47

21-3

DA32-10104N Samsung Refrigerator Temperature In Stock SMG DA32-10104N $35.27

21-5

DA47-00244U Samsung Refrigerator Defrost Heat In Stock SMG DA47-00244U $111.97

21-6

DA61-03644A Samsung Refrigerator Defrost Evap Backorder SMG DA61-03644A $10.26

21-7

DA61-03683A Samsung Refrigerator Sensor Fixer Backorder SMG DA61-03683A $1.69

21-8

DA61-05160A Samsung Refrigerator Fuse Holder In Stock SMG DA61-05160A $1.69

22

DA97-12608A Samsung Refrigerator Evaporator C In Stock SMG DA97-12608A $196.79

22-2

DA32-00011C Samsung Refrigerator Temperature In Stock SMG DA32-00011C $19.45

22-4

DA97-12815B Samsung Refrigerator Evaporator F In Stock SMG DA97-12815B $131.82

23

DA92-00486A Samsung Refrigerator Module Assem In Stock SMG DA92-00486A $146.34

23

DA97-12540G Samsung Refrigerator Ice Maker Au In Stock SMG DA97-12540G $289.90

23-1

DA31-00105M Samsung Refrigerator Geared Auger Backorder SMG DA31-00105M $216.29

23-2

DA31-00070E Samsung Refrigerator DC Motor Box In Stock SMG DA31-00070E $88.43

23-3

DA96-00682D Samsung Refrigerator Auger Motor In Stock SMG DA96-00682D $104.21

23-8

DA74-40151G Samsung Refrigerator Ice Dispense Backorder SMG DA74-40151G $114.88

24

DA97-14474C Samsung Refrigerator Ice Bucket T In Stock SMG DA97-14474C $217.61

24-1

DA61-20124D Samsung Refrigerator Dispenser Sp Backorder SMG DA61-20124D $6.47

24-2

DA63-07185A Samsung Refrigerator Ice Bucket T Backorder SMG DA63-07185A $3.24

25

DA27-00022B Samsung Refrigerator Coil Filter In Stock SMG DA27-00022B $142.38

25-1

DA67-02014B Samsung Refrigerator Insert Fix S Backorder SMG DA67-02014B $97.04

26

DA97-12654A Samsung Refrigerator Cap Angle As Backorder SMG DA97-12654A $2.59

27

DA41-00519Q Samsung Refrigerator LED Lamp PBA Backorder SMG DA41-00519Q $26.25

27-2

DA34-00043J Samsung Refrigerator Door Reed Sw In Stock SMG DA34-00043J $33.20

28

DA97-14471A Samsung Refrigerator Case Lock As Backorder SMG DA97-14471A $55.25

29

DA97-08413B Samsung Refrigerator Assembly Cov Backorder SMG DA97-08413B $22.68

29-1

DA61-04290A Samsung Refrigerator Pantry Guide Backorder SMG DA61-04290A $136.59

29-3

DA97-05931A Samsung Refrigerator Freezer Shel Backorder SMG DA97-05931A $14.58

29-4

DA63-04275B Samsung Refrigerator Pantry Front Backorder SMG DA63-04275B $61.23

29-5

DA63-04276B Samsung Refrigerator Pantry Trim Backorder SMG DA63-04276B $43.72

29-7

DA97-11539A Samsung Refrigerator Right Pantry Backorder SMG DA97-11539A $59.10

29-8

DA97-11538A Samsung Refrigerator Left Pantry Backorder SMG DA97-11538A $72.64

30

DA32-00033C Samsung Refrigerator Temperature In Stock SMG DA32-00033C $34.35

31

DA63-05470B Samsung Refrigerator Sensor Cover Backorder SMG DA63-05470B $4.33

33

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $71.04

36

DA60-00143B Samsung Refrigerator Housing Reta In Stock SMG DA60-00143B $1.69

38

DA61-04932A Samsung Refrigerator Door Hinge F Backorder SMG DA61-04932A $8.46

39

DA62-03914A Samsung Refrigerator Water Tube F In Stock SMG DA62-03914A $47.62

41

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $23.76

42

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $8.64

47

DA92-00483B Samsung Refrigerator Inverter PCB In Stock SMG DA92-00483B $268.68

1061

DA34-00011B Samsung Refrigerator Micro Switch Backorder SMG DA34-00011B $15.67

1062

DA96-00106G Samsung Refrigerator Dispenser Wi Backorder SMG DA96-00106G $54.77

1121

DA66-00440A Samsung Refrigerator Auto Close R In Stock SMG DA66-00440A $1.69

1311

DA62-02429G Samsung Refrigerator Water Line P Backorder SMG DA62-02429G $8.10

2242

DA81-06013A Samsung Refrigerator Evaporator F In Stock SMG DA81-06013A $135.90

6002-000630 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000630 $1.18

DA61-03154A Samsung Refrigerator Gear Fixer Backorder SMG DA61-03154A $1.69

DA61-04522A Samsung Refrigerator Clip Lock Fi Backorder SMG DA61-04522A $1.69

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.69

DA97-05932A Samsung Refrigerator Roller Assem Backorder SMG DA97-05932A $16.21

DA97-14447A Samsung Refrigerator Roller Assem Backorder SMG DA97-14447A $20.52
