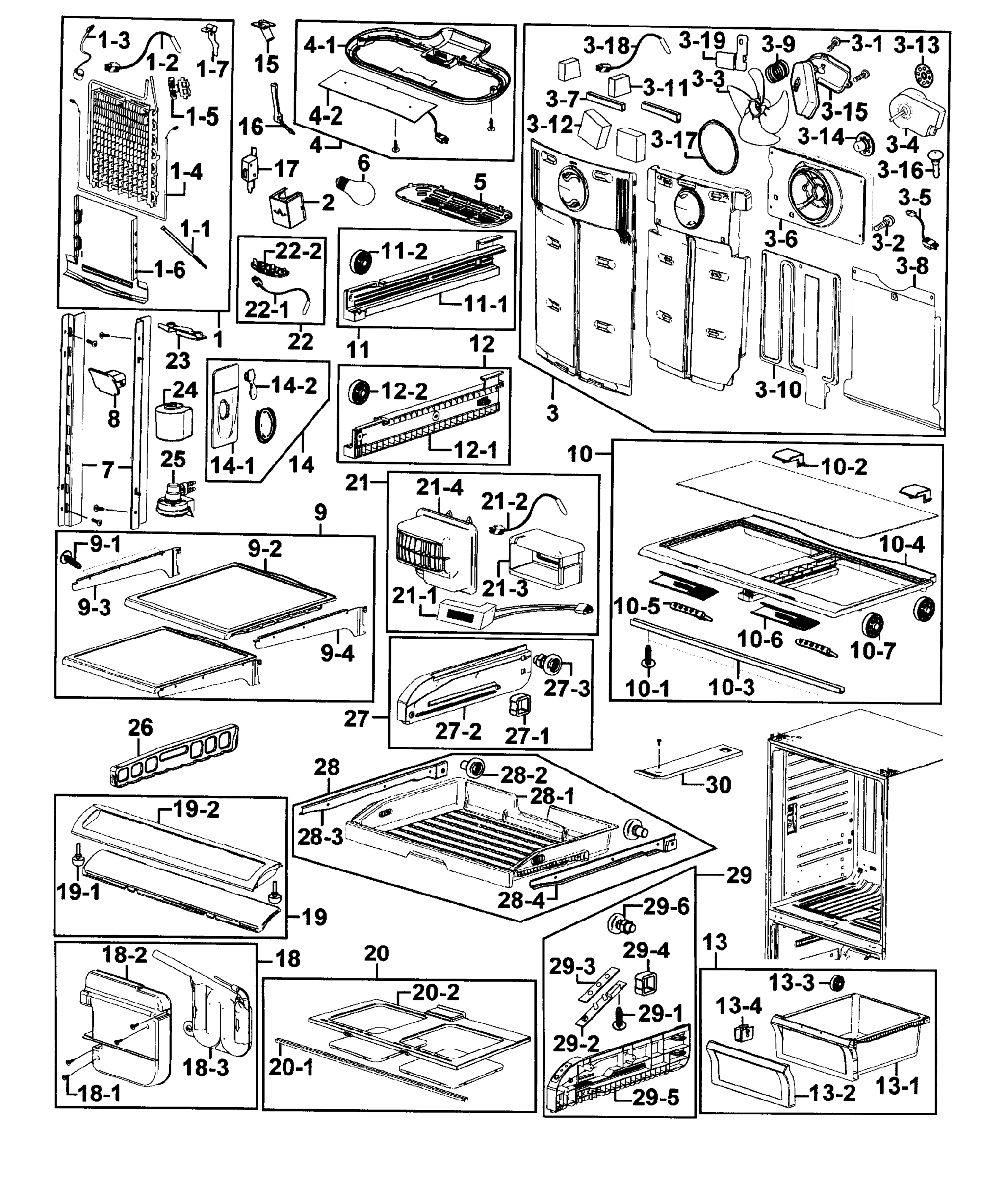

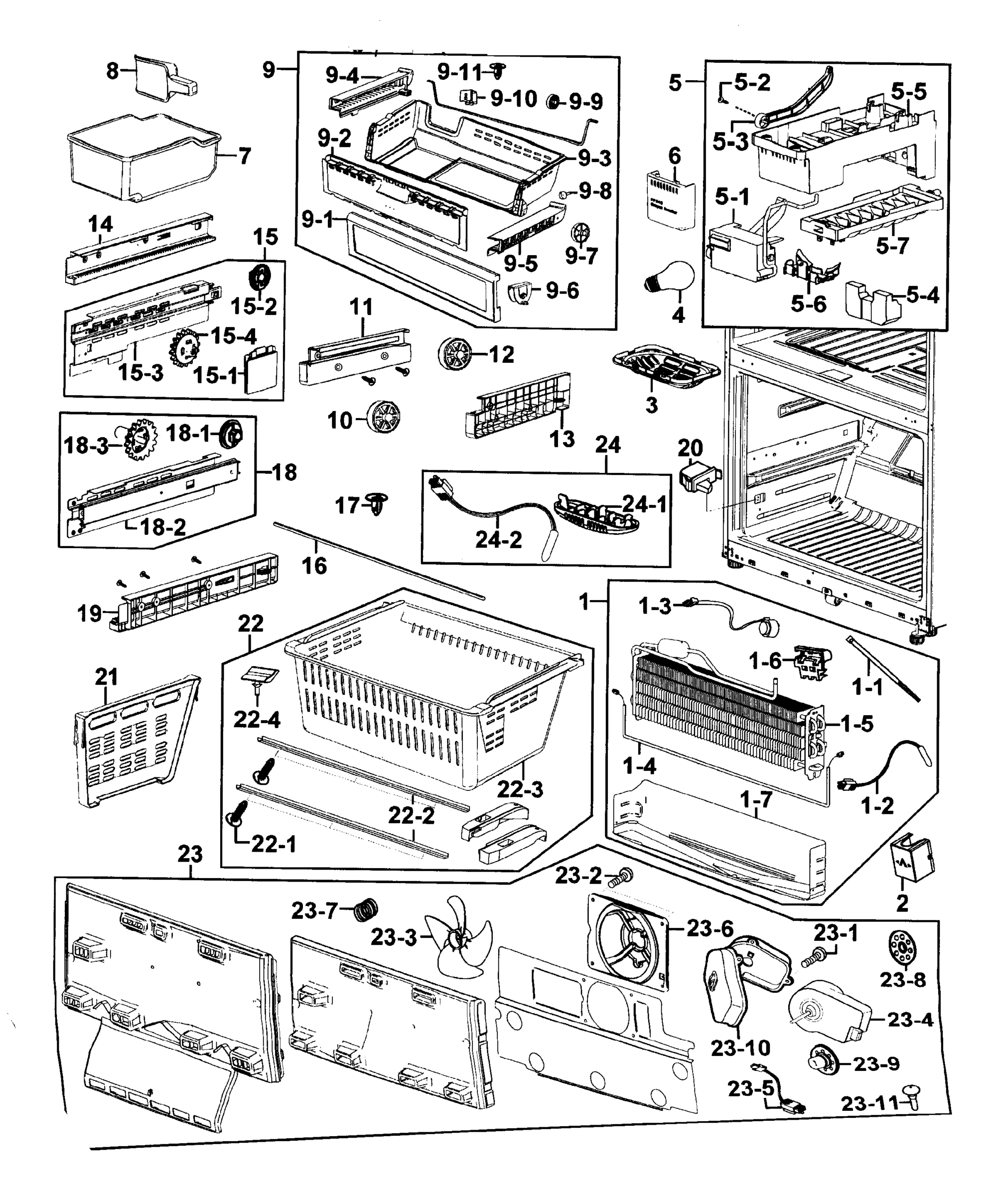

Model Samsung RF266AZPN/XAA-00 Refrigerator – Common Parts &amp; Diagrams

1-1

DA67-02055B Samsung Refrigerator Freezer Left Backorder SMG DA67-02055B $6.47

6002-001122 Samsung Refrigerator Tapping Scre In Stock SMG 6002-001122 $1.69

DA32-00006Q Samsung Refrigerator Defrost Temp In Stock SMG DA32-00006Q $27.01

DA32-00006S Samsung Refrigerator Freezer Defr In Stock SMG DA32-00006S $37.26

DA67-02054B Samsung Right Refrigerator Door C Backorder SMG DA67-02054B $9.72

1-3

DA34-00043B Samsung Refrigerator Reed Switch Backorder SMG DA34-00043B $30.74

1-4

DA47-00244A Samsung Refrigerator Metal Sheath Backorder SMG DA47-00244A $146.08

1-4

DA47-00424B Samsung Refrigerator Metal Sheath Backorder SMG DA47-00424B $100.75

1-4

Refrigerator power control board SMG DA41-00412K Contact Us For Availability

1-5

DA61-03683A Samsung Refrigerator Sensor Fixer Backorder SMG DA61-03683A $1.69

1-6

DA61-02901A Samsung Refrigerator Evaporator S In Stock SMG DA61-02901A $1.69

1-6

DA61-06186B Samsung Refrigerator Drain Plate In Stock SMG DA61-06186B $51.41

1-7

DA61-03644A Samsung Refrigerator Defrost Evap Backorder SMG DA61-03644A $10.26

2

DA66-00442B Samsung Refrigerator Auto Close C Backorder SMG DA66-00442B $4.87

2

DA67-01613B Samsung Refrigerator Top Cap Tabl Backorder SMG DA67-01613B $1.69

2

DA97-05557Y Samsung Freezer Door Gasket Assem In Stock SMG DA97-05557Y $184.08

3

DA61-02738F Samsung Refrigerator Magnet Assem Backorder SMG DA61-02738F $5.41

3

DA61-03153B Samsung Refrigerator Front Hanger Backorder SMG DA61-03153B $100.06

3-4

DA31-00146H Samsung Refrigerator Freezer Evap In Stock SMG DA31-00146H $142.77

3-5

DA39-00060K Samsung Refrigerator Motor with H Backorder SMG DA39-00060K $160.09

3-6

DA61-03181A Samsung Refrigerator Bubble Pjt A Backorder SMG DA61-03181A $15.67

3-8

DA61-03186C Samsung Refrigerator Evaporator I In Stock SMG DA61-03186C $36.99

3-10

DA62-01382A Samsung Refrigerator Rear Evapora Backorder SMG DA62-01382A $10.95

3-14

DA63-01808A Samsung Refrigerator Front Motor Backorder SMG DA63-01808A $4.33

3-15

DA63-01809A Samsung Refrigerator BLDC Motor C Backorder SMG DA63-01809A $14.04

3-18

DA32-10105X Samsung Refrigerator Temperature In Stock SMG DA32-10105X $33.35

3-19

DA61-03599A Samsung Refrigerator Galvanized H Backorder SMG DA61-03599A $2.16

4

DA61-03155B Samsung Refrigerator Hanger Rail Backorder SMG DA61-03155B $111.39

4-2

DA96-00398J Samsung Refrigerator Led Lamp Ass Backorder SMG DA96-00398J $154.21

5

DA61-02383E Samsung Refrigerator Door Closing Backorder SMG DA61-02383E $6.05

5

DA61-03211A Samsung Refrigerator Door Stopper Backorder SMG DA61-03211A $30.23

5

DA63-06410A Samsung Refrigerator Door Hinge B In Stock SMG DA63-06410A $6.05

5

DA97-07603B Samsung Refrigerator Ice Maker In Stock SMG DA97-07603B $204.54

5-1

DA59-00294B Samsung Refrigerator Ice Maker As In Stock SMG DA59-00294B $215.89

5-3

DA61-05435A Samsung Refrigerator Ice Maker Sh In Stock SMG DA61-05435A $9.31

5-4

DA61-01800A Samsung Refrigerator Ice Maker Fi In Stock SMG DA61-01800A $39.51

5-5

DA61-05227A Samsung Refrigerator Ice Maker Su Backorder SMG DA61-05227A $46.12

5-6

DA63-02183A Samsung Refrigerator Sensor Cover In Stock SMG DA63-02183A $5.93

5-7

DA63-02284B Samsung Refrigerator Ice Cube Tra In Stock SMG DA63-02284B $32.15

6

DA61-03762A Samsung Refrigerator Left Side Su In Stock SMG DA61-03762A $18.35

6

DA63-04974A Samsung Refrigerator Cover-Ice Ma Backorder SMG DA63-04974A $14.58

6

DA63-40294A Samsung Refrigerator Stopper Grom Backorder SMG DA63-40294A $1.69

7

DA61-03212A Samsung Refrigerator Door Stopper Backorder SMG DA61-03212A $31.23

7

DA61-03763A Samsung Refrigerator Aw Pjt Suppo Backorder SMG DA61-03763A $12.96

7

DA61-05300A Samsung Refrigerator Ice Cube Cas Backorder SMG DA61-05300A $74.51

7

DA97-05253B Samsung Refrigerator Door Gasket In Stock SMG DA97-05253B $122.75

8

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $15.67

8

DA67-01688A Samsung Refrigerator Angle Cap As Backorder SMG DA67-01688A $1.69

8

DA97-04880A Samsung Refrigerator Guard Assemb Backorder SMG DA97-04880A $72.37

8

Refrigerator nameplate SMG DA64-01985A Contact Us For Availability

9

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $7.46

9

DA97-11081C Samsung Refrigerator Handle Bar A In Stock SMG DA97-11081C $187.96

9

Refrigerator freezer door handle mounting blo SMG DA61-04254A Contact Us For Availability

9-2

DA67-01606D Samsung Refrigerator Glass Shelf Backorder SMG DA67-01606D $76.24

9-4

DA61-05186A Samsung Refrigerator Upper Tray G Backorder SMG DA61-05186A $19.44

9-6

DA61-04154A Samsung Refrigerator Upper Freeze Backorder SMG DA61-04154A $9.72

9-7

DA66-00554A Samsung Refrigerator Upper Freeze In Stock SMG DA66-00554A $5.93

9-10

DA71-20277A Samsung Refrigerator Fixer-Roller Backorder SMG DA71-20277A $1.69

10

DA61-04255A Samsung Refrigerator Handle Shaft Backorder SMG DA61-04255A $1.18

10

DA61-11161A Samsung Refrigerator Door Handle In Stock SMG DA61-11161A $9.78

10

DA97-07019A Samsung Refrigerator Vegetable Cr Backorder SMG DA97-07019A $184.08

10-2

DA61-03166A Samsung Refrigerator Vegetable Co In Stock SMG DA61-03166A $1.69

DA61-04108A Samsung Refrigerator Upper Slide Backorder SMG DA61-04108A $135.71

DA63-03467A Samsung Refrigerator Guard Backorder SMG DA63-03467A $47.57

DA97-04839A Samsung Refrigerator Vegetable Dr Backorder SMG DA97-04839A $29.30

DA97-07244J Samsung Refrigerator Silver Frenc In Stock SMG DA97-07244J $152.45

11-1

DA61-03172A Samsung Refrigerator Crisper Draw Backorder SMG DA61-03172A $27.01

11-3

DA61-03230B Samsung Refrigerator French Door In Stock SMG DA61-03230B $6.87

11-4

DA61-03234A Samsung Refrigerator French Door Backorder SMG DA61-03234A $59.52

11-6

DA63-03454B Samsung Refrigerator Center Hinge Backorder SMG DA63-03454B $8.10

11-8

DA67-01650A Samsung Refrigerator French End C Backorder SMG DA67-01650A $5.41

11-9

DA67-01701A Samsung Refrigerator Cap Case Fre Backorder SMG DA67-01701A $5.41

12

DA97-04840A Samsung Refrigerator Vegetable Dr Backorder SMG DA97-04840A $28.61

12

Refrigerator freezer handle cover, left SMG DA63-04247B Contact Us For Availability

12-1

DA61-03177A Samsung Refrigerator Vegetable Cr Backorder SMG DA61-03177A $28.61

12-1

DA66-00649A Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649A $3.97

12-2

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $12.73

12-2

Refrigerator dairy bin cover SMG DA63-03462A Contact Us For Availability

DA41-00519R Samsung Refrigerator LED Lamp PBA Backorder SMG DA41-00519R $12.54

DA61-04109A Samsung Refrigerator Upper Slide Backorder SMG DA61-04109A $144.67

DA97-04846A Samsung Refrigerator Vegetable Ca Backorder SMG DA97-04846A $154.47

Refrigerator freezer handle cover, right SMG DA63-04248B Contact Us For Availability

13-5

DA97-07754C Samsung Refrigerator Circuit Moto Backorder SMG DA97-07754C $172.89

DA31-00010D Samsung Refrigerator Fan Blade In Stock SMG DA31-00010D $26.93

DA61-04335B Samsung E Assembly Handle Spring Backorder SMG DA61-04335B $2.70

DA63-03414A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-03414A $44.68

DA63-05524A Samsung Refrigerator Door LED Cap Backorder SMG DA63-05524A $39.63

DA97-04952B Samsung Refrigerator Water Dispen In Stock SMG DA97-04952B $44.58

14-2

DA64-02113A Samsung Refrigerator Dispenser Co Backorder SMG DA64-02113A $2.70

15-1

DA34-00047B Samsung Refrigerator Pressure Coo Backorder SMG DA34-00047B $4.33

15-1

DA64-03945C Samsung Refrigerator Freezer Door In Stock SMG DA64-03945C $145.95

15-4

Refrigerator freezer drawer gear SMG DA66-00751A Contact Us For Availability

16

DA66-00437A Samsung Refrigerator Gear Shaft A Backorder SMG DA66-00437A $42.76

16

DA67-02057A Samsung Refrigerator Door Cap Han In Stock SMG DA67-02057A $42.17

16

Refrigerator compressor SMG BK190CL2C/E02 Contact Us For Availability

17

DA67-02056A Samsung Refrigerator Freezer Door In Stock SMG DA67-02056A $39.24

17

DA97-08310E Samsung Refrigerator Compressor A In Stock SMG DA97-08310E $86.27

17-1

DA39-00154D Samsung Refrigerator Wire Harness In Stock SMG DA39-00154D $57.17

17-2

DA34-00004D Samsung Refrigerator Compressor O In Stock SMG DA34-00004D $40.19

18

DA66-00579A Samsung Refrigerator Freezer Hand Backorder SMG DA66-00579A $9.18

18

DA97-07129E Samsung Refrigerator Cover Assemb In Stock SMG DA97-07129E $160.94

18

DA97-08806A Samsung Refrigerator Low Slide Ra Backorder SMG DA97-08806A $363.42

18-3

DA97-07150C Samsung Refrigerator Water Tank A Backorder SMG DA97-07150C $153.44

18-3

Refrigerator gear rail SMG DA66-00750A Contact Us For Availability

19

DA63-03415A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-03415A $55.74

19-2

DA63-03764A Samsung Refrigerator Pantry Drawe Backorder SMG DA63-03764A $39.39

20

DA34-10120E Samsung Refrigerator Door Switch Backorder SMG DA34-10120E $36.52

20

DA97-05370A Samsung Assembly Refrigerator Cri Backorder SMG DA97-05370A $202.80

21

Refrigerator damper motor assembly SMG DA97-06324B Contact Us For Availability

21-2

DA32-00006R Samsung Refrigerator Defrost Sens In Stock SMG DA32-00006R $35.34

21-4

DA63-04274A Samsung Refrigerator DC Motor Dam Backorder SMG DA63-04274A $12.42

22

DA97-04049H Samsung Refrigerator Drain Cap As Backorder SMG DA97-04049H $15.91

23

DA97-04938D Samsung Refrigerator Evaporator C Backorder SMG DA97-04938D $212.16

23-3

Refrigerator evaporator fan blade SMG DA31-00124A Contact Us For Availability

23-4

DA31-00146B Samsung Refrigerator Condenser Fa In Stock SMG DA31-00146B $142.77

23-8

DA63-01146A Samsung Refrigerator Rear Motor G Backorder SMG DA63-01146A $4.87

24-2

DA27-00019D Samsung Refrigerator EMI Coil Fil Backorder SMG DA27-00019D $112.89

24-2

DA32-10105B Samsung Refrigerator Temperature In Stock SMG DA32-10105B $20.52

24-3

Refrigerator power cord SMG DA39-10165E Contact Us For Availability

25

DA97-00209T Samsung Refrigerator Water Pipe A Backorder SMG DA97-00209T $120.50

25

DA97-06317A Samsung Refrigerator Replacement In Stock SMG DA97-06317A $115.21

25-2

DA73-00134D Samsung Refrigerator Water Pipe A Backorder SMG DA73-00134D $59.52

27

DA97-05371B Samsung Refrigerator Left Pantry Backorder SMG DA97-05371B $65.52

28-2

DA97-05931A Samsung Refrigerator Freezer Shel Backorder SMG DA97-05931A $14.58

29

DA97-05384C Samsung Refrigerator Pantry Right Backorder SMG DA97-05384C $127.46

29-1

6002-000630 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000630 $1.18

29-2

DA41-00423C Samsung Refrigerator Printed Circ In Stock SMG DA41-00423C $37.96

31

DA62-00914B Samsung Refrigerator Water Inlet In Stock SMG DA62-00914B $149.54

33

DA97-00918E Samsung Refrigerator Connection P Backorder SMG DA97-00918E $63.50

1110

DA81-01345B Samsung Refrigerator Door Spring In Stock SMG DA81-01345B $3.20

1111

DA81-01346A Samsung Refrigerator French Sprin In Stock SMG DA81-01346A $1.69

6002-000213 Samsung Air Conditioner Tapping S In Stock SMG 6002-000213 $1.32

DA61-03154A Samsung Refrigerator Gear Fixer Backorder SMG DA61-03154A $1.69

DA61-03301A Samsung Refrigerator Door Auto Cl Backorder SMG DA61-03301A $7.55

DA97-04903B Samsung Refrigerator Auto Close L Backorder SMG DA97-04903B $25.38

DA97-05932A Samsung Refrigerator Roller Assem Backorder SMG DA97-05932A $16.21
