Samsung RF263AERS/XAA-01 Refrigerator Parts List

1

Refrigerator User Interface and Top Cover Ass SMG DA97-07049N Contact Us For Availability

View on Model

1

Refrigerator Evaporator SMG DA96-00516R Contact Us For Availability

View on Model

1-2

DA32-00006Q Samsung Refrigerator Defrost Temp In Stock SMG DA32-00006Q $25.70

View on Model

1-2

DA32-00006S Samsung Refrigerator Freezer Defr In Stock SMG DA32-00006S $29.50

View on Model

1-3

DA34-00043B Samsung Refrigerator Reed Switch Backorder SMG DA34-00043B $32.41

View on Model

1-4

DA47-00424A Samsung Refrigerator Metal Sheath In Stock SMG DA47-00424A $143.41

View on Model

1-4

DA47-00424B Samsung Refrigerator Metal Sheath Backorder SMG DA47-00424B $111.77

View on Model

1-4

Refrigerator Power Control Board SMG DA41-00412K Contact Us For Availability

View on Model

1-5

DA61-04799A Samsung Refrigerator Evaporator S Backorder SMG DA61-04799A $1.69

View on Model

1-5

DA61-04800A Samsung Refrigerator Sensor Fixer In Stock SMG DA61-04800A $4.79

View on Model

1-6

DA61-03644A Samsung Refrigerator Defrost Evap Backorder SMG DA61-03644A $10.06

View on Model

2

DA61-02738F Samsung Refrigerator Magnet Assem Backorder SMG DA61-02738F $5.33

View on Model

2

DA63-06541D Samsung Refrigerator Freezer Door In Stock SMG DA63-06541D $154.44

View on Model

3

Refrigerator Fresh Food Evaporator Cover Asse SMG DA97-07190G Contact Us For Availability

View on Model

3-2

6002-001306 Samsung Washer Tapping Screw Backorder SMG 6002-001306 $1.69

View on Model

3-2

DA61-03301A Samsung Refrigerator Door Auto Cl Backorder SMG DA61-03301A $7.82

View on Model

3-3

DA31-00230A Samsung Refrigerator Fan Assembly Backorder SMG DA31-00230A $81.41

View on Model

3-4

DA31-00146H Samsung Refrigerator Freezer Evap In Stock SMG DA31-00146H $133.46

View on Model

3-5

DA39-00060K Samsung Refrigerator Motor with H Backorder SMG DA39-00060K $157.57

View on Model

3-8

DA63-01146A Samsung Refrigerator Rear Motor G Backorder SMG DA63-01146A $4.79

View on Model

3-9

DA63-01808A Samsung Refrigerator Front Motor Backorder SMG DA63-01808A $4.25

View on Model

3-14

DA32-10105X Samsung Refrigerator Temperature In Stock SMG DA32-10105X $20.09

View on Model

4

DA61-04841A Samsung Refrigerator Front Hanger Backorder SMG DA61-04841A $85.97

View on Model

4

DA63-06542A Samsung Refrigerator Door Gasket In Stock SMG DA63-06542A $135.88

View on Model

4-1

DA96-00398J Samsung Refrigerator Led Lamp Ass Backorder SMG DA96-00398J $154.21

View on Model

5

DA61-11161A Samsung Refrigerator Door Handle In Stock SMG DA61-11161A $6.77

View on Model

5

DA63-06600A Samsung Refrigerator Mid Hinge Gr Backorder SMG DA63-06600A $4.49

View on Model

5

DA97-07603B Samsung Refrigerator Ice Maker Backorder SMG DA97-07603B $197.34

View on Model

5-1

DA59-00294B Samsung Refrigerator Ice Maker As In Stock SMG DA59-00294B $181.86

View on Model

5-2

DA61-05435A Samsung Refrigerator Ice Maker Sh In Stock SMG DA61-05435A $6.77

View on Model

5-3

DA61-01800A Samsung Refrigerator Ice Maker Fi In Stock SMG DA61-01800A $35.66

View on Model

5-4

DA61-05227A Samsung Refrigerator Ice Maker Su Backorder SMG DA61-05227A $44.26

View on Model

5-5

DA63-02183A Samsung Refrigerator Sensor Cover In Stock SMG DA63-02183A $3.07

View on Model

5-6

DA63-02284B Samsung Refrigerator Ice Cube Tra Backorder SMG DA63-02284B $30.17

View on Model

6

DA97-11081C Samsung Refrigerator Handle Bar A Backorder SMG DA97-11081C $183.45

View on Model

6-1

DA66-00579A Samsung Refrigerator Freezer Hand Backorder SMG DA66-00579A $9.50

View on Model

6-2

6002-000213 Samsung Air Conditioner Tapping S Backorder SMG 6002-000213 $1.32

View on Model

7

DA63-04621A Samsung Refrigerator Guard Backorder SMG DA63-04621A $70.99

View on Model

7

DA67-02130A Samsung Refrigerator Angle Cap As Backorder SMG DA67-02130A $1.60

View on Model

7-1

DA61-05358A Samsung Refrigerator Ice Cube Cas Backorder SMG DA61-05358A $47.29

View on Model

8

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $7.99

View on Model

8

Refrigerator Freezer Door Bin Support, Left SMG DA97-07035A Contact Us For Availability

View on Model

8

Refrigerator guard assembly SMG DA97-07032A Contact Us For Availability

View on Model

8-2

DA66-00639A Samsung Refrigerator Upper Tray R Backorder SMG DA66-00639A $3.48

View on Model

8-2

DA67-01606D Samsung Refrigerator Glass Shelf Backorder SMG DA67-01606D $75.04

View on Model

8-3

DA61-04813A Samsung Refrigerator Upper Roller Backorder SMG DA61-04813A $4.02

View on Model

8-5

DA66-00554A Samsung Refrigerator Upper Freeze Backorder SMG DA66-00554A $5.59

View on Model

8-6

DA61-04805A Samsung Refrigerator Natural Proj Backorder SMG DA61-04805A $38.35

View on Model

8-7

DA67-02138A Samsung Refrigerator Hinge Hole C Backorder SMG DA67-02138A $1.60

View on Model

9

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.07

View on Model

9

DA97-07022A Samsung Refrigerator Upper Slide Backorder SMG DA97-07022A $115.76

View on Model

9

Refrigerator flipper assembly SMG DA97-07276E Contact Us For Availability

View on Model

9

Refrigerator Drawer Cover SMG DA97-07019A Contact Us For Availability

View on Model

9-2

DA61-04809A Samsung Refrigerator Vegetable Fi In Stock SMG DA61-04809A $1.69

View on Model

9-2

Refrigerator door hinge SMG DA61-04866A Contact Us For Availability

View on Model

9-3

Refrigerator flipper housing SMG DA61-04848B Contact Us For Availability

View on Model

9-5

DA63-04645A Samsung Refrigerator Door Heater Backorder SMG DA63-04645A $17.32

View on Model

9-6

DA61-04804A Samsung Refrigerator Roller Wheel Backorder SMG DA61-04804A $25.49

View on Model

9-7

DA67-02146A Samsung Refrigerator French Cap C Backorder SMG DA67-02146A $10.06

View on Model

9-8

DA67-02154A Samsung Refrigerator French Door Backorder SMG DA67-02154A $5.85

View on Model

9-9

DA81-01345B Samsung Refrigerator Door Spring In Stock SMG DA81-01345B $4.93

View on Model

9-10

DA81-01346A Samsung Refrigerator French Sprin In Stock SMG DA81-01346A $1.69

View on Model

9-12

6002-001122 Samsung Refrigerator Tapping Scre In Stock SMG 6002-001122 $1.69

View on Model

10

DA61-04837A Samsung Refrigerator Handle Shaft Backorder SMG DA61-04837A $2.66

View on Model

10

DA97-07006A Samsung Refrigerator Vegetable Dr Backorder SMG DA97-07006A $149.97

View on Model

10

DA97-07023A Samsung Refrigerator Upper Slide Backorder SMG DA97-07023A $48.25

View on Model

11

DA61-04838A Samsung Refrigerator Handle Shaft Backorder SMG DA61-04838A $3.74

View on Model

11

DA63-04604A Samsung Refrigerator Left Lower R Backorder SMG DA63-04604A $156.36

View on Model

11

DA63-05079A Samsung Refrigerator Front Leg Co Backorder SMG DA63-05079A $38.49

View on Model

11

DA97-07007A Samsung Refrigerator Vegetable Dr Backorder SMG DA97-07007A $144.31

View on Model

12

DA61-04839A Samsung Refrigerator Handle Slide Backorder SMG DA61-04839A $8.64

View on Model

12

DA97-07009D Samsung Refrigerator Assembly Cas Backorder SMG DA97-07009D $154.42

View on Model

12

Refrigerator Freezer Drawer Slide Rail, Left SMG DA97-10594B Contact Us For Availability

View on Model

12-1

DA66-00649A Samsung Refrigerator Caster Shaft Backorder SMG DA66-00649A $3.97

View on Model

12-2

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $6.77

View on Model

12-2

Refrigerator Freezer Basket Slide Rail Assemb SMG DA61-09087A Contact Us For Availability

View on Model

12-3

DA66-00771A Samsung Refrigerator Rail Gear Le Backorder SMG DA66-00771A $6.47

View on Model

13

DA97-07018C Samsung Refrigerator Veg Case Ass Backorder SMG DA97-07018C $196.33

View on Model

13

Refrigerator Condenser Coil and Fan Motor Ass SMG DA97-07825F Contact Us For Availability

View on Model

13

Refrigerator Freezer Handle Cover, Left SMG DA63-04640A Contact Us For Availability

View on Model

13-5

DA31-00146B Samsung Refrigerator Condenser Fa In Stock SMG DA31-00146B $137.35

View on Model

14

DA63-04641A Samsung Refrigerator Freezer Door Backorder SMG DA63-04641A $11.34

View on Model

15

DA61-04335B Samsung E Assembly Handle Spring In Stock SMG DA61-04335B $2.66

View on Model

15

DA97-07020C Samsung Refrigerator Pantry Drawe Backorder SMG DA97-07020C $169.18

View on Model

15

DA97-10595E Samsung Refrigerator Low Right Sl Backorder SMG DA97-10595E $196.29

View on Model

15-1

DA61-09088A Samsung Refrigerator Slide Rail L Backorder SMG DA61-09088A $216.59

View on Model

15-2

DA66-00767A Samsung Refrigerator Rail Gear Ri Backorder SMG DA66-00767A $7.82

View on Model

16

DA63-04605A Samsung Refrigerator Lower Right Backorder SMG DA63-04605A $92.28

View on Model

16

DA97-07015A Samsung Refrigerator Pantry Shelf Backorder SMG DA97-07015A $234.44

View on Model

16

MKV190CL2J/SM1 Samsung Refrigerator Compresso Backorder SMG MKV190CL2J/SM1 $389.06

View on Model

17

DA39-00154D Samsung Refrigerator Wire Harness Backorder SMG DA39-00154D $58.68

View on Model

17

DA97-07024C Samsung Refrigerator Drawer Box T Backorder SMG DA97-07024C $199.44

View on Model

17

DA97-07189E Samsung Refrigerator Motor Damper In Stock SMG DA97-07189E $176.14

View on Model

17-1

DA31-00071G Samsung Refrigerator DC Motor Dam Backorder SMG DA31-00071G $188.79

View on Model

17-3

DA32-00006R Samsung Refrigerator Defrost Sens In Stock SMG DA32-00006R $23.97

View on Model

18

DA34-10120E Samsung Refrigerator Door Switch Backorder SMG DA34-10120E $34.81

View on Model

18

DA61-04795A Samsung Refrigerator French Door Backorder SMG DA61-04795A $11.88

View on Model

19

DA61-04796A Samsung Refrigerator Drawer Guide Backorder SMG DA61-04796A $52.55

View on Model

20

DA97-02019B Samsung Refrigerator Temperature Backorder SMG DA97-02019B $39.39

View on Model

20

DA97-06317A Samsung Refrigerator Replacement In Stock SMG DA97-06317A $97.67

View on Model

20-2

DA32-00011U Samsung Refrigerator Temperature Backorder SMG DA32-00011U $54.43

View on Model

21

DA61-04794A Samsung Refrigerator Pantry Guide Backorder SMG DA61-04794A $35.30

View on Model

21

DA97-07186B Samsung Refrigerator Freon Evapor Backorder SMG DA97-07186B $300.28

View on Model

21-2

Refrigerator Condenser Fan Blade SMG DA96-00504A Contact Us For Availability

View on Model

22

DA97-04049H Samsung Refrigerator Drain Cap As Backorder SMG DA97-04049H $15.91

View on Model

22

DA97-07016A Samsung Refrigerator Pantry Rail Backorder SMG DA97-07016A $149.97

View on Model

22-2

DA97-05932A Samsung Refrigerator Roller Assem Backorder SMG DA97-05932A $20.13

View on Model

23

DA62-01477A Samsung Refrigerator Water Inlet In Stock SMG DA62-01477A $84.98

View on Model

23-1

DA97-05931A Samsung Refrigerator Freezer Shel Backorder SMG DA97-05931A $15.09

View on Model

24

DA97-07017A Samsung Refrigerator Pantry Rail Backorder SMG DA97-07017A $100.79

View on Model

24-1

6002-000630 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000630 $1.18

View on Model

24-2

DA41-00423C Samsung Refrigerator Printed Circ Backorder SMG DA41-00423C $37.41

View on Model

25-1

6002-000217 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000217 $1.18

View on Model

25-2

DA27-00019D Samsung Refrigerator EMI Coil Fil Backorder SMG DA27-00019D $111.25

View on Model

25-4

3903-000400 Samsung Power Cord Refrigerator In Stock SMG 3903-000400 $88.60

View on Model

27

DA97-07852A Samsung Refrigerator Assembly Cov Backorder SMG DA97-07852A $55.39

View on Model

28

Refrigerator Power Control Board SMG DA41-00404E Contact Us For Availability

View on Model

29

DA61-04712C Samsung Refrigerator Fixer Hose Backorder SMG DA61-04712C $27.14

View on Model

31

DA34-00004D Samsung Refrigerator Compressor O In Stock SMG DA34-00004D $35.00

View on Model

32

DA63-04553A Samsung Refrigerator Cover Relay Backorder SMG DA63-04553A $43.10

View on Model

Model Samsung RF263AERS/XAA-01 Refrigerator – Common Parts & Diagrams

Common parts from model Samsung RF263AERS/XAA-01 Refrigerator

Search result for :

Help

Customer Service

Company

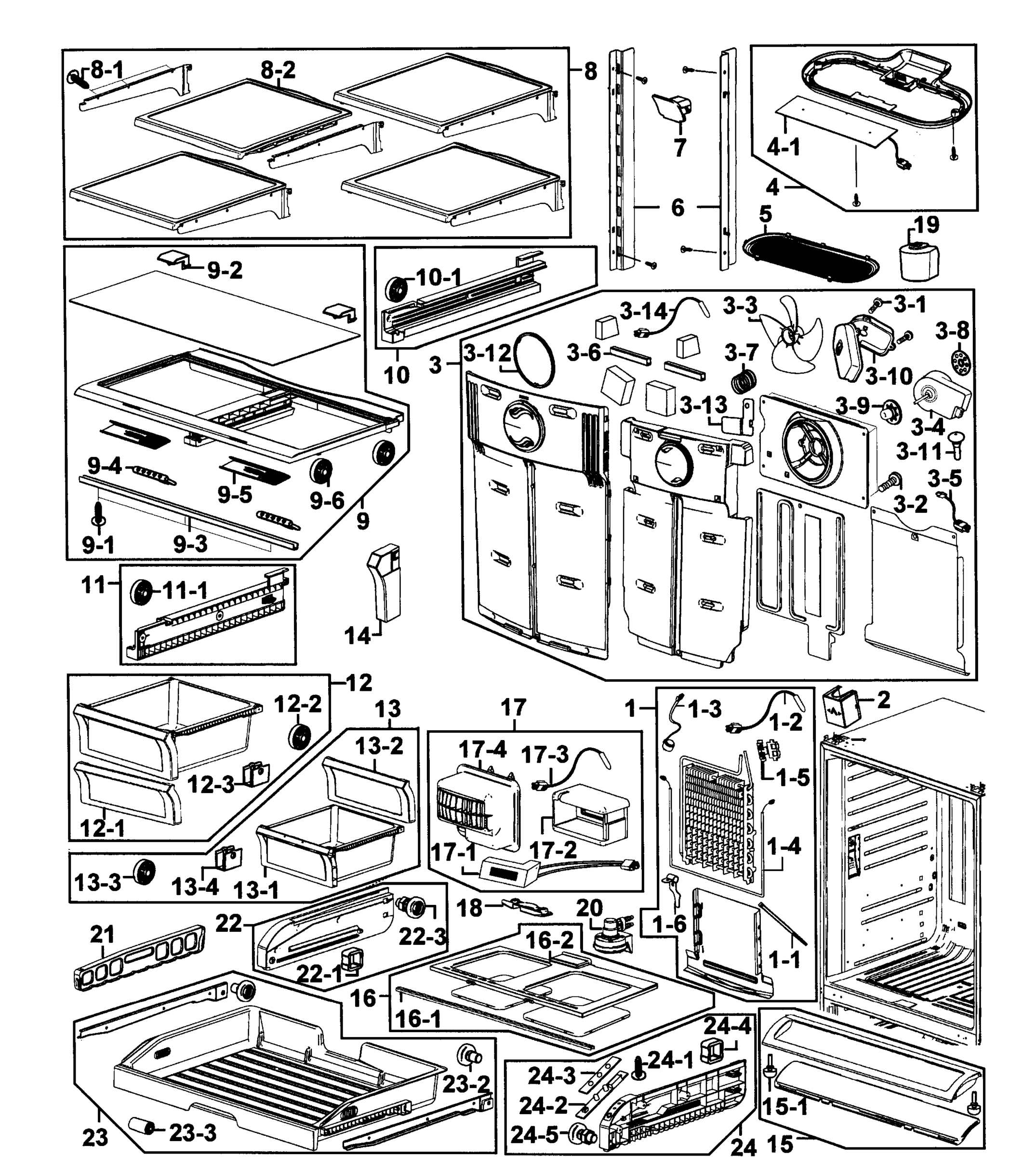

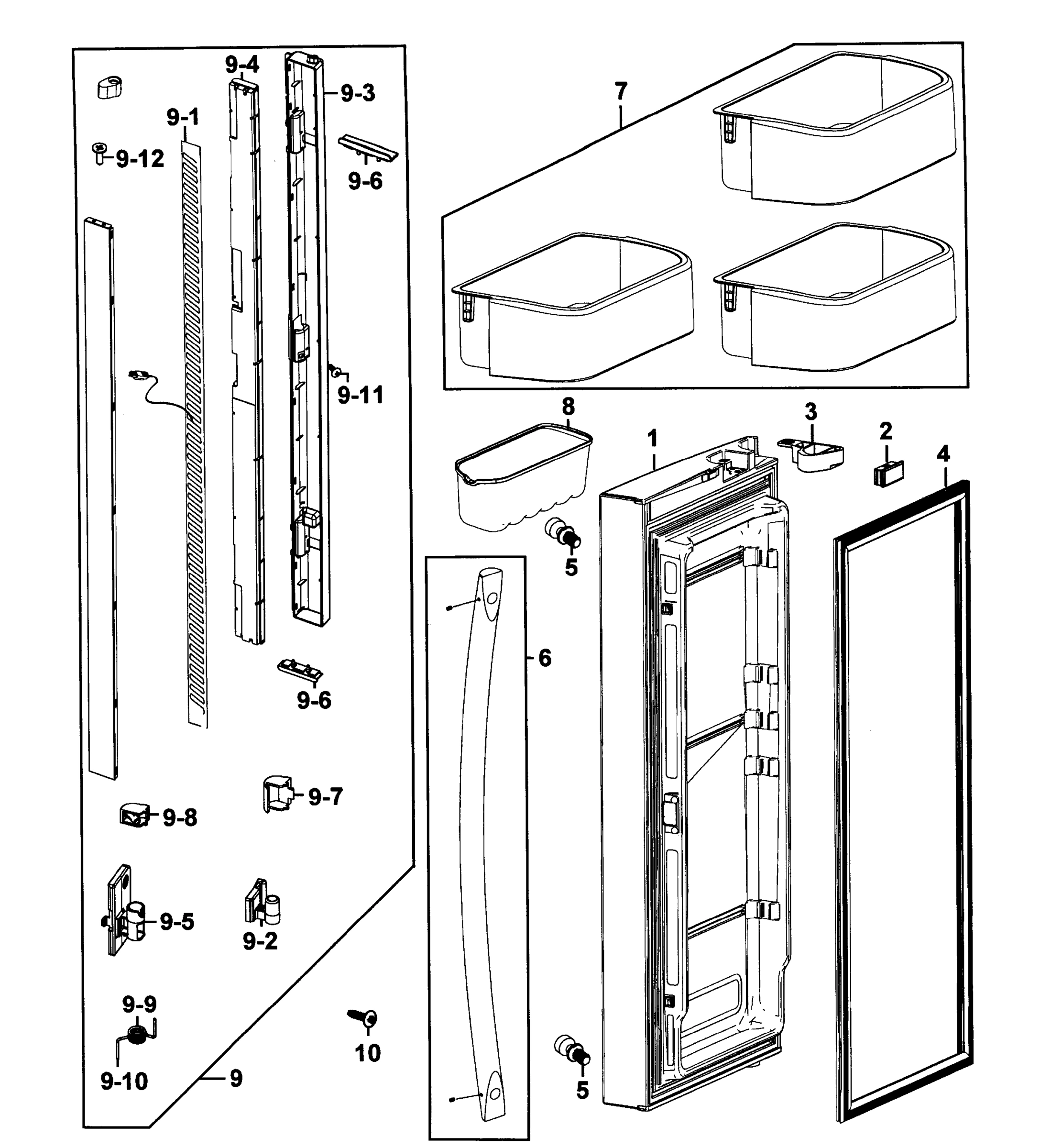

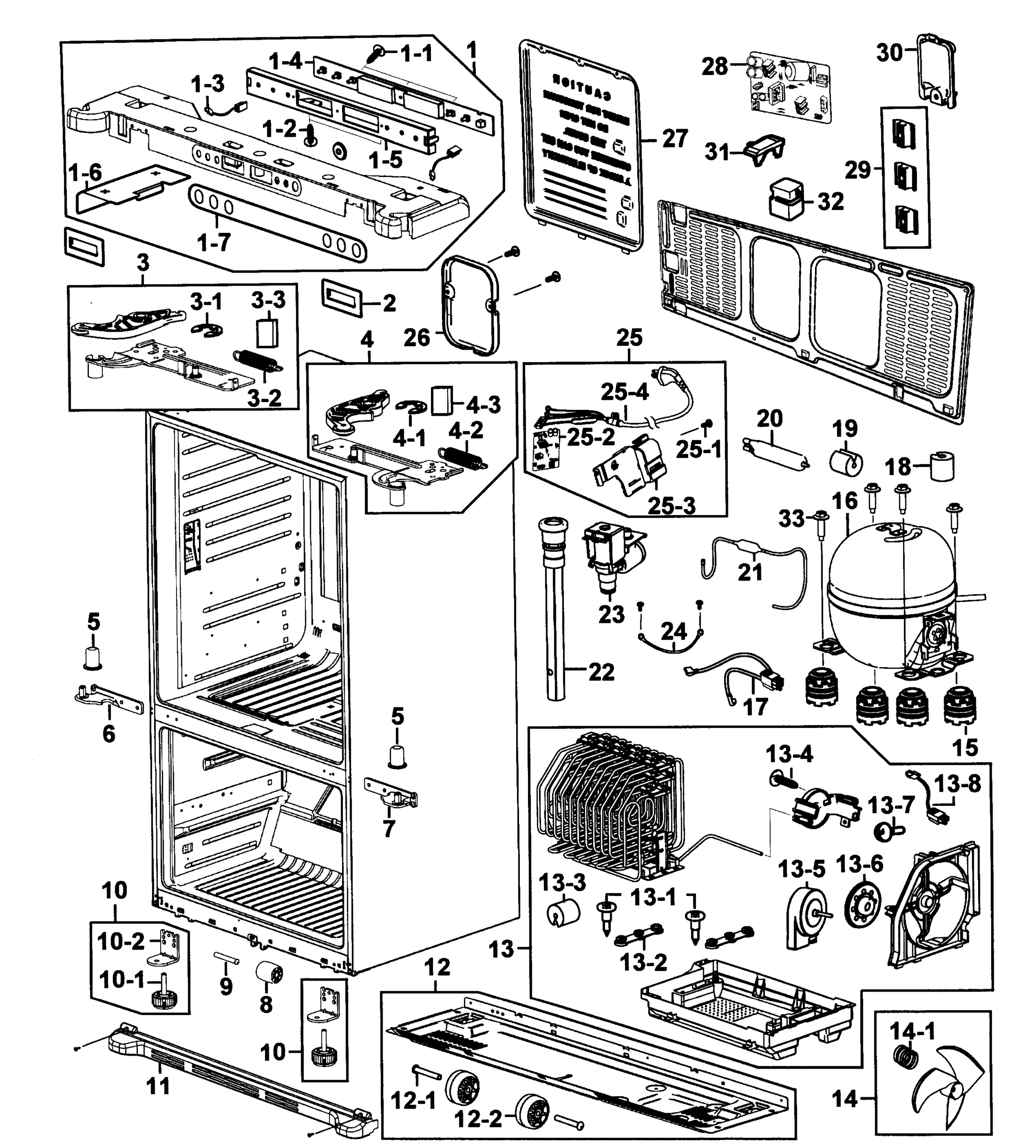

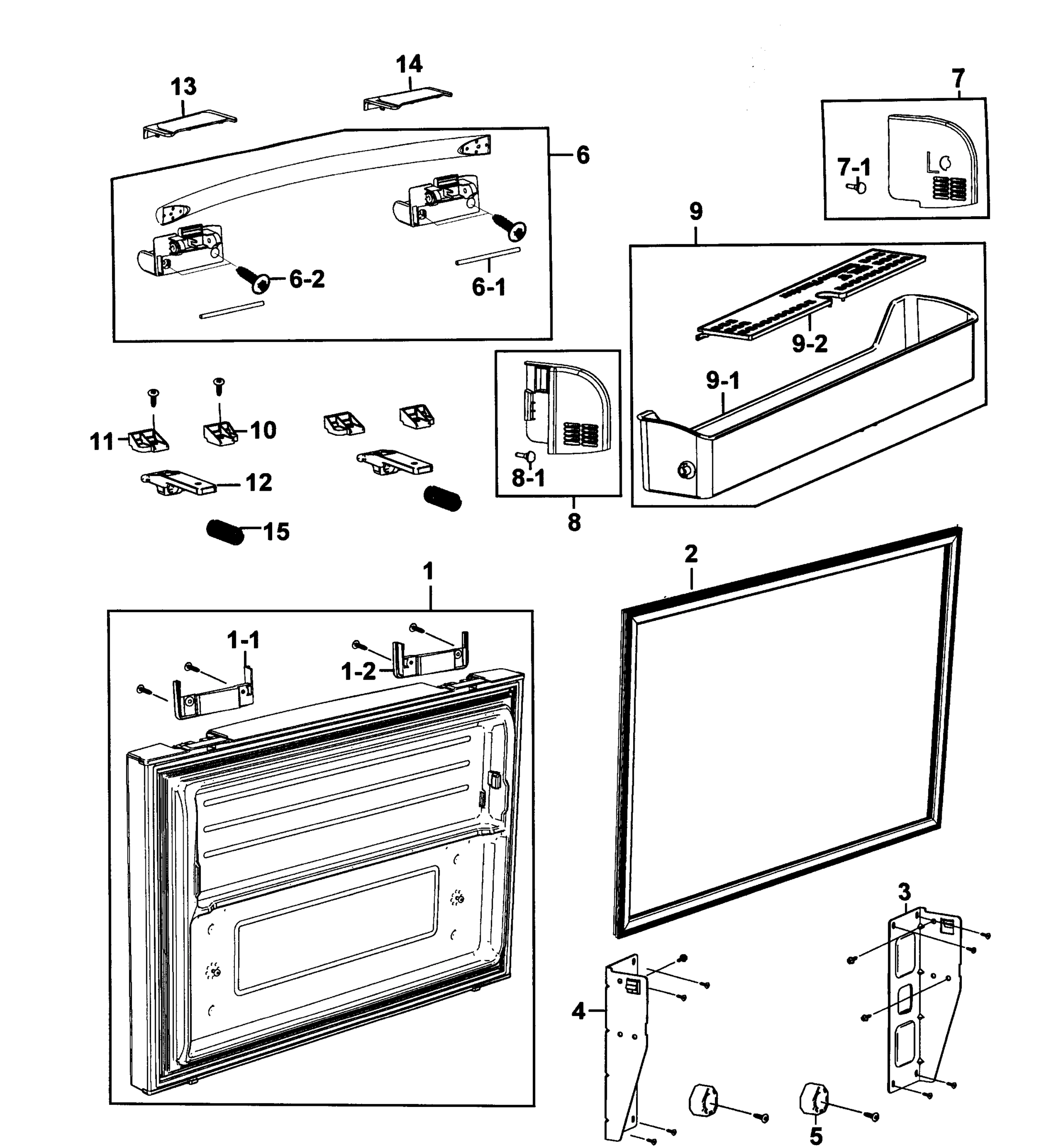

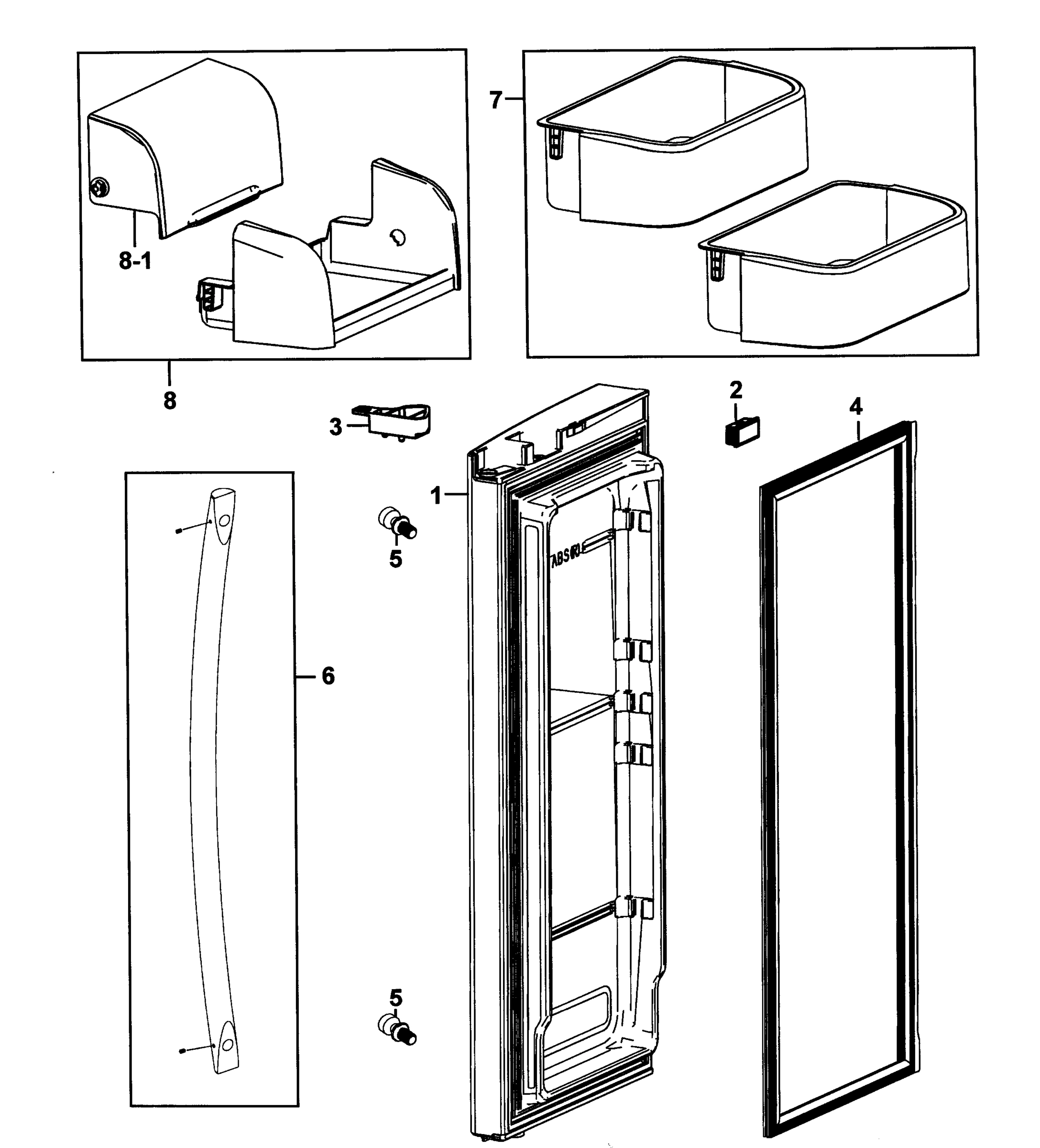

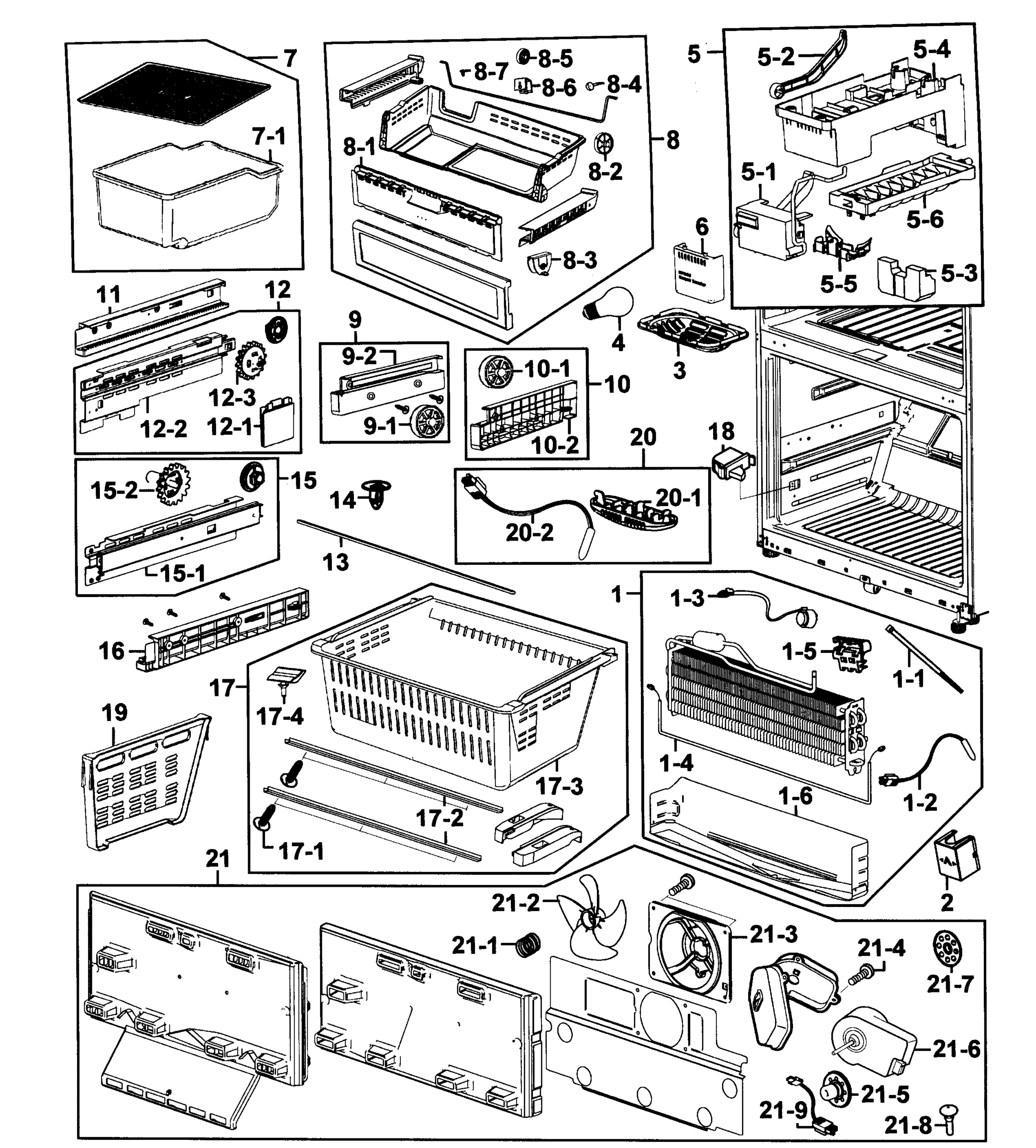

Model Samsung RF263AERS/XAA-01 Refrigerator – Common Parts & Diagrams

Common parts from model Samsung RF263AERS/XAA-01 Refrigerator

Search result for :

Be the First to Know

Help

Customer Service

Company
