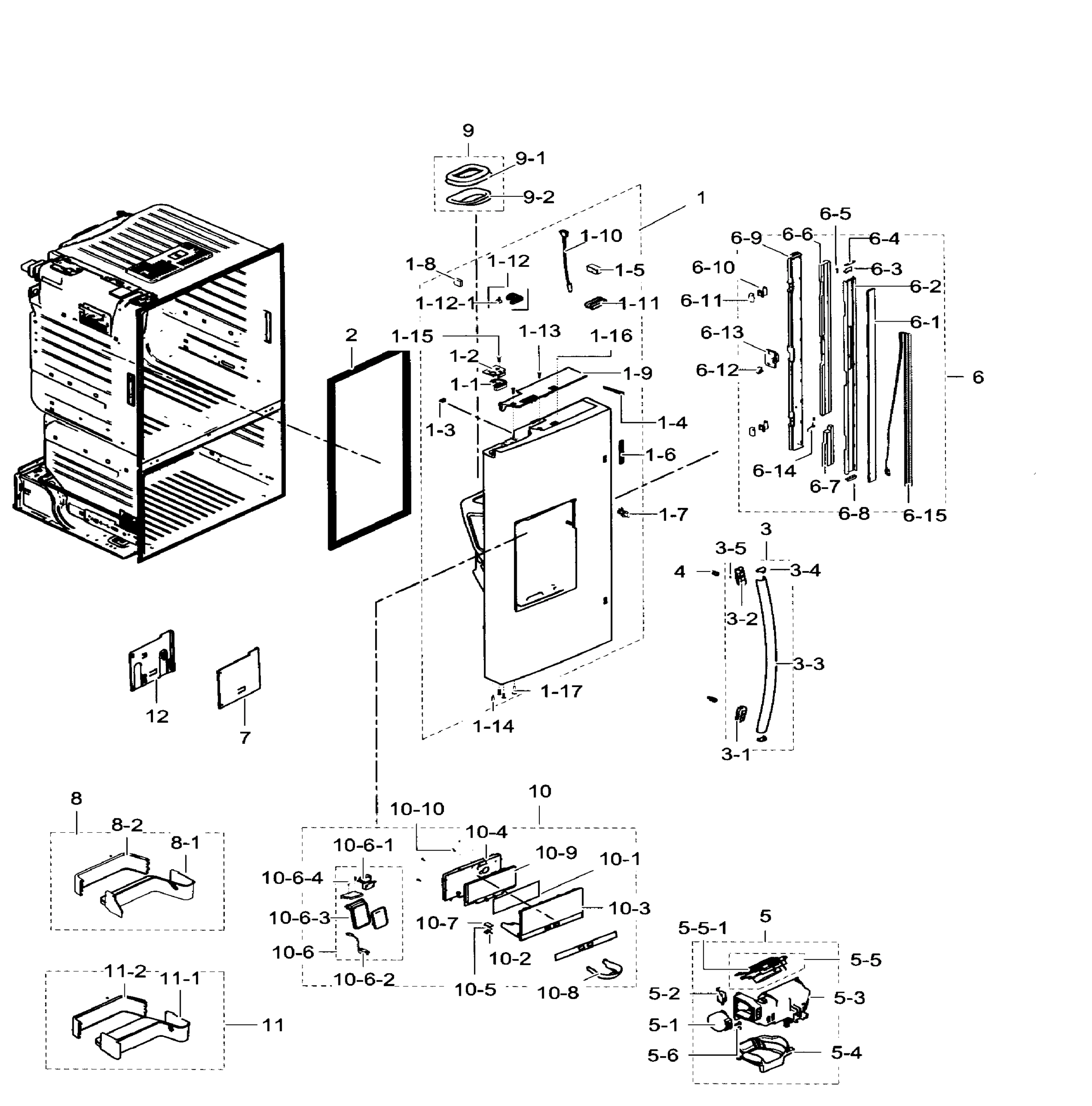

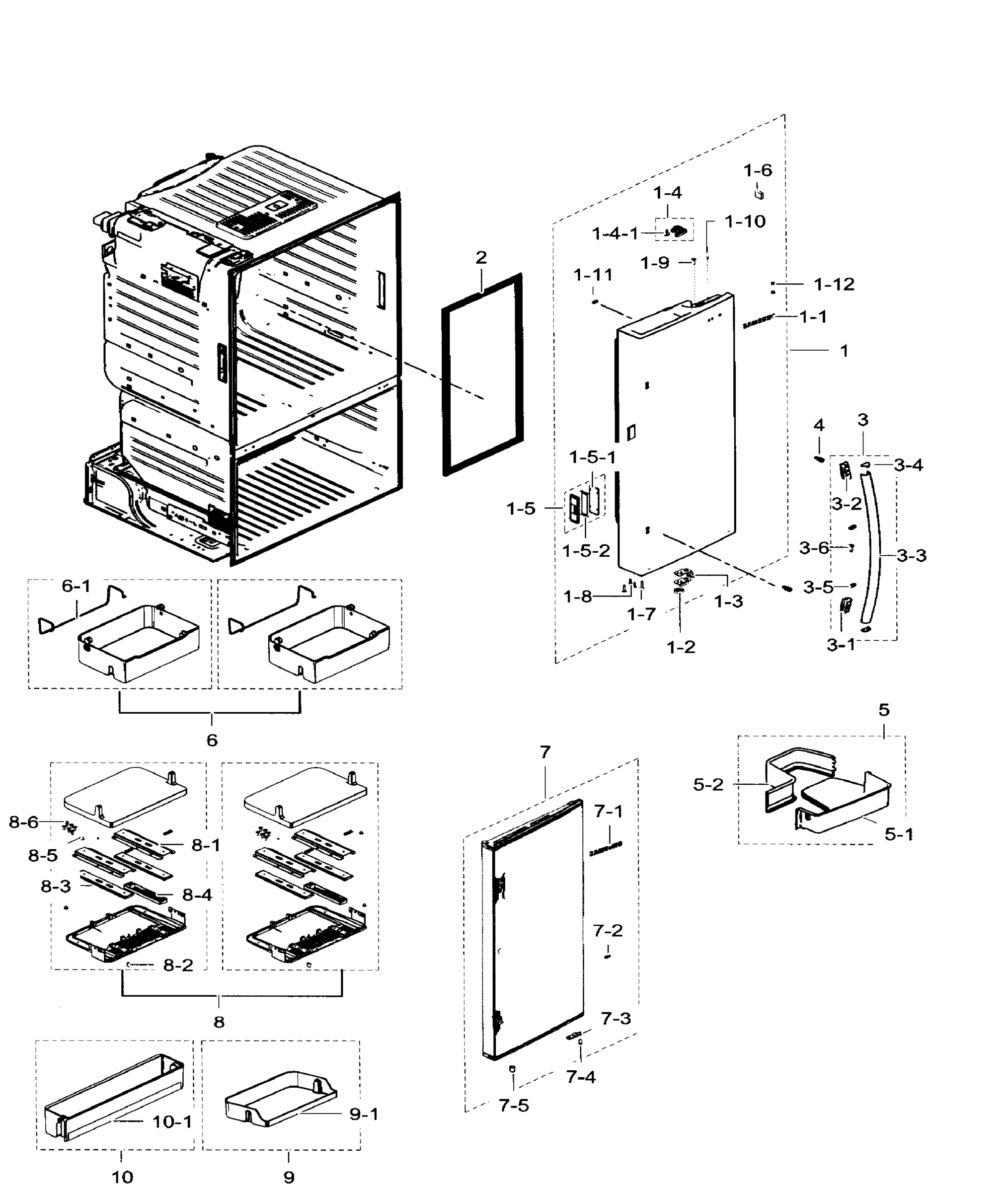

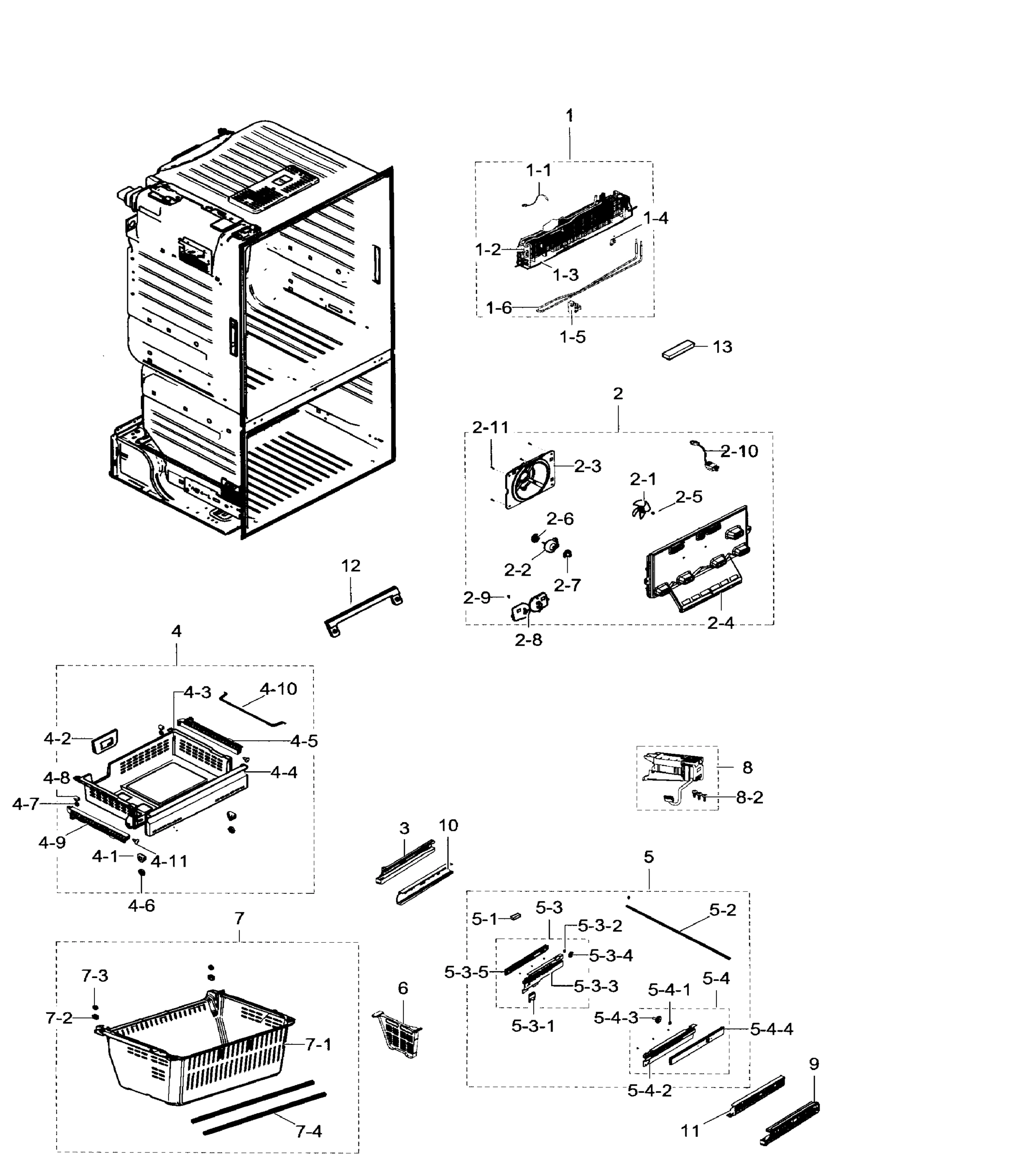

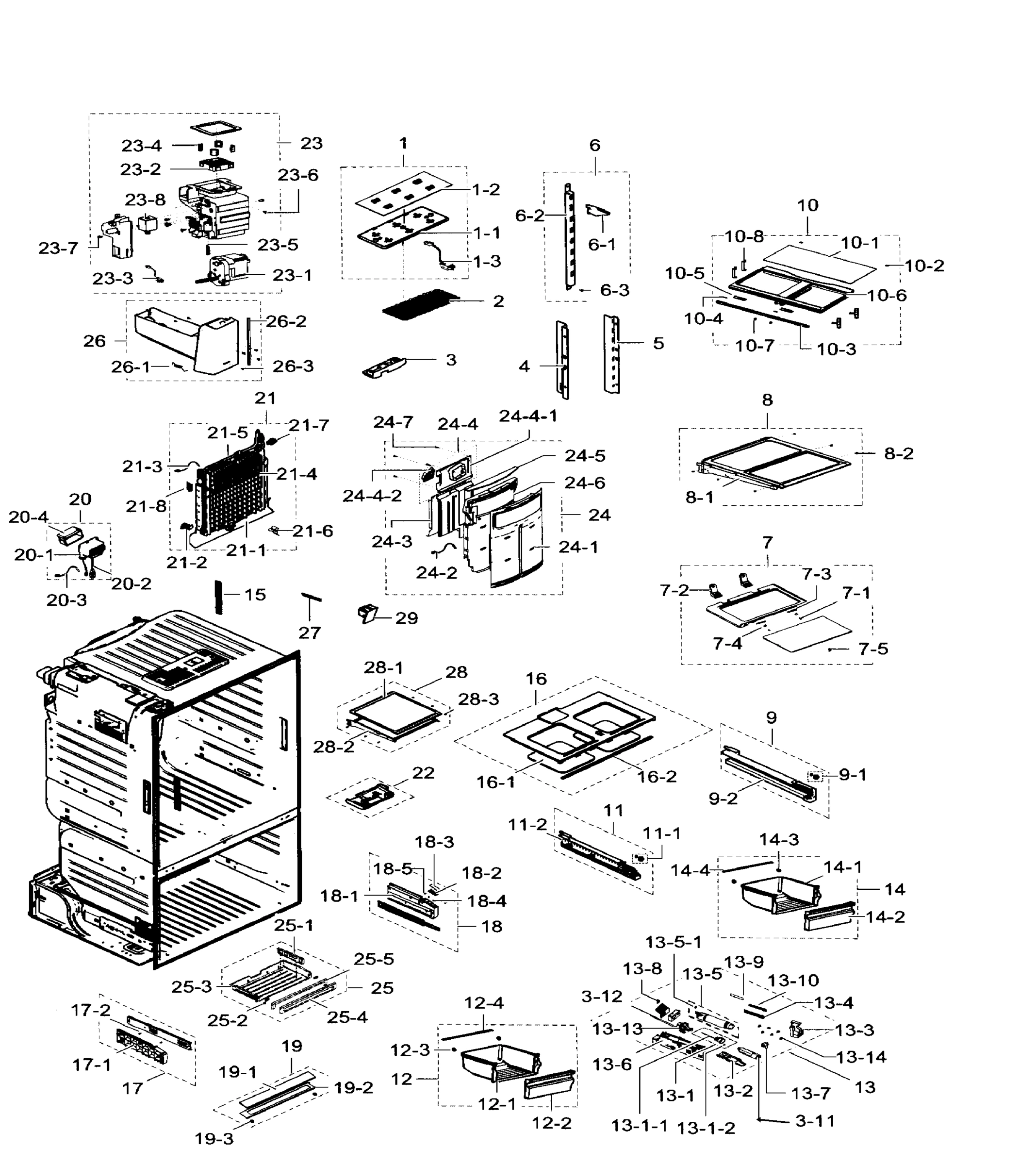

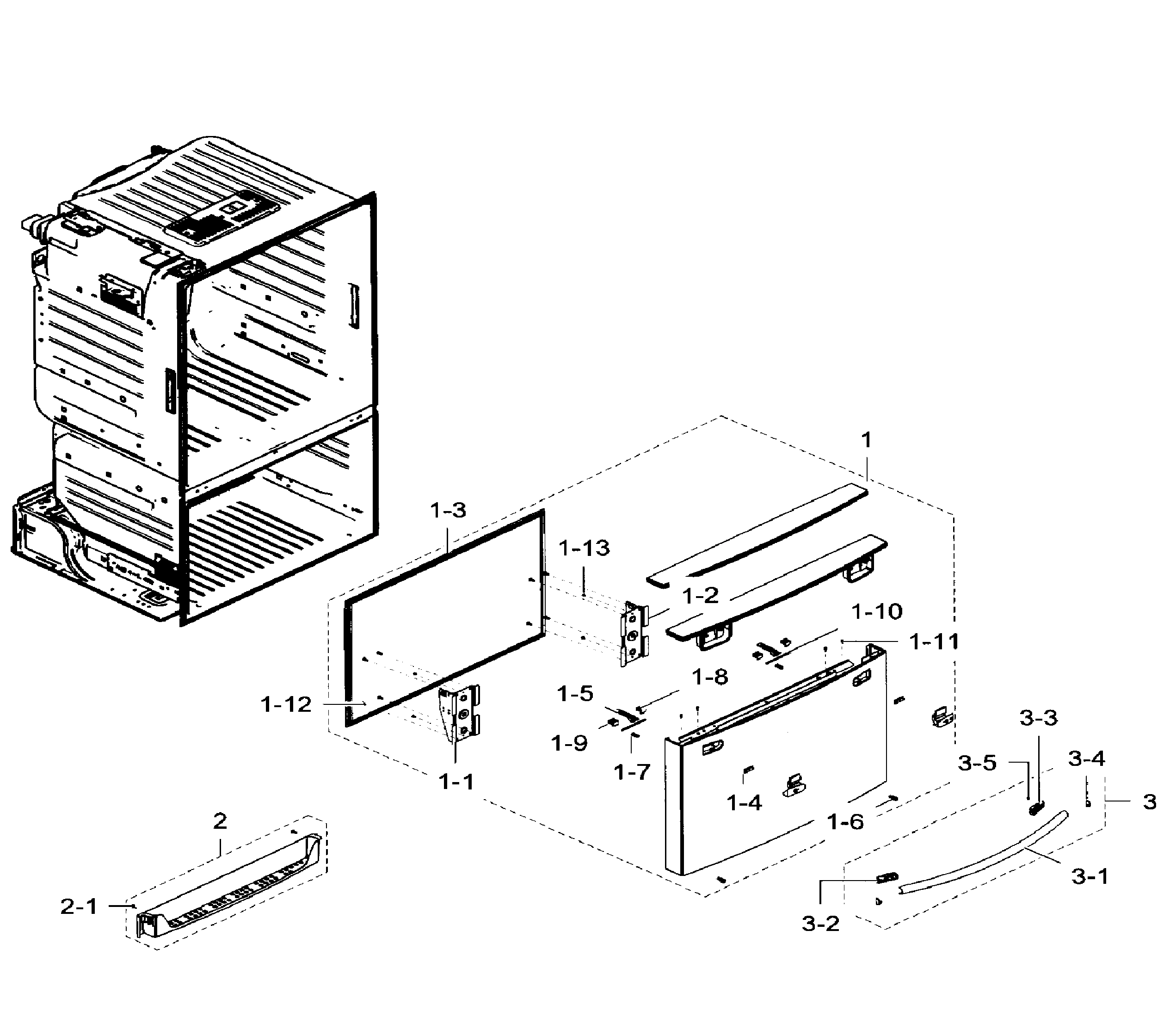

Model Samsung RF23HTEDBSR/AA-04 Refrigerator – Common Parts &amp; Diagrams

1

DA96-00632C Samsung Refrigerator Evaporator A Backorder SMG DA96-00632C $270.42

1

Refrigerator Door Assembly, Left (Stainless) SMG DA91-04147D Contact Us For Availability

DA34-00043A Samsung Refrigerator Switch Reed- Backorder SMG DA34-00043A $31.86

DA61-02383E Samsung Refrigerator Door Closing Backorder SMG DA61-02383E $6.05

DA61-03153B Samsung Refrigerator Front Hanger Backorder SMG DA61-03153B $98.61

DA64-04021C Samsung Refrigerator Mascot Assem Backorder SMG DA64-04021C $30.23

1-2

DA61-03155B Samsung Refrigerator Hanger Rail Backorder SMG DA61-03155B $109.77

1-2

DA61-08227A Samsung Refrigerator Hinge Cover Backorder SMG DA61-08227A $18.64

1-2

DA61-09950A Samsung Refrigerator Middle Door Backorder SMG DA61-09950A $2.67

1-3

DA97-12522J Samsung Refrigerator Freezer Door Backorder SMG DA97-12522J $198.91

DA61-06182A Samsung Refrigerator Freezer Sens Backorder SMG DA61-06182A $10.11

DA61-06658A Samsung Refrigerator Reinforcemen In Stock SMG DA61-06658A $3.74

DA97-14992A Samsung Refrigerator Auto Close A Backorder SMG DA97-14992A $28.51

Refrigerator LED Light SMG DA41-00676G Contact Us For Availability

1-5

DA61-05274A Samsung Refrigerator Door Switch Backorder SMG DA61-05274A $11.73

1-5

DA61-08234A Samsung Refrigerator Slider Assem Backorder SMG DA61-08234A $4.79

1-6

DA47-00318M Samsung Refrigerator Metal Sheath Backorder SMG DA47-00318M $160.31

1-6

DA63-05524A Samsung Refrigerator Door LED Cap Backorder SMG DA63-05524A $41.02

1-7

DA34-00066C Samsung Refrigerator Door Interlo In Stock SMG DA34-00066C $24.11

1-7

DA61-04335A Samsung Refrigerator Handle Sprin Backorder SMG DA61-04335A $1.50

1-8

6002-000239 Samsung Air Conditioner Tapping S Backorder SMG 6002-000239 $1.18

1-8

DA61-05899A Samsung Refrigerator Shaft Fixer In Stock SMG DA61-05899A $1.72

1-8

DA63-40294A Samsung Refrigerator Stopper Grom Backorder SMG DA63-40294A $1.69

1-9

DA61-05930A Samsung Refrigerator Fixer Shaft In Stock SMG DA61-05930A $2.23

1-10

DA32-00034B Samsung Refrigerator Humidity Sen Backorder SMG DA32-00034B $79.96

1-10

DA66-00579A Samsung Refrigerator Freezer Hand Backorder SMG DA66-00579A $9.50

1-11

DA63-04825A Samsung Refrigerator Grommet Chas Backorder SMG DA63-04825A $3.20

1-12

DA97-12625A Samsung Refrigerator Auto Close L In Stock SMG DA97-12625A $22.75

1-13

6002-000217 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000217 $1.18

1-17

6001-001377 Samsung Refrigerator Machine Scre Backorder SMG 6001-001377 $1.69

2

DA63-07816A Samsung Refrigerator Lamp Cover O Backorder SMG DA63-07816A $35.04

2

DA97-08541A Samsung Refrigerator Evaporator C Backorder SMG DA97-08541A $342.37

2

DA97-12573A Samsung Refrigerator Upper Left H In Stock SMG DA97-12573A $77.03

2

DA97-12963A Samsung Refrigerator Freezer Guar Backorder SMG DA97-12963A $85.31

2

DA97-13015E Samsung Refrigerator Door Gasket In Stock SMG DA97-13015E $133.04

2

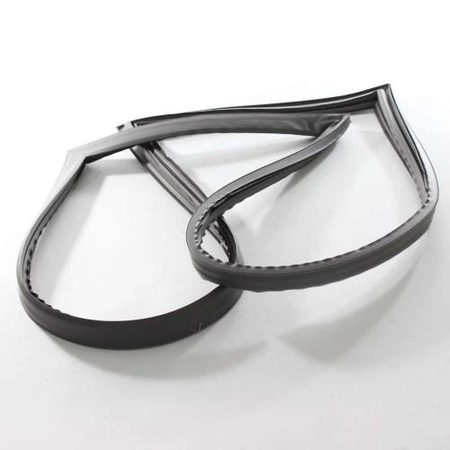

DA97-13915D Samsung Refrigerator Door Gasket Backorder SMG DA97-13915D $112.94

2-1

DA61-08309A Samsung Refrigerator Door Hinge A Backorder SMG DA61-08309A $59.18

2-1

DA63-02750A Samsung Refrigerator Cover Slide Backorder SMG DA63-02750A $2.14

2-1

Refrigerator Evaporator Fan Blade SMG DA31-00124A Contact Us For Availability

2-2

DA31-00146H Samsung Refrigerator Freezer Evap In Stock SMG DA31-00146H $133.46

2-2

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.60

2-3

DA66-00950A Samsung Refrigerator Left Auto Cl Backorder SMG DA66-00950A $5.04

2-6

DA63-01146A Samsung Refrigerator Rear Motor G Backorder SMG DA63-01146A $4.79

2-7

DA63-01808A Samsung Refrigerator Front Motor Backorder SMG DA63-01808A $4.25

2-10

DA96-00042D Samsung Refrigerator Motor Harnes Backorder SMG DA96-00042D $21.29

3

DA61-04285A Samsung Refrigerator French Guide Backorder SMG DA61-04285A $6.15

3

DA97-12712C Samsung Refrigerator Freezer Door Backorder SMG DA97-12712C $200.55

3

DA97-14976A Samsung Refrigerator Upper Right Backorder SMG DA97-14976A $57.61

3

DA97-15014A Samsung Refrigerator Door Handle Backorder SMG DA97-15014A $282.05

3

Refrigerator Door Handle SMG DA97-12715C Contact Us For Availability

3-1

DA61-08228A Samsung Refrigerator Handle Suppo Backorder SMG DA61-08228A $12.30

3-2

DA61-08229A Samsung Refrigerator Freezer Hand In Stock SMG DA61-08229A $12.29

3-2

DA61-08246A Samsung Refrigerator Upper Handle Backorder SMG DA61-08246A $27.95

3-3

DA61-08247A Samsung Refrigerator Freezer Door In Stock SMG DA61-08247A $27.41

3-3

DA66-00951A Samsung Refrigerator Auto Close D Backorder SMG DA66-00951A $5.04

3-4

DA67-02787A Samsung Refrigerator Freezer Door In Stock SMG DA67-02787A $12.90

3-4

DA67-02788A Samsung Refrigerator Handle Suppo Backorder SMG DA67-02788A $14.53

3-5

Refrigerator Door Handle Set Screw SMG 6009-001526 Contact Us For Availability

3-6

6002-000630 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000630 $1.18

4

DA61-11161A Samsung Refrigerator Door Handle In Stock SMG DA61-11161A $6.77

4

DA63-06410A Samsung Refrigerator Door Hinge B In Stock SMG DA63-06410A $1.86

4-1

DA61-04154A Samsung Refrigerator Upper Freeze Backorder SMG DA61-04154A $9.50

4-6

DA66-00554A Samsung Refrigerator Upper Freeze Backorder SMG DA66-00554A $5.59

4-9

DA61-05186A Samsung Refrigerator Upper Tray G Backorder SMG DA61-05186A $19.18

4-10

DA66-00816A Samsung Assembly Refrigerator Sha Backorder SMG DA66-00816A $30.79

4-11

DA67-02795C Samsung Refrigerator Shaft Hole C Backorder SMG DA67-02795C $1.69

5

DA97-13804C Samsung Refrigerator Upper Guard Backorder SMG DA97-13804C $123.00

5

DA97-13829C Samsung Refrigerator Ice Route Gu In Stock SMG DA97-13829C $148.84

5-1

DA31-00079D Samsung Refrigerator Geared Dispe Backorder SMG DA31-00079D $99.68

5-2

3405-001117 Samsung Refrigerator Dispenser Sw In Stock SMG 3405-001117 $17.83

5-2

DA66-00437B Samsung Refrigerator Gear Shaft Backorder SMG DA66-00437B $38.35

5-4

DA97-13262A Samsung Refrigerator Right Low Sl Backorder SMG DA97-13262A $153.05

5-5

DA97-05368A Samsung Refrigerator Ice Route Co Backorder SMG DA97-05368A $54.71

5-31

DA34-00047B Samsung Refrigerator Pressure Coo Backorder SMG DA34-00047B $4.48

5-32

DA61-03154A Samsung Refrigerator Gear Fixer Backorder SMG DA61-03154A $1.69

5-34

Refrigerator Freezer Drawer Gear SMG DA66-00751A Contact Us For Availability

5-35

DA61-08818A Samsung Refrigerator Low Slide Ra Backorder SMG DA61-08818A $198.91

5-43

Refrigerator Gear Rail SMG DA66-00750A Contact Us For Availability

5-44

DA61-08819A Samsung Refrigerator Low Slide Ra Backorder SMG DA61-08819A $170.37

5-51

DA63-04647A Samsung Refrigerator Ice Route Co Backorder SMG DA63-04647A $21.24

6

DA97-12624A Samsung Refrigerator French Door In Stock SMG DA97-12624A $154.39

6

DA97-14977A Samsung Refrigerator Right Hand M Backorder SMG DA97-14977A $185.34

6-4

DA63-06959A Samsung Refrigerator Upper French Backorder SMG DA63-06959A $5.85

6-10

DA61-08305A Samsung Refrigerator French Door In Stock SMG DA61-08305A $6.77

6-11

DA67-01650A Samsung Refrigerator French End C Backorder SMG DA67-01650A $5.04

6-12

DA67-01701A Samsung Refrigerator Cap Case Fre Backorder SMG DA67-01701A $5.33

6-13

DA63-03454B Samsung Refrigerator Center Hinge Backorder SMG DA63-03454B $8.38

7

DA91-04198A Samsung Refrigerator Door Foam As Backorder SMG DA91-04198A $434.75

7

DA97-07533B Samsung Refrigerator Drawer Tray Backorder SMG DA97-07533B $157.85

7

DA97-14316A Samsung Refrigerator Folder Shelf Backorder SMG DA97-14316A $92.28

7-1

DA61-07972B Samsung Refrigerator Black Front In Stock SMG DA61-07972B $9.22

7-2

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.07

7-2

DA61-03769A Samsung Refrigerator Door Magnet In Stock SMG DA61-03769A $3.07

7-3

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $7.99

7-3

DA61-09951A Samsung Refrigerator Low Door Sto Backorder SMG DA61-09951A $108.19

7-4

DA63-07545B Samsung Refrigerator Middle Hinge Backorder SMG DA63-07545B $3.35

7-4

DA97-13807A Samsung Refrigerator Front Suppor Backorder SMG DA97-13807A $46.69

7-5

DA61-07973B Samsung Refrigerator Black Rear F Backorder SMG DA61-07973B $2.79

7-5

DA73-00211A Samsung Refrigerator Hose Rubber Backorder SMG DA73-00211A $1.18

8

DA97-07557C Samsung Refrigerator Quick Space Backorder SMG DA97-07557C $164.41

8

Refrigerator Ice Maker SMG DA97-18859A No Longer Available

8-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $6.77

8-2

DA66-00649B Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649B $5.54

8-6

6002-001122 Samsung Refrigerator Tapping Scre In Stock SMG 6002-001122 $1.69

9

DA97-12594A Samsung Refrigerator Ice Chute Ca In Stock SMG DA97-12594A $60.04

9

DA97-13837A Samsung Refrigerator Right Vegeta Backorder SMG DA97-13837A $35.30

9-1

DA63-06897A Samsung Refrigerator Drain Water Backorder SMG DA63-06897A $34.57

9-1

DA63-06945A Samsung Refrigerator Ice Chute Ca Backorder SMG DA63-06945A $70.47

9-1

DA97-14447B Samsung Refrigerator Latour Rolle Backorder SMG DA97-14447B $19.69

9-2

DA67-03312A Samsung Refrigerator Ice Cap Chut Backorder SMG DA67-03312A $11.73

9-2

DA97-15765C Samsung Refrigerator Circuit Moto In Stock SMG DA97-15765C $201.27

9-4

Refrigerator Condenser Coil SMG DA97-08464F Contact Us For Availability

9-21

DA31-00320A Samsung Refrigerator Fan Blade As Backorder SMG DA31-00320A $26.26

10

DA97-13809H Samsung Refrigerator Dispenser Co Backorder SMG DA97-13809H $288.50

10

DA97-14303A Samsung Refrigerator Vegetable Dr Backorder SMG DA97-14303A $243.31

10-2

DA61-03166A Samsung Refrigerator Vegetable Co In Stock SMG DA61-03166A $1.69

10-4

DA63-06377A Samsung Refrigerator Rear PCB Cov Backorder SMG DA63-06377A $11.70

10-5

DA41-00217A Samsung Refrigerator Printed Circ Backorder SMG DA41-00217A $46.41

10-5

DA66-00718A Samsung Refrigerator Humidity Lev Backorder SMG DA66-00718A $6.39

10-6

Refrigerator Dispenser Lever SMG DA97-12628H Contact Us For Availability

10-9

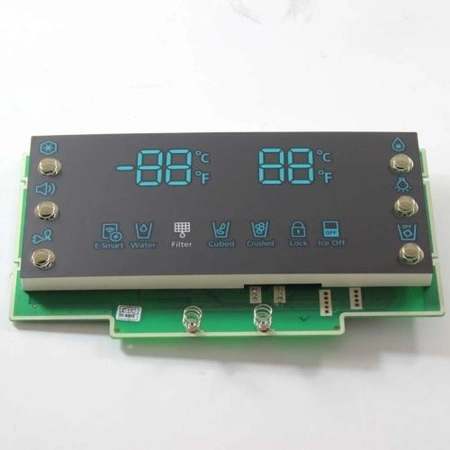

DA92-00595A Samsung Refrigerator LED Display Backorder SMG DA92-00595A $218.43

11

DA97-13838A Samsung Refrigerator Left Vegetab Backorder SMG DA97-13838A $34.81

11

DA97-14302C Samsung Low Guard Refrigerator Backorder SMG DA97-14302C $105.63

11

MKV190CL2B/ASH Samsung Refrigerator Compresso In Stock SMG MKV190CL2B/ASH $334.64

12

DA97-10848N Samsung Refrigerator All Wire Com Backorder SMG DA97-10848N $82.59

12

DA97-13842B Samsung Refrigerator Left Vegetab Backorder SMG DA97-13842B $152.40

12-1

DA34-00004D Samsung Refrigerator Compressor O In Stock SMG DA34-00004D $35.00

12-1

DA61-09161A Samsung Refrigerator Left Vegetab Backorder SMG DA61-09161A $122.51

12-2

DA39-00154M Samsung Refrigerator Compressor W Backorder SMG DA39-00154M $25.10

12-2

DA63-07552A Samsung Refrigerator Left Front V Backorder SMG DA63-07552A $50.23

13

DA63-01866A Samsung Refrigerator Compressor O Backorder SMG DA63-01866A $14.90

13

DA72-60040W Samsung Refrigerator Seal-Cutt Ru Backorder SMG DA72-60040W $1.69

13-1

DA97-08006K Samsung Refrigerator Assembly Cas Backorder SMG DA97-08006K $130.25

13-4

DA41-00519S Samsung Refrigerator LED Lamp PCB Backorder SMG DA41-00519S $63.71

13-5

DA97-13854B Samsung Refrigerator Water Tank A Backorder SMG DA97-13854B $141.71

13-8

DA62-03103A Samsung Refrigerator Gray Tube Fi Backorder SMG DA62-03103A $22.92

14

DA97-13841B Samsung Refrigerator Right Vegeta Backorder SMG DA97-13841B $154.84

15

Refrigerator Drain Tube Kit SMG DA97-04049E No Longer Available

16

DA97-14423A Samsung Refrigerator Pantry Shelf Backorder SMG DA97-14423A $151.98

16

Refrigerator Drain Cap SMG DA97-04049J Contact Us For Availability

16-1

DA62-01266E Samsung Refrigerator PVC Tube Backorder SMG DA62-01266E $4.25

17

DA97-07526A Samsung Refrigerator Pantry Drawe Backorder SMG DA97-07526A $139.17

18

DA97-07527C Samsung Refrigerator Right Pantry Backorder SMG DA97-07527C $152.87

18

DA97-08442A Samsung Refrigerator Printed Circ Backorder SMG DA97-08442A $50.01

19

DA97-07521A Samsung Refrigerator Slide Pantry Backorder SMG DA97-07521A $173.38

20

DA60-00280A Samsung Refrigerator Fitting-Lokr Backorder SMG DA60-00280A $6.91

20

DA97-06324C Samsung Refrigerator Motor Damper Backorder SMG DA97-06324C $137.66

20-2

DA31-00071G Samsung Refrigerator DC Motor Dam Backorder SMG DA31-00071G $188.79

20-3

DA32-00006R Samsung Refrigerator Defrost Sens In Stock SMG DA32-00006R $23.97

21-1

DA61-06186B Samsung Refrigerator Drain Plate Backorder SMG DA61-06186B $55.84

21-2

DA61-05835B Samsung Refrigerator Heater Fixer Backorder SMG DA61-05835B $6.39

21-3

DA32-10104N Samsung Refrigerator Temperature In Stock SMG DA32-10104N $24.87

21-5

DA47-00244U Samsung Refrigerator Defrost Heat In Stock SMG DA47-00244U $108.72

21-6

DA61-03644A Samsung Refrigerator Defrost Evap Backorder SMG DA61-03644A $10.06

21-7

DA61-03683A Samsung Refrigerator Sensor Fixer Backorder SMG DA61-03683A $1.69

21-8

DA61-05160A Samsung Refrigerator Fuse Holder In Stock SMG DA61-05160A $1.76

22

DA97-14471A Samsung Refrigerator Case Lock As Backorder SMG DA97-14471A $55.20

23

DA97-12540D Samsung Refrigerator Auger Motor Backorder SMG DA97-12540D $263.36

23-1

DA31-00105M Samsung Refrigerator Geared Auger Backorder SMG DA31-00105M $191.13

23-2

DA31-00070E Samsung Refrigerator DC Motor Box In Stock SMG DA31-00070E $94.45

23-3

DA60-00143B Samsung Refrigerator Housing Reta In Stock SMG DA60-00143B $1.69

23-8

DA74-40151G Samsung Refrigerator Ice Dispense Backorder SMG DA74-40151G $110.76

24

DA97-12608A Samsung Refrigerator Evaporator C In Stock SMG DA97-12608A $180.35

24-2

DA32-00011C Samsung Refrigerator Temperature In Stock SMG DA32-00011C $14.76

24-4

DA97-12815B Samsung Refrigerator Evaporator F In Stock SMG DA97-12815B $136.56

25

DA27-00022B Samsung Refrigerator Coil Filter In Stock SMG DA27-00022B $142.41

25

DA97-07520B Samsung Refrigerator Pantry Case Backorder SMG DA97-07520B $202.80

25-4

DA63-04275B Samsung Refrigerator Pantry Front Backorder SMG DA63-04275B $63.38

25-5

DA63-04276B Samsung Refrigerator Pantry Trim Backorder SMG DA63-04276B $43.10

26

DA92-00483C Samsung Refrigerator Inverter Ass In Stock SMG DA92-00483C $204.55

26-1

DA61-20124D Samsung Refrigerator Dispenser Sp Backorder SMG DA61-20124D $7.82

26-2

DA63-07185A Samsung Refrigerator Ice Bucket T Backorder SMG DA63-07185A $3.35

27

DA41-00519Q Samsung Refrigerator LED Lamp PBA Backorder SMG DA41-00519Q $26.25

28

DA97-08413B Samsung Refrigerator Assembly Cov Backorder SMG DA97-08413B $17.32

29

DA32-00033C Samsung Refrigerator Temperature In Stock SMG DA32-00033C $26.43

29

DA97-12654A Samsung Refrigerator Cap Angle As Backorder SMG DA97-12654A $7.99

30

DA63-05470B Samsung Refrigerator Sensor Cover Backorder SMG DA63-05470B $5.04

32

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $63.58

35

DA62-03914A Samsung Refrigerator Water Tube F In Stock SMG DA62-03914A $46.24

36

DA61-04932A Samsung Refrigerator Door Hinge F Backorder SMG DA61-04932A $8.46

41

DA97-25147B Samsung Assy Cover Housing;fdr, C Backorder SMG DA97-25147B $46.24

46-2

DA34-00043J Samsung Refrigerator Door Reed Sw In Stock SMG DA34-00043J $30.12

47

DA92-00486A Samsung Refrigerator Module Assem In Stock SMG DA92-00486A $138.60

48

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $31.82

49

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $21.80

1061

DA34-00011B Samsung Refrigerator Micro Switch Backorder SMG DA34-00011B $17.88

1062

DA96-00106G Samsung Refrigerator Dispenser Wi Backorder SMG DA96-00106G $40.27

1121

DA66-00440A Samsung Refrigerator Auto Close R Backorder SMG DA66-00440A $1.69

1312

DA61-04522A Samsung Refrigerator Clip Lock Fi Backorder SMG DA61-04522A $1.69

1313

DA62-04027A Samsung Refrigerator 2-Way Water In Stock SMG DA62-04027A $175.15

2442

DA81-06013A Samsung Refrigerator Evaporator F Backorder SMG DA81-06013A $126.54
