Model Samsung DV42H5200EP/A3-03 Dryer – Common Parts & Diagrams
Control Panel Assembly

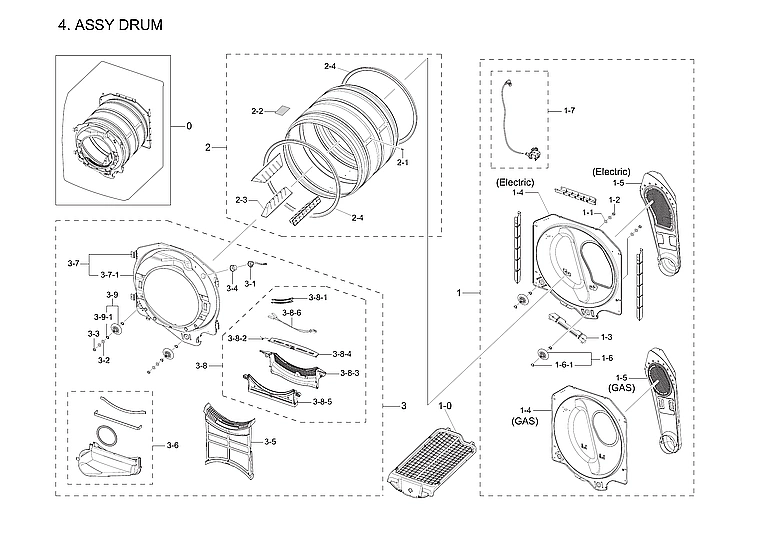

Drum Assembly

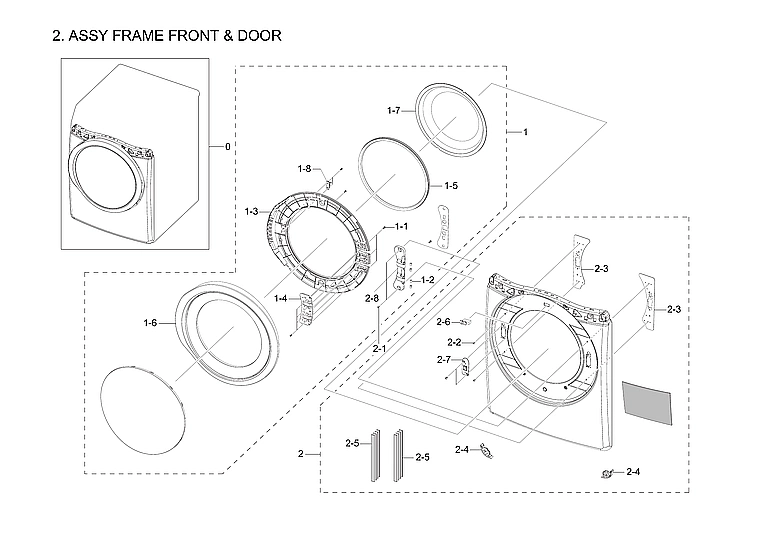

Front Frame & Door Assembly

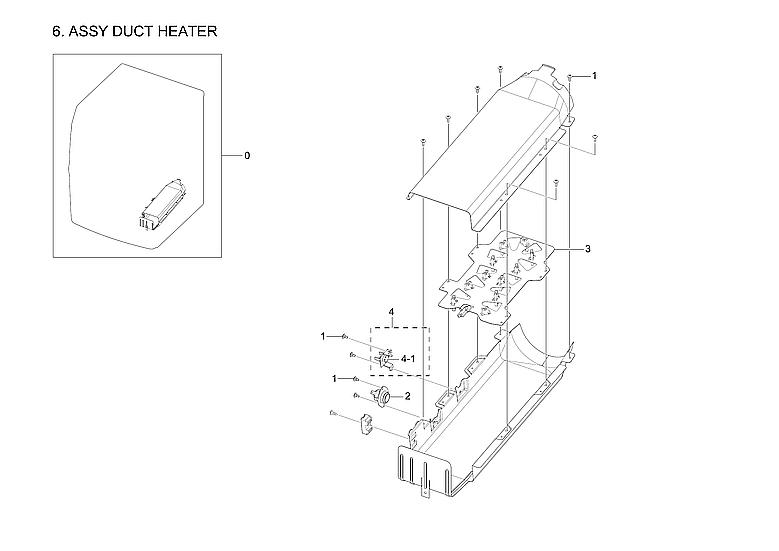

Heater Duct Assembly

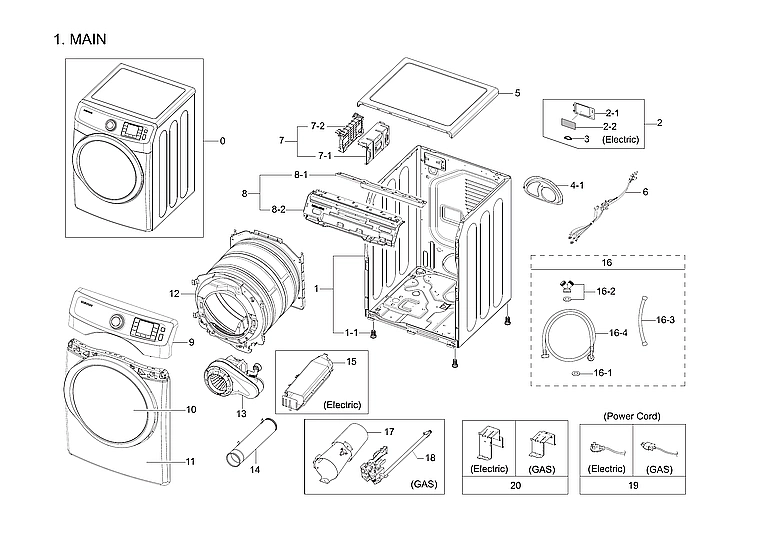

Main Assembly

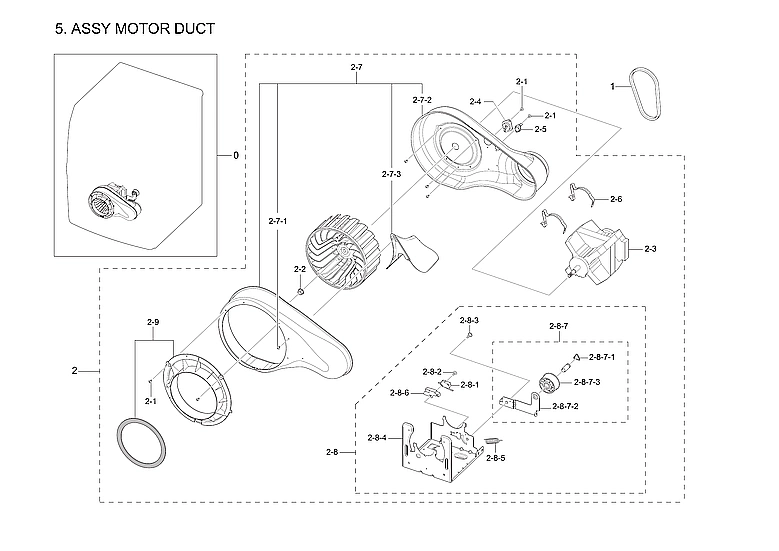

Motor Duct Assembly
Small Parts
Common parts from model Samsung DV42H5200EP/A3-03 Dryer
1-3
Dryer door window frame SMG DC61-02596A Contact Us For Availability
1-5
Dryer heat duct SMG DC97-07521A Contact Us For Availability
1-7
Dryer door glass SMG DC64-02637A Contact Us For Availability
2-8-7-3
Dryer idler pulley SMG DC97-07509B Contact Us For Availability
7
Samsung dryer electronic control board SMG DC92-00669Y No Longer Available
× ![]()
