Samsung DV42H5000EW/A3-03 Dryer Parts List

1

6602-001655 Samsung Dryer Drive Belt In Stock SMG 6602-001655 $52.37

View on Model

1

Dryer user interface SMG DC92-01607H No Longer Available

View on Model

1-1

DC60-00103A Samsung Fastener Plain Backorder SMG DC60-00103A $2.23

View on Model

1-1

DC61-03128A Samsung Dryer Adjustable Leveling In Stock SMG DC61-03128A $12.90

View on Model

1-2

DC60-50145A Samsung Hex Nut Backorder SMG DC60-50145A $3.35

View on Model

1-2

DC61-00891A Samsung Washer Dryer Hinge Guide In Stock SMG DC61-00891A $1.69

View on Model

1-3

DC61-02826A Samsung Drum Back Bracket Assembl Backorder SMG DC61-02826A $19.18

View on Model

1-3

Dryer door window frame SMG DC61-02596A Contact Us For Availability

View on Model

1-5

DC62-00262A Samsung Dryer Door Seal Assembly In Stock SMG DC62-00262A $61.60

View on Model

1-5

Dryer Heat Duct SMG DC97-07521A Contact Us For Availability

View on Model

1-6

DC63-01748A Samsung Cover Door Backorder SMG DC63-01748A $156.28

View on Model

1-6

DC97-16782A Samsung Dryer Plastic Roller Whee In Stock SMG DC97-16782A $49.43

View on Model

1-7

Dryer door glass SMG DC64-02637A Contact Us For Availability

View on Model

1-8

DC66-00814A Samsung Door Lever Assembly Backorder SMG DC66-00814A $58.51

View on Model

2

DC47-00018A Samsung Thermostat In Stock SMG DC47-00018A $35.92

View on Model

2

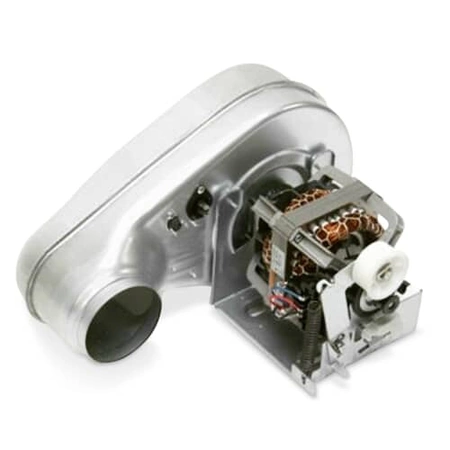

DC93-00101W Samsung Motor Assembly DV7000H AL Backorder SMG DC93-00101W $292.01

View on Model

2

DC97-08855A Samsung Assembly Cover Power MDE9 Backorder SMG DC97-08855A $5.83

View on Model

2-2

6021-001201 Samsung Dryer Left Turn Nut 3/8"- In Stock SMG 6021-001201 $3.68

View on Model

2-4

DC32-00007A Samsung Dryer Thermistor Sensor Backorder SMG DC32-00007A $23.98

View on Model

2-5

DC47-00016A Samsung Thermostat In Stock SMG DC47-00016A $17.72

View on Model

2-5

DC63-10001C Samsung EPDM Sponge Backorder SMG DC63-10001C $3.90

View on Model

2-6

DC61-04225A Samsung Dryer Spring Plate Assemb In Stock SMG DC61-04225A $4.42

View on Model

2-6

DC64-00828B Samsung Washer Dryer Door Switch In Stock SMG DC64-00828B $39.31

View on Model

2-7

DC93-00098D Samsung Assembly Cover Duct Backorder SMG DC93-00098D $209.90

View on Model

2-7

DC97-18057C Samsung Dryer Door Latch Catch Ho Backorder SMG DC97-18057C $174.85

View on Model

2-8

DC61-02597A Samsung Door Hinge Assembly Backorder SMG DC61-02597A $165.86

View on Model

2-9

DC97-07895A Samsung Dryer Connector Duct Asse Backorder SMG DC97-07895A $56.12

View on Model

2-11

DC97-07618A Samsung Dryer Drum Gasket Seal As In Stock SMG DC97-07618A $126.54

View on Model

2-83

6011-004797 Samsung Bolt M5 L11 ZPC (White) S Backorder SMG 6011-004797 $4.79

View on Model

2-84

DC61-01213A Samsung Motor Bracket Assembly In Stock SMG DC61-01213A $120.09

View on Model

2-85

DC61-01215B Samsung Dryer Idler Tension Sprin In Stock SMG DC61-01215B $6.65

View on Model

2-86

DC63-00919A Samsung Switch Cover Assembly Backorder SMG DC63-00919A $3.35

View on Model

2-87

DC96-00882F Samsung Dryer Idler Bracket Assem In Stock SMG DC96-00882F $84.79

View on Model

3

DC47-00019A Samsung Dryer Heating Element Ass In Stock SMG DC47-00019A $84.26

View on Model

3

DC61-01428A Samsung Power Holder Assembly Backorder SMG DC61-01428A $1.69

View on Model

3

DC97-15984B Samsung Assembly Drum Front Backorder SMG DC97-15984B $230.30

View on Model

3

DC97-18106D Samsung Dryer Control Panel Assem Backorder SMG DC97-18106D $336.19

View on Model

3-1

DC47-00027F Samsung Lamp Backorder SMG DC47-00027F $44.04

View on Model

3-4

DC61-02281A Samsung Fixer Lamp Backorder SMG DC61-02281A $11.17

View on Model

3-5

DC61-05489A Samsung Case Filter Assembly In Stock SMG DC61-05489A $187.78

View on Model

3-6

DC93-00187A Samsung Assembly Duct Outlet Backorder SMG DC93-00187A $138.56

View on Model

3-81

DC61-02627A Samsung Dryer Moisture Sensor Pla In Stock SMG DC61-02627A $7.38

View on Model

3-82

DC61-02740A Samsung Dryer Lint Screen Filter In Stock SMG DC61-02740A $1.69

View on Model

3-83

Dryer Lint Screen Cover SMG DC63-01139A Contact Us For Availability

View on Model

3-84

DC63-01140A Samsung Dryer Lint Filter Screen In Stock SMG DC63-01140A $20.90

View on Model

3-85

DC63-01143A Samsung Cover Filter Assembly Backorder SMG DC63-01143A $112.96

View on Model

3-86

DC96-00766A Samsung Dryer Wire Harness Assemb In Stock SMG DC96-00766A $14.53

View on Model

4

DC96-00887C Samsung Dryer Thermal Cut-Off Fus In Stock SMG DC96-00887C $49.78

View on Model

4-1

DC47-00015A Samsung Dryer 250V Thermostat In Stock SMG DC47-00015A $35.04

View on Model

5

DC97-19026A Samsung Dryer Top Panel Assembly Backorder SMG DC97-19026A $236.86

View on Model

6

DC93-00466B Samsung Dryer Main Wire Harness A Backorder SMG DC93-00466B $289.62

View on Model

7

Samsung Dryer Electronic Control Board SMG DC92-01596D No Longer Available

View on Model

8-1

DC61-02008B Samsung Dryer Guide Panel Backorder SMG DC61-02008B $24.49

View on Model

8-2

DC61-02600A Samsung Frame Plate Assembly Up G Backorder SMG DC61-02600A $74.64

View on Model

10

DC97-15975F Samsung Dryer Door Assembly Backorder SMG DC97-15975F $347.94

View on Model

11

DC97-15979X Samsung Assembly Frame Front DV50 Backorder SMG DC97-15979X $284.21

View on Model

15

DC97-14486A Samsung Dryer Heating Element Duc In Stock SMG DC97-14486A $286.60

View on Model

2821

DC93-00634A Samsung Dryer Idler Pulley Assemb In Stock SMG DC93-00634A $60.18

View on Model

2871

DC61-01228A Samsung Dryer Drum Support Roller In Stock SMG DC61-01228A $2.23

View on Model

NI

6001-001668 Samsung Washer Dryer Machine Scre Backorder SMG 6001-001668 $1.69

View on Model

NI

6001-001773 Samsung Washer Dryer Machine Scre Backorder SMG 6001-001773 $1.69

View on Model

NI

6002-000213 Samsung Air Conditioner Tapping S Backorder SMG 6002-000213 $1.32

View on Model

NI

6002-000239 Samsung Air Conditioner Tapping S Backorder SMG 6002-000239 $1.18

View on Model

NI

6002-000241 Samsung Self Tapping Screw Backorder SMG 6002-000241 $1.18

View on Model

NI

6002-000445 Samsung Tapping Screw Backorder SMG 6002-000445 $1.69

View on Model

NI

6002-001306 Samsung Washer Tapping Screw Backorder SMG 6002-001306 $1.69

View on Model

NI

6006-001174 Samsung Tapping Screw Th + Wt 2s Backorder SMG 6006-001174 $1.69

View on Model

NI

6009-001342 Samsung Dryer Special Puller Scre Backorder SMG 6009-001342 $1.69

View on Model

NI

6009-001522 Samsung Washer Dryer Hex Screw M5 Backorder SMG 6009-001522 $3.90

View on Model
