Samsung DV361GWBEWR/A3-01 Dryer

1

Dryer lint screen SMG DC61-01521A Contact Us For Availability

View on Model

1

Dryer display control board SMG DC92-00303Q Contact Us For Availability

View on Model

1

Dryer burner duct assembly SMG DC97-10720A Contact Us For Availability

View on Model

1

Motor SMG DC93-00101D Contact Us For Availability

View on Model

1-1

6021-001201 Samsung Dryer Left Turn Nut 3/8"- In Stock SMG 6021-001201 $6.18

View on Model

1-2

DC32-00008A Samsung Radiant Sensor Assembly Backorder SMG DC32-00008A $175.54

View on Model

1-2

DC67-00180B Samsung Dryer Blower Wheel Assemb In Stock SMG DC67-00180B $139.00

View on Model

1-3

DC47-00017A Samsung Washer Dryer Thermostat A In Stock SMG DC47-00017A $90.14

View on Model

1-3

DC93-00098B Samsung Assembly Duct Cover Backorder SMG DC93-00098B $156.51

View on Model

1-4

6002-000241 Samsung Self Tapping Screw Backorder SMG 6002-000241 $1.69

View on Model

1-4

DC31-00055G Samsung Dryer Induction Drive Mot In Stock SMG DC31-00055G $347.98

View on Model

1-4

DC97-07602B Samsung Duct Cone Backorder SMG DC97-07602B $103.40

View on Model

1-5

DC61-00891A Samsung Washer Dryer Hinge Guide In Stock SMG DC61-00891A $41.79

View on Model

1-5

Dryer motor bracket SMG DC96-00790C Contact Us For Availability

View on Model

1-6

DC61-01214A Samsung Spring Plate Assembly Backorder SMG DC61-01214A $4.49

View on Model

1-6

DC61-03202A Samsung Washer Dryer Door Hinge Backorder SMG DC61-03202A $46.61

View on Model

1-7

DC32-00007A Samsung Dryer Thermistor Sensor In Stock SMG DC32-00007A $29.00

View on Model

1-7

DC61-01576A Samsung Support Hinge Assembly Backorder SMG DC61-01576A $11.34

View on Model

1-8

DC47-00016A Samsung Thermostat In Stock SMG DC47-00016A $14.65

View on Model

1-11

DC63-01127A Samsung Cover Door Assembly (I) Backorder SMG DC63-01127A $62.70

View on Model

1-15

DC66-00395A Samsung Dryer Door Lever Strike L In Stock SMG DC66-00395A $9.27

View on Model

1-31

Duct cover SMG DC63-01026A Contact Us For Availability

View on Model

1-32

Fan guide SMG DC61-02641A Contact Us For Availability

View on Model

1-33

DC61-02348A Samsung Duct Fan Guide Assembly Backorder SMG DC61-02348A $91.11

View on Model

1-51

3405-001077 Samsung Micro Switch Backorder SMG 3405-001077 $22.68

View on Model

1-52

Dryer screw SMG 6002-000488 Contact Us For Availability

View on Model

1-54

DC61-01213A Samsung Motor Bracket Assembly In Stock SMG DC61-01213A $120.06

View on Model

1-55

DC61-01215B Samsung Dryer Idler Tension Sprin In Stock SMG DC61-01215B $5.69

View on Model

1-56

DC93-00634A Samsung Dryer Idler Pulley Assemb In Stock SMG DC93-00634A $49.76

View on Model

1-57

DC63-00919A Samsung Switch Cover Assembly Backorder SMG DC63-00919A $2.70

View on Model

2

6602-001655 Samsung Dryer Drive Belt In Stock SMG 6602-001655 $43.28

View on Model

2

DC63-01499A Samsung Cover Back Dryer Hudson G Backorder SMG DC63-01499A $31.70

View on Model

2

DC97-07526B Samsung Duct Outlet Assembly Backorder SMG DC97-07526B $85.26

View on Model

2

DC97-16931A Samsung Encoder Knob Assembly Backorder SMG DC97-16931A $51.77

View on Model

2-1

6006-001174 Samsung Tapping Screw Th + Wt 2s Backorder SMG 6006-001174 $1.69

View on Model

2-5

DC62-00201A Samsung Dryer Gas Valve Assembly In Stock SMG DC62-00201A $291.85

View on Model

2-6

DC99-00507A Samsung Assembly Pipe Backorder SMG DC99-00507A $167.75

View on Model

3

DC97-07895A Samsung Dryer Connector Duct Asse Backorder SMG DC97-07895A $56.95

View on Model

3-1

DC47-00021A Samsung Socket Lamp Assembly Backorder SMG DC47-00021A $26.47

View on Model

3-1

Duct-conne SMG DC67-00130A Contact Us For Availability

View on Model

3-2

Sponge SMG DC72-00032E Contact Us For Availability

View on Model

3-5

Dryer drum light lens SMG DC63-00531A Contact Us For Availability

View on Model

3-10

DC63-00675A Samsung Dryer Filter Cover Backorder SMG DC63-00675A $29.79

View on Model

3-12

4713-001199 Samsung Dryer Drum Incandescent L Backorder SMG 4713-001199 $11.34

View on Model

3-13

DC96-00766A Samsung Dryer Wire Harness Assemb In Stock SMG DC96-00766A $12.96

View on Model

3-14

DC61-02627A Samsung Dryer Moisture Sensor Pla In Stock SMG DC61-02627A $13.73

View on Model

4

DC47-00022A Samsung Dryer Heater Igniter In Stock SMG DC47-00022A $190.67

View on Model

4

Dryer drum assembly SMG DC97-07520F Contact Us For Availability

View on Model

4-3

DC97-07618A Samsung Dryer Drum Gasket Seal As In Stock SMG DC97-07618A $112.89

View on Model

4-5

DC63-10001C Samsung EPDM Sponge Backorder SMG DC63-10001C $4.33

View on Model

4-6

DC64-00828B Samsung Washer Dryer Door Switch In Stock SMG DC64-00828B $47.08

View on Model

4-7

DC97-07510B Samsung Dryer Door Lever Holder C In Stock SMG DC97-07510B $18.35

View on Model

5-8

DC61-02826A Samsung Drum Back Bracket Assembl Backorder SMG DC61-02826A $19.44

View on Model

6

DC93-00152A Samsung Main Wire Harness Assembl Backorder SMG DC93-00152A $193.01

View on Model

7

DC61-02642A Samsung Igniter Bracket Backorder SMG DC61-02642A $5.93

View on Model

7

Dryer electronic control board SMG DC92-00669Q Contact Us For Availability

View on Model

7-2

Dryer electronic control board SMG DC92-00123G Contact Us For Availability

View on Model

13

DC97-07519D Samsung Door Assembly Exhaust Duc Backorder SMG DC97-07519D $55.25

View on Model

16

DC97-12150A Samsung Dryer Leg Assembly In Stock SMG DC97-12150A $20.52

View on Model

18

DC97-14492A Samsung Burner Assembly Backorder SMG DC97-14492A $270.96

View on Model

19

DC96-00038G Samsung Dryer Power Cord Assembly Backorder SMG DC96-00038G $148.15

View on Model

1562

Bracket SMG DC61-01230B Contact Us For Availability

View on Model

1563

Idler shaft SMG DC66-00401A Contact Us For Availability

View on Model

1564

Dryer idler pulley SMG DC97-07509B Contact Us For Availability

View on Model

1565

Dryer idler pulley SMG DC66-00402A No Longer Available

View on Model

NI

6001-001668 Samsung Washer Dryer Machine Scre Backorder SMG 6001-001668 $2.16

View on Model

NI

6001-001773 Samsung Washer Dryer Machine Scre Backorder SMG 6001-001773 $2.16

View on Model

NI

6002-000213 Samsung Air Conditioner Tapping S In Stock SMG 6002-000213 $1.32

View on Model

NI

6002-000239 Samsung Air Conditioner Tapping S Backorder SMG 6002-000239 $1.18

View on Model

NI

6002-001306 Samsung Washer Tapping Screw Backorder SMG 6002-001306 $1.69

View on Model

NI

6006-001170 Samsung Appliance Tapping Screw T Backorder SMG 6006-001170 $1.69

View on Model

NI

6009-001342 Samsung Dryer Special Puller Scre In Stock SMG 6009-001342 $1.69

View on Model

NI

DC60-00103A Samsung Fastener Plain Backorder SMG DC60-00103A $2.16

View on Model

NI

DC60-50145A Samsung Hex Nut Backorder SMG DC60-50145A $2.70

View on Model

NI

DC61-01228A Samsung Dryer Drum Support Roller In Stock SMG DC61-01228A $2.16

View on Model

NI

DC97-16782A Samsung Dryer Plastic Roller Whee In Stock SMG DC97-16782A $39.78

View on Model

NI

Screw SMG 6009-001343 Contact Us For Availability

View on Model

NI

Refrigerator tapping screw SMG 6002-000470 Contact Us For Availability

View on Model

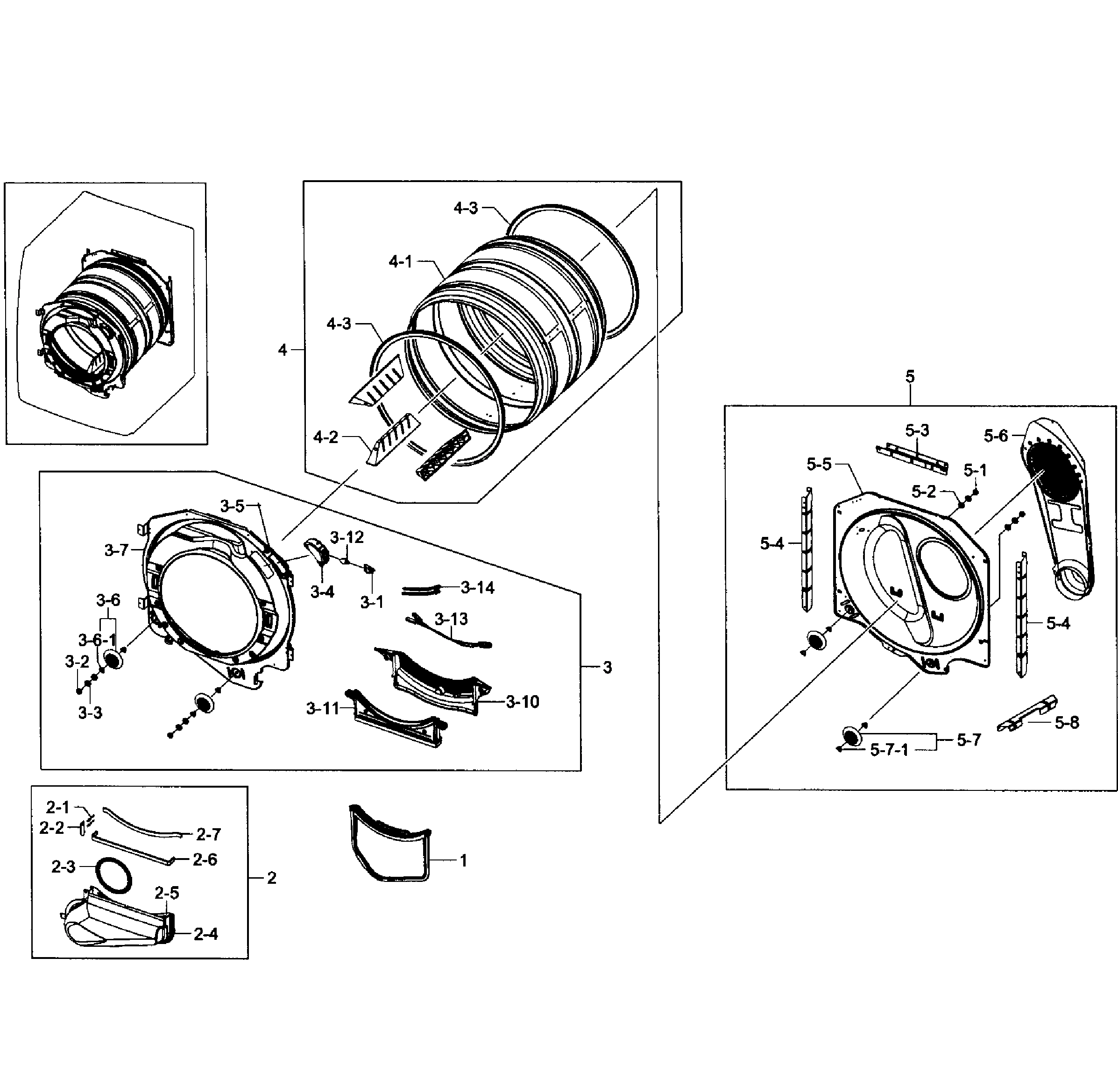

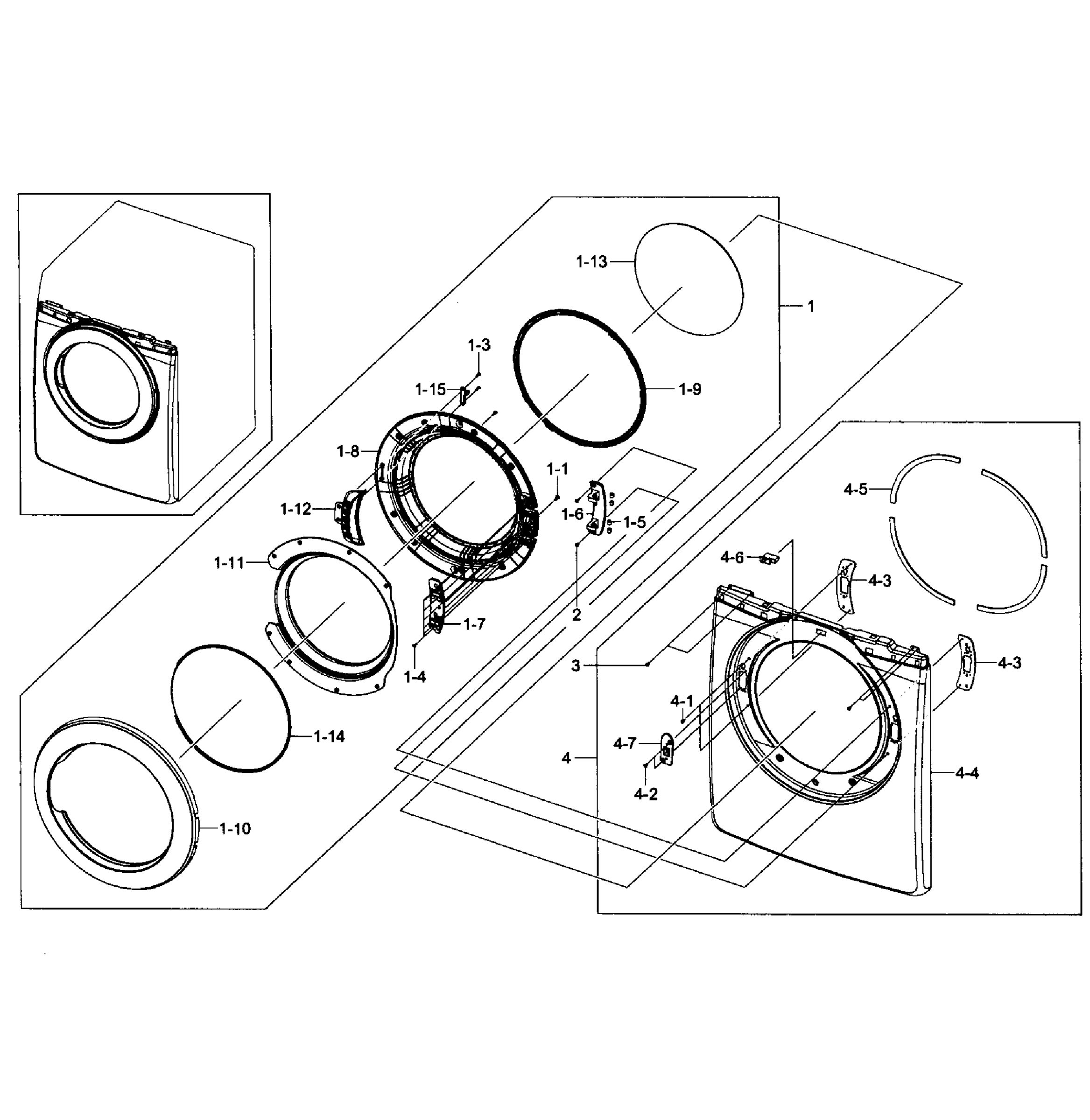

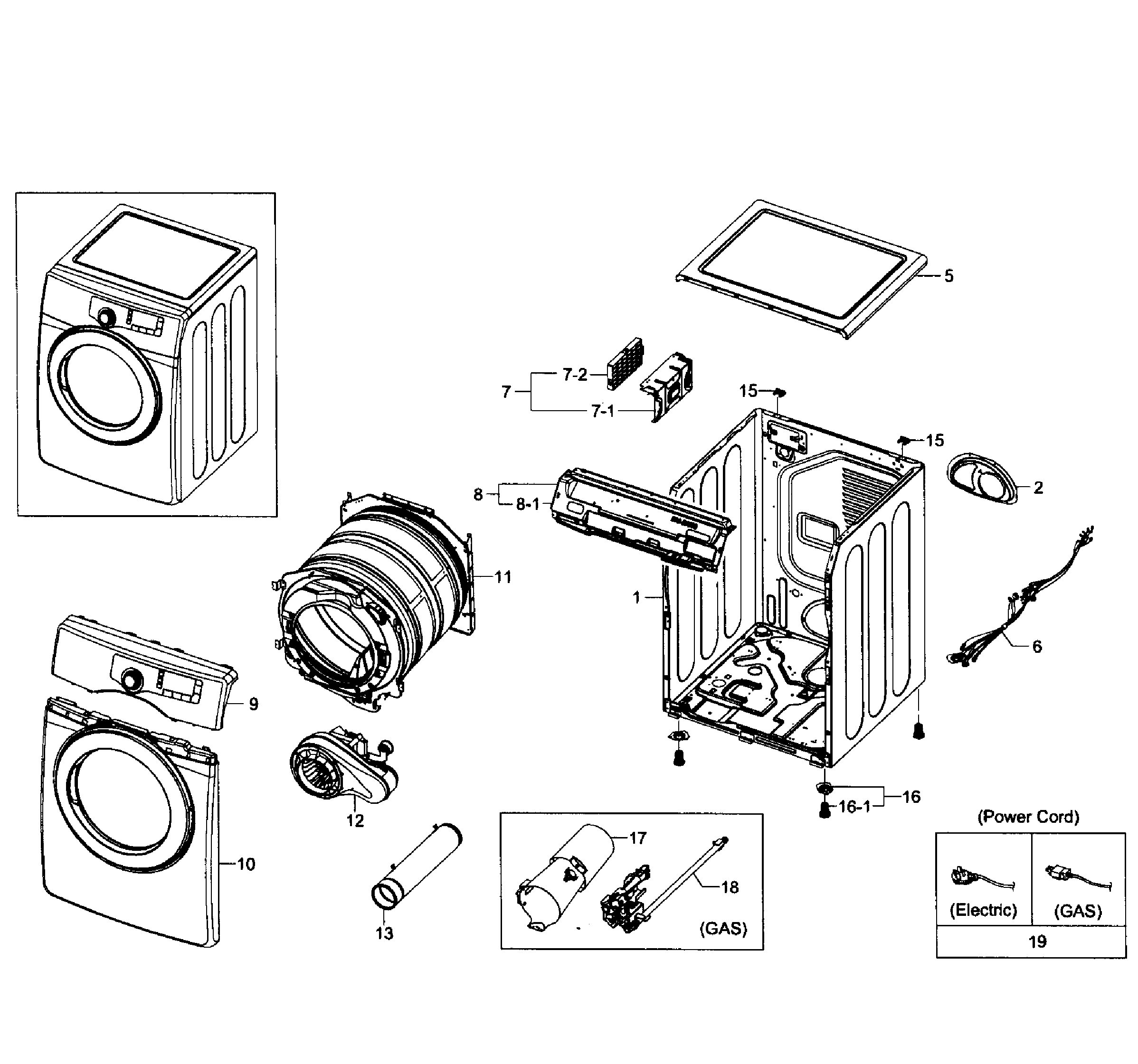

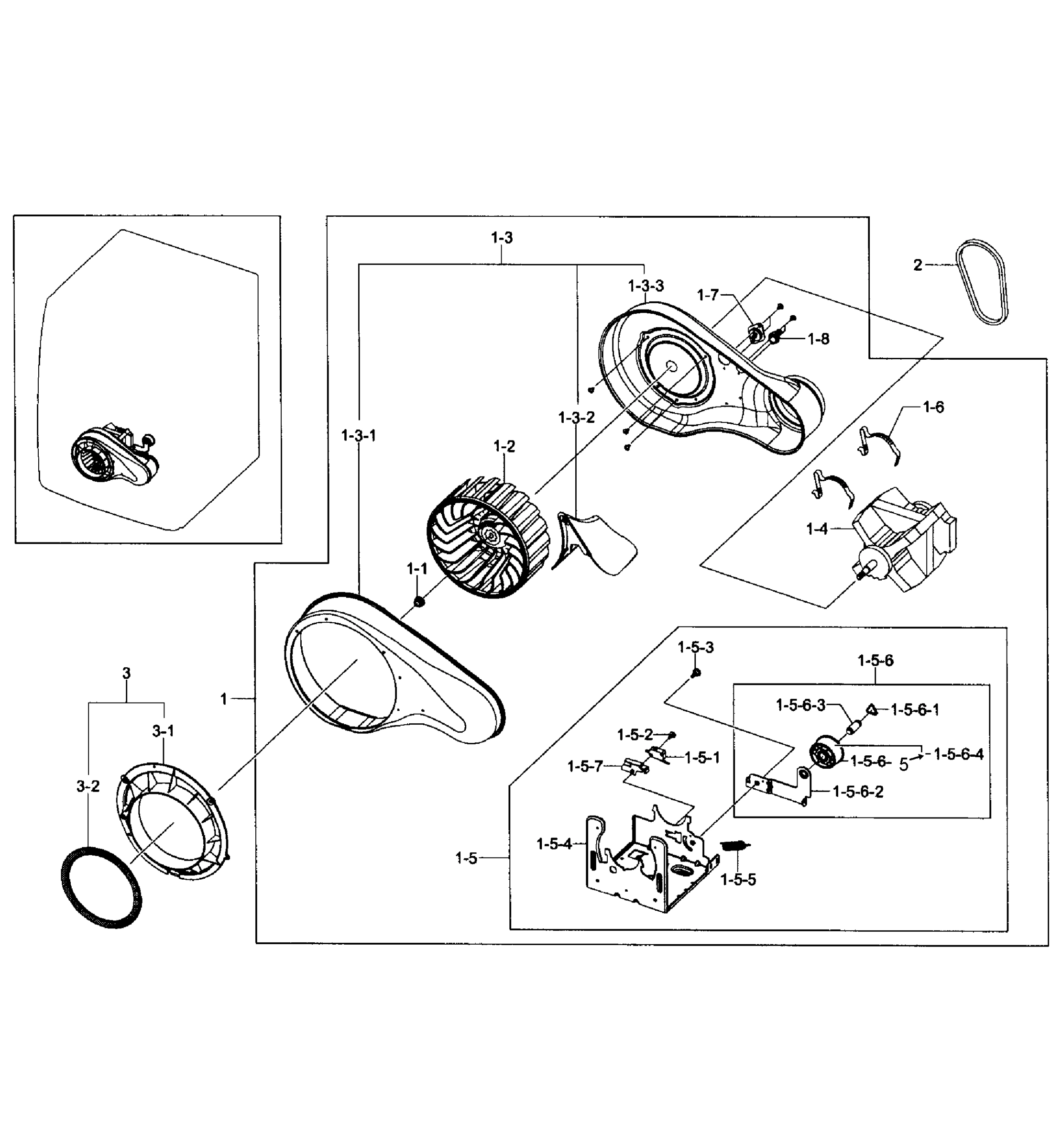

Model Samsung DV361GWBEWR/A3-01 Dryer – Common Parts & Diagrams

Common parts from model Samsung DV361GWBEWR/A3-01 Dryer
