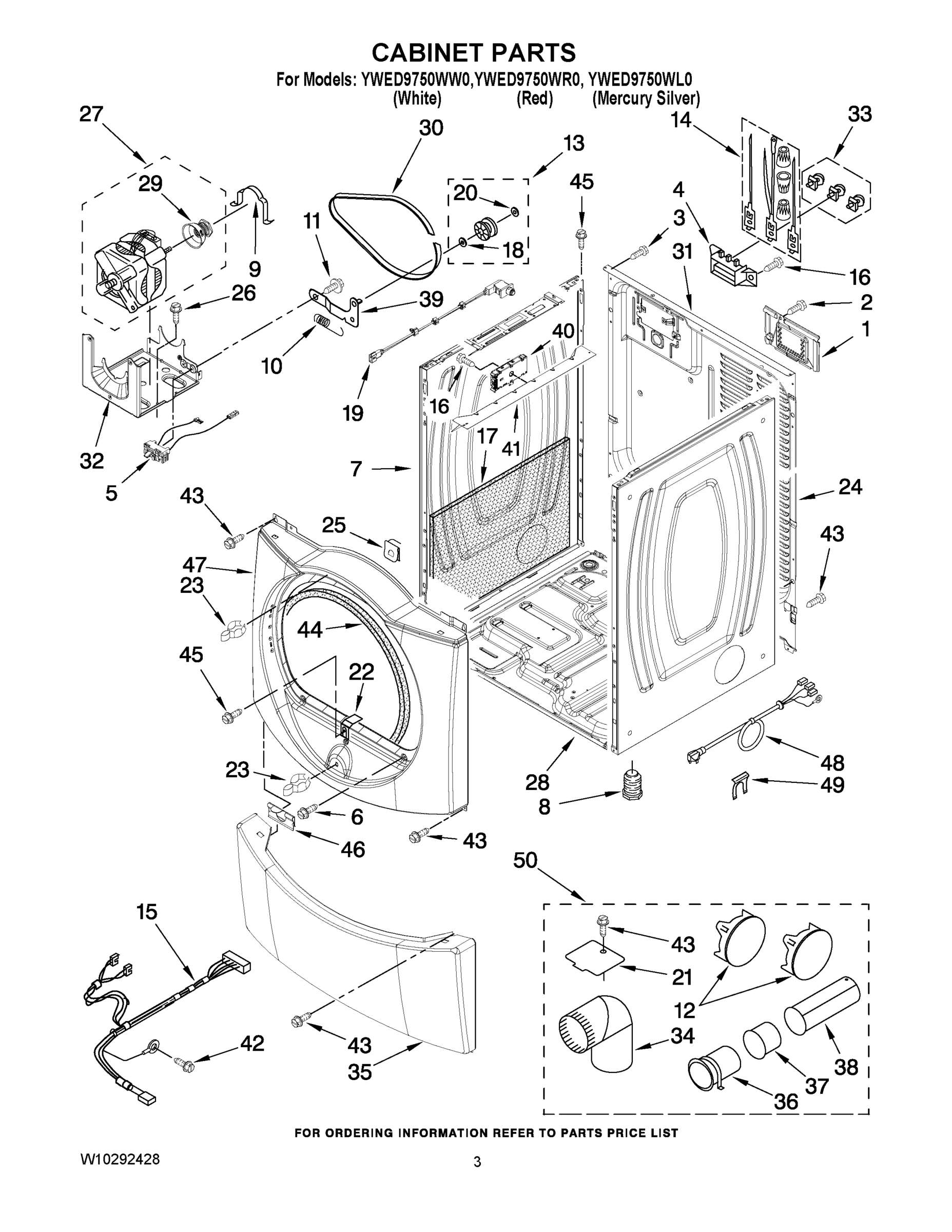

Model Whirlpool YWED9750WR0 27`` ELECTRIC DRYER – Common Parts &amp; Diagrams

1

INSTALLATION, INSTRUCTION WPL W10255469 Contact Us For Availability

1

TECH SHEET WPL W10258369 Contact Us For Availability

1

USE & CARE GUIDE WPL W10289764 Contact Us For Availability

2

WPW10310366 Whirlpool Hinge In Stock WPL WPW10310366 $175.63

2

Top (White) WPL 3980634 Contact Us For Availability

2

TOP (RED) WPL W10249738 Contact Us For Availability

2

TOP (SILVER) WPL W10249739 Contact Us For Availability

3

WPW10159996 Whirlpool Screw In Stock WPL WPW10159996 $4.82

3

HARNESS, MAIN WPL W10111066 Contact Us For Availability

4

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $104.68

4

WPW10287717 Whirlpool Console Backorder WPL WPW10287717 $426.53

4

Screw, 8-18 x 5/8 WPL 9742177 Contact Us For Availability

4

PANEL, CONSOLE (INCLUDE ITEMS,20,21,22,27,28 WPL W10287715 Contact Us For Availability

4

PANEL, CONSOLE (INCLUDE ITEMS,20,21,22,27,28 WPL W10287716 Contact Us For Availability

5

WP3391018 Whirlpool Wire Tie Backorder WPL WP3391018 $20.96

5

Cover-Hinge (R.H.) WPL W10181197 Contact Us For Availability

5

COVER-HINGE (L.H.) (FOLLOWING PARTS NOT INCLU WPL W10180119 Contact Us For Availability

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $4.98

6

WPW10139457 Whirlpool Door Seal In Stock WPL WPW10139457 $73.46

6

BRACKET, CONSOLE (INCLUDE, ITEM. 12) WPL W10215656 Contact Us For Availability

7

W10112268 Whirlpool Clip Backorder WPL W10112268 $8.57

7

HANDLE RING WPL W10193522 Contact Us For Availability

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.99

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

8

Screw, 1/4-20 x 1/2 WPL 3400224 Contact Us For Availability

9

3936144 Whirlpool Connector Backorder WPL 3936144 $14.02

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $8.99

9

DOOR ASSEMBLY (OUTER) WPL W10193530 Contact Us For Availability

10

DOOR ASSEMBLY (INNER) (INCLUDE, ITEMS. 12 ) WPL 8578229 Contact Us For Availability

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $4.99

WP355515 Whirlpool Screw Backorder WPL WP355515 $4.82

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $4.99

12

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $4.99

12

W10112267 Whirlpool Seal Assembly Backorder WPL W10112267 $63.66

12

WPW10404617 Whirlpool Plug Assembly Backorder WPL WPW10404617 $45.77

13

8519356 Whirlpool Retainer Backorder WPL 8519356 $7.98

13

W10012480 Whirlpool WP Dryer Encoder Adapt Wh Backorder WPL W10012480 $10.69

13

WP8066208 Whirlpool Clip Backorder WPL WP8066208 $4.82

279318 Whirlpool Terminal In Stock WPL 279318 $46.99

3936150 Whirlpool Connector Backorder WPL 3936150 $59.13

W10822054 Whirlpool Retainer Backorder WPL W10822054 $9.85

WP8544771 Whirlpool Dryer Heating Element In Stock WPL WP8544771 $109.88

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $4.99

3395683 Whirlpool Connector Backorder WPL 3395683 $37.04

W10242904 Whirlpool Wire Harness Backorder WPL W10242904 $66.91

Gasket, Window WPL 8579662 Contact Us For Availability

16

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $6.92

16

Screw-Plug WPL W10048910 Contact Us For Availability

17

2203186 Whirlpool Connector Backorder WPL 2203186 $8.09

17

W10123956 Whirlpool Sound Absorber Backorder WPL W10123956 $21.43

17

WP8566254 Whirlpool Window Assembly Backorder WPL WP8566254 $202.28

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $4.99

18

USER-INTERFACE (RIGHT) WPL W10288016 Contact Us For Availability

USER INTERFACE (CENTER) (INCLUDE, ITEM. 13 ) WPL W10280044 Contact Us For Availability

TEAR-DROP TRIM & CLIP ASSEMBLY (WHITE) WPL W10240356 Contact Us For Availability

TEAR-DROP TRIM & CLIP ASSEMBLY (SILVER) WPL W10249740 Contact Us For Availability

TEAR-DROP TRIM & CLIP ASSEMBLY (RED) WPL W10249766 Contact Us For Availability

20

Door Shield WPL W10180120 Contact Us For Availability

20

Encoder-Wheel WPL W10012430 Contact Us For Availability

21

Door, Intermediate WPL W10180118 Contact Us For Availability

21

Retainer-Snap WPL W10012440 Contact Us For Availability

22

Ramp, Door WPL 8529053 Contact Us For Availability

22

KNOB, LIGHT RING (INCLUDE, ITEM. 21 ) WPL W10012410 Contact Us For Availability

22

Door Mask WPL W10180117 Contact Us For Availability

23

RAST, WHEEL HOLDER (SERVICE ONLY WITH ITEM. 2 WPL W10012810 Contact Us For Availability

23

DOOR SCREEN WPL W10171571 Contact Us For Availability

24

WP3373329 Whirlpool Dishwasher Screw Backorder WPL WP3373329 $4.82

24

Detent Wheel (Service Only With Item. 28) WPL W10012460 Contact Us For Availability

25

W10242906 Whirlpool Wire Harness Backorder WPL W10242906 $115.75

25

Clip-S Type WPL 62825 Contact Us For Availability

26

W10853898 Whirlpool Screw Backorder WPL W10853898 $4.82

26

Knob, Spring (2) (Service Only With Item 28) WPL W10012820 Contact Us For Availability

27

W10190685 Whirlpool Knob Assembly In Stock WPL W10190685 $42.21

28

ENCODER, WHEEL KIT (INCLUDE ITEMS, 23, 24 & 2 WPL 280230 Contact Us For Availability

29

Badge WPL W10117943 Contact Us For Availability

32

W11481730 Whirlpool Bracket In Stock WPL W11481730 $48.99

32

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $8.99

33

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $18.53

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $4.60

35

8578825 Whirlpool Bracket Backorder WPL 8578825 $14.48

36

W11222979 Whirlpool Socket In Stock WPL W11222979 $78.07

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $36.97

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $53.11

40

CONTROL BOARD WPL W10256719 Contact Us For Availability

41

WP8563727 Whirlpool Bracket Backorder WPL WP8563727 $113.65

42

WP693995 Whirlpool Screw In Stock WPL WP693995 $7.99

42

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $29.99

43

W11257251 Whirlpool Shield Backorder WPL W11257251 $45.22

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $11.68

46

WP8544769 Whirlpool Box Backorder WPL WP8544769 $110.78

48

WP3391914 Whirlpool Thermostat In Stock WPL WP3391914 $78.71

49

HOUSING TAB, HEATER BOX WPL 8544770 Contact Us For Availability

50

8066099 Whirlpool Bracket Backorder WPL 8066099 $14.67

51

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $3.91

52

8544776 Whirlpool Clip Assembly Backorder WPL 8544776 $12.01

58

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $16.99

59

WPW10277503 Whirlpool Nozzle Backorder WPL WPW10277503 $156.49

60

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $4.99

61

W10044579 Whirlpool Dryer Backorder WPL W10044579 $5.85

62

W10044628 Whirlpool Nut Backorder WPL W10044628 $63.40

63

W10859554 Whirlpool Coupler Backorder WPL W10859554 $54.45

DC4-30-4 USD Products Dryer Cord, 4' 4 Wire, In Stock USD DC4-30-4 $17.60

DC4-30-6 USD Products Dryer 6' 4-Wire Cord 30 In Stock USD DC4-30-6 $24.88

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

8212450A Whirlpool Dryer Rack Assembly Backorder WPL 8212450A $51.16

8541503 Whirlpool Stacking Kit In Stock WPL 8541503 $48.67

8579666ARP Whirlpool Door Kit In Stock WPL 8579666ARP $34.43

PT220L Whirlpool Dryer Power Cord In Stock WPL PT220L $27.54

W10044609A Whirlpool Steam Dryer Hose Install In Stock WPL W10044609A $23.99

W10218247 Whirlpool Touch-Up Backorder WPL W10218247 $16.79

W10268217 Whirlpool Touch Up Backorder WPL W10268217 $10.38

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $16.85

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

HOSE, INLET (2` HOSE) WPL 350027 Contact Us For Availability

Kit, Hold Down WPL 8529894 Contact Us For Availability
