Model Whirlpool YWED9450WR0 ELECTRIC DRYER – Common Parts &amp; Diagrams

1

INSTALLATION (INSTRUCTION) WPL W10224610 Contact Us For Availability

1

USE & CARE GUIDE WPL W10244607 Contact Us For Availability

1

TECH SHEET WPL W10251192 Contact Us For Availability

2

WPW10310366 Whirlpool Hinge In Stock WPL WPW10310366 $175.63

2

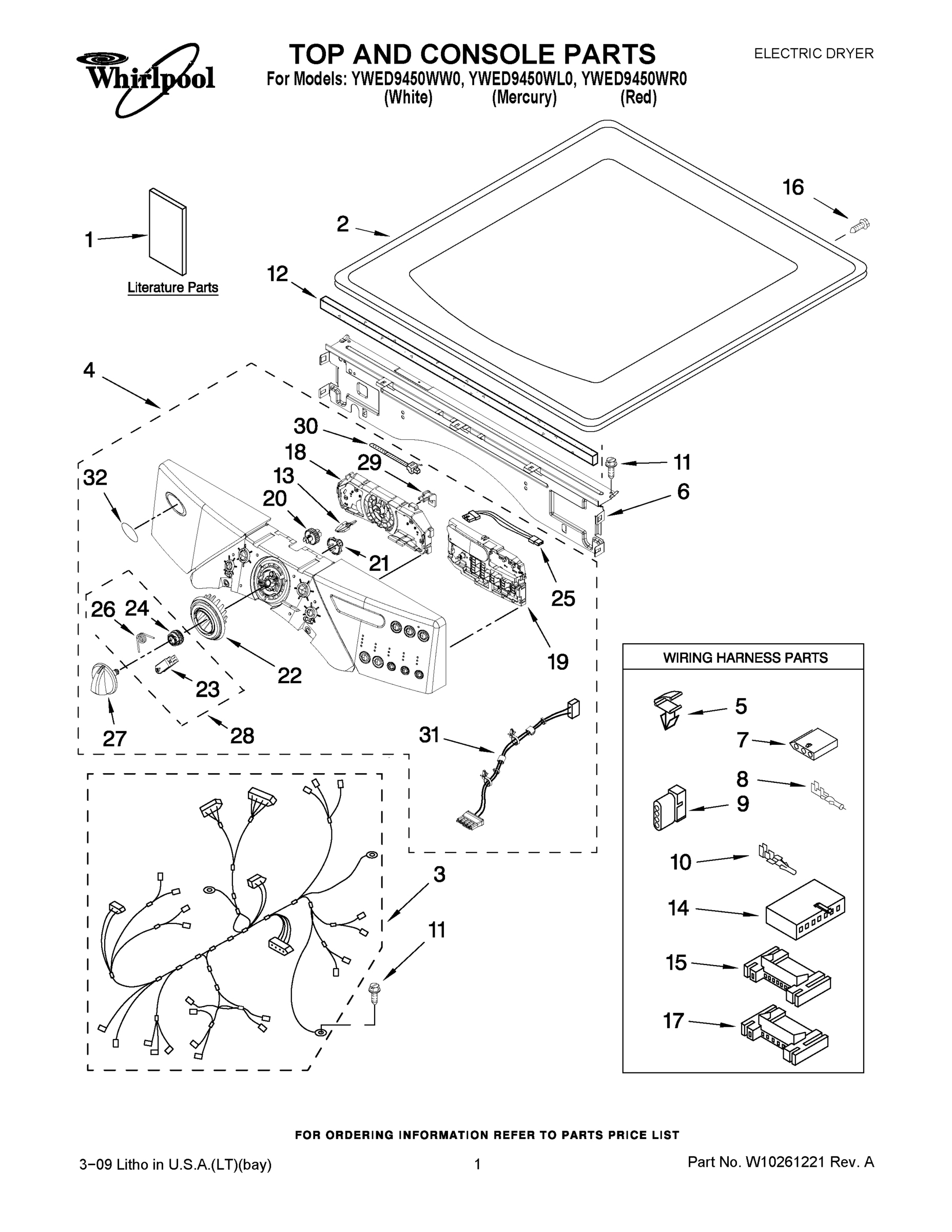

Top (White) WPL 3980634 Contact Us For Availability

2

TOP (RED) WPL W10249738 Contact Us For Availability

2

TOP (MERCURY) WPL W10249739 Contact Us For Availability

3

WPW10159996 Whirlpool Screw In Stock WPL WPW10159996 $4.82

3

Harness, Main WPL W10111013 Contact Us For Availability

4

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $104.68

4

Screw, 8-18 x 5/8 WPL 9742177 Contact Us For Availability

4

PANEL, CONSOLE (INCLUDES ITEMS: 20,21,22,27,2 WPL W10246587 Contact Us For Availability

4

PANEL, CONSOLE (INCLUDES ITEMS: 20,21,22,27,2 WPL W10251609 Contact Us For Availability

4

PANEL, CONSOLE (INCLUDES ITEMS: 20,21,22,27,2 WPL W10261292 Contact Us For Availability

5

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $4.82

5

Cover-Hinge (R.H.) WPL W10181197 Contact Us For Availability

5

COVER-HINGE (L.H.) (FOLLOWING PARTS NOT INCLU WPL W10180119 Contact Us For Availability

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $4.98

6

WPW10139457 Whirlpool Door Seal In Stock WPL WPW10139457 $73.46

6

Bracket, Console (Includes No.12) WPL W10215656 Contact Us For Availability

7

353424 Whirlpool Connector Backorder WPL 353424 $14.02

7

Handle-Ring WPL 8579502 Contact Us For Availability

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.99

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

8

Screw, 10-16 x 1/2 WPL 3400224 Contact Us For Availability

9

3936144 Whirlpool Connector Backorder WPL 3936144 $14.02

9

WPW10121316 Whirlpool Clamp In Stock WPL WPW10121316 $20.51

9

Door Assembly (Outer) WPL W10180115 Contact Us For Availability

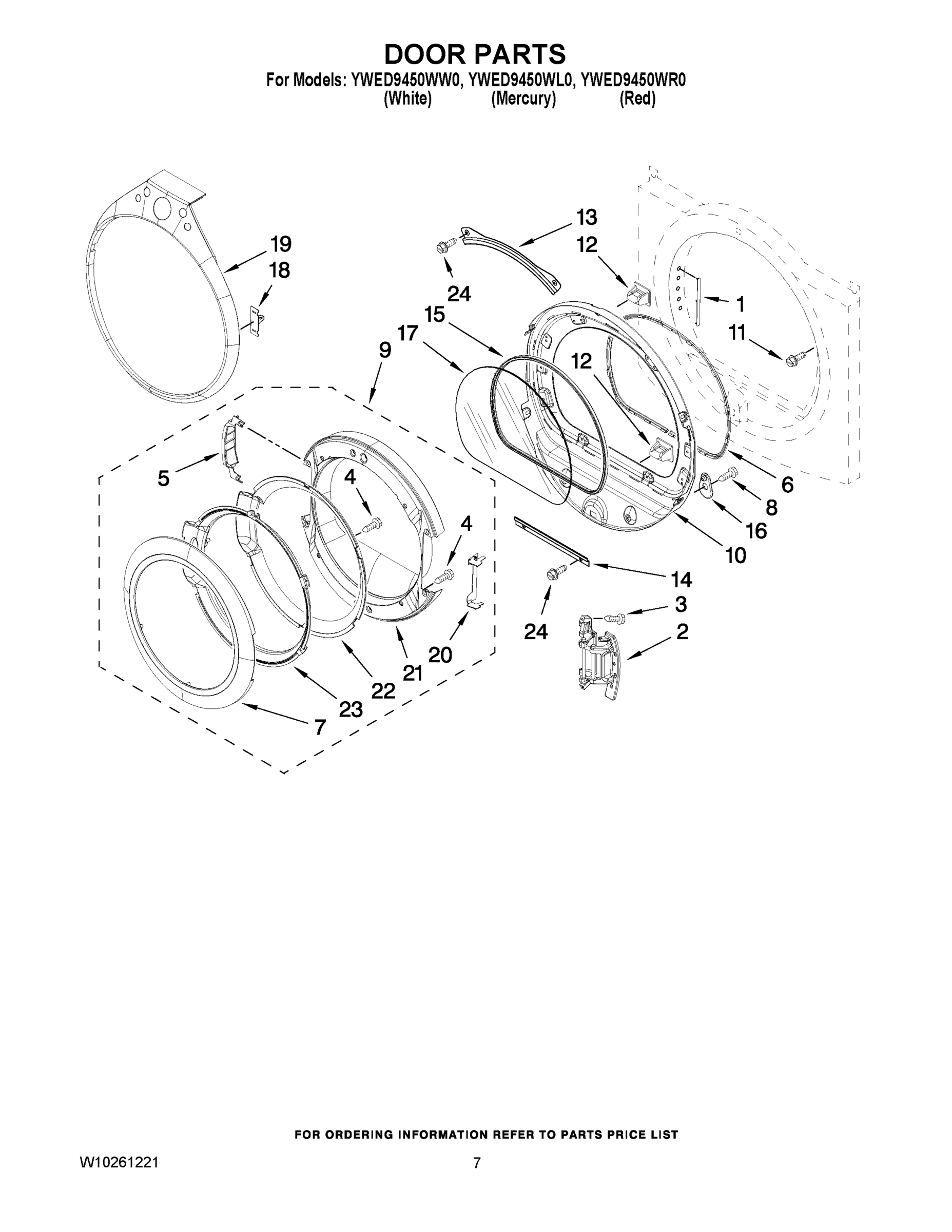

10

DOOR ASSEMBLY (INNER) (INCLUDES ITEM 12.) WPL 8578229 Contact Us For Availability

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $4.99

WP355515 Whirlpool Screw Backorder WPL WP355515 $4.82

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $4.99

12

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $4.99

12

W10112267 Whirlpool Seal Assembly Backorder WPL W10112267 $63.66

13

8519356 Whirlpool Retainer Backorder WPL 8519356 $7.98

13

W10012480 Whirlpool WP Dryer Encoder Adapt Wh Backorder WPL W10012480 $10.69

13

WP8066208 Whirlpool Clip Backorder WPL WP8066208 $4.82

279318 Whirlpool Terminal In Stock WPL 279318 $46.99

3936150 Whirlpool Connector Backorder WPL 3936150 $59.13

W10822054 Whirlpool Retainer Backorder WPL W10822054 $9.85

WP8544771 Whirlpool Dryer Heating Element In Stock WPL WP8544771 $109.88

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $4.99

3395683 Whirlpool Connector Backorder WPL 3395683 $37.04

WP8066120 Whirlpool Lever Assembly Backorder WPL WP8066120 $20.67

Gasket, Window WPL 8579662 Contact Us For Availability

16

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $6.92

16

Screw-Plug WPL W10048910 Contact Us For Availability

17

2203186 Whirlpool Connector Backorder WPL 2203186 $8.09

17

WP8566254 Whirlpool Window Assembly Backorder WPL WP8566254 $202.28

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $4.99

18

WPW10129065 Whirlpool Clip Backorder WPL WPW10129065 $7.17

18

USER INTERFACE (CENTER) (INCLUDES: ITEM. 13 ) WPL W10121375 Contact Us For Availability

TEAR-DROP TRIM & CLIP ASSEMBLY (MERCURY) WPL W10249741 Contact Us For Availability

TEAR-DROP TRIM & CLIP ASSEMBLY (WHITE) WPL W10246598 Contact Us For Availability

TEAR-DROP TRIM & CLIP ASSEMBLY (RED) WPL W10236937 Contact Us For Availability

USER-INTERFACE (RIGHT) WPL W10248079 Contact Us For Availability

20

Door Shield WPL W10180120 Contact Us For Availability

20

Encoder-Wheel WPL W10012430 Contact Us For Availability

21

Door, Intermediate WPL W10180118 Contact Us For Availability

21

Retainer-Snap WPL W10012440 Contact Us For Availability

22

W10250089 Whirlpool Ring Backorder WPL W10250089 $8.39

22

Ramp, Door WPL 8529053 Contact Us For Availability

22

Door Mask WPL W10180117 Contact Us For Availability

23

WP8563727 Whirlpool Bracket Backorder WPL WP8563727 $113.65

23

Door Screen WPL 8578155 Contact Us For Availability

23

Rast, Wheel Assembly (Service Only With Illus WPL W10012810 Contact Us For Availability

24

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $16.99

24

WP3373329 Whirlpool Dishwasher Screw Backorder WPL WP3373329 $4.82

24

Detent Wheel (Service Only With Illus. 28) WPL W10012450 Contact Us For Availability

25

CONTROL BOARD WPL W10169969 Contact Us For Availability

25

Harness, Communication WPL W10095960 Contact Us For Availability

26

W10853898 Whirlpool Screw Backorder WPL W10853898 $4.82

26

Harness, Digital Interface WPL W10181463 Contact Us For Availability

26

Knob, Spring (2) (Service Only With Illus. 28 WPL W10012820 Contact Us For Availability

27

W10190685 Whirlpool Knob Assembly In Stock WPL W10190685 $42.21

28

3398948 Whirlpool Wire Backorder WPL 3398948 $43.98

28

ENCODER, WHEEL KIT. (INCLUDES ITEM: 23, 24, & WPL 280230 Contact Us For Availability

29

W10112268 Whirlpool Clip Backorder WPL W10112268 $8.57

30

WP3391018 Whirlpool Wire Tie Backorder WPL WP3391018 $20.96

30

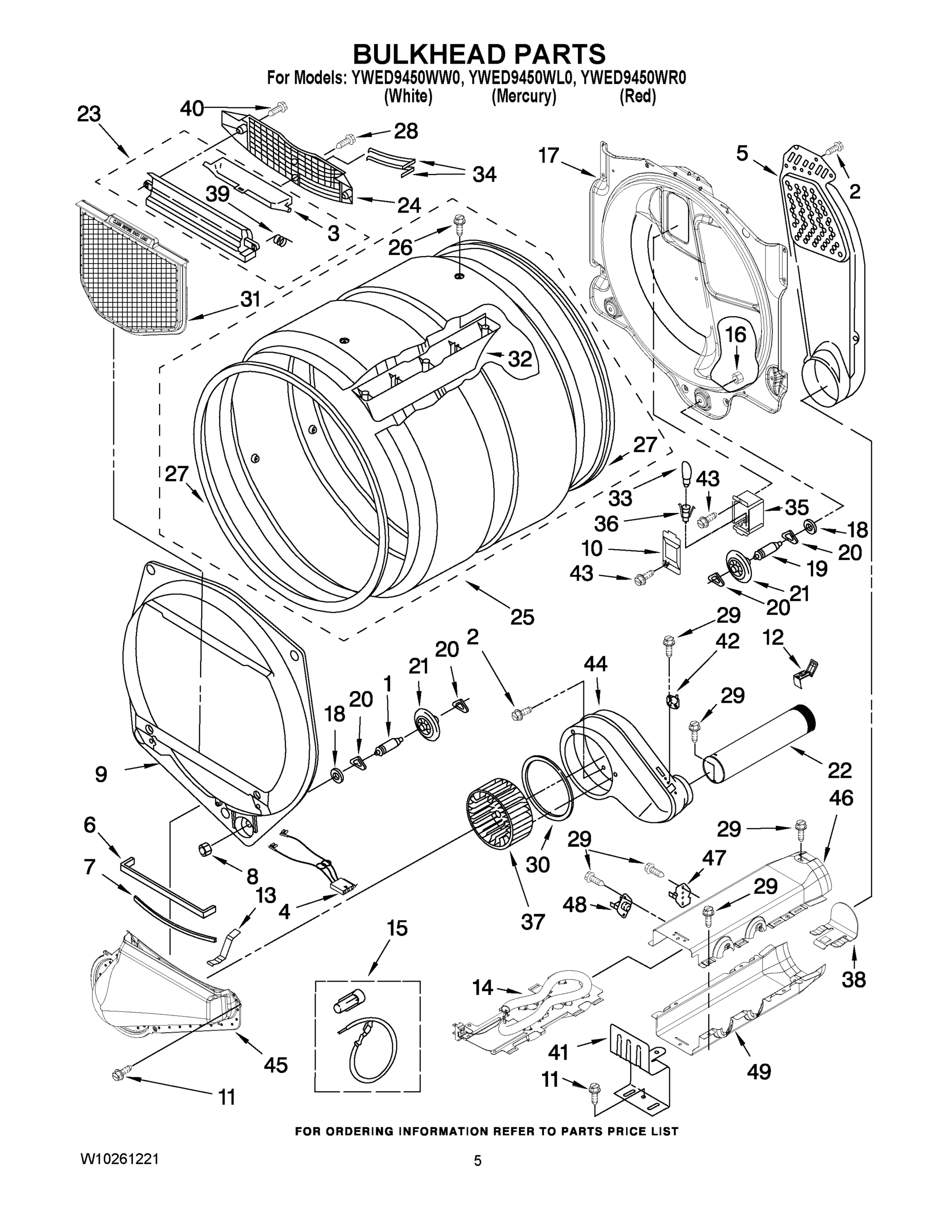

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $4.99

31

Power Cable, User-Interface WPL W10111020 Contact Us For Availability

31

Clip-S Type WPL 62825 Contact Us For Availability

32

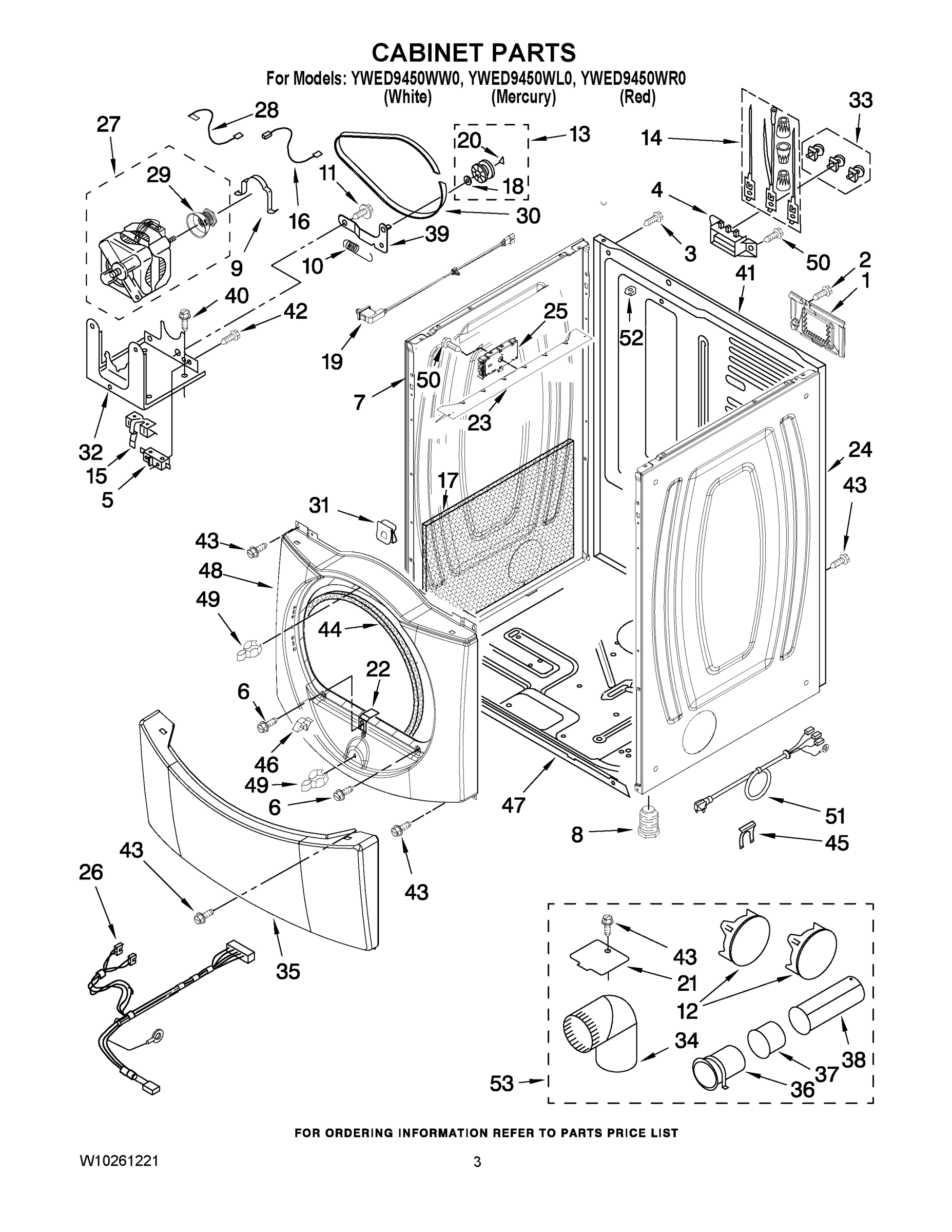

WP3387118 Whirlpool Base Assembly Backorder WPL WP3387118 $87.42

32

Badge WPL W10117943 Contact Us For Availability

33

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $18.53

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $4.60

35

8578825 Whirlpool Bracket Backorder WPL 8578825 $14.48

36

W11700522 Whirlpool Socket Backorder WPL W11700522 $47.31

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $36.97

38

8544776 Whirlpool Clip Assembly Backorder WPL 8544776 $12.01

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $53.11

40

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $3.91

41

8066099 Whirlpool Bracket Backorder WPL 8066099 $14.67

42

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $29.99

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $11.68

46

WP8544769 Whirlpool Box Backorder WPL WP8544769 $110.78

47

280148 Whirlpool Dryer Thermal Cut-Off Fuse K In Stock WPL 280148 $37.50

48

WP8557403 Whirlpool Thermostat In Stock WPL WP8557403 $66.99

49

HOUSING TAB, HEATER BOX WPL 8544770 Contact Us For Availability

51

W11712577 Whirlpool Clip In Stock WPL W11712577 $4.93

52

WP692400 Whirlpool Nut In Stock WPL WP692400 $7.99

53

W10470674 Whirlpool Dryer Side Vent Exhaust K In Stock WPL W10470674 $66.95

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

8541503 Whirlpool Stacking Kit In Stock WPL 8541503 $48.67

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
