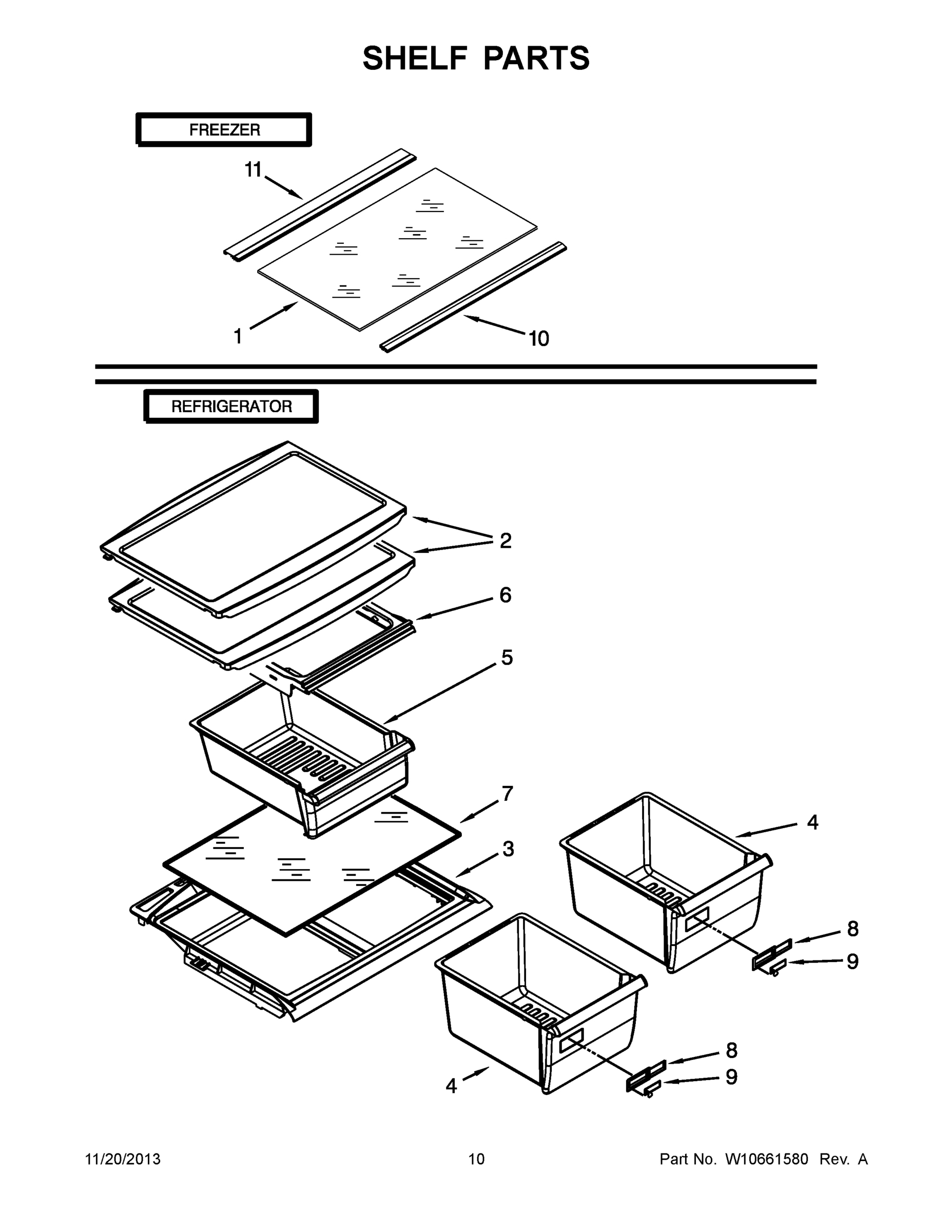

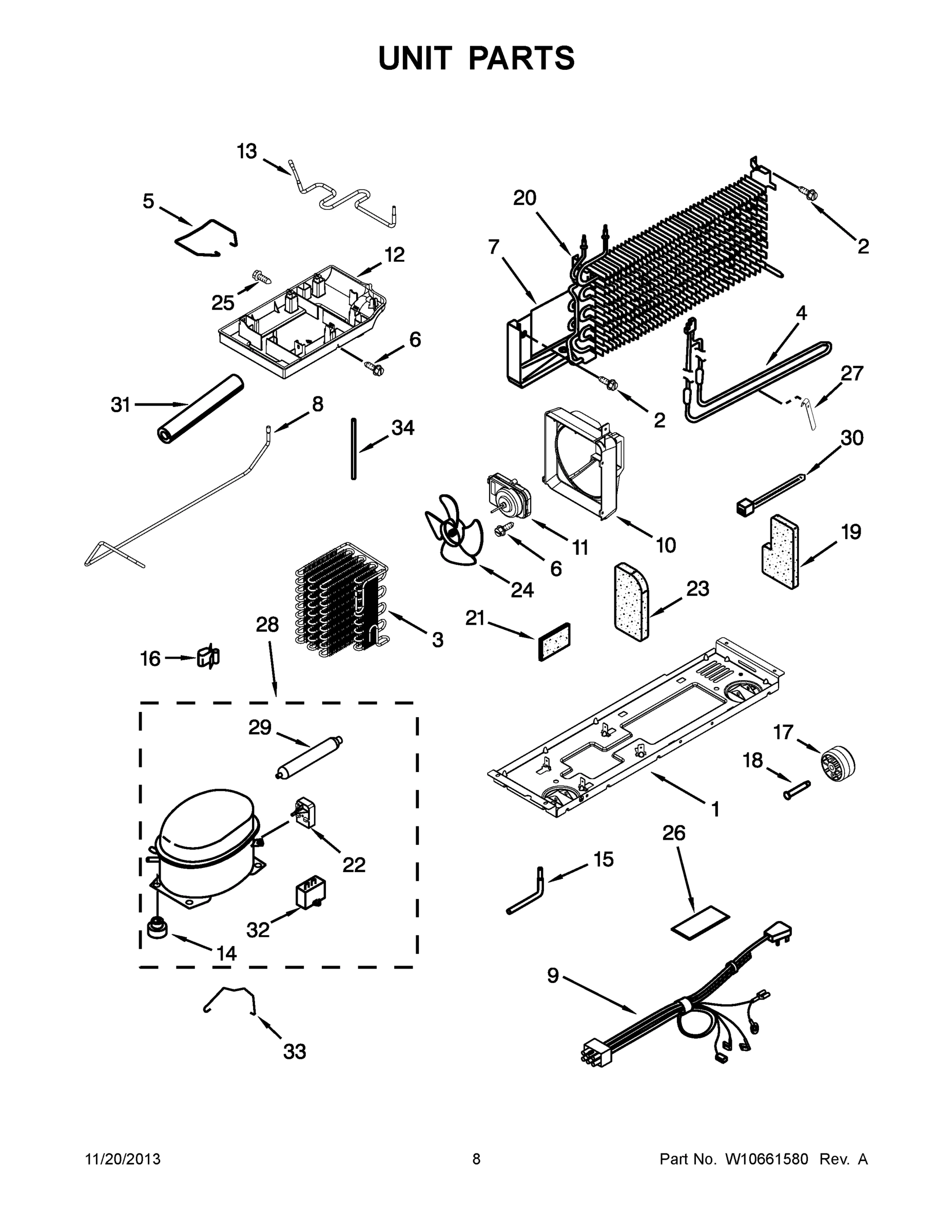

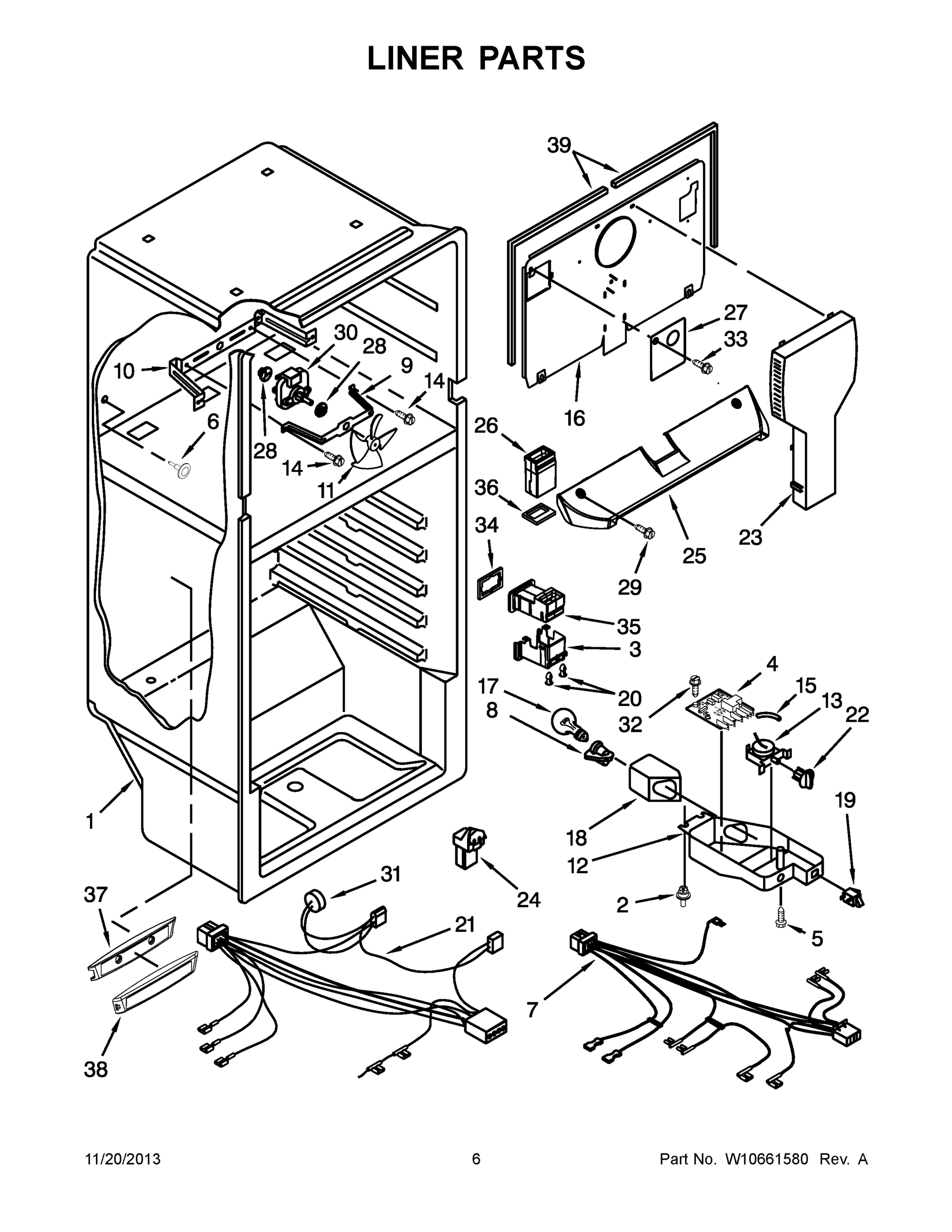

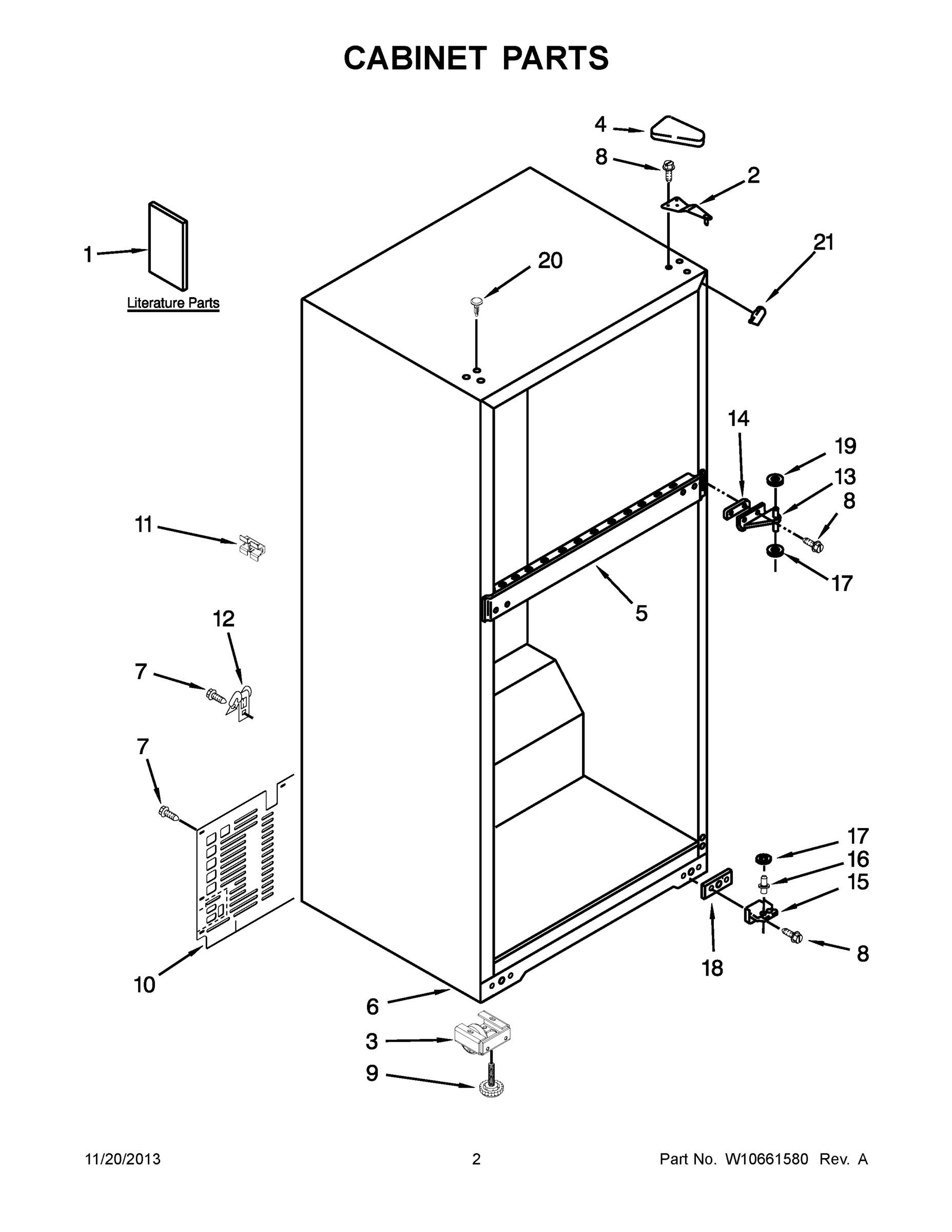

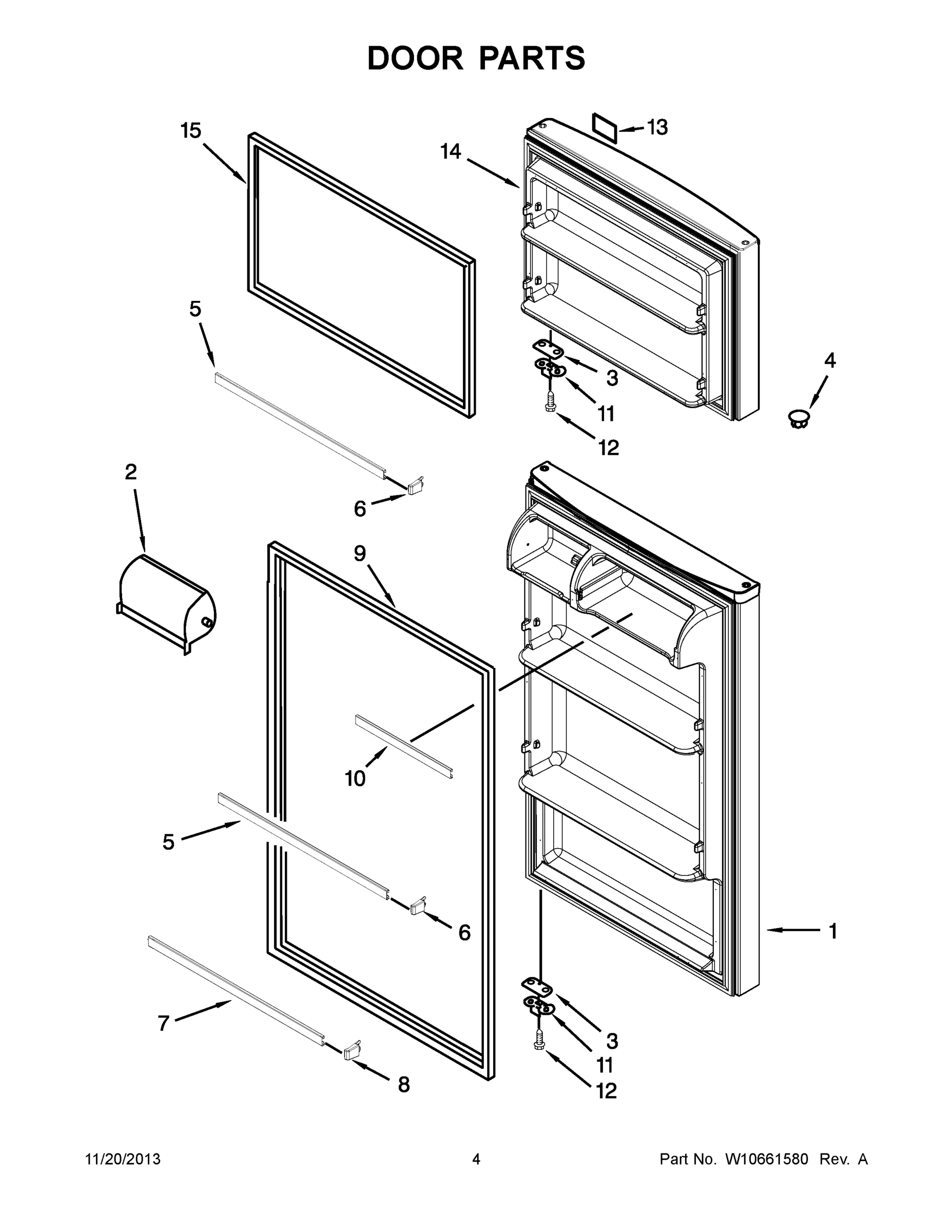

Model Whirlpool W8RXCGFXS03 REFRIGERATOR – Common Parts &amp; Diagrams

1

SHELF, GLASS WPL W10283871 Contact Us For Availability

2

W11181679 Whirlpool Refrigerator Glass Shelf Backorder WPL W11181679 $148.82

2

WP2207942 Whirlpool Dairy Door In Stock WPL WP2207942 $45.76

2

WP2261963 Whirlpool Refrigerator Door Hinge In Stock WPL WP2261963 $52.56

3

2258681B Whirlpool Refrigerator Shim Backorder WPL 2258681B $41.15

3

W11722672 Whirlpool Condenser Assembly In Stock WPL W11722672 $108.68

3

WP2222031 Whirlpool Refrigerator Cover In Stock WPL WP2222031 $121.92

3

WP2258681W Whirlpool Refrigerator Shim Backorder WPL WP2258681W $4.51

3

WPW10142530 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10142530 $45.41

4

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $4.51

4

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $13.13

4

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $13.33

4

WP2256704 Whirlpool Crisper Pan In Stock WPL WP2256704 $104.64

5

WP2261934 Whirlpool Meat Pan In Stock WPL WP2261934 $96.30

5

WP2266727 Whirlpool Refrigerator Door Trim In Stock WPL WP2266727 $45.39

6

WP2156003 Whirlpool Refrigerator Door Shelf E In Stock WPL WP2156003 $5.52

6

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $4.11

6

HOLDER, MEAT PAN WPL W10258418 Contact Us For Availability

7

2265930 Whirlpool Refrigerator Wire Harness Backorder WPL 2265930 $89.34

7

WP2262441 Whirlpool Refrigerator Glass Shelf In Stock WPL WP2262441 $143.32

7

WP2266738 Whirlpool Refrigerator Door Trim In Stock WPL WP2266738 $50.17

7

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $5.84

7

Heat Shield WPL 2319224 Contact Us For Availability

8

WP2212446 Whirlpool Refrigerator Control Body In Stock WPL WP2212446 $33.30

8

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.30

9

WP2176222 Whirlpool Refrigerator Slide In Stock WPL WP2176222 $13.74

9

WPW10133299 Whirlpool Refrigerator Screw Backorder WPL WPW10133299 $8.16

9

WPW10180172 Whirlpool Refrigerator Bracket Backorder WPL WPW10180172 $18.37

W10570558 Whirlpool Refrigerator Cover Assemb Backorder WPL W10570558 $63.77

W11129820 Whirlpool Refrigerator Door Trim In Stock WPL W11129820 $56.54

WPW10570380 Whirlpool Refrigerator Air Baffle Backorder WPL WPW10570380 $33.75

Bracket, Fan Mounting WPL 2197405 Contact Us For Availability

11

2266506 Whirlpool Refrigerator Spacer Backorder WPL 2266506 $13.08

11

W11578915 Whirlpool Condenser Motor In Stock WPL W11578915 $54.30

12

W10565417 Whirlpool Refrigerator Evaporator T Backorder WPL W10565417 $14.82

13

W11178521 Whirlpool Dishwasher Nameplate In Stock WPL W11178521 $34.94

14

2166043 Whirlpool Refrigerator Shim Backorder WPL 2166043 $28.03

14

2215385 Whirlpool Refrigerator Shim Backorder WPL 2215385 $59.14

14

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.46

15

WP2325482 Whirlpool Bottom Hinge In Stock WPL WP2325482 $34.40

16

WP2325483 Whirlpool Hinge Pin In Stock WPL WP2325483 $4.19

17

WP487576 Whirlpool Washer In Stock WPL WP487576 $5.60

17

WPW10475495 Whirlpool Roller Assembly In Stock WPL WPW10475495 $14.12

18

WP2201567 Whirlpool Hinge Shim In Stock WPL WP2201567 $4.19

18

WP2264756 Whirlpool Refrigerator Rivet Backorder WPL WP2264756 $4.19

19

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.32

20

WP2263920 Whirlpool Refrigerator Evaporator Backorder WPL WP2263920 $182.60

20

WPW10520304 Whirlpool Refrigerator Button Plu In Stock WPL WPW10520304 $8.55

20

WPW10520305 Whirlpool Refrigerator Button Plu Backorder WPL WPW10520305 $8.55

21

W10183127 Whirlpool Refrigerator Wire Harness Backorder WPL W10183127 $62.24

21

W11500943 Whirlpool Refrigerator Filler Backorder WPL W11500943 $4.63

21

W11553819 Whirlpool Refrigerator Insulation In Stock WPL W11553819 $10.64

22

WP2202885 Whirlpool Refrigerator Thermal Knob Backorder WPL WP2202885 $12.23

22

WPW10399283 Whirlpool Refrigerator Start Devi Backorder WPL WPW10399283 $76.55

23

Air Tower WPL 9790408 No Longer Available

24

2264129 Whirlpool Refrigerator Fan Blade Backorder WPL 2264129 $52.03

25

COVER, AIR RETURN, FREEZER WPL 2261978 Contact Us For Availability

26

2252831 Whirlpool Refrigerator Air Duct Backorder WPL 2252831 $69.24

27

W10856574 Whirlpool Refrigerator Heat Probe Backorder WPL W10856574 $6.00

27

WP2217784 Whirlpool Refrigerator Cover Backorder WPL WP2217784 $19.30

28

WP2264462 Whirlpool Refrigerator Grommet In Stock WPL WP2264462 $19.62

30

WP2315539 Whirlpool Refrigerator Evaporator F In Stock WPL WP2315539 $51.05

31

2264838 Whirlpool Refrigerator Sleeve Backorder WPL 2264838 $59.65

33

2212996 Whirlpool Refrigerator Retainer Backorder WPL 2212996 $8.48

33

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $3.22

38

GRILL WPL 2263082 Contact Us For Availability

39

GASKET, EVAP COVER WPL W10244016 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $50.73

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $24.57

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $52.52

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $146.78

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.19

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.43

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $33.30

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $40.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $42.85

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $47.27

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $70.54

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.40

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $31.24

KIT, DOOR REVERSAL WPL W10395148 Contact Us For Availability

VALVE, ACCESS WPL 978029 Contact Us For Availability

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

TORX SCREW WRENCH TORX KEY WPL 1117510 Contact Us For Availability
