Model Whirlpool TS22AQXDW11 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

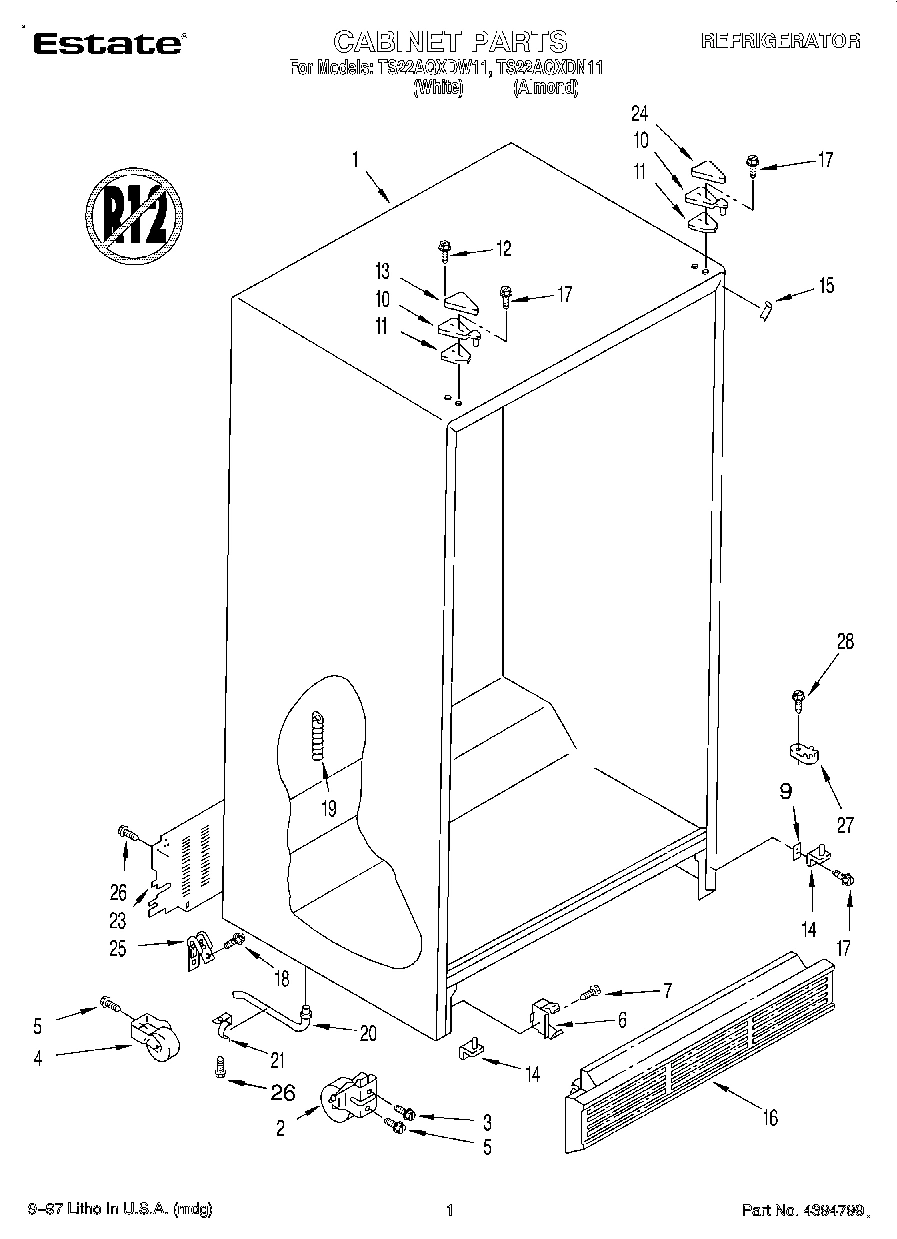

01 - CABINET

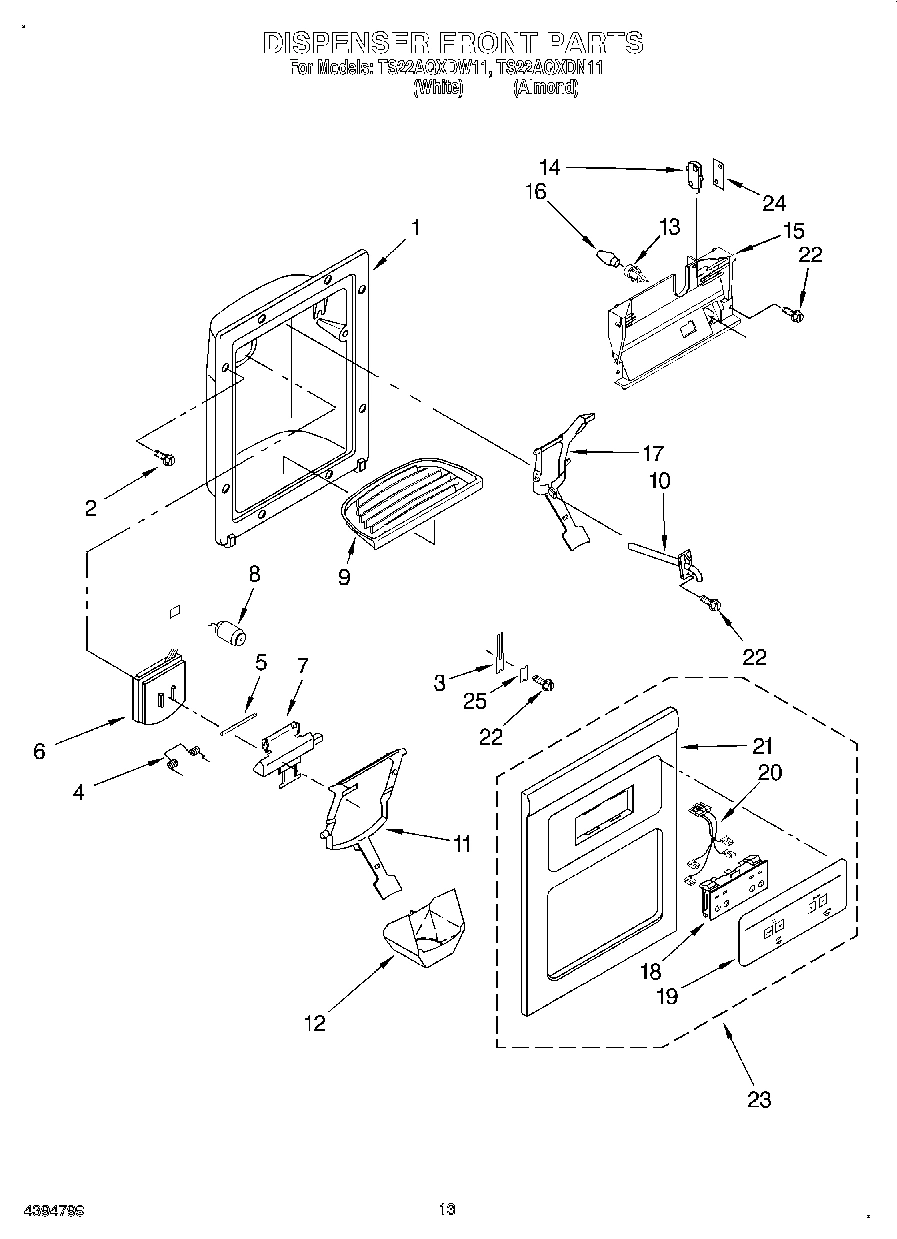

08 - DISPENSER FRONT
12 - ICEMAKER, LIT/OPTIONAL

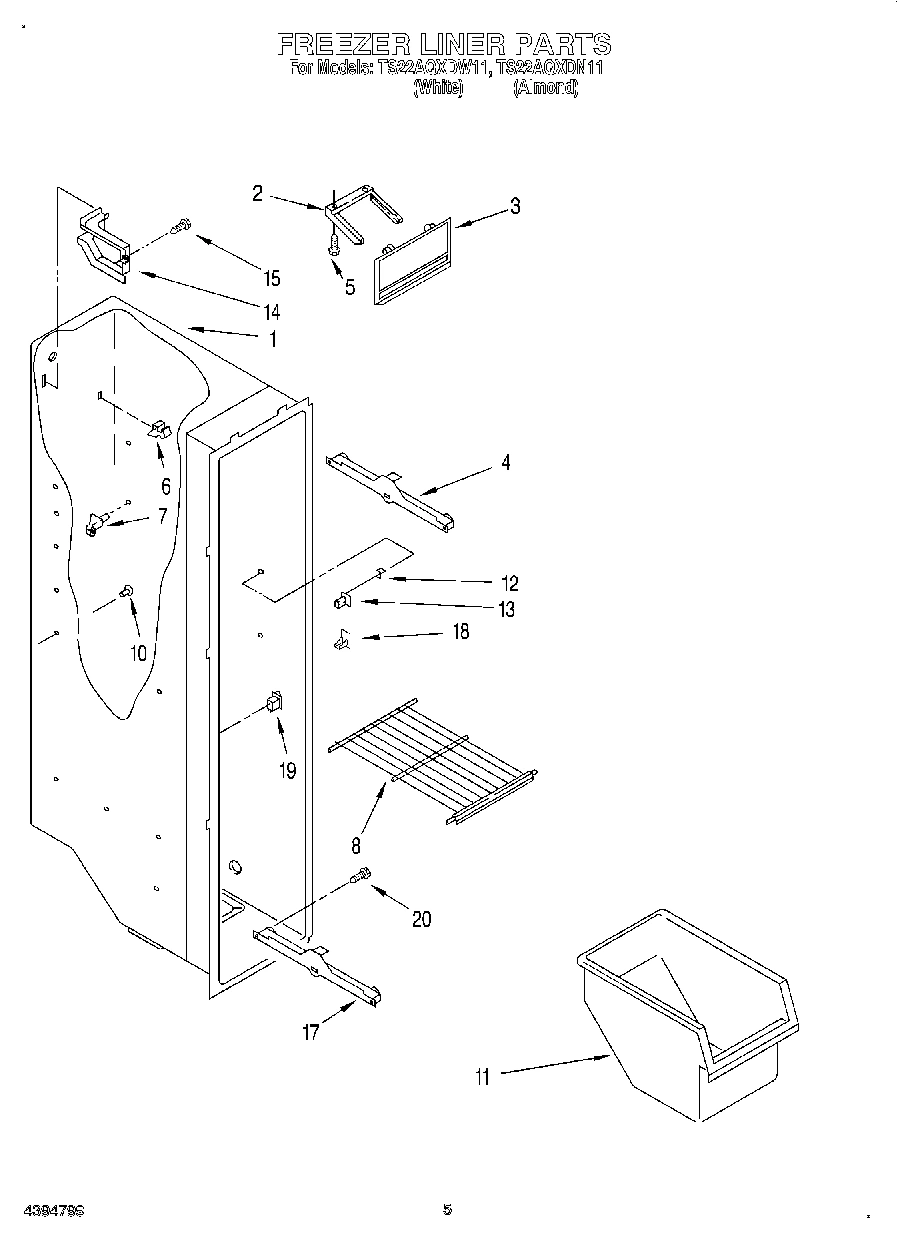

04 - FREEZER LINER

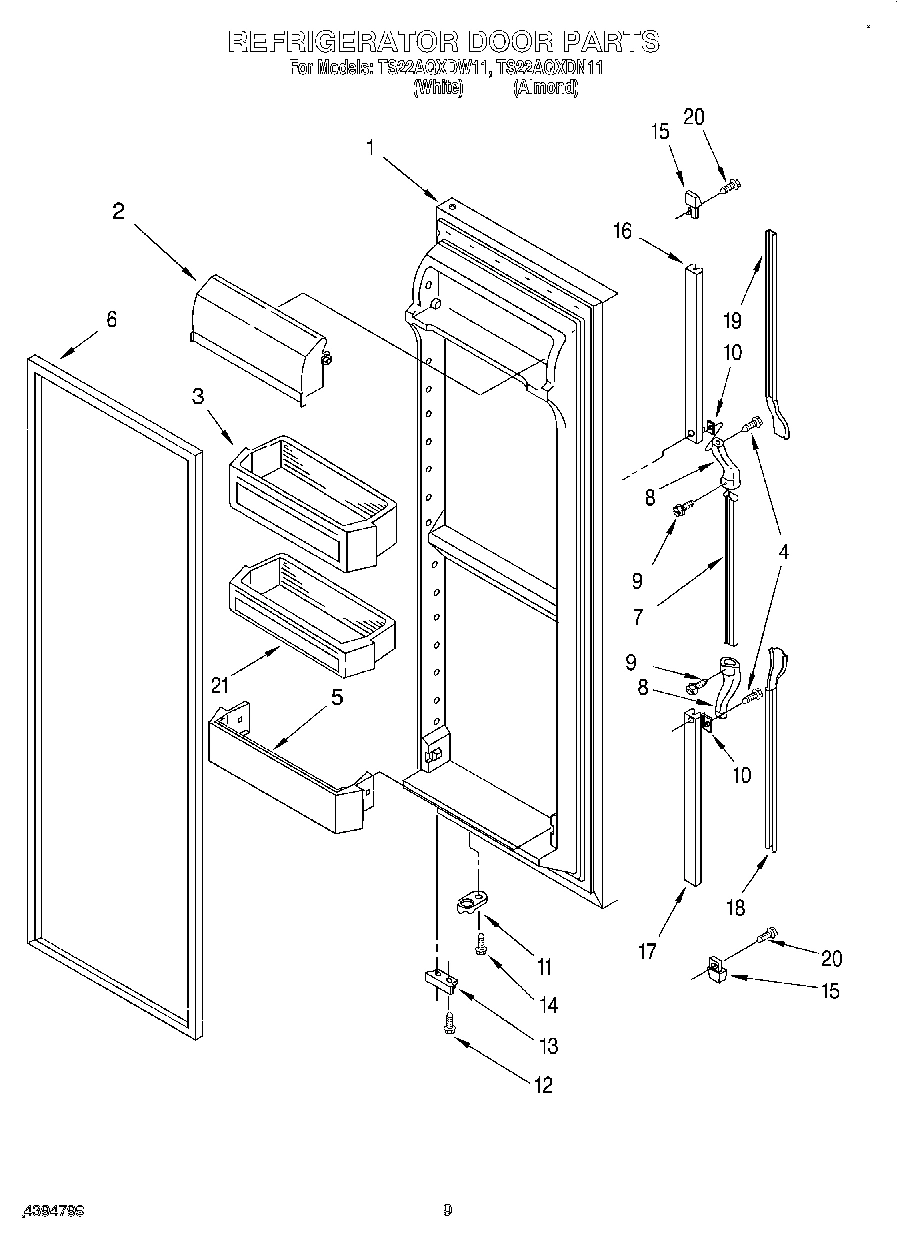

06 - REFRIGERATOR DOOR

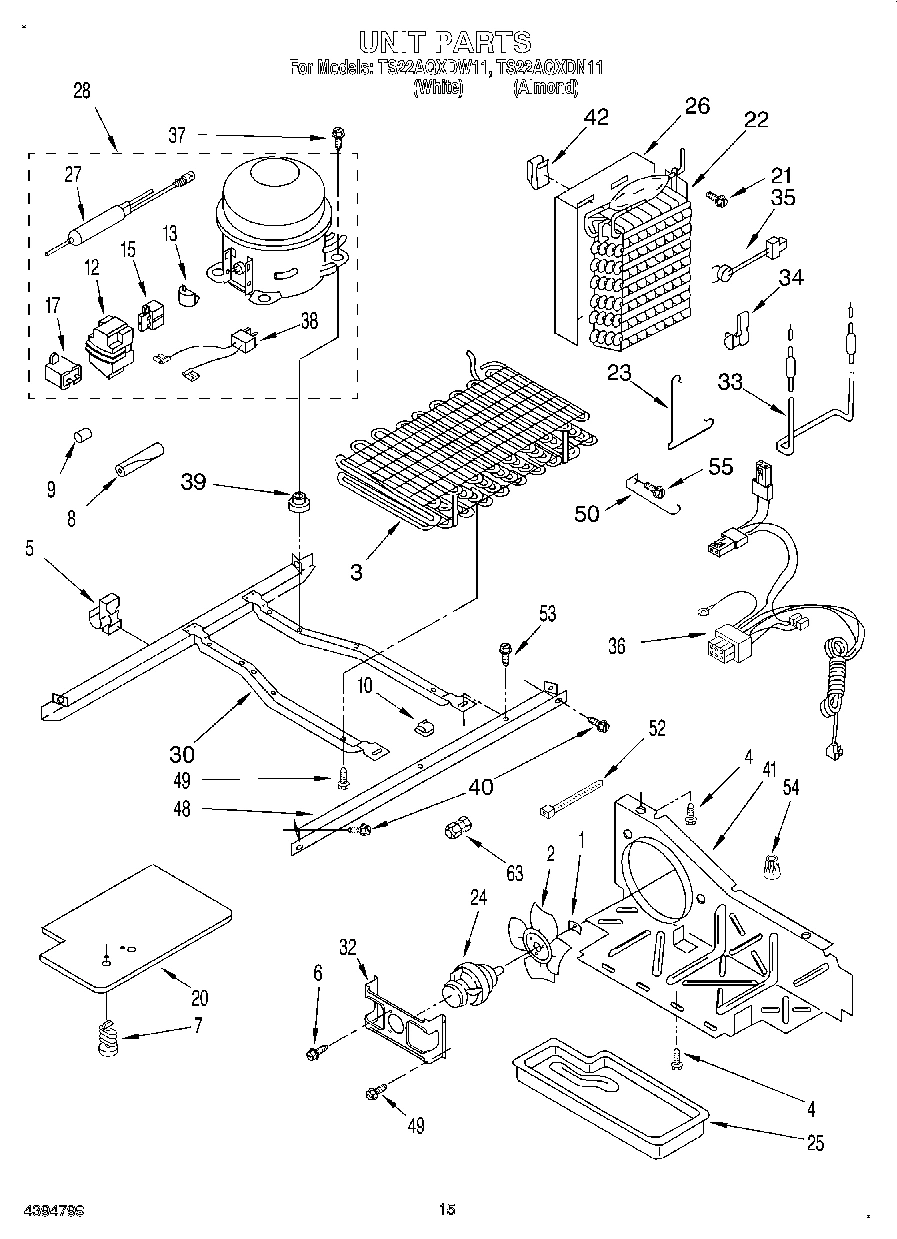

09 - UNIT

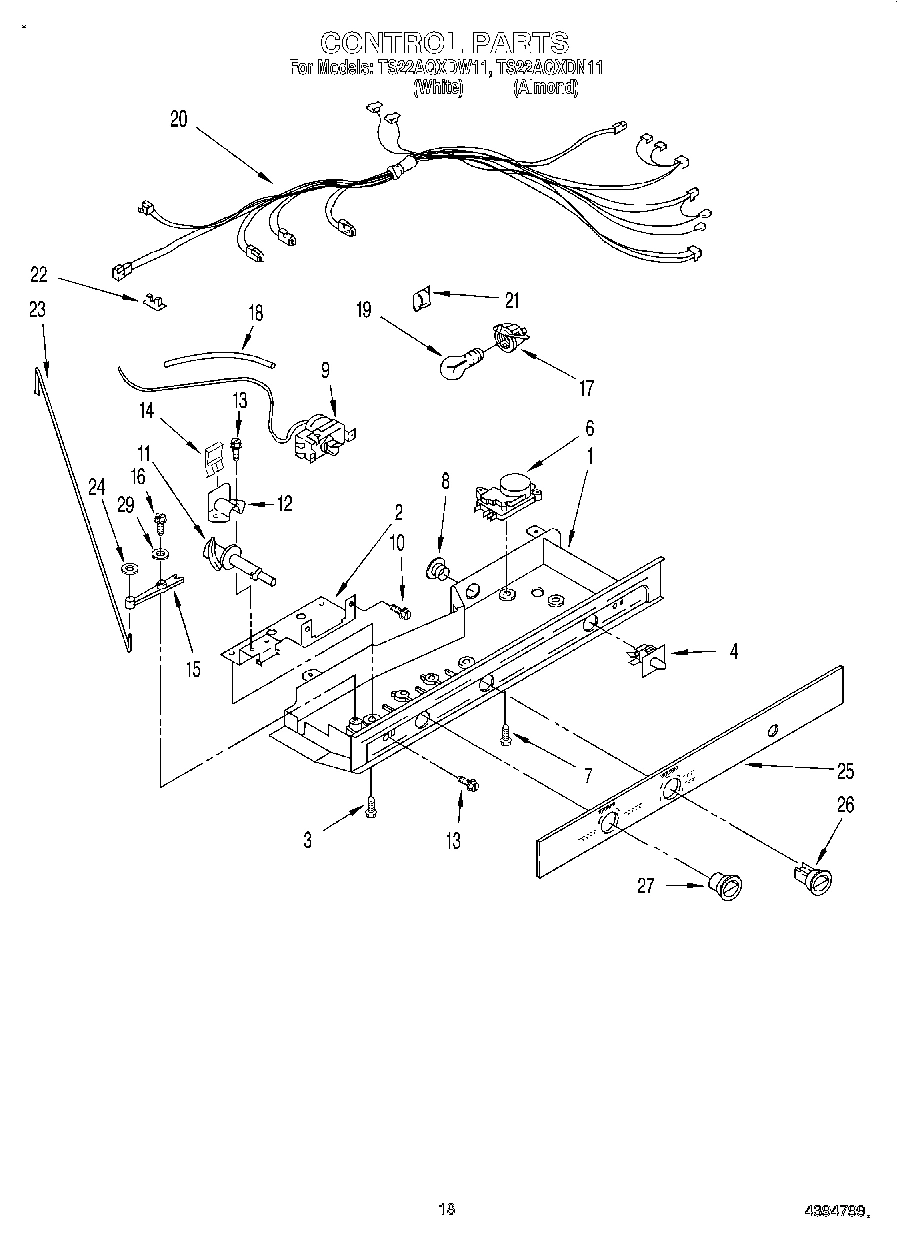

11 - CONTROL

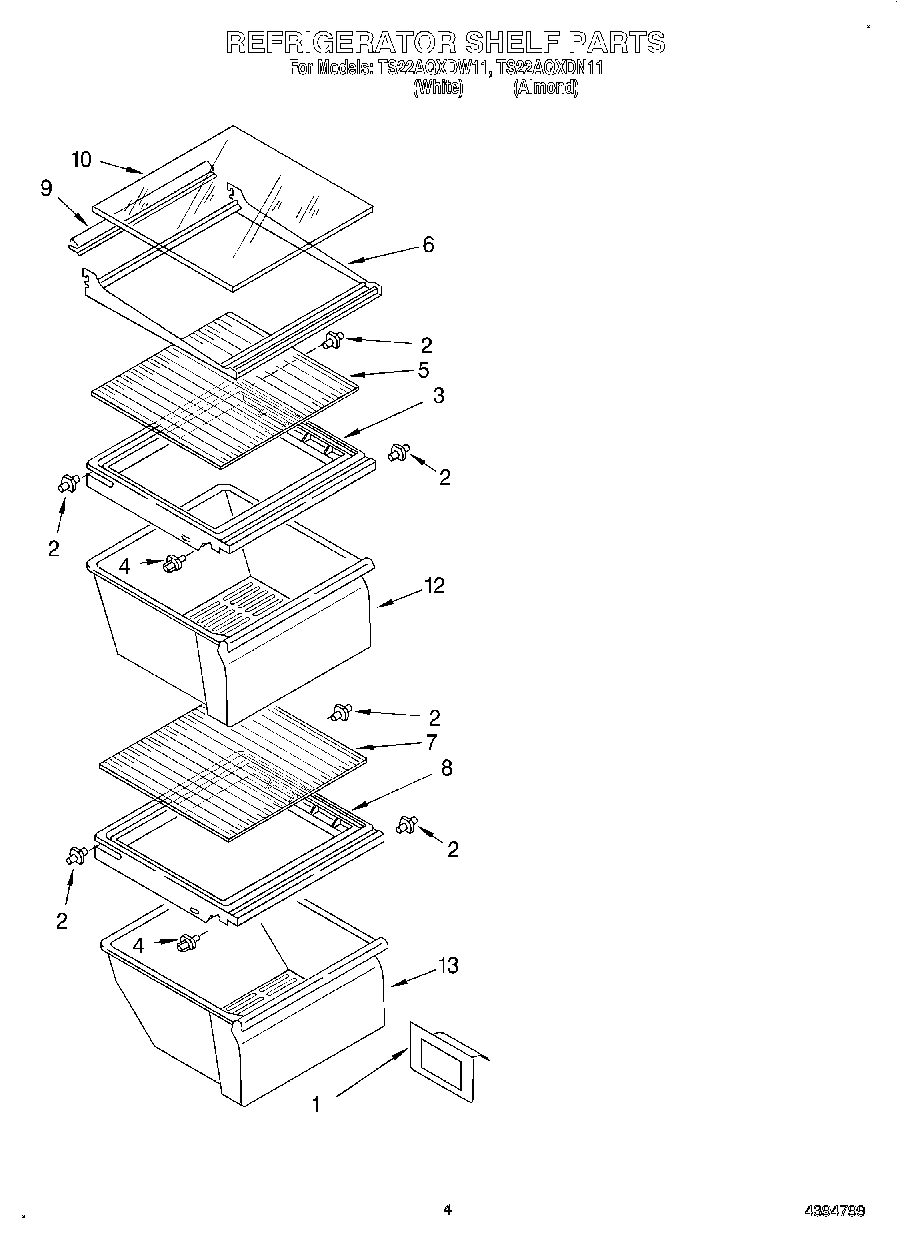

03 - REFRIGERATOR SHELF

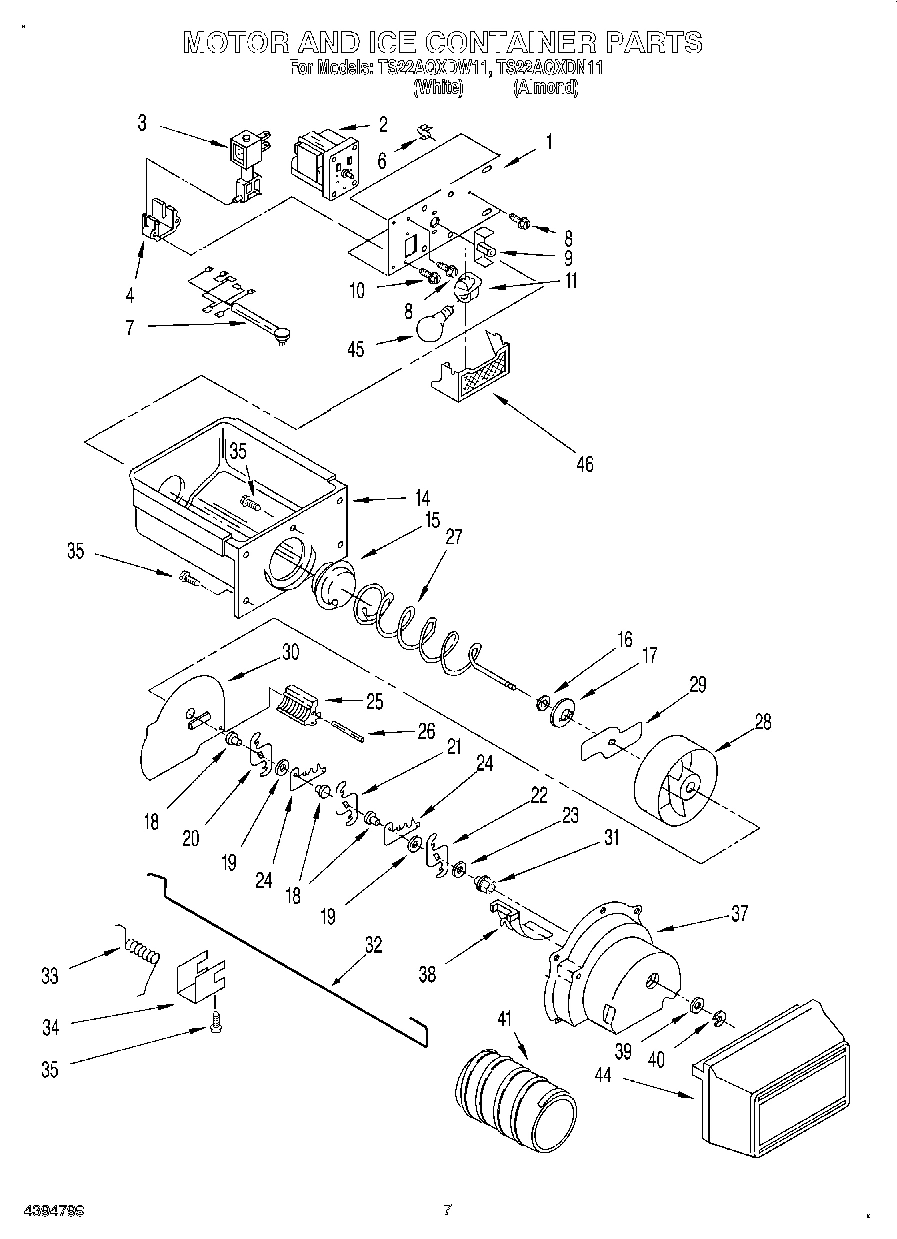

05 - MOTOR AND ICE CONTAINER

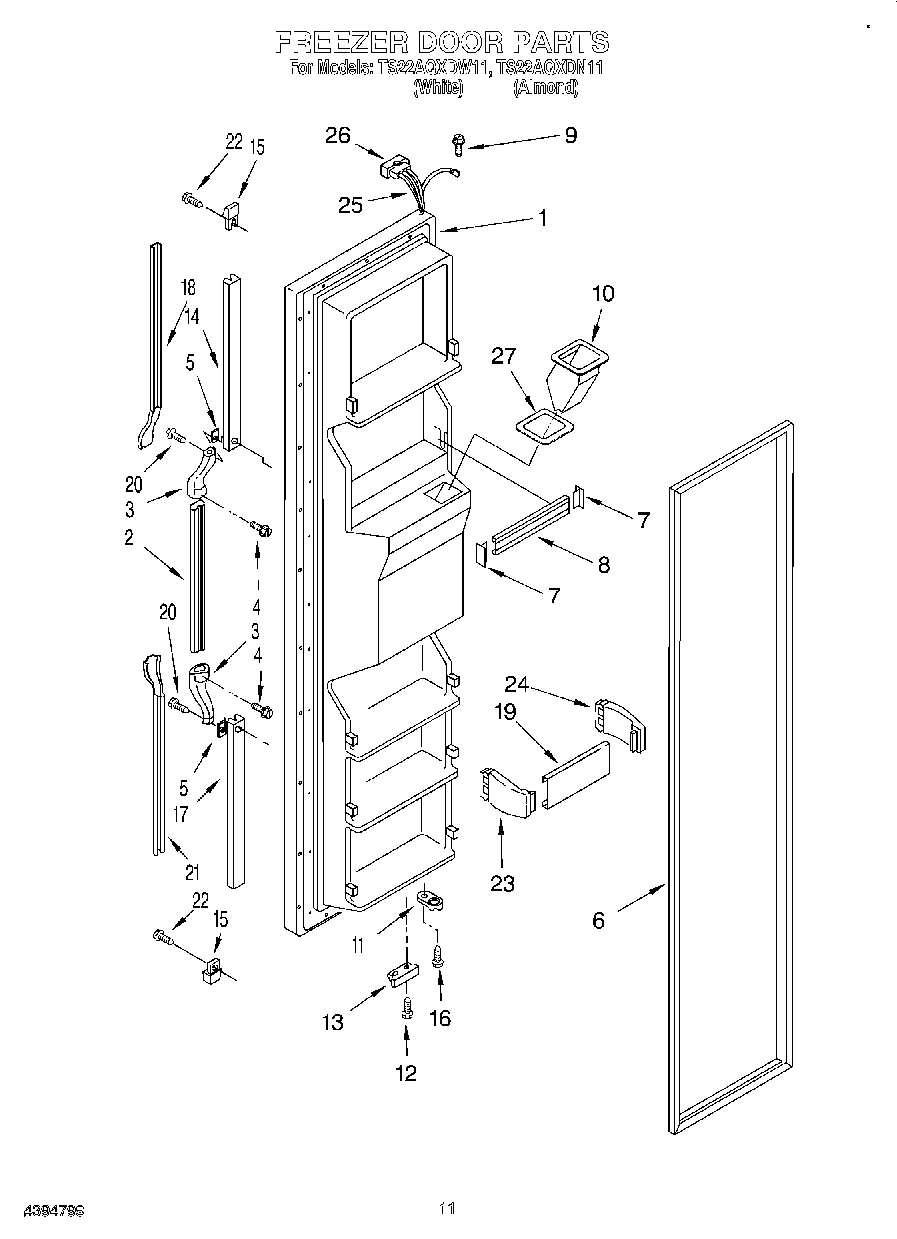

07 - FREEZER DOOR

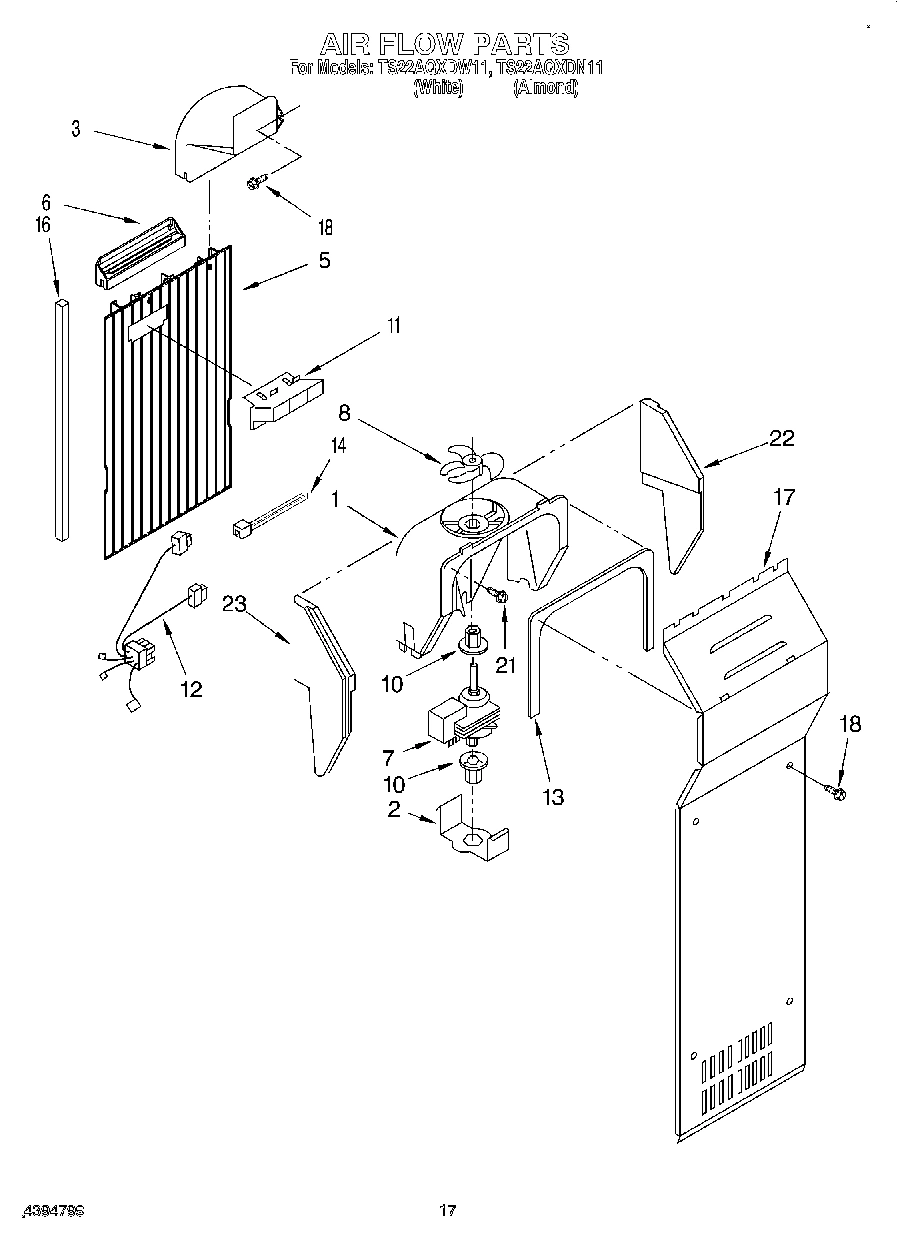

10 - AIR FLOW

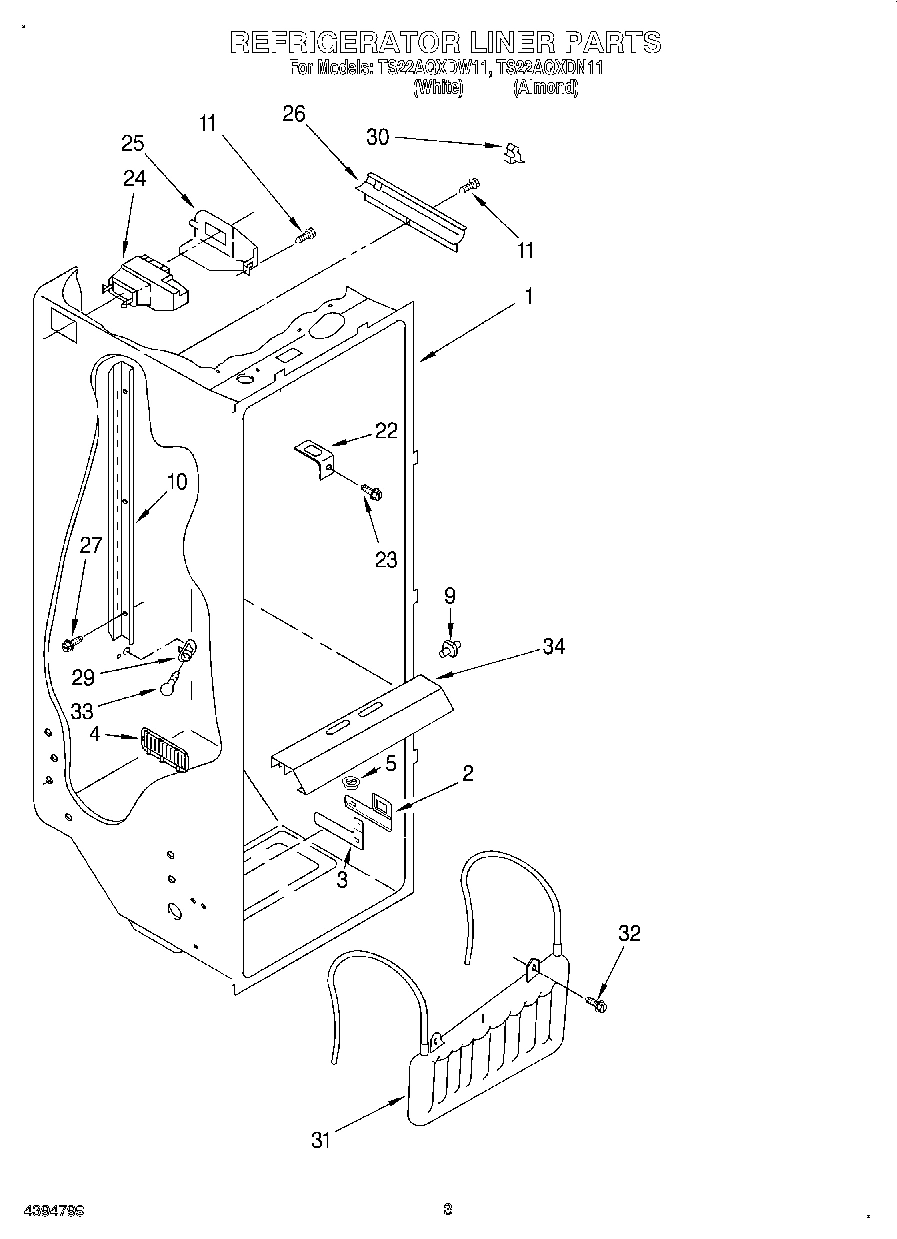

02 - REFRIGERATOR LINER
Common parts from model Whirlpool TS22AQXDW11 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
1
Bracket, Motor WPL 2183728 Contact Us For Availability
1
Freezer Door (Almond (Includes Item No.6 And WPL 2194548N Contact Us For Availability
1
Freezer Door (White) WPL 2194548W Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI131904A Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Handle, Center (Almond) WPL 2194767N Contact Us For Availability
2
Handle, Center (White) WPL 2194767W Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
3
End Cap, Center Handle WPL 1119359 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Screw WPL 489022 Contact Us For Availability
4
Louver WPL 2182147 Contact Us For Availability
5
Shim WPL 935075 Contact Us For Availability
6
Defrost Timer (10 Hr.) WPL 2176648 Contact Us For Availability
6
Shelf Assembly, Cantilever (2) WPL 2163572 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
9
Grille, Overflow (White) WPL 2183787W Contact Us For Availability
9
Retainer, Glass WPL 1125594 Contact Us For Availability
10
Grommet WPL 2176134 Contact Us For Availability
10
Glass (3) WPL 2177986 Contact Us For Availability
10
Chute, Ice WPL 2180204 Contact Us For Availability
10
Ladder, Shelf WPL 2181796 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability
13
Hinge Cover (White) WPL 1129262 Contact Us For Availability
13
Bracket, Door Stop WPL 2195950 Contact Us For Availability
14
Retainer, Top WPL 2194771 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
End Cap (2) WPL 2156220 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Retainer, Bottom WPL 2194770 Contact Us For Availability
18
Extension, Top (Almond) WPL 2194774N Contact Us For Availability
18
Extension, Top (White) WPL 2194774W Contact Us For Availability
19
Door, Shelf (4) WPL 2195919 Contact Us For Availability
20
Unit Cover, Bottom WPL 2182057 Contact Us For Availability
20
Control Box Harness WPL 2198306 Contact Us For Availability
21
Extension, Bottom (Almond) WPL 2194773N Contact Us For Availability
21
Extension, Bottom (White) WPL 2194773W Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Screw WPL 489075 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
23
Endcap (Left) WPL 2195917 Contact Us For Availability
24
Spacer, Switch (2) WPL 625834 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Escutcheon, Control Box WPL 2194977 Contact Us For Availability
25
Wire Assembly WPL 2198271 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
27
Seal, Housing WPL 2198249 Contact Us For Availability
32
Screw WPL 488280 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
36
Unit, Harness WPL 2194746 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171709 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
PAINT, BULK WPL 799344 Contact Us For Availability
× ![]()
