Model Speed Queen SWT911*N3050 Washer – Common Parts & Diagrams
Timer, Case and Plate
Timer and Bracket
Coin Slide Meter Case and Service Door
Meter Case and Service Door

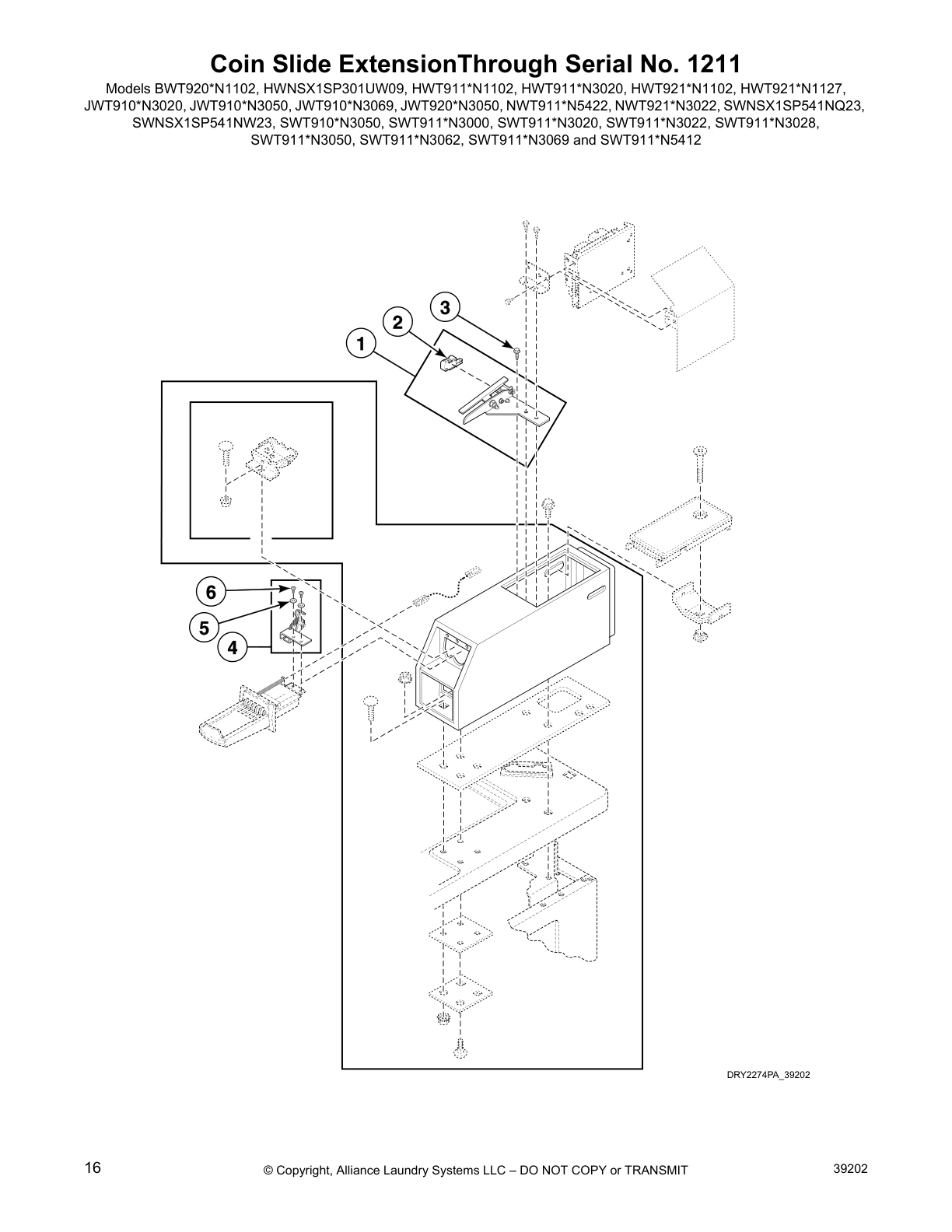

Coin Slide ExtensionThrough Serial No. 1211

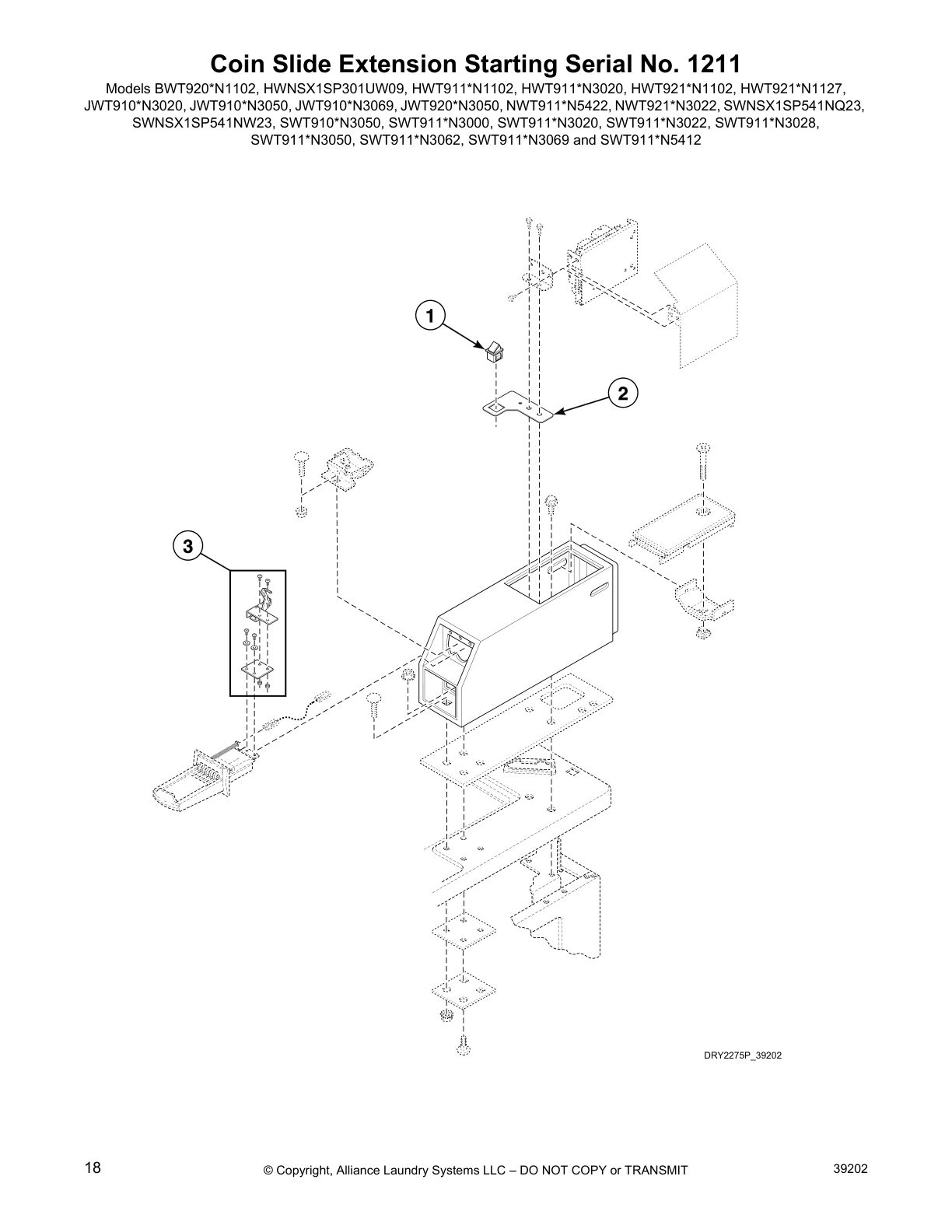

Coin Slide Extension Starting Serial No. 1211
Coin Drop, Meter Case and Service Door (Drawing 1 of 2)
Coin Drop, Meter Case and Service Door (Drawing 2 of 2)
Timer Case
Security Case and Card Reader
Control Panel, Control Hood and Controls (Drawing 1 of 18)
Control Panel, Control Hood and Controls (Drawing 2 of 18)
Control Panel, Control Hood and Controls (Drawing 3 of 18)
Control Panel, Control Hood and Controls (Drawing 4 of 18)
Control Panel, Control Hood and Controls (Drawing 5 of 18)
Control Panel, Control Hood and Controls (Drawing 6 of 18)
Control Panel, Control Hood and Controls (Drawing 8 of 18)
Control Panel, Control Hood and Controls (Drawing 9 of 18)
Control Panel, Control Hood and Controls (Drawing 10 of 18)
Control Hood
Control Panel and Controls
Control Panel, Control Hood and Controls (Drawing 11 of 18)
Control Panel, Control Hood and Controls (Drawing 12 of 18)
Control Panel, Control Hood and Controls (Drawing 13 of 18)
Control Panel, Control Hood and Controls (Drawing 14 of 18)
Control Panel, Control Hood and Controls (Drawing 15 of 18)
Control Panel, Control Hood and Controls (Drawing 16 of 18)
Control Panel, Control Hood and Controls (Drawing 17 of 18)
Control Panel, Control Hood and Controls (Drawing 18 of 18)
Lid and Lid Lock
Top Assembly and Shield
Lid
Top Assembly
Lid Switch
Fill Hose, Mixing Valve-to-Tub Cover Hose,
Mixing Valve and Mounting Bracket
Mixing Valve
Fill Hose, Mixing Valve-to-Tub Cover Hose and Mounting Bracket
Motor and Mounting Bracket Assembly (Drawing 1 of 3)
Belt, Pump and Idler Assembly (Drawing 1 of 3)
Motor, Mounting Bracket, Belt and Idler Assembly
Motor and Mounting Bracket Assembly (Drawing 2 of 3)
Belt, Pump and Idler Assembly (Drawing 2 of 3)
Motor and Mounting Bracket Assembly (Drawing 3 of 3)
Belt, Pump and Idler Assembly (Drawing 3 of 3)
Common parts from model Speed Queen SWT911*N3050 Washer
4
Idler Lever Spring SPQ 39666 Contact Us For Availability
6
Male Tab Terminal SPQ 201577P Contact Us For Availability
10
Top Shield SPQ 39744 Contact Us For Availability
16
Meter Case Lockdown Bracket SPQ 201010QP Contact Us For Availability
20
Control Assembly SPQ 201280P Contact Us For Availability
NI
SPQ 91176 SPQ 91176 Contact Us For Availability
× ![]()
