Model Speed Queen SWT211*N3050 Washer – Common Parts & Diagrams
Timer, Case and Plate
Timer and Bracket
Coin Slide Meter Case and Service Door

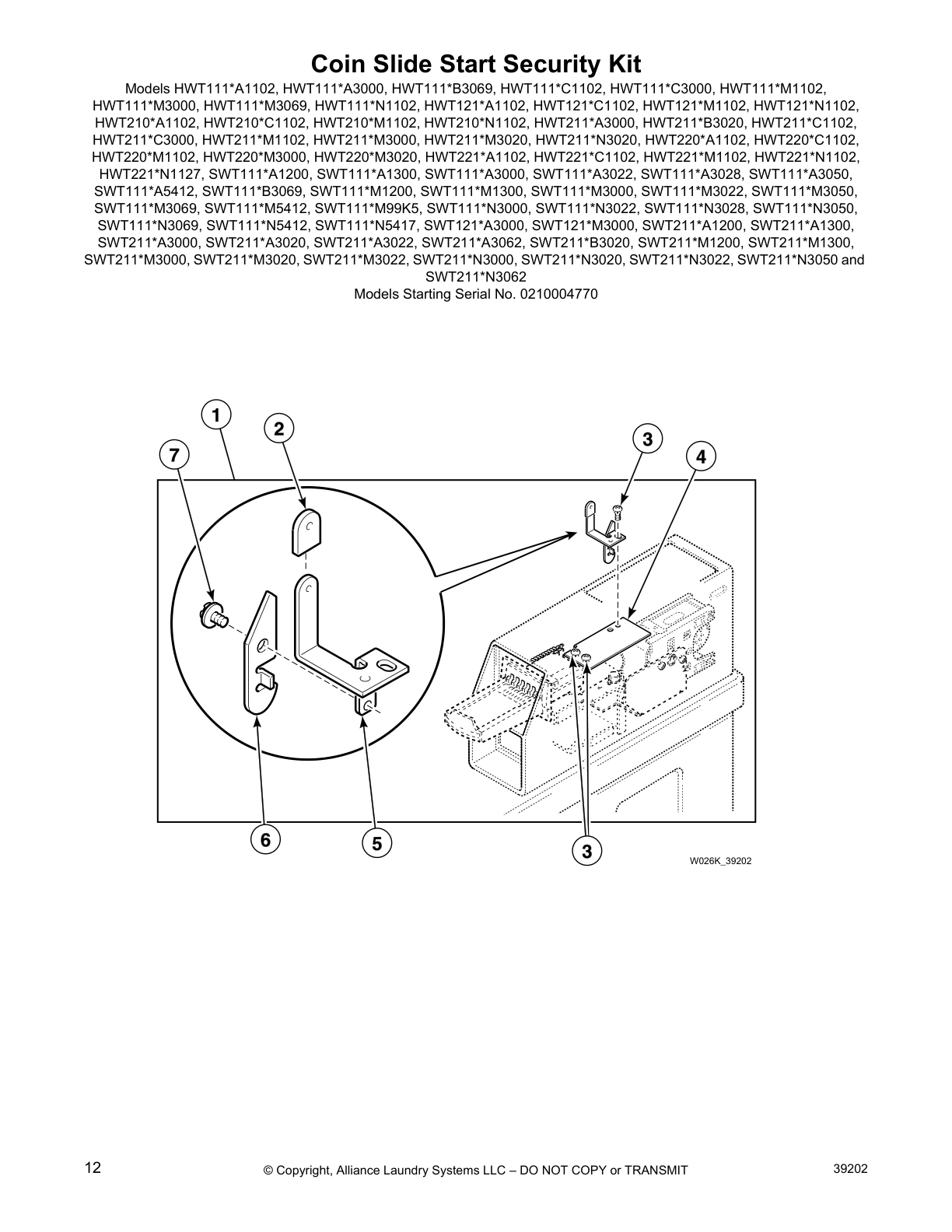

Coin Slide Start Security Kit
Meter Case and Service Door
Coin Drop, Meter Case and Service Door (Drawing 1 of 2)
Coin Drop, Meter Case and Service Door (Drawing 2 of 2)
Timer Case
Security Case and Card Reader
Control Panel, Control Hood and Controls (Drawing 1 of 18)
Control Panel, Control Hood and Controls (Drawing 2 of 18)
Control Panel, Control Hood and Controls (Drawing 3 of 18)
Control Panel, Control Hood and Controls (Drawing 4 of 18)
Control Panel, Control Hood and Controls (Drawing 5 of 18)
Control Panel, Control Hood and Controls (Drawing 6 of 18)
Control Panel, Control Hood and Controls (Drawing 8 of 18)
Control Panel, Control Hood and Controls (Drawing 9 of 18)
Control Panel, Control Hood and Controls (Drawing 10 of 18)
Control Hood
Control Panel and Controls
Control Panel, Control Hood and Controls (Drawing 11 of 18)
Control Panel, Control Hood and Controls (Drawing 12 of 18)
Control Panel, Control Hood and Controls (Drawing 13 of 18)
Control Panel, Control Hood and Controls (Drawing 14 of 18)
Control Panel, Control Hood and Controls (Drawing 15 of 18)
Control Panel, Control Hood and Controls (Drawing 16 of 18)
Control Panel, Control Hood and Controls (Drawing 17 of 18)
Control Panel, Control Hood and Controls (Drawing 18 of 18)
Lid and Lid Lock
Top Assembly and Shield
Lid
Top Assembly
Lid Switch
Fill Hose, Mixing Valve-to-Tub Cover Hose,
Mixing Valve and Mounting Bracket
Mixing Valve
Fill Hose, Mixing Valve-to-Tub Cover Hose and Mounting Bracket
Motor and Mounting Bracket Assembly (Drawing 1 of 3)
Belt, Pump and Idler Assembly (Drawing 1 of 3)
Motor, Mounting Bracket, Belt and Idler Assembly
Motor and Mounting Bracket Assembly (Drawing 2 of 3)
Belt, Pump and Idler Assembly (Drawing 2 of 3)
Motor and Mounting Bracket Assembly (Drawing 3 of 3)
Belt, Pump and Idler Assembly (Drawing 3 of 3)
Common parts from model Speed Queen SWT211*N3050 Washer
SPQ 524P3W SPQ 524P3W Contact Us For Availability
SPQ 201010QP SPQ 201010QP Contact Us For Availability
3
SPQ 91176 SPQ 91176 Contact Us For Availability
4
Idler Lever Spring SPQ 39666 Contact Us For Availability
8
SPQ 39874LP SPQ 39874LP Contact Us For Availability
11
Capacitor Clamp SPQ 37535 Contact Us For Availability
12
Screw SPQ 34565 Contact Us For Availability
13
Male Tab Terminal SPQ 20530 Contact Us For Availability
14
Motor Kit SPQ 00177 Contact Us For Availability
15
Screw SPQ 201280P Contact Us For Availability
× ![]()
