Model Speed Queen SFNNXFSP112TN01 Washer – Common Parts & Diagrams

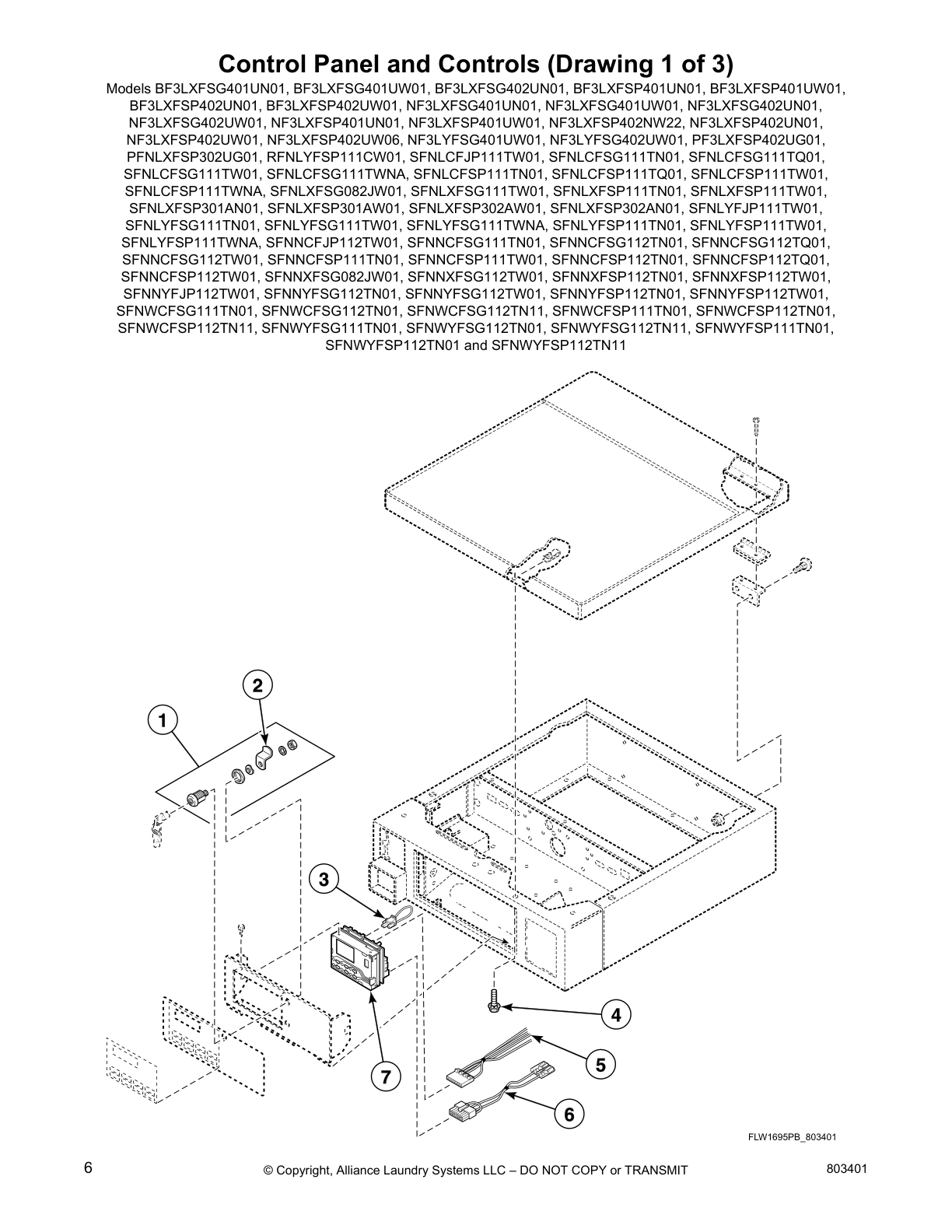

Control Panel and Controls (Drawing 1 of 3)

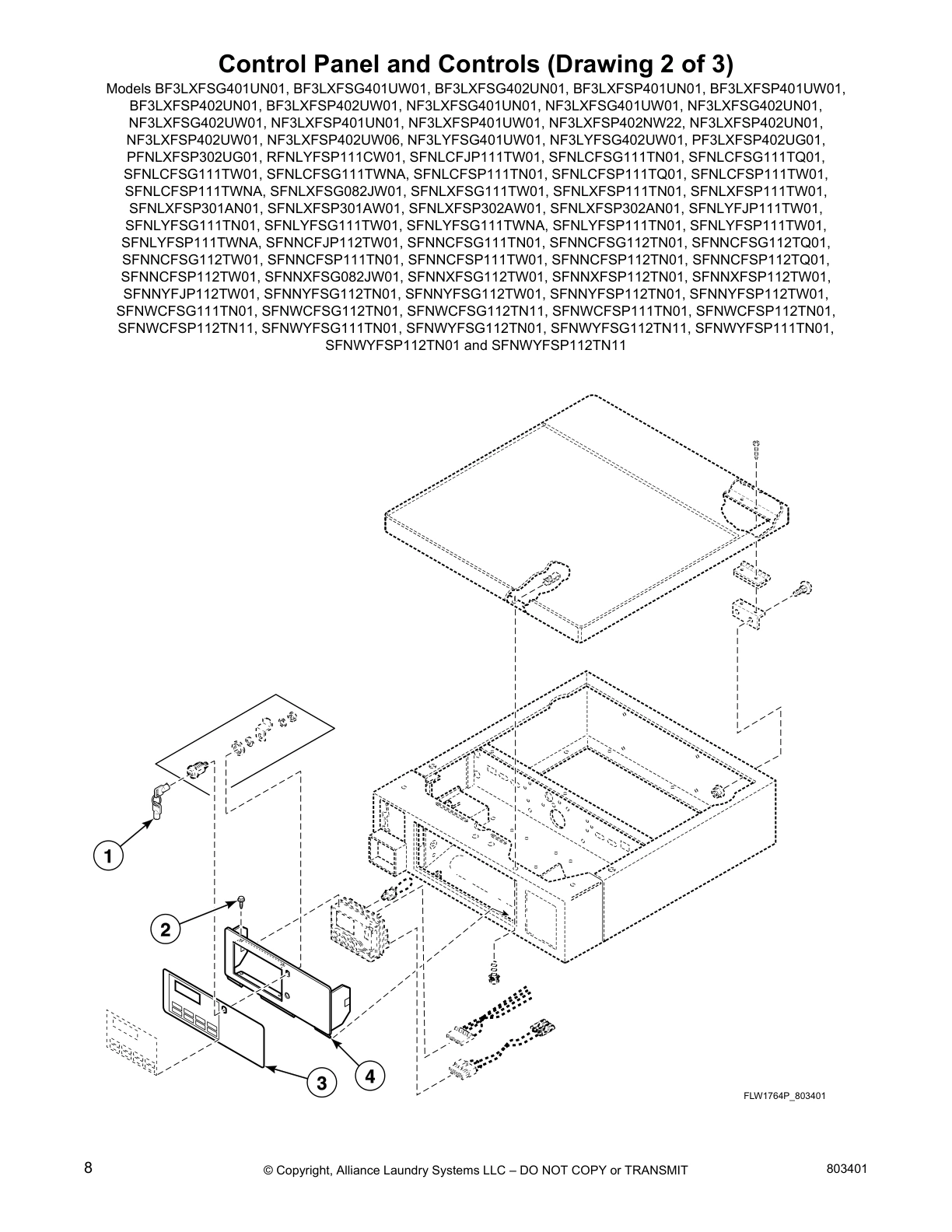

Control Panel and Controls (Drawing 2 of 3)

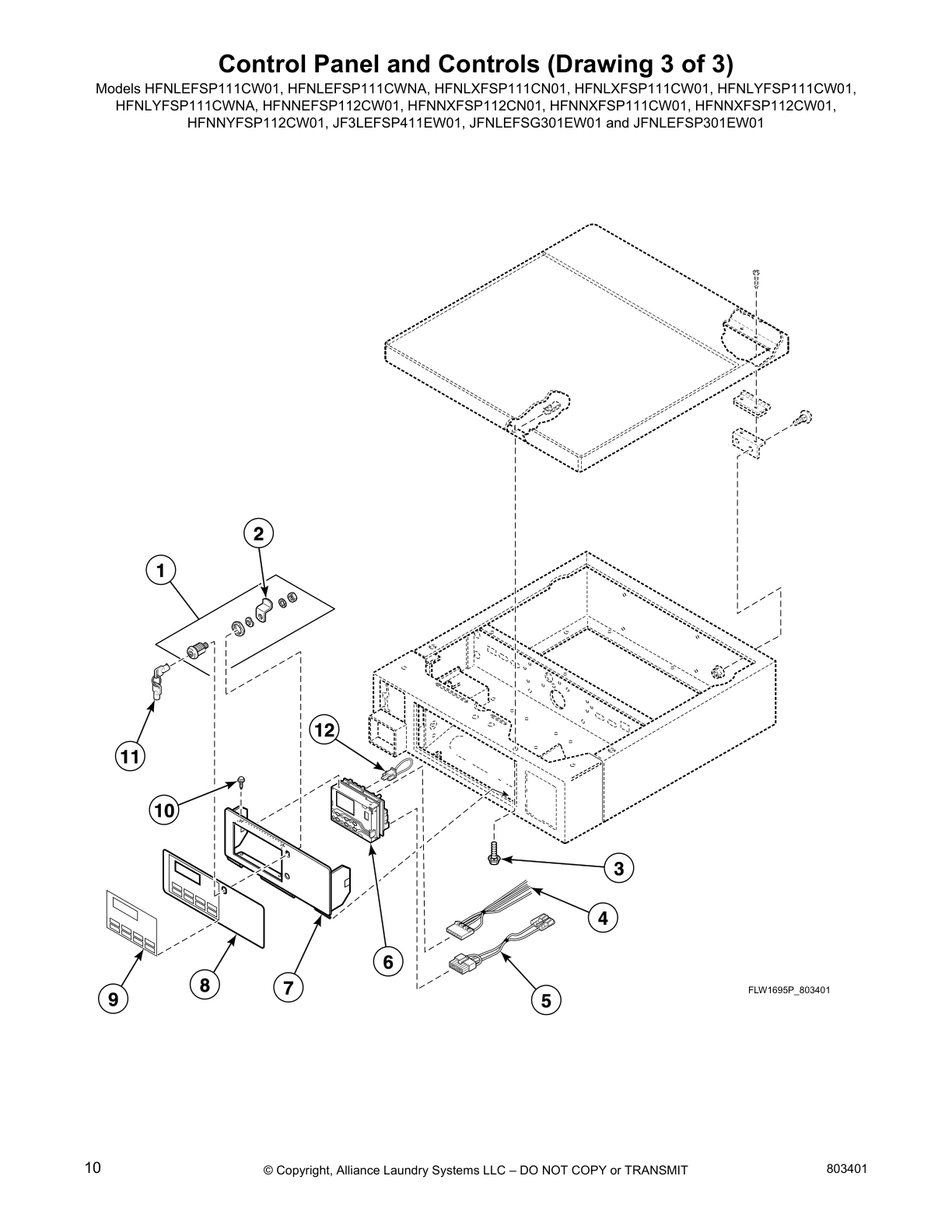

Control Panel and Controls (Drawing 3 of 3)

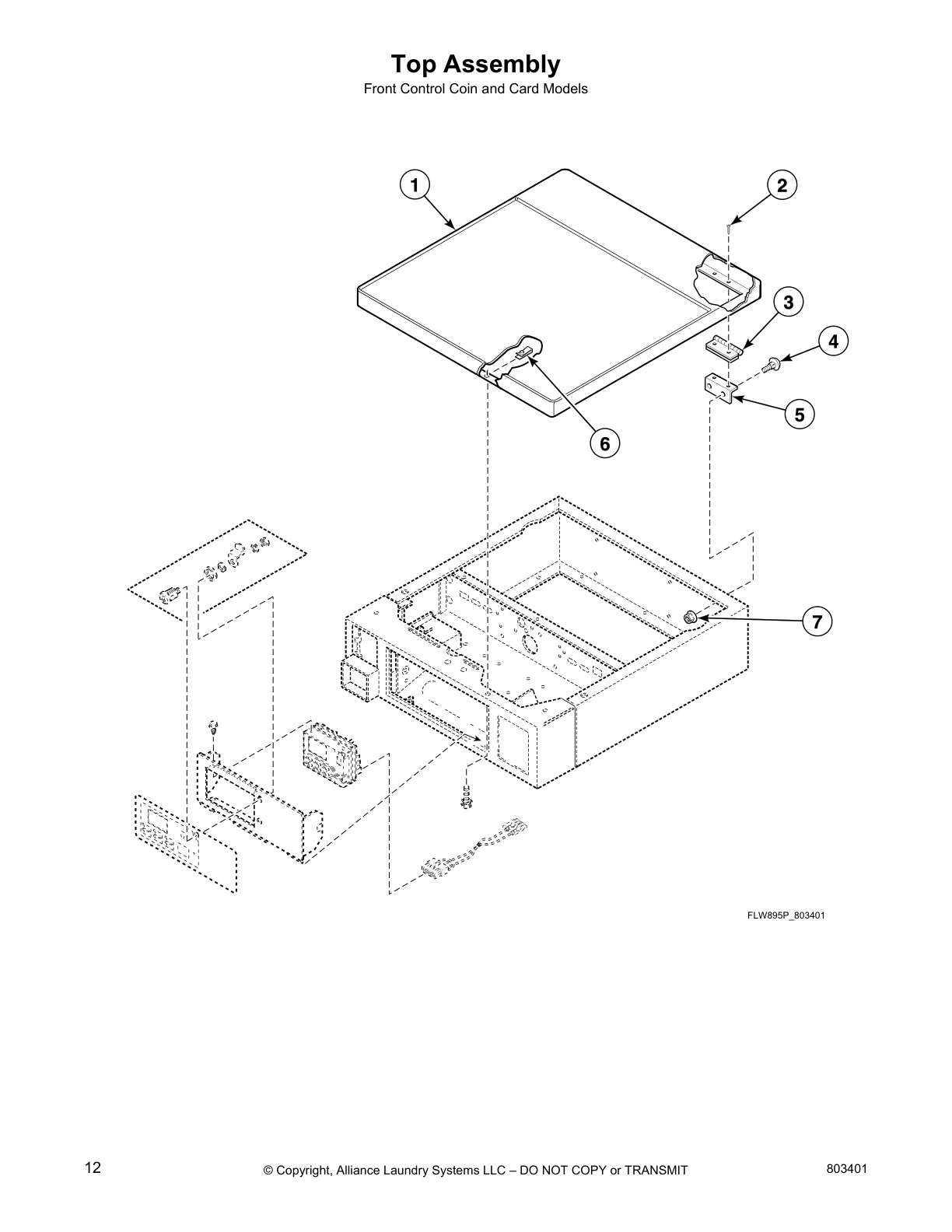

Top Assembly

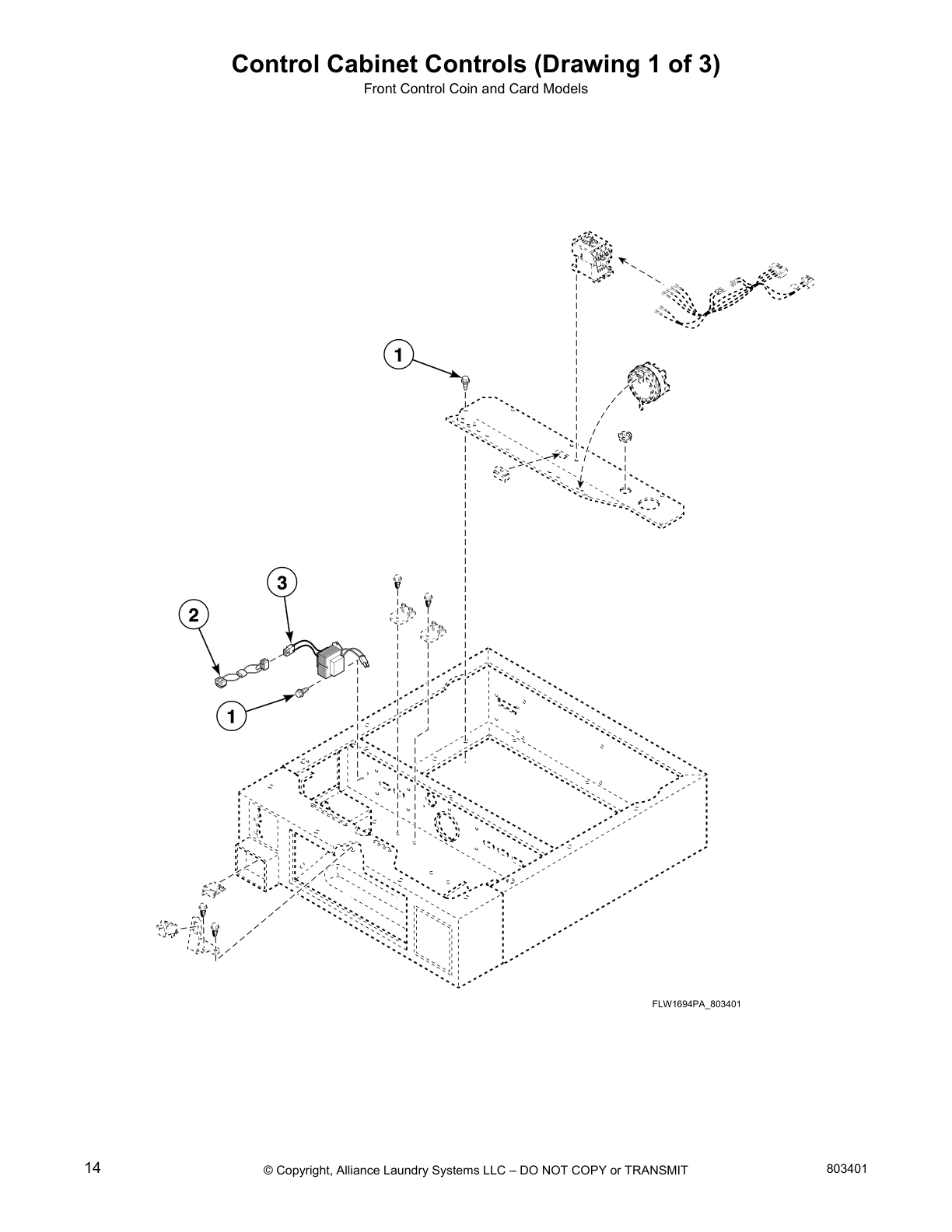

Control Cabinet Controls (Drawing 1 of 3)

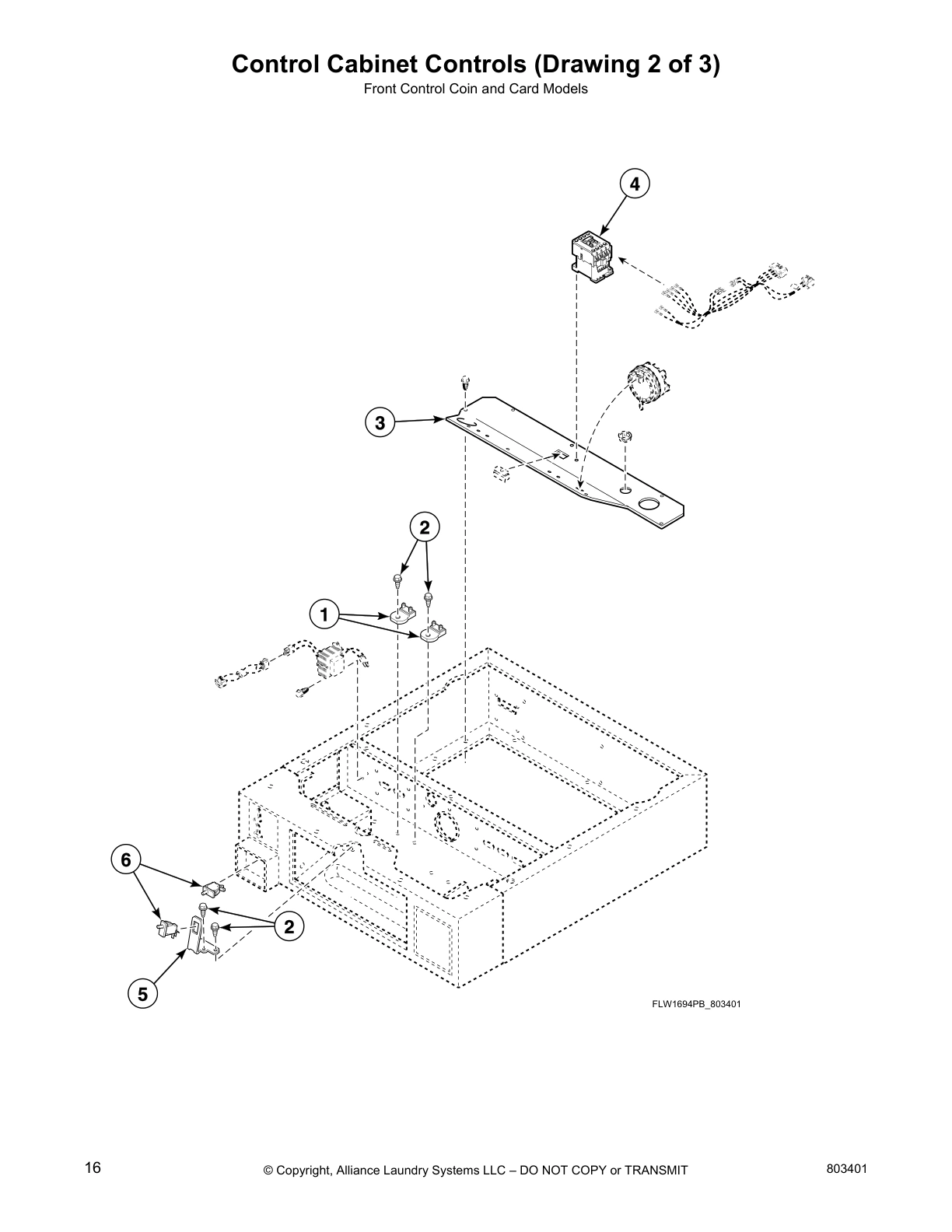

Control Cabinet Controls (Drawing 2 of 3)

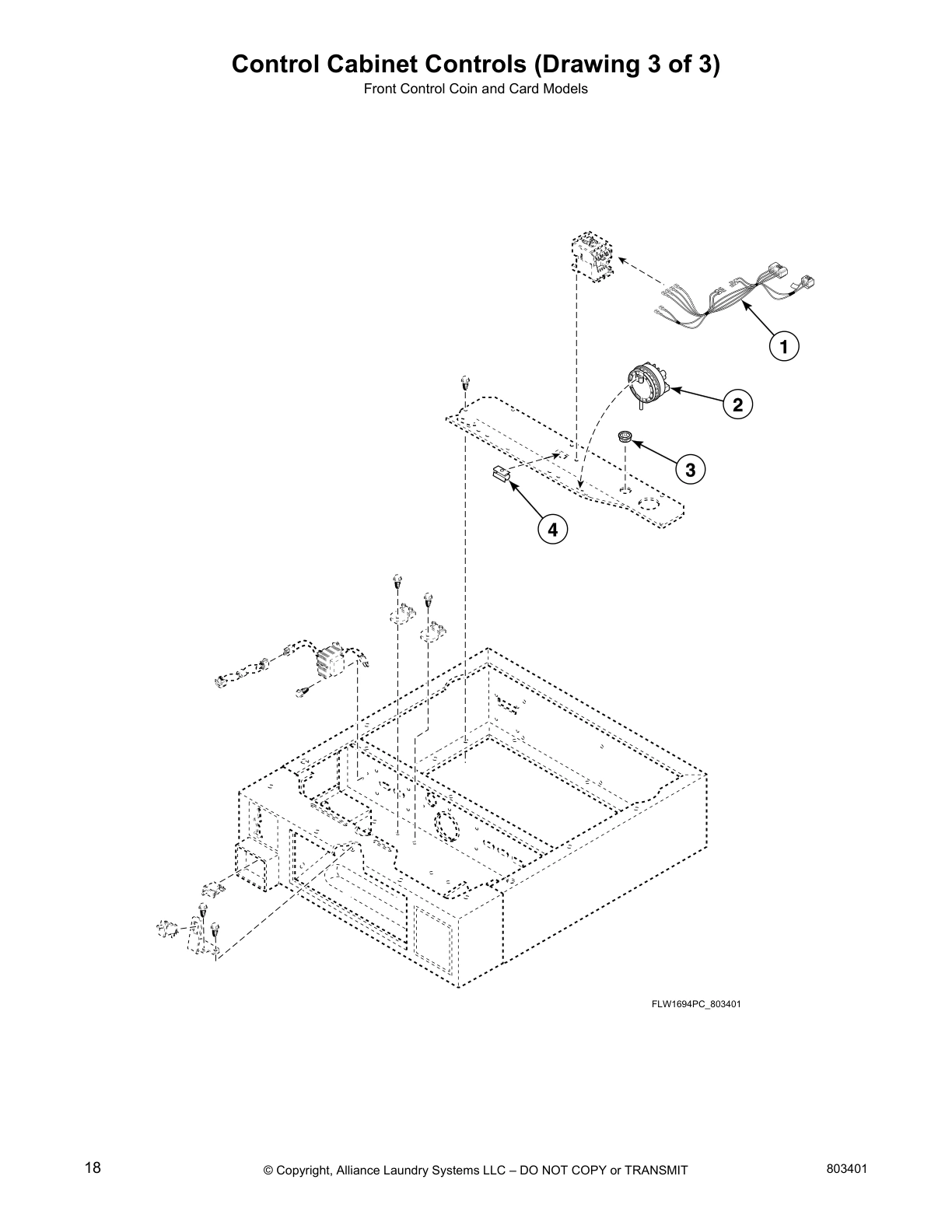

Control Cabinet Controls (Drawing 3 of 3)

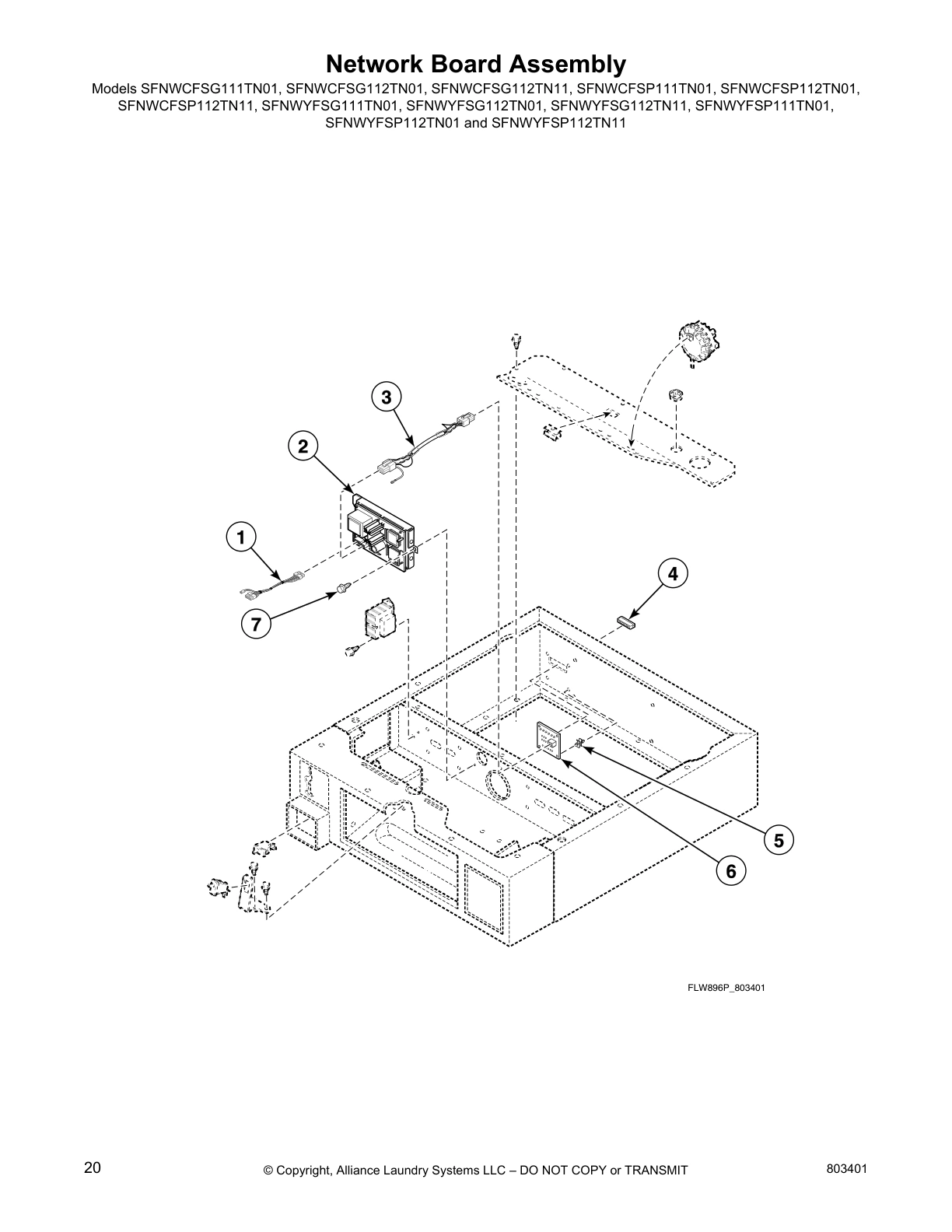

Network Board Assembly

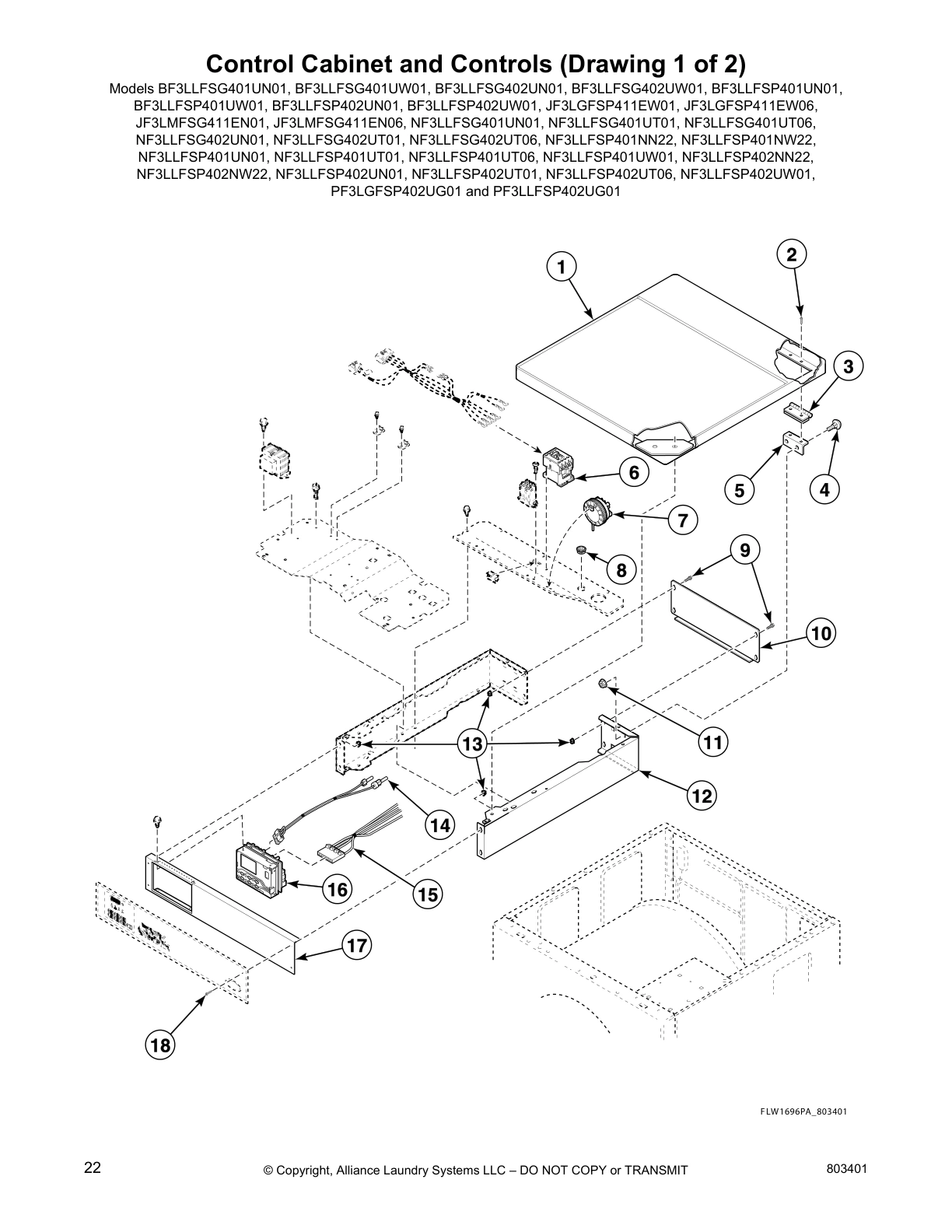

Control Cabinet and Controls (Drawing 1 of 2)

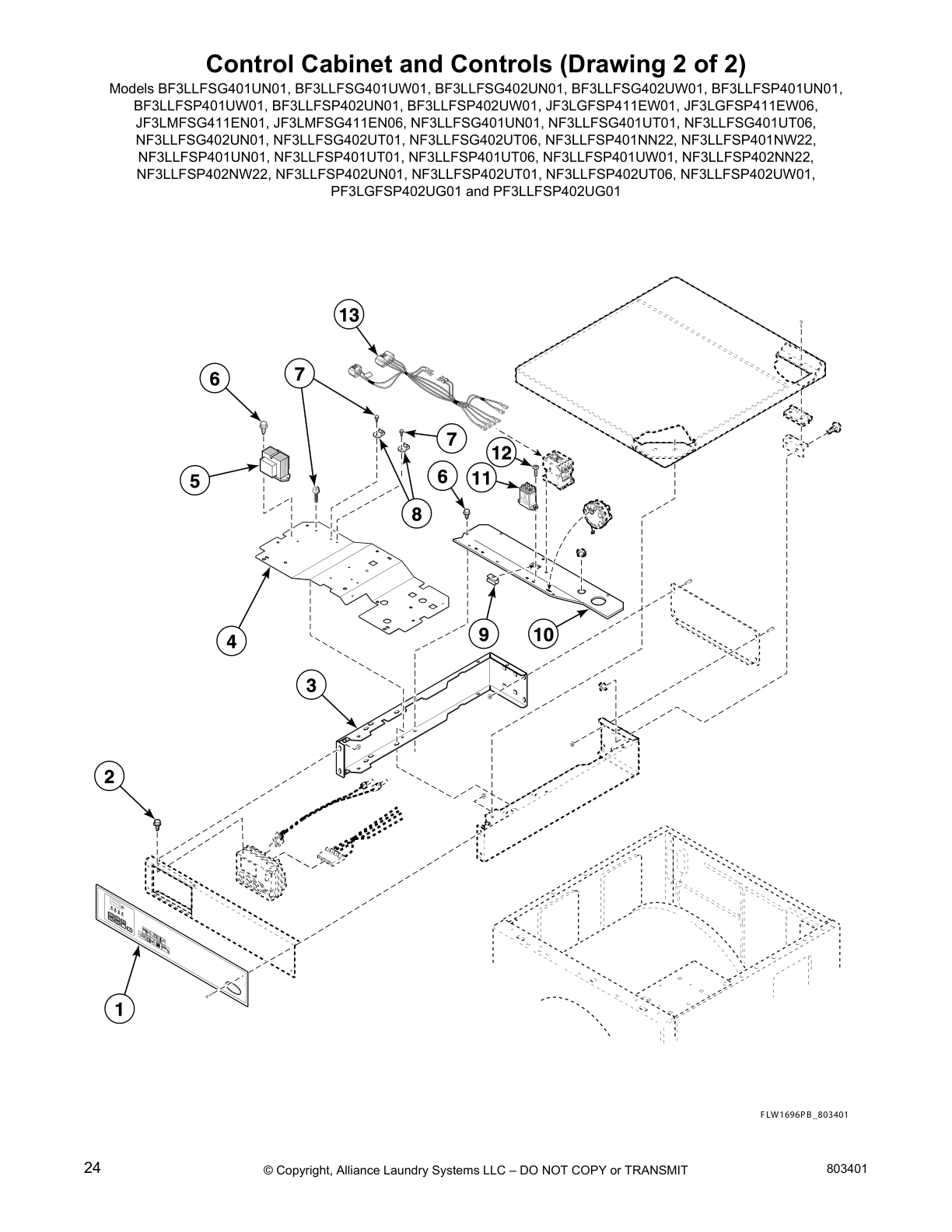

Control Cabinet and Controls (Drawing 2 of 2)

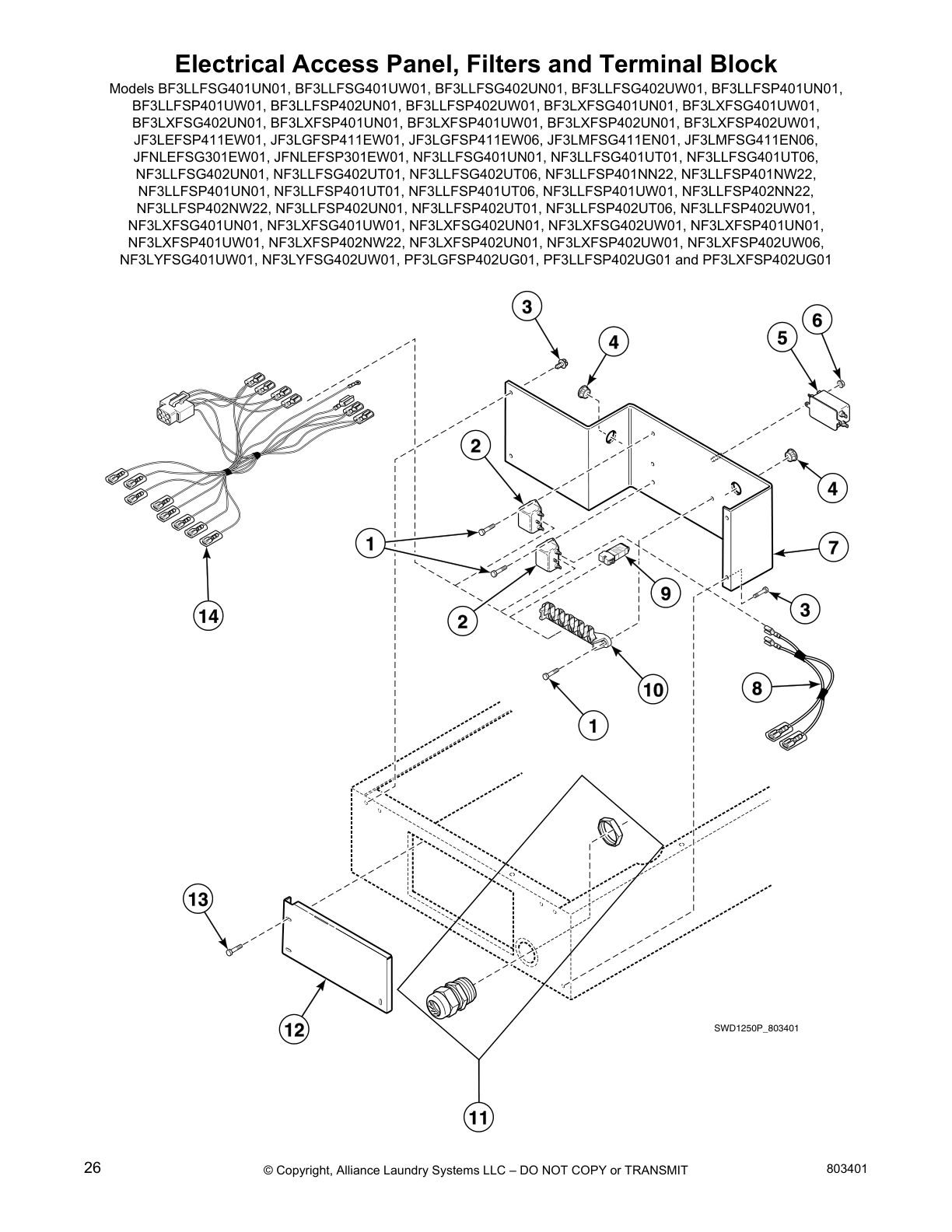

Electrical Access Panel, Filters and Terminal Block

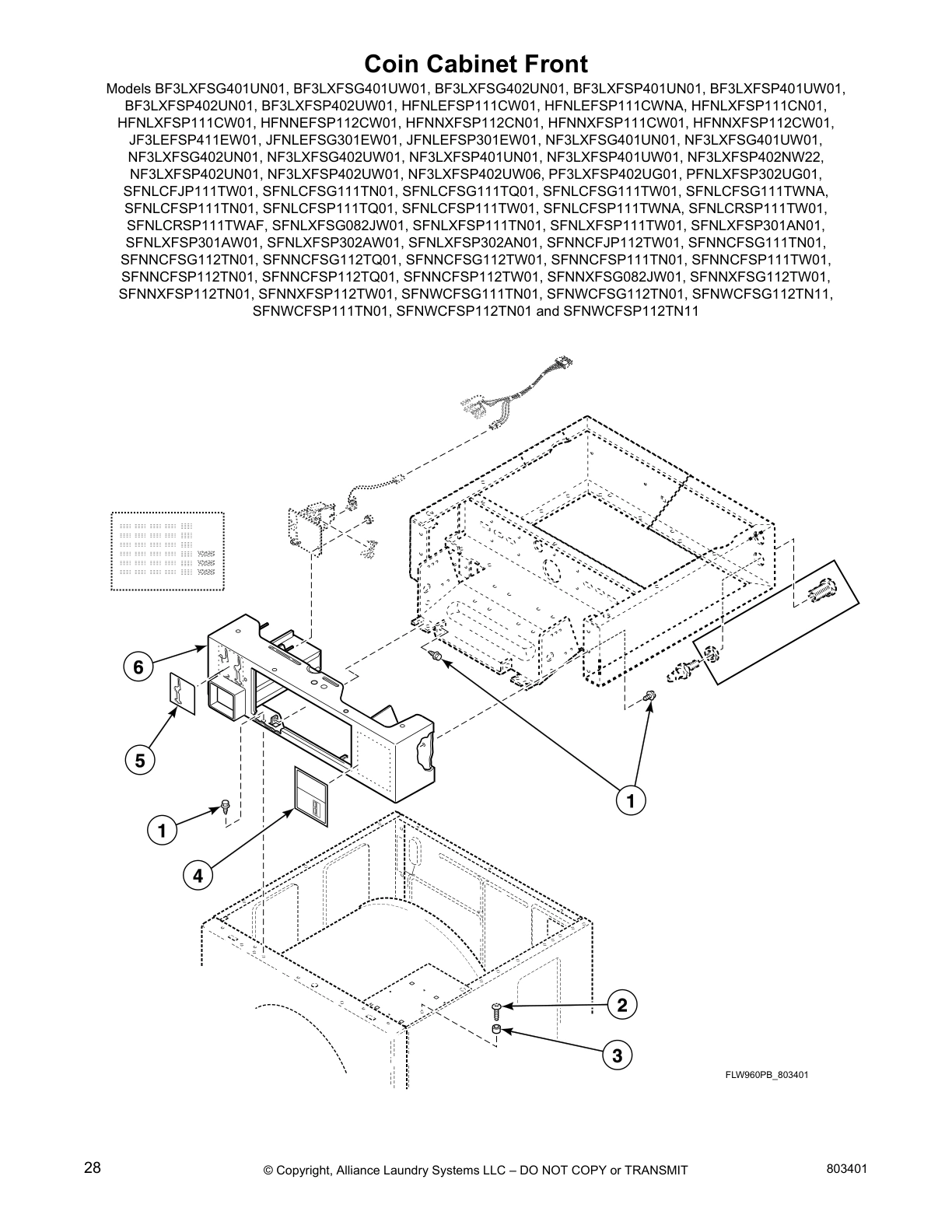

Coin Cabinet Front

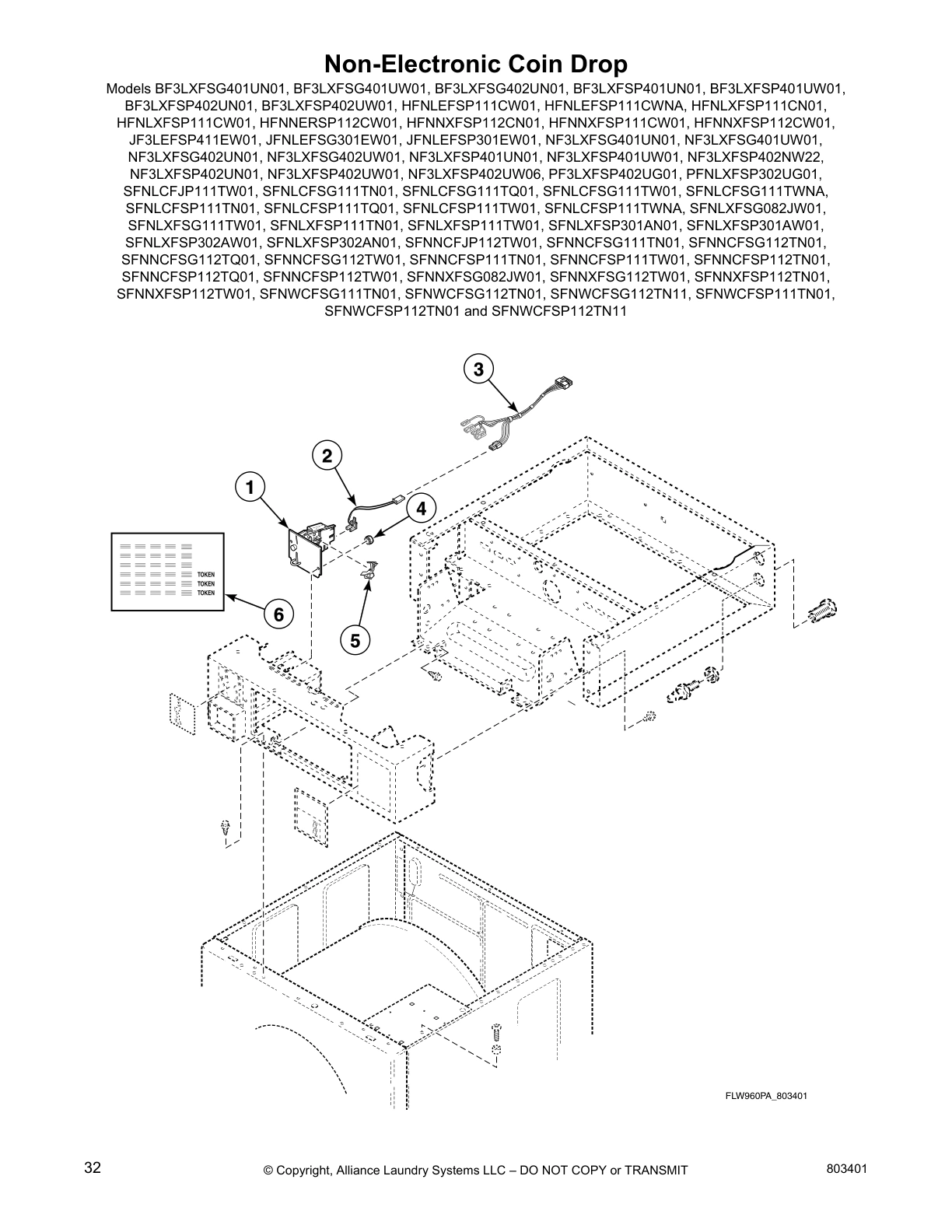

Non-Electronic Coin Drop

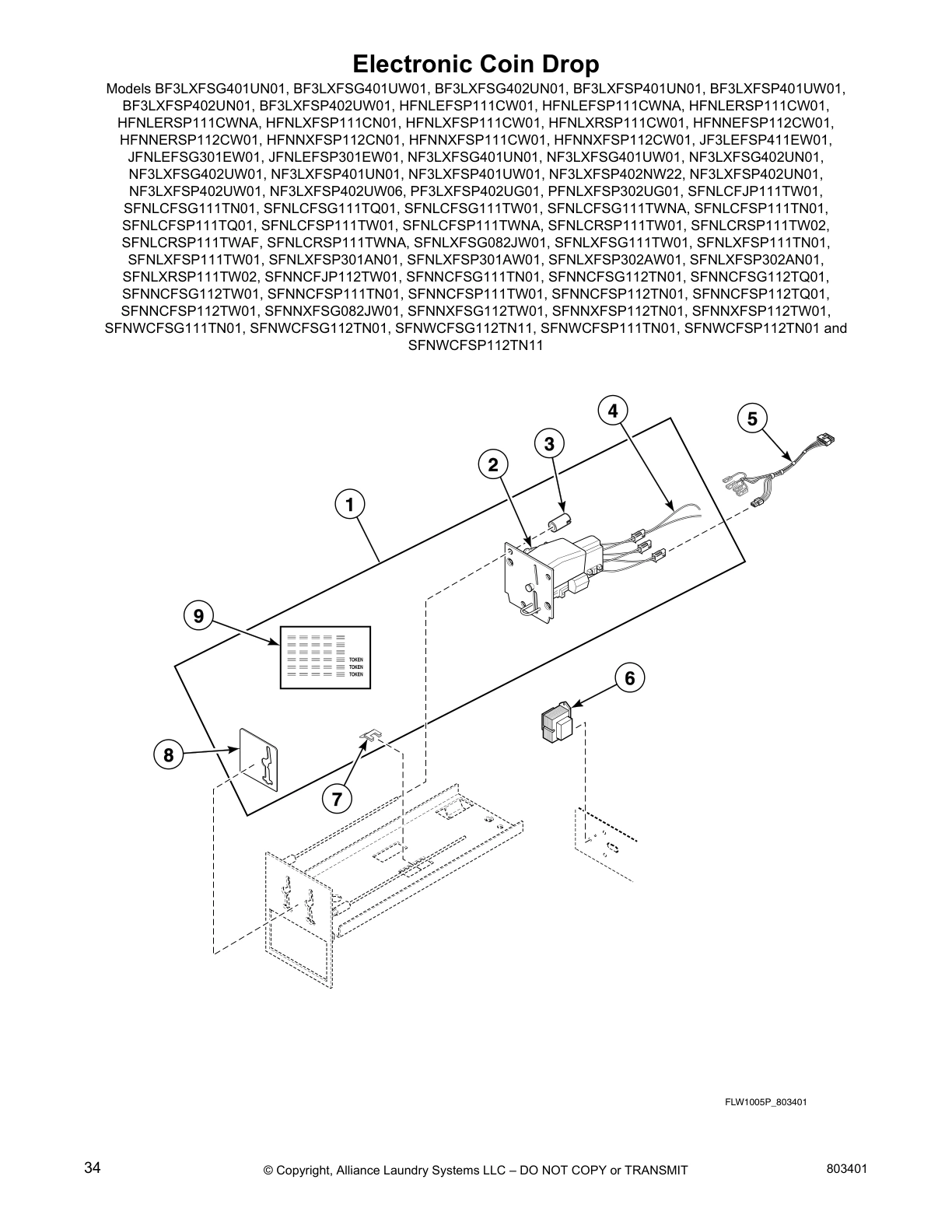

Electronic Coin Drop

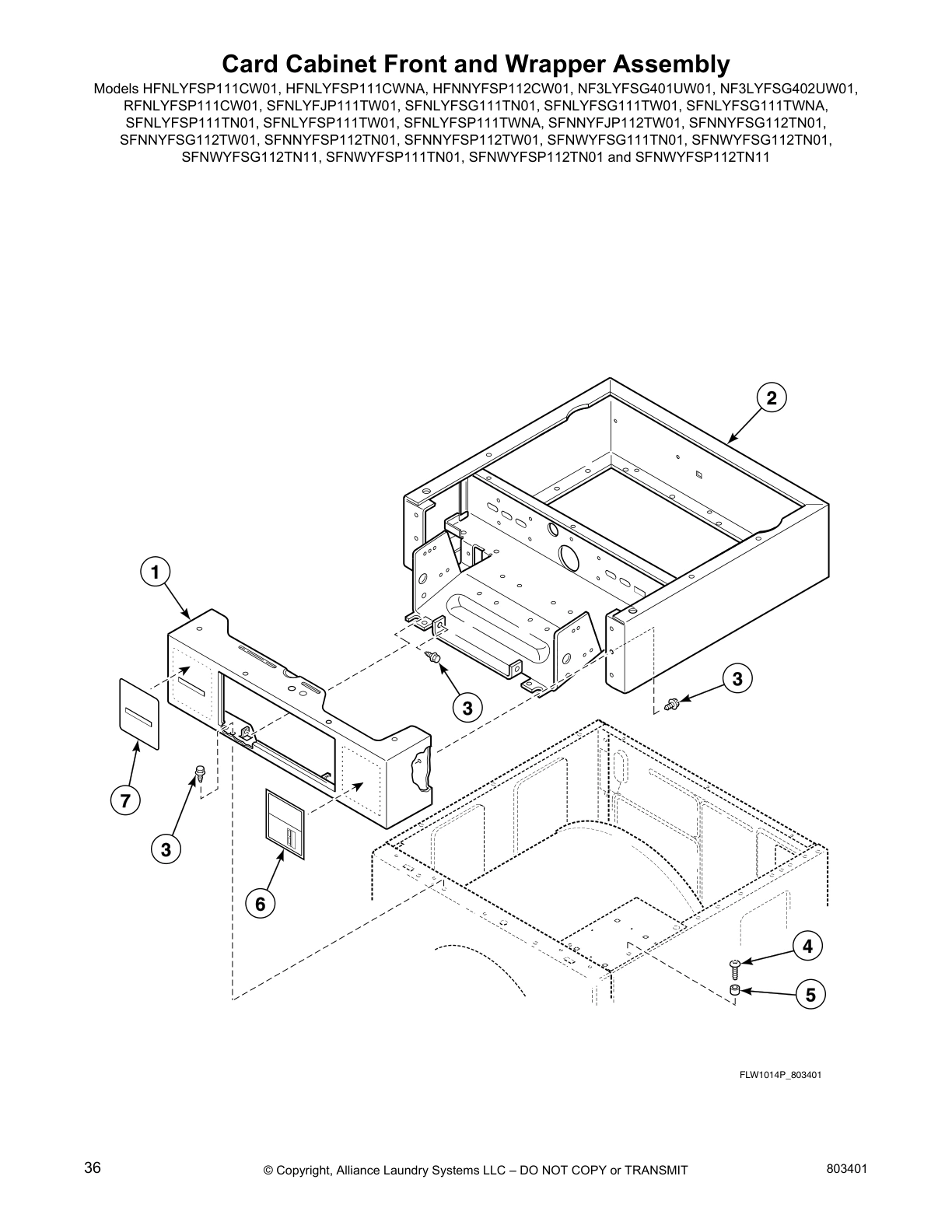

Card Cabinet Front and Wrapper Assembly

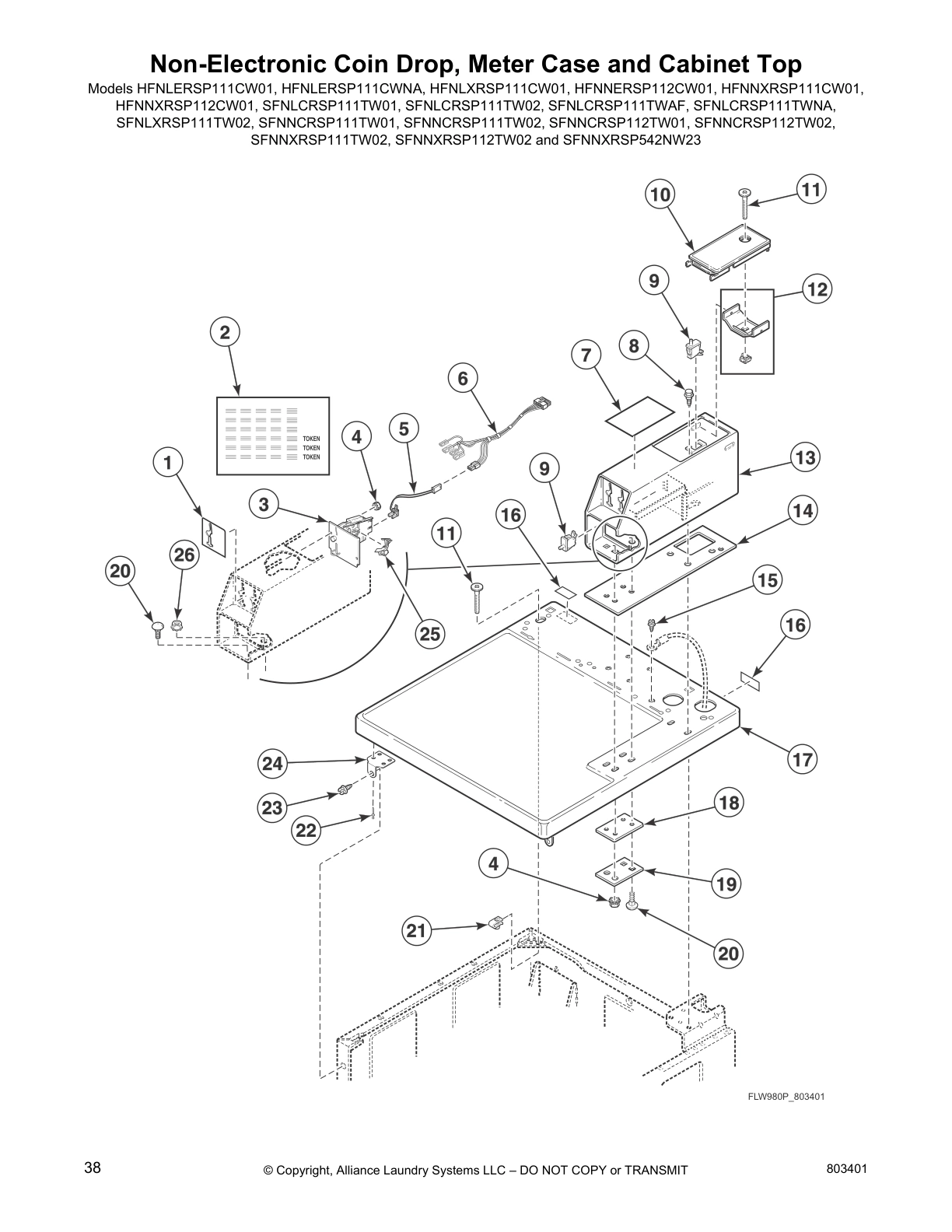

Non-Electronic Coin Drop, Meter Case and Cabinet Top

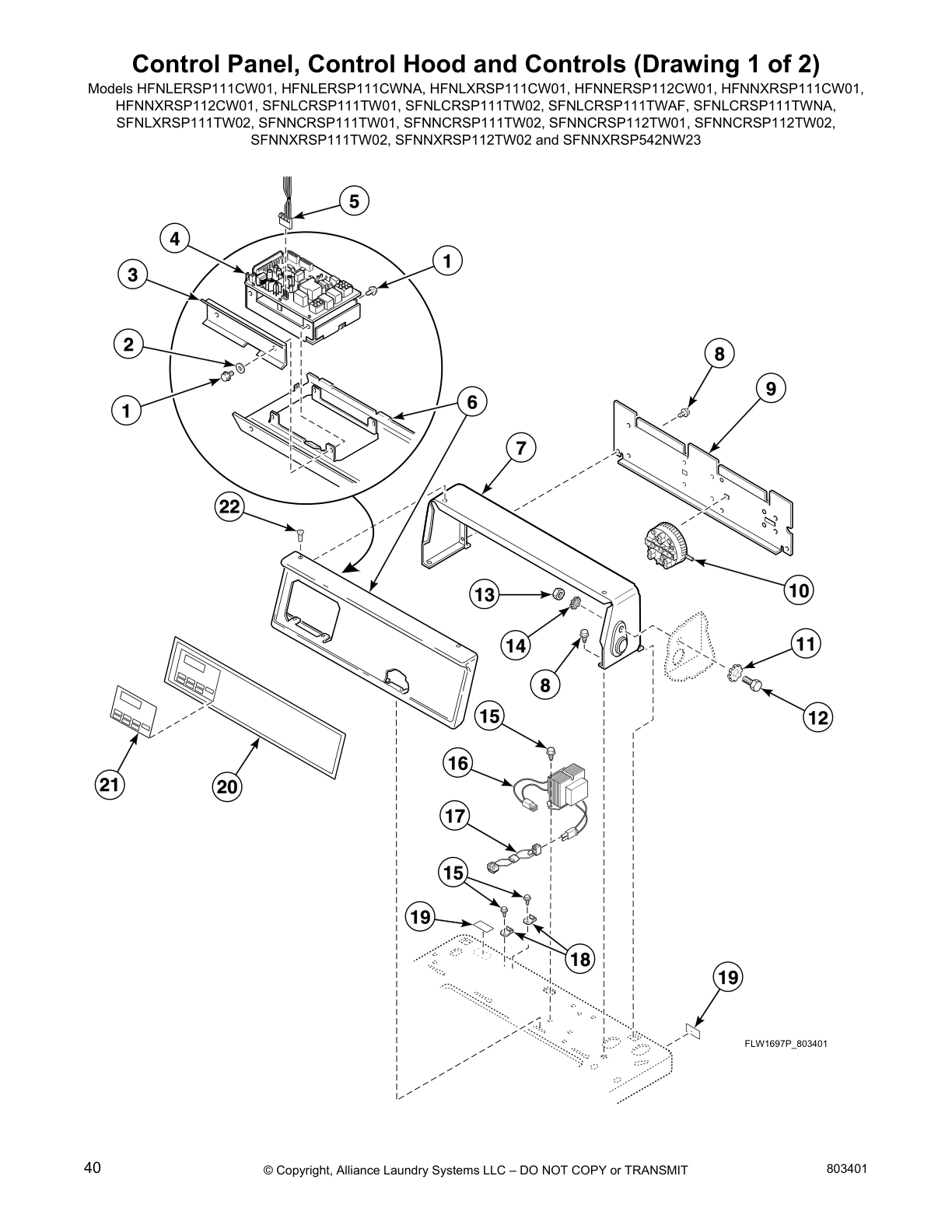

Control Panel, Control Hood and Controls (Drawing 1 of 2)

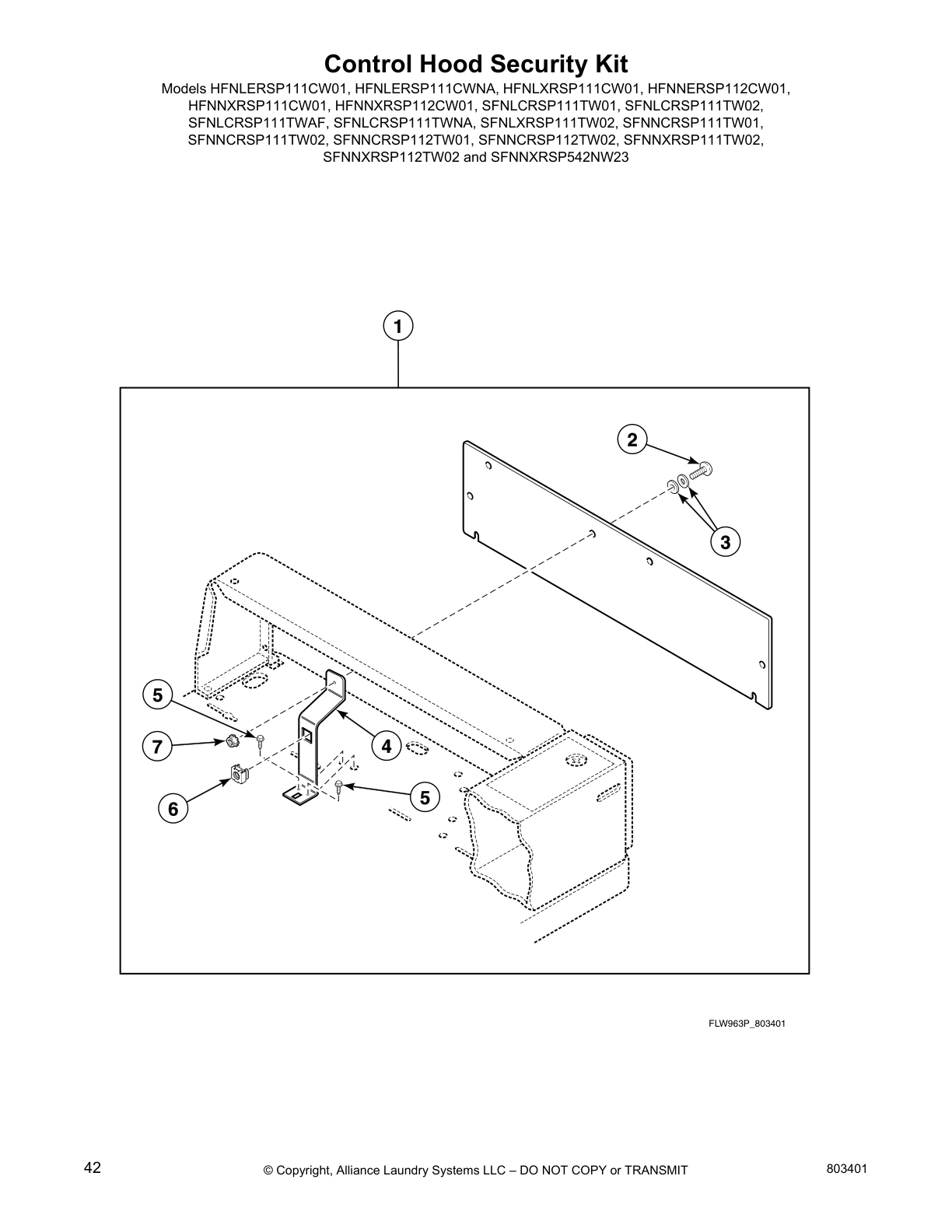

Control Hood Security Kit

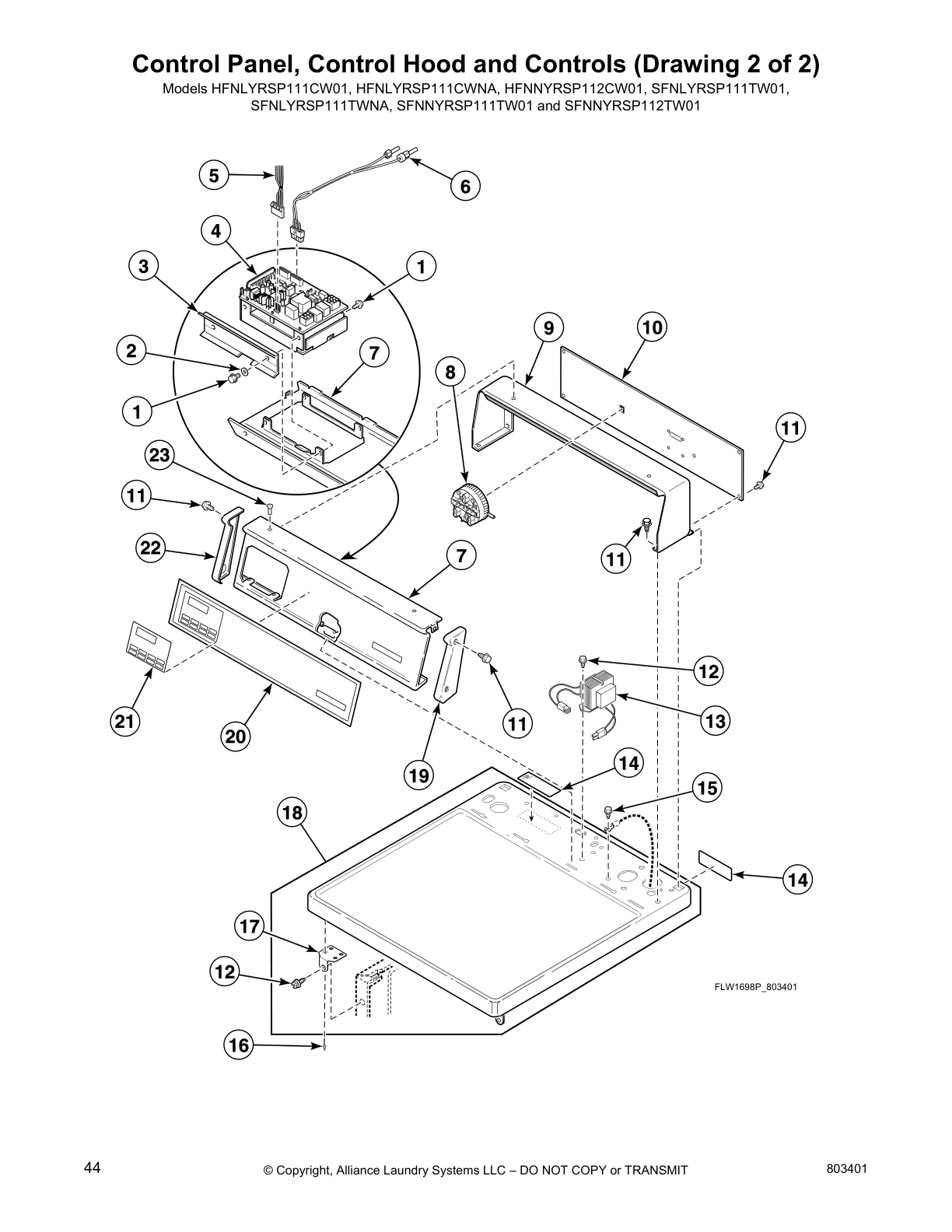

Control Panel, Control Hood and Controls (Drawing 2 of 2)

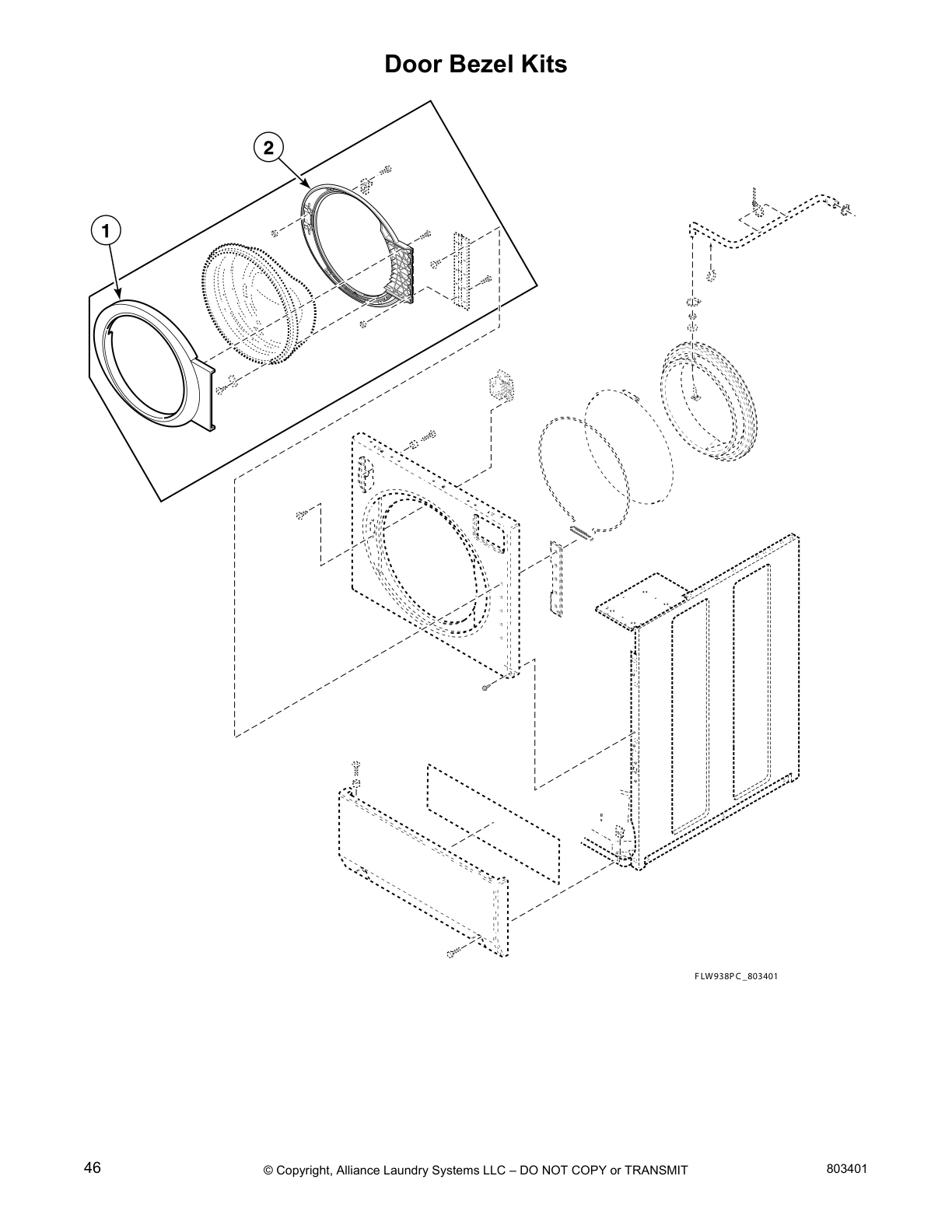

Door Bezel Kits

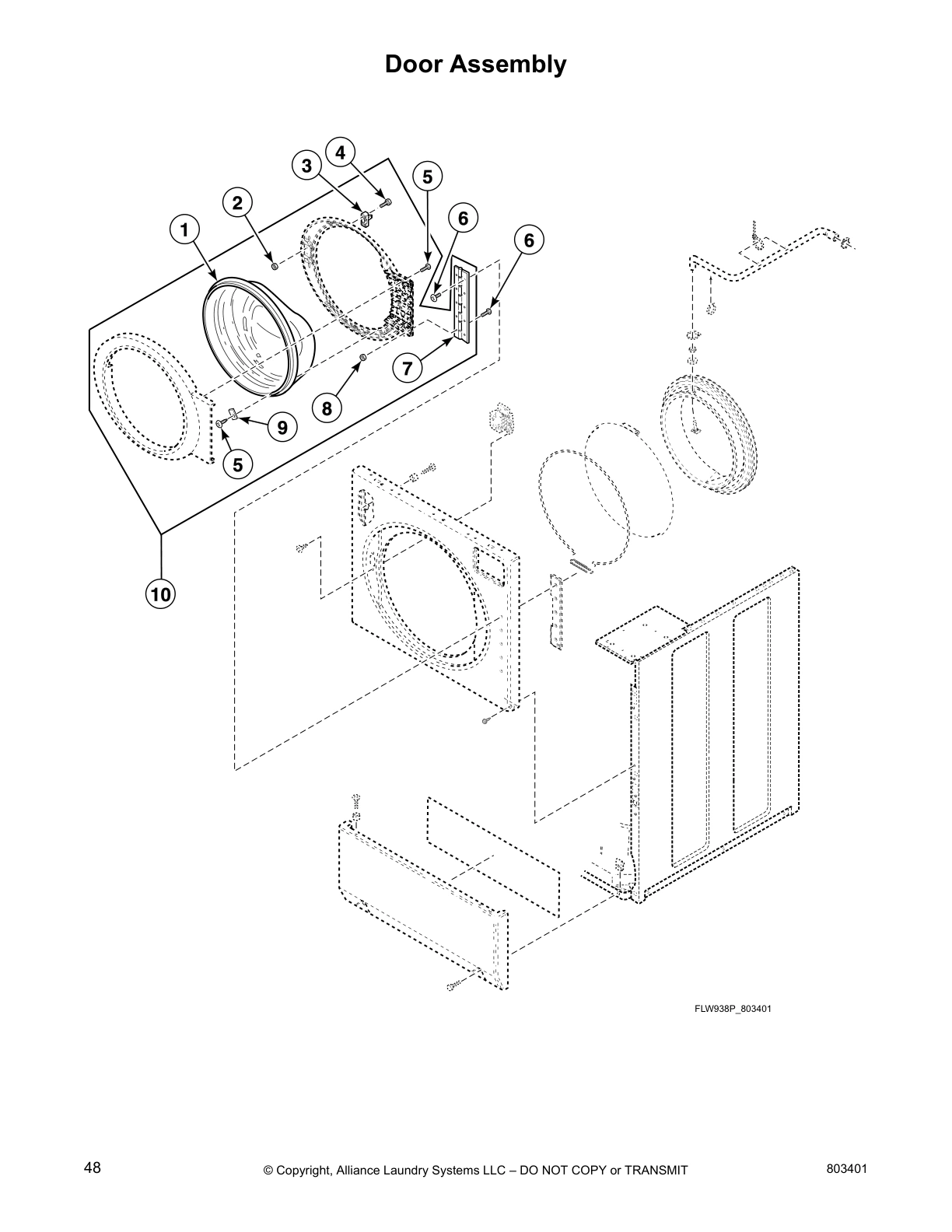

Door Assembly

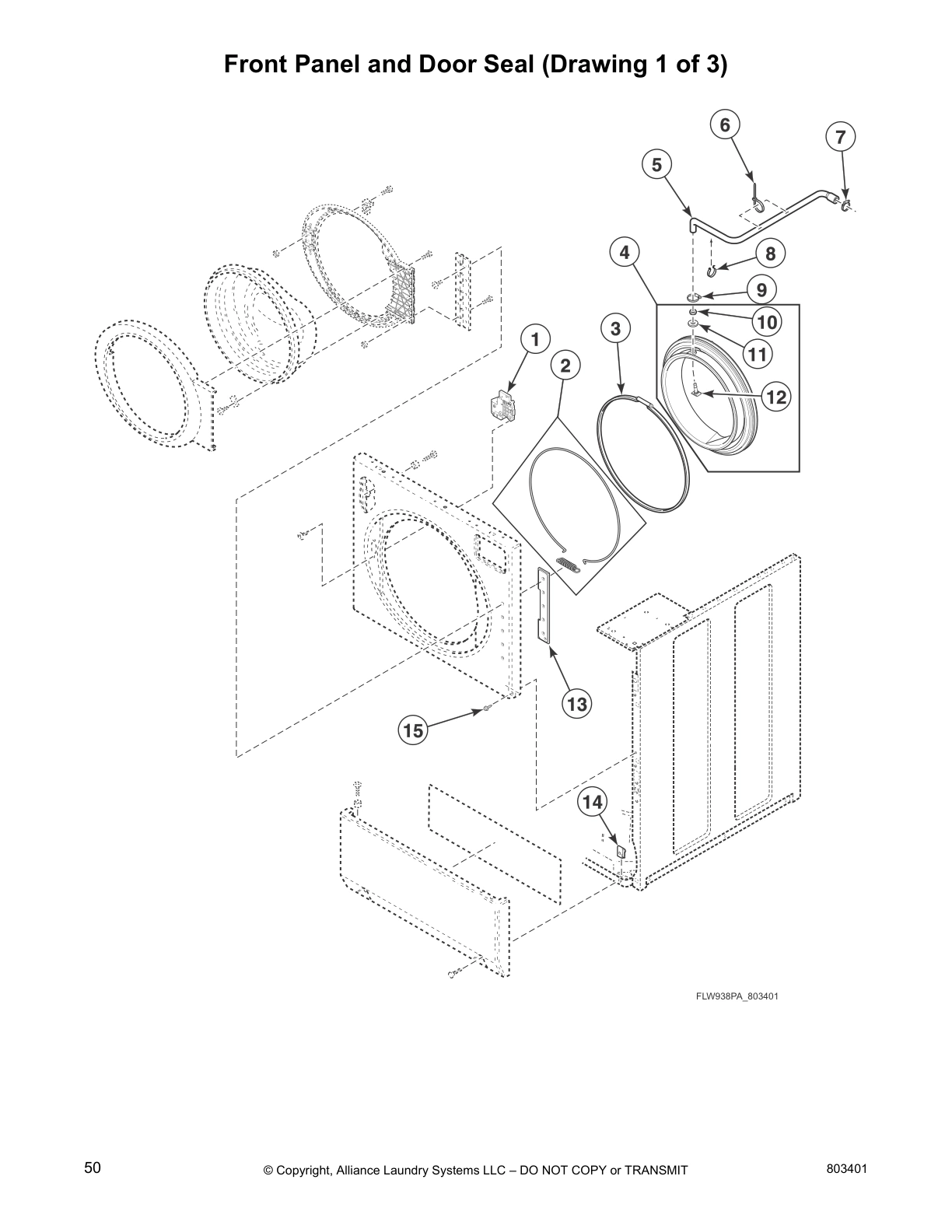

Front Panel and Door Seal (Drawing 1 of 3)

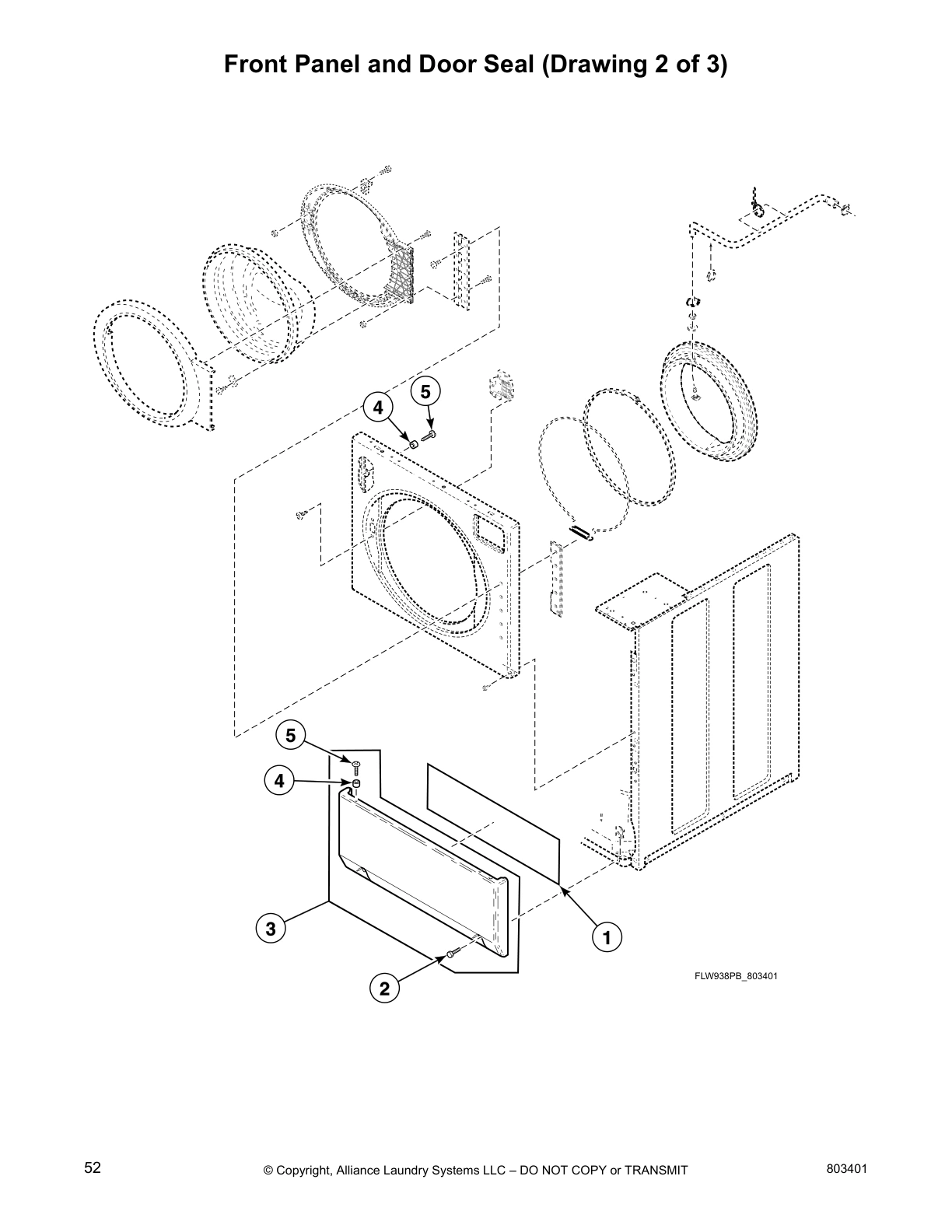

Front Panel and Door Seal (Drawing 2 of 3)

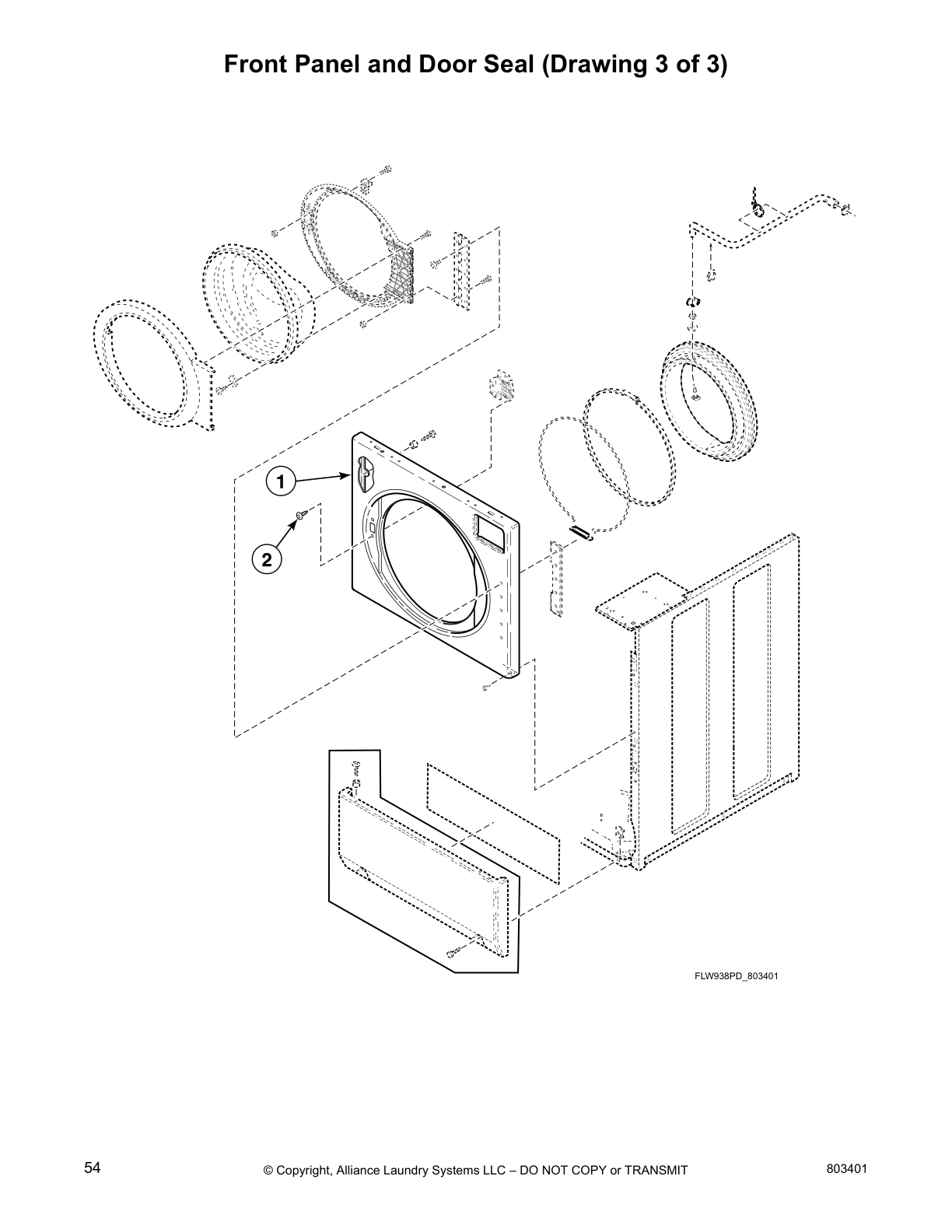

Front Panel and Door Seal (Drawing 3 of 3)

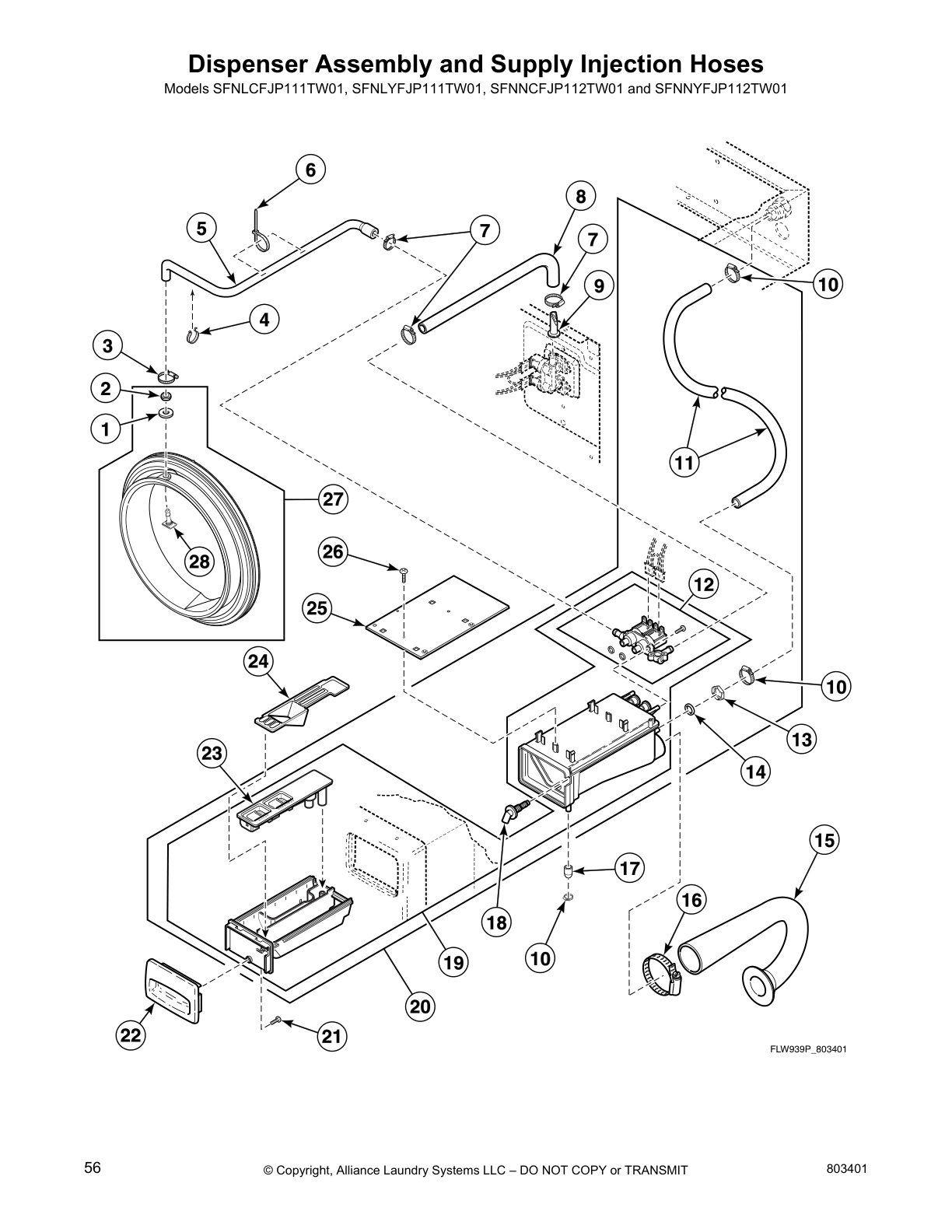

Dispenser Assembly and Supply Injection Hoses

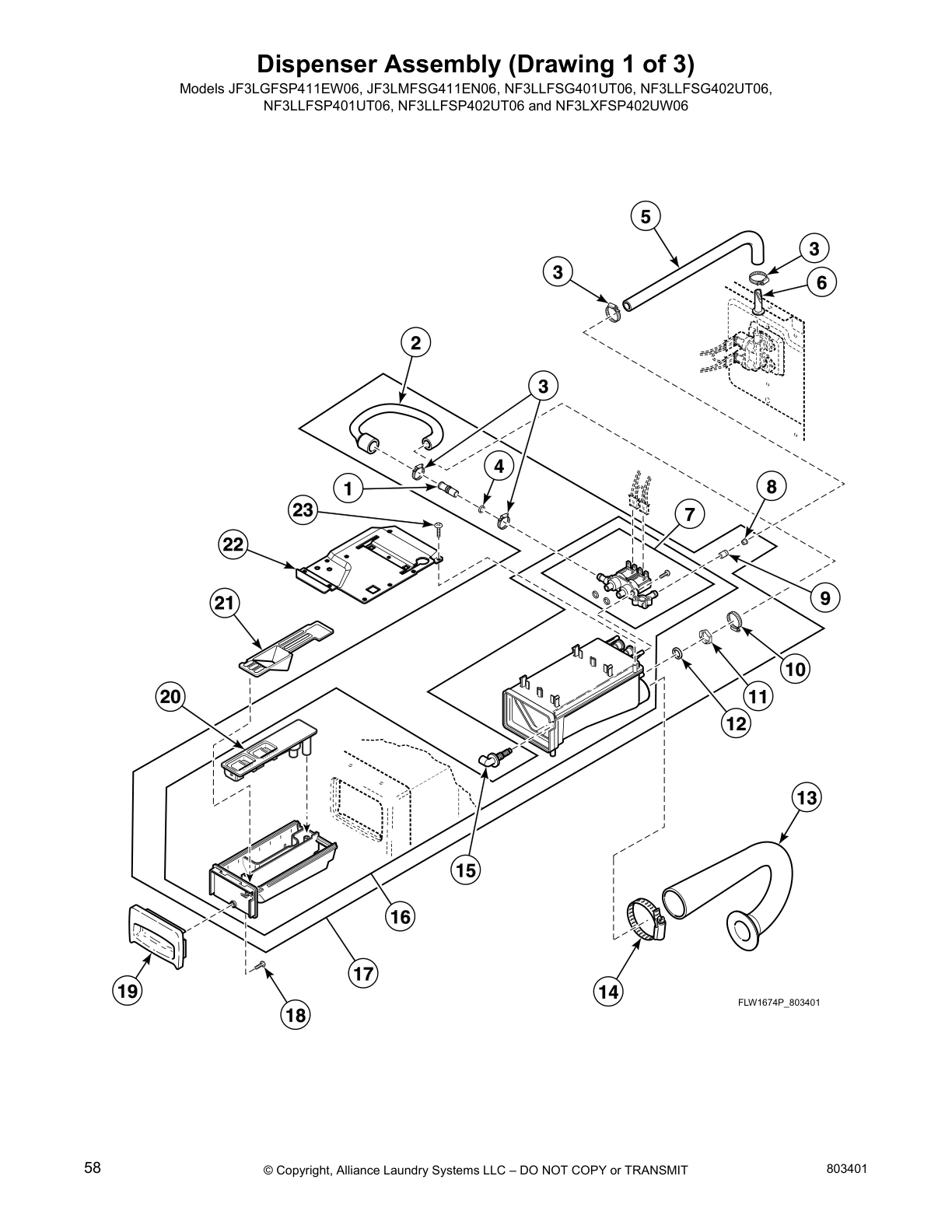

Dispenser Assembly (Drawing 1 of 3)
Dispenser Assembly (Drawing 2 of 3)

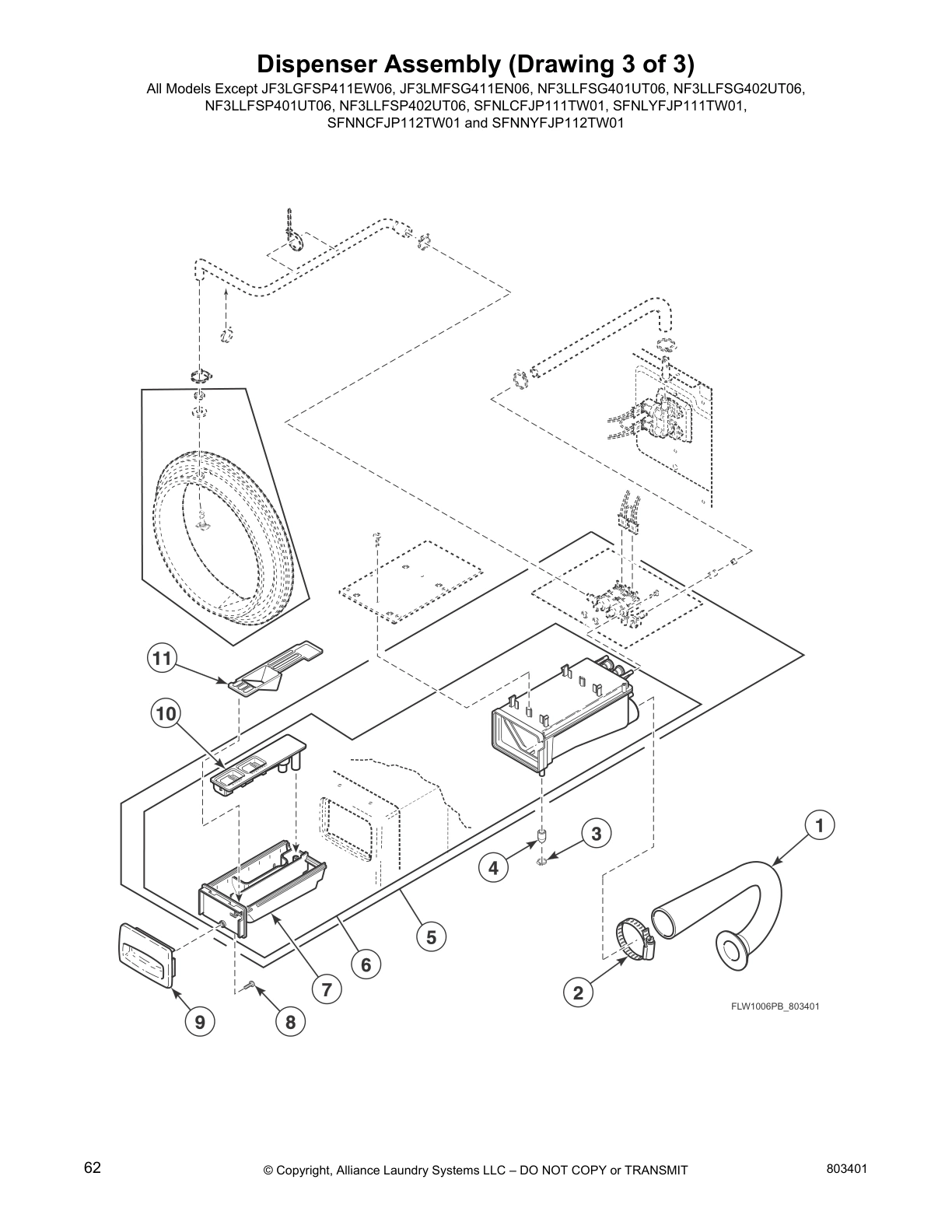

Dispenser Assembly (Drawing 3 of 3)

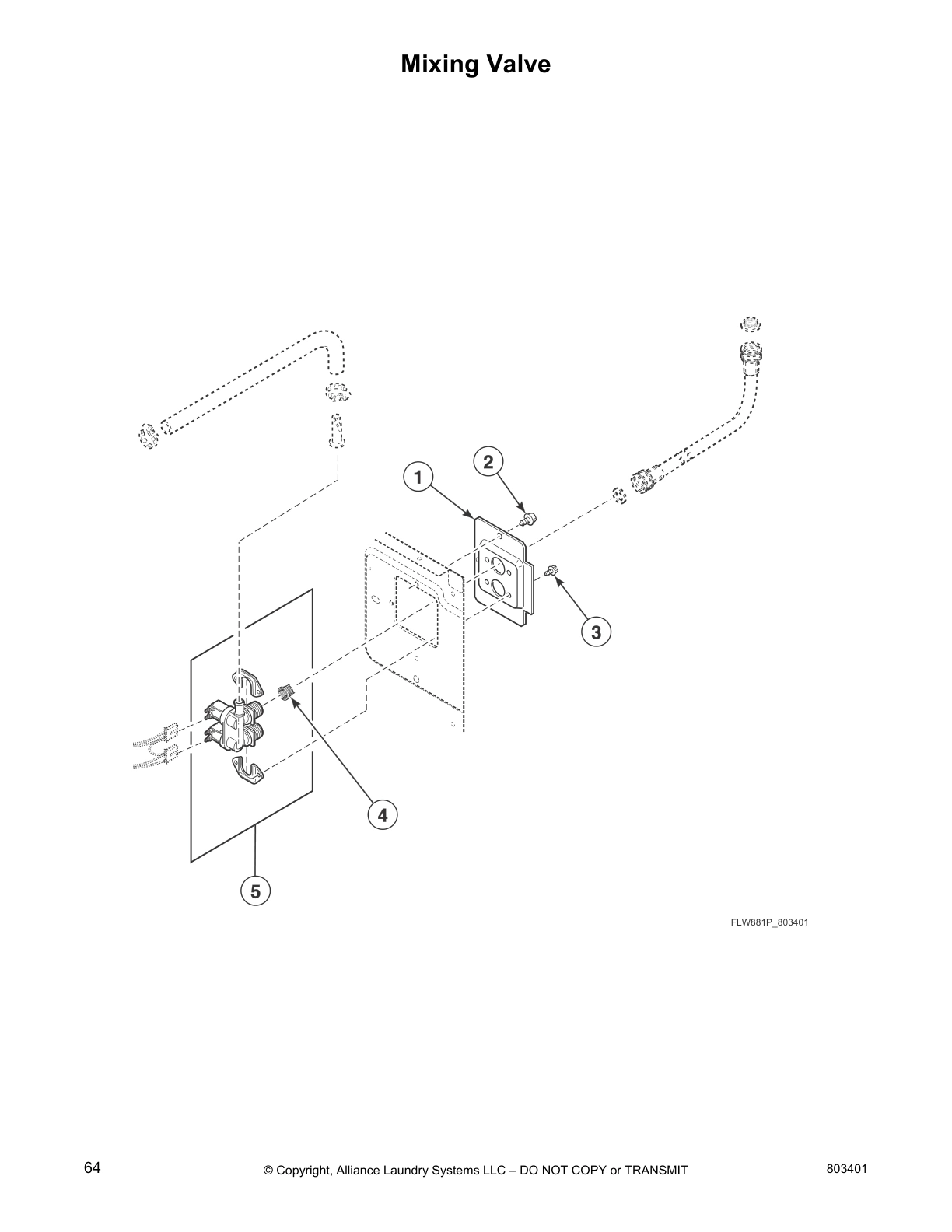

Mixing Valve

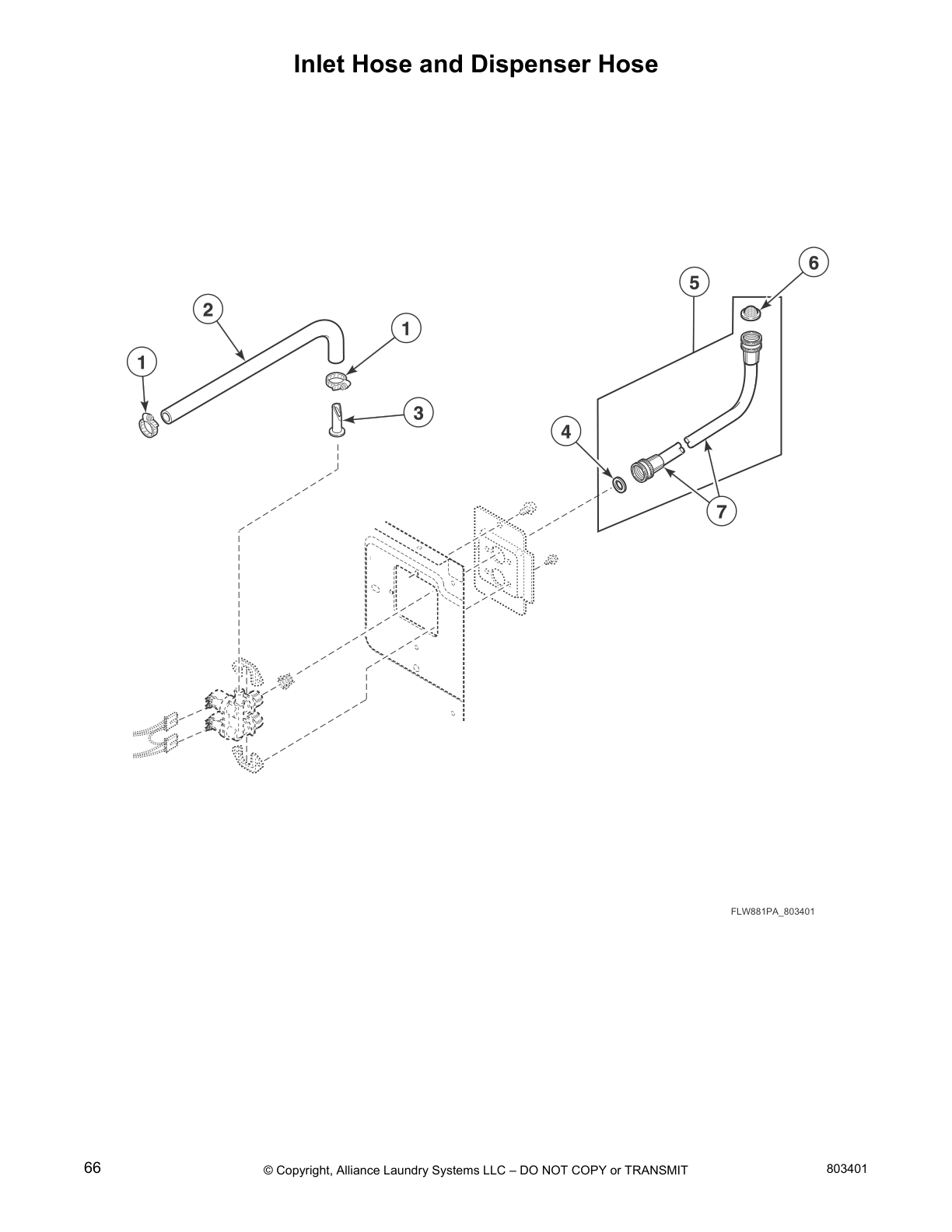

Inlet Hose and Dispenser Hose

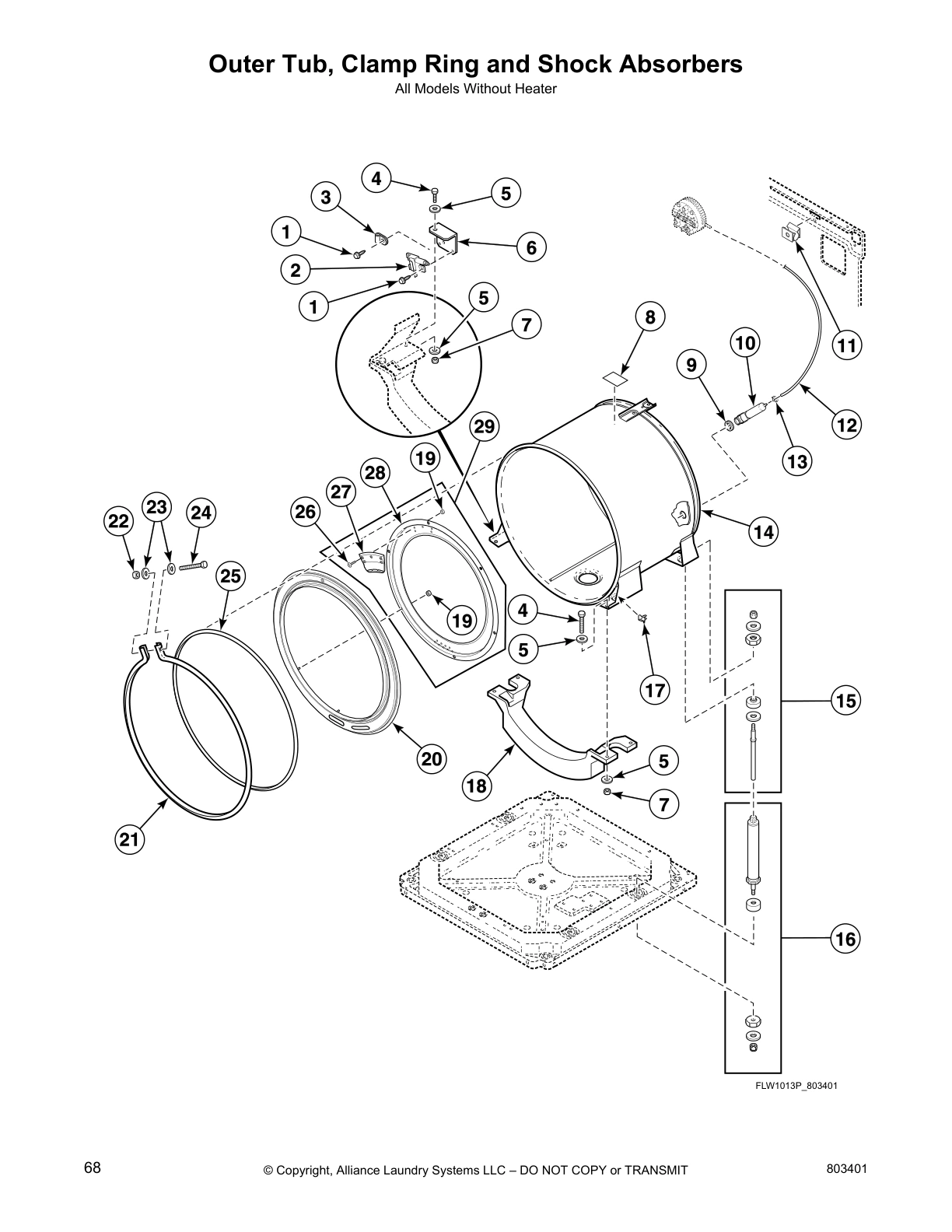

Outer Tub, Clamp Ring and Shock Absorbers

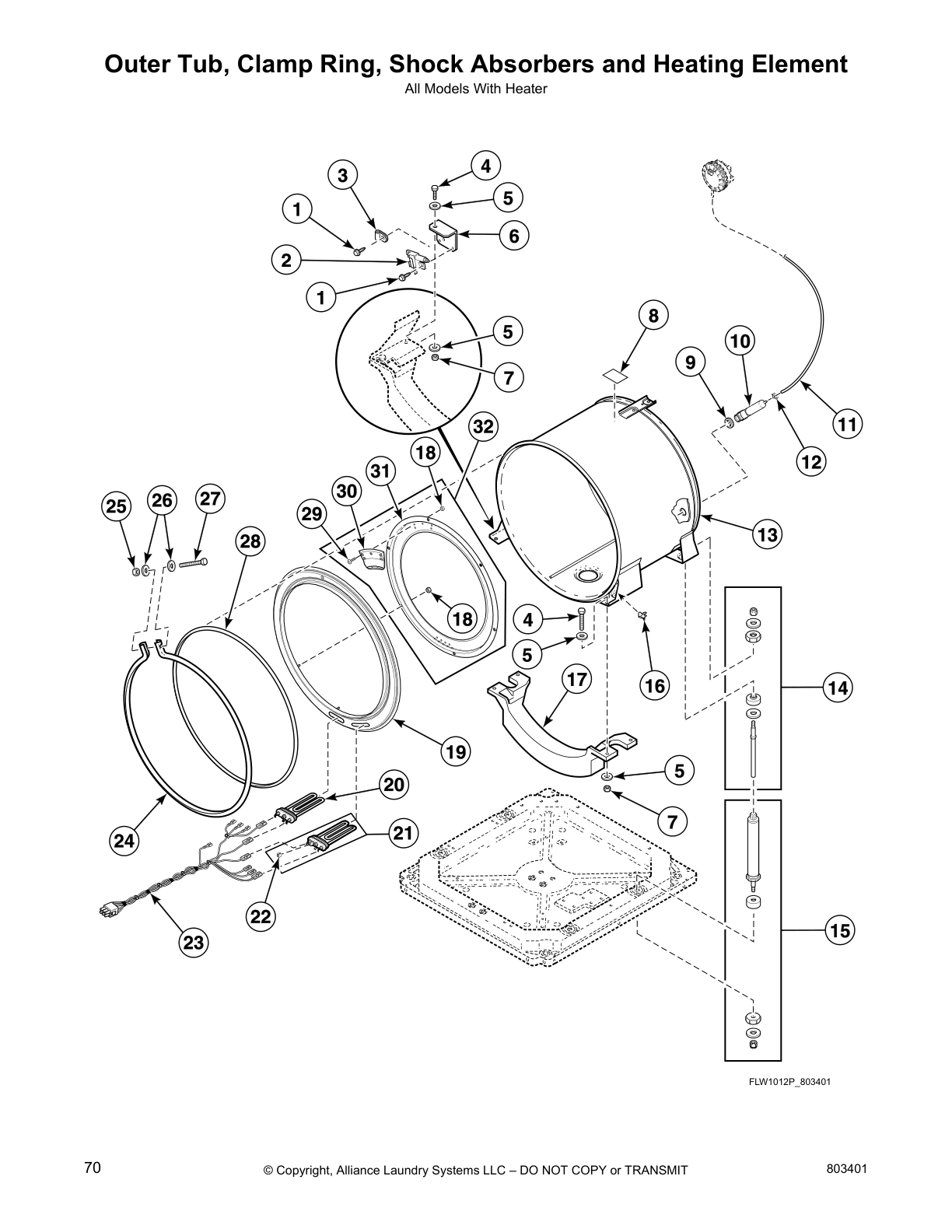

Outer Tub, Clamp Ring, Shock Absorbers and Heating Element
Inner Basket, Trunnion, Bearing Housing and Pulley
Motor and Belt

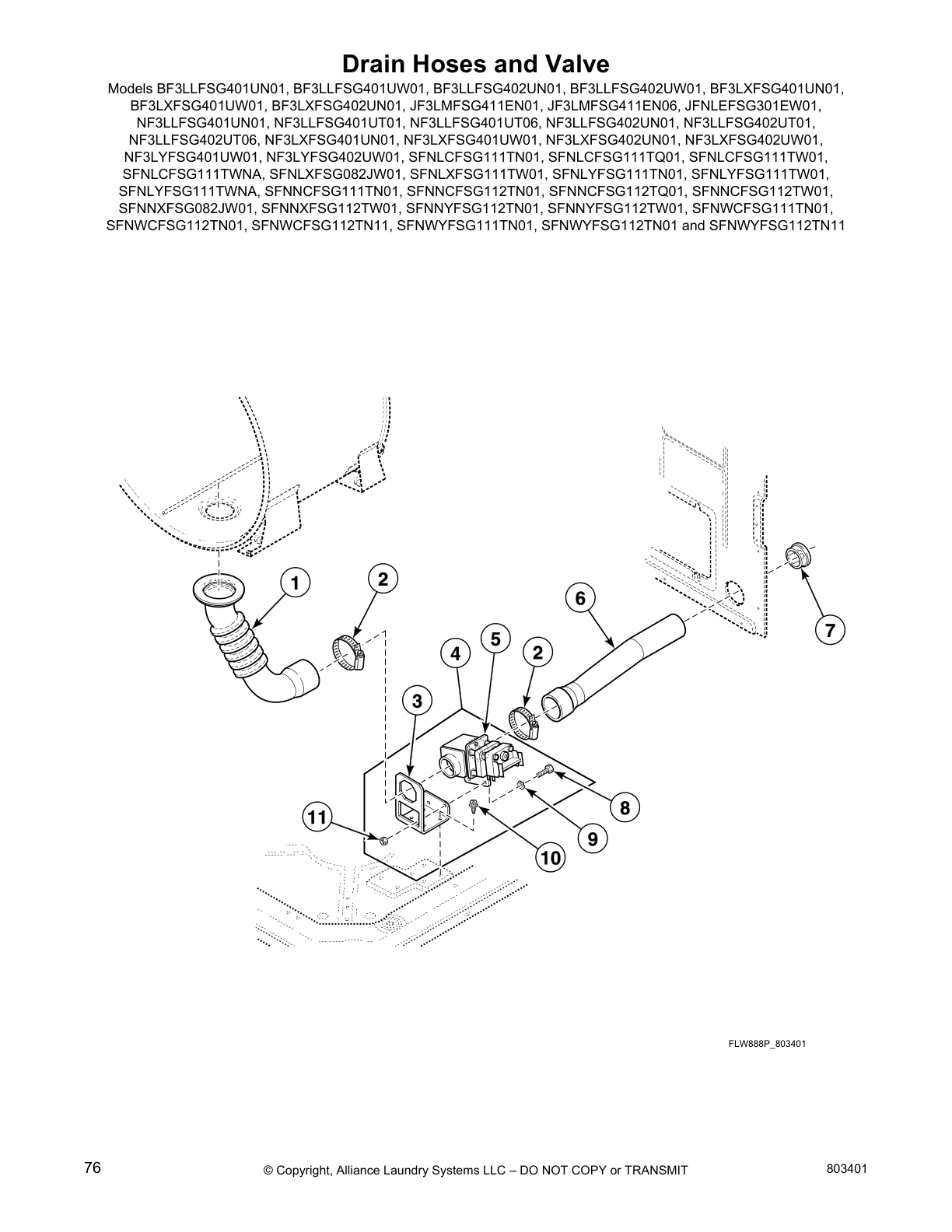

Drain Hoses and Valve

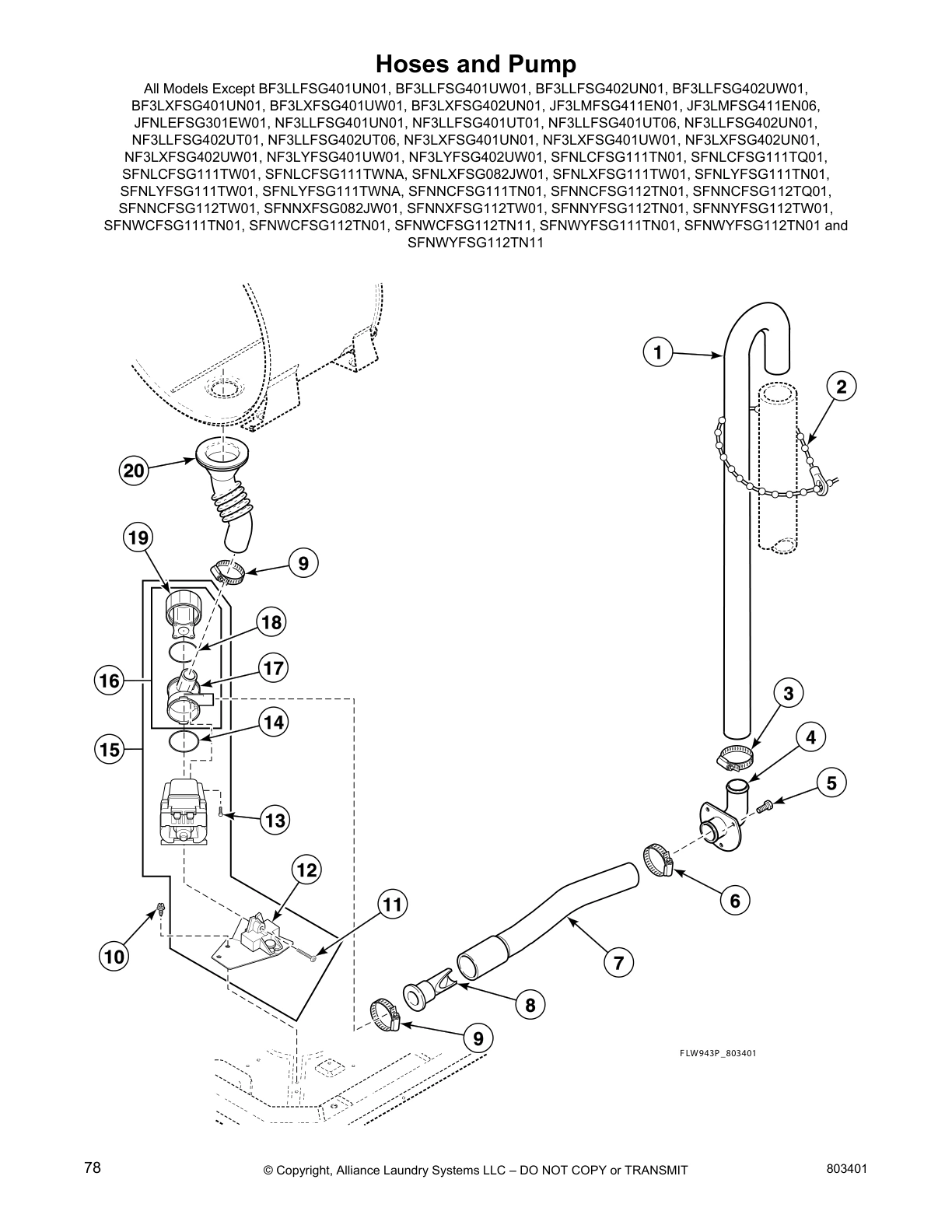

Hoses and Pump

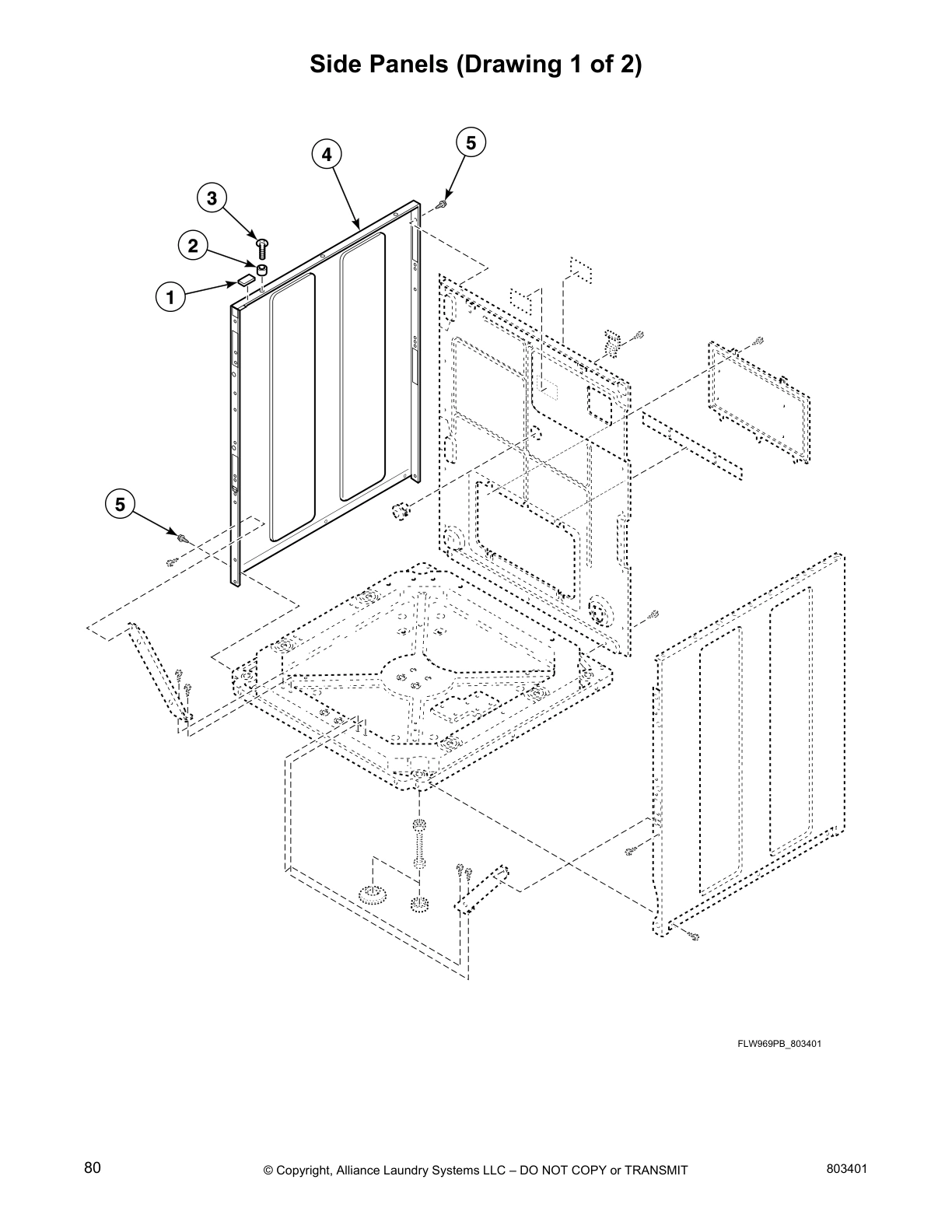

Side Panels (Drawing 1 of 2)

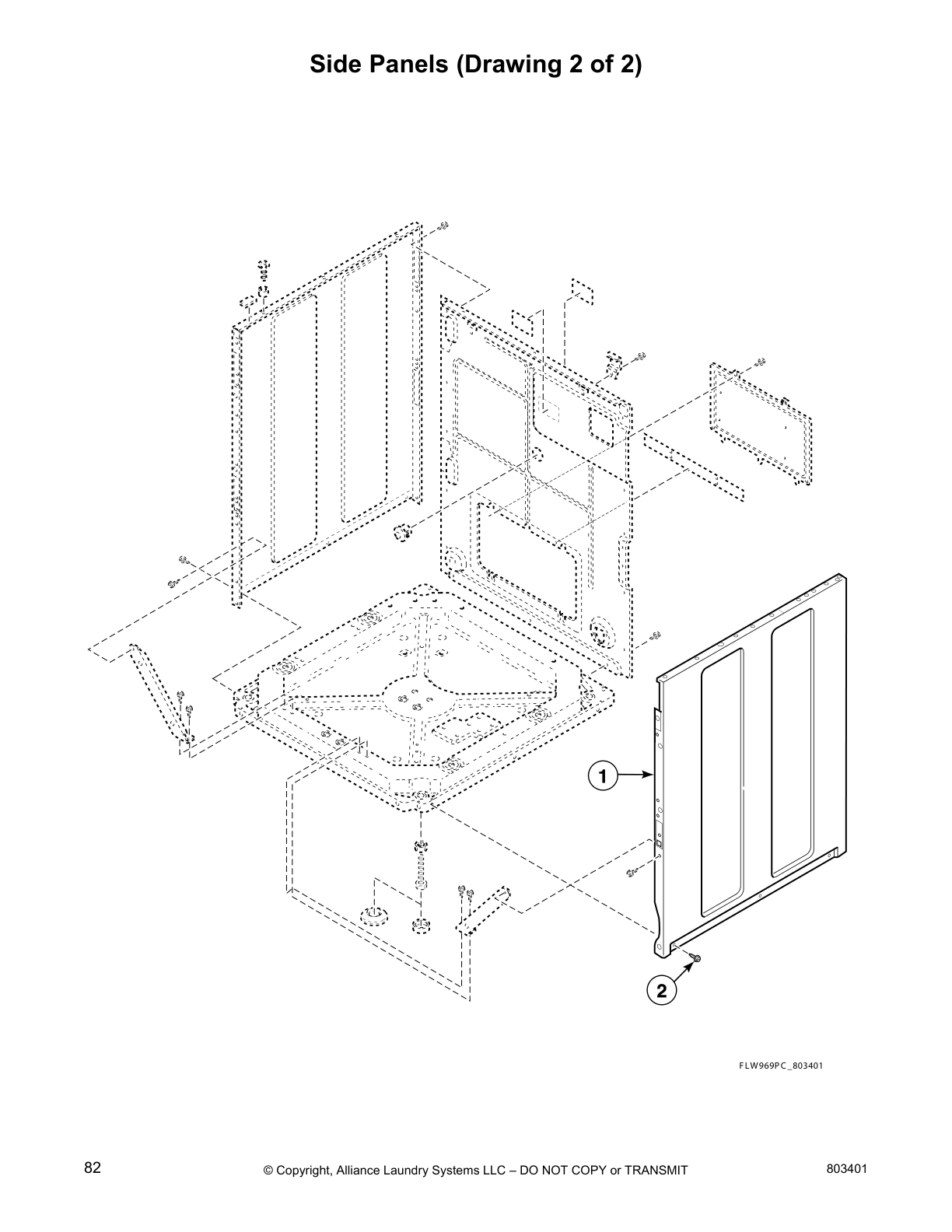

Side Panels (Drawing 2 of 2)

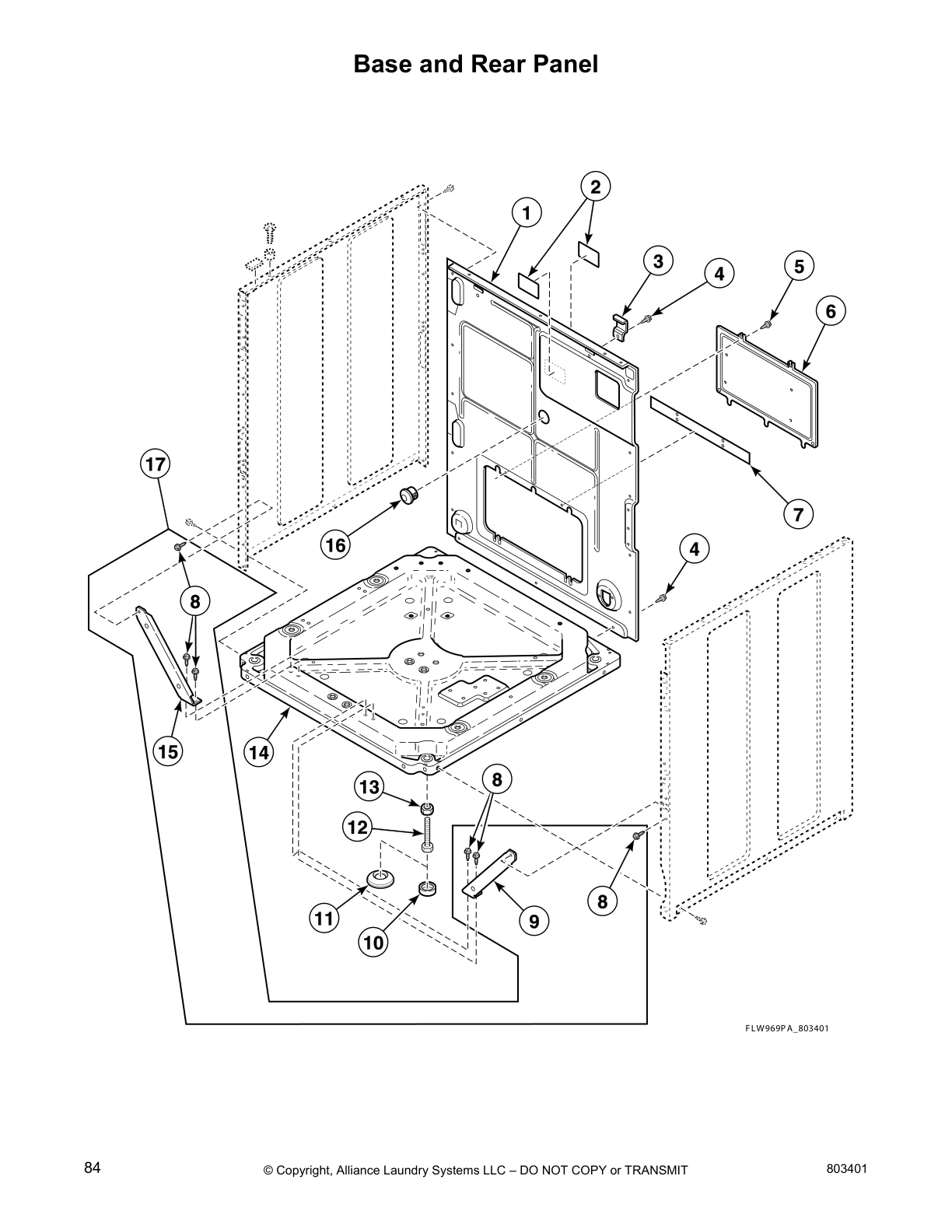

Base and Rear Panel
Junction Box

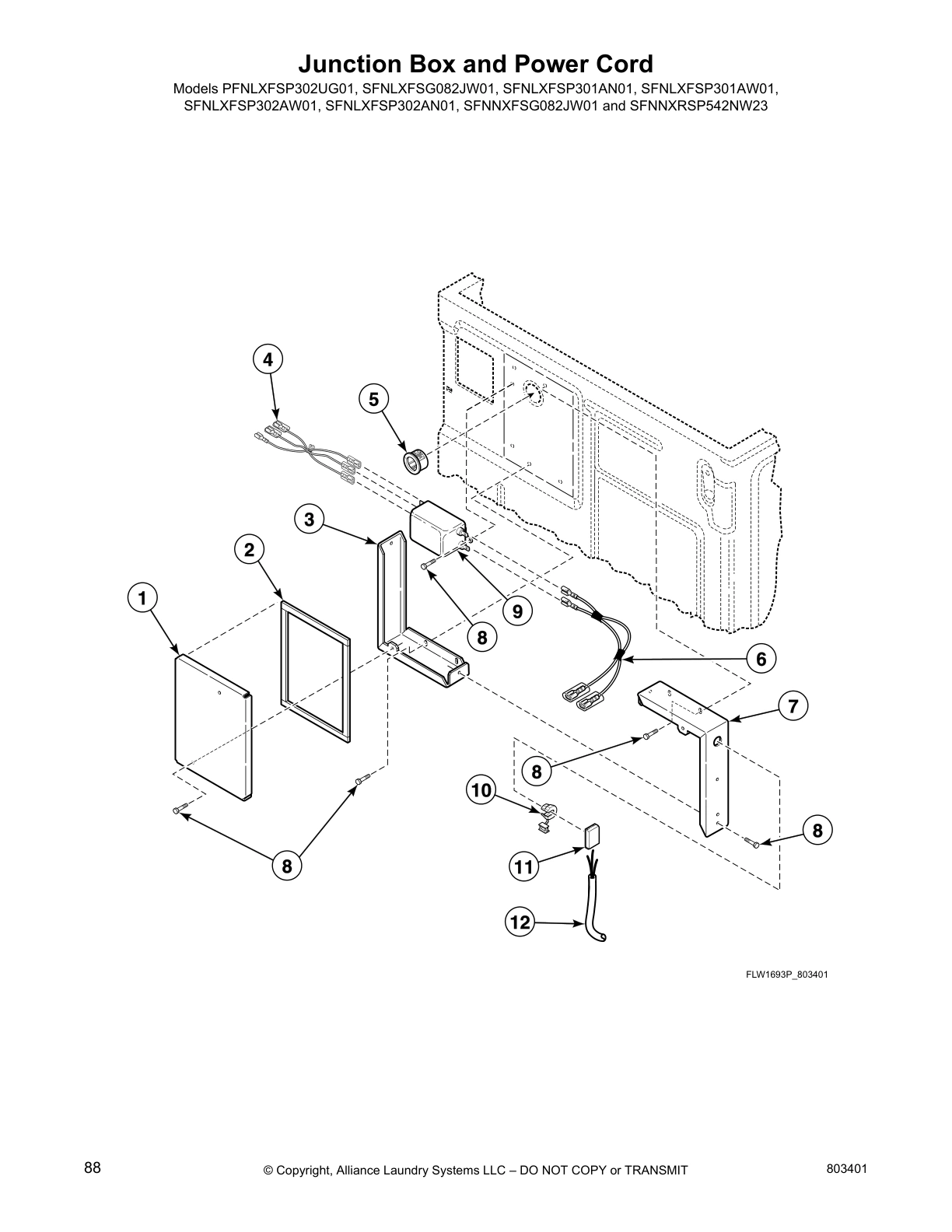

Junction Box and Power Cord
Shipping Materials

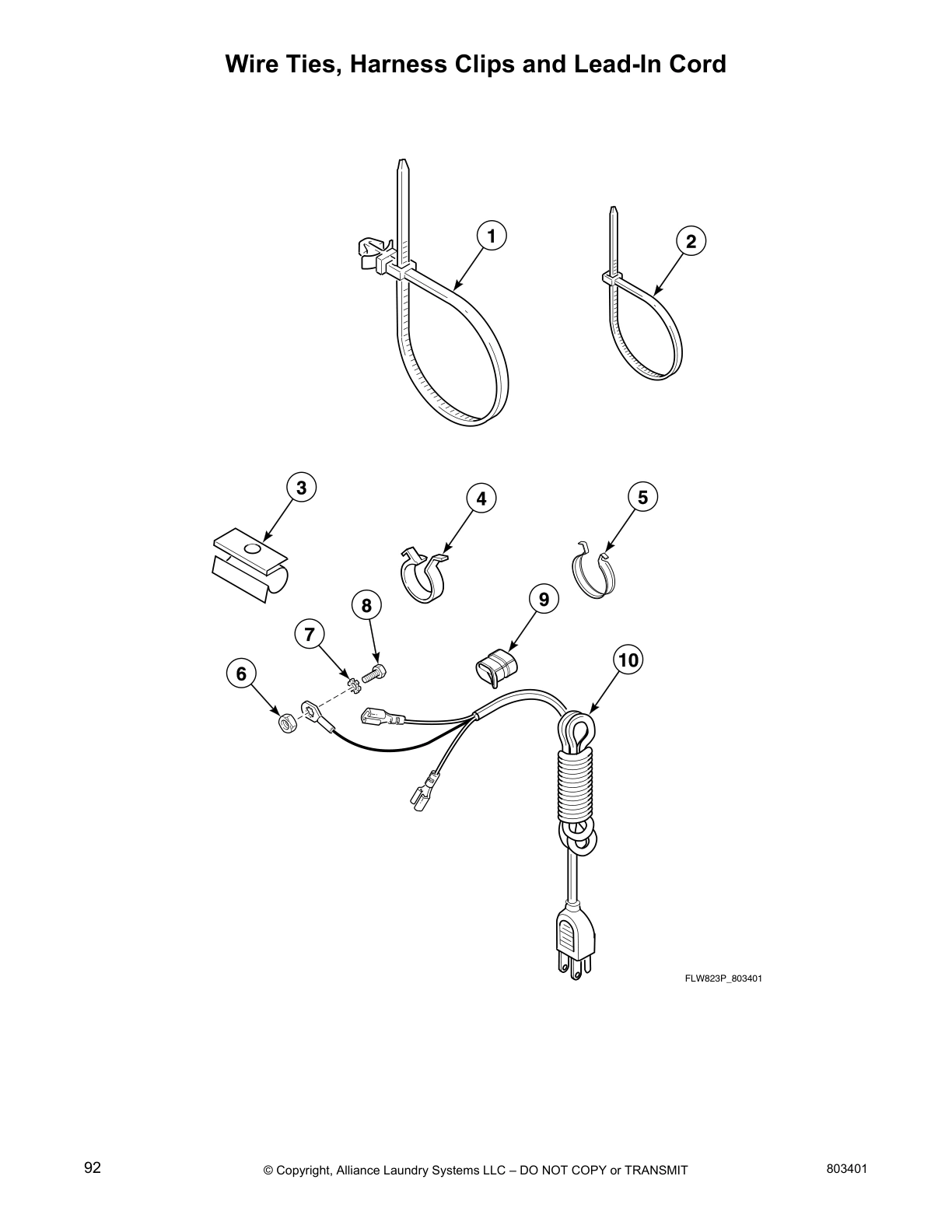

Wire Ties, Harness Clips and Lead-In Cord

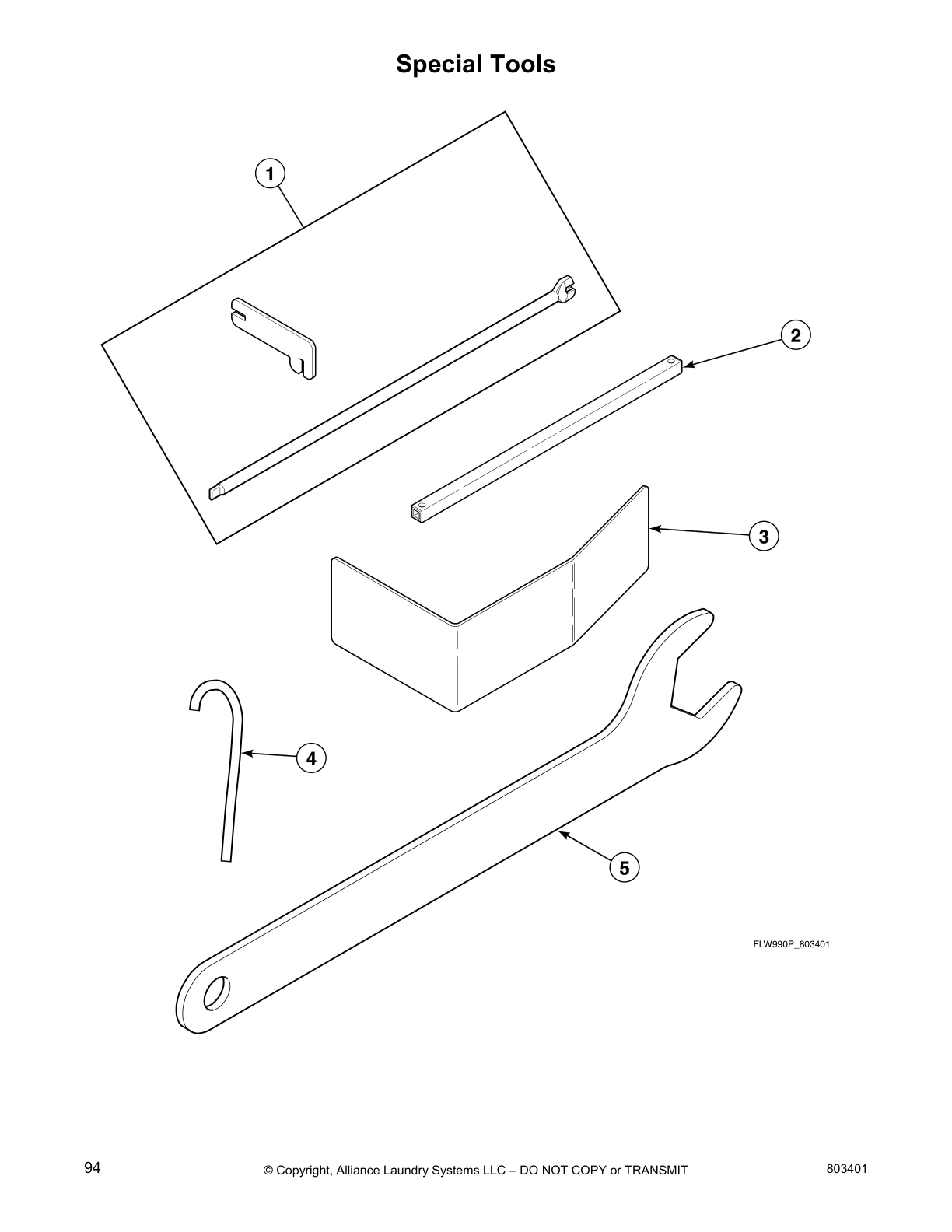

Special Tools

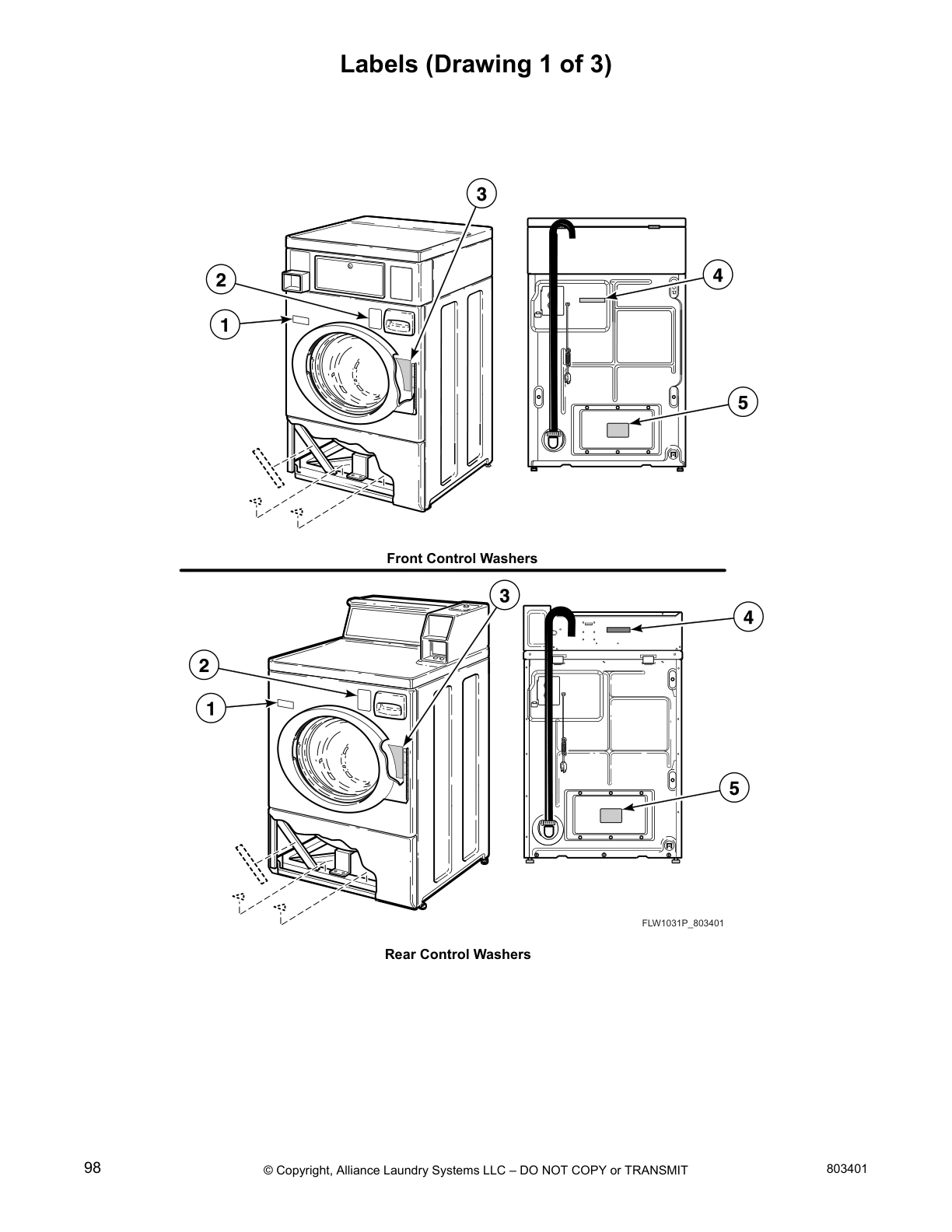

Labels (Drawing 1 of 3)

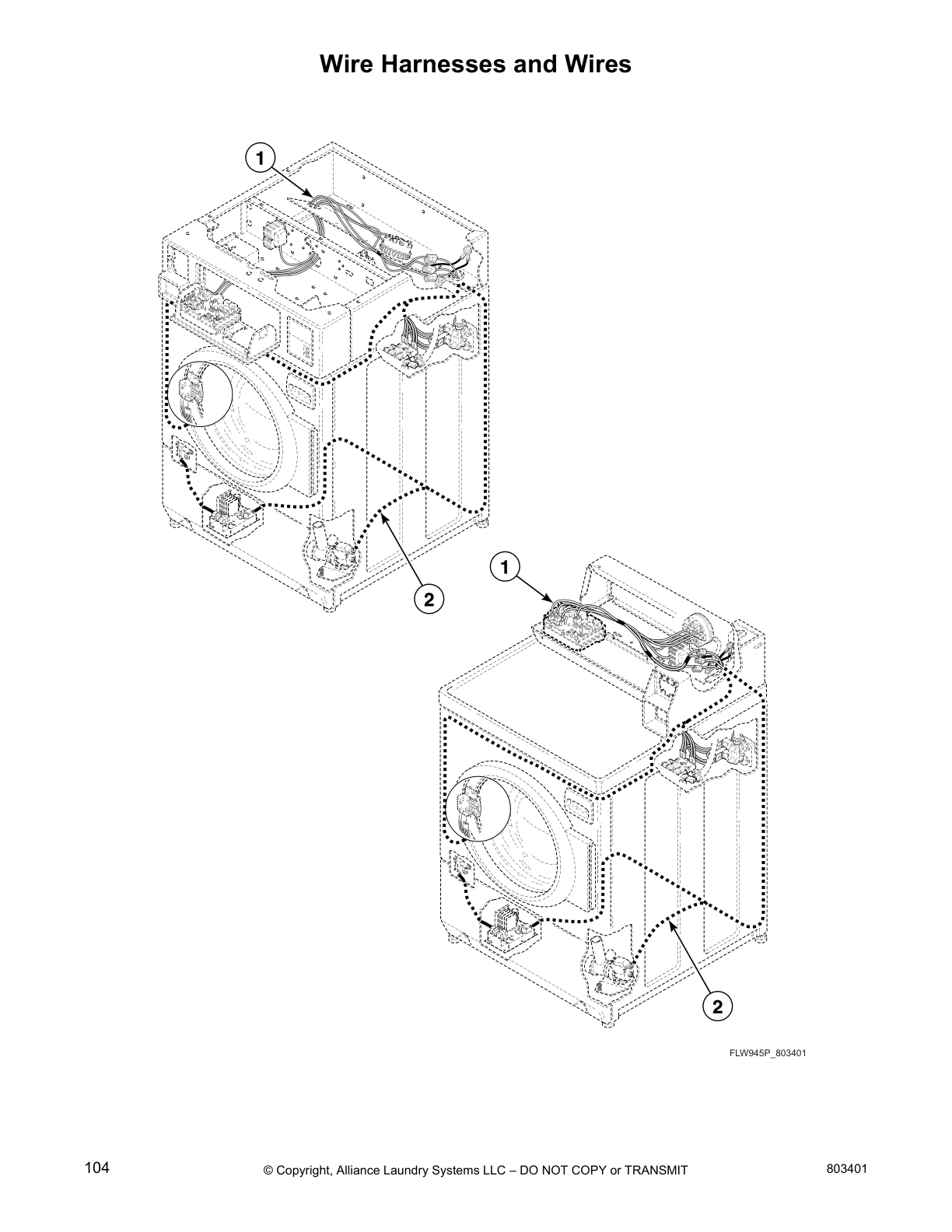

Wire Harnesses and Wires

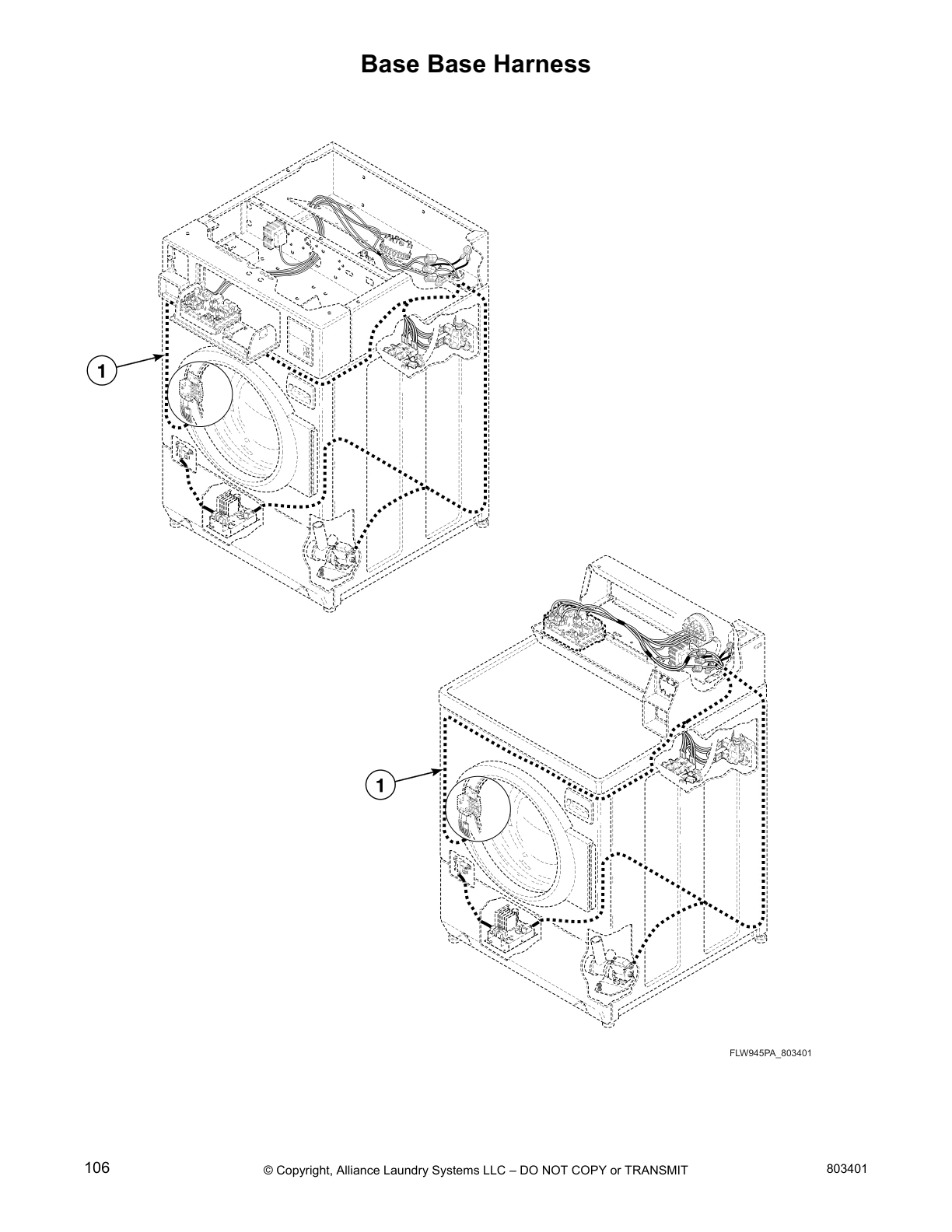

Base Base Harness
Common parts from model Speed Queen SFNNXFSP112TN01 Washer
SPQ 70294106 SPQ 70294106 Contact Us For Availability
4
Nut SPQ 70441601P No Longer Available
6
Dispenser Drawer SPQ 801476P Contact Us For Availability
11
Key SPQ 54612 Contact Us For Availability
14
Pump Housing Assembly SPQ 802429P Contact Us For Availability
16
Inner Basket Assembly SPQ 800428P Contact Us For Availability
16
Gasket SPQ 802434P Contact Us For Availability
17
Lid Assembly SPQ 802428 Contact Us For Availability
18
Standpipe Strap SPQ 802427 Contact Us For Availability
22
Washer SPQ 800312 Contact Us For Availability
× ![]()
