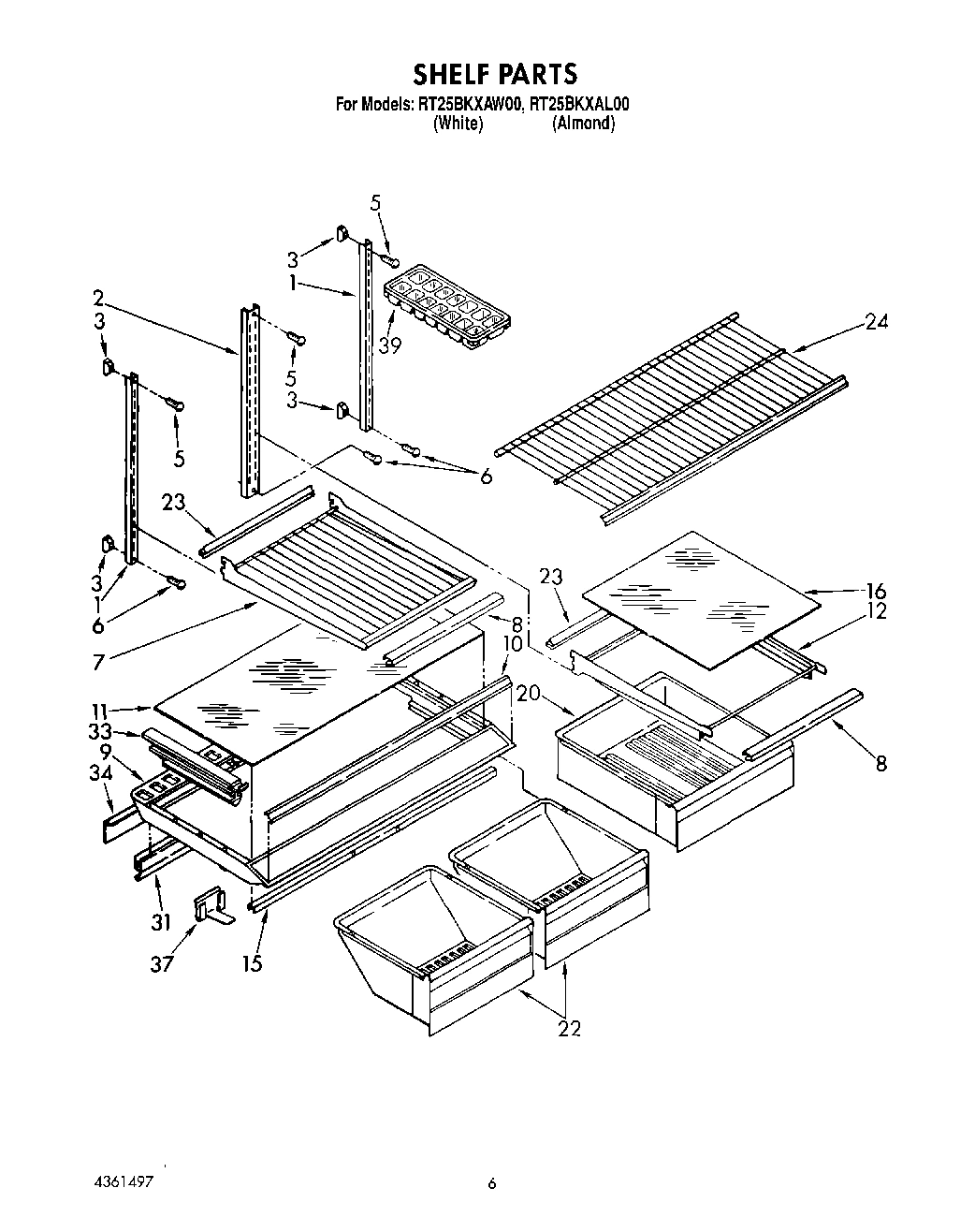

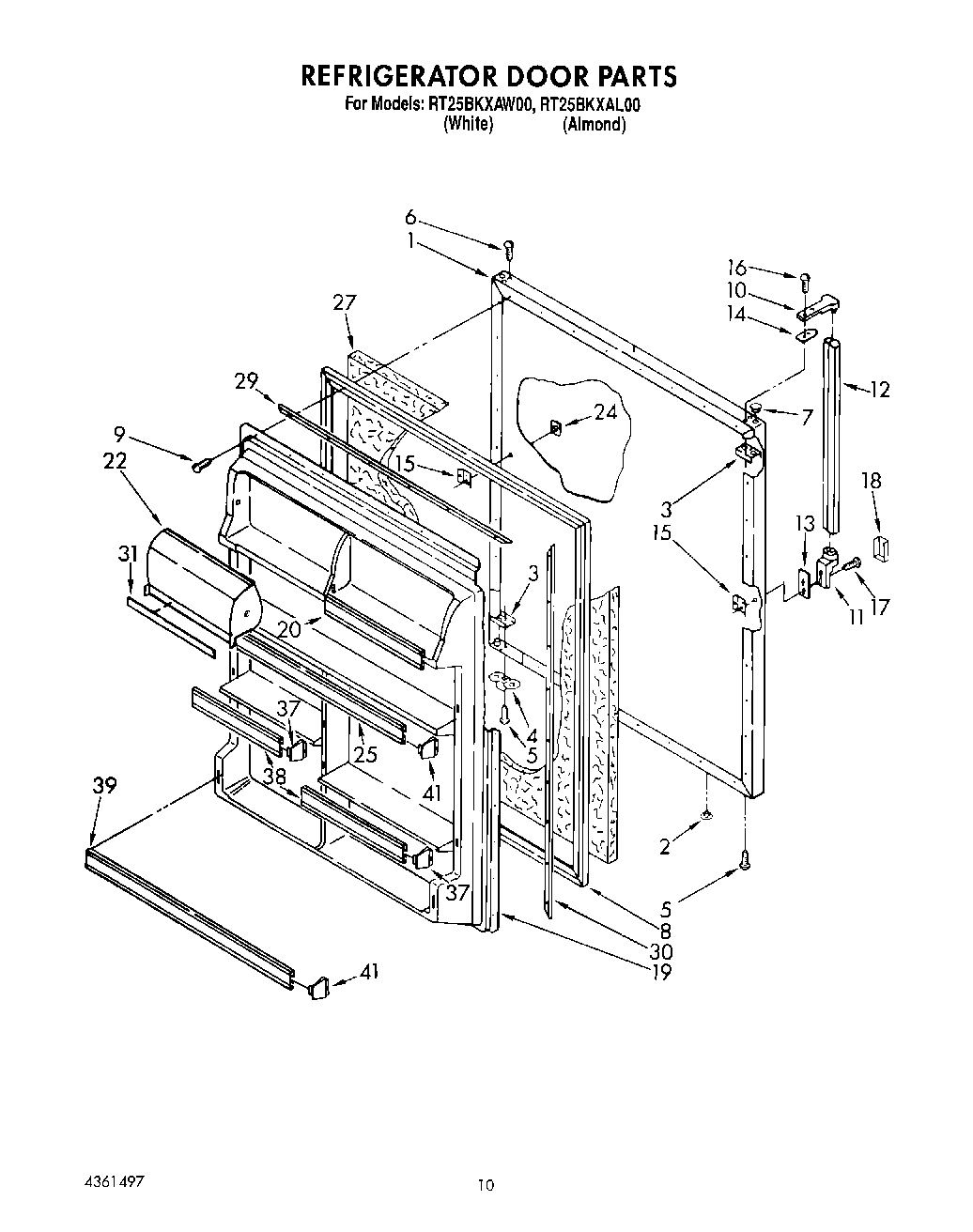

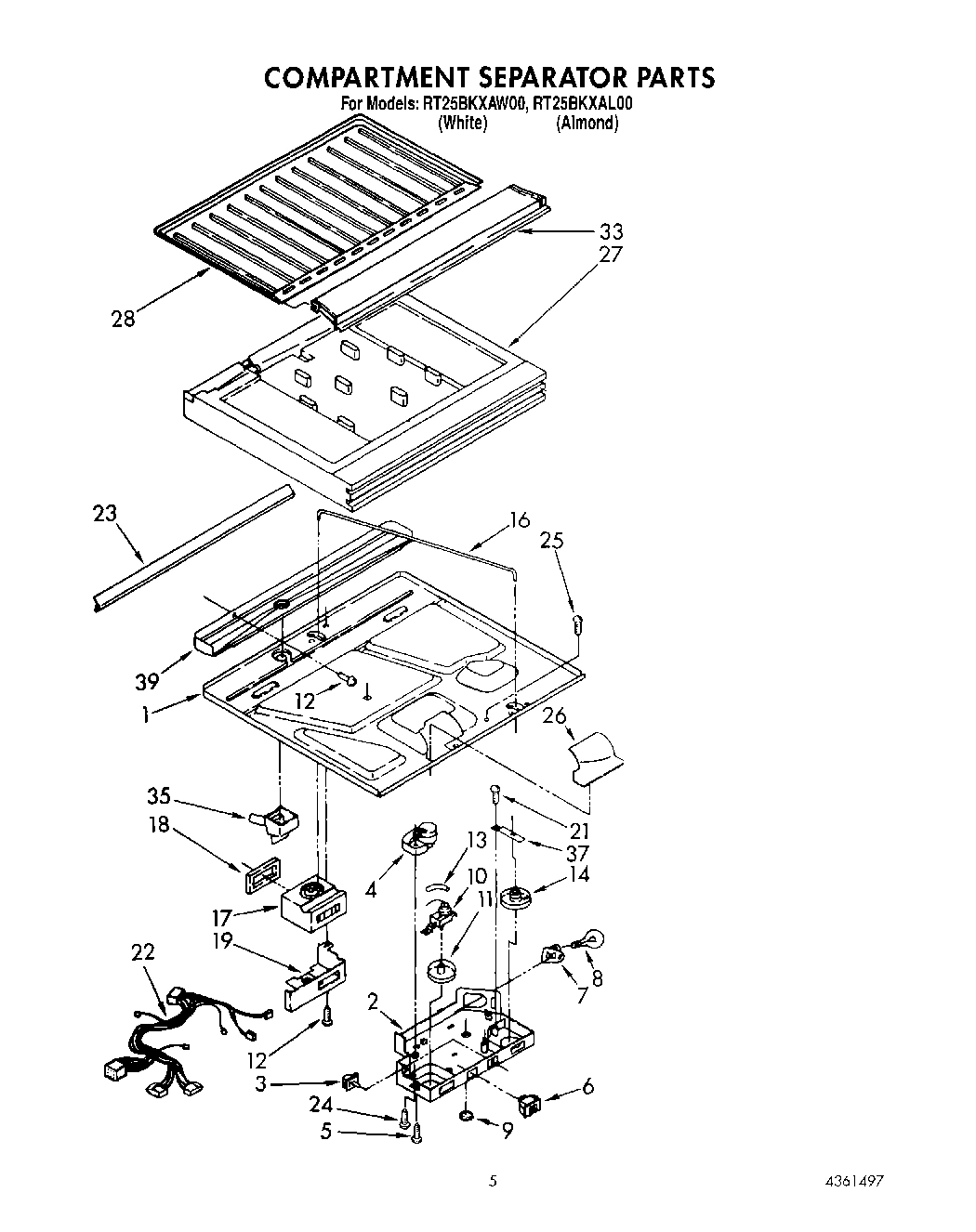

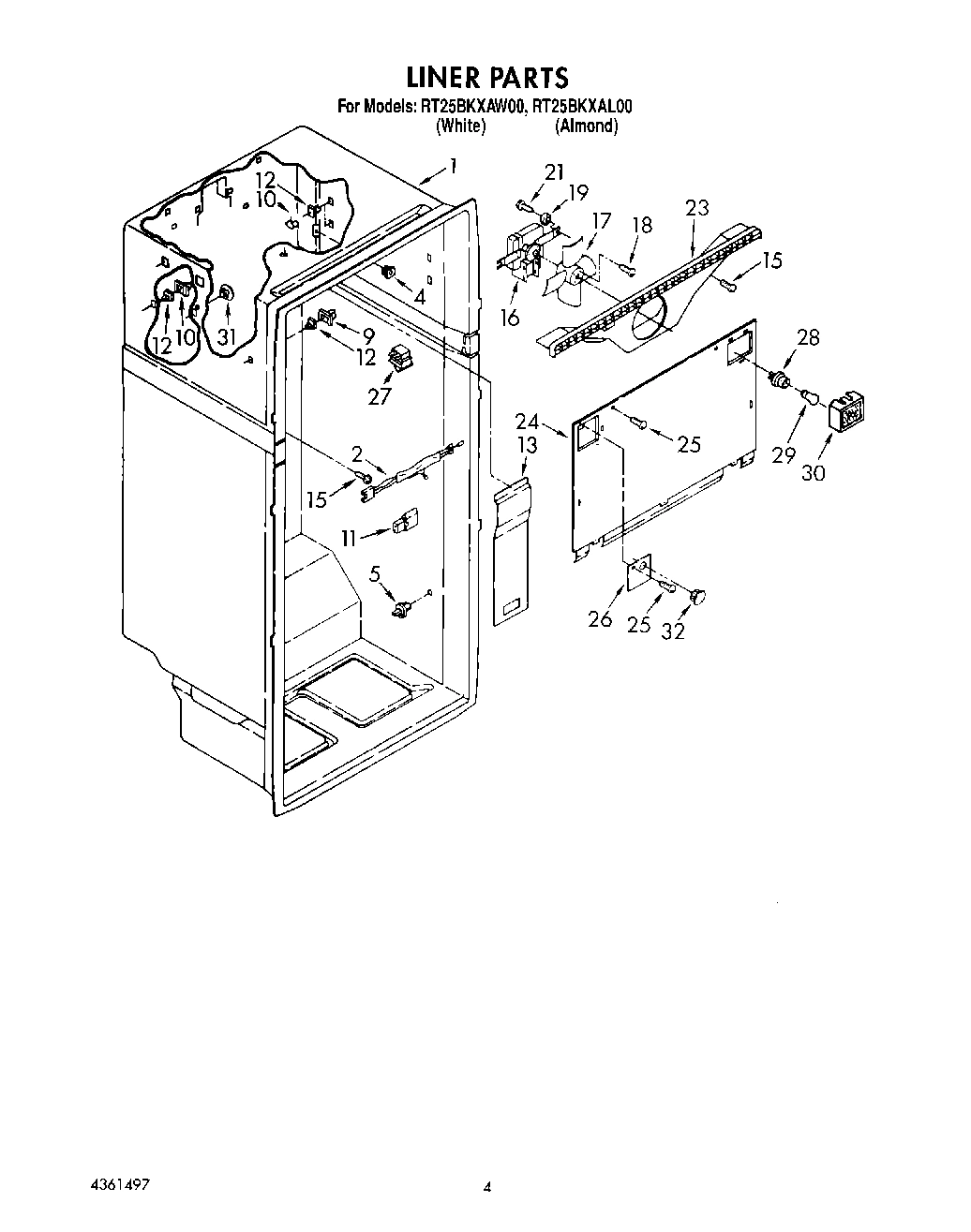

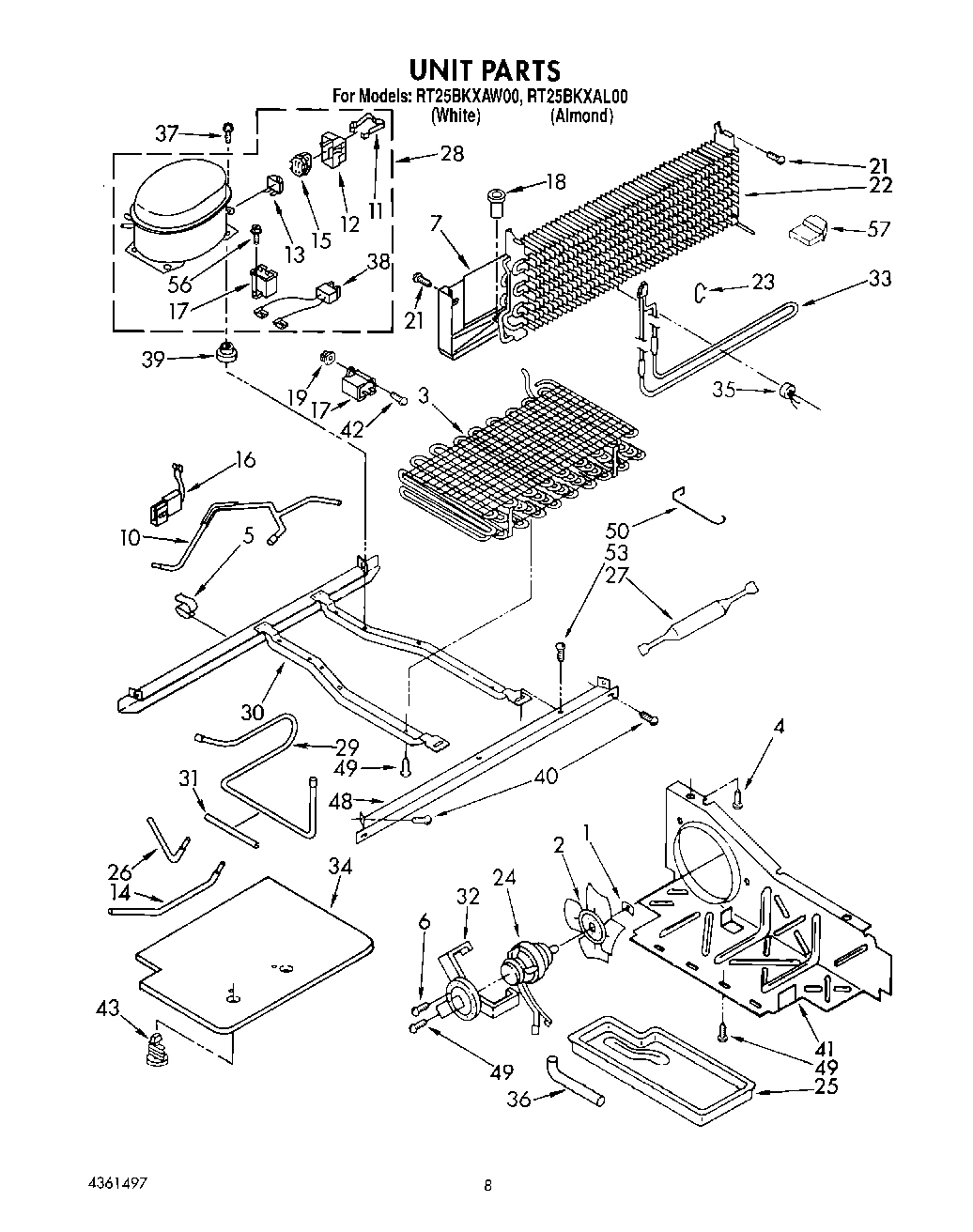

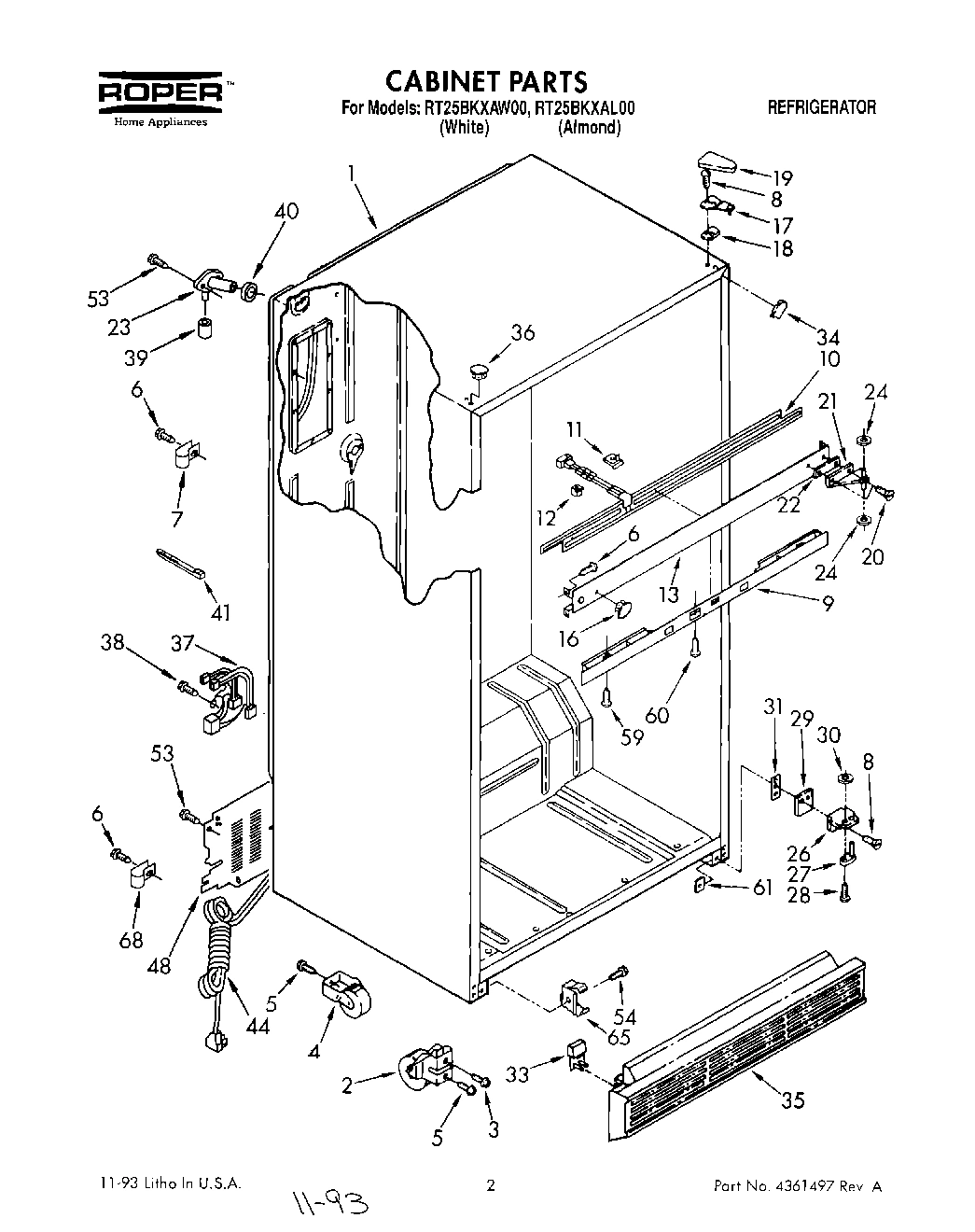

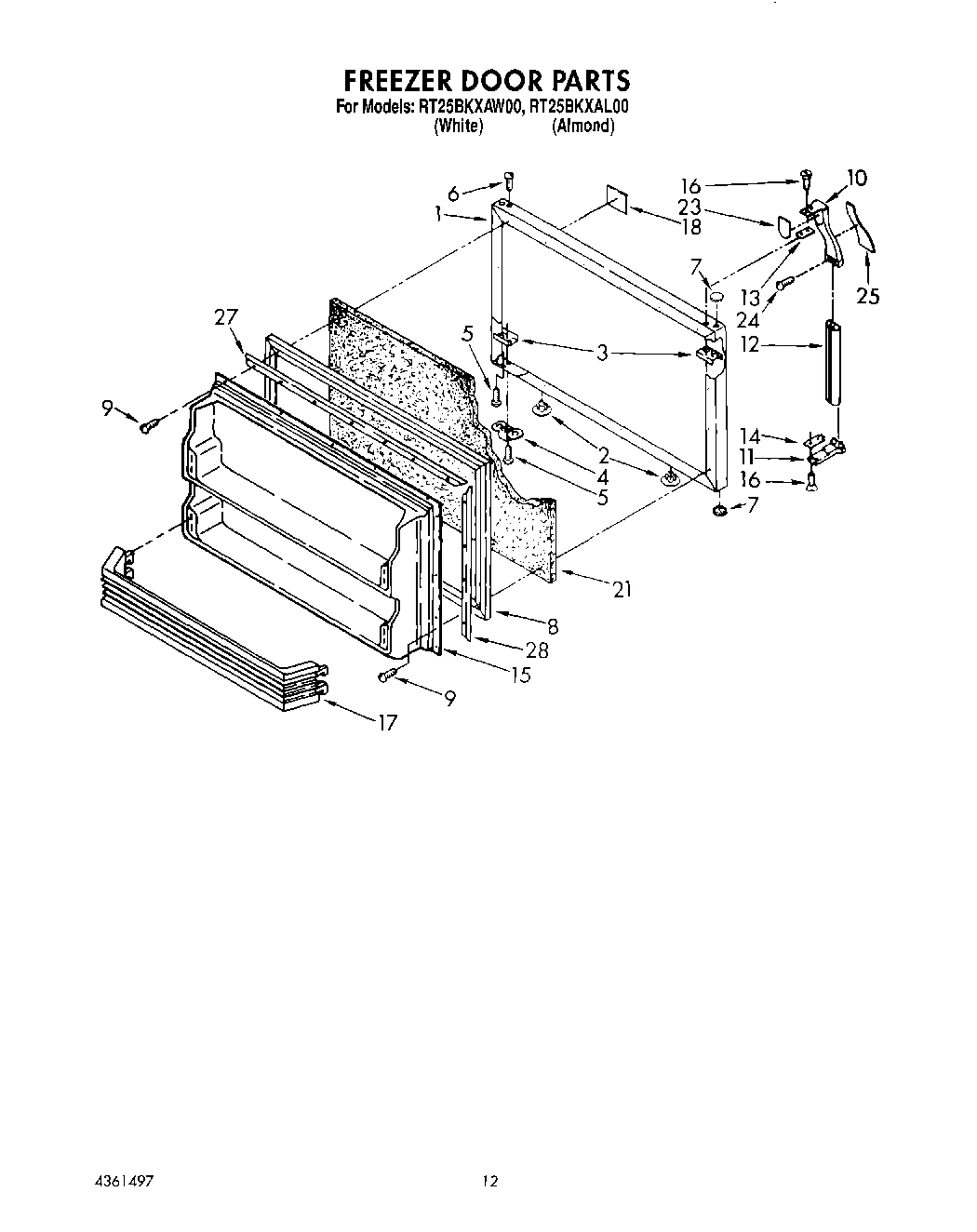

Model Whirlpool RT25BKXAW00 – Common Parts &amp; Diagrams

WPL 1117510 WPL 1117510 Contact Us For Availability

WPL LIT2154076 WPL LIT2154076 Contact Us For Availability

WPL LIT2163451 WPL LIT2163451 Contact Us For Availability

WPL LIT2163500 WPL LIT2163500 Contact Us For Availability

WPL LIT677969 WPL LIT677969 Contact Us For Availability

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

1

Cabinet (Not A Serviceable Part) WPL ARI162458A Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI162459A Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Whi WPL 2159164 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Alm WPL 2159167 Contact Us For Availability

1

Shelf, Ladder (2) WPL 1118102 Contact Us For Availability

1

Panel, Refrigerator Door (Also Order Item 27) WPL 2157304 Contact Us For Availability

1

Panel, Refrigerator Door (Also Order Item 27) WPL 2157305 Contact Us For Availability

2

Wiring, Fan Motor WPL 1127626 Contact Us For Availability

2

Roller, Front WPL 2152011 Contact Us For Availability

2

Hole Plug (2) WPL 534927 Contact Us For Availability

2

Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability

2

Shelf Ladder, Center WPL 1118101 Contact Us For Availability

3

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $19.90

3

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $10.05

3

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $27.81

3

Screw, 5/16-24 x 1-1/4 WPL 489393 Contact Us For Availability

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

4

Grommet (2) WPL 848445 Contact Us For Availability

4

Bracket, Door Stop WPL 944035 Contact Us For Availability

4

Bracket, Door Stop WPL 1115910 Contact Us For Availability

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $4.82

5

Shelf Stud (2) WPL 1106612 Contact Us For Availability

5

Screw, 1/4-28 x 1/2 (6) WPL 488454 Contact Us For Availability

5

Screw, 8-32 x 1-1/4 WPL 489345 Contact Us For Availability

6

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $4.82

6

WP8281206 Whirlpool Refrigerator Screw Backorder WPL WP8281206 $4.82

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve In Stock WPL WP2212648 $4.82

7

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $7.20

7

Hole Plug (Almond) WPL 989196 Contact Us For Availability

7

Shelf, Cantilever WPL 2152542 Contact Us For Availability

8

Door Gasket, Magnetic WPL 1121202 Contact Us For Availability

8

Trim, Shelf WPL 2152569 Contact Us For Availability

8

Door Gasket, Magnetic WPL 1121176 Contact Us For Availability

9

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $4.99

9

NLA:SCREW Backorder WPL WPW10141645 $4.82

9

Control, Front Cover WPL 2163491 Contact Us For Availability

9

Stud (3) WPL 946356 Contact Us For Availability

9

Crisper Cover WPL 2152583 Contact Us For Availability

819091 Whirlpool Refrigerator Shelf Stud In Stock WPL 819091 $24.52

Handle End, Top WPL 944163 Contact Us For Availability

Heater, Mullion WPL 2154069 Contact Us For Availability

Handle End, Top WPL 944157 Contact Us For Availability

Trim, Crisper Cover WPL 1121136 Contact Us For Availability

Clip, Mullion (4) WPL 2149060 Contact Us For Availability

Housing Plug WPL 2149732 Contact Us For Availability

Glass, Crisper Cover WPL 2152572 Contact Us For Availability

End Cap, Handle (Bottom) WPL 935105 Contact Us For Availability

Spacer (3) WPL 2149077 Contact Us For Availability

support stud (8) WPL 946355 Contact Us For Availability

Handle, Center WPL 2159622 Contact Us For Availability

Pan Shelf, Cantilever WPL 2147577 Contact Us For Availability

Handle, Center WPL 1109181 Contact Us For Availability

Shim, Handle WPL 943187 Contact Us For Availability

Center Rail (White) WPL 2154187 Contact Us For Availability

Cover, Air Duct WPL 2159578 Contact Us For Availability

Shim, Handle WPL 935076 Contact Us For Availability

14

Spacer, Handle Door WPL 943188 Contact Us For Availability

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $4.82

Interior Door Panel WPL 1125739 Contact Us For Availability

Support, Cover WPL 1114568 Contact Us For Availability

482731 Whirlpool Refrigerator Evaporator Fan In Stock WPL 482731 $65.89

WP488920 Whirlpool Refrigerator Screw In Stock WPL WP488920 $4.82

Hole Plug WPL 1129062 Contact Us For Availability

Shelf, Glass WPL 2152568 Contact Us For Availability

WP1100938 Whirlpool Refrigerator Fan Blade Backorder WPL WP1100938 $59.86

WP2189412 Whirlpool Refrigerator Door Hinge Backorder WPL WP2189412 $77.96

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

Shelf Bin WPL 2157113 Contact Us For Availability

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $4.82

Shim, Hinge Top WPL 2157269 Contact Us For Availability

Nameplate WPL 2160005 Contact Us For Availability

End Cap Cover WPL 987873 Contact Us For Availability

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $12.19

Hinge Cover (Almond) WPL 2160404 Contact Us For Availability

Grommet (2) WPL 531933 Contact Us For Availability

Interior Door Panel WPL 2155999 Contact Us For Availability

20

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $4.82

20

Pan, Meat WPL 2152570 Contact Us For Availability

20

Trim, Door Compartment WPL 2152562 Contact Us For Availability

21

Hinge, Center WPL 2147335 Contact Us For Availability

21

Screw WPL 489168 Contact Us For Availability

22

Shim, Hinge Center WPL 836155 Contact Us For Availability

22

Pan, Crisper WPL 2152582 Contact Us For Availability

22

Compartment Door WPL 2148289 Contact Us For Availability

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $5.99

Scroll, Fan WPL 1114593 Contact Us For Availability

Shim, EndCap (Top) WPL 935074 Contact Us For Availability

Reflector, Shelf WPL 1125754 Contact Us For Availability

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $4.82

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $4.99

Evaporator Cover WPL 1123399 Contact Us For Availability

Screw, 6-20 x 3/8 (2) WPL 489022 Contact Us For Availability

Shelf, Freezer WPL 1121154 Contact Us For Availability

Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability

25

Insert, Handle WPL 1114390 Contact Us For Availability

25

Trim, Shelf WPL 2152563 Contact Us For Availability

26

WP2217784 Whirlpool Refrigerator Cover In Stock WPL WP2217784 $32.12

26

Hinge Butt, Bottom WPL 1123378 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $37.99

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.77

Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability

Hinge Pin, Bottom WPL 654366 Contact Us For Availability

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $49.99

WPW10119935 Whirlpool Refrigerator Socket In Stock WPL WPW10119935 $66.40

Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability

Compressor (Includes Items 11, 12, 13, 15, 17 WPL 2154558 Contact Us For Availability

Gasket Retainer, Side (2) WPL 1121120 Contact Us For Availability

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $6.45

Tube, Suction WPL 2162473 Contact Us For Availability

Shim, Bottom WPL 1123379 Contact Us For Availability

Gasket Retainer, Top & Bottom (2) WPL 1121119 Contact Us For Availability

2304904 Whirlpool Frame Assembly Backorder WPL 2304904 $184.77

Washer WPL 489200 Contact Us For Availability

Lens, Light WPL 981365 Contact Us For Availability

Gasket Retainer, Side (2) WPL 1123245 Contact Us For Availability

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $13.22

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $5.99

Spacer WPL 1121117 Contact Us For Availability

Crisper, Gasket Rear WPL 1116666 Contact Us For Availability

Trim, Door WPL 1118208 Contact Us For Availability

32

Fan, Motor Bracket WPL 2162062 Contact Us For Availability

32

Hole Plug WPL 1103725 Contact Us For Availability

33

Heater, Defrost WPL 2162021 Contact Us For Availability

33

Corner Filler, Grille WPL 1118078 Contact Us For Availability

33

Crisper Track, Center WPL 1118092 Contact Us For Availability

Cover, Unit Bottom WPL 2157369 Contact Us For Availability

Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability

Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability

Support Bar WPL 2147047 Contact Us For Availability

35

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $20.53

35

Grille WPL 1129002 Contact Us For Availability

36

WP2151652 Whirlpool Refrigerator Button Plug In Stock WPL WP2151652 $14.52

36

Drain Tube WPL 2154119 Contact Us For Availability

36

Hole Plug (5) (Almond) WPL 2151653 Contact Us For Availability

37

4388286 Whirlpool Refrigerator Shelf Bar Endc In Stock WPL 4388286 $13.76

37

Wire Assembly Intermediate WPL 2153994 Contact Us For Availability

37

Clip (3) WPL 2149078 Contact Us For Availability

38

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $4.82

38

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $4.82

38

Trim, Door Shelf WPL 2152564 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

285006 Whirlpool Spray In Stock WPL 285006 $31.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $141.89

876811 Whirlpool Grommet Backorder WPL 876811 $4.82

WP487996 Whirlpool Refrigerator Cap Tube Backorder WPL WP487996 $6.69

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $8.99

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Door Reversal Instructions WPL 2148985 Contact Us For Availability

Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Trim, Door Shelf WPL 2152565 Contact Us For Availability

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $6.83

40

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $6.17

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

Air Baffle WPL 2162457 Contact Us For Availability

End Cap, Trim (4) WPL 1115364 Contact Us For Availability

See Complete Cross-Reference Listing Film Car WPL 4314268 Contact Us For Availability

43

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

44

Cord, Service WPL 937360 Contact Us For Availability

48

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $54.42

48

Cover, Unit WPL 2160508 Contact Us For Availability

49

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

50

GUARD-FAN Backorder WPL 1110663 $27.86

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

56

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Wedge, Air Baffle WPL 1118017 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

60

WP489174 Whirlpool Refrigerator Screw Backorder WPL WP489174 $4.82

61

Tap-Plate, Bottom Hinge WPL 2147310 Contact Us For Availability

65

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

68

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $8.91
