Model Whirlpool RT18HDXDW00 REFRIGERATOR – Common Parts & Diagrams

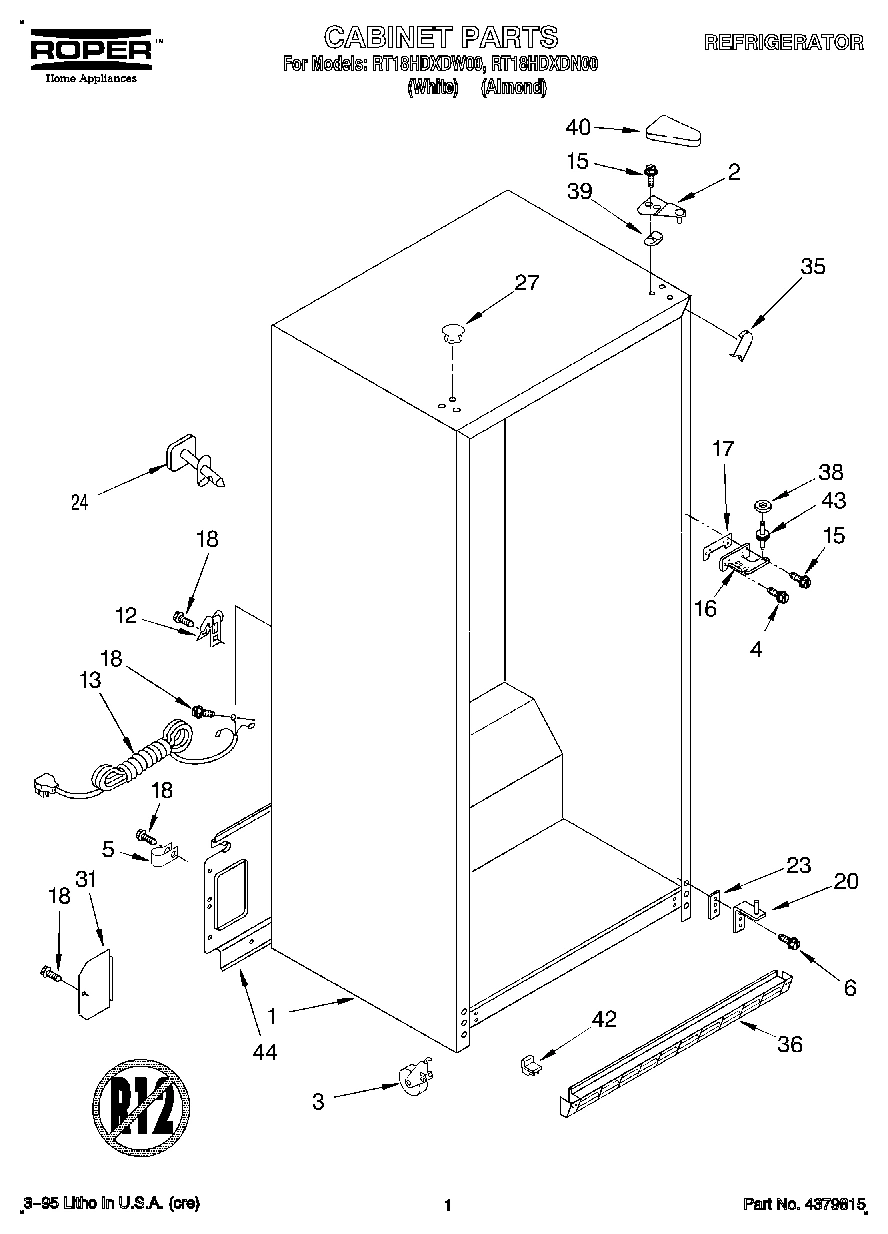

01 - CABINET

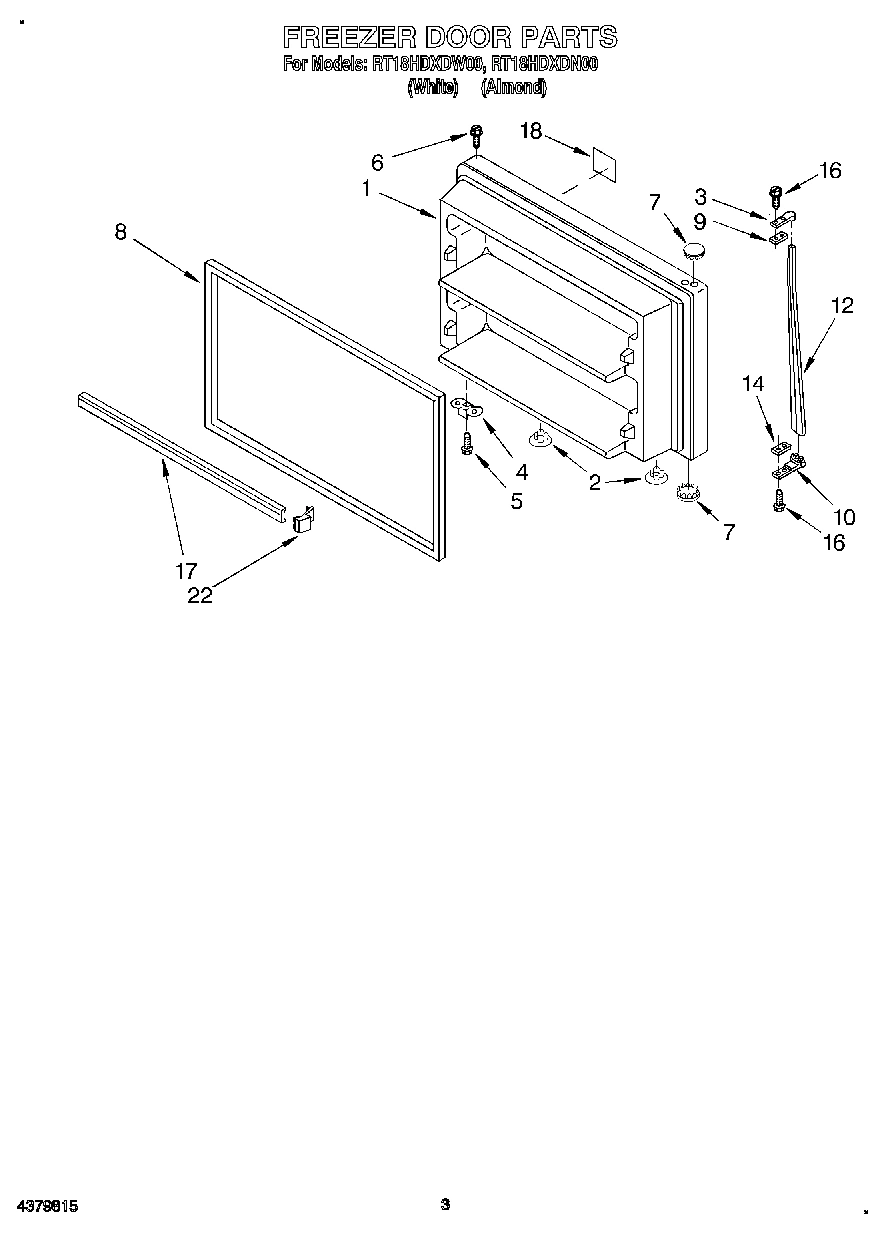

02 - FREEZER DOOR

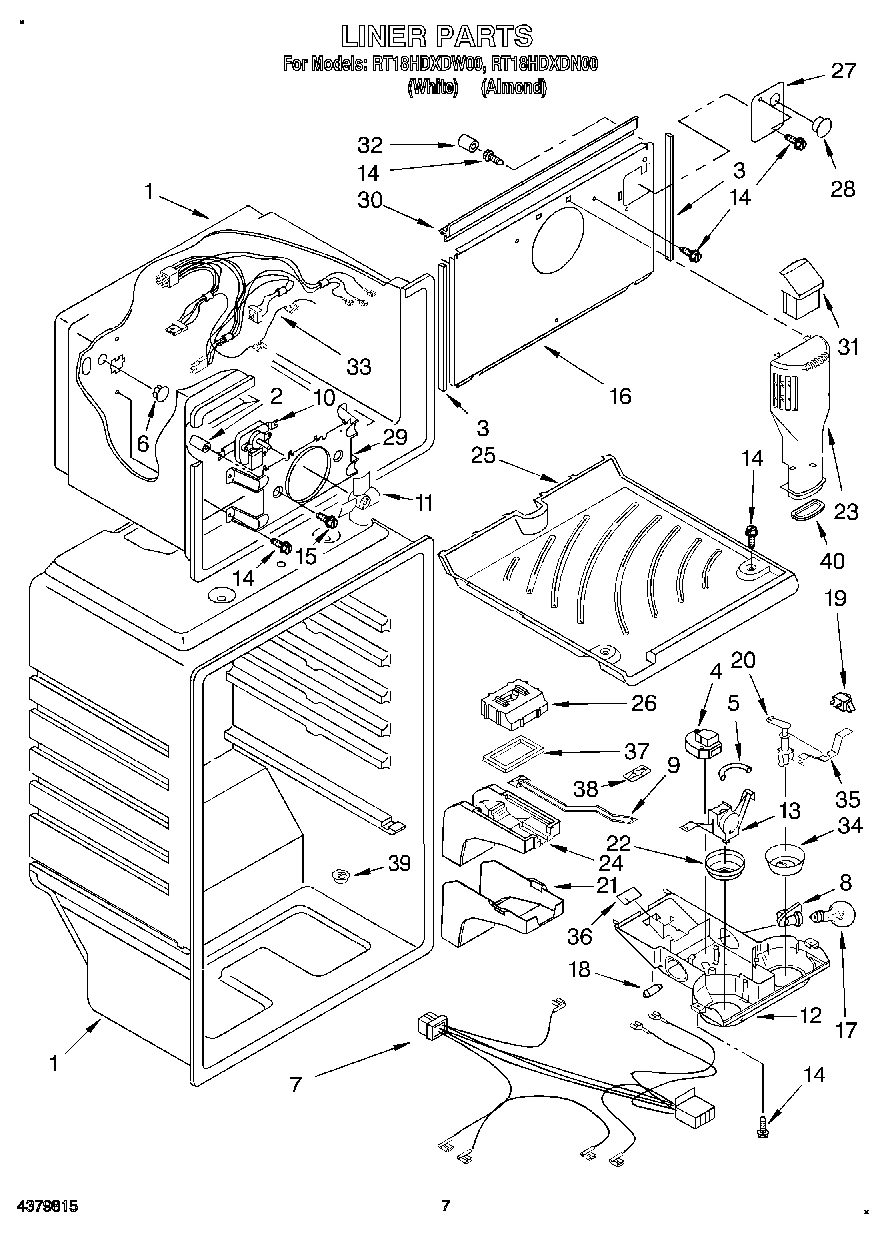

05 - LINER

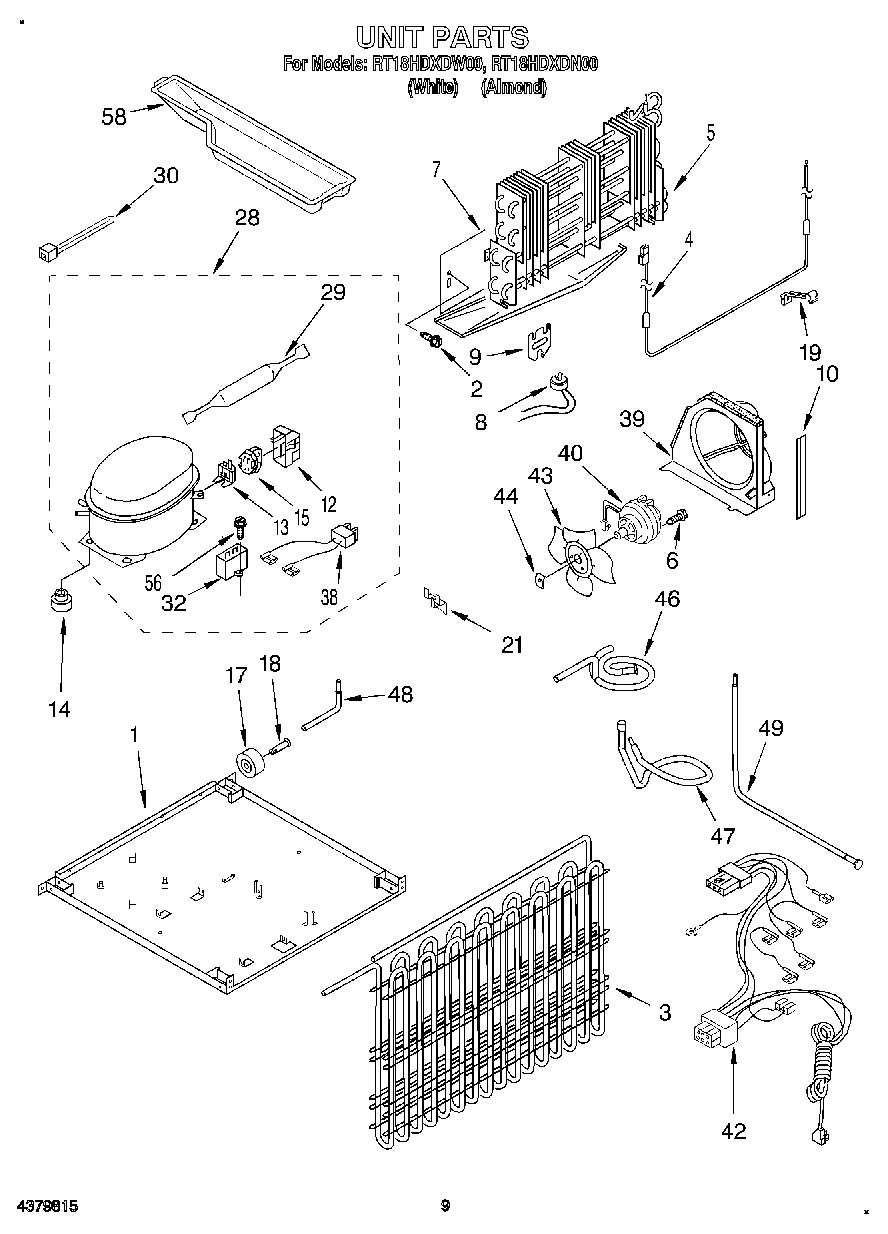

06 - UNIT, LIT/OPTIONAL

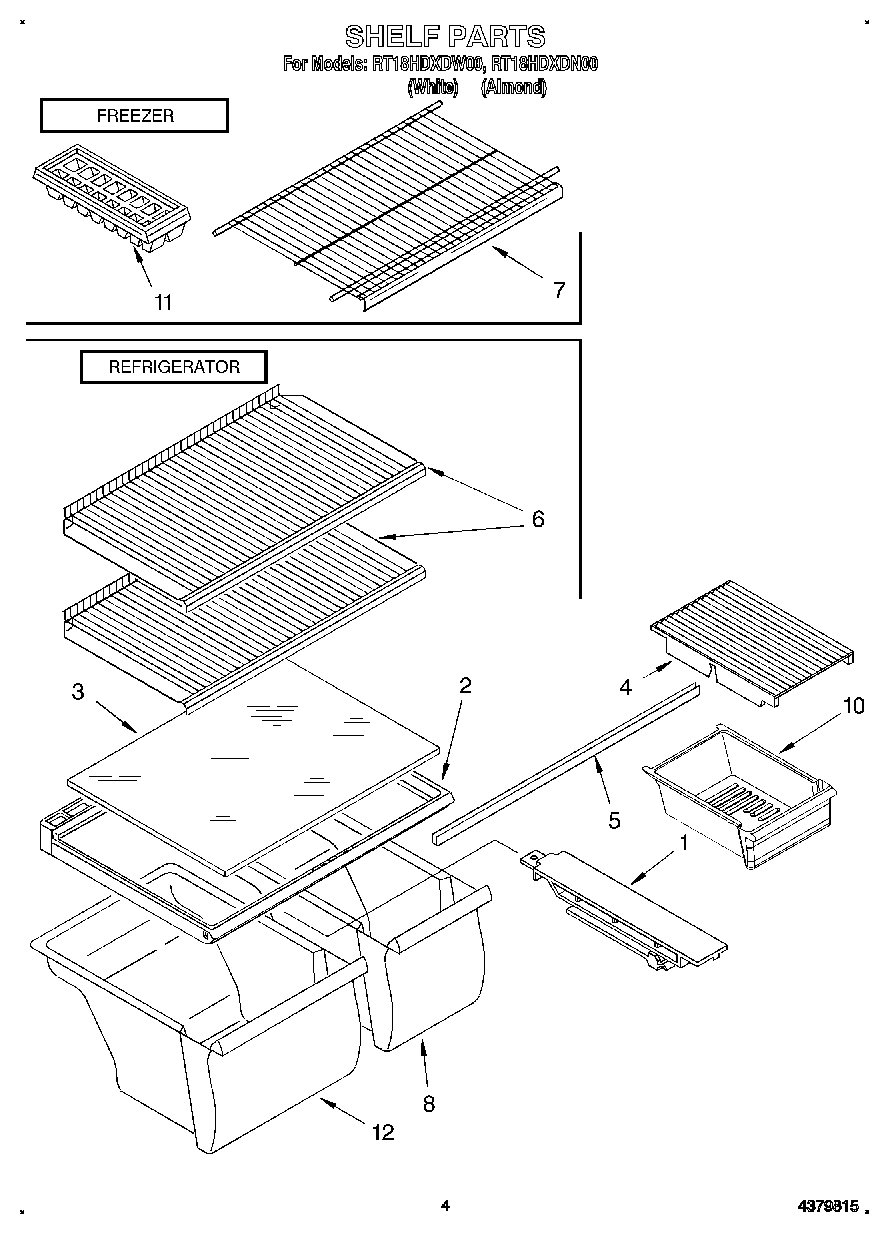

03 - SHELF

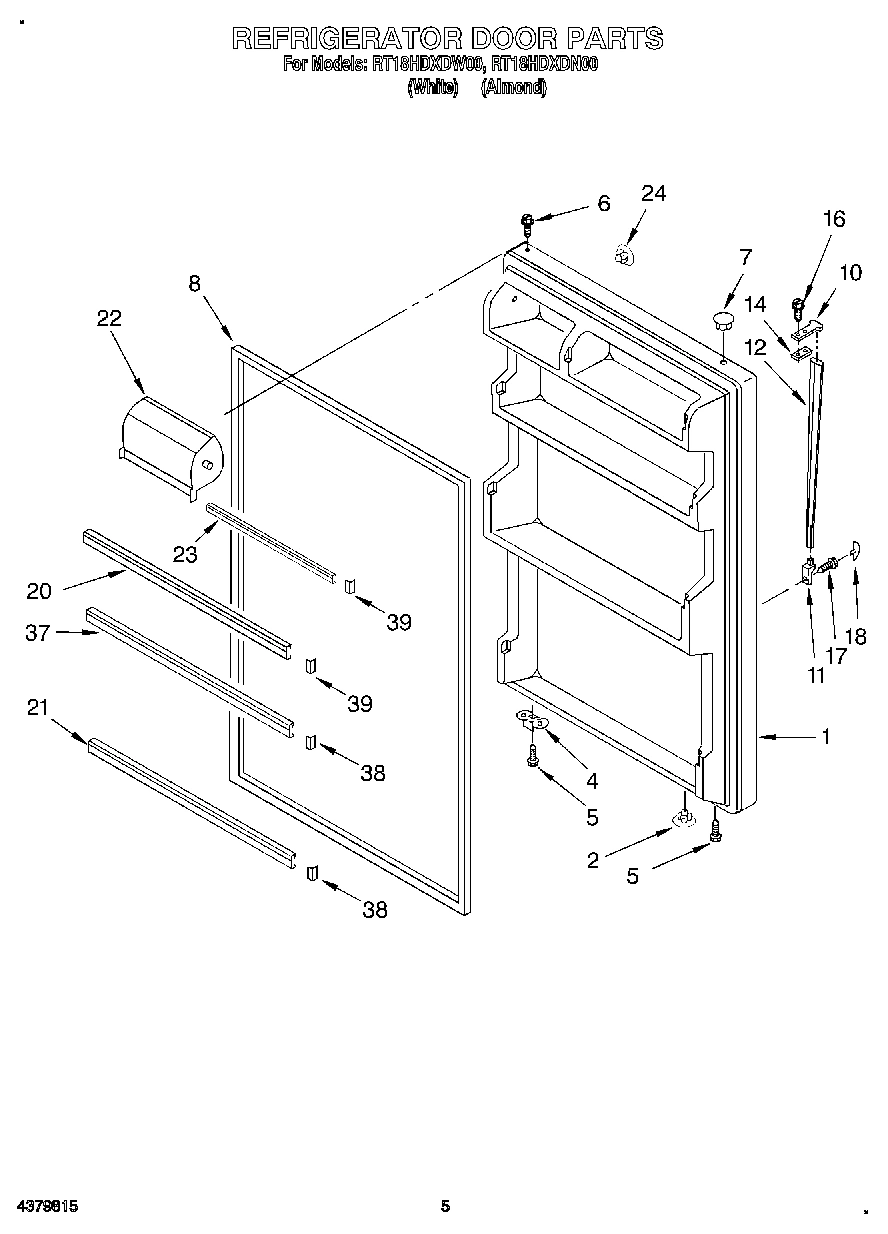

04 - REFRIGERATOR DOOR
Common parts from model Whirlpool RT18HDXDW00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2172667 WPL LIT2172667 Contact Us For Availability
WPL LIT2173304 WPL LIT2173304 Contact Us For Availability
WPL LIT2173484 WPL LIT2173484 Contact Us For Availability
1
Plate, Unit Mounting WPL 2174620 Contact Us For Availability
1
Refrigerator Door (Includes No.8) (White) WPL 2171269 Contact Us For Availability
1
Refrigerator Door (Includes No.8) (Almond) WPL 2171270 Contact Us For Availability
2
Hole Plug (2) WPL 534927 Contact Us For Availability
3
Condenser WPL 2179882 Contact Us For Availability
4
Cover, Meat Pan WPL 2163848 Contact Us For Availability
5
Evaporator Assy. WPL 2176337 Contact Us For Availability
6
Screw WPL 489414 Contact Us For Availability
6
Shelf, Wire (2) WPL 2166147 Contact Us For Availability
7
Drain Pan WPL 2172619 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
9
Shim WPL 943187 Contact Us For Availability
9
Bracket, Heater WPL 2176301 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
10
Pan, Meat WPL 2173312 Contact Us For Availability
12
Handle, Center WPL 1109166 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Grommet (4) (Production) WPL 2174621 Contact Us For Availability
15
Relay (See Overload) WPL ARI127337A Contact Us For Availability
16
Cover-Evaporator WPL 2179897 Contact Us For Availability
17
Roller (2) WPL 2163782 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
19
Clip, Heater WPL 2166244 Contact Us For Availability
20
Post, Damper WPL 2163809 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Clip, Retaining (Capacitor) WPL 2166683 Contact Us For Availability
21
Trim, Door Shelf WPL 2163683 Contact Us For Availability
22
Knob, Thermostat WPL 2176296 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
25
Freezer Floor WPL 2172679 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Hole Plug WPL 1103725 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
32
Capacitor (Service Only) WPL 2169137 Contact Us For Availability
33
Wire Assembly, Freezer Compartment WPL 2174610 Contact Us For Availability
34
Knob, Damper WPL 2176297 Contact Us For Availability
35
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
37
Gasket, Air Diffuser WPL 2179877 Contact Us For Availability
37
Trim, Door Shelf WPL 2163682 Contact Us For Availability
38
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
39
Baffle, Air WPL 2179849 Contact Us For Availability
40
Gasket, Air Tower WPL 2179839 Contact Us For Availability
42
Wire Assy. Unit WPL 2182355 Contact Us For Availability
43
Blade, Fan WPL 2176753 Contact Us For Availability
46
Tube, Discharge WPL 2179856 Contact Us For Availability
47
Tube, Suction WPL 2179854 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
58
WPL 978029 WPL 978029 Contact Us For Availability
58
WPL 876029 WPL 876029 Contact Us For Availability
58
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
58
WPL 799344 WPL 799344 Contact Us For Availability
58
Evap. Tray WPL 2163795 Contact Us For Availability
58
Door Reversal Instructions WPL 2172516 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
58
WPL 799832 WPL 799832 Contact Us For Availability
58
WPL 799833 WPL 799833 Contact Us For Availability
58
WPL 978028 WPL 978028 Contact Us For Availability
58
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
