Model Whirlpool RT18AKXDN03 REFRIGERATOR – Common Parts & Diagrams
05 - LINER
04 - REFRIGERATOR DOOR

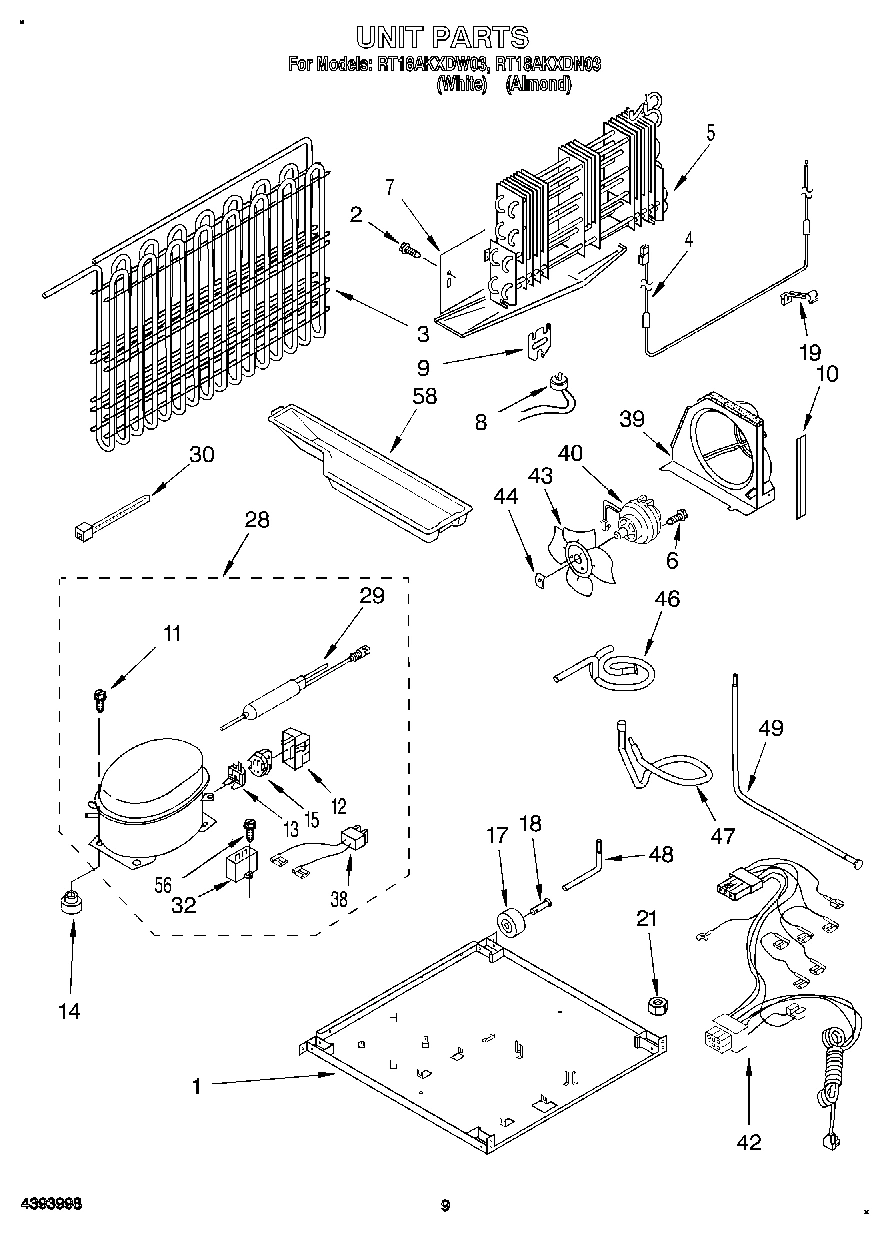

06 - UNIT, LIT/OPTIONAL

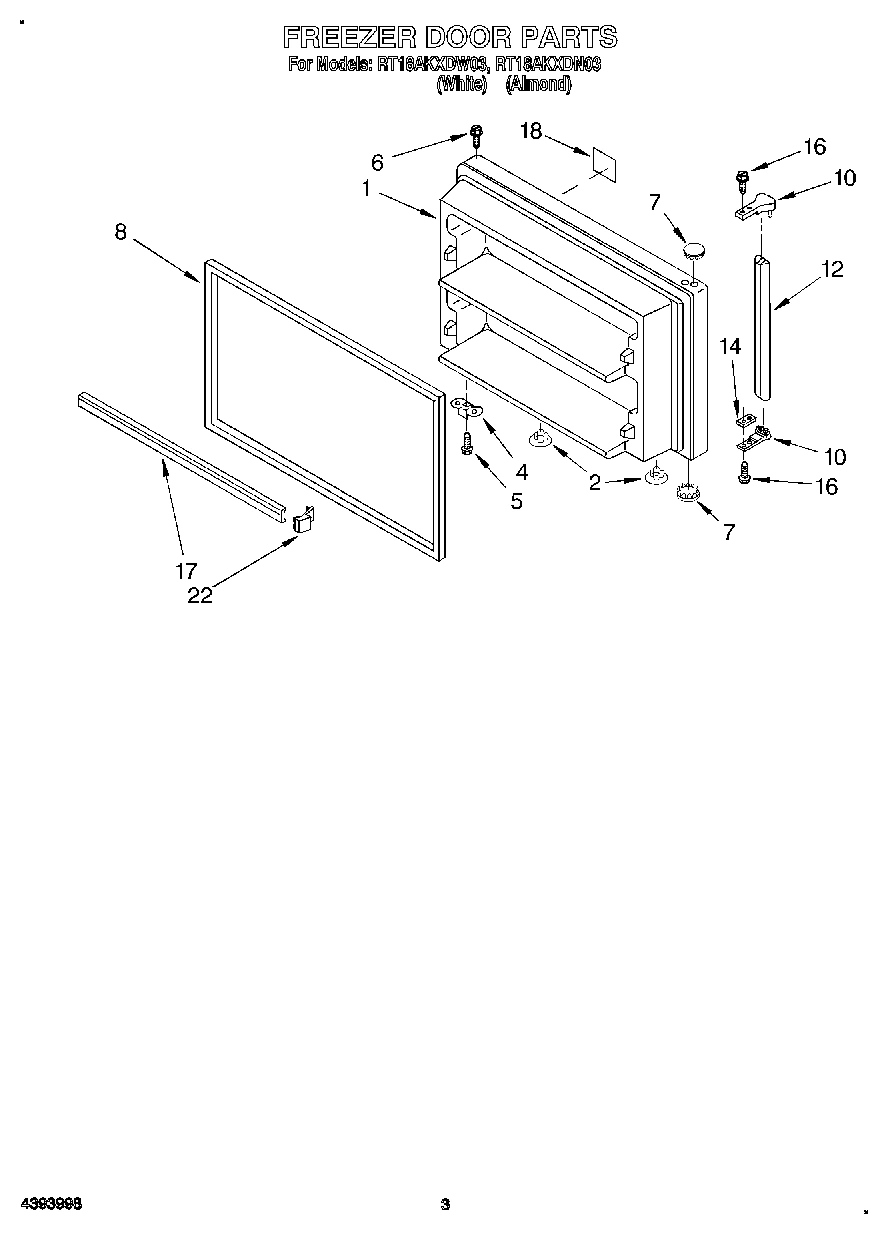

02 - FREEZER DOOR

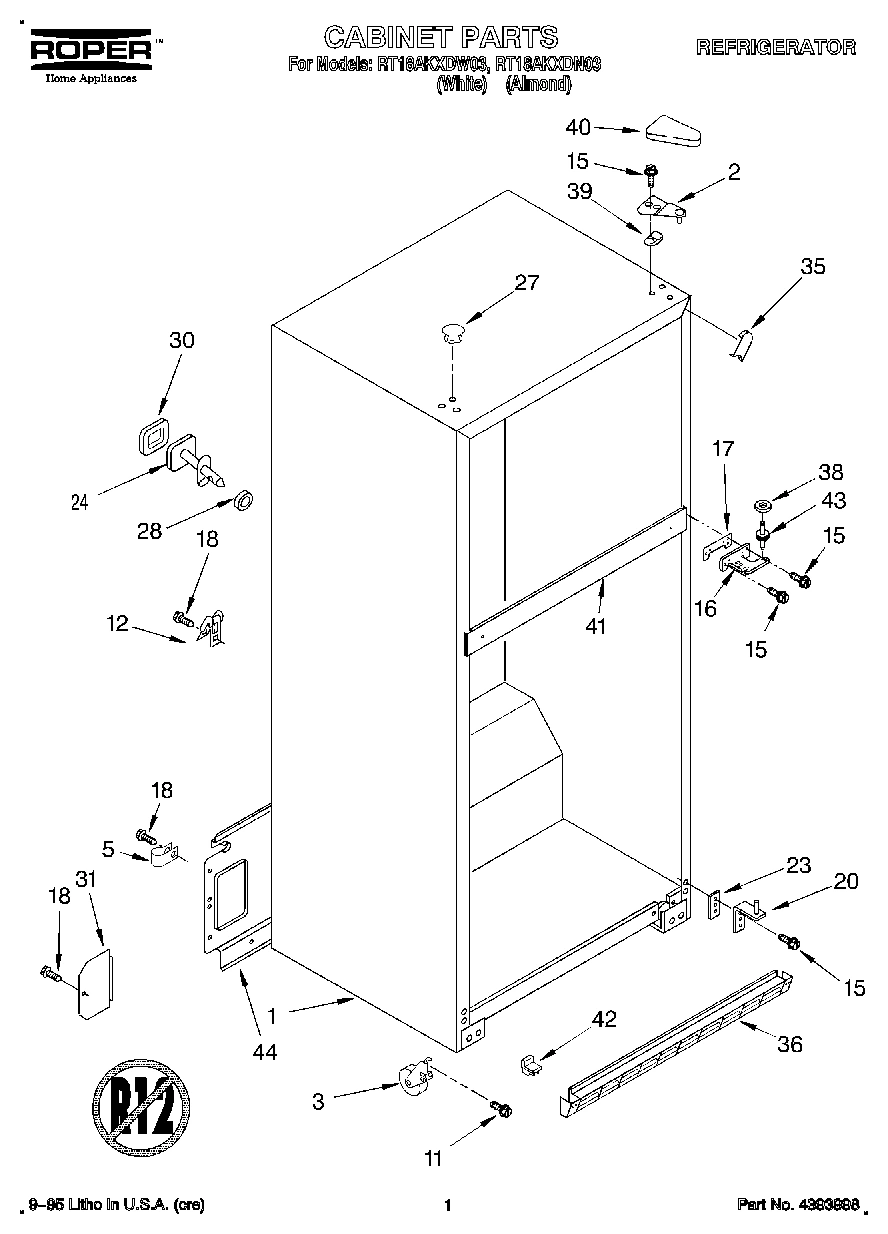

01 - CABINET

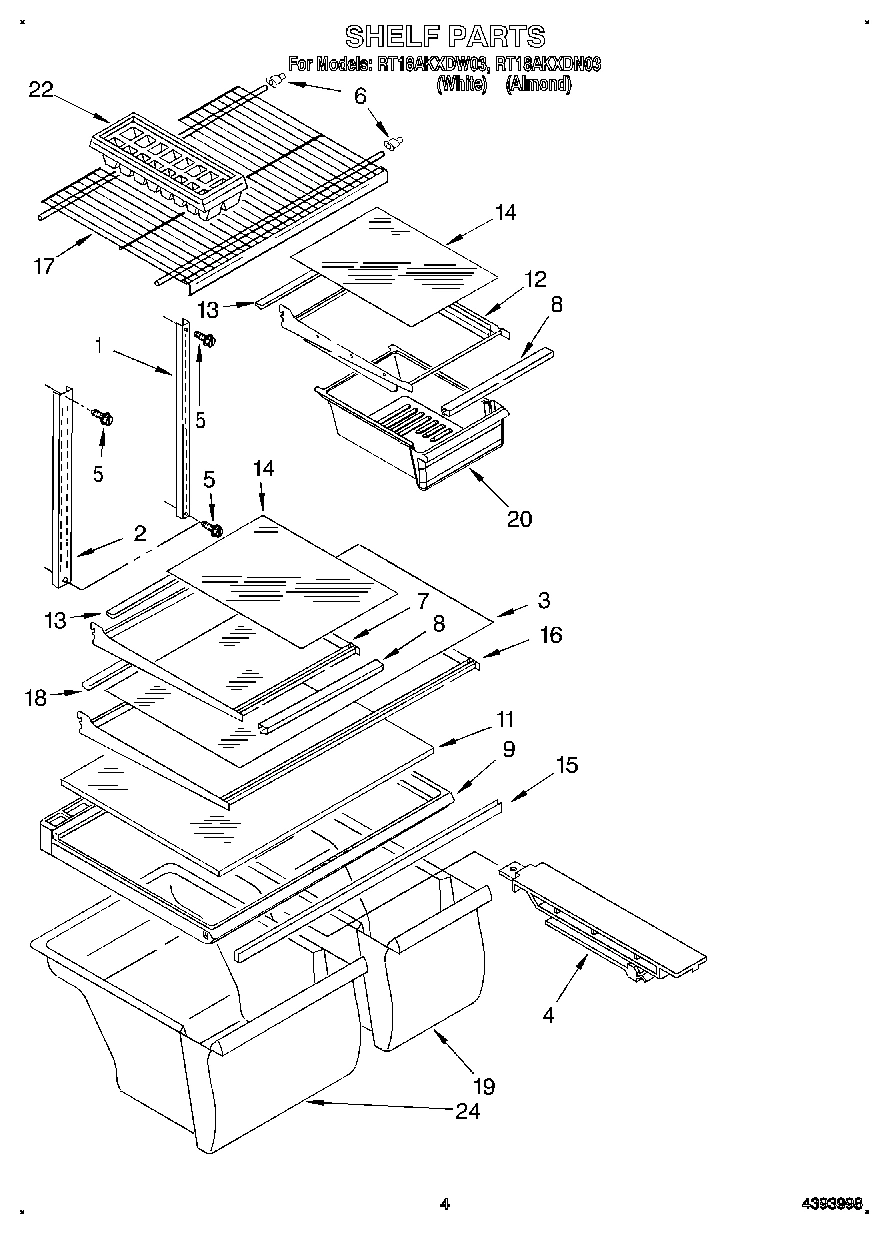

03 - SHELF
Common parts from model Whirlpool RT18AKXDN03 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2172667 WPL LIT2172667 Contact Us For Availability
WPL LIT2173304 WPL LIT2173304 Contact Us For Availability
WPL LIT2173308 WPL LIT2173308 Contact Us For Availability
1
Plate, Unit Mounting WPL 2182437 Contact Us For Availability
1
Freezer Door (Includes No.8) (White) WPL 2159270 Contact Us For Availability
1
Freezer Door (Includes No.8) (Almond) WPL 2159271 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI162297A Contact Us For Availability
1
Shelf, Ladder (2) WPL 2172637 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Shelf, Ladder Center WPL 2172638 Contact Us For Availability
3
Condenser WPL 2179882 Contact Us For Availability
3
Glass, Full Shelf WPL 2173334 Contact Us For Availability
4
Bracket, Door Stop WPL 2159367 Contact Us For Availability
5
Evaporator Assy. WPL 2176337 Contact Us For Availability
6
Screw WPL 489414 Contact Us For Availability
7
Drain Pan WPL 2172619 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Shelf, Cantilever WPL 2163859 Contact Us For Availability
8
Trim, Shelf WPL 2176262 Contact Us For Availability
9
Bracket, Heater WPL 2176301 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
10
Handle End WPL 944157 Contact Us For Availability
11
Screw WPL 489473 Contact Us For Availability
11
Screw WPL 2174650 Contact Us For Availability
12
Handle, Center WPL 2173301 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 2176305 Contact Us For Availability
13
Retainer, Glass WPL 2163882 Contact Us For Availability
14
Spacer, Handle Door Panel WPL 943188 Contact Us For Availability
14
Glass, Shelf WPL 2173297 Contact Us For Availability
15
Relay (See Overload) WPL ARI162303A Contact Us For Availability
16
Shelf, Full Cantilever WPL 2163862 Contact Us For Availability
17
Roller (2) WPL 2163782 Contact Us For Availability
17
Shim, Hinge Center WPL 2163757 Contact Us For Availability
18
Nameplate WPL 2163676 Contact Us For Availability
18
Trim, Shelf Rear WPL 2163884 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
20
Hinge, Butt WPL 2179829 Contact Us For Availability
20
Pan, Meat WPL 2173312 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI162304A Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172745 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI162298A Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Seal, Front (Not Serviced) WPL ARI162299A Contact Us For Availability
30
Seal, Rear (Not Serviced) WPL ARI162300A Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
32
Capacitor (Service Only) WPL 2169137 Contact Us For Availability
35
Trim, Door Shelf WPL 2166471 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2166187 Contact Us For Availability
36
Grille WPL 2182431 Contact Us For Availability
37
Trim, Door Shelf WPL 2173326 Contact Us For Availability
39
Air Baffle WPL 2182395 Contact Us For Availability
39
Shim WPL 1123517 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI162301A Contact Us For Availability
42
Wire Assy. Unit WPL 2182376 Contact Us For Availability
42
Corner Filler, Grille WPL 2166205 Contact Us For Availability
43
Fan, Blade WPL 851732 Contact Us For Availability
44
Cover, Unit WPL 2183158 Contact Us For Availability
46
Tube, Discharge WPL 2179722 Contact Us For Availability
47
Tube, Suction WPL 2182415 Contact Us For Availability
48
Tube, Process WPL 2179725 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
58
WPL 978029 WPL 978029 Contact Us For Availability
58
WPL 876029 WPL 876029 Contact Us For Availability
58
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
58
WPL 799344 WPL 799344 Contact Us For Availability
58
Evap. Tray WPL 2163795 Contact Us For Availability
58
Door Reversal Instructions WPL 2172516 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
58
WPL 799832 WPL 799832 Contact Us For Availability
58
WPL 799833 WPL 799833 Contact Us For Availability
58
WPL 978028 WPL 978028 Contact Us For Availability
58
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
