Model Whirlpool RT16DKXVW00 – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

WPL 1117510 WPL 1117510 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

WPL LIT1118724 WPL LIT1118724 Contact Us For Availability

WPL LIT1124321 WPL LIT1124321 Contact Us For Availability

WPL LIT1124394 WPL LIT1124394 Contact Us For Availability

WPL LIT4315828 WPL LIT4315828 Contact Us For Availability

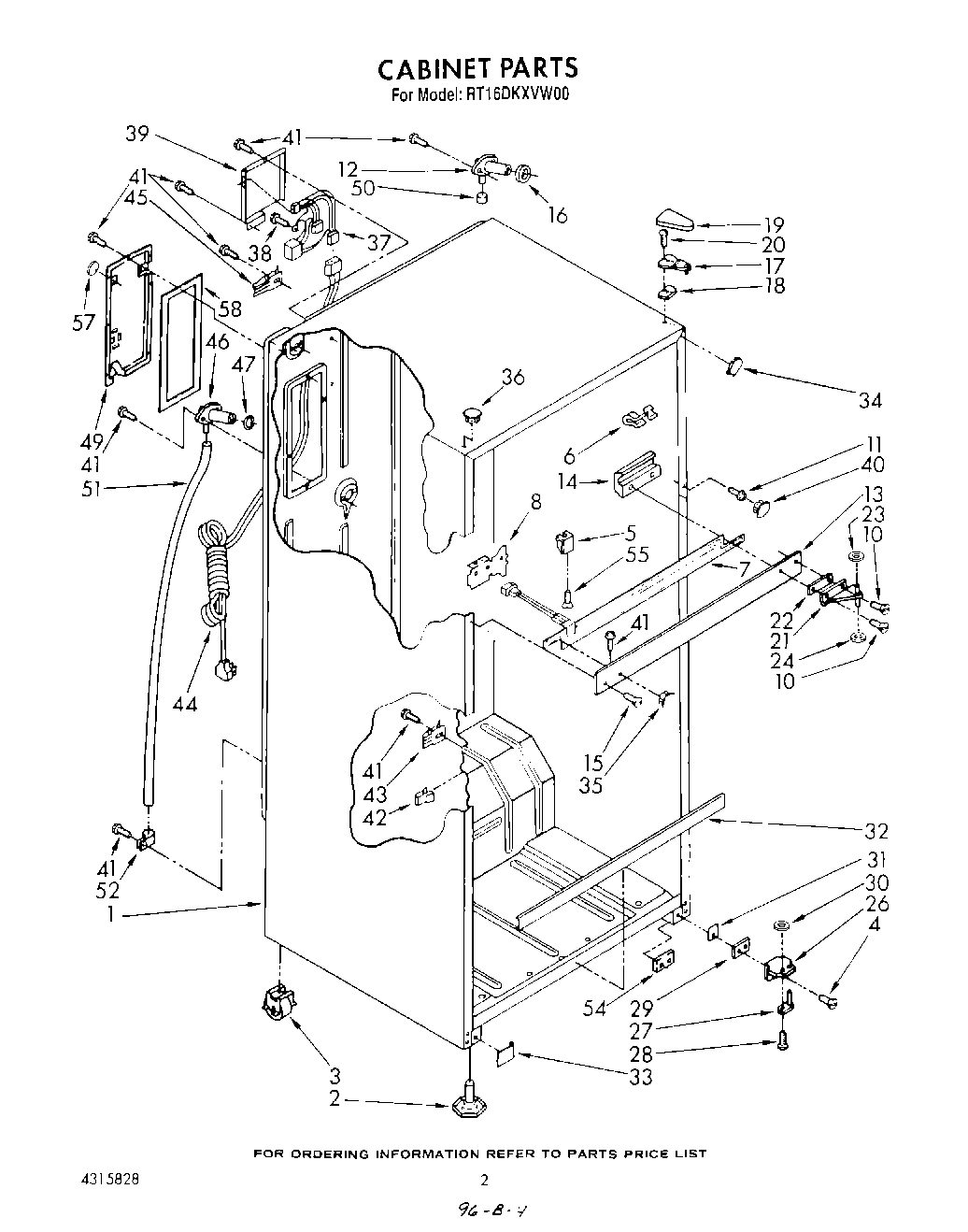

1

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $4.82

1

Cabinet (Not A Serviceable Part) WPL ARI126163A Contact Us For Availability

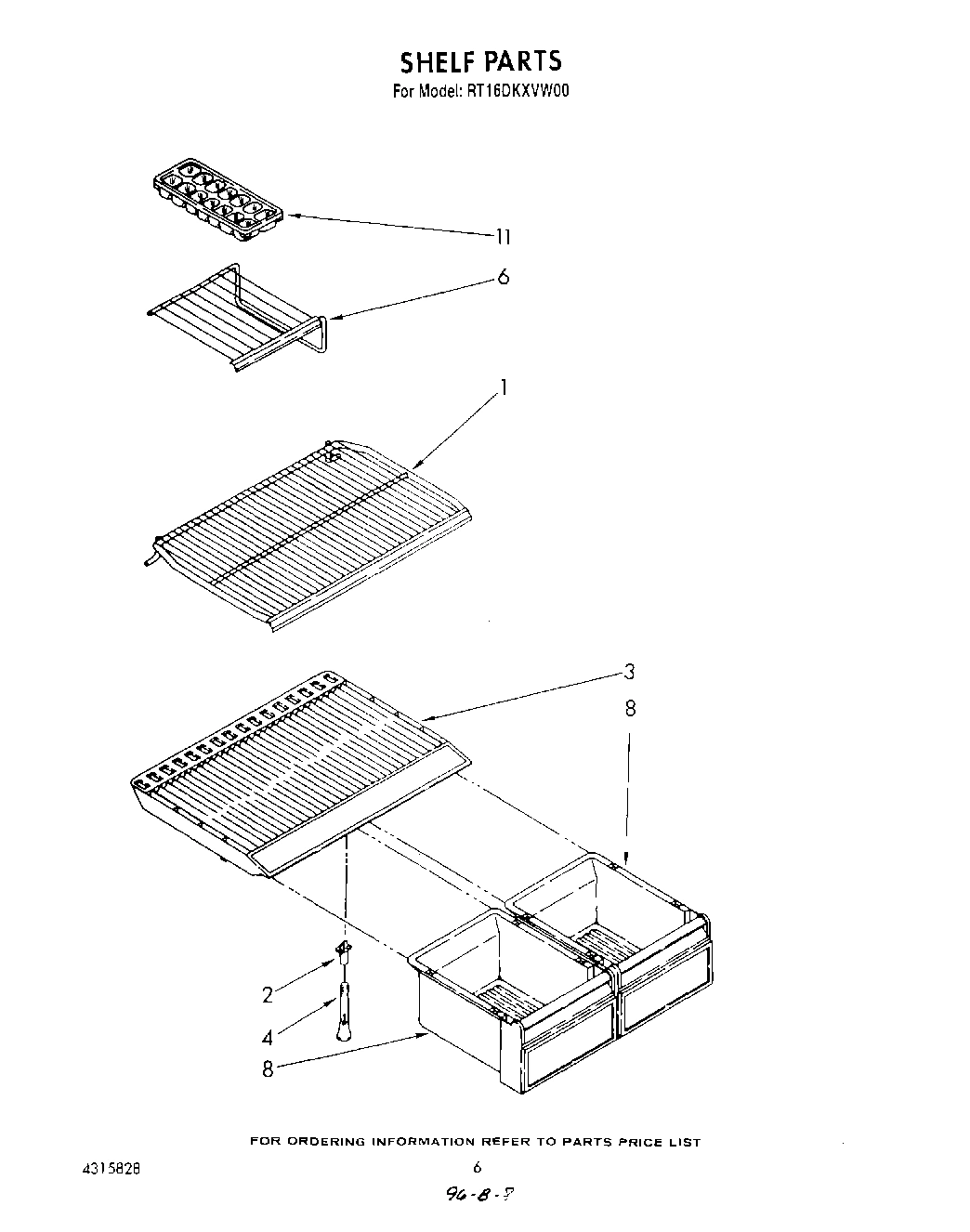

1

Shelf, Pullout (3) WPL 942824 Contact Us For Availability

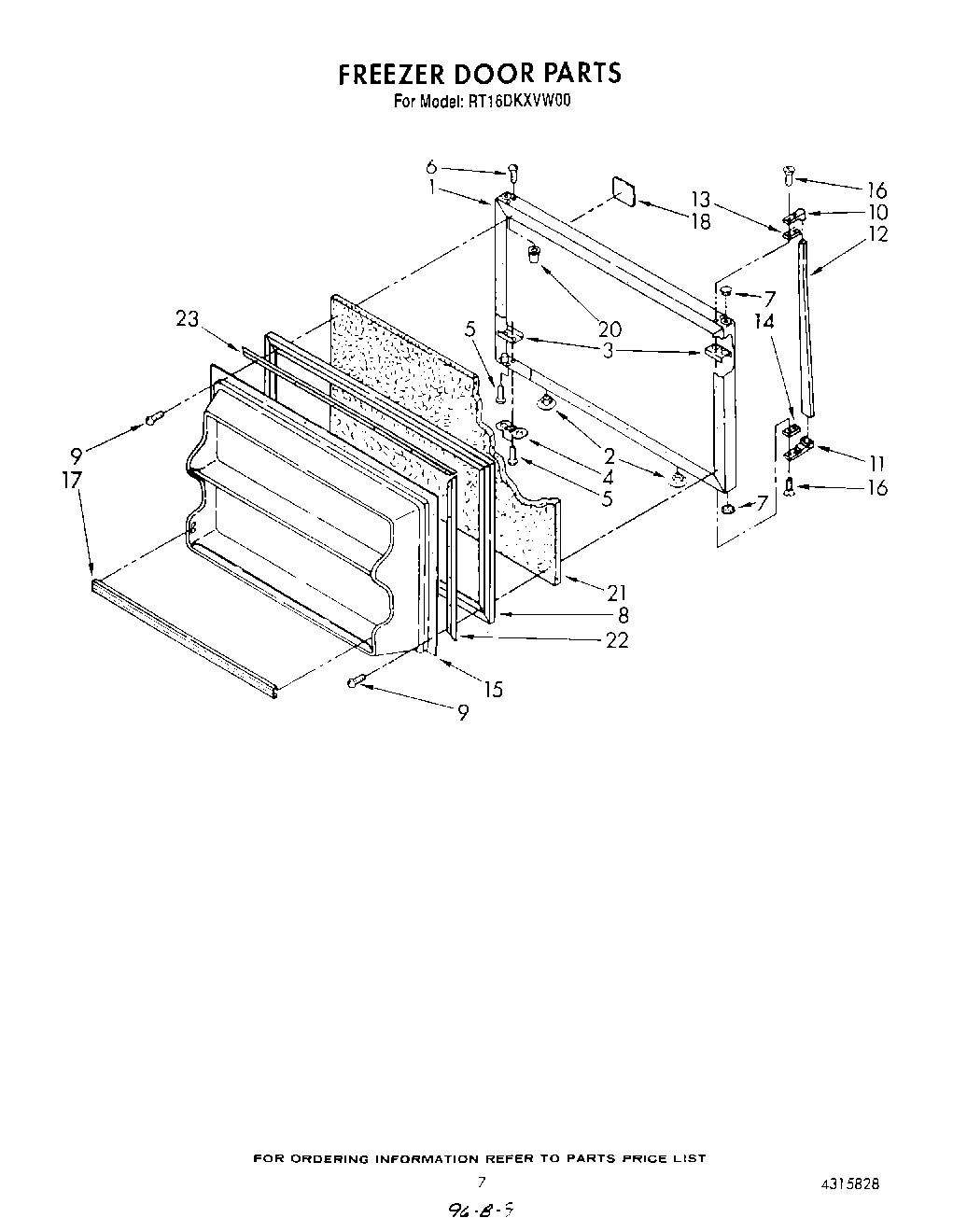

1

Panel, Freezer Door (Also Order Item 21) (Whi WPL 1103940 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Gol WPL 1103941 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Alm WPL 1103942 Contact Us For Availability

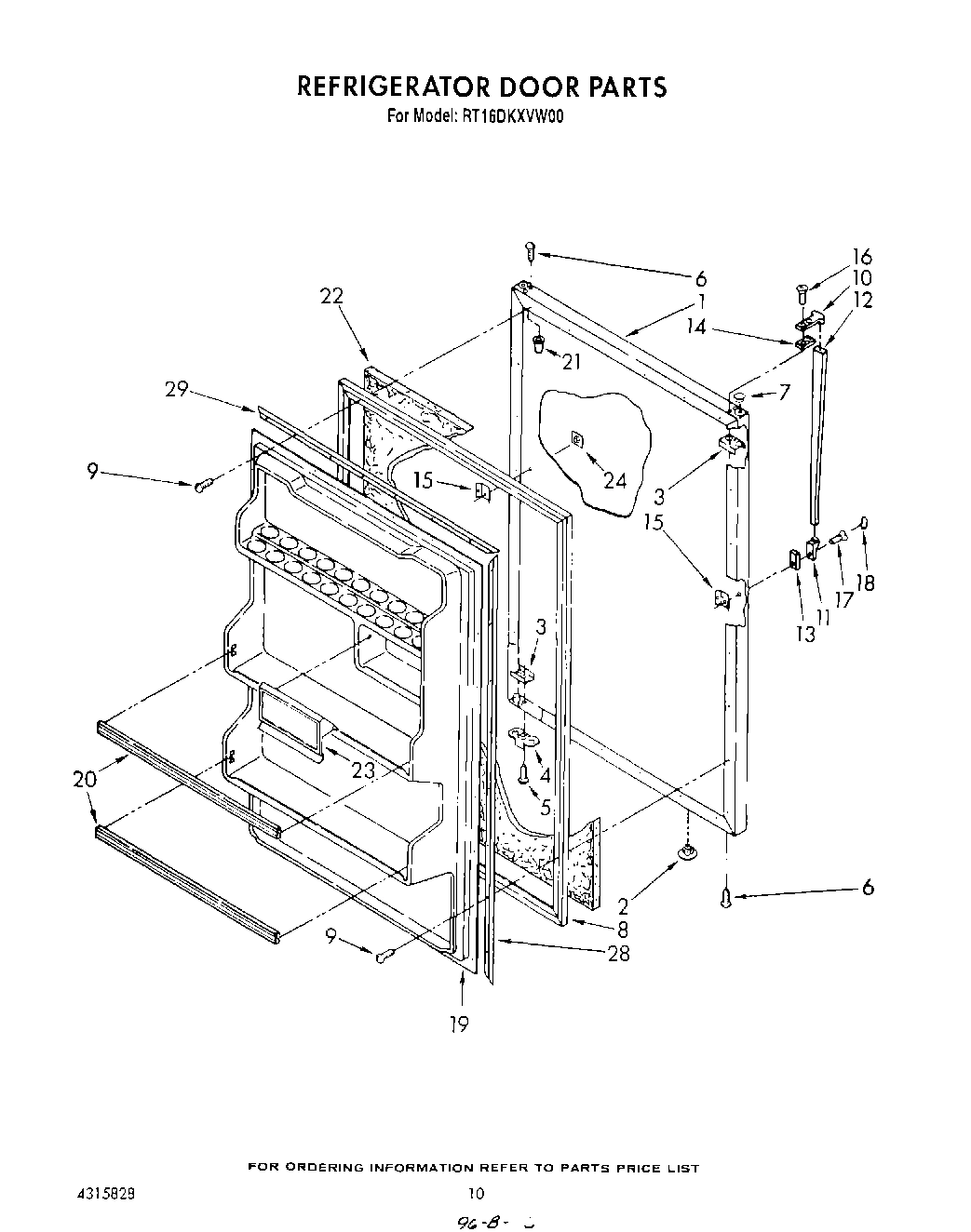

1

Panel, Refrigerator Door (Also Order Item 22) WPL 1103917 Contact Us For Availability

1

Panel, Refrigerator Door (Also Order Item 22) WPL 1103918 Contact Us For Availability

1

Panel, Refrigerator Door (Also Order Item 22) WPL 1103919 Contact Us For Availability

2

Bumper (2) WPL 944772 Contact Us For Availability

2

Leveler (2) WPL 944766 Contact Us For Availability

2

Support, Crisper Cover WPL 1103731 Contact Us For Availability

2

Hole Plug WPL 534927 Contact Us For Availability

2

Hole Plug (Almond) WPL 989197 Contact Us For Availability

2

Hole Plug (Golden Harvest) WPL 989879 Contact Us For Availability

3

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $10.05

3

Condenser & Precooler Assembly WPL 1108012 Contact Us For Availability

3

Roller, Front & Rear WPL 937216 Contact Us For Availability

3

Cover, Crisper WPL 1124388 Contact Us For Availability

4

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $5.99

4

Post, Crisper WPL 836410 Contact Us For Availability

4

Clip, Tube (2) WPL 1118652 Contact Us For Availability

4

Bracket, Door Stop WPL 944035 Contact Us For Availability

4

Bracket, Door Stop WPL 1115910 Contact Us For Availability

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $4.82

5

Spacer (2) WPL 940024 Contact Us For Availability

6

Spacer WPL 1105130 Contact Us For Availability

6

Breaker, Trim Clip WPL 534365 Contact Us For Availability

6

Shelf, Ice Cube Pan WPL 1100799 Contact Us For Availability

6

Screw (Repair) WPL 489221 Contact Us For Availability

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve In Stock WPL WP2212648 $4.82

7

Heat Shield Evaporator WPL 1108169 Contact Us For Availability

7

Heater, Mullion WPL 1118897 Contact Us For Availability

7

Hole Plug (Almond) WPL 989196 Contact Us For Availability

8

2188445A Whirlpool Refrigerator Door Gasket S In Stock WPL 2188445A $110.94

8

WP2188456A Whirlpool Refrigerator Door Gasket Backorder WPL WP2188456A $169.90

8

Center Rail, Bracket (2) WPL 1110231 Contact Us For Availability

8

Pan, Crisper (2) WPL 1124389 Contact Us For Availability

9

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $4.99

9

NLA:SCREW Backorder WPL WPW10141645 $4.82

9

Stud Hook (2) WPL 939065 Contact Us For Availability

9

Tube Clamp WPL 510716 Contact Us For Availability

10

819342 Whirlpool Refrigerator Endcap Kit In Stock WPL 819342 $37.99

10

Dampener WPL 945593 Contact Us For Availability

10

Screw WPL 489179 Contact Us For Availability

11

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $8.99

11

Screw (2) WPL 489277 Contact Us For Availability

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $5.99

Case, Relay WPL 1108115 Contact Us For Availability

Handle, Center WPL 1109171 Contact Us For Availability

Handle, Center WPL 1109166 Contact Us For Availability

Shim, Handle WPL 943187 Contact Us For Availability

Shim, Handle End (Side) WPL 992872 Contact Us For Availability

Overload WPL 1105172 Contact Us For Availability

Center Rail (White) WPL 1111510 Contact Us For Availability

Center Rail (Golden Harvest) WPL 1111511 Contact Us For Availability

Center Rail (Almond) WPL 1111512 Contact Us For Availability

14

Spacer, Handle Door WPL 943188 Contact Us For Availability

14

Support, Heater WPL 1108172 Contact Us For Availability

14

Center, Rail Shim (2) WPL 939034 Contact Us For Availability

15

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $4.82

15

Screw WPL 489184 Contact Us For Availability

15

Panel, Interior Door (Freezer) WPL 1120629 Contact Us For Availability

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $6.17

WP488920 Whirlpool Refrigerator Screw In Stock WPL WP488920 $4.82

WP717253 Whirlpool Dishwasher Connector Backorder WPL WP717253 $4.55

Screw (Repair) WPL 489250 Contact Us For Availability

WP1100938 Whirlpool Refrigerator Fan Blade Backorder WPL WP1100938 $59.86

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

Shim, Hinge Top WPL 1100513 Contact Us For Availability

Trim, Door Shelf WPL 1116038 Contact Us For Availability

18

WP1101634 Whirlpool Refrigerator Cover In Stock WPL WP1101634 $7.46

18

Shim, Hinge Top WPL 1100511 Contact Us For Availability

18

Nameplate WPL 1124315 Contact Us For Availability

19

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $15.75

19

Hinge Cover (Golden Harvest) WPL 989896 Contact Us For Availability

19

Interior Door Panel WPL 1120628 Contact Us For Availability

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $4.82

Bracket, Condenser (2) WPL 944791 Contact Us For Availability

Screw (Repair) WPL 488949 Contact Us For Availability

Trim, Door (Top) (2) WPL 1116031 Contact Us For Availability

21

Insulation Foam (Required When Replacing Exte WPL 876029 Contact Us For Availability

21

Hinge, Center WPL 944788 Contact Us For Availability

21

Cap, Hinge Sleeve (2) WPL 509929 Contact Us For Availability

22

Evaporator WPL 942866 Contact Us For Availability

22

Shim, Hinge Center WPL 836155 Contact Us For Availability

22

Gasket Retainer, Side (2) WPL 1120613 Contact Us For Availability

4386951 Whirlpool Refrigerator Clip In Stock WPL 4386951 $4.55

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $4.99

Gasket, Bottom Separator WPL 1123916 Contact Us For Availability

Compartment, Butter Door WPL 1124313 Contact Us For Availability

285002 Whirlpool Nut Backorder WPL 285002 $8.13

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $4.82

WP488296 Whirlpool Washer Refrigerator In Stock WPL WP488296 $5.99

Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability

Hole Plug, Handle (Golden Harvest) WPL 1122694 Contact Us For Availability

25

Screw, 8 x 1-3/8 WPL 488678 Contact Us For Availability

25

Evaporator Tray WPL 1101002 Contact Us For Availability

26

Insulation, Filler WPL 1108196 Contact Us For Availability

26

Restrictor Sleeve WPL 510446 Contact Us For Availability

26

Hinge Butt, Bottom WPL 1123882 Contact Us For Availability

27

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $37.99

27

Hinge Pin, Bottom WPL 654366 Contact Us For Availability

27

Insulation, Compartment Separator WPL 1110350 Contact Us For Availability

Pad (2) WPL 946367 Contact Us For Availability

Compressor (Includes Items 43, 44, 45, 46, 47 WPL 482981 Contact Us For Availability

Screw WPL 489218 Contact Us For Availability

Gasket Retainer, Side (2) WPL 1120615 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $15.99

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $141.89

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Clamp, Drier WPL 547637 Contact Us For Availability

Shim, Bottom WPL 942812 Contact Us For Availability

Gasket Retainer, Top & Bottom (2) WPL 1120614 Contact Us For Availability

Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability

CEMENT, WPL 542639 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

30

Unit Mounting Plate WPL 1118781 Contact Us For Availability

30

Washer, 7/64 WPL 489201 Contact Us For Availability

Exchanger, Heat WPL 1105103 Contact Us For Availability

Cover, Glider Rail (White) WPL 942818 Contact Us For Availability

Cover, Glider Rail (Golden Harvest) WPL 942820 Contact Us For Availability

Cover, Glider Rail (Almond) WPL 942822 Contact Us For Availability

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $34.99

Cover, Deck Rail (White) WPL 1109359 Contact Us For Availability

Cover, Deck Rail (Golden Harvest) WPL 1109361 Contact Us For Availability

Cover, Deck Rail (Almond) WPL 1109363 Contact Us For Availability

Separator, Compartment (Top) WPL 1119324 Contact Us For Availability

Heater, Defrost WPL 1105164 Contact Us For Availability

Cover, Glider Rail (White) WPL 943552 Contact Us For Availability

Cover, Glider Rail (Almond) WPL 944831 Contact Us For Availability

Cover, Glider Rail (Golden Harvest) WPL 944833 Contact Us For Availability

Drain Insert, Separator WPL 942849 Contact Us For Availability

Cover, Capacitor WPL 1118525 Contact Us For Availability

Filler, Wrap Corner (2) (White) WPL 1110684 Contact Us For Availability

Filler, Wrap Corner (2) (Almond) WPL 1110685 Contact Us For Availability

Filler, Wrap Corner (2) (Golden Harvest) WPL 1110686 Contact Us For Availability

WP4387499 Whirlpool Refrigerator Bimetallic D In Stock WPL WP4387499 $72.99

Cup, Drain WPL 939191 Contact Us For Availability

Hole Plug (White) WPL 1119707 Contact Us For Availability

Hole Plug (Golden Harvest) WPL 1119708 Contact Us For Availability

WPL 1119709 WPL 1119709 Contact Us For Availability

Clamp WPL 942873 Contact Us For Availability

WPL 842031 WPL 842031 Contact Us For Availability

WPL 989195 WPL 989195 Contact Us For Availability

WPL 989876 WPL 989876 Contact Us For Availability

37

WPL 942844 WPL 942844 Contact Us For Availability

38

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $4.82

39

876811 Whirlpool Grommet Backorder WPL 876811 $4.82

39

WPL 942845 WPL 942845 Contact Us For Availability

40

WPL 1122929 WPL 1122929 Contact Us For Availability

40

WPL 1126569 WPL 1126569 Contact Us For Availability

40

WPL 1126571 WPL 1126571 Contact Us For Availability

41

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

41

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

42

W10812038 Whirlpool Refrigerator Clip Backorder WPL W10812038 $6.42

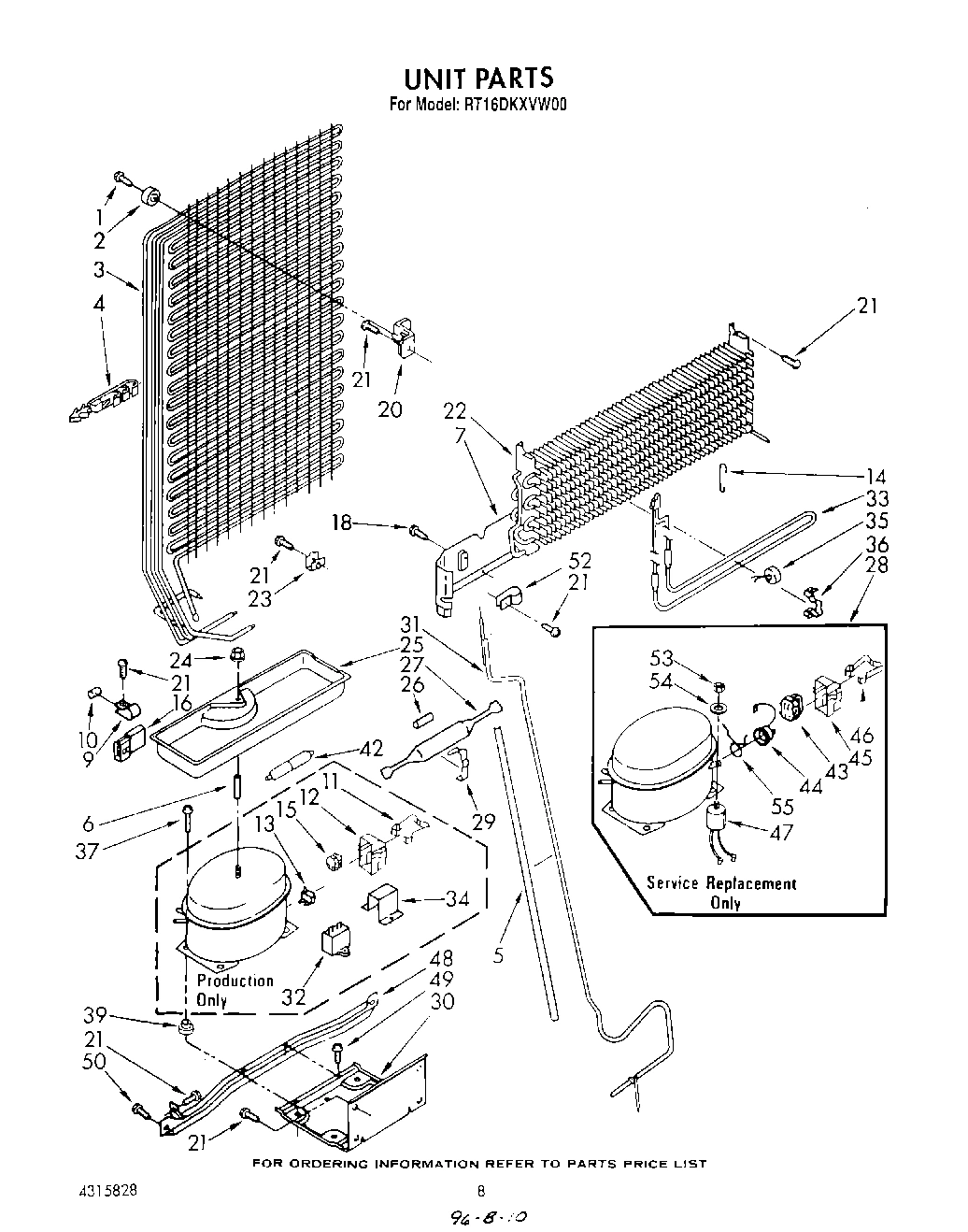

42

Muffler WPL 1105136 Contact Us For Availability

43

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $8.91

43

WP2262181 Whirlpool Refrigerator Start Relay In Stock WPL WP2262181 $83.99

44

Overload WPL 483037 Contact Us For Availability

44

WPL 937360 WPL 937360 Contact Us For Availability

45

Cover, Terminal WPL 1105015 Contact Us For Availability

45

WPL 937357 WPL 937357 Contact Us For Availability

46

Strap WPL 938384 Contact Us For Availability

46

WPL 942813 WPL 942813 Contact Us For Availability

47

Capacitor WPL 482996 Contact Us For Availability

47

WPL 1106507 WPL 1106507 Contact Us For Availability

48

Unit Mounting Rail WPL 1118782 Contact Us For Availability

49

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $6.51

49

WPL 1106511 WPL 1106511 Contact Us For Availability

50

WP487996 Whirlpool Refrigerator Cap Tube Backorder WPL WP487996 $6.69

50

Screw, 1/4-28 x 1 (2) WPL 488973 Contact Us For Availability

51

8316810 Whirlpool Refrigerator Drain Tube Backorder WPL 8316810 $78.15

52

Tube, Clamp WPL 489151 Contact Us For Availability

52

WPL 519405 WPL 519405 Contact Us For Availability

53

Nut WPL 489142 Contact Us For Availability

54

Washer WPL 489143 Contact Us For Availability

54

WPL 944813 WPL 944813 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP489174 Whirlpool Refrigerator Screw Backorder WPL WP489174 $4.82

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Overload Spring WPL 1114190 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

57

WPL 1120224 WPL 1120224 Contact Us For Availability

58

WPL 1106510 WPL 1106510 Contact Us For Availability
