Model Whirlpool RS600BXYH3 – Common Parts & Diagrams
02 - OVEN DOOR
03 - CONTROL PANEL, OPTIONAL

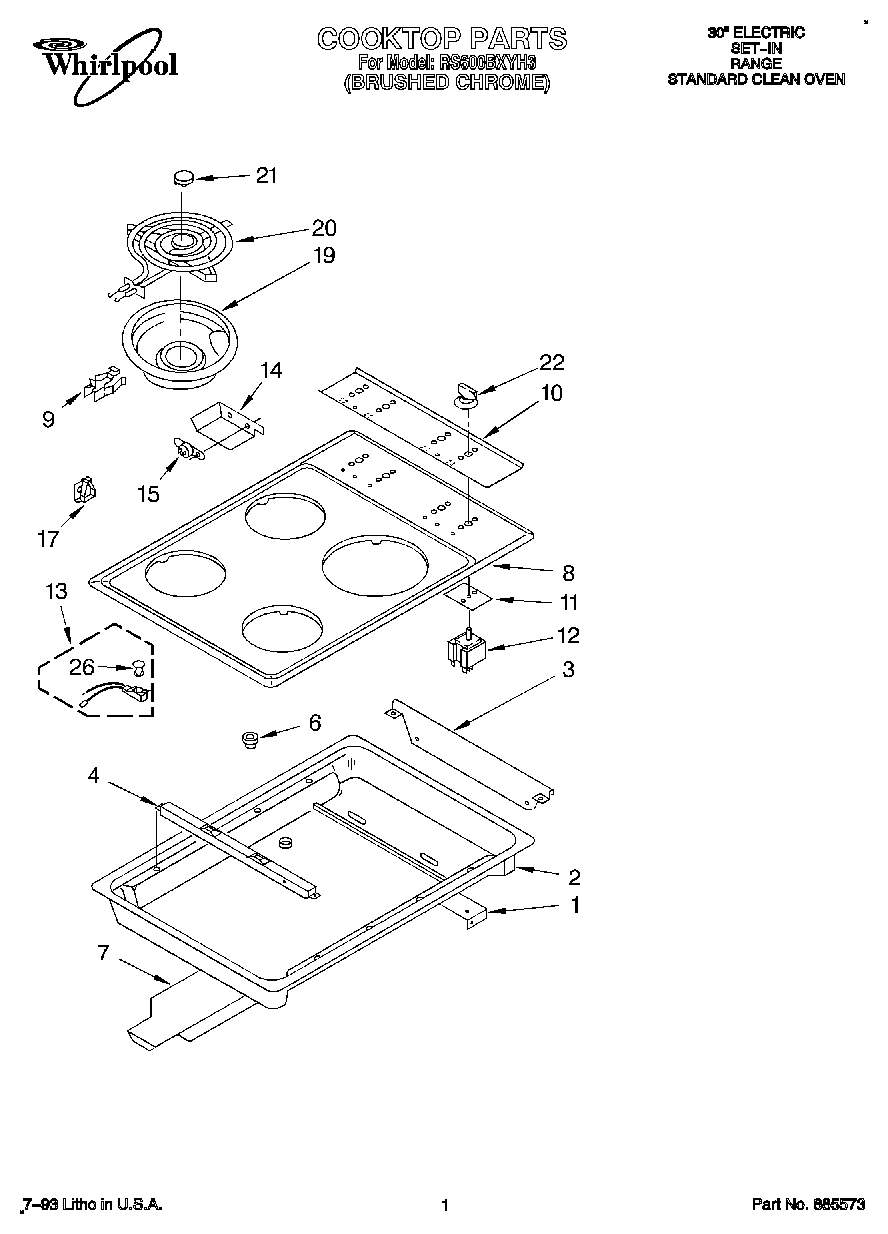

01 - COOKTOP, LITERATURE

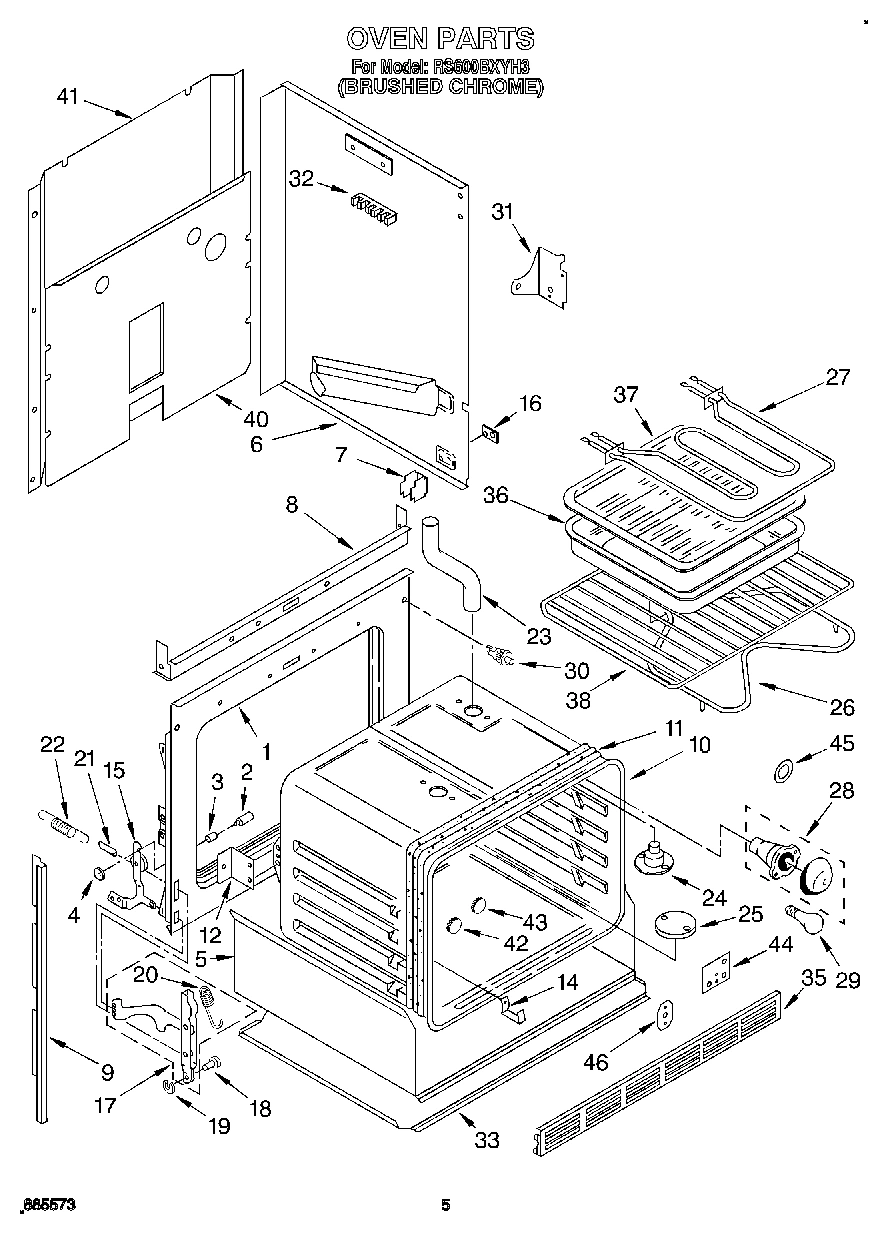

04 - OVEN
05 - WIRING HARNESS
Common parts from model Whirlpool RS600BXYH3
Mounting Hardware WPL 3171507 Contact Us For Availability
Installation Instructions WPL LIT3147396 Contact Us For Availability
Tech Sheet WPL LIT3182749 Contact Us For Availability
Use & Care Guide WPL LIT3183764 Contact Us For Availability
1
Support, Burner Box (2) WPL 310718 Contact Us For Availability
1
Frame, Front WPL 3176714 Contact Us For Availability
1
Harness, Wire (Infinite Switch) WPL 313464 Contact Us For Availability
2
Clip, Handle (2) WPL 3148282 Contact Us For Availability
2
Box, Burner WPL 311021 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
3
Shield, Switch WPL 310716 Contact Us For Availability
3
Snubber, Door (2) WPL 309111 Contact Us For Availability
3
Screw WPL 307748 Contact Us For Availability
3
Screw WPL 308504 Contact Us For Availability
4
Support, Cooktop WPL 310717 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
4
Harness, Wire (Oven) WPL 3182747 Contact Us For Availability
5
Insulation Tray WPL 310770 Contact Us For Availability
5
Harness, Wire (Surface Unit) WPL 3185666 Contact Us For Availability
6
Bushing WPL 258109 Contact Us For Availability
6
Side Wrapper L.H. WPL 3187352 Contact Us For Availability
6
Side Wrapper R.H. WPL 3187353 Contact Us For Availability
7
Cover, Top Rear WPL 3147565 Contact Us For Availability
7
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
8
Switch, Selector WPL 3150430 Contact Us For Availability
8
Cooktop (Brushed Chrome) WPL 3183904 Contact Us For Availability
8
Baffle, Top Insulation WPL 3183796 Contact Us For Availability
9
Light, Indicator (250V) (Includes No.10) WPL 314031 Contact Us For Availability
9
Side Trim L.S. WPL 310685 Contact Us For Availability
9
Side Trim R.S. WPL 310689 Contact Us For Availability
10
Panel, Control WPL 3185692 Contact Us For Availability
10
Screw (3) WPL 311056 Contact Us For Availability
10
Oven, 30`` Conventional WPL 3182032 Contact Us For Availability
11
Screw (5) WPL 3149333 Contact Us For Availability
11
Heat Seal WPL 3169283 Contact Us For Availability
12
Knob, Selector WPL 3183109 Contact Us For Availability
12
6`` Unit (2) WPL 3148968 Contact Us For Availability
12
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
13
Indicator, Light (Incudes No. 26) WPL 313462 Contact Us For Availability
14
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
14
WPL 799344 WPL 799344 Contact Us For Availability
14
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
14
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
14
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
14
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
14
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
14
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
14
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
14
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
14
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
14
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
14
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
14
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
14
Grease WPL 261582 Contact Us For Availability
14
Coffee WPL 261886 Contact Us For Availability
14
Coffee (Uncut) WPL 261887 Contact Us For Availability
14
New Avocado WPL 261888 Contact Us For Availability
14
New Avocado (Uncut) WPL 261889 Contact Us For Availability
14
Harvest Gold WPL 261890 Contact Us For Availability
14
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
14
Support, Top Rail WPL 312752 Contact Us For Availability
14
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
14
WPL 799351 WPL 799351 Contact Us For Availability
14
WPL 799832 WPL 799832 Contact Us For Availability
14
WPL 978883 WPL 978883 Contact Us For Availability
14
Bracket, Sensor WPL 3147830 Contact Us For Availability
15
Thermostat WPL 3185885 Contact Us For Availability
15
Hinge, Ear (Right Side) WPL 3185662 Contact Us For Availability
15
Hinge, Ear (Left Side) WPL 3185663 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
17
Channel, Arm (2) WPL 3185665 Contact Us For Availability
19
Retainer Ring (2) WPL 307594 Contact Us For Availability
20
Spring, Door Stop (2) WPL 311092 Contact Us For Availability
21
Medallion, Unit WPL 309195 Contact Us For Availability
22
Knob, Control (4) WPL 3183120 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
23
Extension, Vent WPL 310835 Contact Us For Availability
24
Eliminator, Smoke WPL 310840 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
26
Lens, Light WPL 313602 Contact Us For Availability
27
Screw (2) WPL 312318 Contact Us For Availability
30
Switch, Door WPL 310345 Contact Us For Availability
31
Cover, Side (Right Side) WPL 3149027 Contact Us For Availability
31
Cover, Side (Left Side) WPL 3149028 Contact Us For Availability
32
Screw, 10-12 x 7/8 (2) WPL 308043 Contact Us For Availability
33
Cover, Bottom & Top WPL 3185945 Contact Us For Availability
35
WPL 309029 WPL 309029 Contact Us For Availability
35
WPL 310668 WPL 310668 Contact Us For Availability
38
WPL 308173 WPL 308173 Contact Us For Availability
40
WPL 3182052 WPL 3182052 Contact Us For Availability
41
WPL 311012 WPL 311012 Contact Us For Availability
42
WPL 3182814 WPL 3182814 Contact Us For Availability
43
WPL 3169107 WPL 3169107 Contact Us For Availability
44
WPL 3150532 WPL 3150532 Contact Us For Availability
44
WPL 3183005 WPL 3183005 Contact Us For Availability
46
WPL 309961 WPL 309961 Contact Us For Availability
46
WPL 311458 WPL 311458 Contact Us For Availability
46
WPL 3184208 WPL 3184208 Contact Us For Availability
× ![]()
