Model Whirlpool RS600BXV2 – Common Parts &amp; Diagrams

WP660533 Whirlpool Oven 8" Surface Element In Stock WPL WP660533 $54.56

WPL 799344 WPL 799344 Contact Us For Availability

NOTE: The screws and nuts required to attach WPL ARI124490A Contact Us For Availability

Cooking Guide WPL LIT313358 Contact Us For Availability

Instructions, Installation WPL LIT3147390 Contact Us For Availability

Use & Care Guide WPL LIT3148321 Contact Us For Availability

Repair Parts List WPL LIT884505 Contact Us For Availability

WPL 261887 WPL 261887 Contact Us For Availability

WPL 261889 WPL 261889 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 487384 WPL 487384 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL ARI124492A WPL ARI124492A Contact Us For Availability

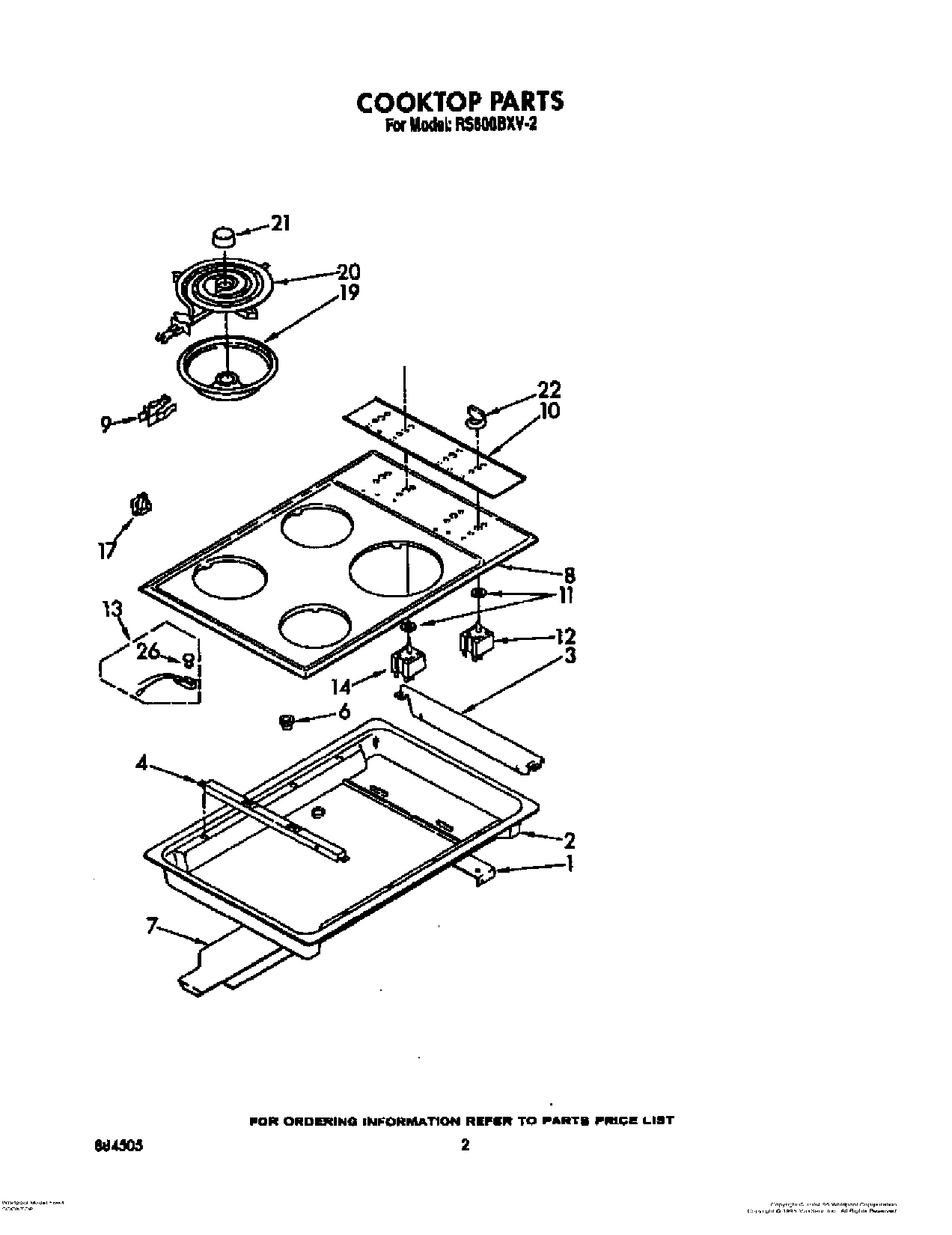

1

Support, Burner Box (2) WPL 310718 Contact Us For Availability

1

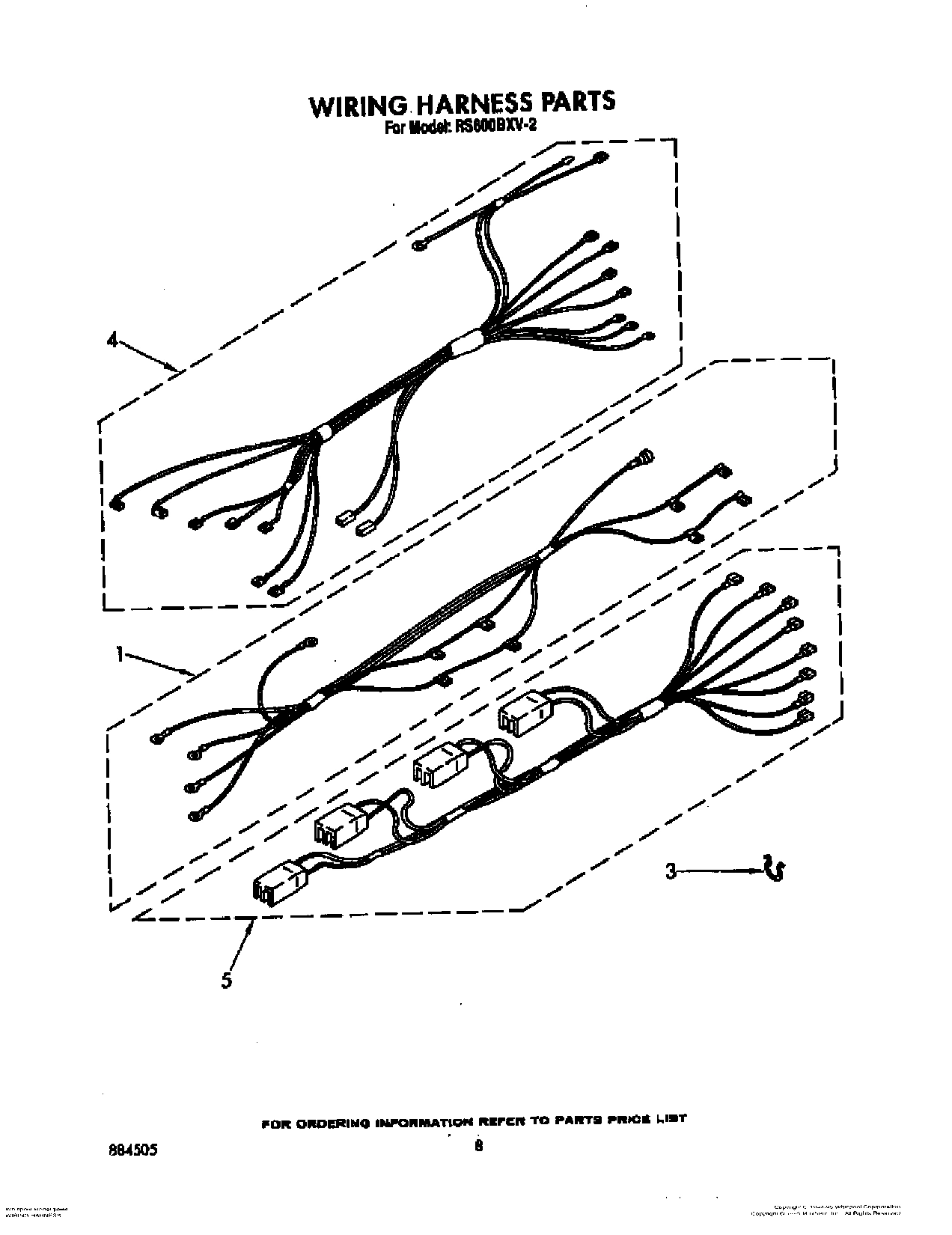

Harness, Wire (Infinite Switch) WPL 313464 Contact Us For Availability

1

End Cap (Screw (2)) WPL 308504 Contact Us For Availability

1

End Cap (R.H.) WPL 3148444 Contact Us For Availability

1

End Cap (L.H.) WPL 3148445 Contact Us For Availability

2

Clip, Handle (2) WPL 3148282 Contact Us For Availability

2

Box, Burner WPL 311019 Contact Us For Availability

2

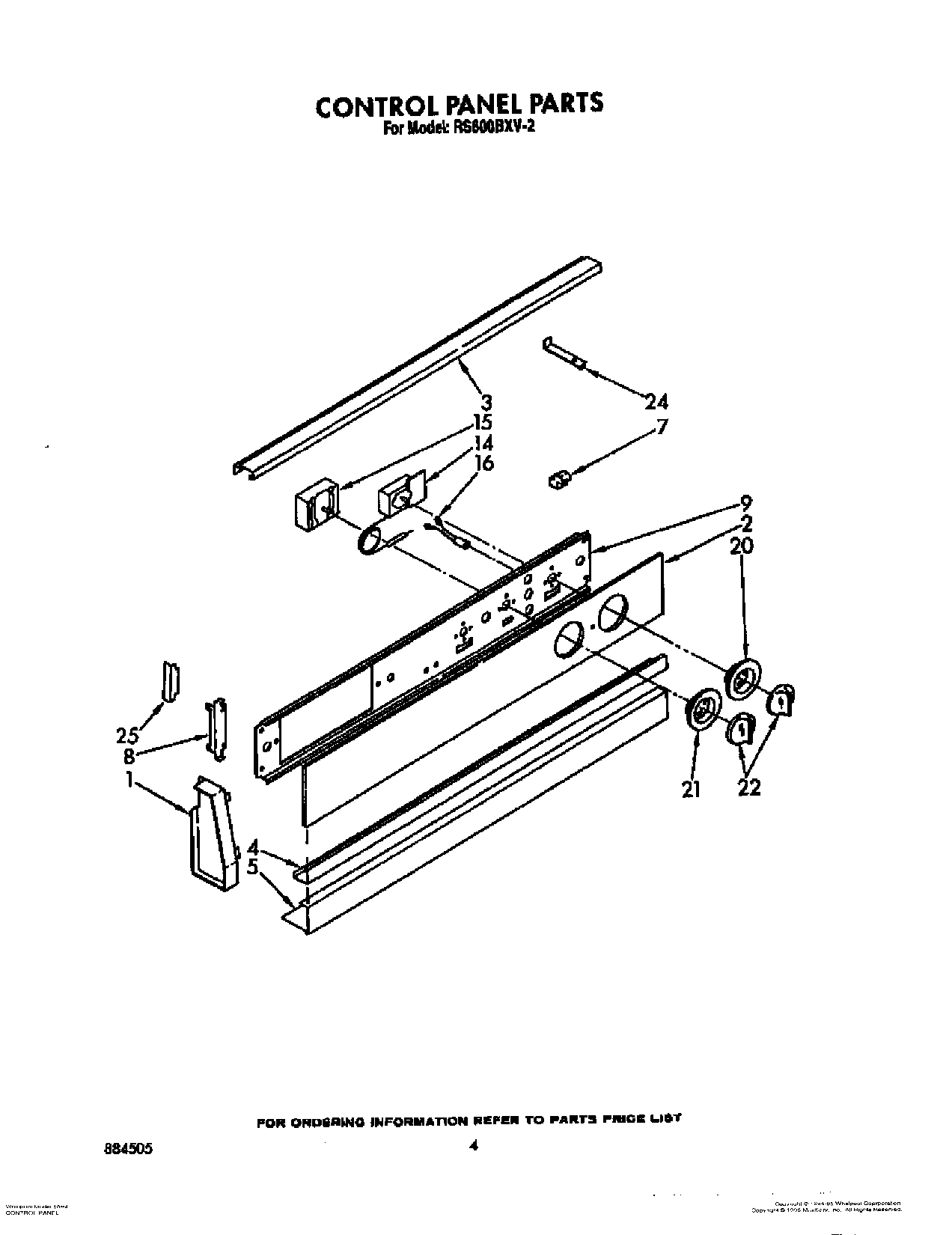

Control Panel, Glass WPL 3148638 Contact Us For Availability

3

16515 Whirlpool Clip Backorder WPL 16515 $12.46

3

Shield, Switch WPL 310716 Contact Us For Availability

3

Rail, Top WPL 3148616 Contact Us For Availability

4

Support, Cooktop WPL 310717 Contact Us For Availability

4

Harness, Wire (Oven) WPL 311469 Contact Us For Availability

4

Trim, Center WPL 3148626 Contact Us For Availability

5

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $6.51

5

Harness, Wire (Surface Unit) WPL 311709 Contact Us For Availability

5

Screw (4) WPL 342043 Contact Us For Availability

5

Trim, Bottom WPL 3148629 Contact Us For Availability

6

Bushing WPL 258109 Contact Us For Availability

7

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

7

Cover, Top Rear WPL 3147565 Contact Us For Availability

7

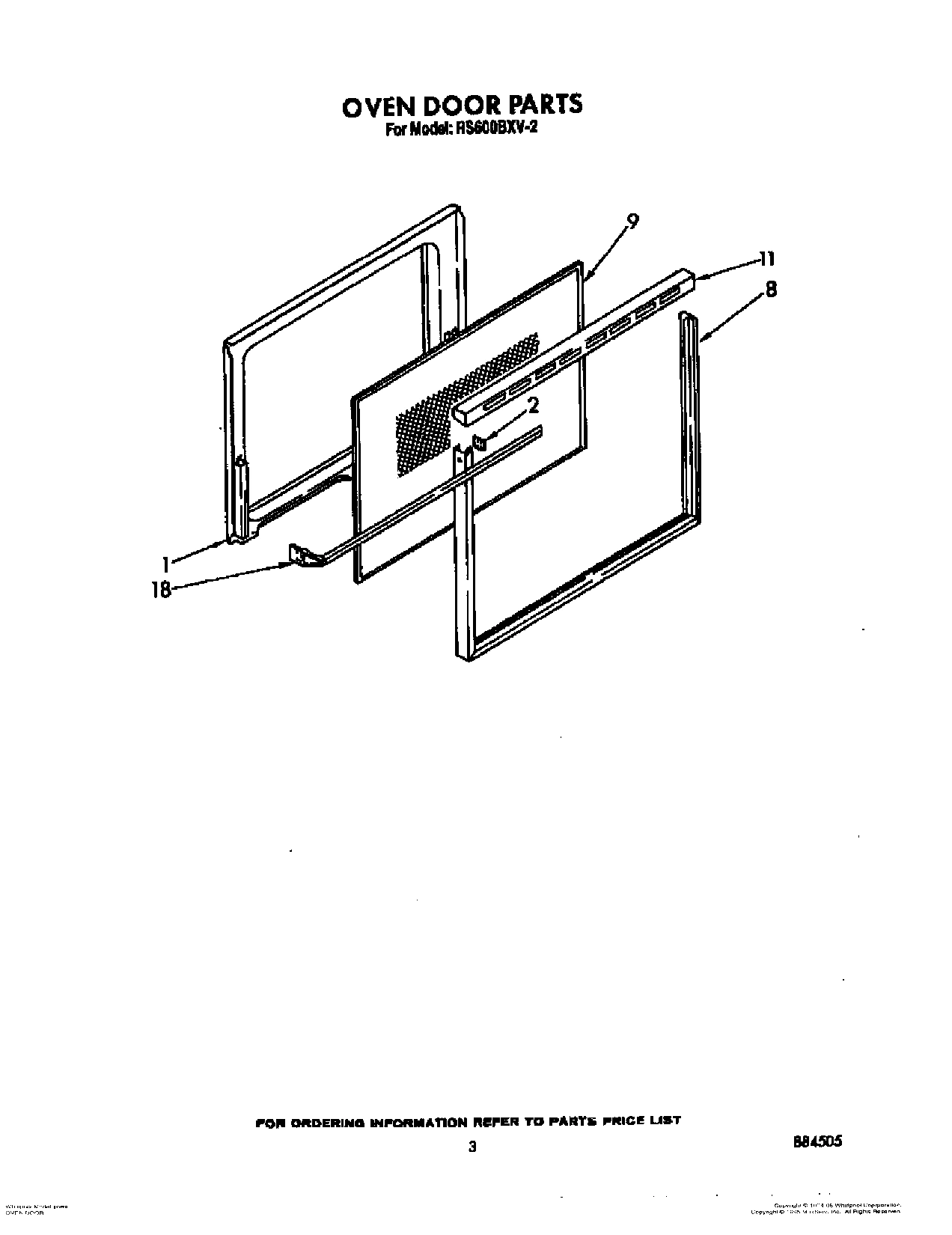

Retainer, Glass (4) WPL 3149882 Contact Us For Availability

8

Screw WPL 166681 Contact Us For Availability

8

Cooktop, Brushed Chrome WPL 3148038 Contact Us For Availability

8

Bracket, Control Panel (2) WPL 3148634 Contact Us For Availability

9

330031 Whirlpool Range Surface Element Recept In Stock WPL 330031 $13.76

9

Screw WPL 98520 Contact Us For Availability

9

Bracket, Control WPL 313314 Contact Us For Availability

9

Clip WPL 313381 Contact Us For Availability

10

Panel, Control WPL 3148705 Contact Us For Availability

11

Heat Seal WPL 309107 Contact Us For Availability

11

Screw (5) WPL 3149333 Contact Us For Availability

11

Seal, Switch WPL 309839 Contact Us For Availability

12

W10900107 Whirlpool Oven Surface Element Swit In Stock WPL W10900107 $35.69

13

Indicator, Light (Incudes No. 26) WPL 313462 Contact Us For Availability

98005642 Whirlpool Clip Backorder WPL 98005642 $56.92

Switch, Infinite WPL 3148947 Contact Us For Availability

Thermostat, Oven (Alt.) WPL 310861 Contact Us For Availability

Thermostat, Oven (Alt.) WPL 311495 Contact Us For Availability

Thermostat, Oven WPL 660564 Contact Us For Availability

15

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $4.70

15

Hinge Ear, L.H. WPL 328802 Contact Us For Availability

15

Switch, Selector (4 Position) WPL 310932 Contact Us For Availability

16

WP308544 Whirlpool Screw In Stock WPL WP308544 $4.82

16

Plate, Side Panel (2) WPL 310659 Contact Us For Availability

16

Light, Indicator (250 V) WPL 311802 Contact Us For Availability

17

814103 Whirlpool Clip In Stock WPL 814103 $5.96

17

Channel Arm (2) WPL 329714 Contact Us For Availability

17

Screw (4) WPL 3185059 Contact Us For Availability

18

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $7.82

19

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 $3.99

19

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 $4.99

19

Retainer Ring (2) WPL 307594 Contact Us For Availability

20

WP660532 Whirlpool Oven Surface Element In Stock WPL WP660532 $45.62

20

Escutcheon, Thermostat WPL 311065 Contact Us For Availability

20

Spring, Door Stop (2) WPL 311092 Contact Us For Availability

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $7.91

Escutcheon, Selector WPL 311070 Contact Us For Availability

Medallion, Unit WPL 309195 Contact Us For Availability

Screw, 8 x 1/4 (2) WPL 254225 Contact Us For Availability

22

WP3150371 Whirlpool Control Knob In Stock WPL WP3150371 $12.75

22

Knob, Control (4) WPL 3150373 Contact Us For Availability

22

Spring, Oven Door (2) WPL 308127 Contact Us For Availability

23

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

23

Extension, Vent WPL 310835 Contact Us For Availability

24

Eliminator, Smoke WPL 310840 Contact Us For Availability

24

Support, Top Rail WPL 312752 Contact Us For Availability

242831 Whirlpool Oven Wire Backorder WPL 242831 $249.73

285006 Whirlpool Spray In Stock WPL 285006 $31.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $15.74

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $15.99

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

Plate, Cover WPL 310662 Contact Us For Availability

Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

Grease WPL 261582 Contact Us For Availability

Touch-Up, Oven (1/2 Pt.) WPL 261810 Contact Us For Availability

rotisserie kit WPL 261880 Contact Us For Availability

Coffee WPL 261886 Contact Us For Availability

New Avocado WPL 261888 Contact Us For Availability

Harvest Gold WPL 261890 Contact Us For Availability

Screw WPL 307748 Contact Us For Availability

Trim, En WPL 3149900 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 799351 WPL 799351 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

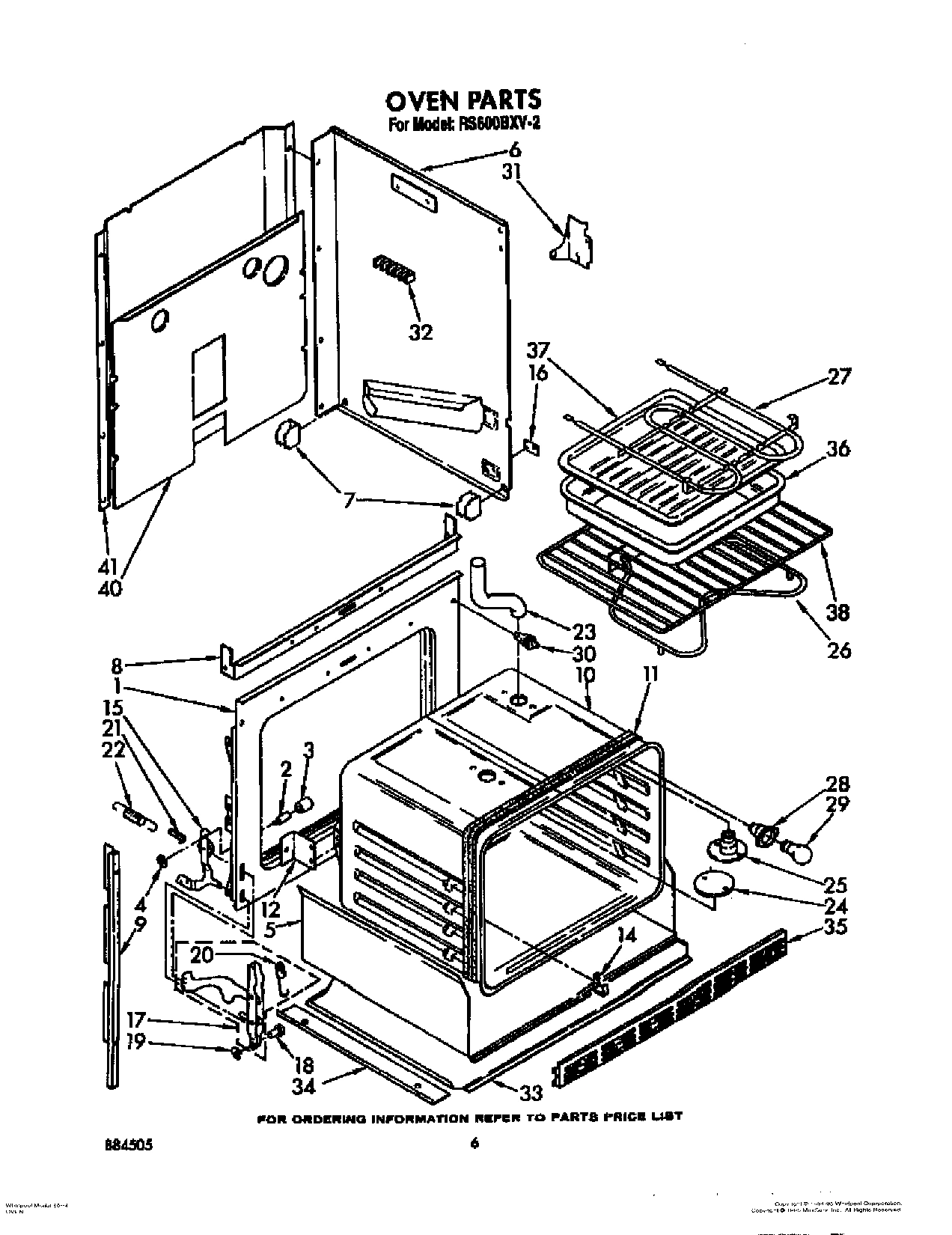

26

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $26.99

26

Lens, Light WPL 313602 Contact Us For Availability

27

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $110.99

28

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $57.87

29

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $9.81

30

Switch, Door WPL 310345 Contact Us For Availability

31

Cover, Side (Right Side) WPL 3149027 Contact Us For Availability

31

Cover, Side (Left Side) WPL 3149028 Contact Us For Availability

32

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $4.82

32

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $14.85

32

Screw, 10-12 x 7/8 (2) WPL 308043 Contact Us For Availability

33

Cover, Bottom & Top WPL 310458 Contact Us For Availability

34

WPL 311592 WPL 311592 Contact Us For Availability

35

WPL 309029 WPL 309029 Contact Us For Availability

35

WPL 310668 WPL 310668 Contact Us For Availability

37

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $44.99

38

WPL 308173 WPL 308173 Contact Us For Availability

40

WPL 3149542 WPL 3149542 Contact Us For Availability

41

WPL 311012 WPL 311012 Contact Us For Availability
