Model Whirlpool RS600BXBH2 – Common Parts & Diagrams

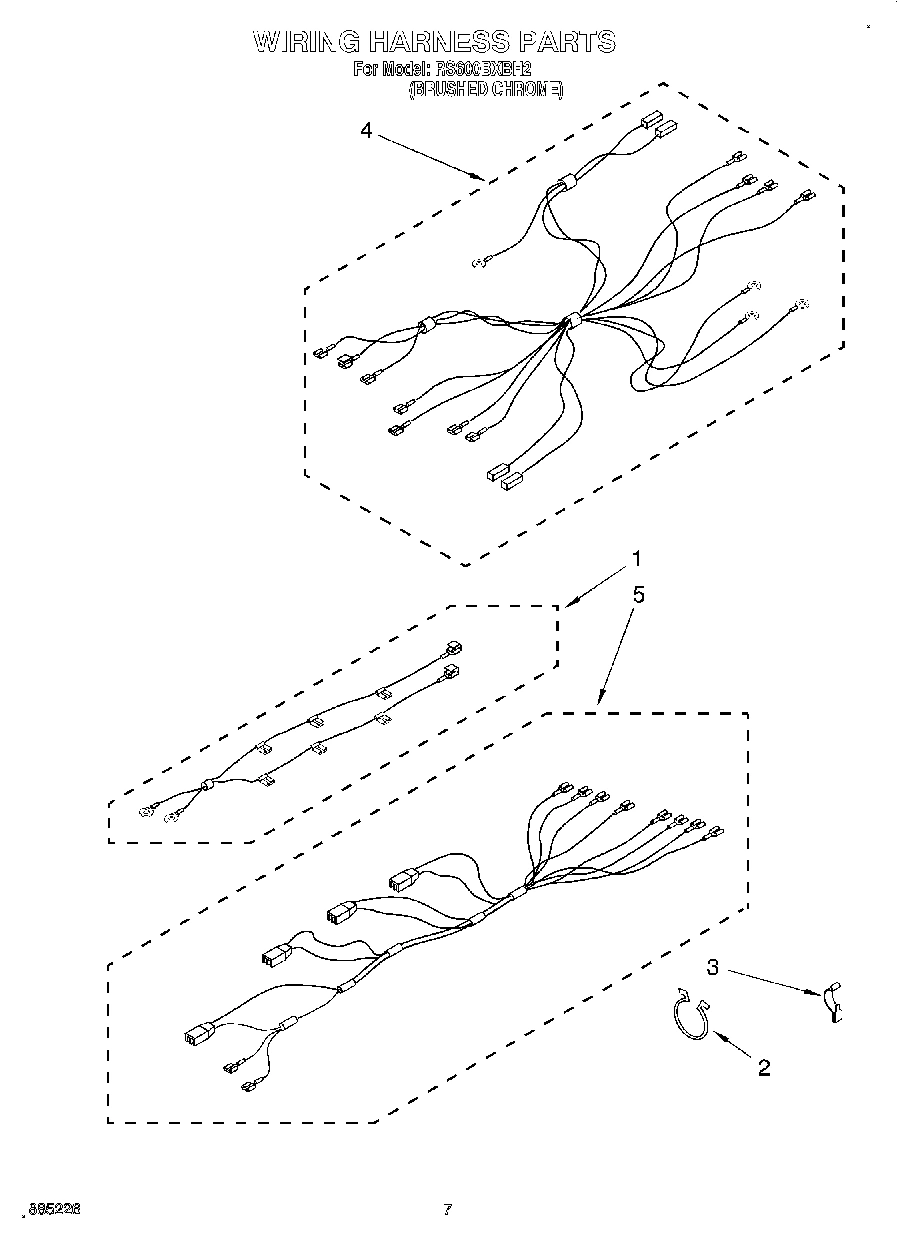

05 - WIRING HARNESS
04 - OVEN
01 - COOKTOP, LIT/OPTIONAL
02 - OVEN DOOR
03 - CONTROL PANEL
Common parts from model Whirlpool RS600BXBH2
Mounting Hardware WPL 3171507 Contact Us For Availability
Installation Instructions WPL LIT3147396 Contact Us For Availability
Use & Care Guide WPL LIT3188562 Contact Us For Availability
Tech Sheet WPL LIT3188578 Contact Us For Availability
1
Liner, Door WPL 3172221 Contact Us For Availability
1
End Cap (R.H.) WPL 3148444 Contact Us For Availability
1
End Cap (L.H.) WPL 3148445 Contact Us For Availability
2
Clip, Handle (2) WPL 3148282 Contact Us For Availability
2
Box, Burner WPL 4454576 Contact Us For Availability
2
Trim, Top WPL 3148616 Contact Us For Availability
3
Plate, Mounting WPL 3188527 Contact Us For Availability
3
Trim, Center WPL 3183358 Contact Us For Availability
4
Bracket, Mounting WPL 4454588 Contact Us For Availability
4
Screw (3) WPL 98520 Contact Us For Availability
4
Trim, Bottom WPL 3184045 Contact Us For Availability
5
Bracket WPL 3184170 Contact Us For Availability
5
screw (2) WPL 342043 Contact Us For Availability
6
Bushing WPL 258109 Contact Us For Availability
6
Panel, Control WPL 3182830 Contact Us For Availability
7
Cover, Rear WPL 3188528 Contact Us For Availability
7
Thermostat, Oven WPL 3169306 Contact Us For Availability
7
Screw (2) WPL 3186941 Contact Us For Availability
8
Switch, Selector WPL 3150430 Contact Us For Availability
8
Cooktop (Brushed Chrome) WPL 3183904 Contact Us For Availability
8
Frame, Door WPL 3148235 Contact Us For Availability
8
Screw (2) WPL 3186940 Contact Us For Availability
9
Light, Indicator (250V) (Includes No.10) WPL 314031 Contact Us For Availability
9
Glass, Outer WPL 3148186 Contact Us For Availability
10
Panel, Control WPL 3183218 Contact Us For Availability
10
Lens, Light WPL 313101 Contact Us For Availability
11
Screw (5) WPL 3149333 Contact Us For Availability
11
Top, Door Frame WPL 3148223 Contact Us For Availability
11
Knob, Thermostat WPL 3183106 Contact Us For Availability
12
Switch, Infinite (Use W/ 8`` Units) WPL 4454533 Contact Us For Availability
12
Knob, Selector WPL 3183109 Contact Us For Availability
12
Switch, Infinite (Use W/ 6`` Units) WPL 4454532 Contact Us For Availability
13
Indicator Light WPL 3187778 Contact Us For Availability
13
Trim, End Cap WPL 3149900 Contact Us For Availability
14
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
14
WPL 799344 WPL 799344 Contact Us For Availability
14
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
14
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
14
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
14
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
14
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
14
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
14
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
14
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
14
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
14
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
14
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
14
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
14
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
14
Grease WPL 261582 Contact Us For Availability
14
Coffee WPL 261886 Contact Us For Availability
14
Coffee (Uncut) WPL 261887 Contact Us For Availability
14
New Avocado WPL 261888 Contact Us For Availability
14
New Avocado (Uncut) WPL 261889 Contact Us For Availability
14
Harvest Gold WPL 261890 Contact Us For Availability
14
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
14
Support, Top Rail WPL 312752 Contact Us For Availability
14
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
14
WPL 799351 WPL 799351 Contact Us For Availability
14
WPL 799832 WPL 799832 Contact Us For Availability
14
WPL 978883 WPL 978883 Contact Us For Availability
18
Handle, Oven Door WPL 3187940 Contact Us For Availability
20
Spring, Door Stop (2) WPL 311092 Contact Us For Availability
21
Medallion, Unit WPL 309195 Contact Us For Availability
22
Knob, Control (4) WPL 3183120 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
23
Extension, Vent WPL 310835 Contact Us For Availability
24
Eliminator, Smoke WPL 3186933 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
26
Lens, Light WPL 313602 Contact Us For Availability
27
Screw (2) WPL 312318 Contact Us For Availability
27
Screw WPL 4159456 Contact Us For Availability
27
Shield, Heat WPL 3187446 Contact Us For Availability
30
Switch, Door WPL 310345 Contact Us For Availability
31
Cover, Side (Right Side) WPL 3149027 Contact Us For Availability
31
Cover, Side (Left Side) WPL 3149028 Contact Us For Availability
32
Screw, 10-12 x 7/8 (2) WPL 308043 Contact Us For Availability
33
Cover, Bottom & Top WPL 3185945 Contact Us For Availability
35
Screw, Black 8-15 x 1/2 (3) WPL 309029 Contact Us For Availability
35
Grill, Bott WPL 3150349 Contact Us For Availability
38
WPL 3185641 WPL 3185641 Contact Us For Availability
39
WPL 3185640 WPL 3185640 Contact Us For Availability
40
WPL 3182052 WPL 3182052 Contact Us For Availability
41
WPL 3185960 WPL 3185960 Contact Us For Availability
42
WPL 3182814 WPL 3182814 Contact Us For Availability
43
WPL 3169107 WPL 3169107 Contact Us For Availability
44
WPL 3150532 WPL 3150532 Contact Us For Availability
44
WPL 3183005 WPL 3183005 Contact Us For Availability
46
WPL 309961 WPL 309961 Contact Us For Availability
46
WPL 311458 WPL 311458 Contact Us For Availability
46
WPL 3184208 WPL 3184208 Contact Us For Availability
× ![]()
