Model Whirlpool RS20EKXDW00 – Common Parts & Diagrams

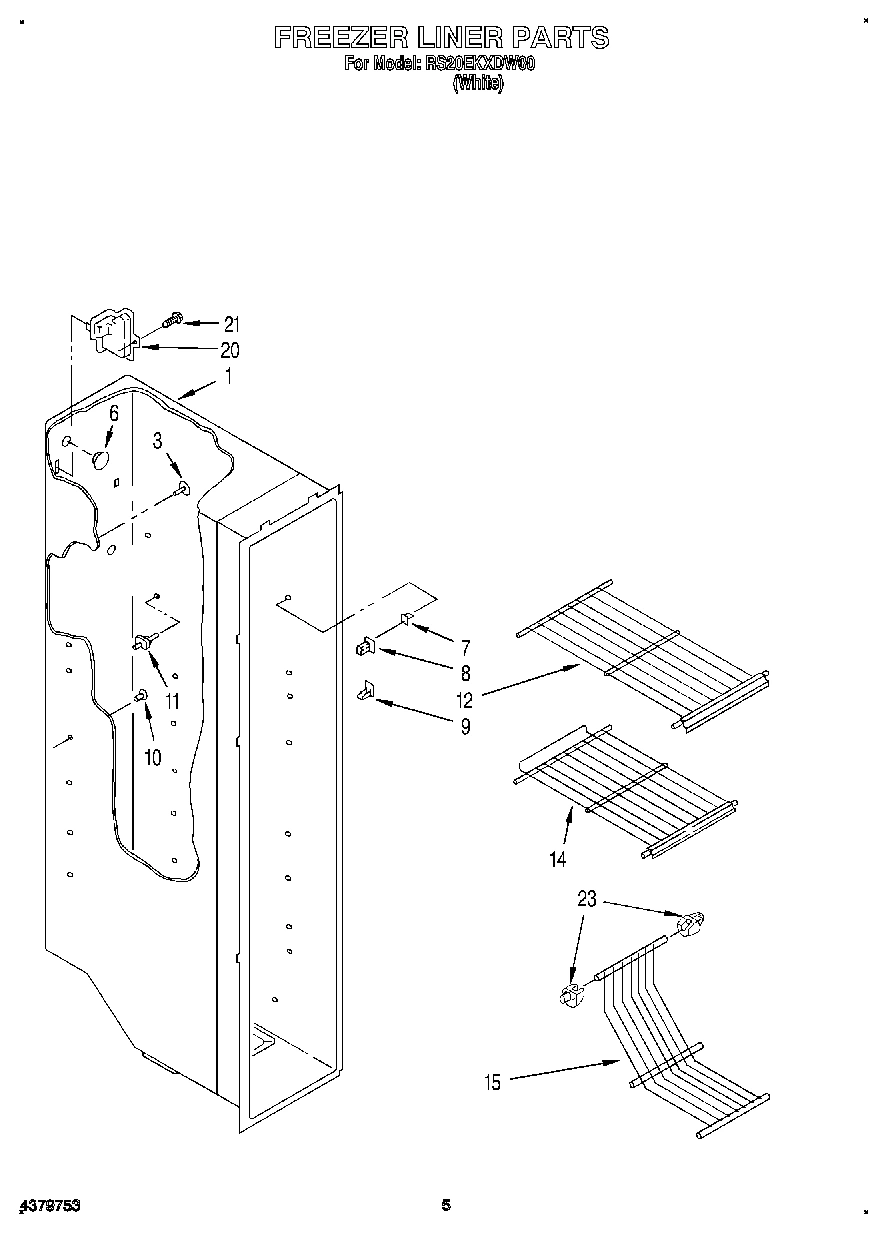

03 - FREEZER LINER

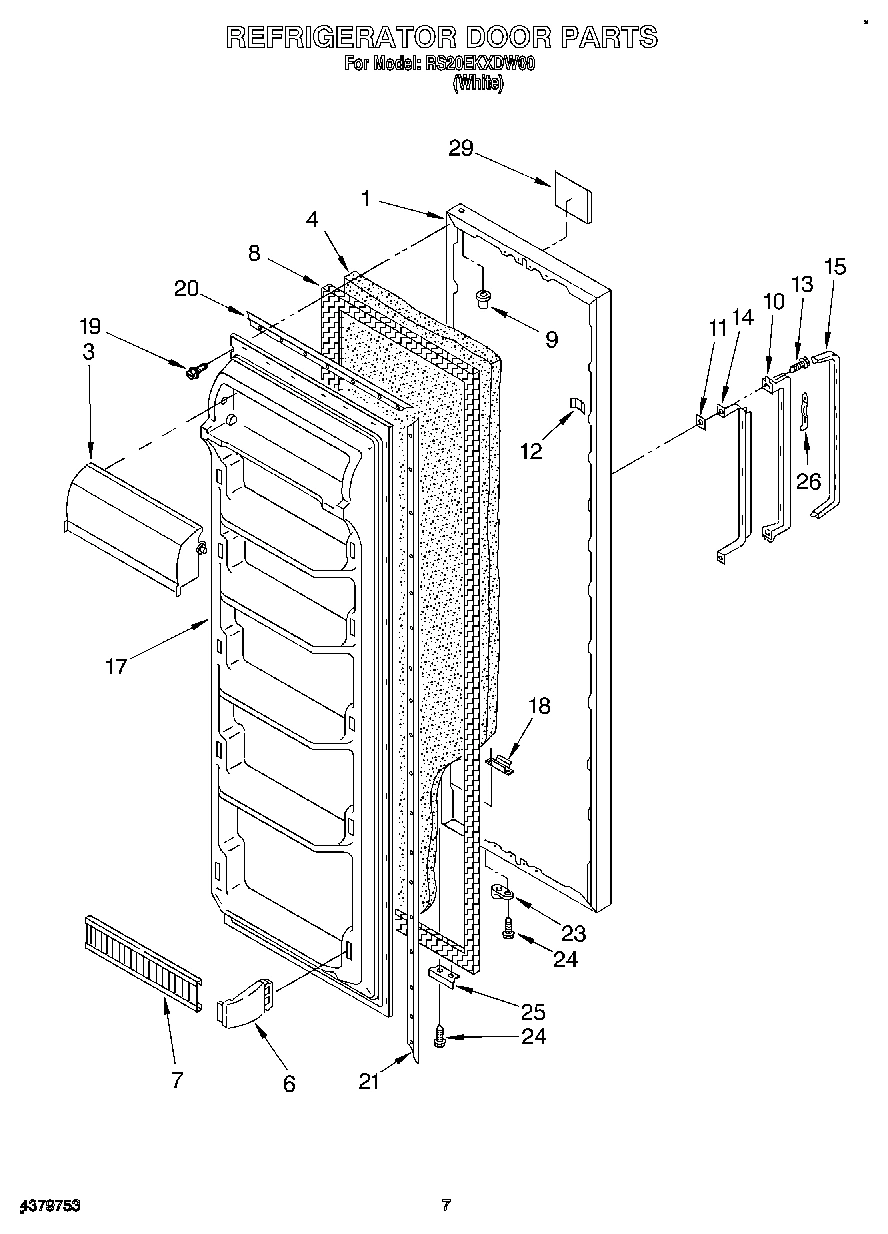

05 - REFRIGERATOR DOOR

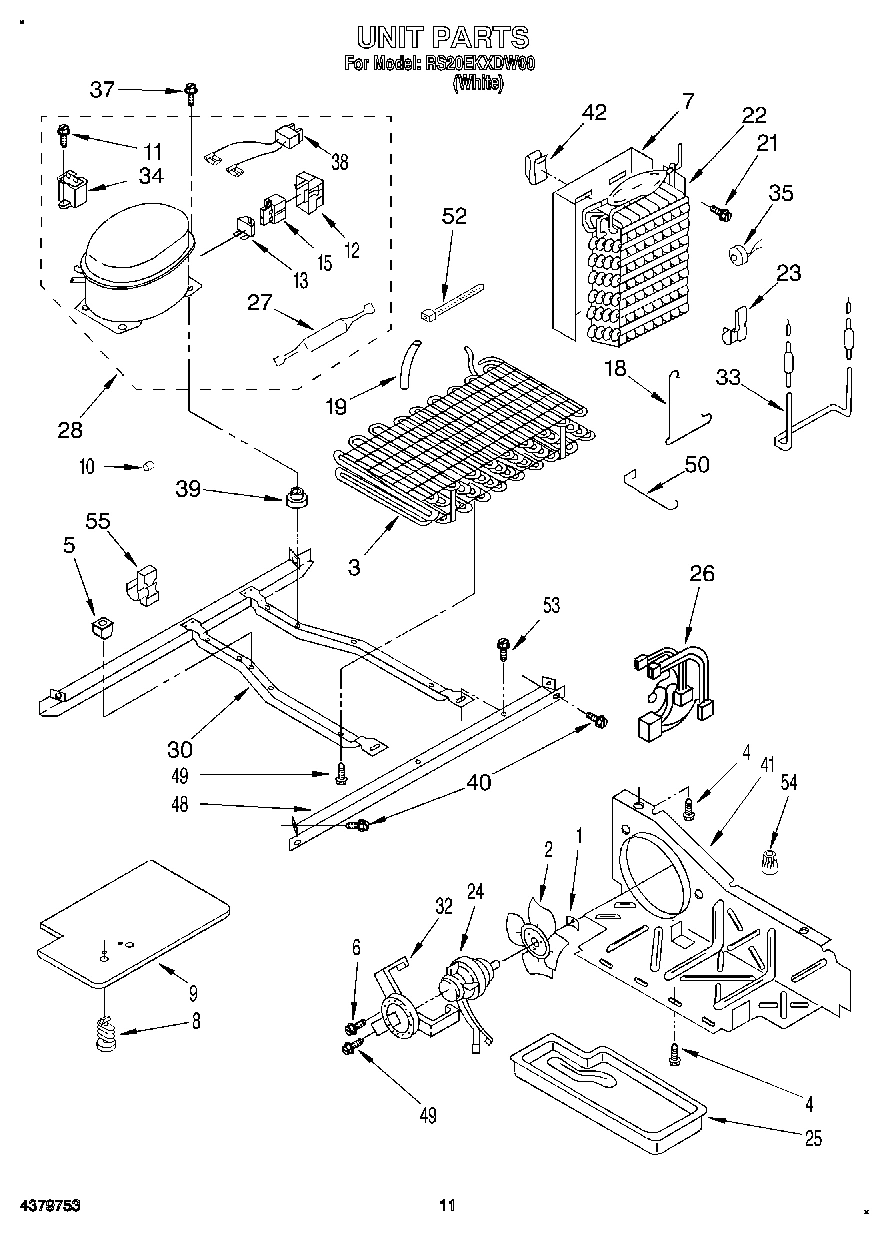

07 - UNIT

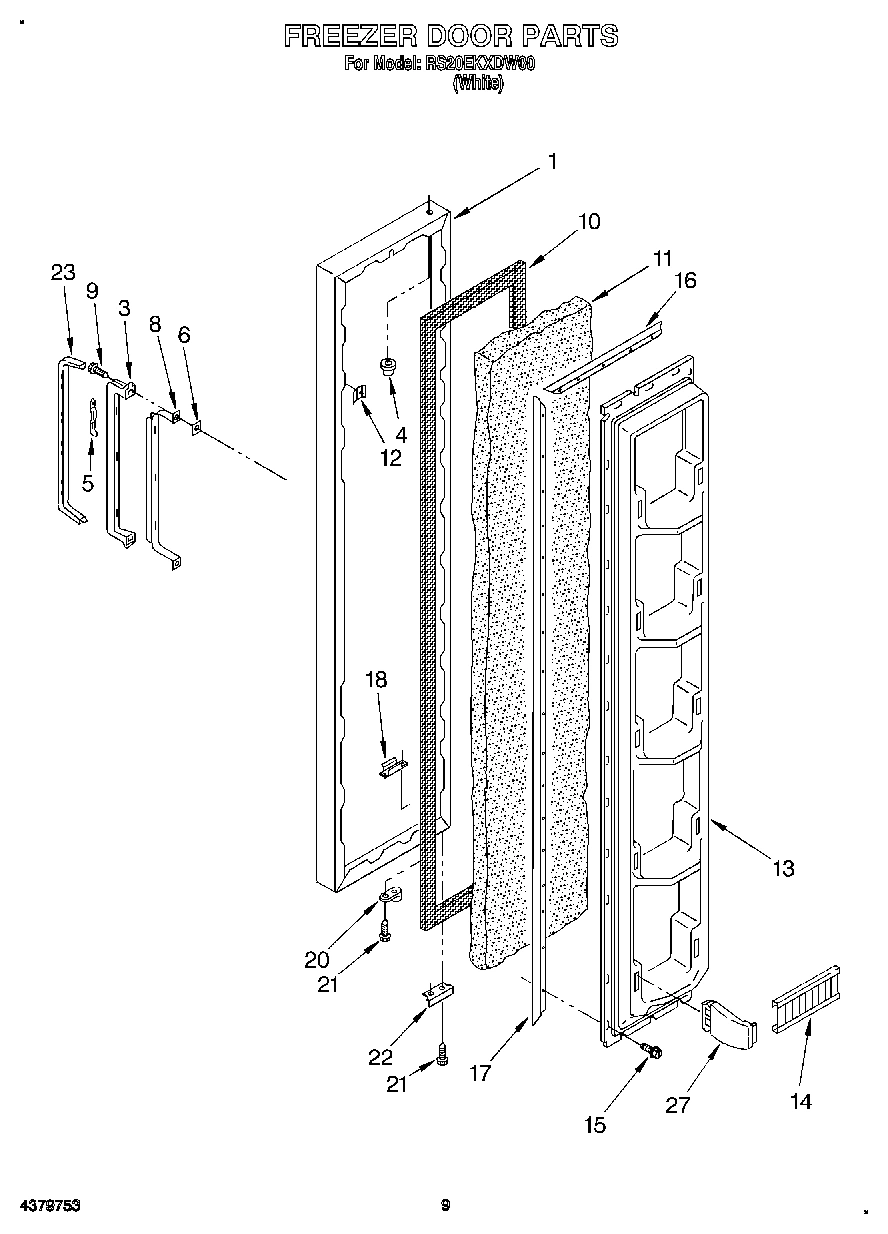

06 - FREEZER DOOR

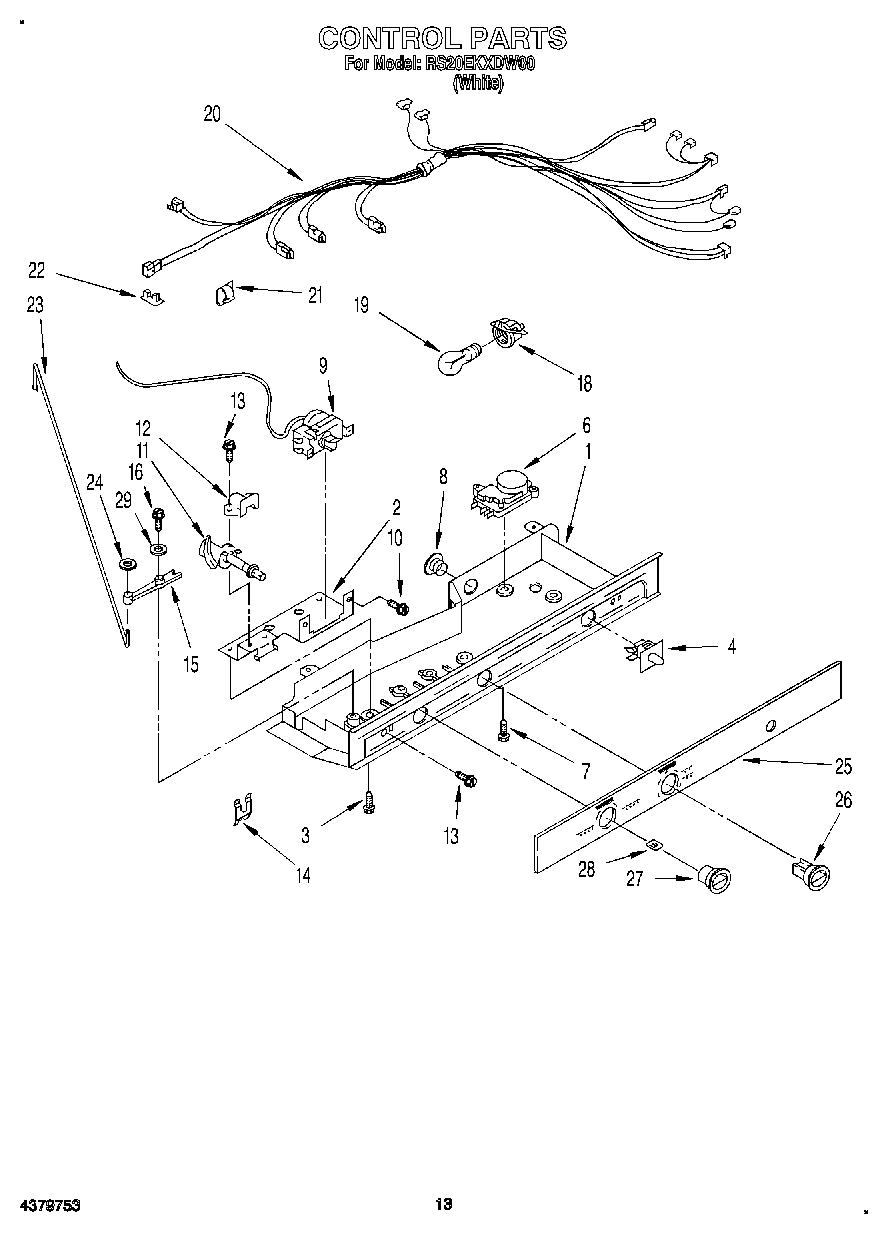

08 - CONTROL, LIT/OPTIONAL

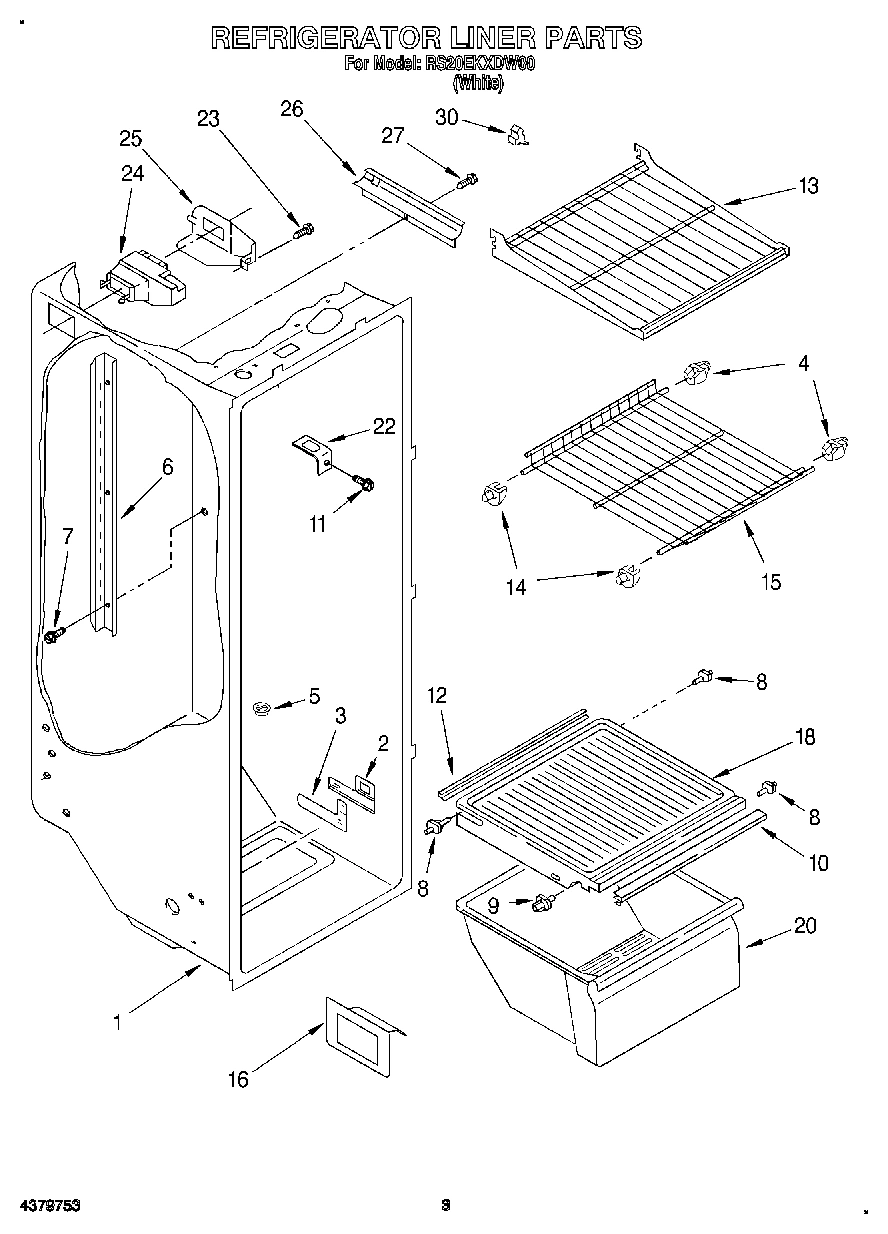

02 - REFRIGERATOR LINER

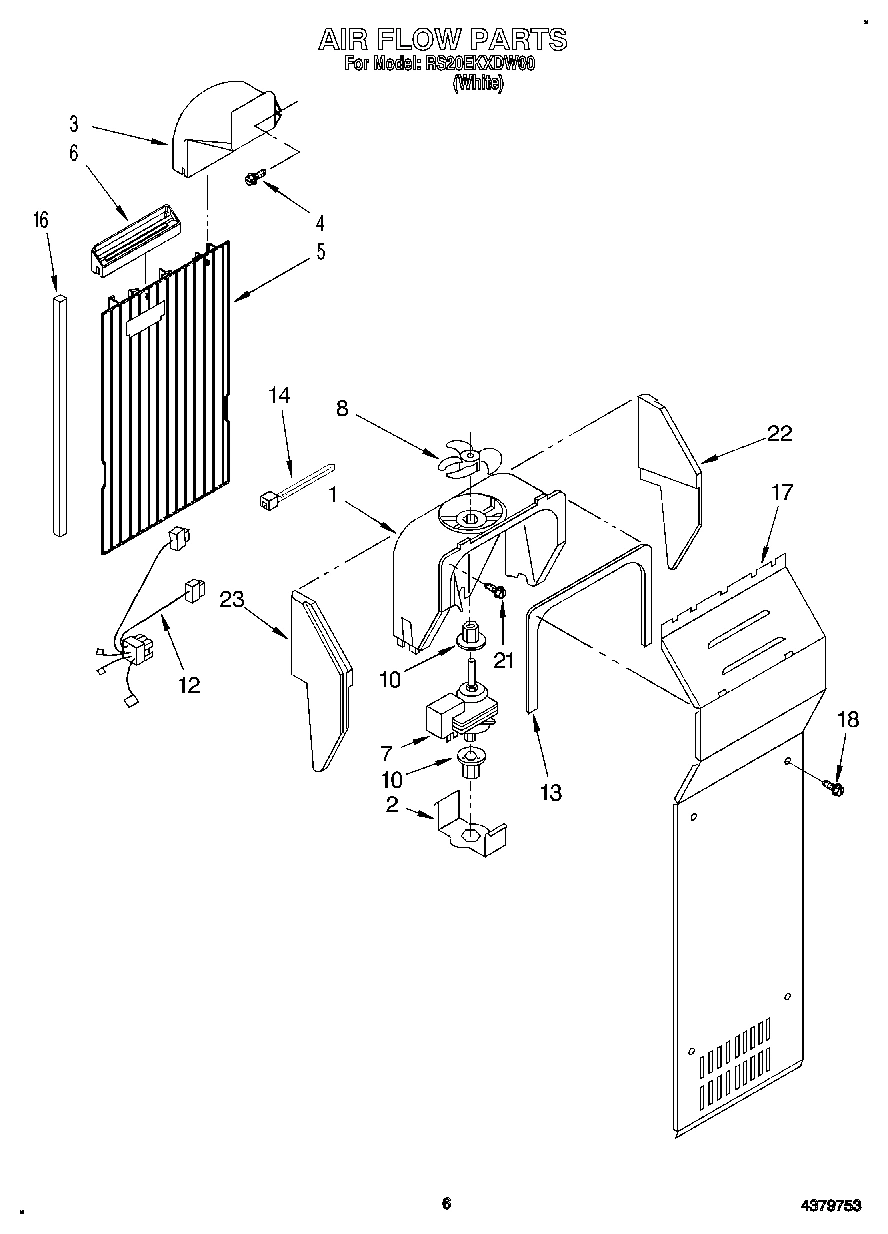

04 - AIR FLOW

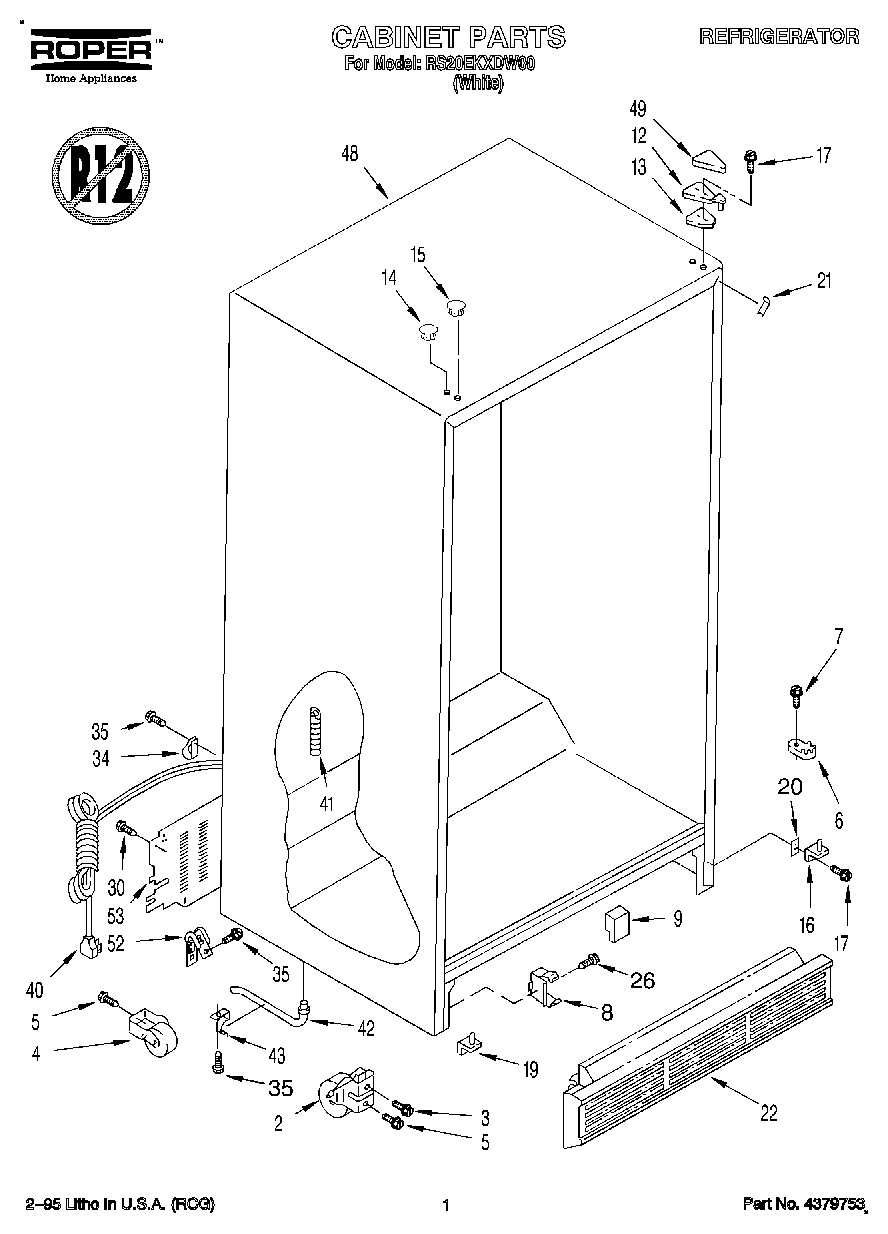

01 - CABINET
Common parts from model Whirlpool RS20EKXDW00
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2173306 WPL LIT2173306 Contact Us For Availability
WPL LIT2173379 WPL LIT2173379 Contact Us For Availability
WPL LIT2179908 WPL LIT2179908 Contact Us For Availability
1
Freezer Door Panel (Also Order Item 11) WPL 4362034 Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI123863A Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
Handle WPL 2147526 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
4
Saddle Stud (Right Side) WPL 1118133 Contact Us For Availability
5
Handle, Reinforcement WPL 849445 Contact Us For Availability
6
Shim, Handle (2) WPL 2147097 Contact Us For Availability
6
Defrost Timer WPL 2162046 Contact Us For Availability
6
Ladder, Shelf (2) WPL 1108433 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
8
Reinforcement, Handle WPL 1127465 Contact Us For Availability
9
Insert, Air Baffle WPL 2176796 Contact Us For Availability
10
Gasket, Front WPL 2174442 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
12
Gasket, Rear WPL 2174483 Contact Us For Availability
12
Harness, Fan, Evaporator, And Heater WPL 2161478 Contact Us For Availability
13
Shim, Hinge (2) WPL 1123515 Contact Us For Availability
13
Panel, Interior Door WPL 1129241 Contact Us For Availability
13
Shelf, Wire (2) WPL 2163617 Contact Us For Availability
14
Trim, Shelf (5) WPL 2173191 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Saddle Stud (Left Side) WPL 1118134 Contact Us For Availability
14
Hole Plug WPL 849391 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Shelf, Wire WPL 2173378 Contact Us For Availability
15
Hole Plug WPL 1115352 Contact Us For Availability
16
Retainer, Gasket WPL 1117767 Contact Us For Availability
16
Hinge Bottom (R.H.) WPL 2155321 Contact Us For Availability
17
Retainer, Gasket WPL 1117766 Contact Us For Availability
18
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
18
Tap, Plate WPL 2155335 Contact Us For Availability
19
Hinge Bottom (L.H.) WPL 2155323 Contact Us For Availability
20
Control Box Harness WPL 2149185 Contact Us For Availability
20
Meat Pan WPL 2174418 Contact Us For Availability
20
Spacer, Hinge WPL 836196 Contact Us For Availability
21
Filler, Wrapper WPL 1110708 Contact Us For Availability
22
Grille WPL 2155476 Contact Us For Availability
22
Bracket, Door Stop WPL 2155334 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Insert, Handle WPL 2147581 Contact Us For Availability
23
Connecting Rod WPL 1123959 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
25
Escutcheon, Control Box WPL 2163622 Contact Us For Availability
26
Harness, Intermediate WPL 2153994 Contact Us For Availability
26
Cover, Conduit WPL 2150330 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
WPL 876029 WPL 876029 Contact Us For Availability
29
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
29
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
29
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
29
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
29
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
29
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
29
KIT, WPL 799833 Contact Us For Availability
29
WPL 978883 WPL 978883 Contact Us For Availability
30
Unit Mounting Frame WPL 2160498 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
34
Capacitor WPL 2169137 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
41
Air Baffle WPL 2155301 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI123862A Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
55
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
55
Clip, Wire And Water Tube WPL 2155658 Contact Us For Availability
55
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
