Model Whirlpool RJE3165W0 – Common Parts & Diagrams

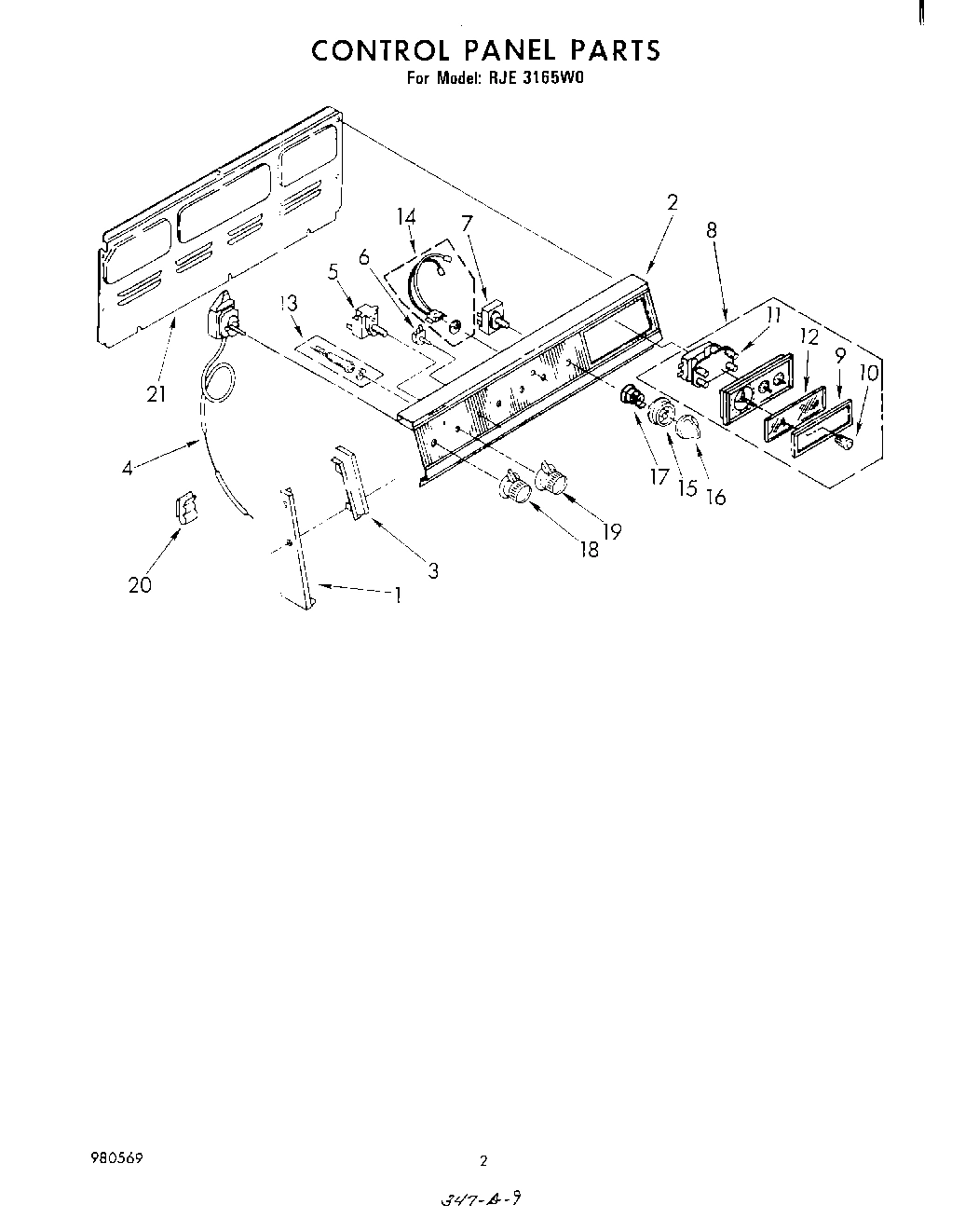

02 - CONTROL PANEL

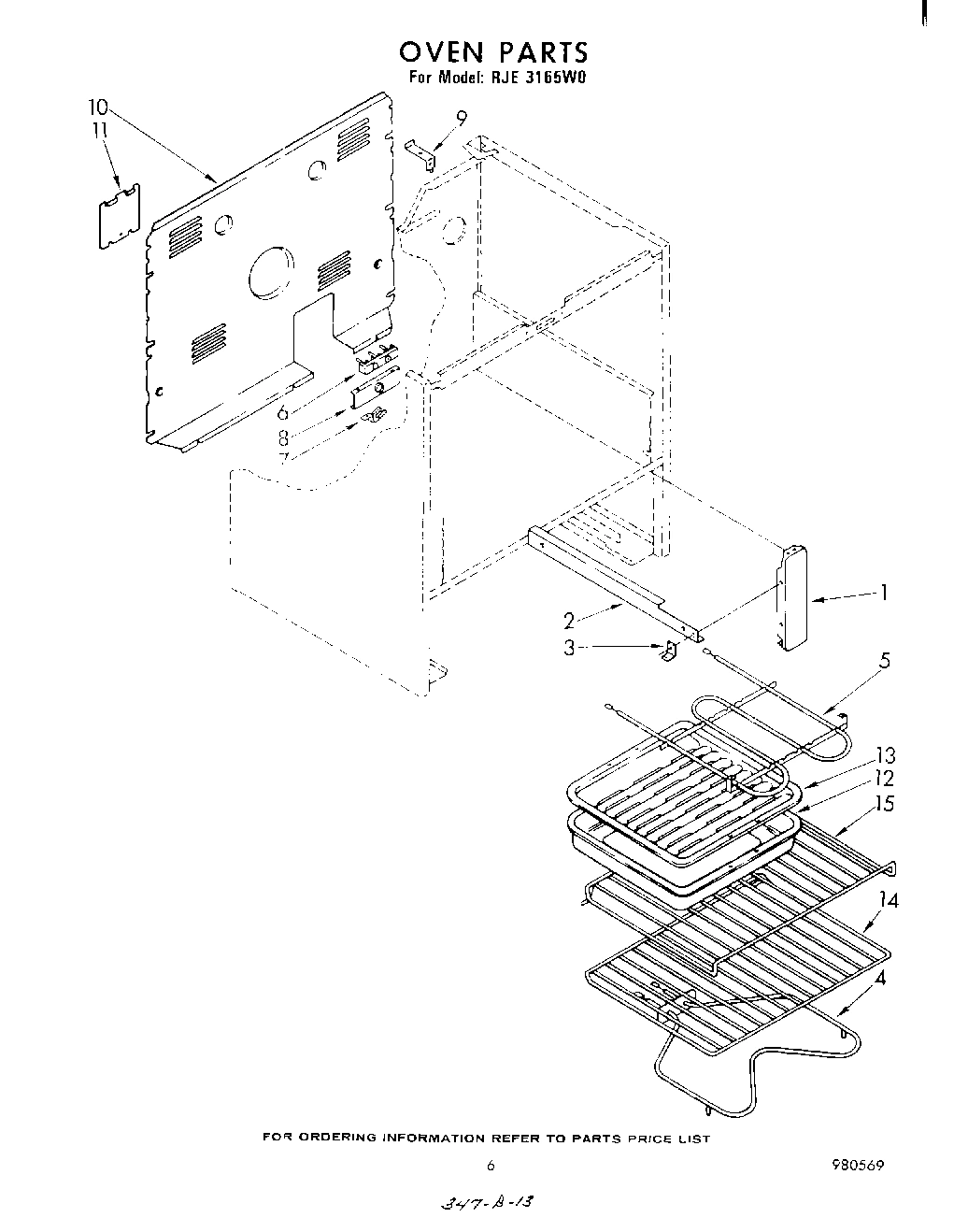

05 - LITERATURE AND OPTIONAL

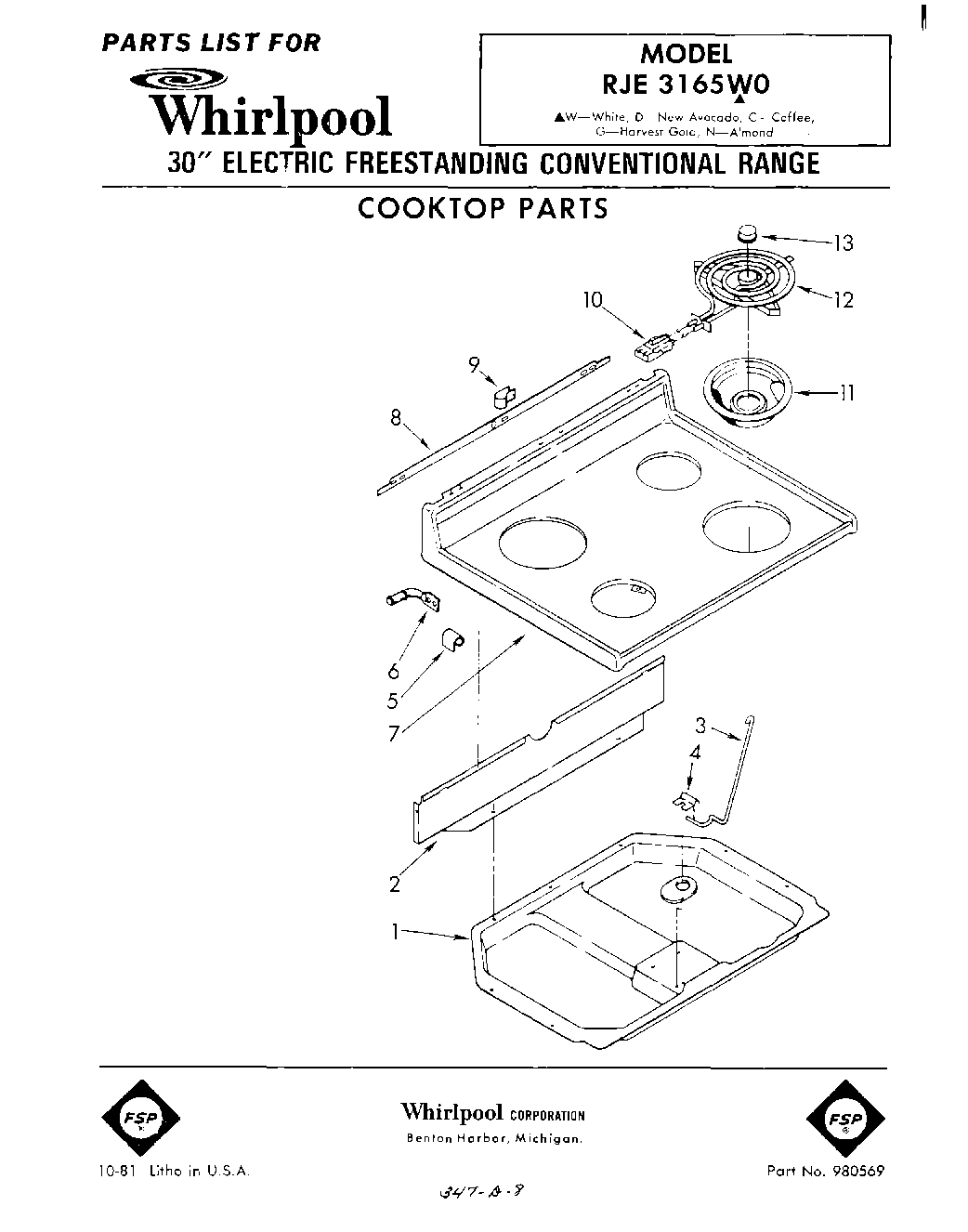

01 - COOKTOP

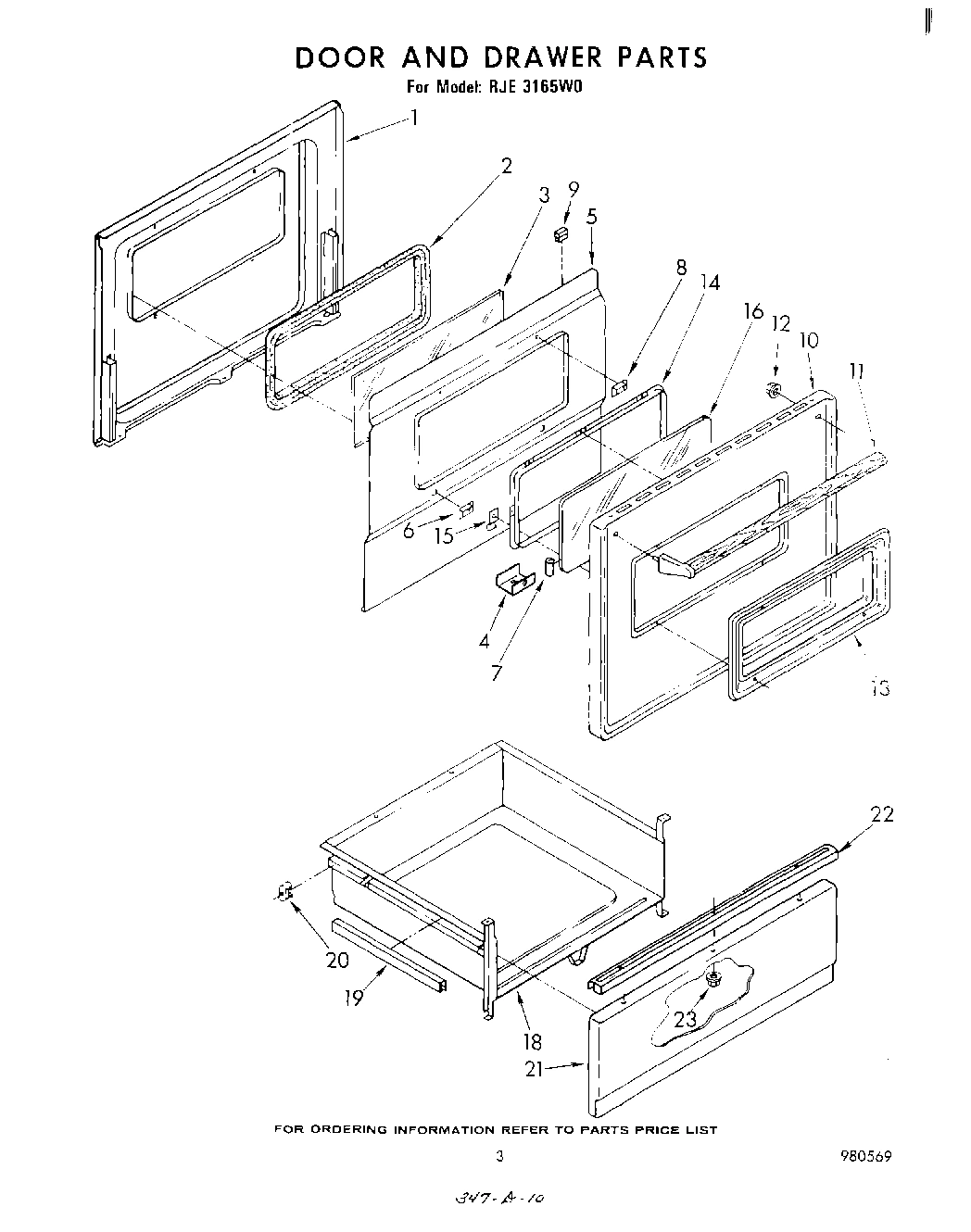

03 - DOOR AND DRAWER

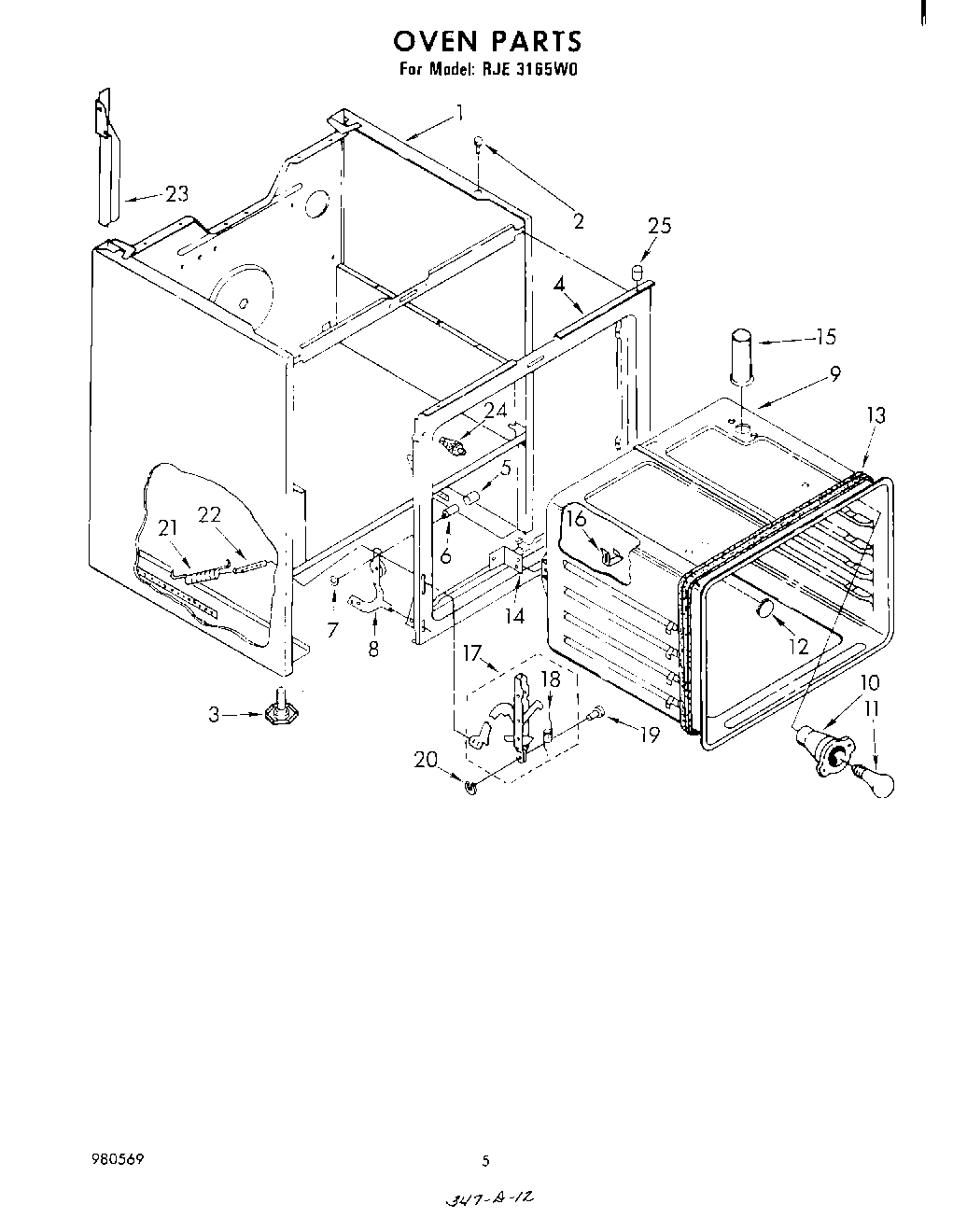

04 - OVEN
Common parts from model Whirlpool RJE3165W0
WPL 799344 WPL 799344 Contact Us For Availability
WPL 261887 WPL 261887 Contact Us For Availability
WPL 261889 WPL 261889 Contact Us For Availability
WPL 261891 WPL 261891 Contact Us For Availability
WPL 978883 WPL 978883 Contact Us For Availability
1
Bracket, Mounting (2) WPL 307981 Contact Us For Availability
1
Burner Box WPL 307929 Contact Us For Availability
1
Liner, Door WPL 327880 Contact Us For Availability
1
``J`` Clip WPL 338177 Contact Us For Availability
1
Main Chassis (White) WPL 327871 Contact Us For Availability
1
Main Chassis (New Avocado) WPL 327872 Contact Us For Availability
1
Main Chassis (Coffee) WPL 327873 Contact Us For Availability
1
Main Chassis (Harvest Gold) WPL 327874 Contact Us For Availability
1
main chassis (almond) WPL 327875 Contact Us For Availability
2
Rail R.H. (Includes Illus. 3) WPL 307982 Contact Us For Availability
2
rail l.h. (includes illus. 3) WPL 307983 Contact Us For Availability
2
Shield, Wiring WPL 307973 Contact Us For Availability
2
Seal, Window (Large) WPL 308501 Contact Us For Availability
3
Glide, Front (2) WPL 307979 Contact Us For Availability
3
Rod, Cooktop WPL 307968 Contact Us For Availability
3
Glass, Inner WPL 308001 Contact Us For Availability
4
Retainer, Cooktop WPL 307967 Contact Us For Availability
4
Spacer, Door (2) WPL 309137 Contact Us For Availability
4
Frame, Front WPL 327886 Contact Us For Availability
5
Unit, Broil (Screw, 10-32 x 5/8 (2)) WPL 246127 Contact Us For Availability
5
Bracket, Cooktop (2) WPL 307965 Contact Us For Availability
5
Baffle, Insulation WPL 307925 Contact Us For Availability
5
Pin, Hinge (2) WPL 307985 Contact Us For Availability
6
Pin, Cooktop (2) WPL 307966 Contact Us For Availability
6
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
6
Snubber, Door (2) WPL 309111 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Cooktop (Harvest Gold) WPL 307863 Contact Us For Availability
7
Cooktop (Coffee) WPL 307864 Contact Us For Availability
7
Cooktop (New Avocado) WPL 307865 Contact Us For Availability
7
Cooktop (White) WPL 307866 Contact Us For Availability
7
Cooktop (Almond) WPL 307871 Contact Us For Availability
7
Cushion, Oven Door (2) WPL 309152 Contact Us For Availability
7
Pushnut (2) WPL 308306 Contact Us For Availability
8
Bracket, Service WPL 307970 Contact Us For Availability
8
Barrier WPL 309232 Contact Us For Availability
8
Spacer, Baffle (2) WPL 258990 Contact Us For Availability
8
Hinge (R.H.) WPL 327890 Contact Us For Availability
8
Hinge (L.H.) WPL 327891 Contact Us For Availability
9
Stand-Off (Bracket) WPL 309102 Contact Us For Availability
9
Screw (3) WPL 311056 Contact Us For Availability
9
channel, rubber (4) WPL 255859 Contact Us For Availability
9
Oven (30`` Conventional) WPL 329000 Contact Us For Availability
10
Cover, Rear WPL 307971 Contact Us For Availability
10
Panel, Oven Door (White) WPL 307901 Contact Us For Availability
10
Panel, Oven Door (New Avocado) WPL 307902 Contact Us For Availability
10
Panel, Oven Door (Coffee) WPL 307903 Contact Us For Availability
10
Panel, Oven Door (Harvest Gold) WPL 307904 Contact Us For Availability
10
Panel, Oven Door (Almond) WPL 307905 Contact Us For Availability
10
Socket, Light (Oven) (Alternate) WPL 307856 Contact Us For Availability
10
Socket, Light (Oven) (Screw, 10-12 x 7/8 (2)) WPL 308043 Contact Us For Availability
10
Socket, Light (Oven) (Alternate) WPL 310208 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
11
Handle, Oven Door WPL 311564 Contact Us For Availability
12
Plug Button WPL 257314 Contact Us For Availability
13
Seal, Oven WPL 309107 Contact Us For Availability
13
Medallion (4) WPL 261990 Contact Us For Availability
13
Frame, Window (30`` Large) WPL 309174 Contact Us For Availability
14
Light Indicator (Surface Unit) WPL 310327 Contact Us For Availability
14
Rack, Oven (Straight) WPL 308173 Contact Us For Availability
14
Screw, 6A x 3/8 (8) WPL 307730 Contact Us For Availability
14
Retainer, Glass WPL 307999 Contact Us For Availability
14
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
15
Bezel, Control Knob (4) WPL 307456 Contact Us For Availability
15
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
15
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
15
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
15
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
15
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
15
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
15
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
15
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
15
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
15
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
15
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
15
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
15
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
15
Grease WPL 261582 Contact Us For Availability
15
Touch-Up Oven (1 Oz.) WPL 261810 Contact Us For Availability
15
Coff WPL 261886 Contact Us For Availability
15
WPL 261888 WPL 261888 Contact Us For Availability
15
WPL 261890 WPL 261890 Contact Us For Availability
15
WPL 308172 WPL 308172 Contact Us For Availability
15
WPL 308494 WPL 308494 Contact Us For Availability
15
WPL 308500 WPL 308500 Contact Us For Availability
15
WPL 310596 WPL 310596 Contact Us For Availability
15
WPL 72108 WPL 72108 Contact Us For Availability
15
WPL 799351 WPL 799351 Contact Us For Availability
15
WPL 799832 WPL 799832 Contact Us For Availability
15
WPL 980569 WPL 980569 Contact Us For Availability
15
Clip, Frame (3) WPL 307731 Contact Us For Availability
15
Vent, Oven WPL 307960 Contact Us For Availability
16
Glass, Outer WPL 308000 Contact Us For Availability
16
Screw, 8A x 5/8 (3) WPL 309133 Contact Us For Availability
17
Spring, Bezel (4) WPL 307828 Contact Us For Availability
17
Channel Arm (2) WPL 327924 Contact Us For Availability
18
Knob, Thermostat WPL 328709 Contact Us For Availability
18
Drawer, Utility WPL 327887 Contact Us For Availability
18
Spring, Door Stop (2) WPL 308207 Contact Us For Availability
19
Knob, Selector WPL 328707 Contact Us For Availability
19
Protector, Drawer Side (2) WPL 309329 Contact Us For Availability
20
Tube Clip WPL 309211 Contact Us For Availability
20
Glide, Rear (2) WPL 307980 Contact Us For Availability
20
Ring, Retainer (2) WPL 307594 Contact Us For Availability
21
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
21
Cover, Rear WPL 308157 Contact Us For Availability
21
Panel, Drawer (Screw, 8-32 (3)) WPL 307537 Contact Us For Availability
21
Panel Drawer (White) WPL 307935 Contact Us For Availability
21
Panel, Drawer (New Avocado) WPL 307936 Contact Us For Availability
21
Panel, Drawer (Coffee) WPL 307937 Contact Us For Availability
21
Panel Drawer (Harvest Gold) WPL 307938 Contact Us For Availability
21
Panel, Drawer (Almond) WPL 307939 Contact Us For Availability
21
Panel Drawer (Black) WPL 309923 Contact Us For Availability
22
Handle, Drawer WPL 310399 Contact Us For Availability
23
Support, Channel (R.H.) WPL 308131 Contact Us For Availability
23
Support, Channel (L.H.) WPL 308132 Contact Us For Availability
24
Switch, Door WPL 310345 Contact Us For Availability
25
Screw, 8-32 x 5/16 (2) WPL 310210 Contact Us For Availability
25
locator, cooktop WPL 311909 Contact Us For Availability
× ![]()
