Model Whirlpool RF374PXDZ0 – Common Parts & Diagrams
01 - COOKTOP, LITERATURE
03 - DOOR AND DRAWER

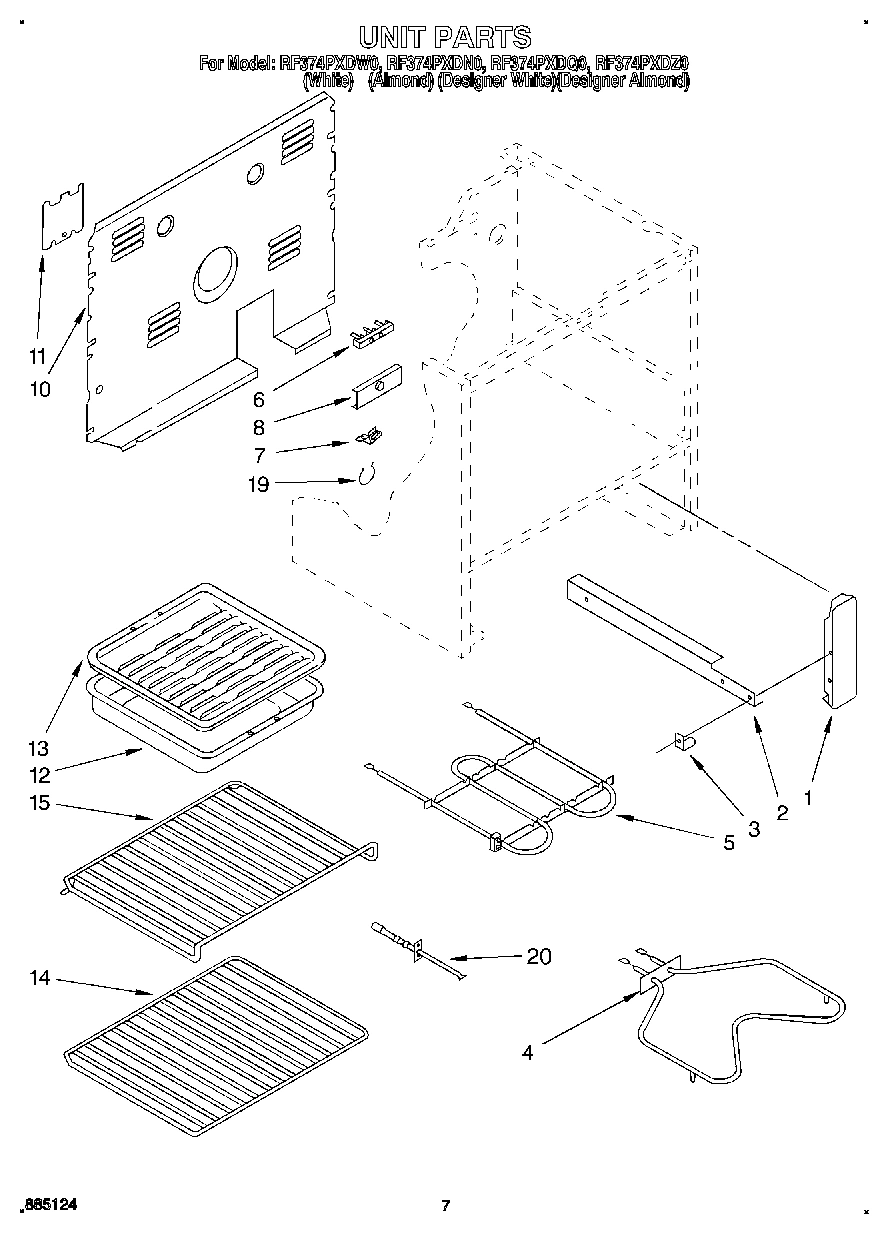

05 - UNIT

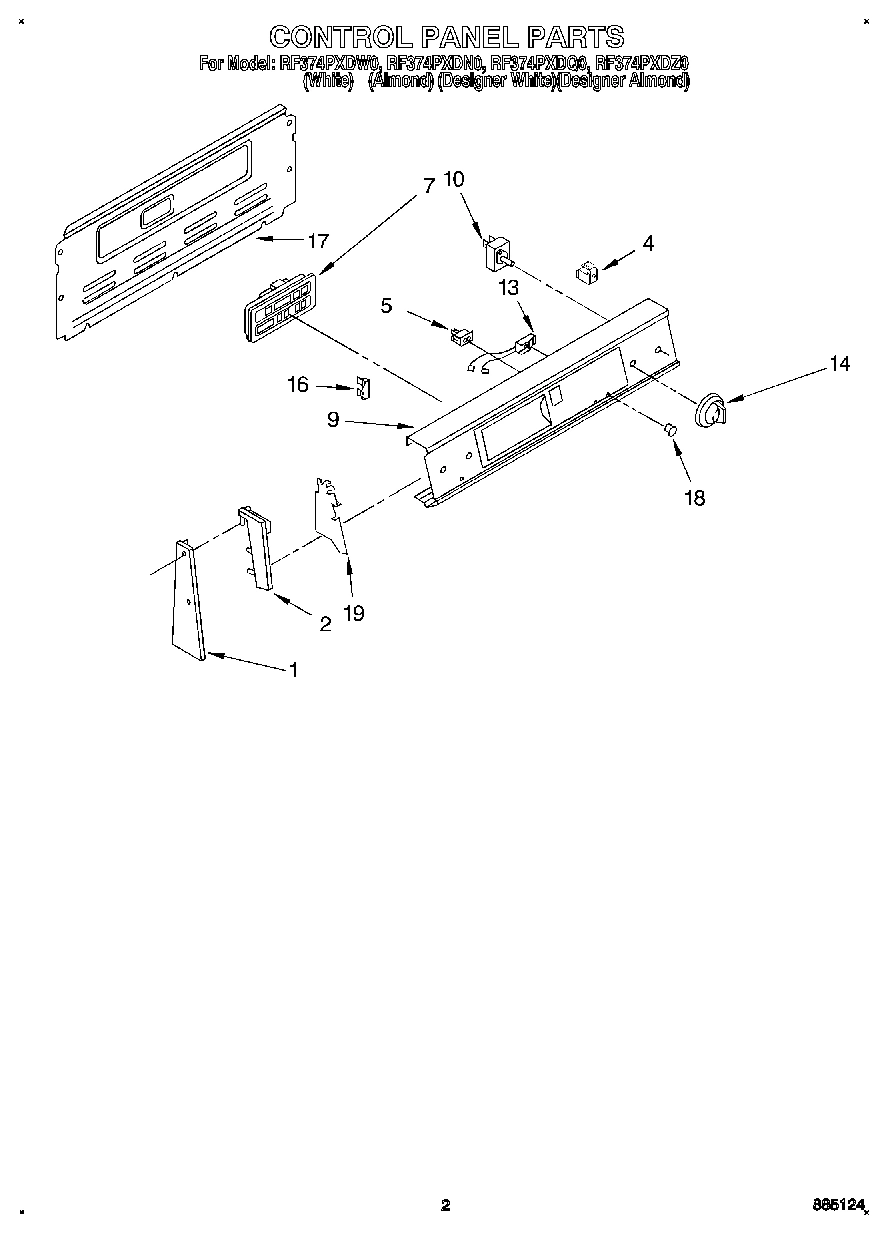

02 - CONTROL PANEL

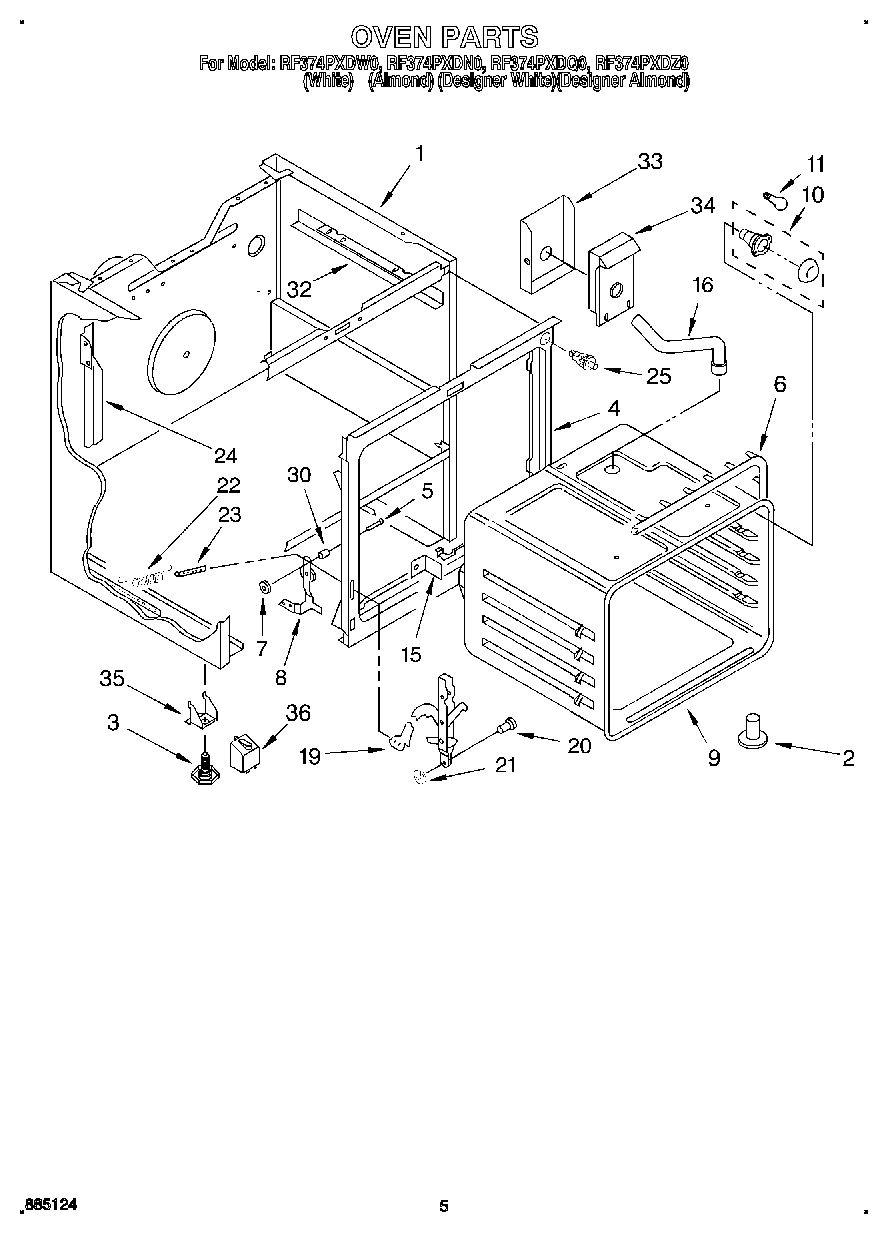

04 - OVEN

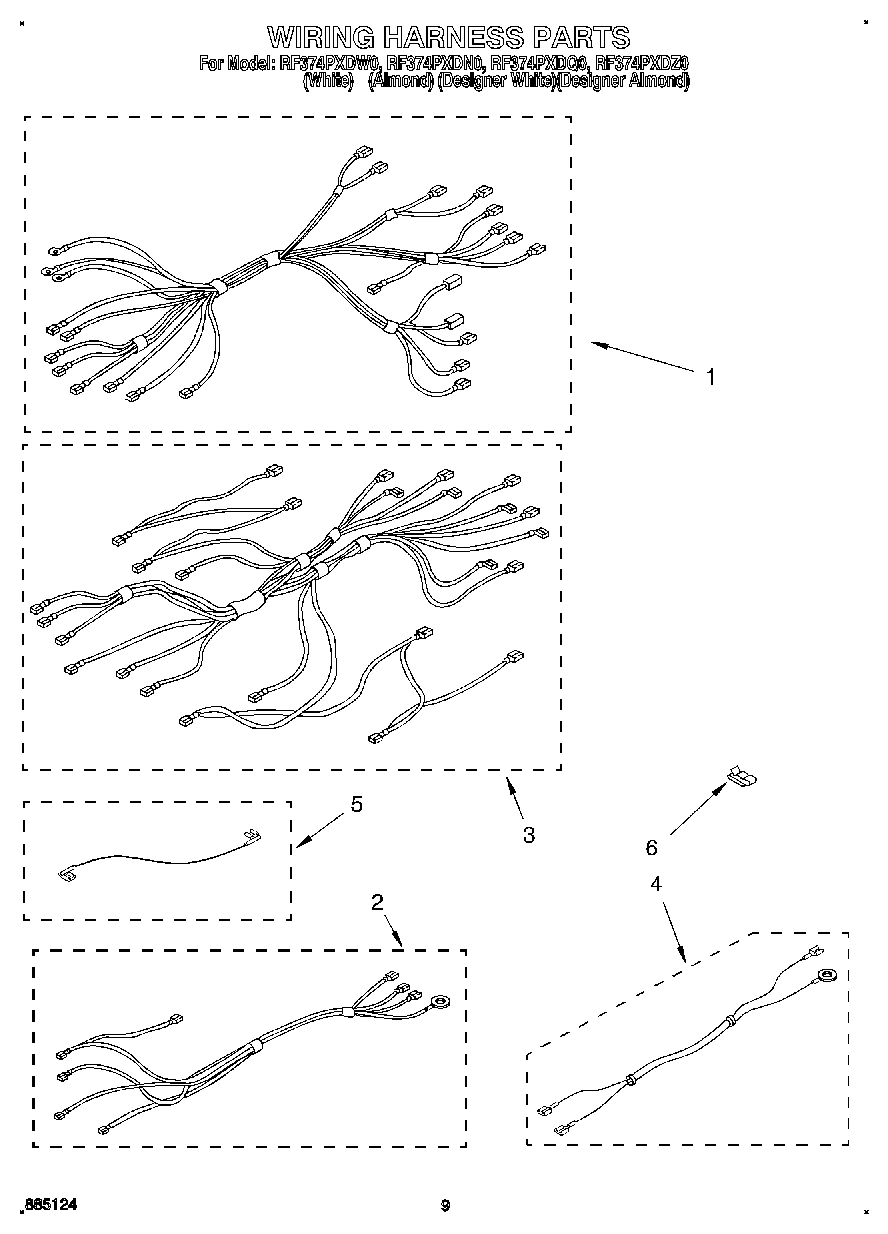

06 - WIRING HARNESS, OPTIONAL
Common parts from model Whirlpool RF374PXDZ0
WPL 241430 WPL 241430 Contact Us For Availability
WPL LIT677973 WPL LIT677973 Contact Us For Availability
1
Liner, Oven Door WPL 3172218 Contact Us For Availability
1
Bracket, Mounting (2) WPL 3169420 Contact Us For Availability
1
End Trim (Black, RH) WPL 3183092 Contact Us For Availability
1
End Trim (Black, LH) WPL 3183093 Contact Us For Availability
1
End Trim (Designer White, RH) WPL 3183094 Contact Us For Availability
1
End Trim (Designer White, LH) WPL 3183095 Contact Us For Availability
1
End Trim (Designer Almond, RH) WPL 3188994 Contact Us For Availability
1
End Trim (Designer Almond, LH) WPL 3188995 Contact Us For Availability
1
Main Chassis (White) WPL 330086 Contact Us For Availability
1
Main Chassis (Almond) WPL 330090 Contact Us For Availability
1
Harness, (Oven) WPL 3169479 Contact Us For Availability
2
Frame, Inner Glass WPL 3148234 Contact Us For Availability
2
Rail R.H. WPL 3149255 Contact Us For Availability
2
Rail L.H. (Includes Illus. 3) WPL 3149256 Contact Us For Availability
2
End Cap (Black, RH) WPL 3187791 Contact Us For Availability
2
End Cap (Black, LH) WPL 3187792 Contact Us For Availability
2
End Cap (Designer White, RH) WPL 3187793 Contact Us For Availability
2
End Cap (Designer White, LH) WPL 3187794 Contact Us For Availability
2
End Cap (Designer Almond, RH) WPL 3187795 Contact Us For Availability
2
End Cap (Designer Almond, LH) WPL 3187796 Contact Us For Availability
2
Tube, Vent WPL 3169109 Contact Us For Availability
2
Harness, Wire (Lock Switch) WPL 3169476 Contact Us For Availability
3
Seal, Foam WPL 3148441 Contact Us For Availability
3
Glide, Front (2) WPL 3149257 Contact Us For Availability
3
Leg Leveling (4) WPL 3169499 Contact Us For Availability
3
Harness, (Cooktop) WPL 3183408 Contact Us For Availability
4
Glass, Clear WPL 3169202 Contact Us For Availability
4
Adapter, Terminal WPL 3147832 Contact Us For Availability
4
Screw (1) WPL 3150537 Contact Us For Availability
4
Frame Front WPL 3176718 Contact Us For Availability
4
Harness, Wire (Oven Light) WPL 313154 Contact Us For Availability
5
Seal, Window WPL 3148183 Contact Us For Availability
5
Screw, 10-32 x 7/16 (2) WPL 3150532 Contact Us For Availability
5
Switch, Rocker (Black) WPL 3182717 Contact Us For Availability
5
Switch, Rocker (Designer White) WPL 3182718 Contact Us For Availability
5
Switch, Rocker (Designer Almond) WPL 3182719 Contact Us For Availability
5
Pin, Hinge (2) WPL 307985 Contact Us For Availability
6
WPL 799344 WPL 799344 Contact Us For Availability
6
Knob, Latch WPL 3148684 Contact Us For Availability
6
Clip, Wire WPL 311311 Contact Us For Availability
6
Retainer, Insulation WPL 3148159 Contact Us For Availability
6
Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability
6
Seal, Door WPL 3169251 Contact Us For Availability
6
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
6
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
6
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
6
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
6
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
6
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
6
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
6
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
6
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
6
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
6
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
6
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
6
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
6
Grease WPL 261582 Contact Us For Availability
6
Coffee WPL 261886 Contact Us For Availability
6
New Avocado WPL 261888 Contact Us For Availability
6
Harvest Gold WPL 261890 Contact Us For Availability
6
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
6
Toast WPL 285365 Contact Us For Availability
6
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
6
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
6
Platinum (Uncut) WPL 285368 Contact Us For Availability
6
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
6
Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability
6
WPL 799832 WPL 799832 Contact Us For Availability
6
WPL 978883 WPL 978883 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Clip WPL 313660 Contact Us For Availability
7
Timer, ERC Control (Black) WPL 3195182 Contact Us For Availability
7
Timer, ERC Control (Designer White) WPL 3195183 Contact Us For Availability
7
Timer, ERC Control (Designer Almond) WPL 3195184 Contact Us For Availability
7
Pushnut (2) WPL 308306 Contact Us For Availability
8
Retainer, Glass WPL 3148187 Contact Us For Availability
8
Bracket, Service WPL 3150190 Contact Us For Availability
8
Hinge, R.H. WPL 3176710 Contact Us For Availability
8
Hinge, L.H. WPL 3176711 Contact Us For Availability
9
Bumper (4) WPL 3148182 Contact Us For Availability
9
Panel, Control (Screw, 8-18 x 5/8 (4)) WPL 3169366 Contact Us For Availability
9
Panel, Control (Designer White) WPL 3188690 Contact Us For Availability
9
Panel, Control (Designer Almond) WPL 3188691 Contact Us For Availability
9
Panel, Control (Black) WPL 3189220 Contact Us For Availability
9
Screw (3) WPL 311056 Contact Us For Availability
9
Oven (30`` Pyro) WPL 3176611 Contact Us For Availability
10
Spring (8) WPL 3149191 Contact Us For Availability
10
Outer Glass, Door (Designer White) WPL 3188738 Contact Us For Availability
10
Outer Glass, Door (Black) WPL 3188739 Contact Us For Availability
10
Outer Glass, Door (Designer Almond) WPL 3189263 Contact Us For Availability
10
Cover, Rear WPL 3148975 Contact Us For Availability
10
Switch, Infinite (Screw, 8-32 x 1/4 (8)) WPL 308119 Contact Us For Availability
11
Screw (4) WPL 3149333 Contact Us For Availability
11
Screw, 10-16 x 1/2 (2) WPL 3185647 Contact Us For Availability
11
Foil WPL 3169191 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
12
Handle, Door (Black) WPL 3188695 Contact Us For Availability
12
Handle, Door (Designer White) WPL 3188696 Contact Us For Availability
12
Handle, Door (Designer Almond) WPL 3188697 Contact Us For Availability
13
Insulation, Door WPL 3147951 Contact Us For Availability
13
Indicator Light (Hot Surface) WPL 3169439 Contact Us For Availability
13
Indicator Light (Surface Unit On) WPL 3169457 Contact Us For Availability
14
Top, Door Vent (Black) WPL 3188692 Contact Us For Availability
14
Top, Door Vent (Designer White) WPL 3188693 Contact Us For Availability
14
Top, Door Vent (Designer Almond) WPL 3188694 Contact Us For Availability
14
Rack, Oven (Straight) WPL 308173 Contact Us For Availability
14
Knob, Infinite (4) (Designer White) WPL 3188722 Contact Us For Availability
14
Knob, Infinite (4) (Designer Almond) WPL 3188723 Contact Us For Availability
15
Clip (2) WPL 3148282 Contact Us For Availability
15
Rack, Oven (Offset) WPL 308172 Contact Us For Availability
15
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
16
Cap, Door Top (Screw (2)) WPL 3188399 Contact Us For Availability
16
Cap, Door Top (Screw (2)) WPL 3188400 Contact Us For Availability
16
Cap, Door Top (Designer White Mdl.) WPL 3189001 Contact Us For Availability
16
Cap, Door Top (Designer Almond) WPL 3189002 Contact Us For Availability
16
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
16
Fuse, Thermal WPL 3187848 Contact Us For Availability
16
Vent, Tube (Extension) WPL 3169365 Contact Us For Availability
17
Rear Cover Control Panel WPL 3187332 Contact Us For Availability
18
Frame, Outer Glass (Screw (4)) WPL 3149253 Contact Us For Availability
18
Frame, Outer Glass (Screw (3)) WPL 3185918 Contact Us For Availability
18
Frame, Outer Glass (Screw (4)) WPL 3188403 Contact Us For Availability
18
Frame, Outer Glass (Screw (4)) WPL 3188404 Contact Us For Availability
18
Frame, Outer Glass (Black) WPL 3188997 Contact Us For Availability
18
Frame, Outer Glass (Designer White) WPL 3188998 Contact Us For Availability
18
Frame, Outer Glass (Designer Almond) WPL 3188999 Contact Us For Availability
18
Lens, Amber (2) WPL 313101 Contact Us For Availability
19
Glide, Rear WPL 307980 Contact Us For Availability
19
WPL 313608 WPL 313608 Contact Us For Availability
19
Channel, Arm (2) WPL 3176709 Contact Us For Availability
20
Glass Cleaner WPL W10355051 No Longer Available
20
Panel Drawer (White) WPL 3169422 Contact Us For Availability
20
Panel Drawer (Almond) WPL 3169423 Contact Us For Availability
20
Sensor, Temp. WPL 3148440 Contact Us For Availability
21
Bracket, Cooktop (Left) WPL 3169295 Contact Us For Availability
21
H WPL 3169472 Contact Us For Availability
21
WPL 3169473 WPL 3169473 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
22
Clip, Mounting (2) (Vent Cover) WPL 3149190 Contact Us For Availability
22
WPL 327887 WPL 327887 Contact Us For Availability
24
WPL 309329 WPL 309329 Contact Us For Availability
24
Support, L.H. Post WPL 313196 Contact Us For Availability
24
Support, R.H. Post WPL 313197 Contact Us For Availability
25
Switch, Door WPL 310345 Contact Us For Availability
30
Snubber, Door (2) WPL 309111 Contact Us For Availability
32
Support, Chassis WPL 3147646 Contact Us For Availability
33
Screw (3) WPL 98520 Contact Us For Availability
33
Shield, Box WPL 3149006 Contact Us For Availability
34
Vent, Box WPL 3169278 Contact Us For Availability
35
Support, Foot (2) WPL 3169418 Contact Us For Availability
36
Insulation, Wrapper WPL 3169093 Contact Us For Availability
36
Insulation, Oven BAck WPL 3169094 Contact Us For Availability
36
Cover, Foot (2) WPL 3169448 Contact Us For Availability
× ![]()
