Model Whirlpool RF366BXVN1 – Common Parts &amp; Diagrams

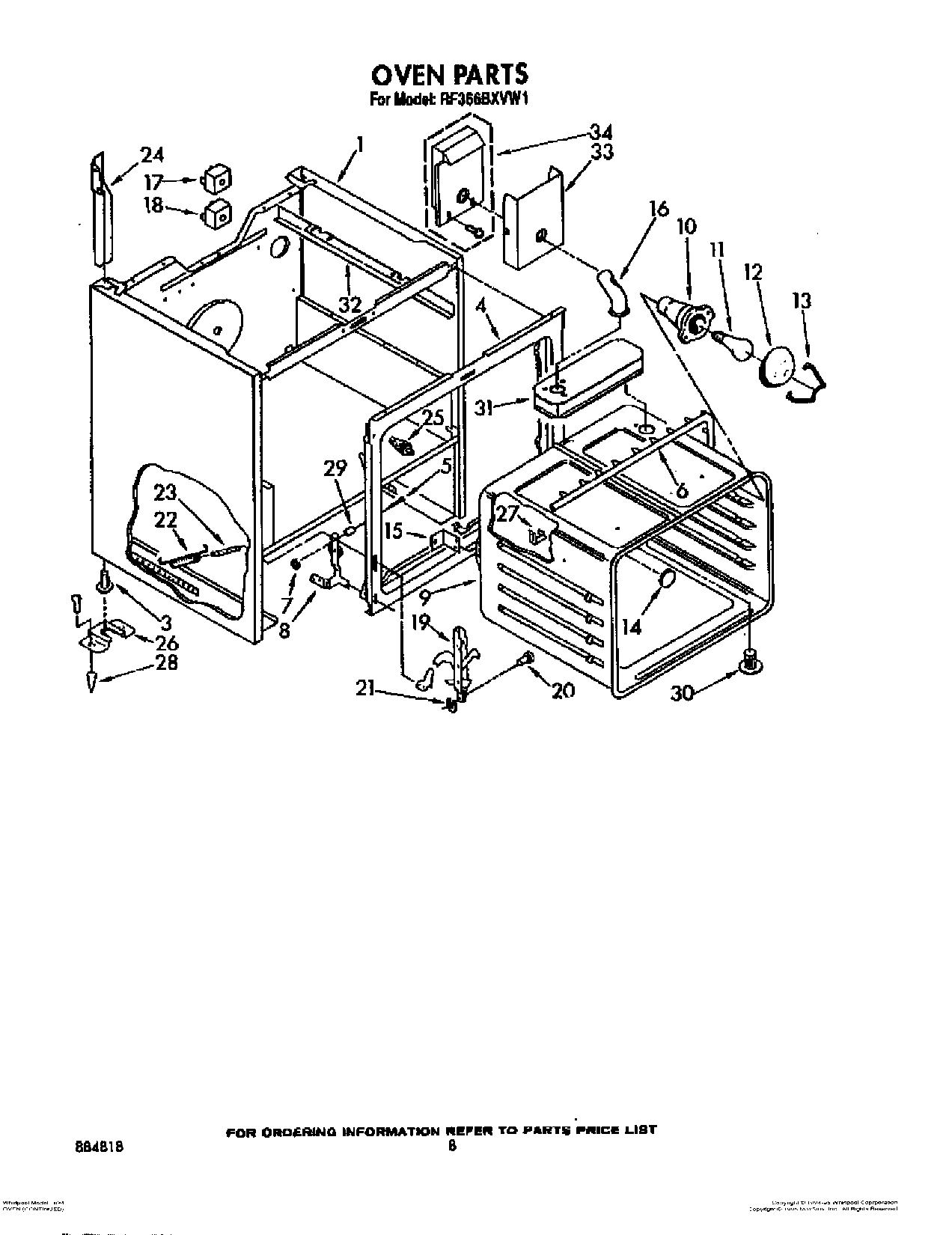

Screw, 10-12 x 7/8 (2) WPL 308043 Contact Us For Availability

WPL ARI122883A WPL ARI122883A Contact Us For Availability

1

Screw (2) WPL 3149333 Contact Us For Availability

1

Main Chassis (Scr, 10-24X1/2) WPL 247326 Contact Us For Availability

1

Main Chassis (White) WPL 330086 Contact Us For Availability

1

Main Chassis (Almond) WPL 330090 Contact Us For Availability

1

Bracket, Mounting (2) WPL 307981 Contact Us For Availability

1

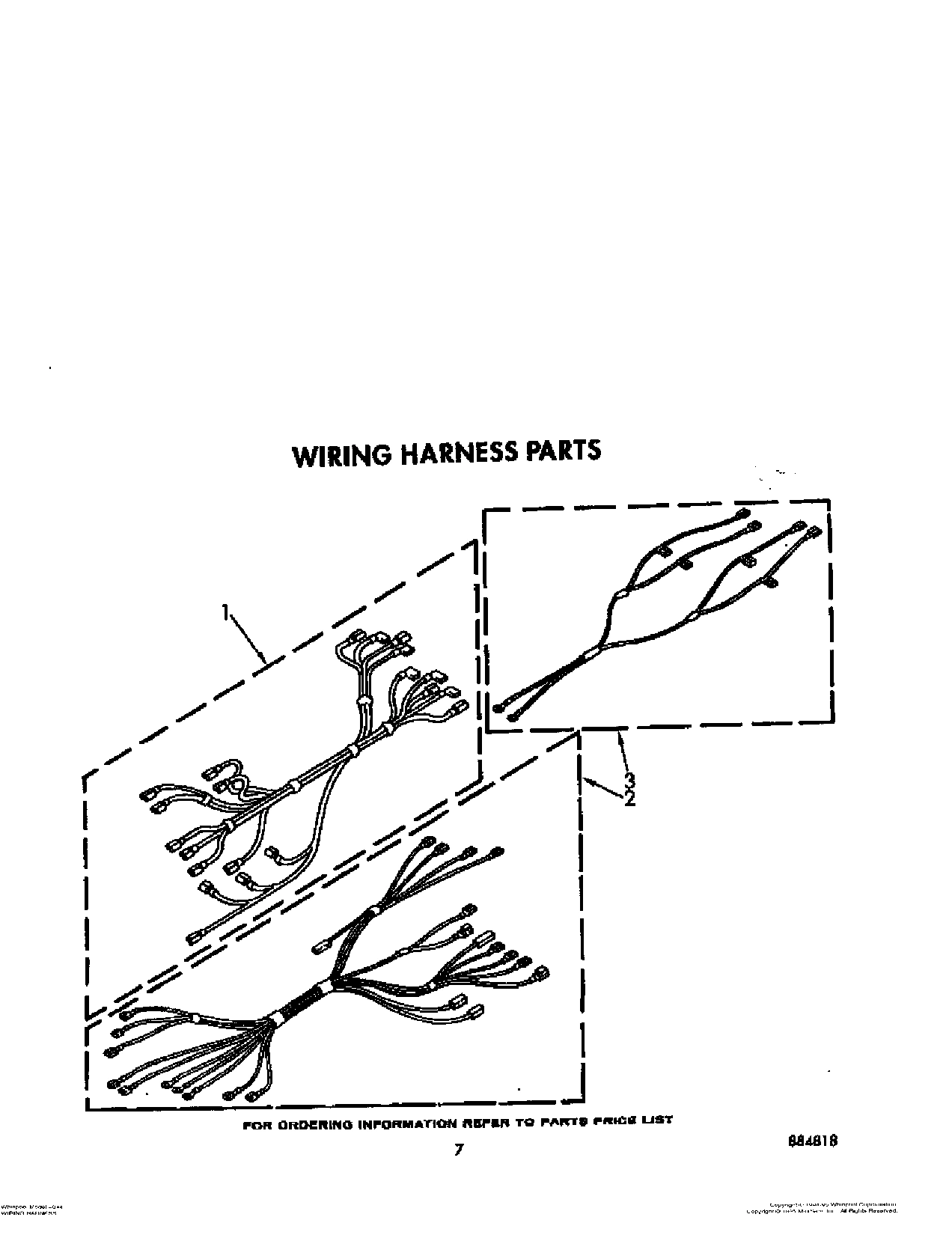

Harness, Wire (Surface Units) WPL 3148913 Contact Us For Availability

2

Rail R.H. WPL 3149255 Contact Us For Availability

2

Rail L.H. (Includes Illus. 3) WPL 3149256 Contact Us For Availability

2

Harness, Wire (Oven) WPL 3148778 Contact Us For Availability

3

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $4.53

3

Glide, Front (2) WPL 3149257 Contact Us For Availability

3

Harness, Wire (Oven Light) WPL 313154 Contact Us For Availability

3

Harness, Wire (Lock Switch) WPL 3148699 Contact Us For Availability

3

Harness, Wire (Supply) WPL 3149680 Contact Us For Availability

3

Harness, Wire (Latch) WPL 3171162 Contact Us For Availability

4

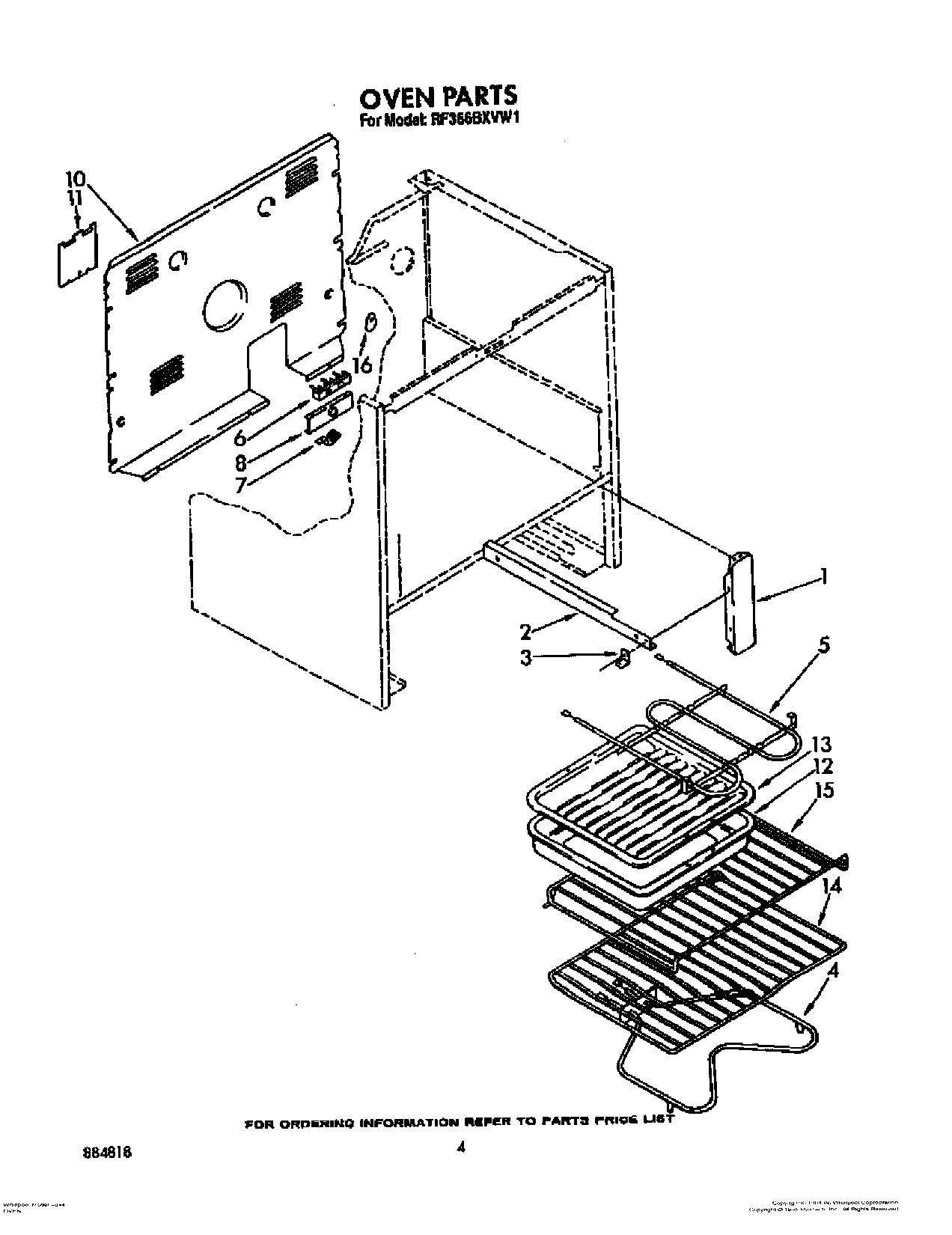

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $27.60

4

Frame, Front WPL 3170856 Contact Us For Availability

5

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $72.43

5

Pin, Hinge WPL 307985 Contact Us For Availability

5

Screw, 10-32 x 7/16 (2) WPL 3150532 Contact Us For Availability

6

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $3.46

6

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.98

6

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $14.40

6

Knob, Latch WPL 3148684 Contact Us For Availability

6

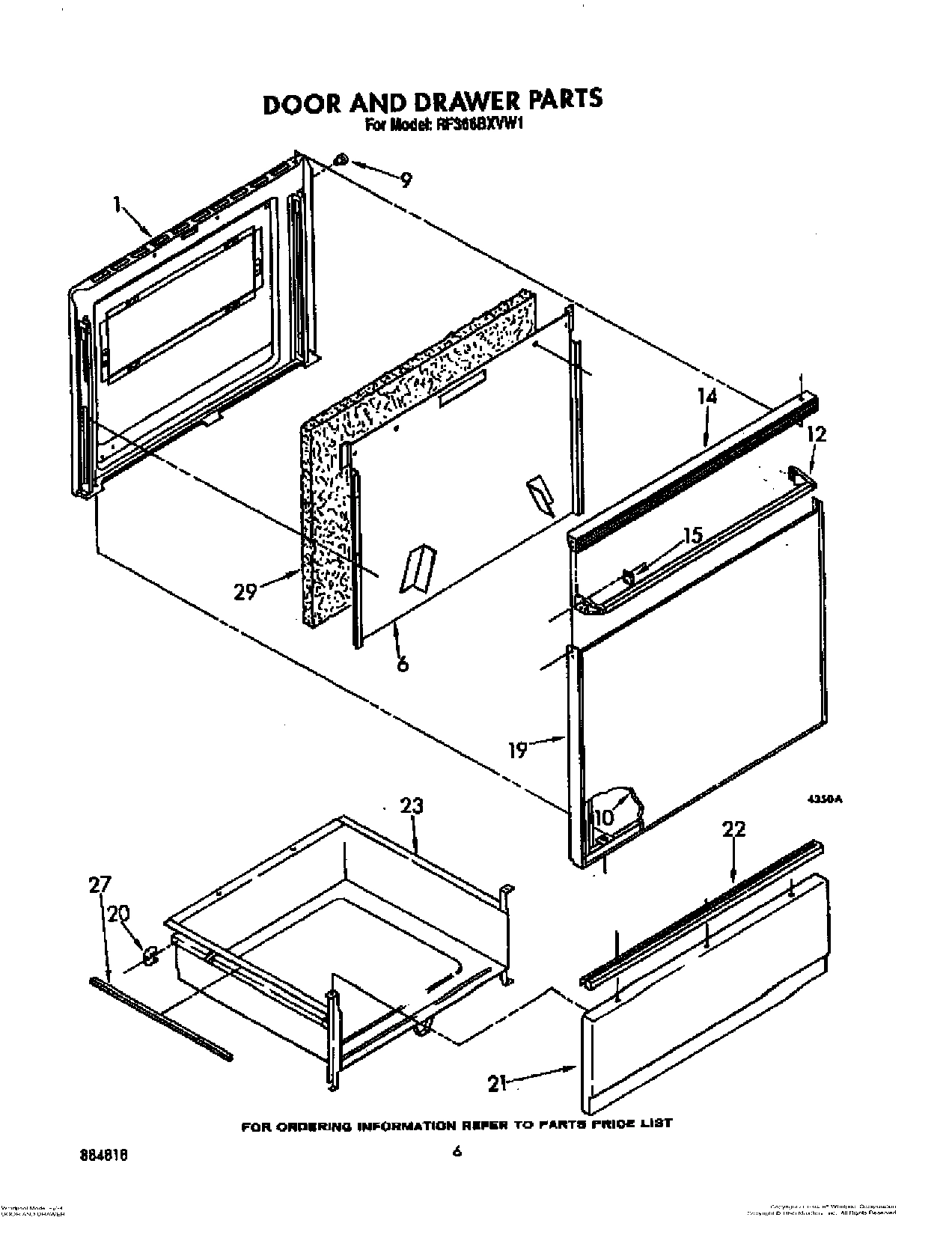

Seal, Door WPL 3148284 Contact Us For Availability

6

Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability

7

Pin, Top (2) WPL 307966 Contact Us For Availability

7

Pushnut WPL 308306 Contact Us For Availability

7

Ground Strap WPL 308498 Contact Us For Availability

7

Clip WPL 313660 Contact Us For Availability

8

Hinge (R.H.) WPL 327890 Contact Us For Availability

8

Hinge (L.H.) WPL 327891 Contact Us For Availability

8

Bracket, Service WPL 307970 Contact Us For Availability

9

Bracket, Light WPL 3149032 Contact Us For Availability

9

Screw (3) WPL 311056 Contact Us For Availability

9

Oven (30`` Pyro) WPL 329002 Contact Us For Availability

Shield, Probe WPL 3150346 Contact Us For Availability

Socket, Lamp (Alt.) WPL 307856 Contact Us For Availability

Socket, Lamp (Alt.) WPL 310208 Contact Us For Availability

Socket, Lamp WPL 660556 Contact Us For Availability

Cover, Rear WPL 3148975 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $10.08

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.46

Bracket, Top (2) WPL 307965 Contact Us For Availability

Cover, Service WPL 307972 Contact Us For Availability

12

WP486754 Whirlpool Compactor Screw Backorder WPL WP486754 $3.22

12

Spring, Element (8) WPL 3149191 Contact Us For Availability

12

Cover, Light WPL 308039 Contact Us For Availability

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $23.64

Cooktop (White) WPL 3176523 Contact Us For Availability

cooktop (almond) WPL 3176524 Contact Us For Availability

Retainer, Light WPL 308038 Contact Us For Availability

14

Clip, Wire WPL 311311 Contact Us For Availability

14

Plug Button WPL 257314 Contact Us For Availability

14

Rack, Oven (Straight) WPL 308173 Contact Us For Availability

15

Clip, Mtg (2) WPL 3148282 Contact Us For Availability

15

Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability

15

Rack, Oven (Offset) WPL 308172 Contact Us For Availability

242831 Whirlpool Oven Wire Backorder WPL 242831 $423.65

285006 Whirlpool Spray In Stock WPL 285006 $31.20

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.72

350942 Whirlpool Spray Paint Backorder WPL 350942 $50.73

350956 Whirlpool Spray Assembly In Stock WPL 350956 $17.07

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.79

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $15.68

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.38

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $11.02

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $146.78

8212471 Whirlpool Oven Paint In Stock WPL 8212471 $39.00

W10355051 Whirlpool Cooktop Cleaner Affresh ( In Stock WPL W10355051 $7.26

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.60

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $34.75

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

Vent, Oven WPL 3148906 Contact Us For Availability

Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

Rotisserie Kit (RCK 81) WPL 242985 Contact Us For Availability

Grease WPL 261582 Contact Us For Availability

Coffee WPL 261886 Contact Us For Availability

Coffee (Uncut) WPL 261887 Contact Us For Availability

New Avocado WPL 261888 Contact Us For Availability

Harvest Gold WPL 261890 Contact Us For Availability

Harves WPL 261891 Contact Us For Availability

WPL 285365 WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 307748 WPL 307748 Contact Us For Availability

WPL 310433 WPL 310433 Contact Us For Availability

WPL 311982 WPL 311982 Contact Us For Availability

WPL 3147861 WPL 3147861 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

17

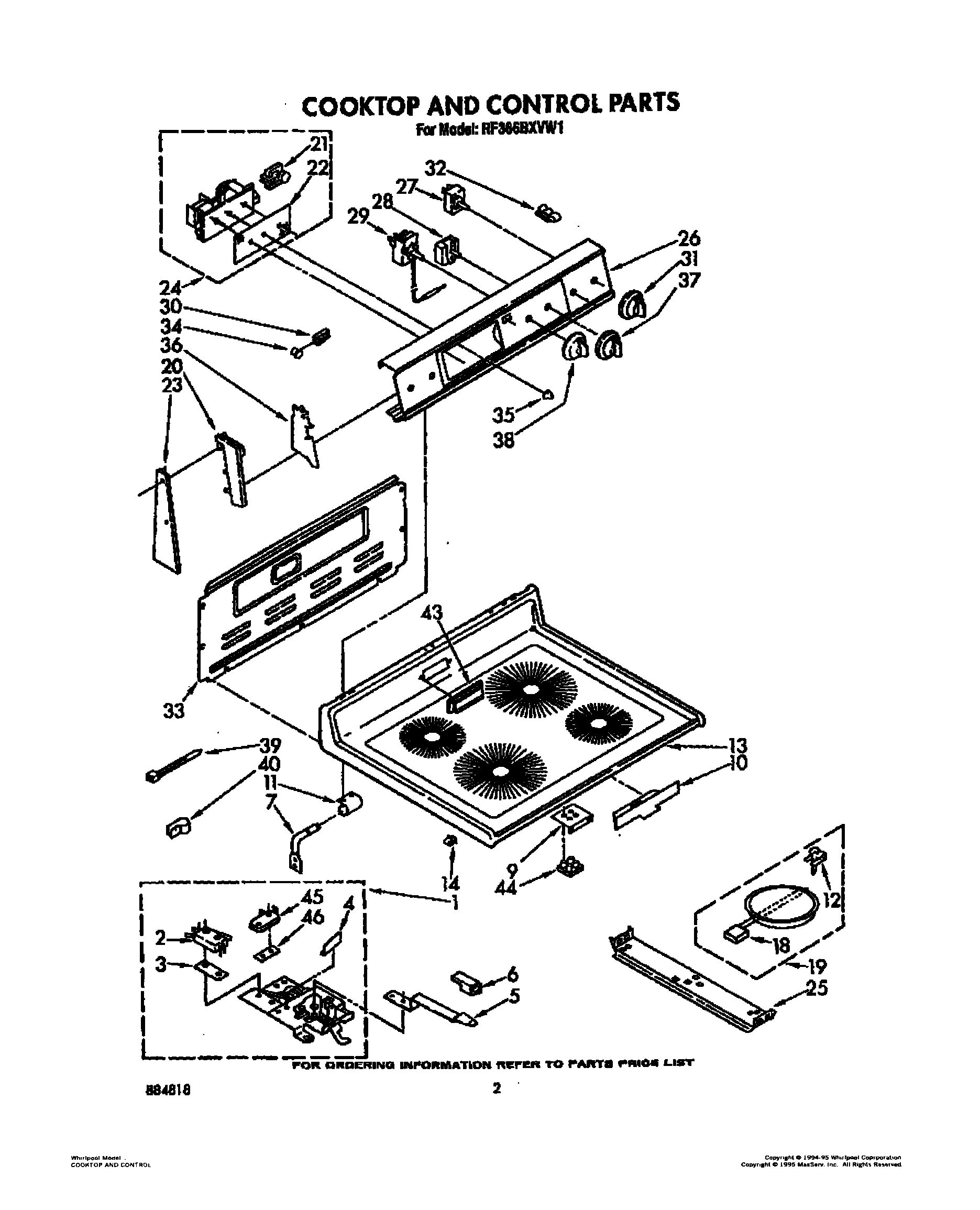

Switch, Broil WPL 314209 Contact Us For Availability

Limiter, Temp. (230 MM - RR) WPL 3149123 Contact Us For Availability

Limiter, Temp. (180 MM - LR) WPL 3149125 Contact Us For Availability

Limiter, Temp. (200 MM - RF) WPL 3149126 Contact Us For Availability

Limiter, Temp. (250 mm (LF)) WPL 3149127 Contact Us For Availability

Screw, No.6 WPL 314215 Contact Us For Availability

Switch, Bake WPL 314210 Contact Us For Availability

WP8185663 Whirlpool Surface Element Backorder WPL WP8185663 $76.24

Element, Surface (Includes No. 18) (180 MM - WPL 3148825 Contact Us For Availability

Element, Surface (Includes No. 18) (200 MM - WPL 3148826 Contact Us For Availability

Element, Surface (Includes No. 18) (230 MM - WPL 3148827 Contact Us For Availability

Channel, Arm (2) WPL 329710 Contact Us For Availability

20

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $6.70

20

End Cap R.H. WPL 313230 Contact Us For Availability

20

End Cap L.H. WPL 313231 Contact Us For Availability

21

Motor, Timer WPL 309822 Contact Us For Availability

21

Ring, Retainer (2) WPL 307594 Contact Us For Availability

22

Spring, Oven Door (2) WPL 308127 Contact Us For Availability

22

Glass, Timer WPL 313513 Contact Us For Availability

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $8.24

Screw (4) WPL 254225 Contact Us For Availability

End Trim L.H. WPL 313188 Contact Us For Availability

End Trim R.H. WPL 313189 Contact Us For Availability

24

Timer, Clock WPL 3149505 Contact Us For Availability

24

Support, L.H. Channel WPL 313196 Contact Us For Availability

24

Support, R.H. Channel WPL 313197 Contact Us For Availability

25

Switch, Door WPL 310345 Contact Us For Availability

25

Bracket, Mounting WPL 3148809 Contact Us For Availability

8273888A Whirlpool Range Oven Anchor Anti-Tip In Stock WPL 8273888A $12.67

Screw (4) WPL 312604 Contact Us For Availability

Panel, Control WPL 3148843 Contact Us For Availability

screw (2) WPL 3148604 Contact Us For Availability

98005642 Whirlpool Clip Backorder WPL 98005642 $34.75

WP3148952 Whirlpool Oven Infinite Switch In Stock WPL WP3148952 $41.04

WP3148955 Whirlpool Infinite Switch Backorder WPL WP3148955 $84.18

Switch, Infinite (Nut (1)) WPL 3147832 Contact Us For Availability

28

Switch, Selector WPL 3148419 Contact Us For Availability

28

Anchor, Plastic WPL 3148605 Contact Us For Availability

29

WP313808 Whirlpool Screw In Stock WPL WP313808 $2.59

29

WPL 3148933 WPL 3148933 Contact Us For Availability

29

Snubber, Door (2) WPL 309111 Contact Us For Availability

WPL 314031 WPL 314031 Contact Us For Availability

WPL 313102 WPL 313102 Contact Us For Availability

WPL 3148719 WPL 3148719 Contact Us For Availability

Eliminator, Smoke WPL 3147241 Contact Us For Availability

31

WP3149983 Whirlpool Knob Backorder WPL WP3149983 $13.33

31

Box, Vent WPL 3147076 Contact Us For Availability

32

WPL 313570 WPL 313570 Contact Us For Availability

32

Screw, 10A x 3/8 (2) WPL 254217 Contact Us For Availability

32

Support, Chassis (2) WPL 3147646 Contact Us For Availability

33

WPL 313195 WPL 313195 Contact Us For Availability

33

Screw (2) WPL 98520 Contact Us For Availability

33

Shield, Box WPL 3149006 Contact Us For Availability

34

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.85

34

WPL 313101 WPL 313101 Contact Us For Availability

34

Box, Vent WPL 3171381 Contact Us For Availability

35

WP3169181 Whirlpool Knob In Stock WPL WP3169181 $11.87

35

WPL 313311 WPL 313311 Contact Us For Availability

36

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $3.38

36

WPL 313608 WPL 313608 Contact Us For Availability

37

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $4.53

37

WPL 3149986 WPL 3149986 Contact Us For Availability

38

WPL 3149988 WPL 3149988 Contact Us For Availability

39

WPL 3149157 WPL 3149157 Contact Us For Availability

40

WP308605 Whirlpool Refrigerator Clamp Backorder WPL WP308605 $7.50

41

WPL 3149270 WPL 3149270 Contact Us For Availability

43

WPL 3149190 WPL 3149190 Contact Us For Availability

43

WPL 3149011 WPL 3149011 Contact Us For Availability

43

WPL 3149012 WPL 3149012 Contact Us For Availability

44

WPL 3149029 WPL 3149029 Contact Us For Availability

45

WPL 3148669 WPL 3148669 Contact Us For Availability

46

WPL 313489 WPL 313489 Contact Us For Availability

46

WPL 3147864 WPL 3147864 Contact Us For Availability
