Model Whirlpool RF330PXXN2 – Common Parts & Diagrams
05 - WIRING HARNESS

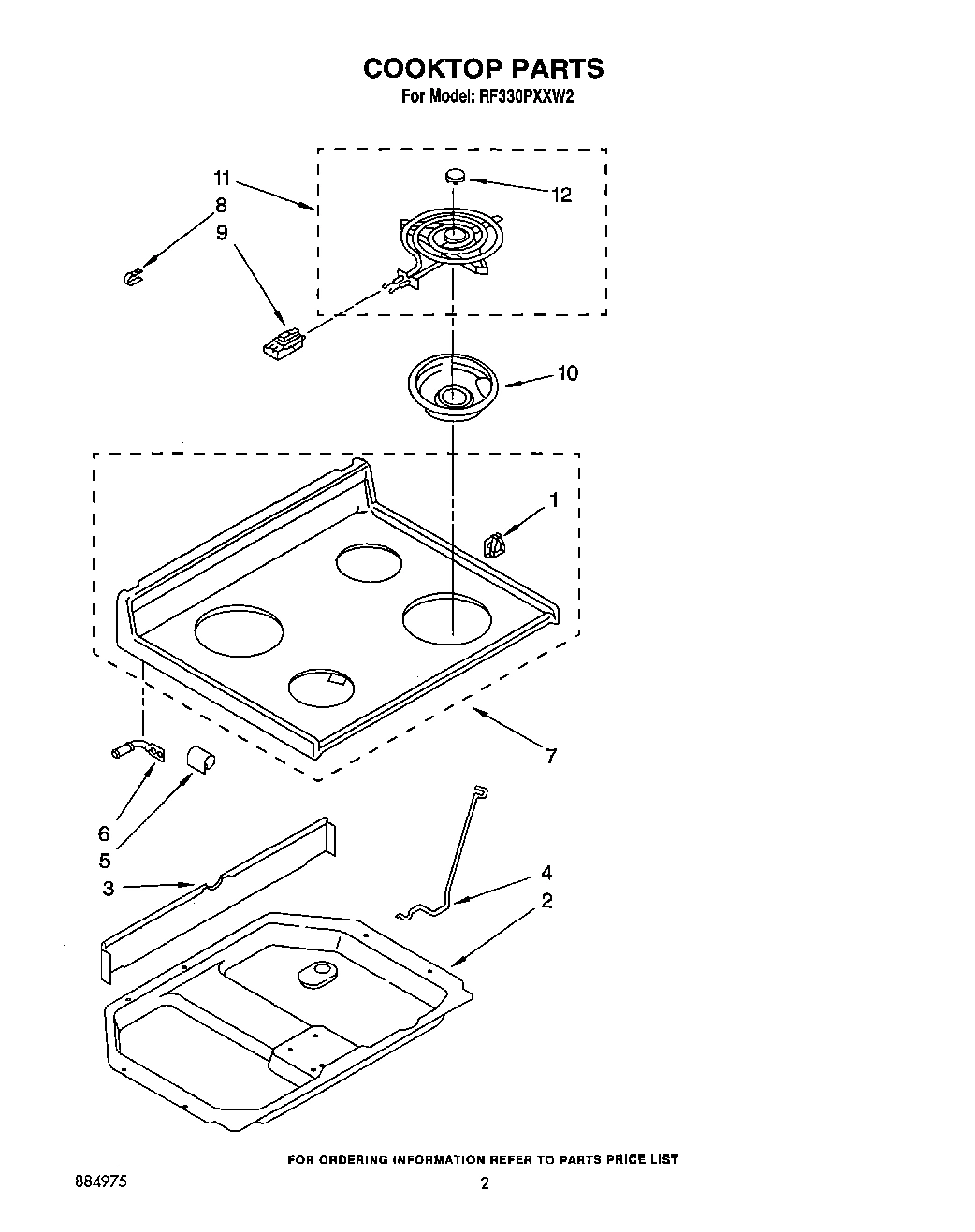

02 - COOKTOP

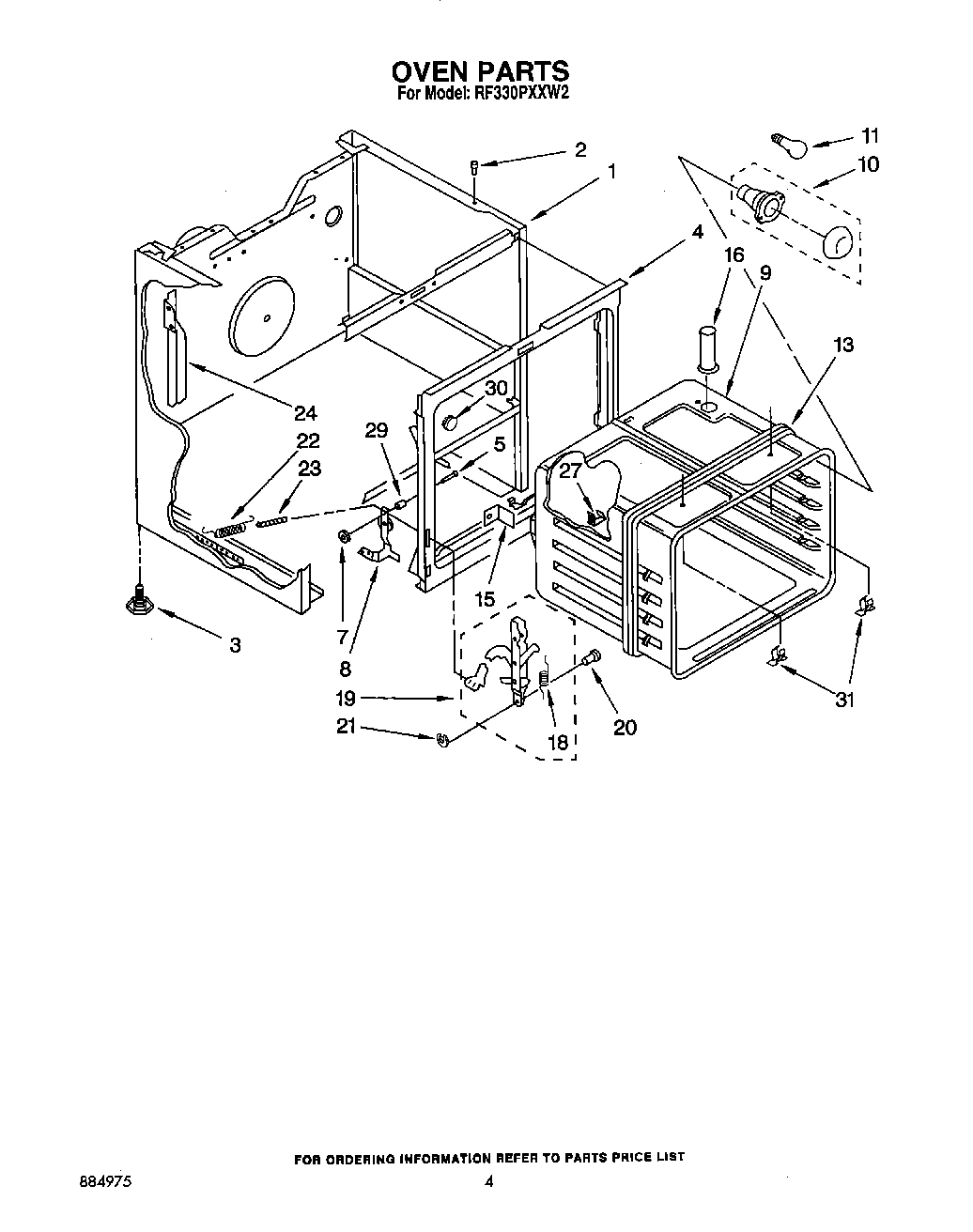

04 - OVEN

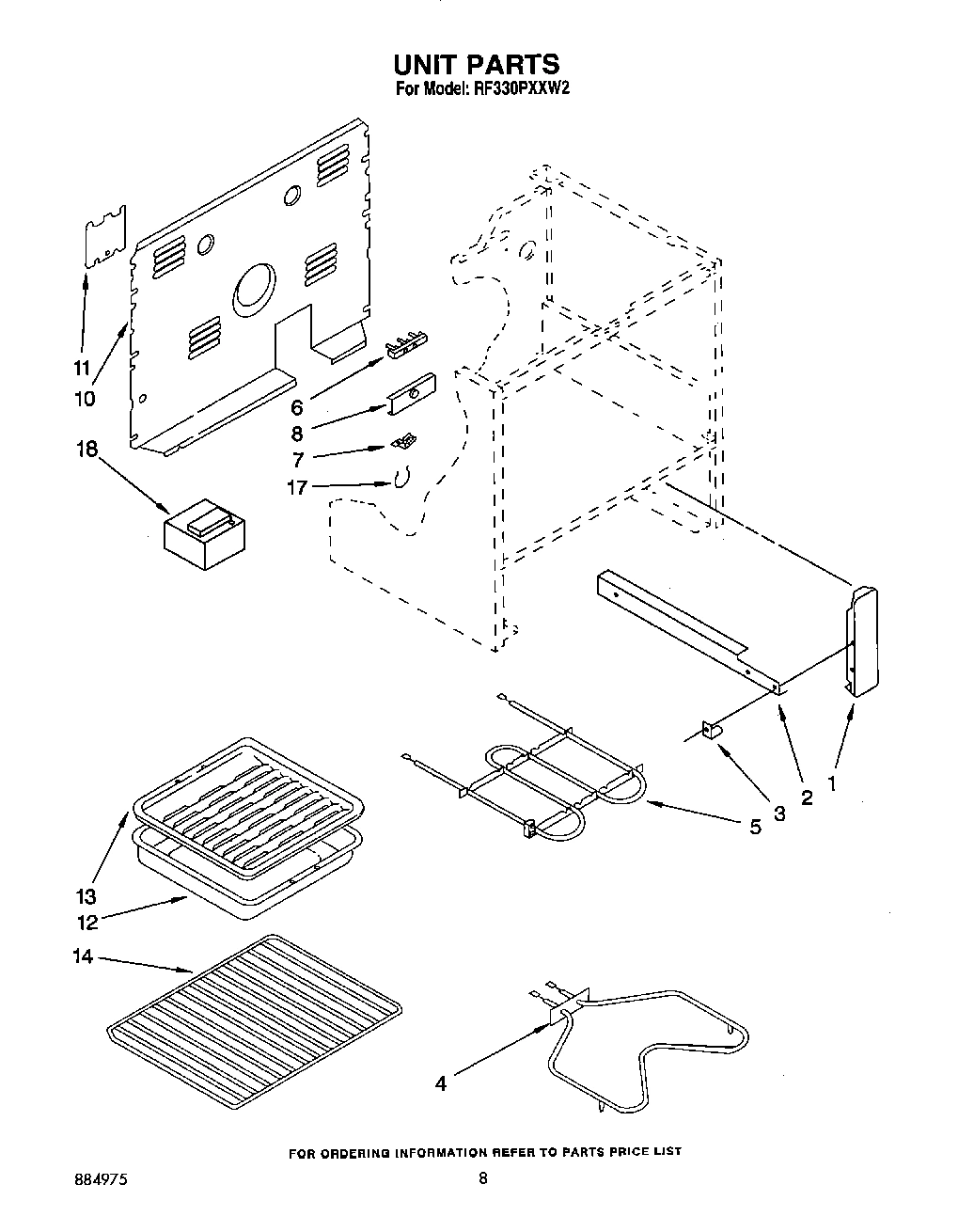

07 - UNIT, OPTIONAL

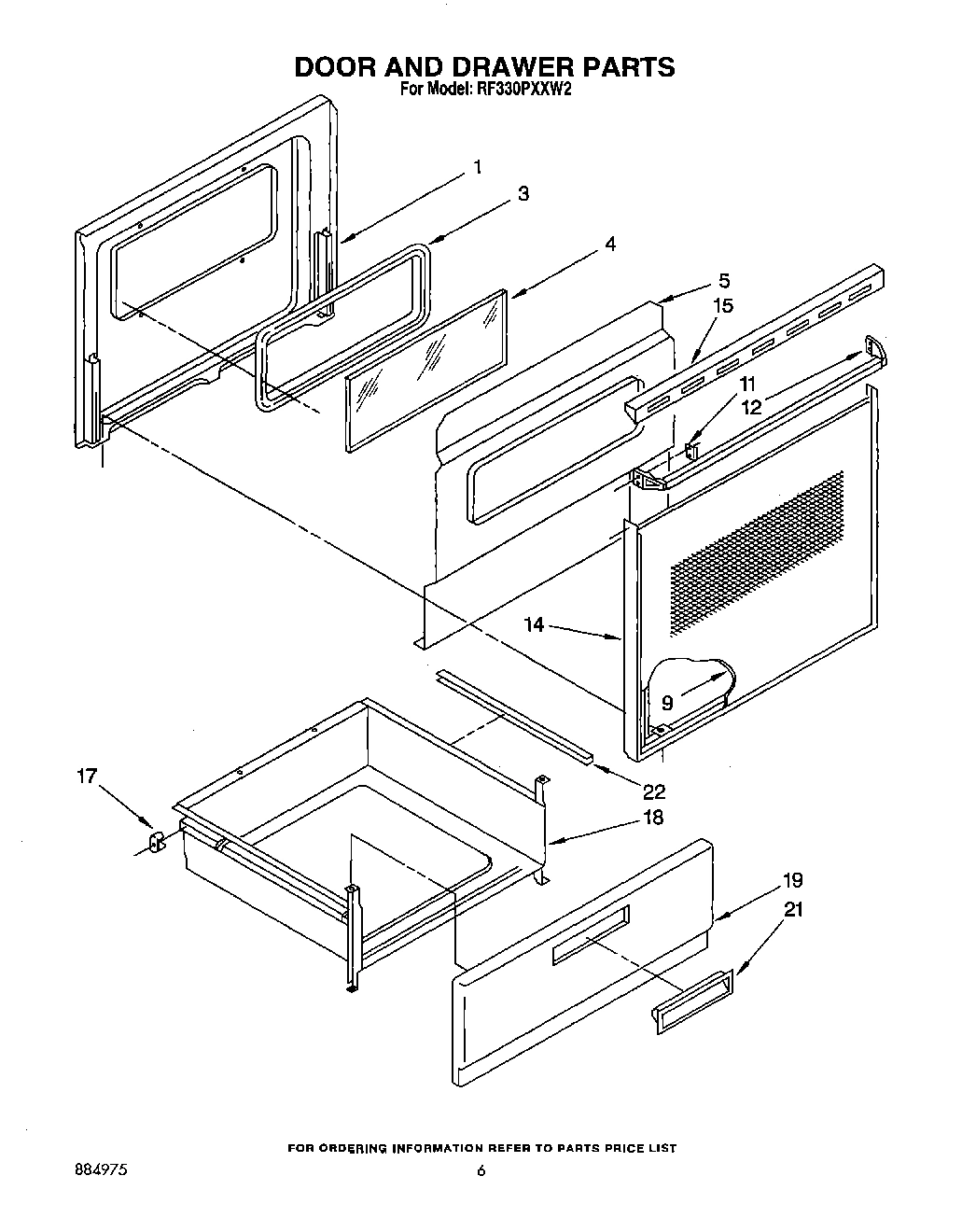

06 - DOOR AND DRAWER, LIT/OPTIONAL

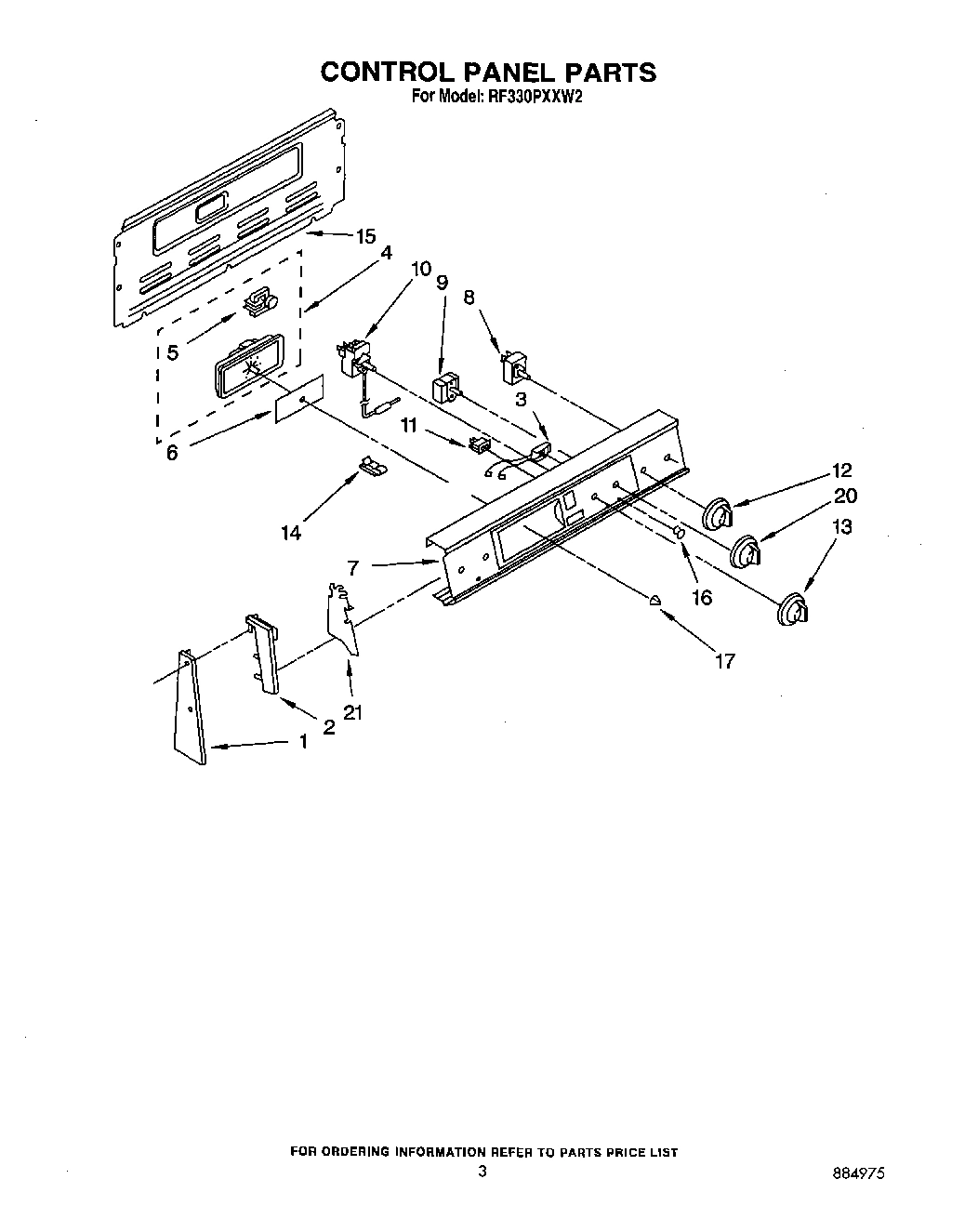

03 - CONTROL PANEL
Common parts from model Whirlpool RF330PXXN2
Instructions, Installation WPL LIT3147395 Contact Us For Availability
Guide, Use & Care WPL LIT3150292 Contact Us For Availability
Wiring Diagram WPL LIT3150656 Contact Us For Availability
Repair Parts List WPL LIT884975 Contact Us For Availability
1
Screw, 10A x 1/2 (4) WPL 311056 Contact Us For Availability
1
Bracket, Mounting (2) WPL 307981 Contact Us For Availability
1
Liner, Door WPL 3170710 Contact Us For Availability
1
End Trim L.H. WPL 313190 Contact Us For Availability
1
End Trim R.H. WPL 313191 Contact Us For Availability
2
Rail R.H. (Includes Illus. 3) WPL 3149255 Contact Us For Availability
2
Rail L.H. (Includes Illus. 3) WPL 3149256 Contact Us For Availability
2
Screw, 8BT x 1/4 (4) WPL 254225 Contact Us For Availability
2
End Cap R.H. WPL 3181677 Contact Us For Availability
2
End Cap L.H. WPL 3181678 Contact Us For Availability
3
Light, Indicator (Oven On) WPL 314031 Contact Us For Availability
3
Seal, Glass WPL 3148183 Contact Us For Availability
3
Glide, Front (2) WPL 3149257 Contact Us For Availability
3
Light, Indicator (Surface Unit) WPL 3150662 Contact Us For Availability
4
Glass, Inner WPL 3148179 Contact Us For Availability
4
Timer, Clock WPL 3149835 Contact Us For Availability
5
Screw, 10-32 x 7/16 (2) WPL 3150532 Contact Us For Availability
5
Retainer, WPL 3148287 Contact Us For Availability
5
Screw, 8-18 x 5/16 (6) WPL 3148443 Contact Us For Availability
5
Motor, Timer WPL 313512 Contact Us For Availability
6
Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability
6
Glass, Timer WPL 308441 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Clip WPL 313660 Contact Us For Availability
7
Panel, Control (White) WPL 3150467 Contact Us For Availability
7
Panel, Control (Almond) WPL 3150468 Contact Us For Availability
8
Bracket, Service WPL 3150190 Contact Us For Availability
9
Switch, Selector (3 Position) WPL 3150430 Contact Us For Availability
9
Oven 30`` (Continuous Clean) WPL 3176609 Contact Us For Availability
9
Panel, Outer (Black Glass) WPL 3148185 Contact Us For Availability
10
Cover, Rear WPL 3148975 Contact Us For Availability
10
(Alt.) WPL 310864 Contact Us For Availability
10
(Alt.) WPL 311498 Contact Us For Availability
10
Thermostat, Oven WPL 661150 Contact Us For Availability
11
Clip (2) WPL 3148282 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
12
Handle, Oven Door WPL 3148228 Contact Us For Availability
13
Seal, Heat WPL 309107 Contact Us For Availability
13
Knob, Temp. Control WPL 3149987 Contact Us For Availability
14
Rack, Oven (2) WPL 308173 Contact Us For Availability
14
Frame, Door WPL 3148235 Contact Us For Availability
14
Tube Clip WPL 313570 Contact Us For Availability
15
Screw (2) WPL 3149333 Contact Us For Availability
15
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
15
Top, Door Frame WPL 3148223 Contact Us For Availability
15
Rear Cover Control Panel WPL 313195 Contact Us For Availability
16
Lens, Amber (2) WPL 313101 Contact Us For Availability
17
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
17
Glide, Rear WPL 307980 Contact Us For Availability
18
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
18
WPL 799344 WPL 799344 Contact Us For Availability
18
Spring, Door Stop WPL 308207 Contact Us For Availability
18
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
18
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
18
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
18
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
18
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
18
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
18
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
18
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
18
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
18
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
18
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
18
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
18
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
18
Grease WPL 261582 Contact Us For Availability
18
Coffee WPL 261886 Contact Us For Availability
18
Coffee (Uncut) WPL 261887 Contact Us For Availability
18
N WPL 261888 Contact Us For Availability
18
WPL 261890 WPL 261890 Contact Us For Availability
18
WPL 261891 WPL 261891 Contact Us For Availability
18
WPL 285365 WPL 285365 Contact Us For Availability
18
WPL 285366 WPL 285366 Contact Us For Availability
18
WPL 285367 WPL 285367 Contact Us For Availability
18
WPL 285368 WPL 285368 Contact Us For Availability
18
WPL 309961 WPL 309961 Contact Us For Availability
18
WPL 312804 WPL 312804 Contact Us For Availability
18
WPL 72108 WPL 72108 Contact Us For Availability
18
WPL 72112 WPL 72112 Contact Us For Availability
18
WPL 799832 WPL 799832 Contact Us For Availability
18
WPL 978883 WPL 978883 Contact Us For Availability
18
Drawer, Utility WPL 327887 Contact Us For Availability
19
Channel, Arm (2) WPL 329712 Contact Us For Availability
19
Panel, Drawer (White) WPL 3150676 Contact Us For Availability
19
Panel, Drawer (Almond) WPL 3150677 Contact Us For Availability
20
Knob, Selector WPL 3149984 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
21
Handle, Snap-In (White) WPL 3150612 Contact Us For Availability
21
Handle, Snap-In (Almond) WPL 3150613 Contact Us For Availability
21
Shield (2) WPL 313608 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
22
Protector, Drawer WPL 309329 Contact Us For Availability
24
Support, L.H. Channel WPL 313196 Contact Us For Availability
24
Support, R.H. Channel WPL 313197 Contact Us For Availability
29
Snubber, Door (2) WPL 309111 Contact Us For Availability
30
Plug Button WPL 308535 Contact Us For Availability
31
Plug, Button (2) WPL 3169107 Contact Us For Availability
× ![]()
