Model Whirlpool RF317PXXN2 – Common Parts & Diagrams
05 - OVEN

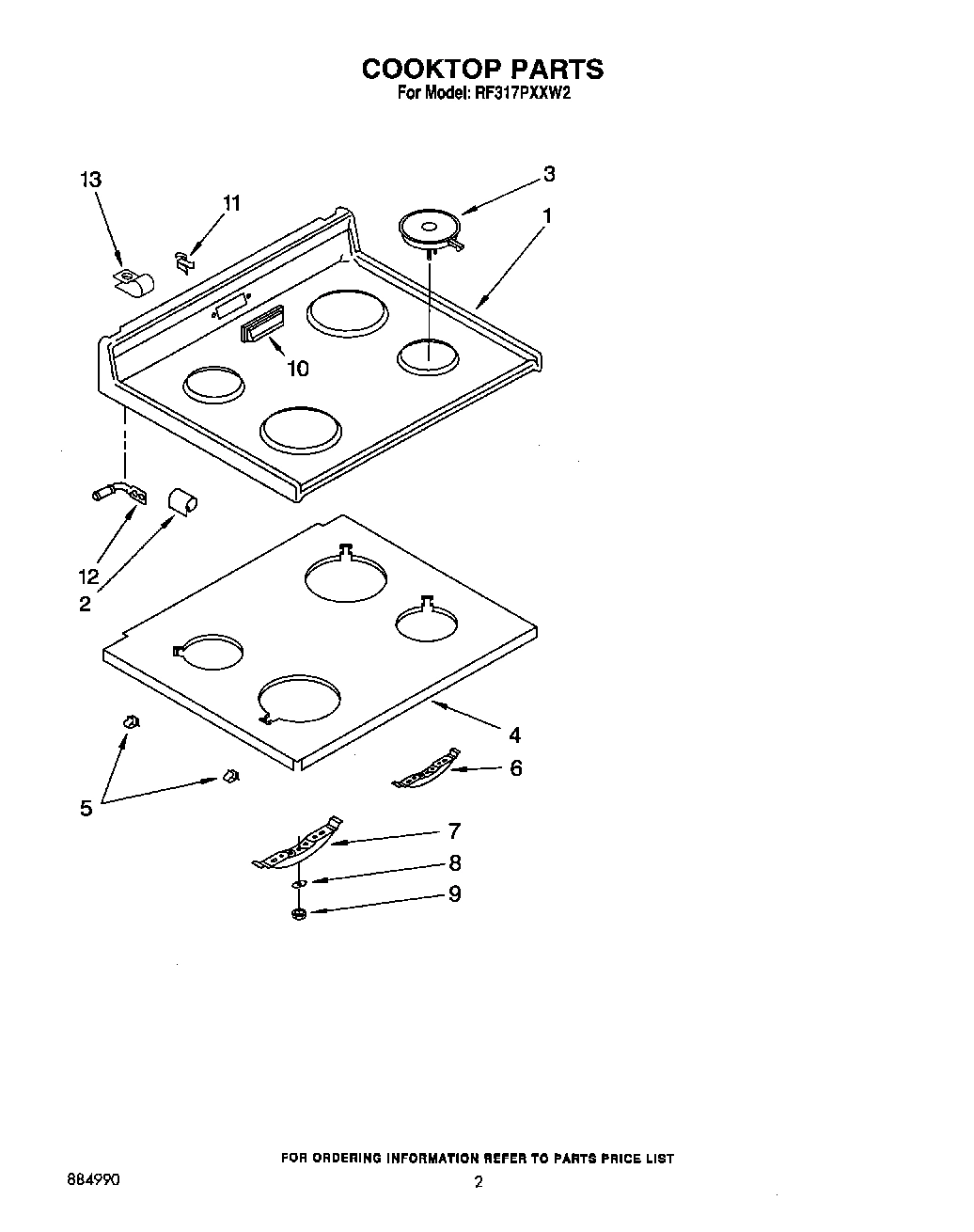

02 - COOKTOP

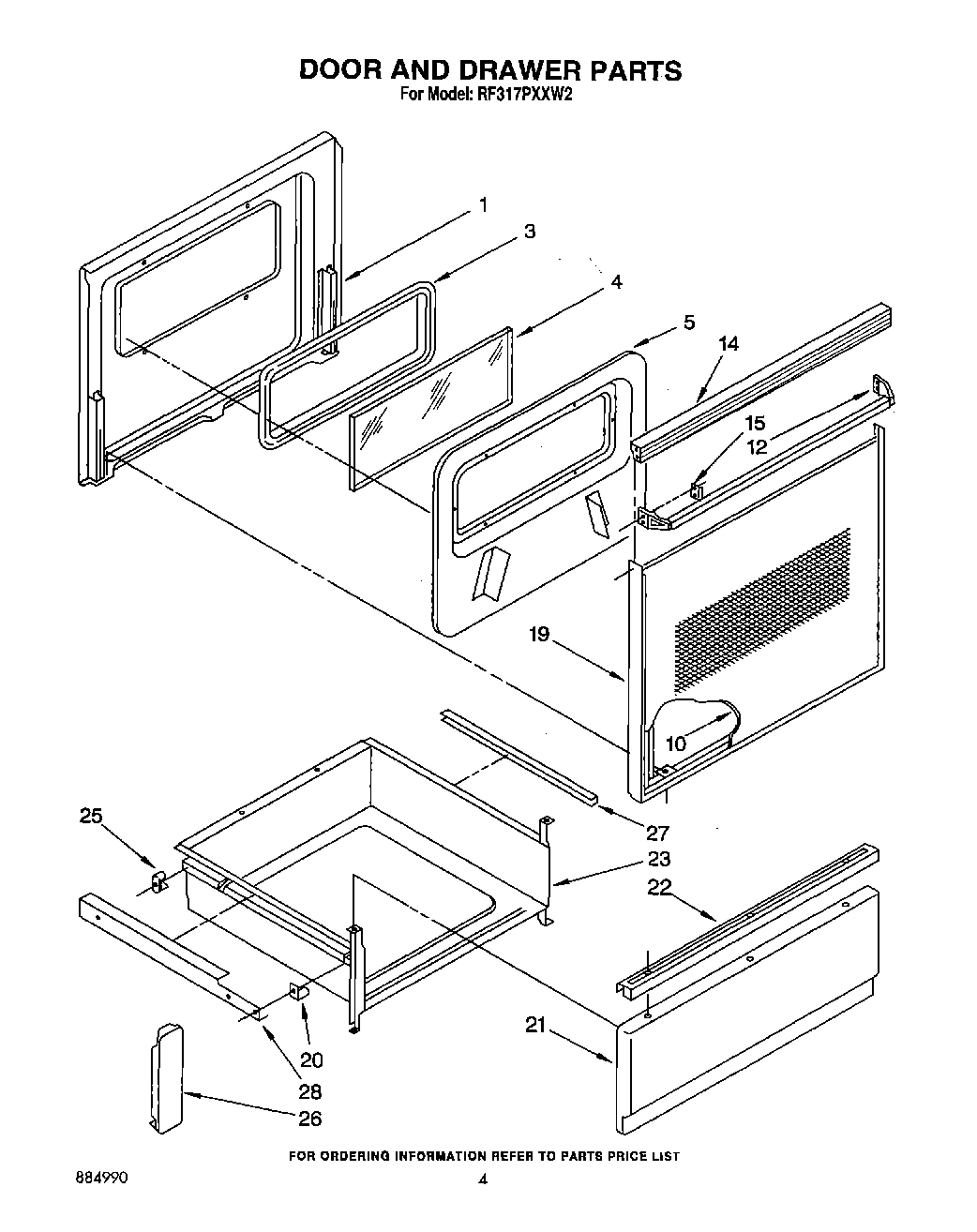

04 - DOOR AND DRAWER, LIT/OPTIONAL

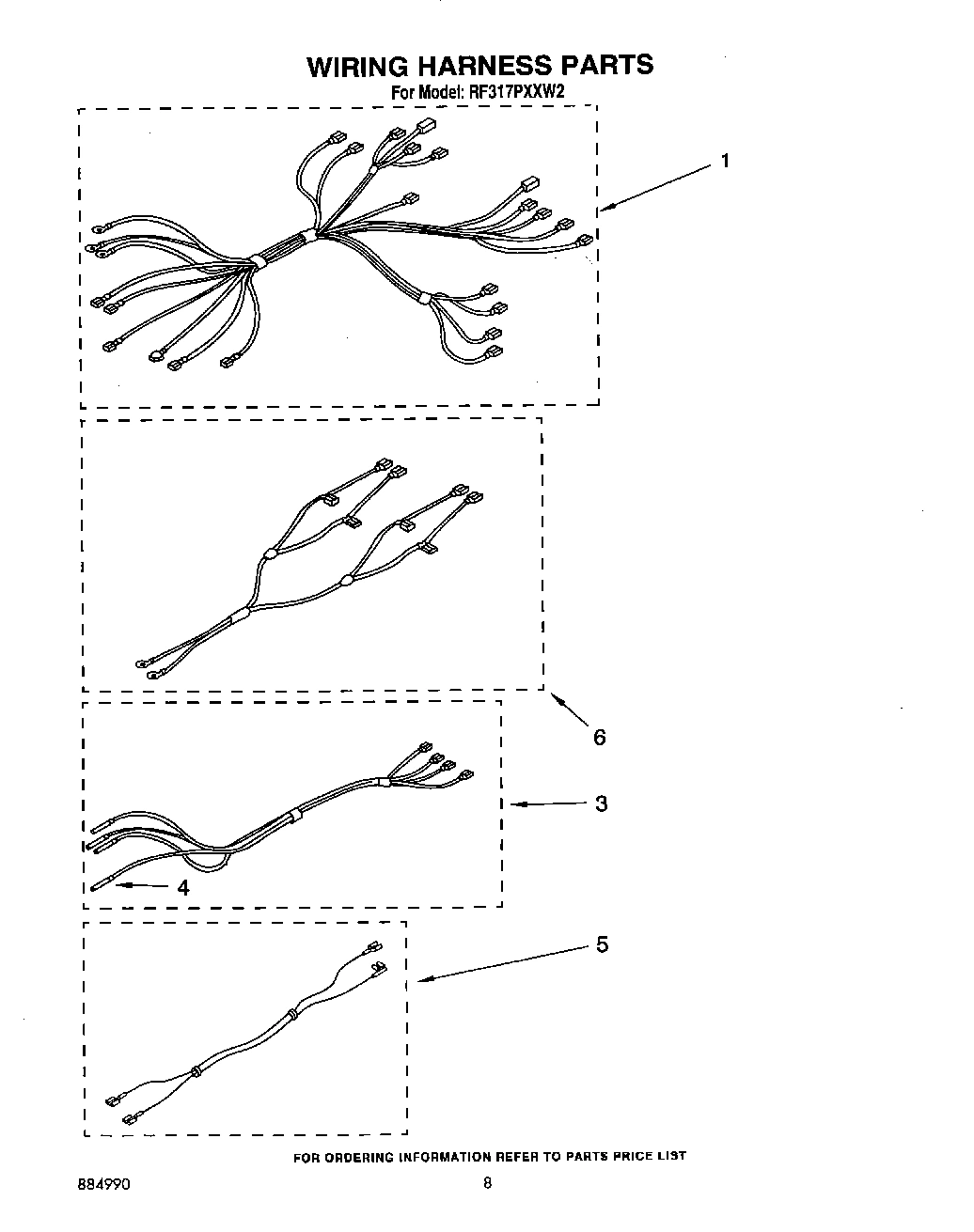

06 - WIRING HARNESS

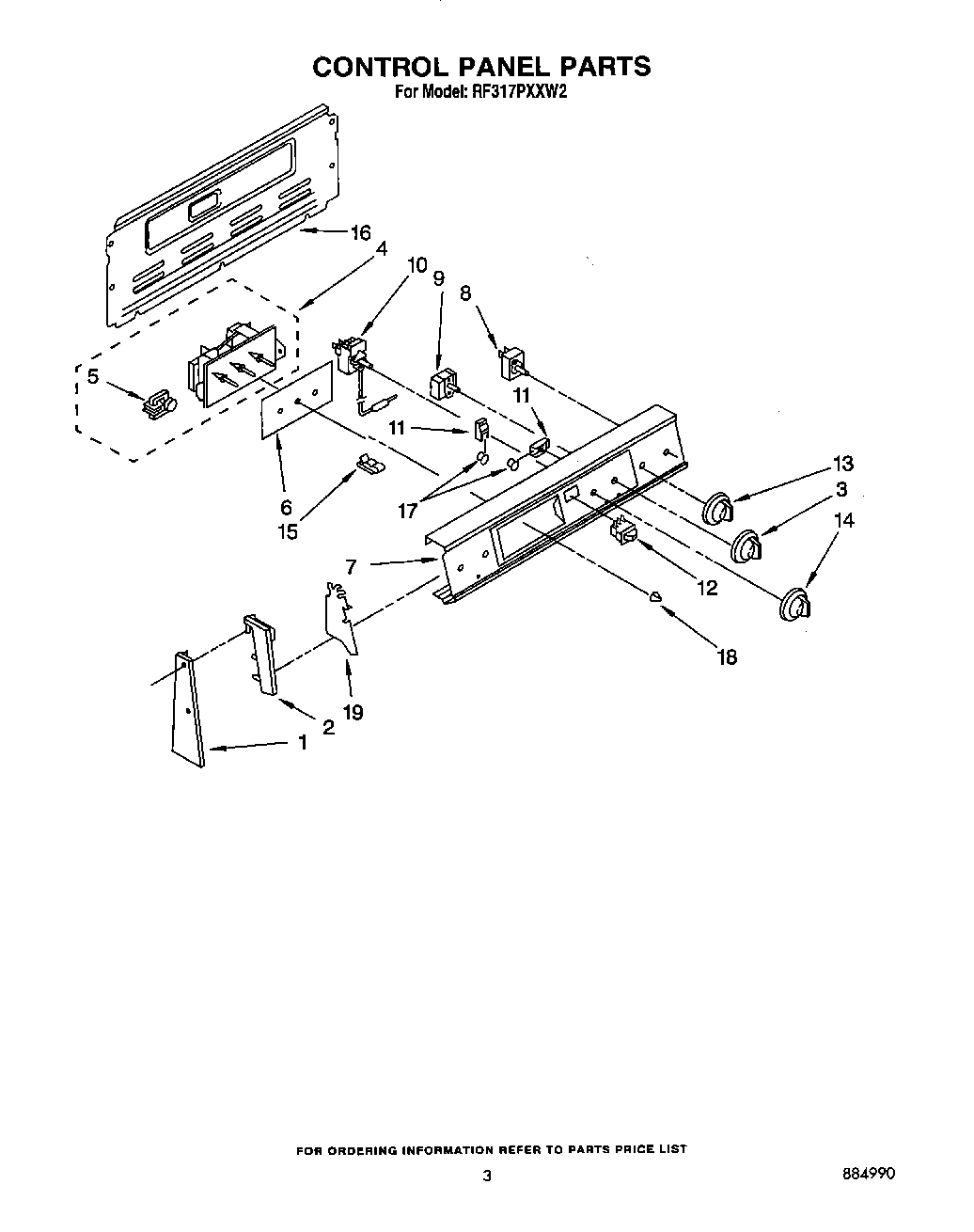

03 - CONTROL PANEL
Common parts from model Whirlpool RF317PXXN2
WPL LIT3147395 WPL LIT3147395 Contact Us For Availability
WPL LIT3149507 WPL LIT3149507 Contact Us For Availability
WPL LIT3150297 WPL LIT3150297 Contact Us For Availability
WPL LIT3181472 WPL LIT3181472 Contact Us For Availability
WPL LIT884990 WPL LIT884990 Contact Us For Availability
1
Cooktop (White) WPL 3171372 Contact Us For Availability
1
Cooktop (Almond) WPL 3171373 Contact Us For Availability
1
Screw, 10A x 1/2 (4) WPL 311056 Contact Us For Availability
1
Liner, Door WPL 3172220 Contact Us For Availability
1
Harness, Wiring (Oven) WPL 3181473 Contact Us For Availability
1
End Trim L.H. WPL 313190 Contact Us For Availability
1
End Trim R.H. WPL 313191 Contact Us For Availability
2
Bracket, Cooktop WPL 307965 Contact Us For Availability
2
Screw, 8BT x 1/4 (4) WPL 254225 Contact Us For Availability
2
End Cap R.H. WPL 313230 Contact Us For Availability
2
End Cap L.H. WPL 313231 Contact Us For Availability
3
Seal, Window WPL 3148183 Contact Us For Availability
3
Harness, Wiring (Cooktop) WPL 3147129 Contact Us For Availability
3
Knob, Control (Selector) WPL 3149985 Contact Us For Availability
4
Cooktop Support WPL 3149261 Contact Us For Availability
4
Glass, Inner WPL 3148179 Contact Us For Availability
4
Terminal WPL 3147138 Contact Us For Availability
4
Timer, Clock Includes No. 5 WPL 3149505 Contact Us For Availability
5
Clip, Wire (4) WPL 311311 Contact Us For Availability
5
Retainer, Insulation WPL 3148287 Contact Us For Availability
5
Screw (4) WPL 3148443 Contact Us For Availability
5
Harness, Wiring (Oven Light) WPL 313152 Contact Us For Availability
5
Motor, Timer WPL 309822 Contact Us For Availability
6
Bracket, Mounting 6``(2) WPL 3147703 Contact Us For Availability
6
Harness, Wiring (Supply) WPL 313147 Contact Us For Availability
6
Glass, Timer WPL 313513 Contact Us For Availability
7
Bracket, Mounting 8`` (2) WPL 3147704 Contact Us For Availability
7
Screw 8-18 x 5/8 (4) WPL 312604 Contact Us For Availability
7
Panel, Control WPL 3150629 Contact Us For Availability
8
Spring, Leaf (4) WPL 3147191 Contact Us For Availability
9
Nut (4) WPL 3147189 Contact Us For Availability
9
Switch, Selector (4 Position) WPL 3149886 Contact Us For Availability
10
Cover, Vent (White) WPL 3149011 Contact Us For Availability
10
cover, vent (almond) WPL 3149012 Contact Us For Availability
10
Panel, Glass WPL 3148185 Contact Us For Availability
10
(Alt.) WPL 310864 Contact Us For Availability
10
(Alt.) WPL 311498 Contact Us For Availability
10
Thermostat, Oven WPL 661150 Contact Us For Availability
11
Light, Indicator (Oven Unit On) WPL 314031 Contact Us For Availability
11
Clip, Vent (2) WPL 3149190 Contact Us For Availability
11
Light, Indicator (Surface Unit On) WPL 3150647 Contact Us For Availability
12
Pin, Hinge (2) WPL 307966 Contact Us For Availability
12
Handle, Door WPL 3148228 Contact Us For Availability
13
Seal, Heat WPL 309107 Contact Us For Availability
13
Screw (1) WPL 98520 Contact Us For Availability
14
Knob, Control (Thermostat) WPL 3149987 Contact Us For Availability
14
Top, Door WPL 3148223 Contact Us For Availability
15
Clip, Mtg (2) WPL 3148282 Contact Us For Availability
15
Tube Clip WPL 313570 Contact Us For Availability
16
Rear Cover Control Panel WPL 313195 Contact Us For Availability
17
Lens, Amber (2) WPL 313101 Contact Us For Availability
19
Frame, Panel WPL 3148235 Contact Us For Availability
19
Shield, Glass (2) WPL 313608 Contact Us For Availability
20
Glide, Front (2) WPL 3149257 Contact Us For Availability
21
Panel Drawer (White) WPL 307935 Contact Us For Availability
21
Panel, Drawer (Almond) WPL 307939 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
22
Handle, Drawer WPL 3169105 Contact Us For Availability
23
Drawer, Utility WPL 327887 Contact Us For Availability
25
Screw (2) WPL 307748 Contact Us For Availability
25
Glide, Rear (2) WPL 307980 Contact Us For Availability
26
Bracket, Mtg. (2) WPL 307981 Contact Us For Availability
27
Protector, Side (2) WPL 309329 Contact Us For Availability
28
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
28
WPL 799344 WPL 799344 Contact Us For Availability
28
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
28
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
28
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
28
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
28
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
28
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
28
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
28
Wire, Splicing 25` 14 Ga. 150~c (White) WPL 242826 Contact Us For Availability
28
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
28
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
28
Wire, Splicing 25` 14 Ga. 150~c (Red 12 Ga. 2 WPL 242829 Contact Us For Availability
28
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
28
Wire, Splicing 25` 14 Ga. 150~c (Yellow) WPL 242832 Contact Us For Availability
28
Grease WPL 261582 Contact Us For Availability
28
Touch-Up Continuous Clean (1 oz.) WPL 261748 Contact Us For Availability
28
Coffee WPL 261886 Contact Us For Availability
28
New Avocado WPL 261888 Contact Us For Availability
28
Harvest Gold WPL 261890 Contact Us For Availability
28
WPL 261891 WPL 261891 Contact Us For Availability
28
WPL 285365 WPL 285365 Contact Us For Availability
28
WPL 285366 WPL 285366 Contact Us For Availability
28
WPL 285367 WPL 285367 Contact Us For Availability
28
WPL 285368 WPL 285368 Contact Us For Availability
28
WPL 3147861 WPL 3147861 Contact Us For Availability
28
WPL 3149255 WPL 3149255 Contact Us For Availability
28
WPL 3149256 WPL 3149256 Contact Us For Availability
28
WPL 72108 WPL 72108 Contact Us For Availability
28
WPL 72112 WPL 72112 Contact Us For Availability
28
WPL 799832 WPL 799832 Contact Us For Availability
28
WPL 978883 WPL 978883 Contact Us For Availability
35
Screw (2) WPL 98884 Contact Us For Availability
36
Bracket, Service WPL 3150190 Contact Us For Availability
37
Strap, Ground WPL 308498 Contact Us For Availability
37
Clip WPL 313660 Contact Us For Availability
39
Screw (2) WPL 3150532 Contact Us For Availability
41
Switch, Door WPL 310345 Contact Us For Availability
42
Block, Balance WPL 312804 Contact Us For Availability
43
WPL 309961 WPL 309961 Contact Us For Availability
43
WPL 3169107 WPL 3169107 Contact Us For Availability
× ![]()
