Model Whirlpool MUE15PDAYA ELECTRIC DRYER – Common Parts & Diagrams

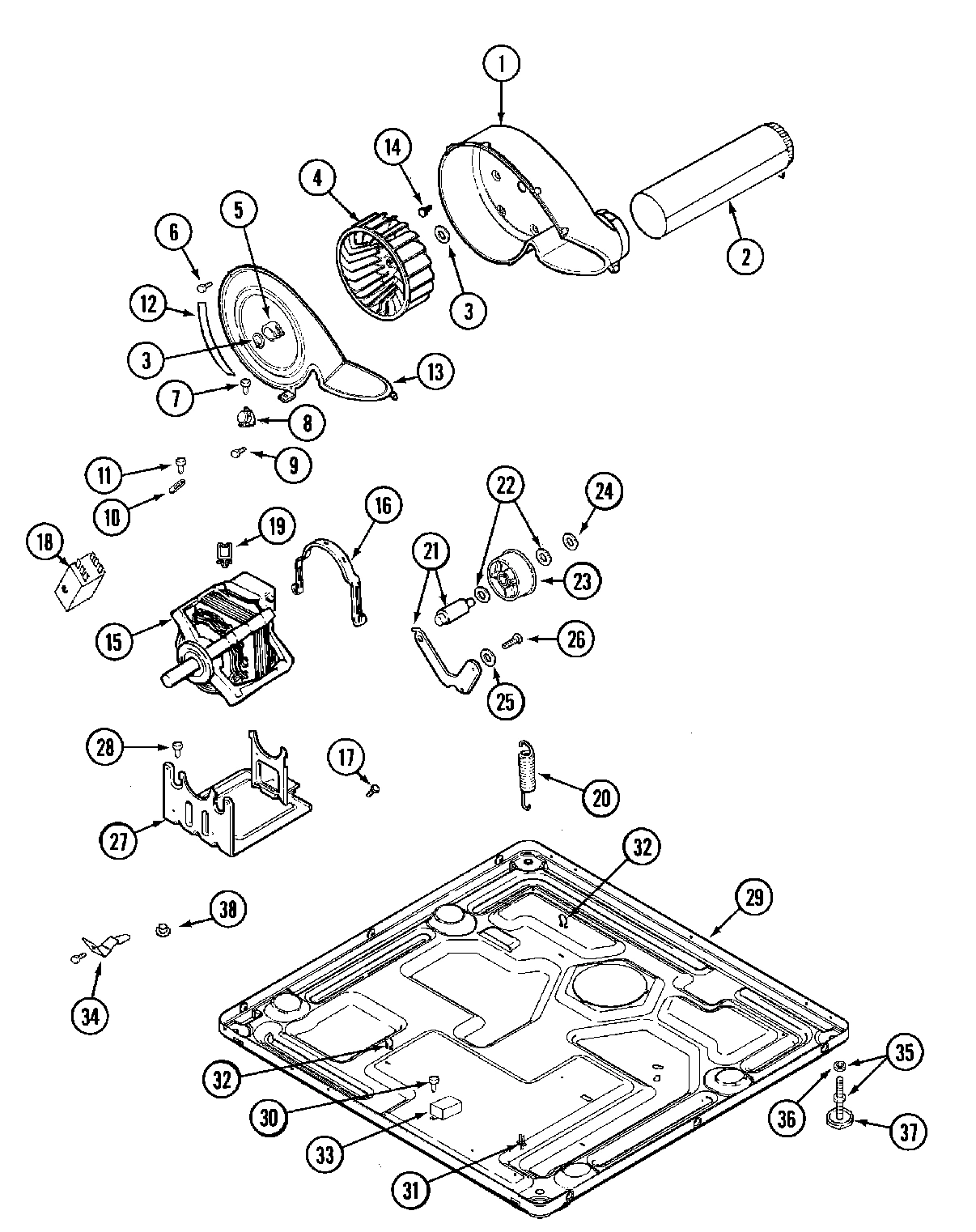

09 - MOTOR DRIVE

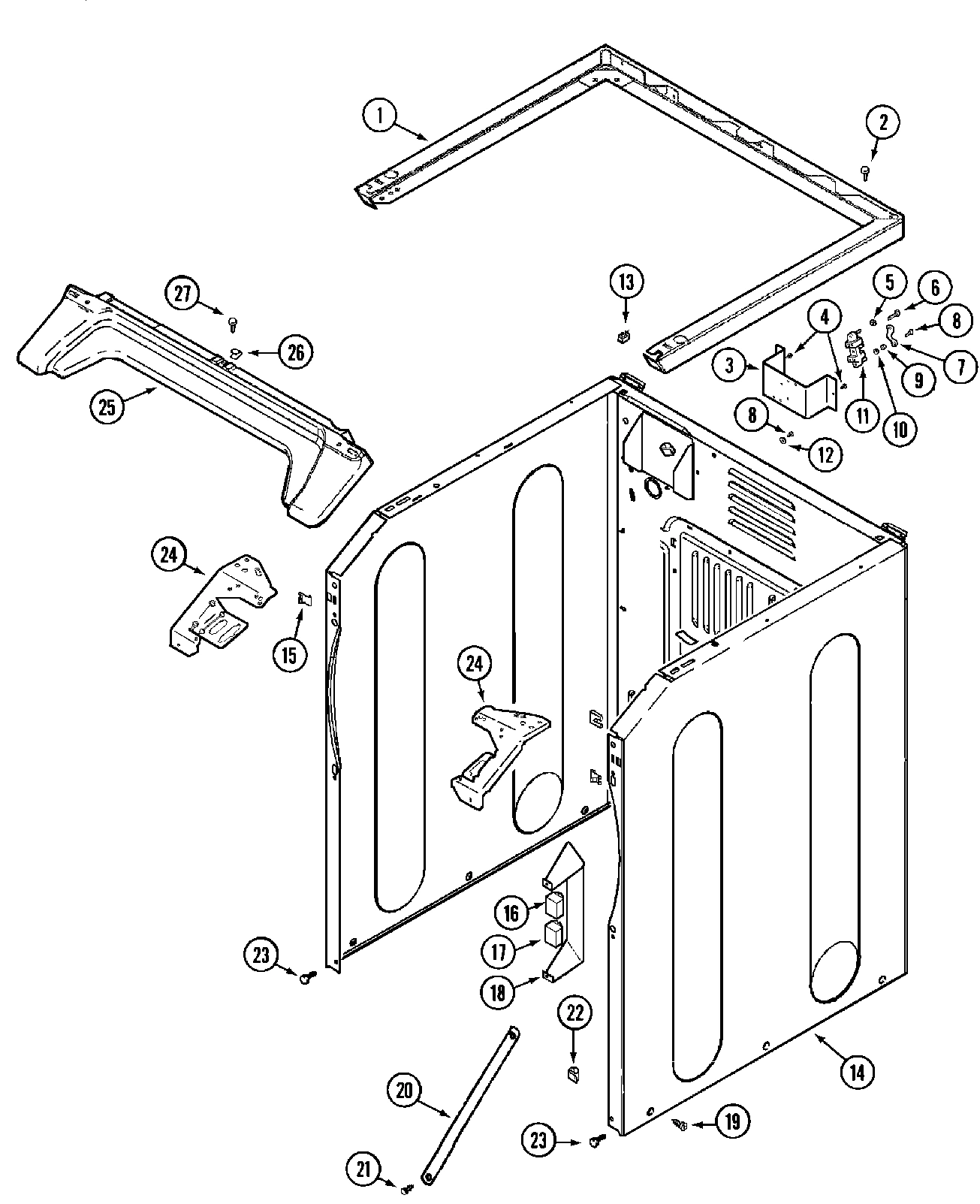

04 - CABINET-FRONT (LOWER)

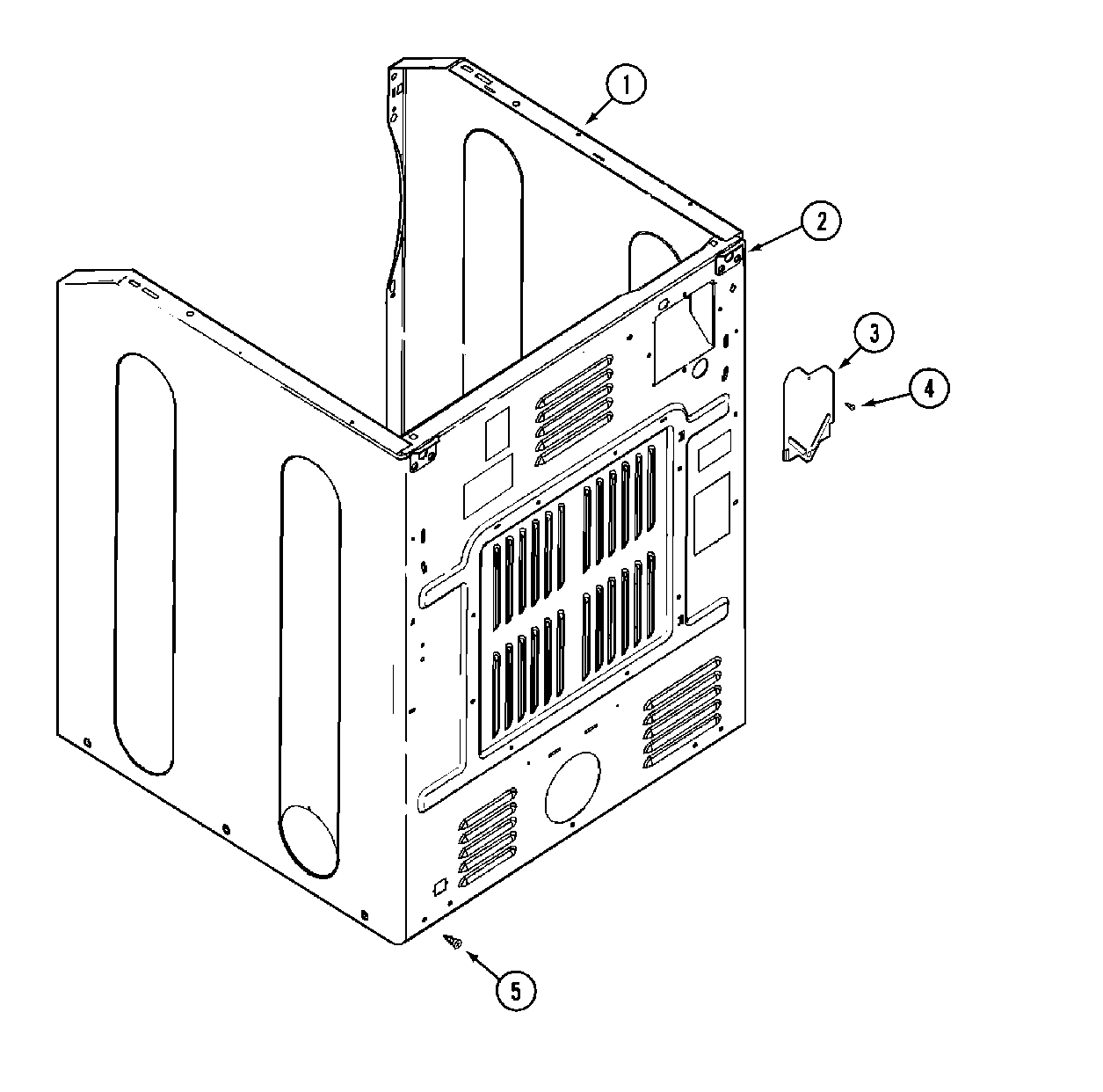

06 - CABINET-REAR

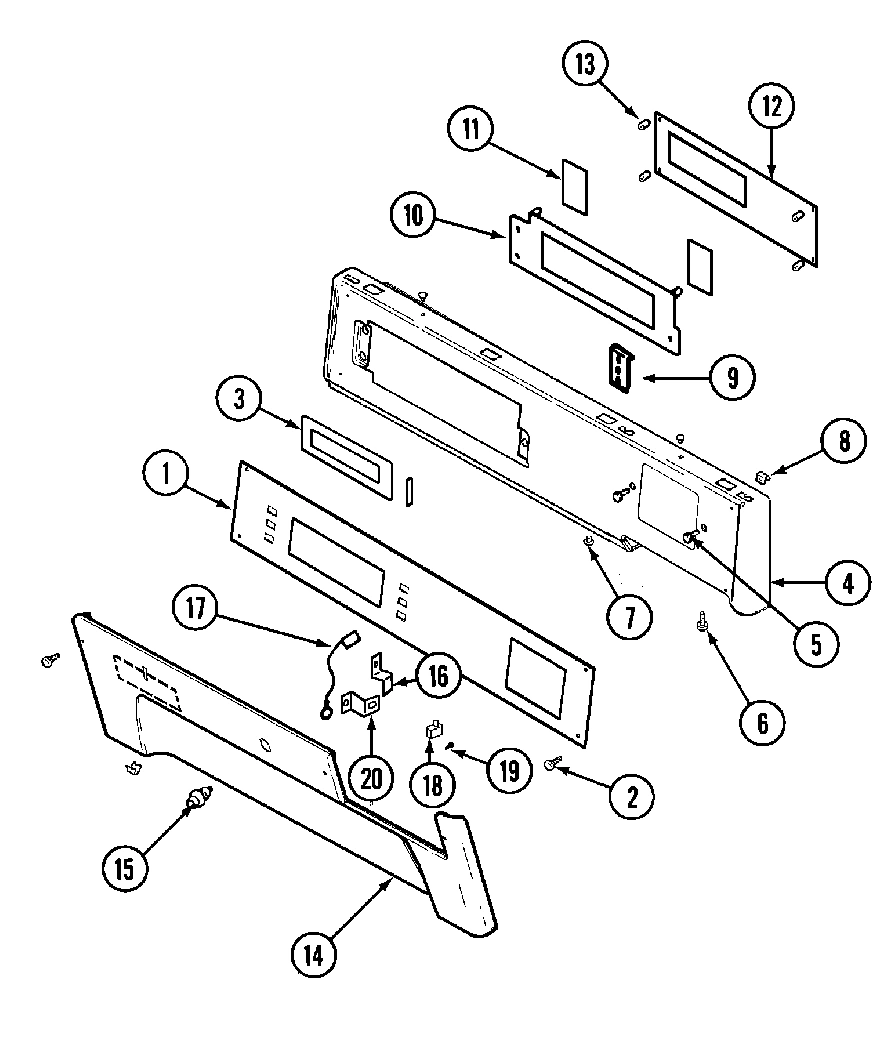

01 - CONTROL PANEL

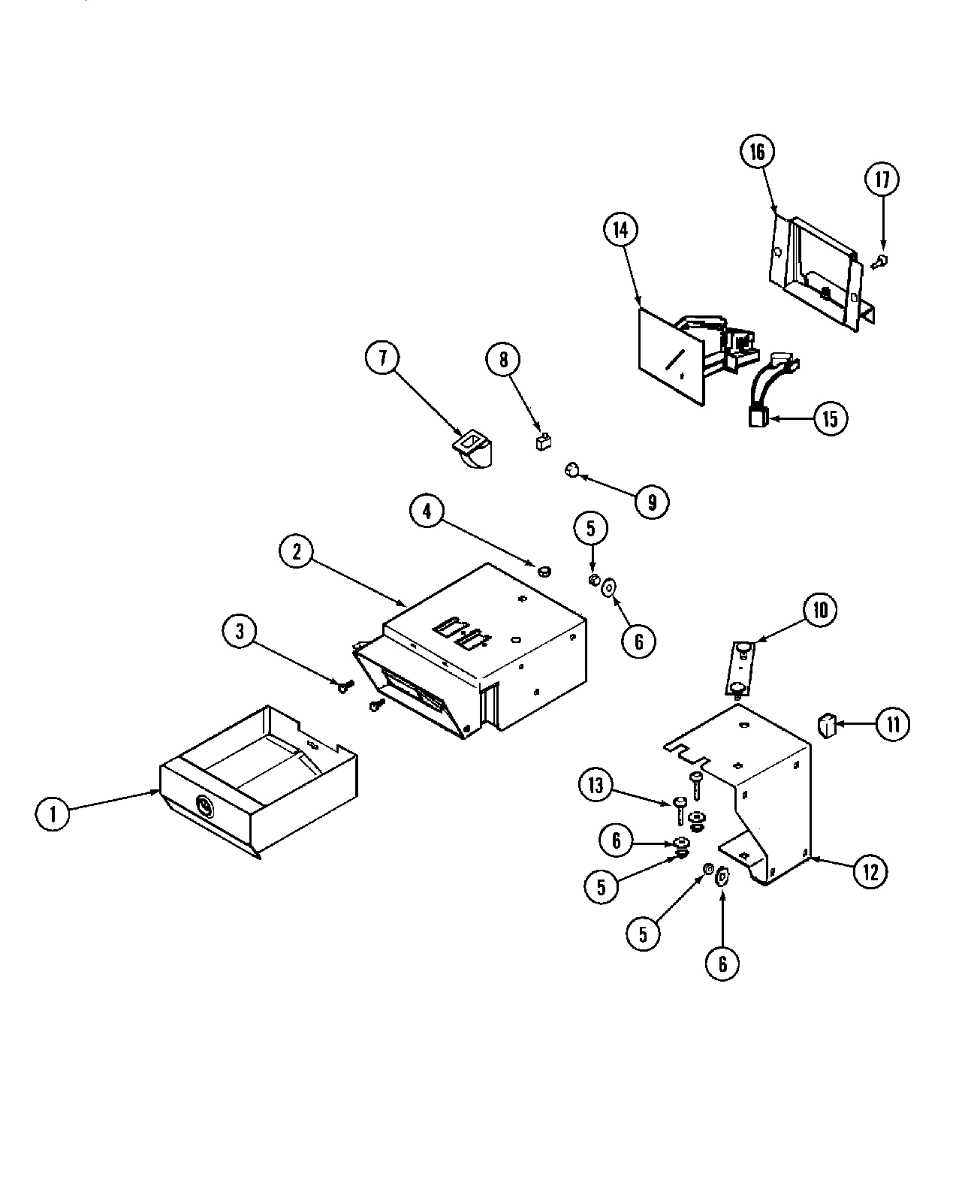

02 - CONTROL CENTER

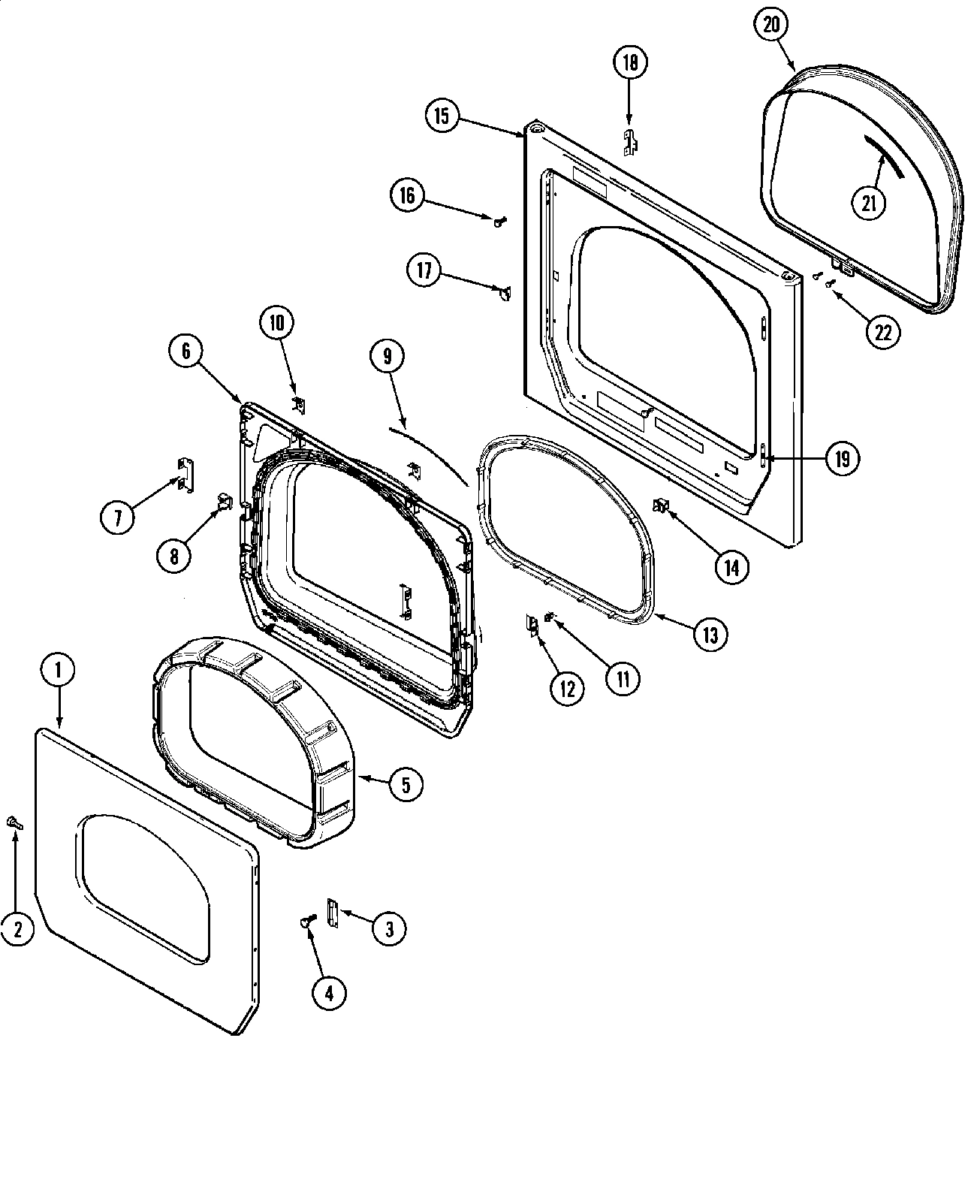

05 - DOOR (UPPER)
08 - HEATER

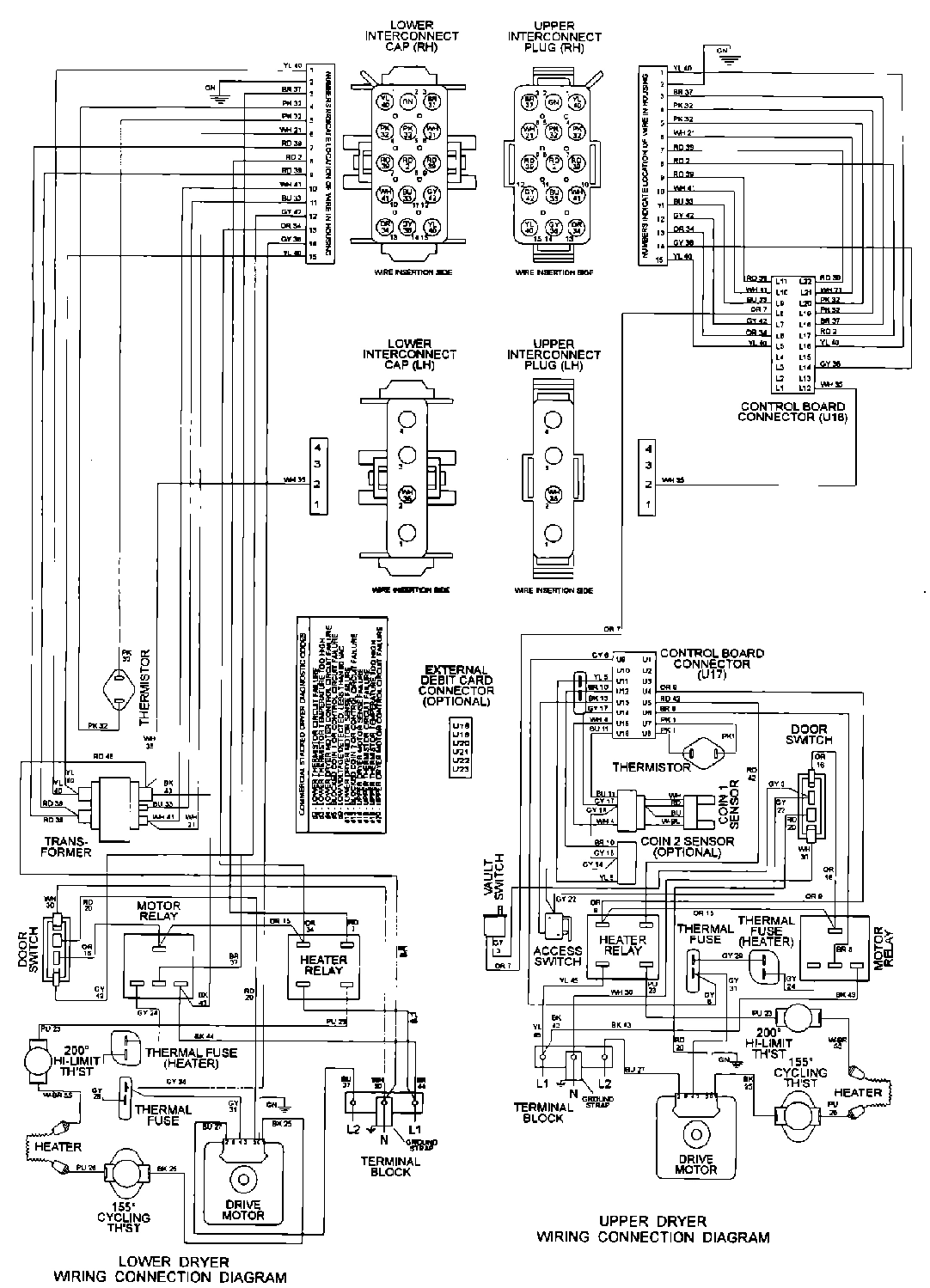

10 - WIRING INFORMATION

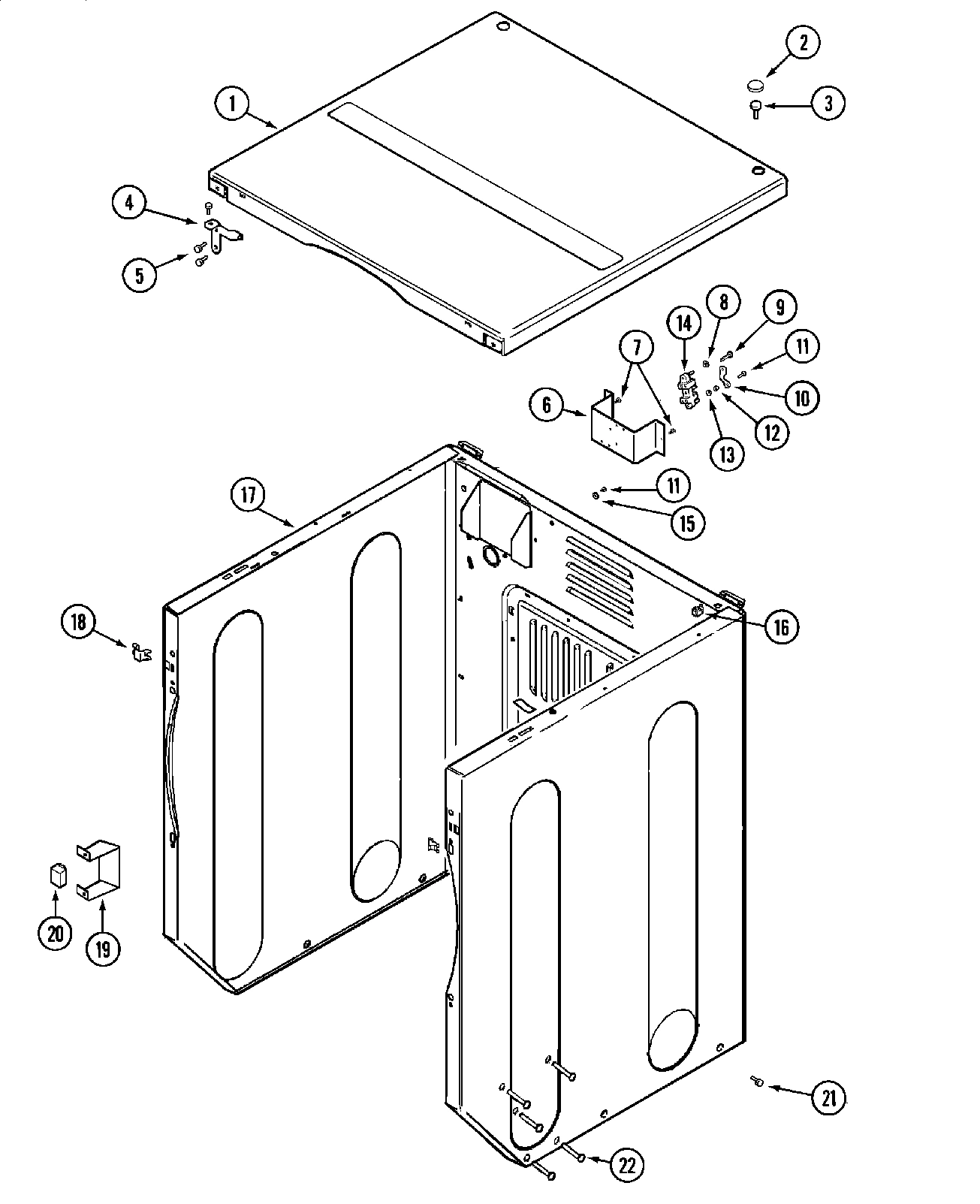

03 - CABINET-FRONT (UPPER)

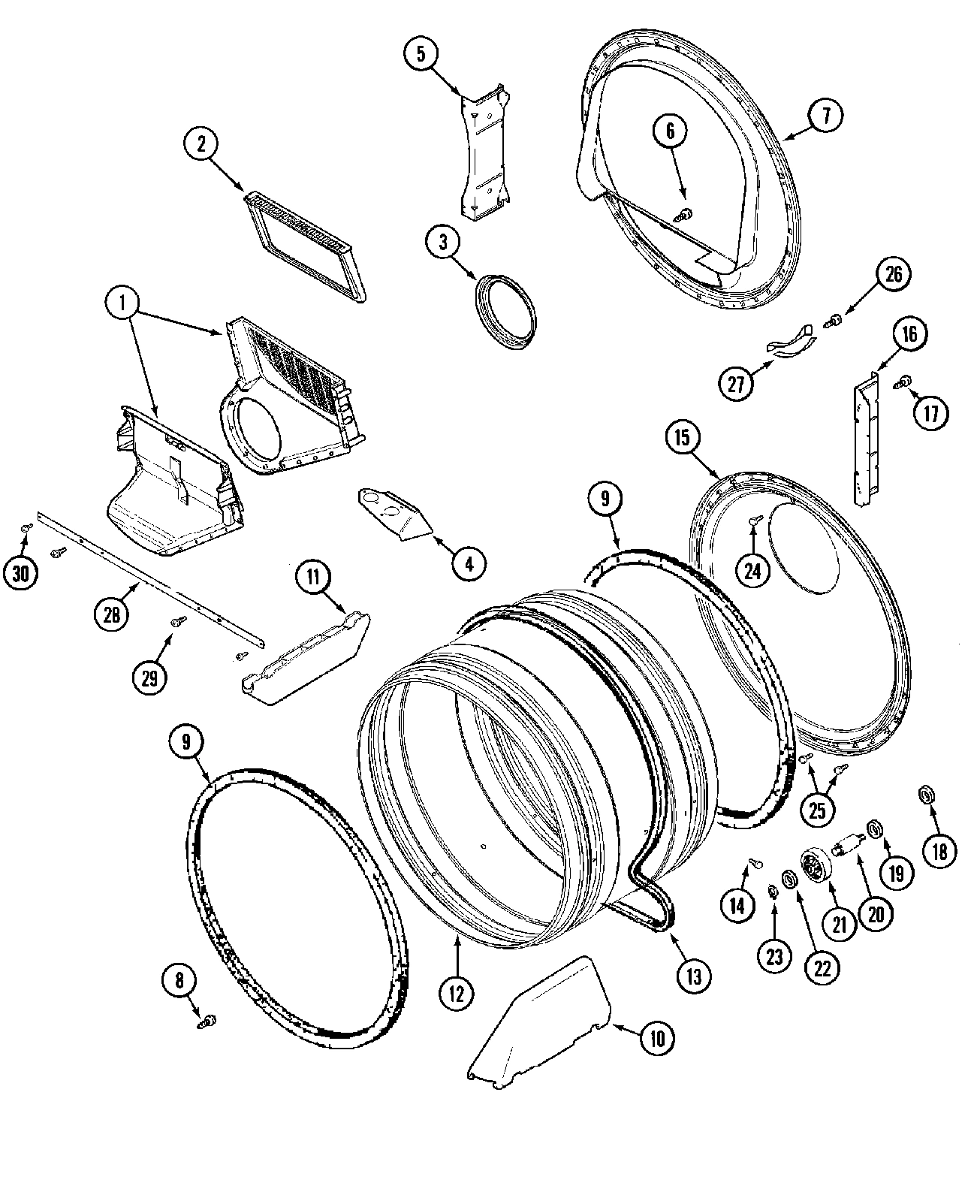

07 - TUMBLER
Common parts from model Whirlpool MUE15PDAYA ELECTRIC DRYER
001
SUPPORT (WHT) WPL 33002005 Contact Us For Availability
001
CABINET, ASSY. (WHT-AS PK) WPL 33002626 Contact Us For Availability
001
OVERLAY, CONTROL PANEL WPL 33001974 Contact Us For Availability
001
(ALM) WPL 33001984 Contact Us For Availability
001
BOX, COIN (WHT) WPL Y33001983 Contact Us For Availability
001
DOOR, OUTER (WHT) WPL 33002015 Contact Us For Availability
001
COVER, TOP (WHT) WPL 33001995 Contact Us For Availability
001
OUTLET DUCT ASSEMBLY WPL 33001799 Contact Us For Availability
002
HINGE, PLASTIC WPL 22003367 Contact Us For Availability
002
(ALM) WPL 33001987 Contact Us For Availability
002
VAULT, COIN (WHT) WPL Y33001986 Contact Us For Availability
002
SCREW No.8-18AB WAFER HD WPL 22002063 Contact Us For Availability
002
DUCT ASSY., INLET WPL 33001803 Contact Us For Availability
002
PLUG, HOLE WPL 33001997 Contact Us For Availability
003
SCREW, TOP COVER WPL 22001883 Contact Us For Availability
003
COVER, TERMINAL BLOCK WPL 33001795 Contact Us For Availability
003
COVER, DISPLAY WPL 33001209 Contact Us For Availability
003
HINGE, DOOR WPL 33002017 Contact Us For Availability
003
HEATER ENCLOSURE WPL 314995 Contact Us For Availability
003
SEAL, BLOWER WPL 33001758 Contact Us For Availability
004
PANEL, CONTROL (WHT) WPL 33001975 Contact Us For Availability
004
(ALM) WPL 33001976 Contact Us For Availability
004
FASTENER CLIP, CONTROL PANEL WPL 33002003 Contact Us For Availability
004
INSULATOR, TERMINAL WPL 314998 Contact Us For Availability
004
BRACKET, TOP COVER (LT) WPL 33001998 Contact Us For Availability
004
(RT) WPL 33001999 Contact Us For Availability
004
COVER, THERMOSTAT (ELEC ONLY) WPL 33001837 Contact Us For Availability
005
SCREW, CONTROL PANEL WPL 910186 Contact Us For Availability
005
NUT, CARRAGE BOLTS & BRACKET WPL Y052734 Contact Us For Availability
005
TUNNEL (ALM) WPL 33002019 Contact Us For Availability
006
DOOR, INNER (WHT) WPL 33002020 Contact Us For Availability
006
SHIELD, RADIANT WPL 314999 Contact Us For Availability
007
FRONT, TUMBLER (W/SEAL) WPL 33001802 Contact Us For Availability
007
PLUG, SIGHT HOLE (WHT) WPL 33001132 Contact Us For Availability
007
(ALM) WPL 33001168 Contact Us For Availability
007
CHUTE, COIN WPL 314635 Contact Us For Availability
007
CLIP, DOOR (DOUBLE) WPL 22002038 Contact Us For Availability
008
THERMISTOR, TEMP. CONTROL WPL 307208 Contact Us For Availability
008
FASTENER, CONTROL PANEL WPL 33001977 Contact Us For Availability
008
PLUG, INNER DOOR WPL 33001763 Contact Us For Availability
010
STRAP, GROUND WPL Y312184 Contact Us For Availability
010
PLATE, CONTROL MOUNTING WPL 33001201 Contact Us For Availability
010
STRAP, MOUNTING WPL 22001810 Contact Us For Availability
010
CLIP, INNER DOOR WPL 22002039 Contact Us For Availability
011
RETAINER, WIRE WPL 33001989 Contact Us For Availability
011
STRIKE, DOOR (MALE) WPL 33001761 Contact Us For Availability
012
CIRCUIT BOARD ASSEMBLY WPL 33001747 Contact Us For Availability
012
BRACKET, MOUNTING VAULT WPL 33001990 Contact Us For Availability
012
TUMBLER WPL 33001794 Contact Us For Availability
013
COVER, BLOWER HOUSING WPL 33001796 Contact Us For Availability
013
STANDOFF, CIRCUIT BOARD WPL 33001204 Contact Us For Availability
013
LENS WPL 33002022 Contact Us For Availability
013
LENS WPL 33002607 Contact Us For Availability
013
BRACKET, THERMAL FUSE WPL 315346 Contact Us For Availability
014
SCREW, BLOWER HOUSING WPL 314818 Contact Us For Availability
014
PANEL, ACCESS (WHT) WPL 33001978 Contact Us For Availability
014
(ALM) WPL 33001979 Contact Us For Availability
014
CLIP, FASTENER WPL 33002004 Contact Us For Availability
014
BUTTON, RETURN WPL 216200 Contact Us For Availability
014
SINGLE FACEPLATE WPL 22002144 Contact Us For Availability
014
SWITCH, DOOR (UPR) WPL 33002038 Contact Us For Availability
014
SCREW, BAFFLE WPL 33001788 Contact Us For Availability
015
SWITCH, OPTIC WPL 33001985 Contact Us For Availability
015
NAMEPLATE WPL 33001711 Contact Us For Availability
015
PANEL, FRONT (UPR-WHT) WPL 33002023 Contact Us For Availability
015
PANEL, FRONT (UPR-ALM) WPL 33002024 Contact Us For Availability
015
SCREW, FRONT PANEL WPL 33002051 Contact Us For Availability
015
CONVERSION KIT (240V TO 208V) WPL Y308590 Contact Us For Availability
015
BACK, TUMBLER (W/SEAL) WPL 33001801 Contact Us For Availability
016
SUPPORT, BACK WPL NLA Contact Us For Availability
016
BRACKET, COIN DROP MOUNT. WPL 33001992 Contact Us For Availability
016
(ALM) WPL 33001993 Contact Us For Availability
017
RELAY, HEATER WPL 306398 Contact Us For Availability
017
WIRE, GROUND WPL 33001981 Contact Us For Availability
017
WASHER, LOCK WPL 910181 Contact Us For Availability
018
BRACKET, RELAY WPL 314627 Contact Us For Availability
018
CLIP, ACCESS PANEL WPL 33001980 Contact Us For Availability
018
TWIN SPEEDNUT WPL 33002025 Contact Us For Availability
019
CLIP, WIRE HARNESS WPL 33002040 Contact Us For Availability
019
SCREW, RELAY BRACKET WPL Y313561 Contact Us For Availability
019
SCREW, RELAY BRACKET WPL Y310632 Contact Us For Availability
019
SCREW WPL 912012 Contact Us For Availability
019
COVER, HINGE HOLE (WHT) WPL 33001175 Contact Us For Availability
019
COVER, HINGE HOLE (ALM) WPL 33001176 Contact Us For Availability
019
BRACKET, RELAY (UPR) WPL 33002002 Contact Us For Availability
020
RELAY WPL 206824 Contact Us For Availability
020
BRACE, CROSS WPL 22002259 Contact Us For Availability
020
BRACKET, SWITCH MOUNTING WPL 33001982 Contact Us For Availability
020
EXTENSION, TUMBLER FRONT WPL 33002026 Contact Us For Availability
021
WIRE HARNESS, MAIN (UPR) WPL 33001994 Contact Us For Availability
021
SEAL, SHROUD WPL 33001767 Contact Us For Availability
022
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
022
BRACKET, SECURITY WPL 33002060 Contact Us For Availability
022
BOLT, CARRIAGE WPL 33001991 Contact Us For Availability
023
BEARING, IDLER ASSEMBLY WPL 33001783 Contact Us For Availability
024
BRACKET, CORNER (LT) WPL 33002009 Contact Us For Availability
024
BRACKET, CORNER (RT) WPL 33002010 Contact Us For Availability
024
SCREW, INLET DUCT WPL 210932 Contact Us For Availability
025
COVER, ACCESS (WHT) WPL 33002011 Contact Us For Availability
025
COVER, ACCESS (ALM) WPL 33002012 Contact Us For Availability
026
FASTENER, ACCESS COVER WPL 33002013 Contact Us For Availability
027
SUPPORT, MOTOR WPL 33001752 Contact Us For Availability
028
WIRE HARNESS, MAIN (LWR) WPL 33002047 Contact Us For Availability
028
BRACE, TUMBLER FRONT WPL 33002039 Contact Us For Availability
029
BASE (UPR) WPL 33002041 Contact Us For Availability
029
FASTENER, PUSH WPL 33002048 Contact Us For Availability
029
PROTECTOR, HARNESS WPL 33002050 Contact Us For Availability
029
BASE, (LWR) WPL 33002622 Contact Us For Availability
029
SCREW, TUMBLER FRONT BRACE WPL 33001768 Contact Us For Availability
031
RETAINER, WIRE WPL 315471 Contact Us For Availability
032
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
033
SHIELD, TRANSFORMER WPL 315218 Contact Us For Availability
033
TRANSFORMER WPL 33001205 Contact Us For Availability
034
CLIP, LOWER FRONT PANEL WPL 22002239 Contact Us For Availability
034
CLIP, GROUNDING WPL 22002244 Contact Us For Availability
034
BRACKET (LT) WPL 33002042 Contact Us For Availability
034
(RT) WPL 33002043 Contact Us For Availability
038
GUIDE WPL 33002044 Contact Us For Availability
× ![]()
