Model Whirlpool MH8150XMZ0 MICROWAVE HOOD COMBINATION – Common Parts & Diagrams
01 - CONTROL PANEL PARTS

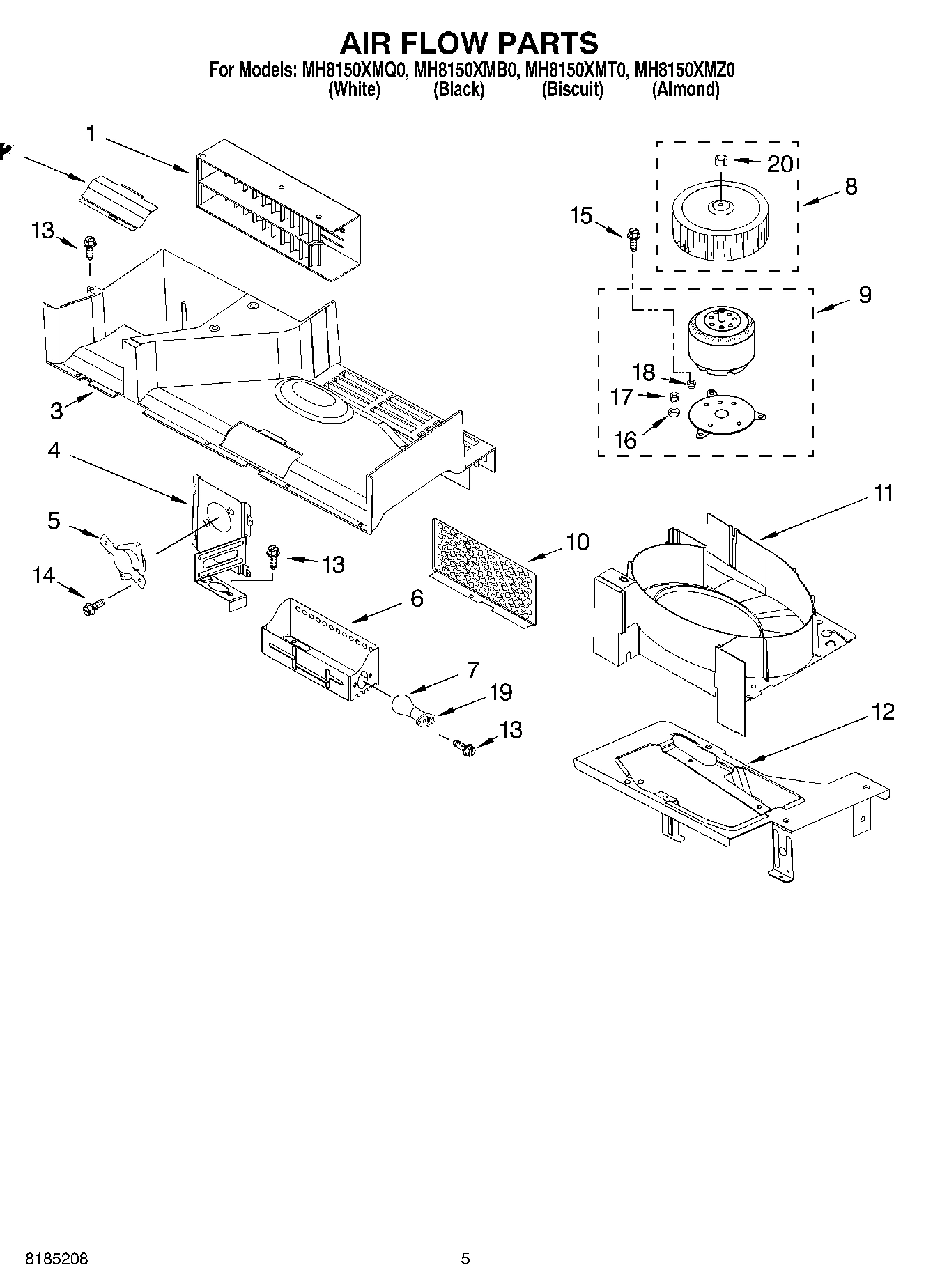

04 - AIR FLOW PARTS

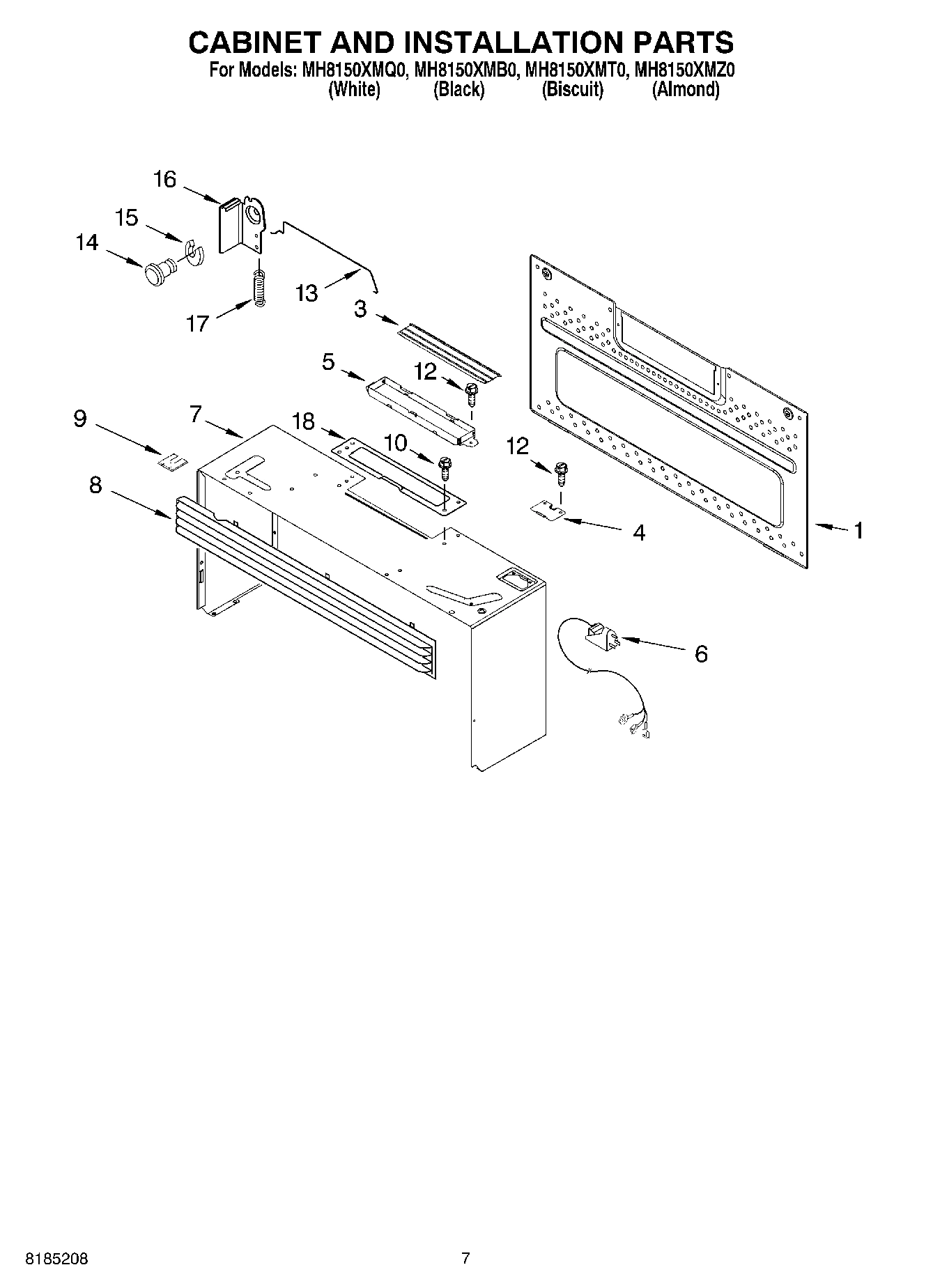

06 - CABINET AND INSTALLATION PARTS

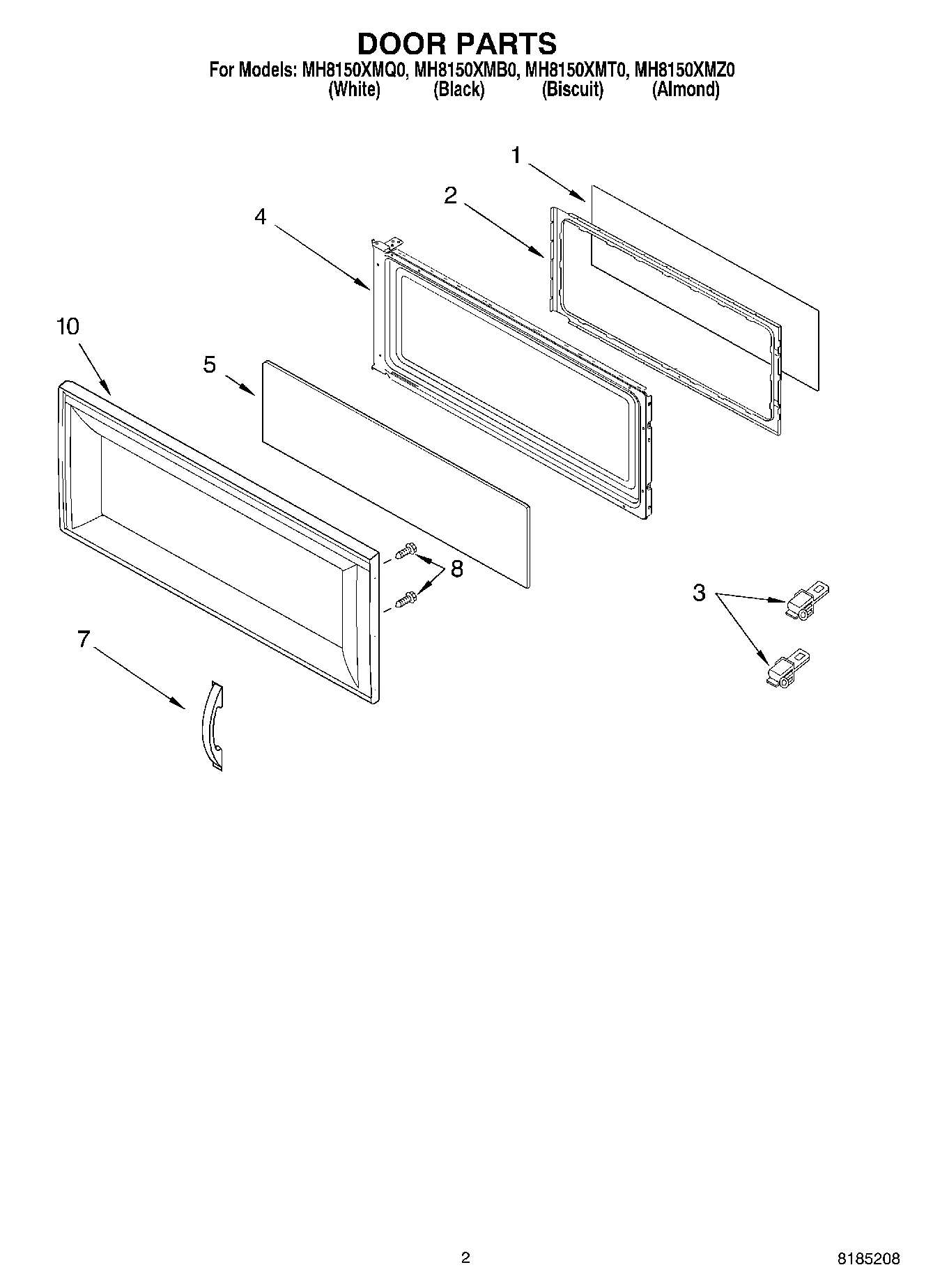

02 - DOOR PARTS

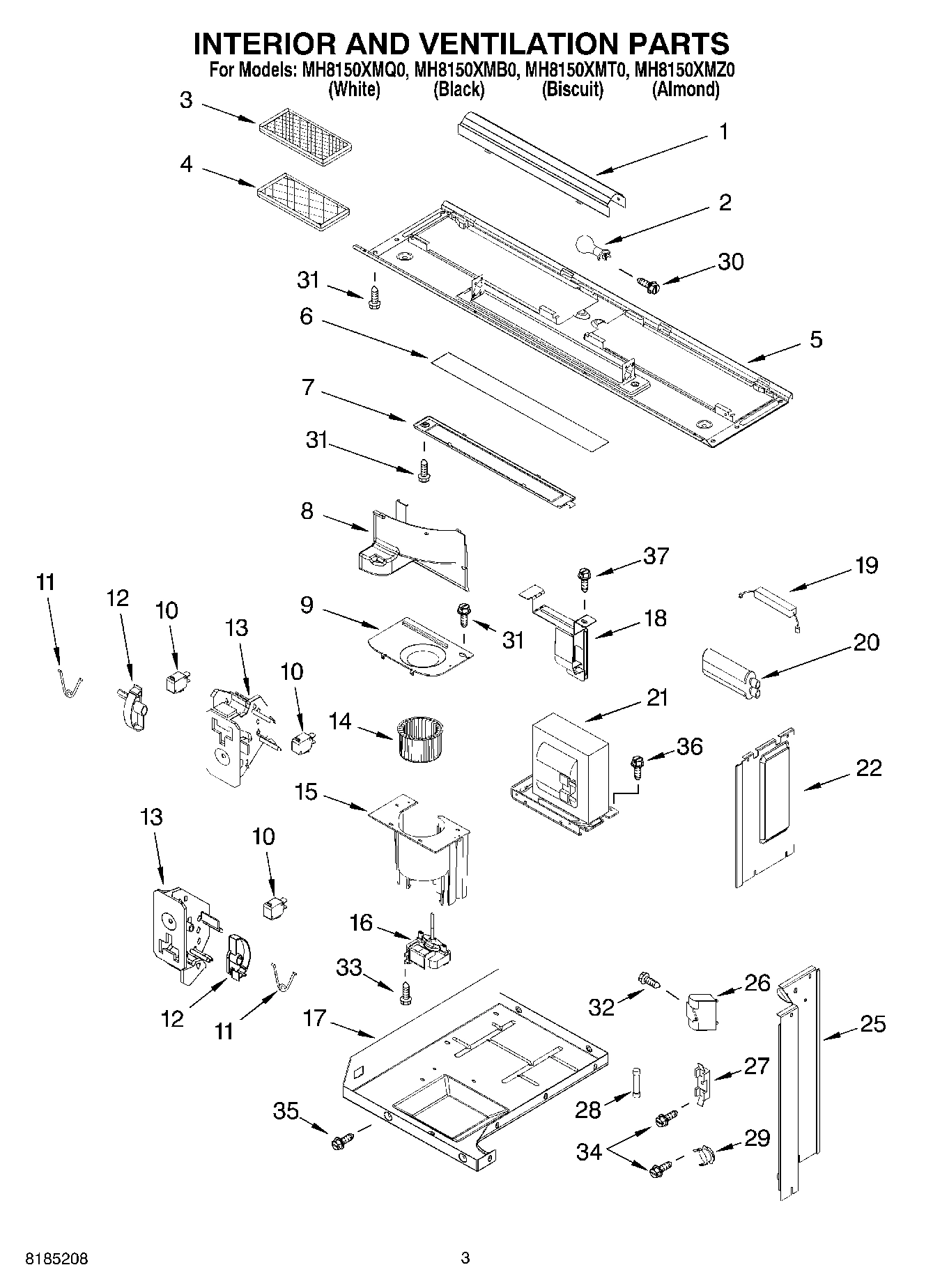

03 - INTERIOR AND VENTILATION PARTS

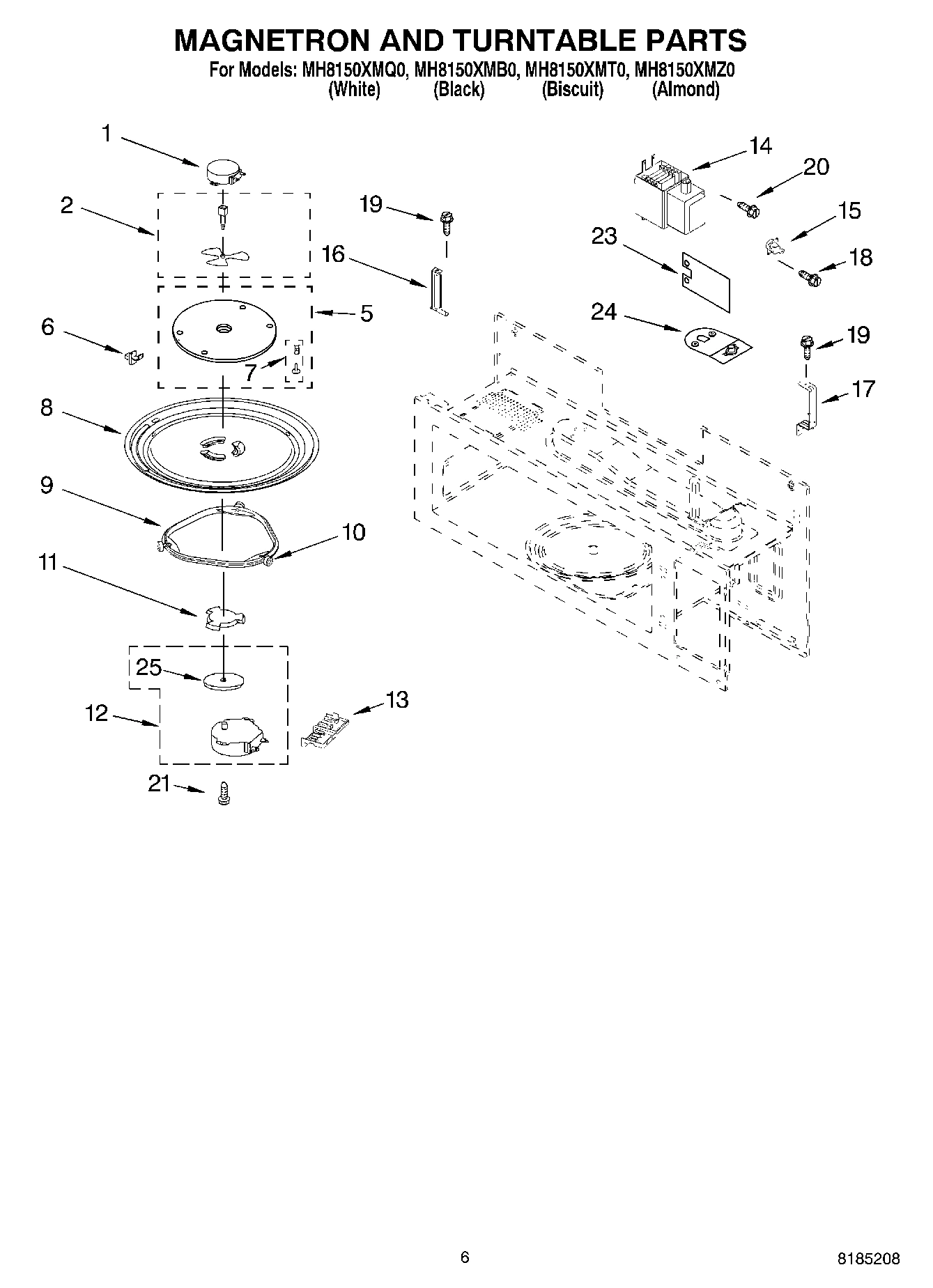

05 - MAGNETRON AND TURNTABLE PARTS
Common parts from model Whirlpool MH8150XMZ0 MICROWAVE HOOD COMBINATION
1
Film, Back WPL 4393870 Contact Us For Availability
1
Reflector, Lamp WPL 4393688 Contact Us For Availability
1
Motor, Stirrer WPL 4393746 Contact Us For Availability
2
Frame, Inner WPL 8169545 Contact Us For Availability
2
Stirrer Shaft/Blade WPL 8184633 Contact Us For Availability
3
Latch, Door WPL 4393913 Contact Us For Availability
4
Body, Door (White) WPL 8169653 Contact Us For Availability
4
Body, Door (Almond) WPL 8169429 Contact Us For Availability
4
Body, Door (Black) WPL 8169460 Contact Us For Availability
4
Body, Door (Biscuit) WPL 8169546 Contact Us For Availability
5
Glass, Outer (Clear (Green Tint)) WPL 4393725 Contact Us For Availability
5
Thermostat WPL 8183697 Contact Us For Availability
5
Glass, Outer (Clear) WPL 8183704 Contact Us For Availability
5
Plate, Bottom WPL 8185209 Contact Us For Availability
5
Cover, Inlet WPL 8184476 Contact Us For Availability
6
Microcomputer WPL 8183713 Contact Us For Availability
6
Glass, Lamp WPL 8185210 Contact Us For Availability
7
Handle, Door (Biscuit) WPL 8169642 Contact Us For Availability
7
Handle, Door (Almond) WPL 4393783 Contact Us For Availability
7
Case, Outer (White) WPL 8169660 Contact Us For Availability
7
Case, Outer (Black) WPL 8169661 Contact Us For Availability
7
Case, Outer (Almond) WPL 8169662 Contact Us For Availability
7
Case, Outer (Biscuit) WPL 8169664 Contact Us For Availability
7
Holder, Glass WPL 8184308 Contact Us For Availability
7
Nail, Plastic WPL 4393291 Contact Us For Availability
8
Turntable WPL 4393799 No Longer Available
8
Grille, Vent (Almond) WPL 8184243 Contact Us For Availability
8
Guide, Air (Magnetron) WPL 8184309 Contact Us For Availability
9
Cover, Fan WPL 8183823 Contact Us For Availability
10
Wheel, Plastic WPL 4393861 Contact Us For Availability
10
Frame, Outer (Almond) WPL 8169354 Contact Us For Availability
10
Frame, Outer (Biscuit) WPL 8185213 Contact Us For Availability
10
Switch, Micro (3) WPL 8204656 Contact Us For Availability
11
Spring, Interlock (2) WPL 8169438 Contact Us For Availability
12
Plate, Cam (2) WPL 8183824 Contact Us For Availability
12
Screw WPL 4393828 Contact Us For Availability
13
Rod WPL 8169318 Contact Us For Availability
13
Cover, Terminal WPL 4393756 Contact Us For Availability
14
Latch, Pivot WPL 8169319 Contact Us For Availability
14
Wheel, Fan WPL 8183825 Contact Us For Availability
15
Thermostat WPL 8183698 Contact Us For Availability
15
E-Ring WPL 8169320 Contact Us For Availability
15
Housing, Fan WPL 8184310 Contact Us For Availability
16
Catch WPL 8185033 Contact Us For Availability
16
Motor, Fan WPL 8185211 Contact Us For Availability
16
Holder, Connector (L) WPL 8169540 Contact Us For Availability
17
Spacer, Copper Pipe WPL 8184129 Contact Us For Availability
17
Spring WPL 8169374 Contact Us For Availability
17
Chassis WPL 8185212 Contact Us For Availability
17
Holder, Connector (R) WPL 8169705 Contact Us For Availability
18
Cushion, Mtr WPL 8169635 Contact Us For Availability
18
Filler Kit (Black) WPL 8171337 Contact Us For Availability
18
Filler Kit (White) WPL 8171336 Contact Us For Availability
18
Plate, Damper WPL 8169697 Contact Us For Availability
18
Hardware, Installation WPL 8169768 Contact Us For Availability
18
Filler Kit (Biscut) WPL 8171338 Contact Us For Availability
18
Filler Kit (Almond) WPL 8171570 Contact Us For Availability
18
Wall Template WPL 8183743 Contact Us For Availability
18
Rack WPL 8183813 Contact Us For Availability
18
Upper Template WPL 8183985 Contact Us For Availability
18
Miscellaneous WPL ARI118295A Contact Us For Availability
18
ACCESSORY PARTS WPL ARI118296A Contact Us For Availability
18
Holder, Capacitor WPL 8184311 Contact Us For Availability
18
Screw WPL 4393838 Contact Us For Availability
21
Transformer, H.V. WPL 8185252 Contact Us For Availability
22
Plate, Side (R) WPL 4393705 Contact Us For Availability
24
Thermostat And Bracket WPL 8184585 Contact Us For Availability
25
Plate, Side (L) WPL 8169470 Contact Us For Availability
26
Capacitor WPL 4393709 Contact Us For Availability
27
Holder, Fuse WPL 8184312 Contact Us For Availability
29
Thermostat WPL 8183703 Contact Us For Availability
30
Screw WPL 8169474 Contact Us For Availability
33
Screw WPL 4393833 Contact Us For Availability
34
Screw WPL 8169478 Contact Us For Availability
36
Screw WPL 4393839 Contact Us For Availability
× ![]()
