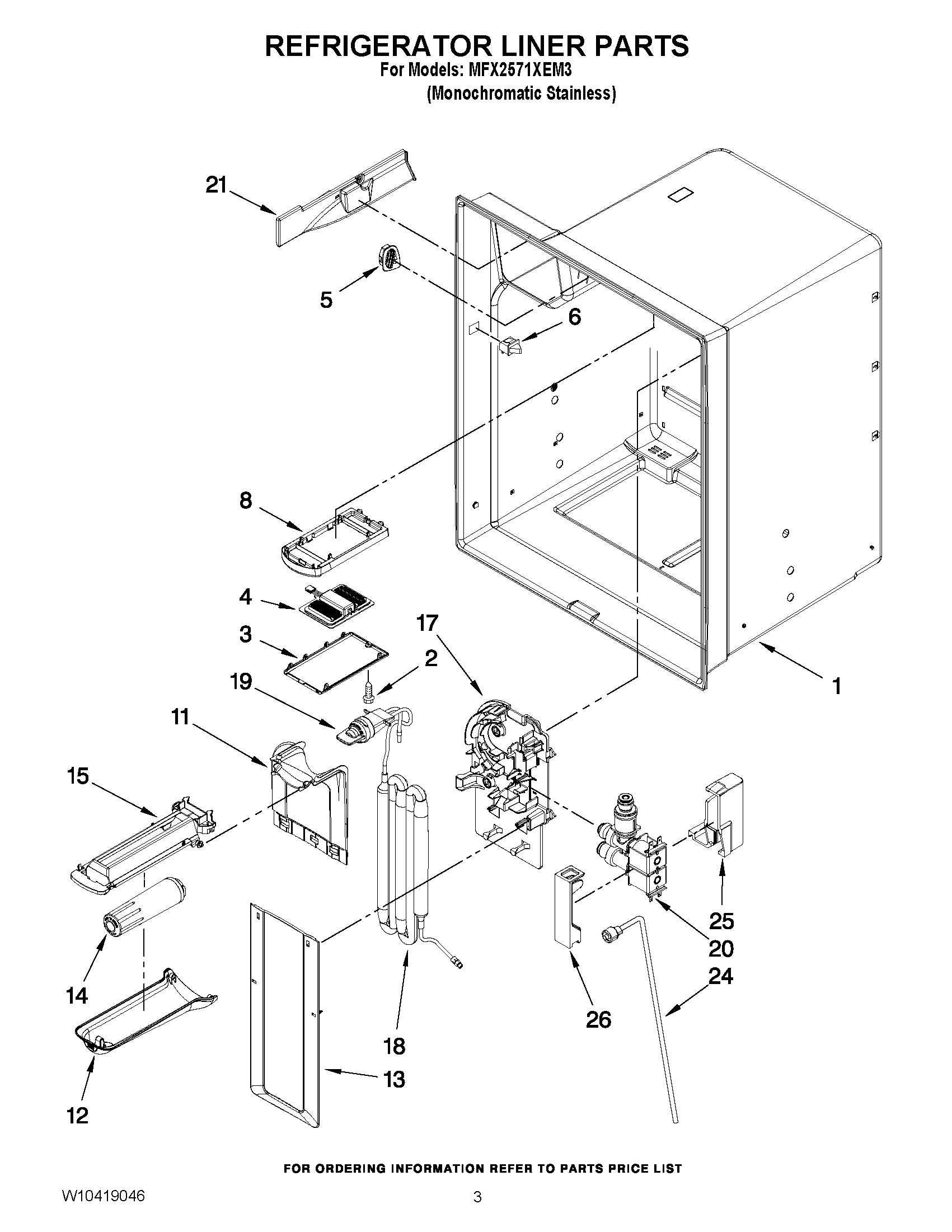

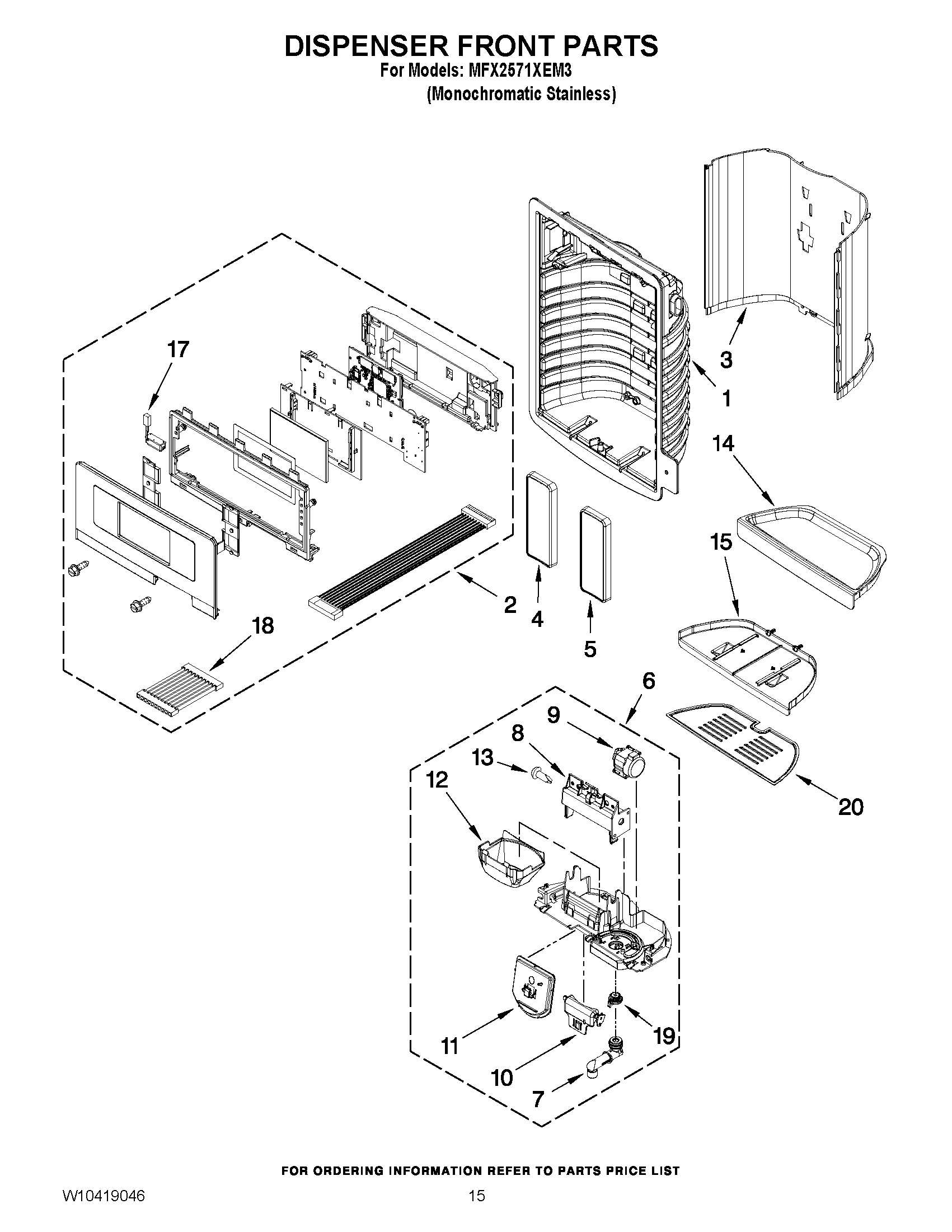

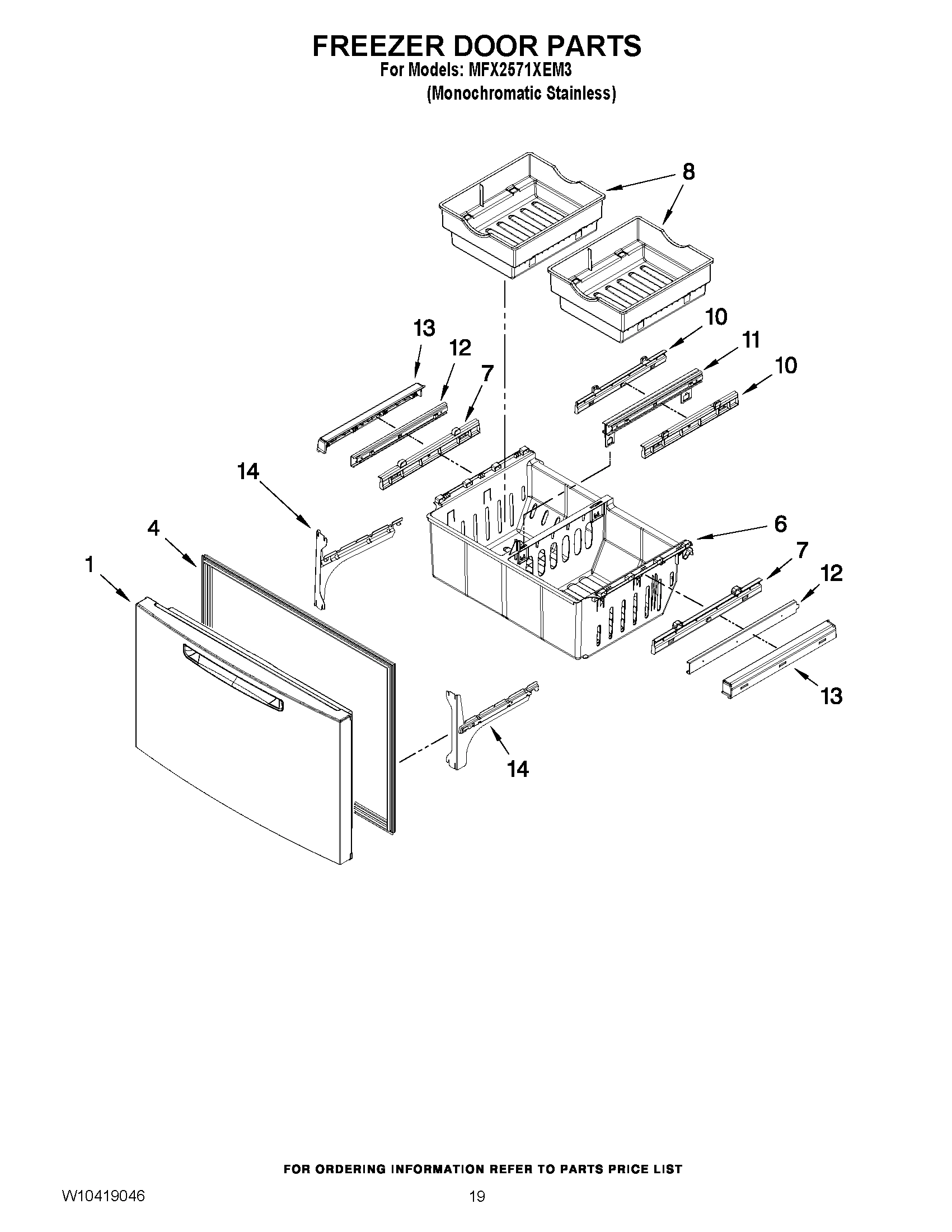

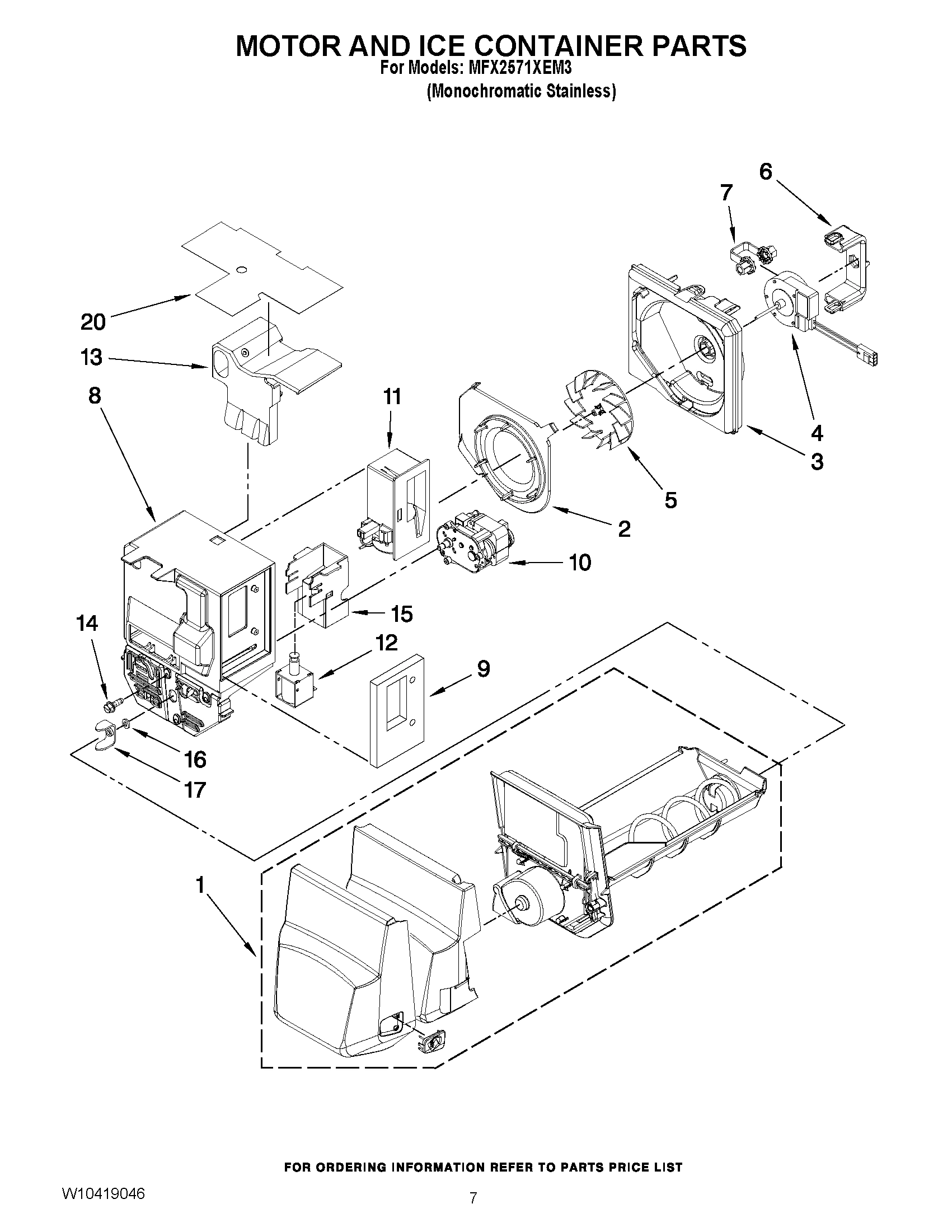

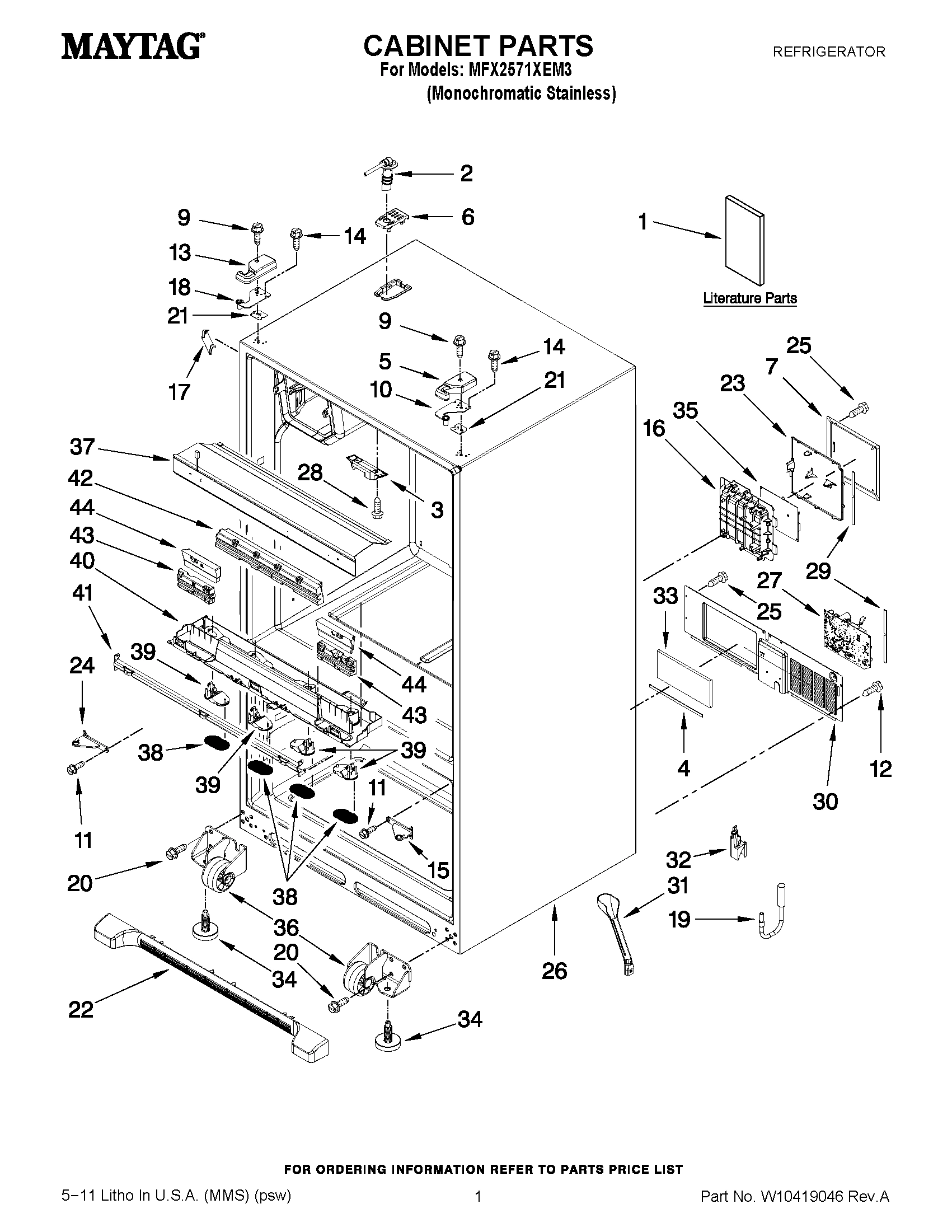

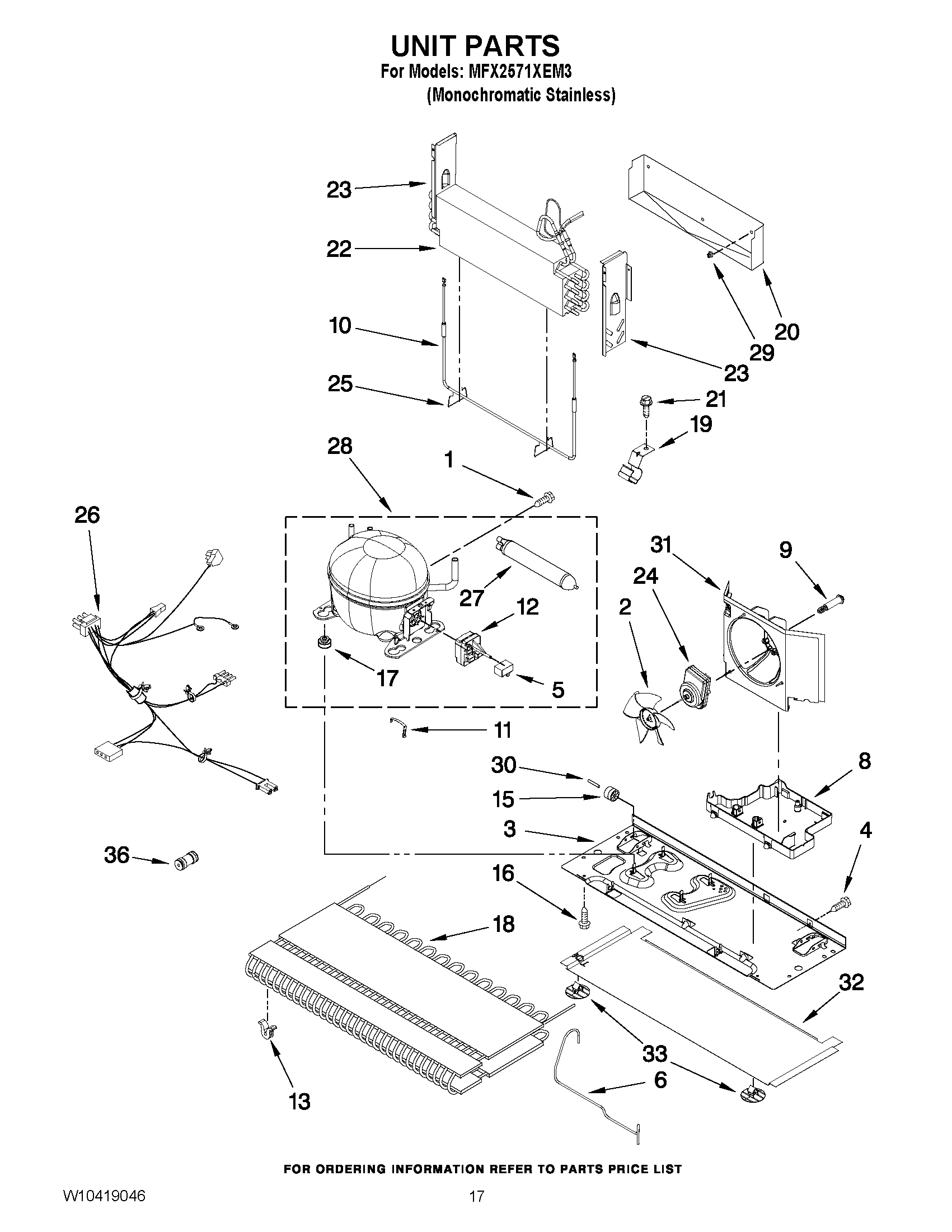

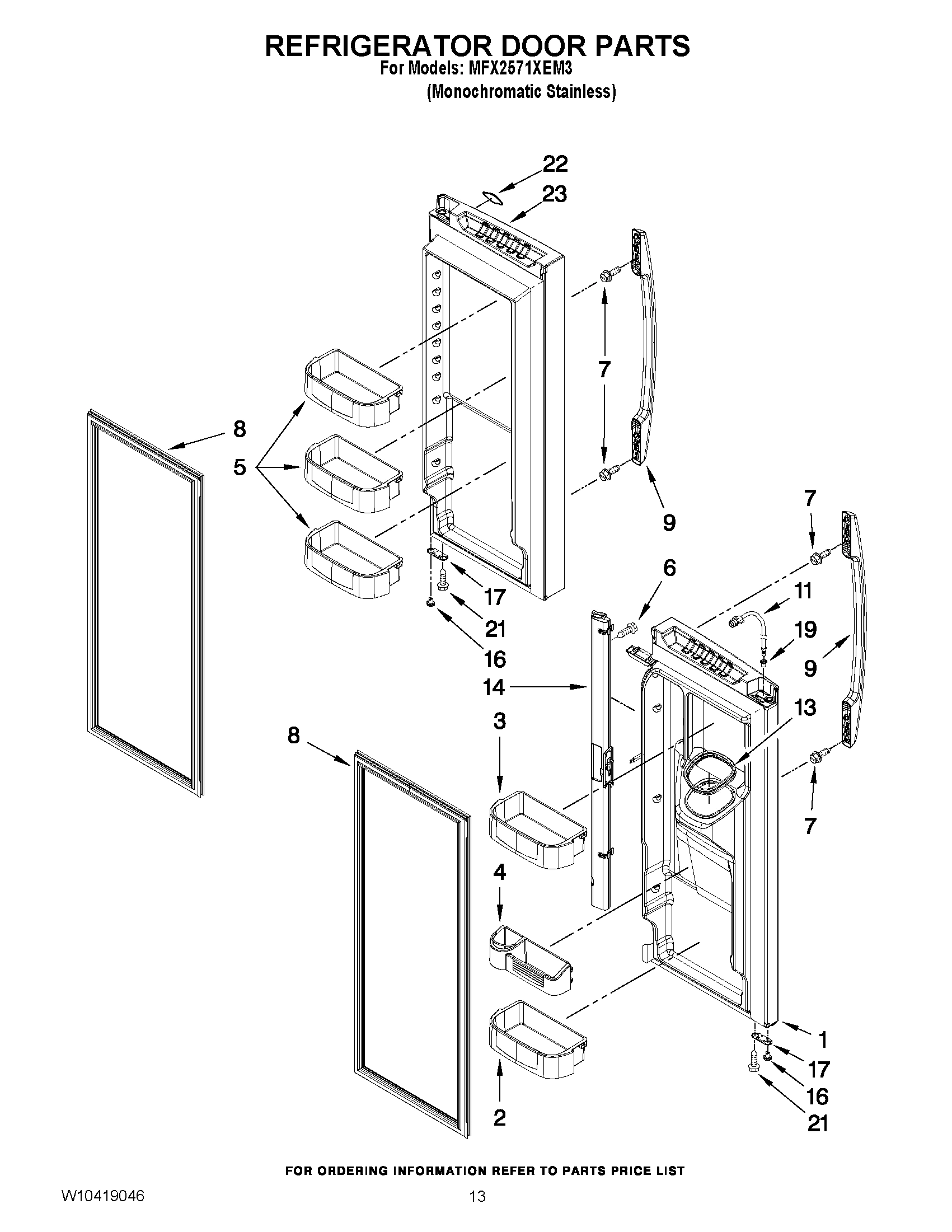

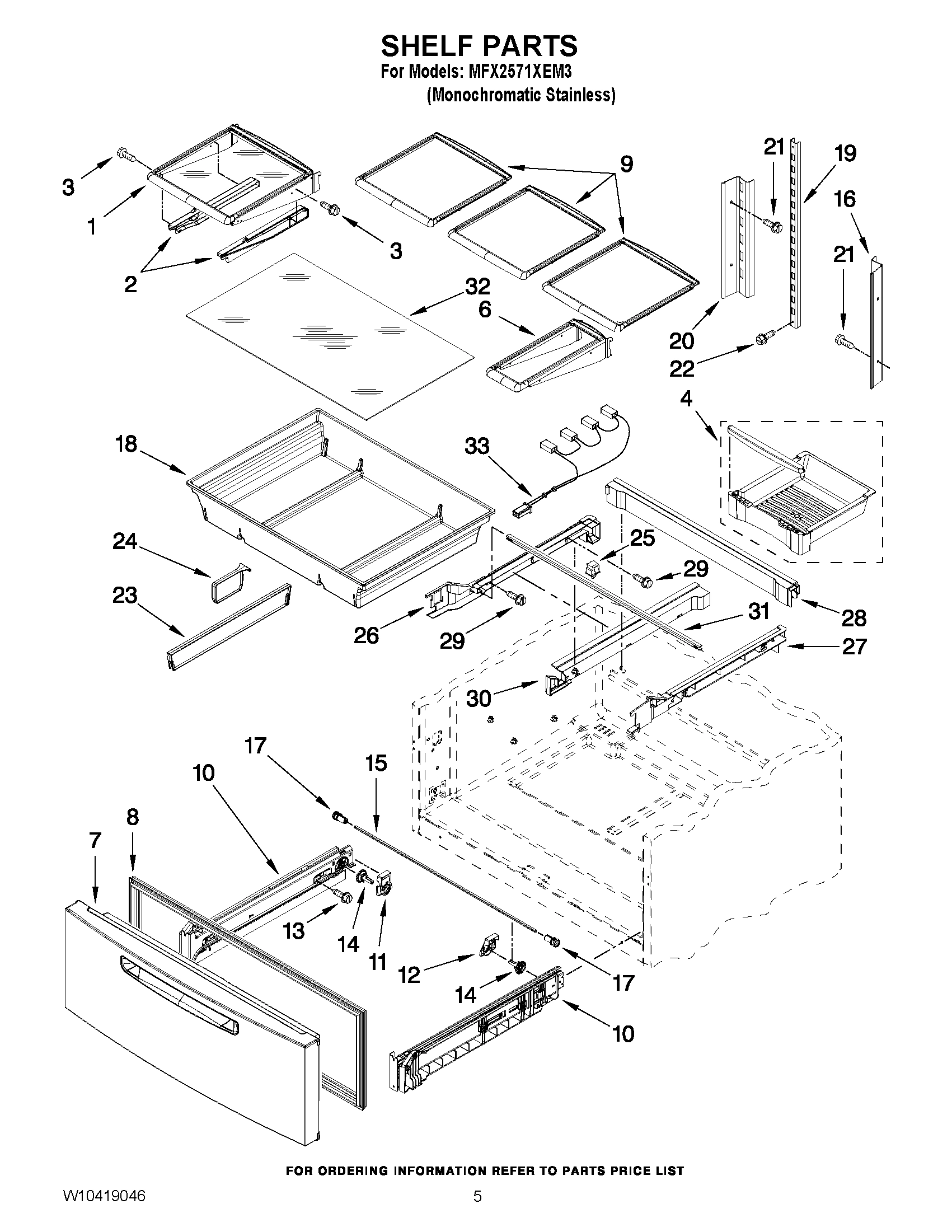

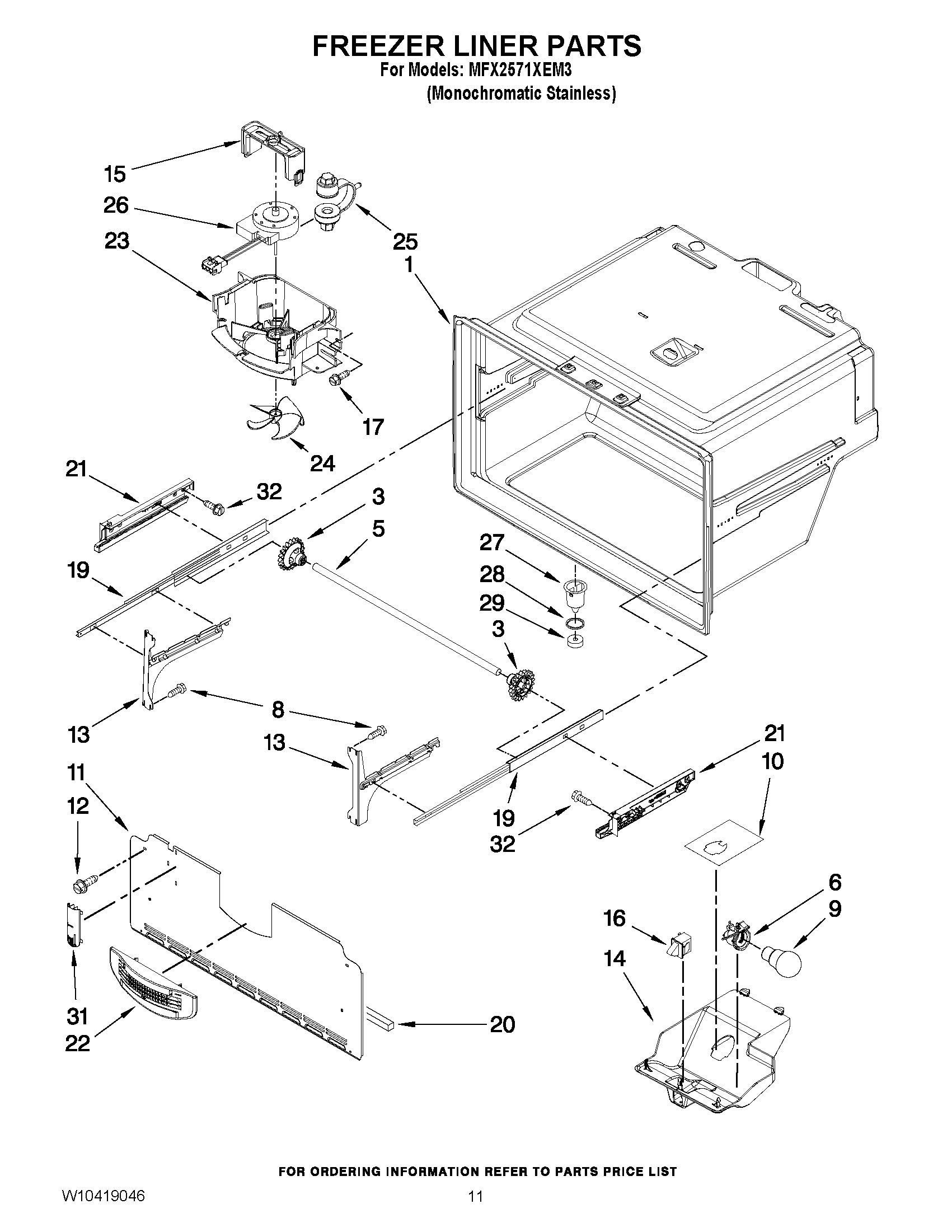

Model Whirlpool MFX2571XEM3 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP12883508SP Whirlpool Refrigerator Glass She Backorder WPL WP12883508SP $210.44

1

WPW10300025 Whirlpool Refrigerator Ice Mold Backorder WPL WPW10300025 $142.00

2

W10121282 Whirlpool Refrigerator Insert Backorder WPL W10121282 $10.91

2

WP12825803 Whirlpool Refrigerator Fan Blade In Stock WPL WP12825803 $57.00

2

WPW10175514 Whirlpool Refrigerator Shut-Off A Backorder WPL WPW10175514 $61.52

2

WPW10194031 Whirlpool Refrigerator Glide In Stock WPL WPW10194031 $57.36

2

WPW10194032 Whirlpool Refrigerator Glide Backorder WPL WPW10194032 $88.23

2

BUCKET-LOWER-LH WPL W10297151 Contact Us For Availability

3

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $10.50

3

W10309863 Whirlpool Refrigerator Scroll Fan Backorder WPL W10309863 $63.85

3

W10311756 Whirlpool Refrigerator Light Lens Backorder WPL W10311756 $104.28

3

W10327050 Whirlpool Refrigerator Cup Fill Backorder WPL W10327050 $65.65

3

W11045978 Whirlpool Refrigerator Shield Backorder WPL W11045978 $57.73

4

B5759655 Whirlpool Refrigerator Gasket Backorder WPL B5759655 $8.23

4

W10318914 Whirlpool Refrigerator Ejector Arm Backorder WPL W10318914 $23.29

4

W11529245 Whirlpool Refrigerator Evaporator M In Stock WPL W11529245 $95.53

5

W11028221 Whirlpool Refrigerator Shaft In Stock WPL W11028221 $18.52

5

WP12840004 Whirlpool Refrigerator Cantilever Backorder WPL WP12840004 $59.06

5

WPW10122563 Whirlpool Refrigerator Stripper A Backorder WPL WPW10122563 $66.33

6

WPW10233569 Whirlpool Refrigerator Tube Backorder WPL WPW10233569 $88.05

6

SEPARATOR ASSY. (STAINLESS) WPL W10353562 Contact Us For Availability

7

12961602 Whirlpool Refrigerator Wire Cover Backorder WPL 12961602 $80.37

7

W11227371 Whirlpool Refrigerator Spigot Backorder WPL W11227371 $90.39

7

WP12992902 Whirlpool Refrigerator Screw Backorder WPL WP12992902 $6.84

7

Grommet, Fan Motor WPL W10151687 Contact Us For Availability

8

W10174827 Whirlpool Refrigerator Bracket Backorder WPL W10174827 $55.63

8

WP12924903 Whirlpool Refrigerator Freezer Bin Backorder WPL WP12924903 $90.38

8

WPW10309864 Whirlpool Refrigerator Divider In Stock WPL WPW10309864 $59.70

9

W10001240 Whirlpool Refrigerator Screw Backorder WPL W10001240 $5.85

9

W10829281 Whirlpool Refrigerator Screw Backorder WPL W10829281 $7.98

9

W11402525 Whirlpool Glass Shelf Backorder WPL W11402525 $150.81

9

WPW10205979 Whirlpool Refrigerator Ice Door M In Stock WPL WPW10205979 $44.85

12925404SP Whirlpool Refrigerator Bracket Backorder WPL 12925404SP $28.69

W11093713 Whirlpool Refrigerator Adapter Backorder WPL W11093713 $90.72

W11469652 Whirlpool Refrigerator Shield Backorder WPL W11469652 $14.02

W11592374 Whirlpool Refrigerator Top Door Hin In Stock WPL W11592374 $16.97

W11671282 Whirlpool Refrigerator Ice Auger Mo In Stock WPL W11671282 $85.63

WP12729123 Whirlpool Refrigerator Heater In Stock WPL WP12729123 $99.94

WPW10121440 Whirlpool Refrigerator Extension Backorder WPL WPW10121440 $62.64

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $15.02

W10308421 Whirlpool Refrigerator Evaporator C Backorder WPL W10308421 $194.68

W11661170 Whirlpool Clip Backorder WPL W11661170 $7.27

WPW10196393 Whirlpool Control Damper In Stock WPL WPW10196393 $169.94

WPW10235357 Whirlpool Refrigerator Glide Asse Backorder WPL WPW10235357 $232.76

GEAR SPUR-L & R WPL W10277360 Contact Us For Availability

WATERLINE, DOOR WPL W10296451 Contact Us For Availability

W10284709 Whirlpool Refrigerator Cover Backorder WPL W10284709 $50.57

W10294414 Whirlpool Refrigerator Cover Backorder WPL W10294414 $58.12

W10884722 Whirlpool Refrigerator Front Cover Backorder WPL W10884722 $9.69

WPW10194431 Whirlpool Start Device In Stock WPL WPW10194431 $79.80

WPW10235367 Whirlpool Refrigerator Glide Backorder WPL WPW10235367 $237.32

WPW10309866 Whirlpool Refrigerator Solenoid In Stock WPL WPW10309866 $108.17

W11676504 Whirlpool Insert Assembly Backorder WPL W11676504 $14.02

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $4.82

WPW10272364 Whirlpool Refrigerator Screw Backorder WPL WPW10272364 $6.83

WPW10287601 Whirlpool Seal In Stock WPL WPW10287601 $23.00

W11434460 Whirlpool Refrigerator Housing Backorder WPL W11434460 $20.54

WPW10305897 Whirlpool Refrigerator Drip Tray Backorder WPL WPW10305897 $53.77

WPW10311757 Whirlpool Door Guide In Stock WPL WPW10311757 $93.73

WPW10312691 Whirlpool Refrigerator Air Baffle In Stock WPL WPW10312691 $225.16

15

W10298176 Whirlpool Refrigerator Shaft Backorder WPL W10298176 $70.55

15

W10346971 Whirlpool Refrigerator Bracket Backorder WPL W10346971 $59.83

15

HARNESS, ICEMAKER WPL W10322960 Contact Us For Availability

16

WP12028505AP Whirlpool Closing Cam In Stock WPL WP12028505AP $57.64

16

BOX, HV CONTROL WPL W10285271 Contact Us For Availability

17

WP12587703AP Whirlpool Refrigerator Filler Backorder WPL WP12587703AP $4.82

17

WPW10277361 Whirlpool Refrigerator Collar Backorder WPL WPW10277361 $7.18

W11592375 Whirlpool Door Hinge In Stock WPL W11592375 $16.65

WPW10068250 Whirlpool Dishwasher Screw Backorder WPL WPW10068250 $2.67

WPW10346415 Whirlpool Refrigerator Condenser Backorder WPL WPW10346415 $248.87

HARNESS-JUMPER WPL W10193350 Contact Us For Availability

12996601 Whirlpool Refrigerator Bushing Clip Backorder WPL 12996601 $8.89

W10273464 Whirlpool Refrigerator Ladder Backorder WPL W10273464 $19.26

W11395888 Whirlpool Refrigerator Bypass Filte In Stock WPL W11395888 $32.64

W11658402 Whirlpool Drawer Slide Rail In Stock WPL W11658402 $94.87

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

WATERLINE-HOUSEHLD WPL W10349052 Contact Us For Availability

W11159728 Whirlpool Refrigerator Gasket In Stock WPL W11159728 $18.40

W11547653 Whirlpool Refrigerator Drip Tray Backorder WPL W11547653 $35.72

WPW10349187 Whirlpool Water Valve In Stock WPL WPW10349187 $202.48

GRATE, DRIP WPL W10215957 Contact Us For Availability

12999501 Whirlpool Refrigerator Hinge Shim In Stock WPL 12999501 $69.52

12999502 Whirlpool Refrigerator Hinge Shim Backorder WPL 12999502 $70.27

WPW10270395 Whirlpool Refrigerator Valve In Stock WPL WPW10270395 $271.44

WPW10284682 Whirlpool Refrigerator Bracket Backorder WPL WPW10284682 $93.25

WPW10284683 Whirlpool Refrigerator Bracket Backorder WPL WPW10284683 $144.76

WPW10309869 Whirlpool Refrigerator Cover Backorder WPL WPW10309869 $76.47

22

W11536253 Whirlpool Refrigerator Evaporator Backorder WPL W11536253 $155.40

22

WPW10170766 Whirlpool Nameplate Backorder WPL WPW10170766 $47.02

23

W11226688 Whirlpool Refrigerator Cover Backorder WPL W11226688 $57.83

24

W10917988 Whirlpool Refrigerator Door Hinge Backorder WPL W10917988 $57.87

24

W11613295 Whirlpool Condenser Motor In Stock WPL W11613295 $66.25

24

WATERLINE, CABINET (W/NUT) WPL W10290356 Contact Us For Availability

25

W10118193 Whirlpool Refrigerator Cover Backorder WPL W10118193 $61.99

25

W11673433 Whirlpool Clip Backorder WPL W11673433 $99.38

25

W11686675 Whirlpool Screw Backorder WPL W11686675 $8.89

26

W10234029 Whirlpool Refrigerator Wire Harness Backorder WPL W10234029 $224.45

26

W10311723 Whirlpool Refrigerator Rail In Stock WPL W10311723 $95.00

26

W11334745 Whirlpool Refrigerator Evaporator F In Stock WPL W11334745 $128.13

27

W11715934 Whirlpool Rail Backorder WPL W11715934 $28.36

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $22.83

27

WPW10226427 Whirlpool Refrigerator Electronic In Stock WPL WPW10226427 $257.32

28

W10854958 Whirlpool Refrigerator Screw In Stock WPL W10854958 $4.80

30

W10311725 Whirlpool Refrigerator Cover Backorder WPL W10311725 $10.50

30

WPW10270394 Whirlpool Refrigerator Back Cover Backorder WPL WPW10270394 $137.05

31

W11556315 Whirlpool Shroud Backorder WPL W11556315 $48.02

32

WPW10296571 Whirlpool Glass Shelf Assembly Backorder WPL WPW10296571 $164.09

32

COVER, WATER VALVE WPL W10236761 Contact Us For Availability

33

W10335721 Whirlpool Refrigerator Harness Swit Backorder WPL W10335721 $56.43

33

Fiber, Acoustic WPL 12820505 Contact Us For Availability

34

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $5.30

35

BOARD, HV CONTROL WPL W10285198 Contact Us For Availability

36

WPW10334458 Whirlpool Refrigerator Connector In Stock WPL WPW10334458 $14.46

40

W10311719 Whirlpool Refrigerator Housing Backorder WPL W10311719 $87.34

42

W10311721 Whirlpool Refrigerator Insulation Backorder WPL W10311721 $50.62

43

W10316401 Whirlpool Refrigerator Insulation Backorder WPL W10316401 $50.93

44

SPACER WEDGE L & R WPL W10316403 Contact Us For Availability

100

WPW10300024 Whirlpool Ice Maker In Stock WPL WPW10300024 $149.01

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $37.41

350930 Whirlpool White Spray Paint In Stock WPL 350930 $30.02

350942 Whirlpool Spray Paint Backorder WPL 350942 $64.04

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $56.74

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $19.58

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $21.50

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $32.12

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $80.02

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $87.85

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $92.18

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $80.29

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $119.63

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $43.17

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $67.02

Valve, Access (5/8``) WPL 978029 Contact Us For Availability

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

REFINISHING MATERIAL (ENAMEL, WHITE (1 QT. UN WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability
