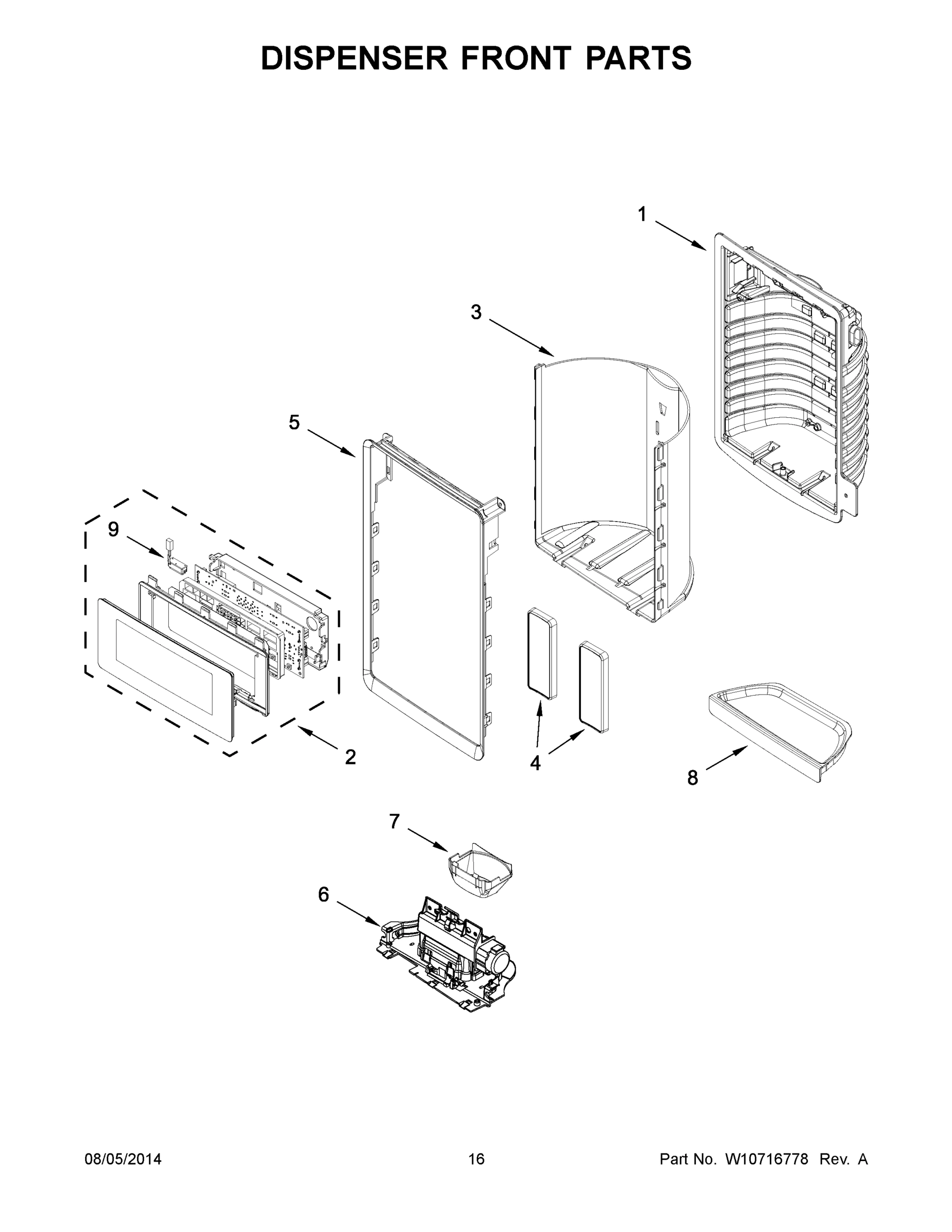

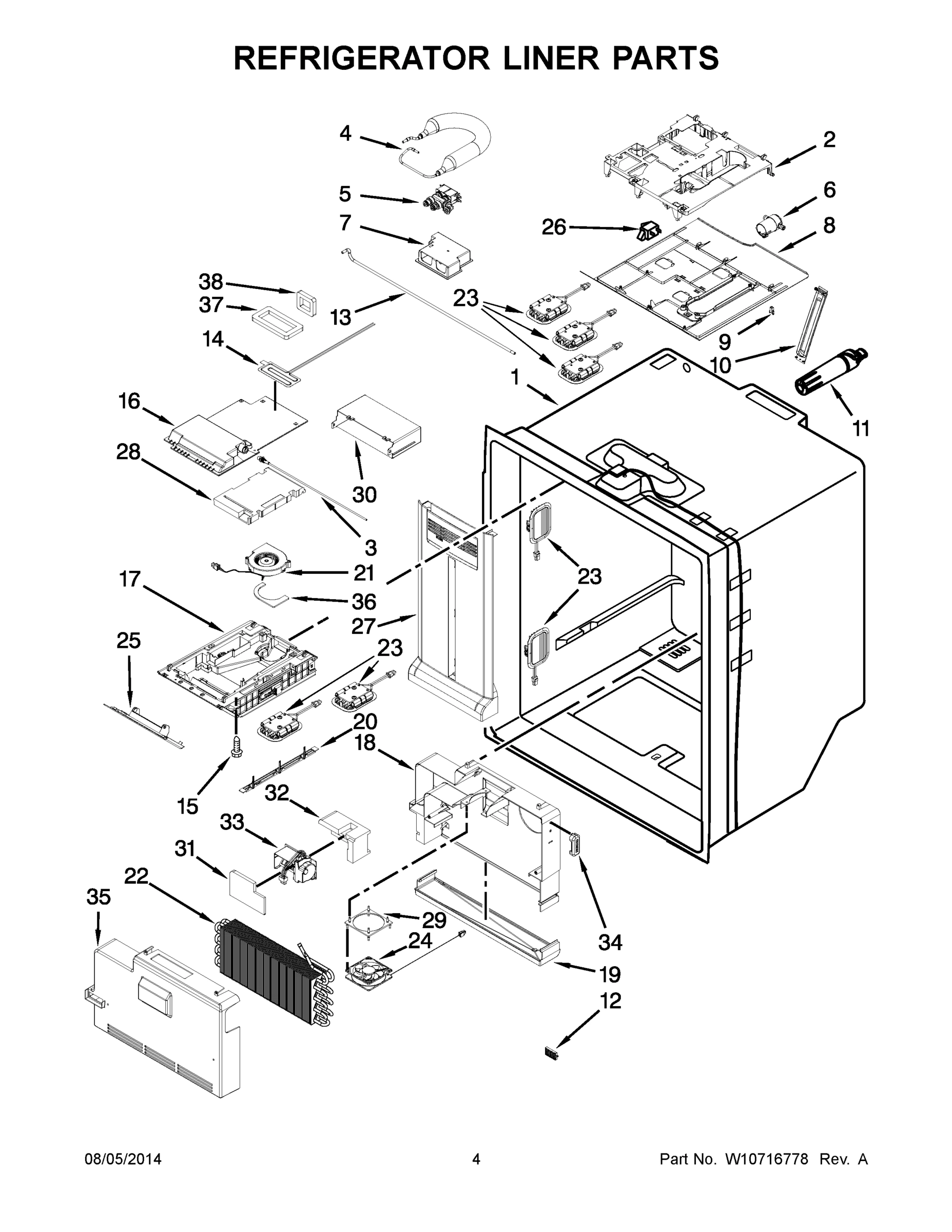

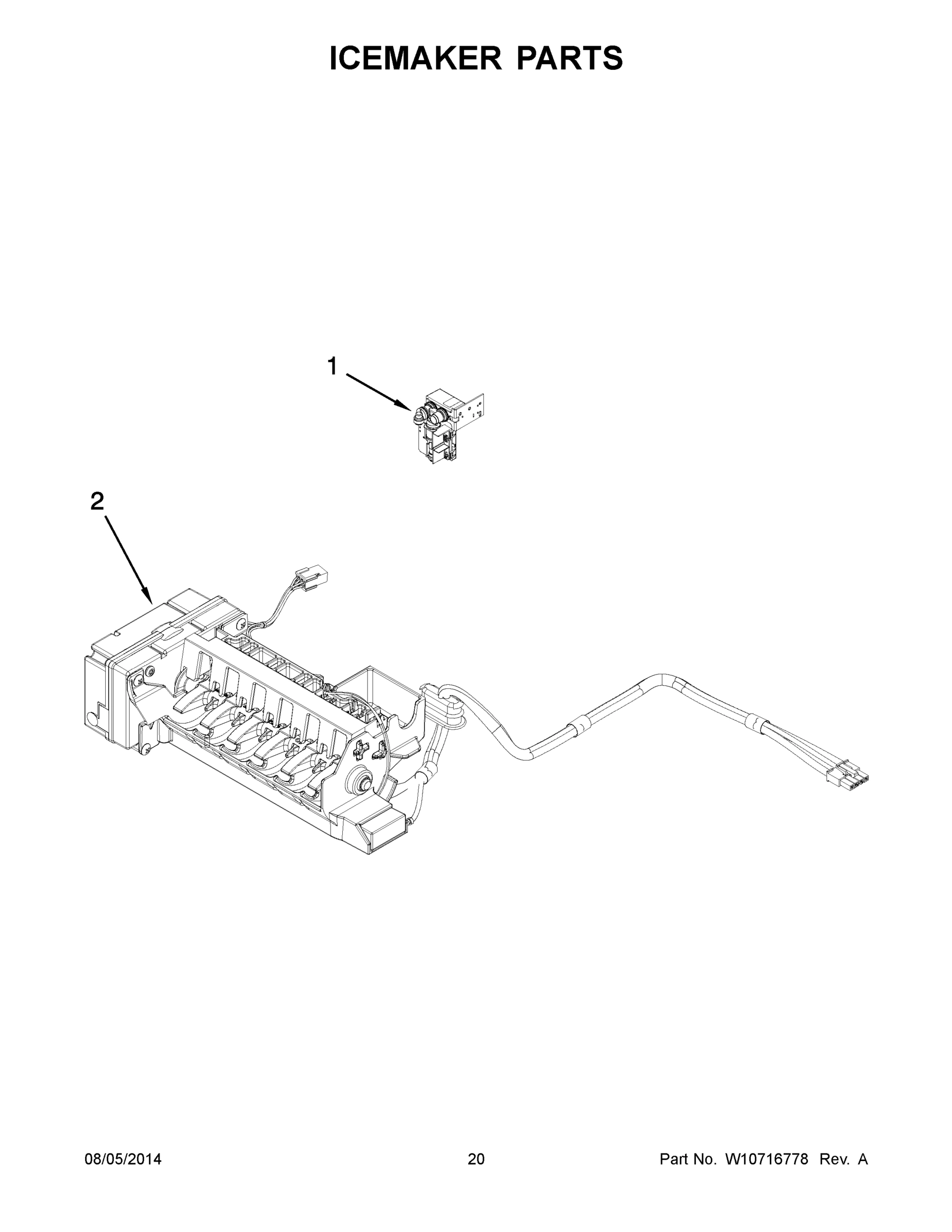

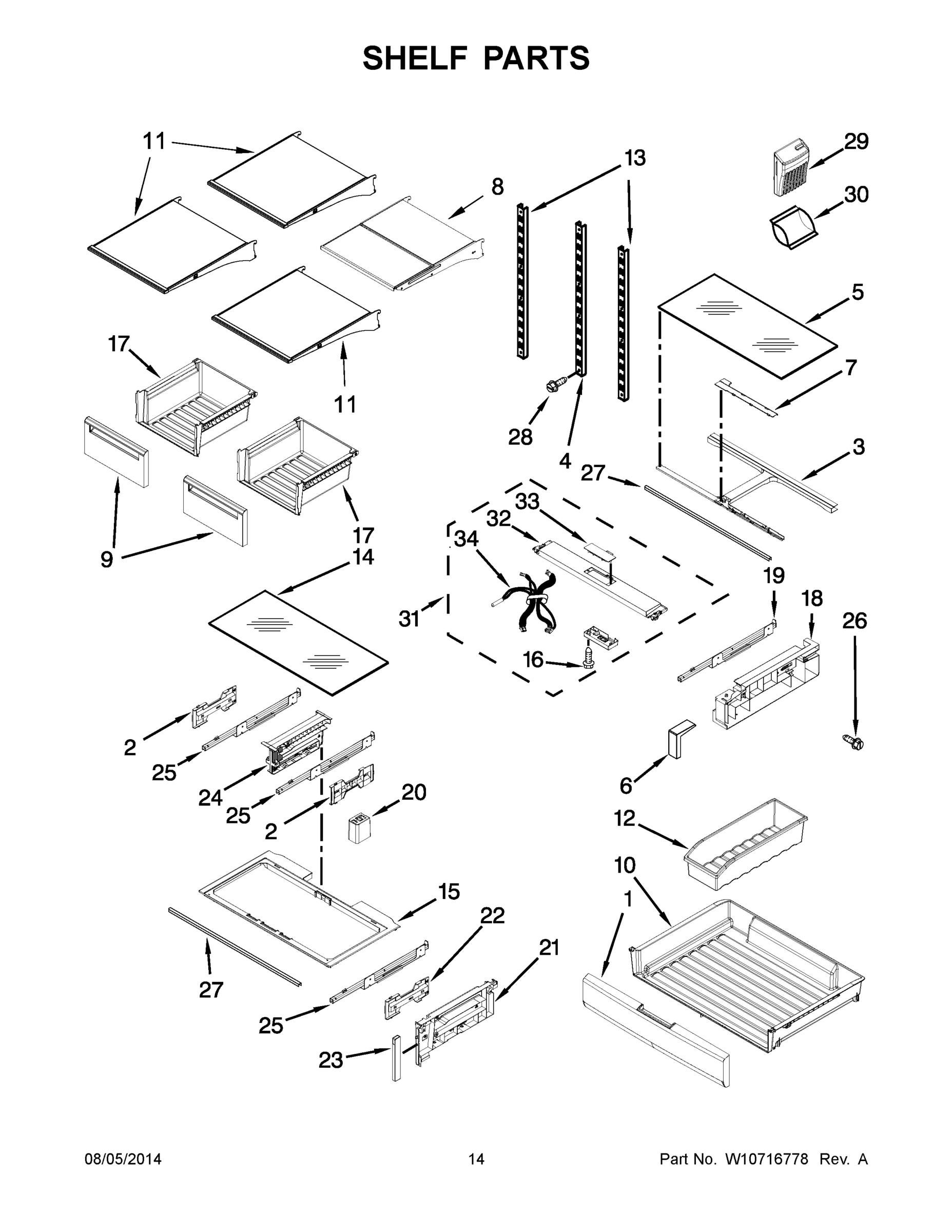

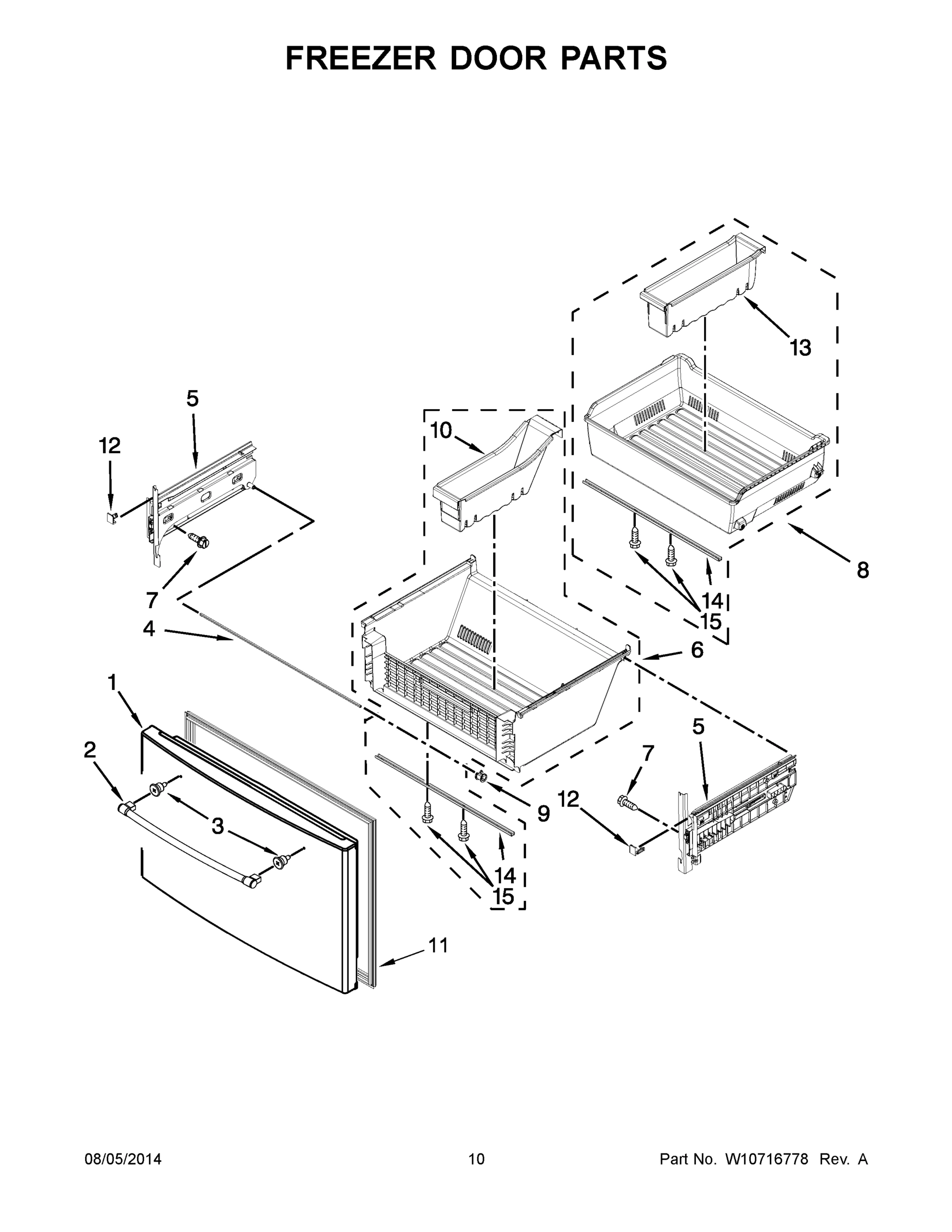

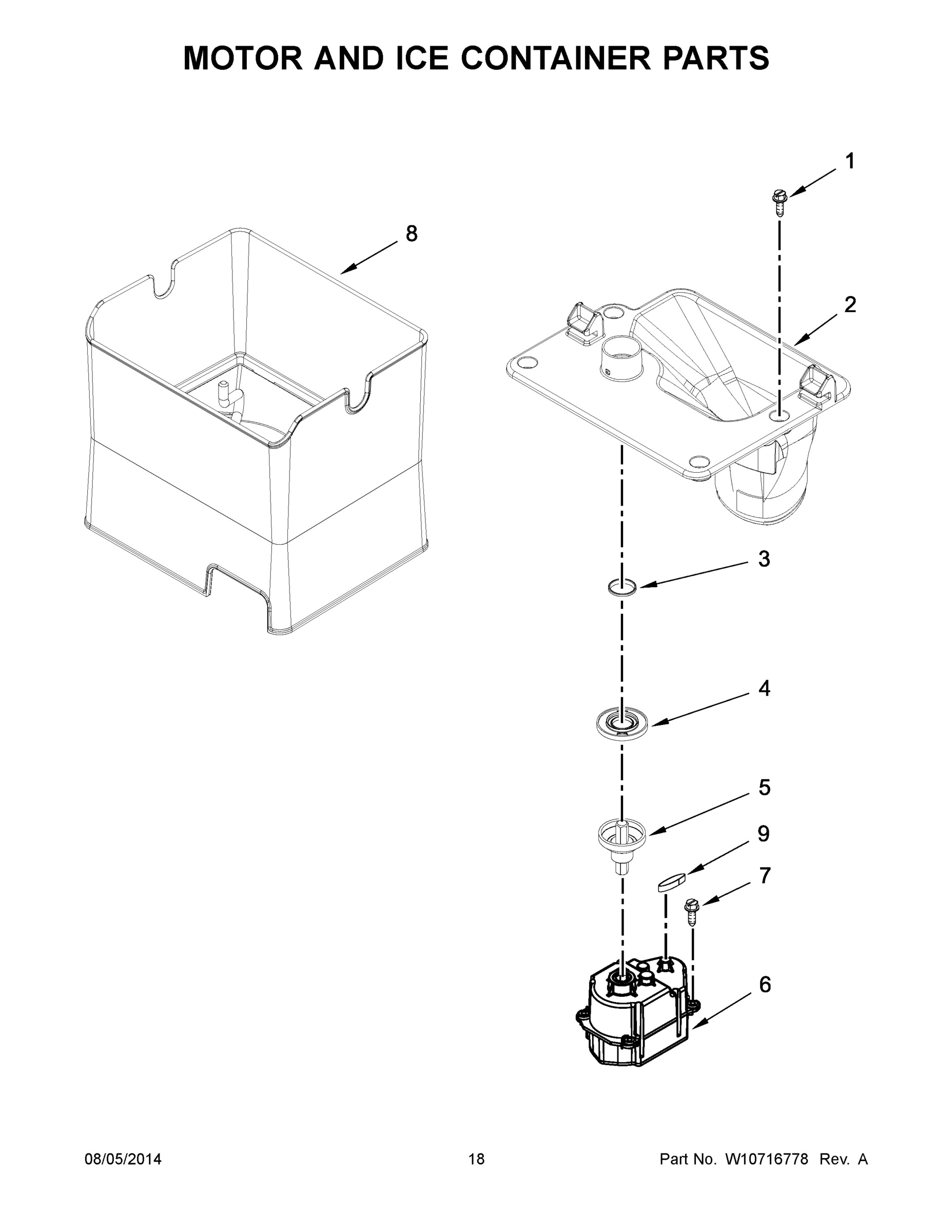

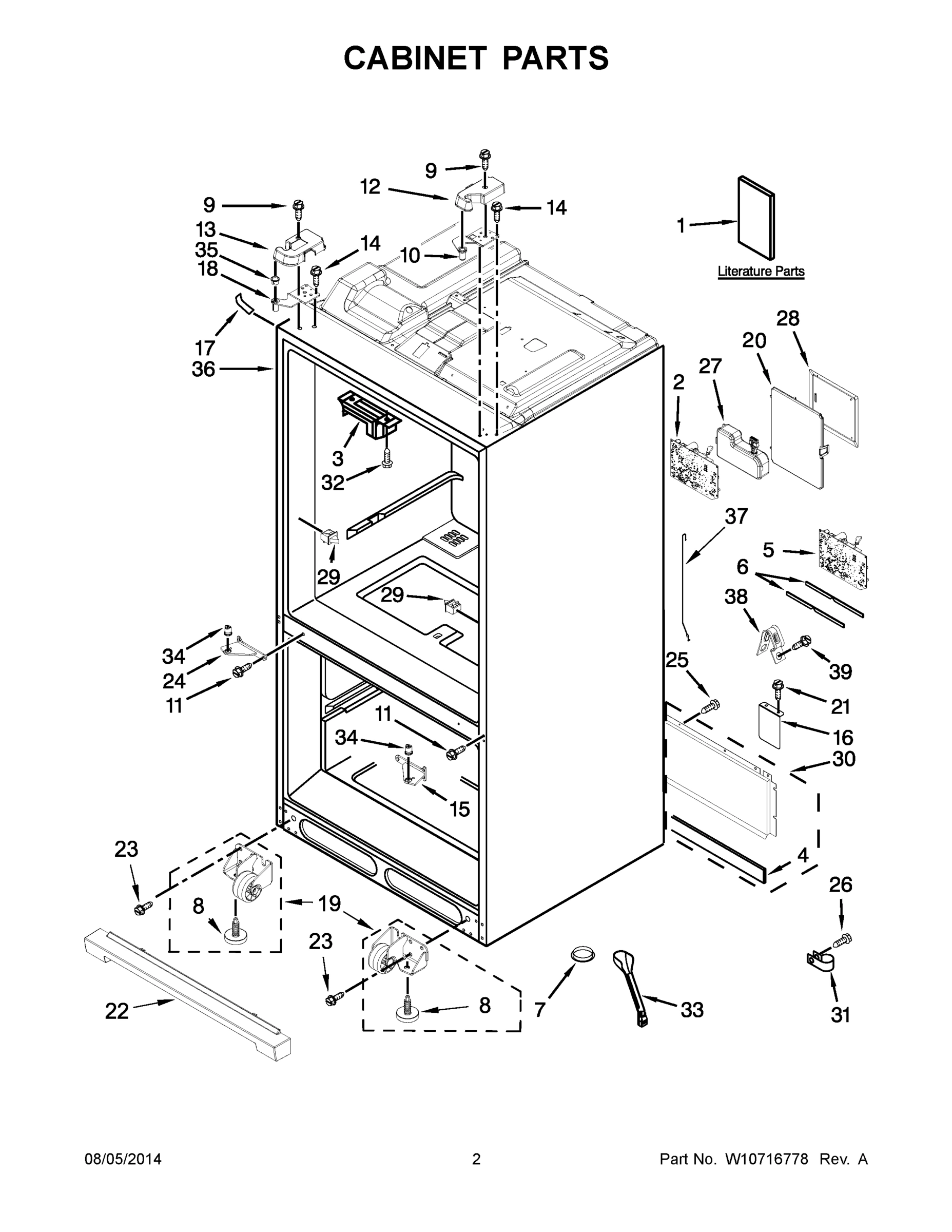

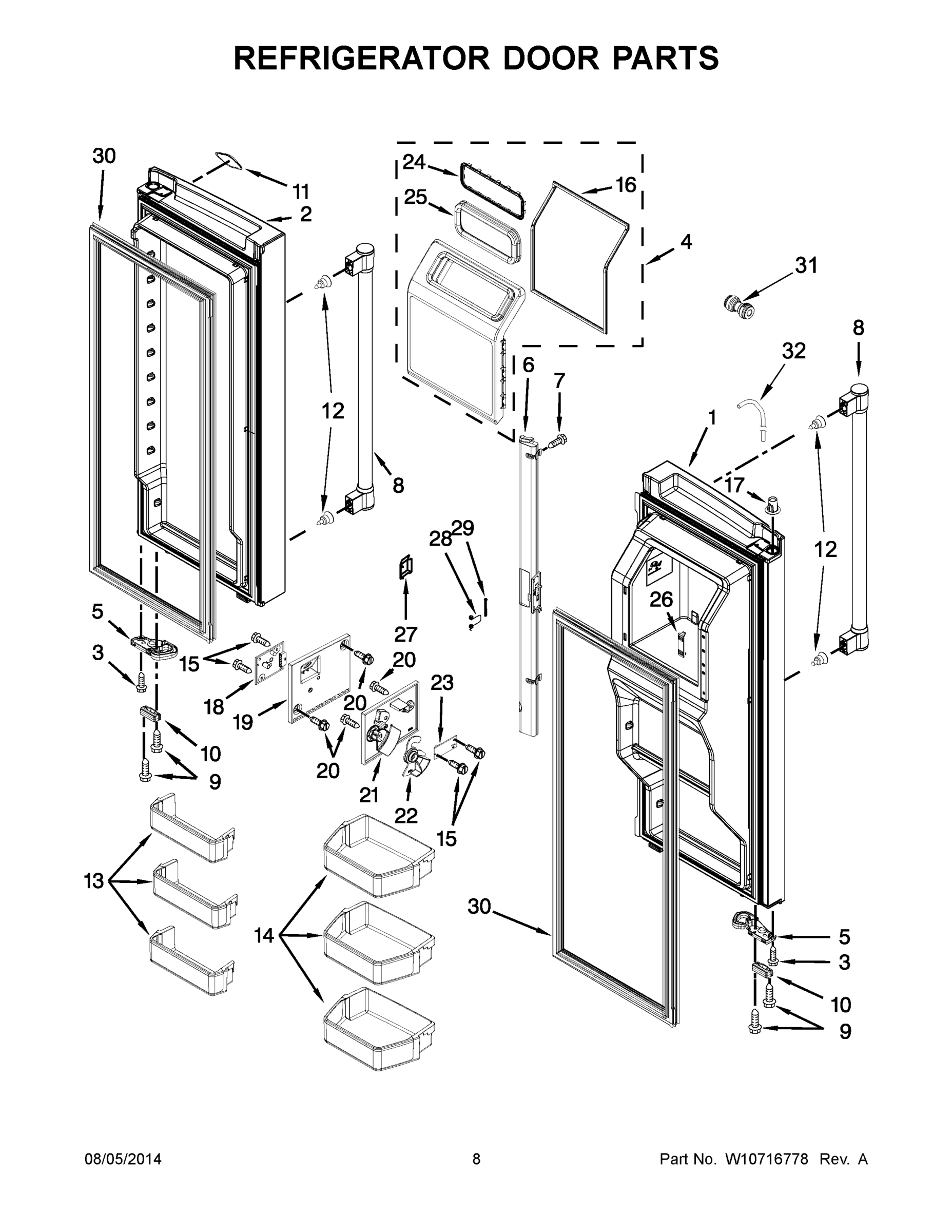

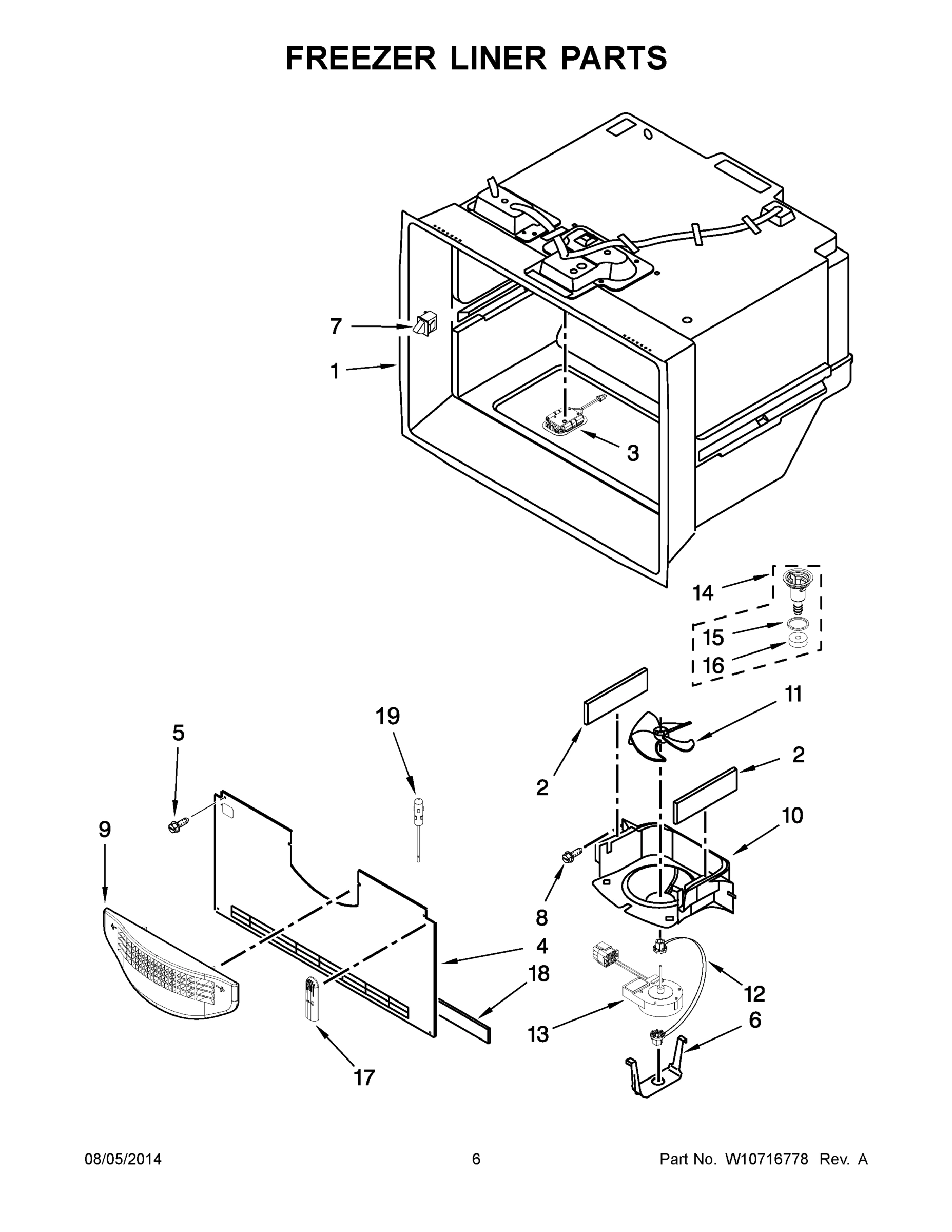

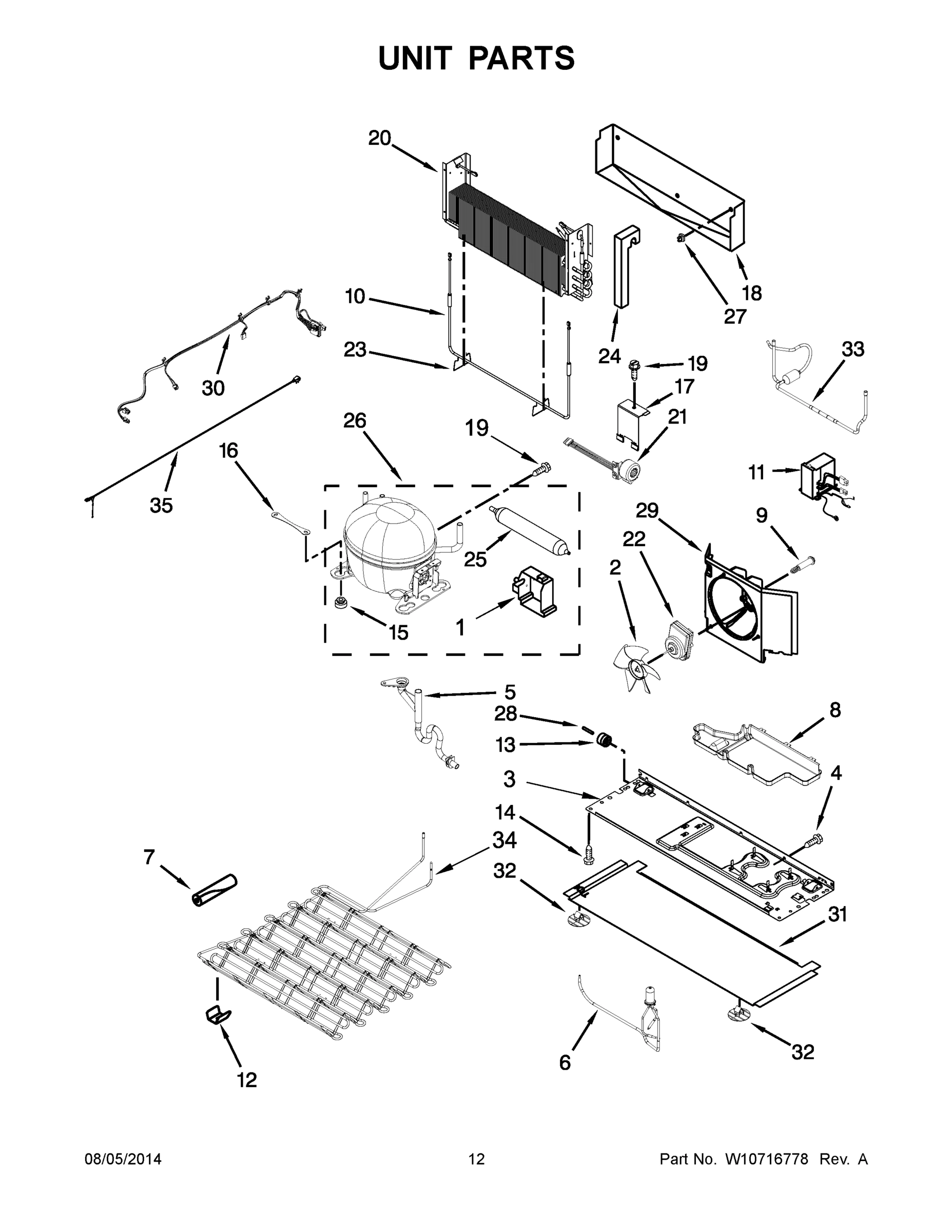

Model Whirlpool MFT2776DEE00 REFRIGERATOR – Common Parts &amp; Diagrams

1

W10865826 Whirlpool Refrigerator Water Inlet In Stock WPL W10865826 $70.54

1

WPW10272364 Whirlpool Refrigerator Screw Backorder WPL WPW10272364 $6.83

1

WPW10559660 Whirlpool Refrigerator Front Pan Backorder WPL WPW10559660 $157.77

2

W10530317 Whirlpool Refrigerator Plate Backorder WPL W10530317 $9.51

2

W10837274 Whirlpool Refrigerator Plate Backorder WPL W10837274 $55.98

2

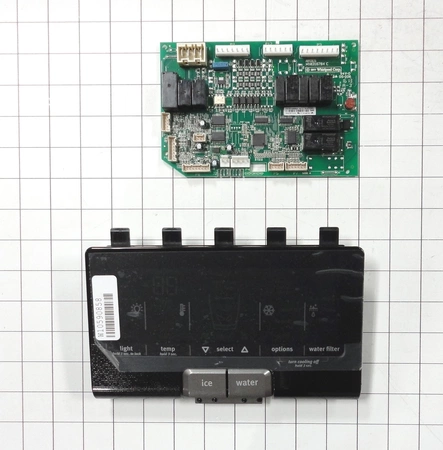

W10878995 Whirlpool Refrigerator Electronic C Backorder WPL W10878995 $291.03

2

W11577195 Whirlpool Refrigerator Icemaker In Stock WPL W11577195 $113.27

2

WP2188935 Whirlpool Refrigerator Fan Blade In Stock WPL WP2188935 $51.03

2

WPW10453401 Whirlpool Refrigerator Electronic In Stock WPL WPW10453401 $158.36

2A

ASSEMBLY, USER INTERFACE (STAINLESS) WPL W10705283 Contact Us For Availability

3

W10570074 Whirlpool Refrigerator Plate Backorder WPL W10570074 $99.48

3

W11686799 Whirlpool Refrigerator Water Tube In Stock WPL W11686799 $61.91

3

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $8.29

3

WPW10344432 Whirlpool Pivot Block Backorder WPL WPW10344432 $11.48

3

WPW10464016 Whirlpool Refrigerator Screw Backorder WPL WPW10464016 $8.04

3A

WALL, DISPENSER FALSE (BLACK) WPL W10520868 Contact Us For Availability

3B

W10520869 Whirlpool Refrigerator Separator Backorder WPL W10520869 $88.41

4

W10505487 Whirlpool Refrigerator Gasket Backorder WPL W10505487 $17.25

4

W10549593 Whirlpool Refrigerator Ice Door Backorder WPL W10549593 $145.50

4

W10847834 Whirlpool Clip Backorder WPL W10847834 $8.92

4

W11690163 Whirlpool Refrigerator Evaporator C Backorder WPL W11690163 $143.39

4

WPW10248516 Whirlpool Ladder Backorder WPL WPW10248516 $17.79

4

WPW10503522 Whirlpool Refrigerator Shaft Backorder WPL WPW10503522 $63.85

4A

ASSEMBLY, PAD (BLACK) WPL W10436677 Contact Us For Availability

5

W10587907 Whirlpool Refrigerator Dispenser Tr Backorder WPL W10587907 $22.41

5

W10857643 Whirlpool Refrigerator Door Closer Backorder WPL W10857643 $60.78

5

W11509548 Whirlpool Ice Bucket Coupler In Stock WPL W11509548 $19.79

5

W11668671 Whirlpool Refrigerator Left-Hand & In Stock WPL W11668671 $270.39

5

WPW10248799 Whirlpool Refrigerator Glass Shel Backorder WPL WPW10248799 $153.29

5

WPW10341329 Whirlpool Refrigerator Water Valv In Stock WPL WPW10341329 $61.48

5

WPW10589837-includeCORE Whirlpool WPW10589837 Backorder WPL WPW10589837-includeCORE $370.36

5A

W10681408 Whirlpool Refrigerator Closer Backorder WPL W10681408 $62.02

5B

W10587910 Whirlpool Refrigerator Dispenser Tr Backorder WPL W10587910 $85.43

6

W10415341 Whirlpool Refrigerator Gasket Backorder WPL W10415341 $23.40

6

W10426775 Whirlpool Refrigerator Trim Backorder WPL W10426775 $21.17

6

W10594047 Whirlpool Refrigerator Freezer Bin Backorder WPL W10594047 $205.76

6

W11194438 Whirlpool Water Filter Housing In Stock WPL W11194438 $134.13

6

WPW10577864 Whirlpool Refrigerator Ice Door In Stock WPL WPW10577864 $78.89

6A

FRONT, SIDEPLATE (PANTRY) (RIGHT HAND) WPL W10356979 Contact Us For Availability

7

W10490266 Whirlpool Refrigerator Cover Backorder WPL W10490266 $60.74

7

W10811115 Whirlpool Refrigerator Cover Backorder WPL W10811115 $74.84

7

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $6.83

7

WPW10435760 Whirlpool Refrigerator Ice Guide In Stock WPL WPW10435760 $16.81

8

W10322872 Whirlpool Refrigerator Drip Tray Backorder WPL W10322872 $42.75

8

W11190820 Whirlpool Refrigerator Cover Backorder WPL W11190820 $74.84

8

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $5.30

8

WPW10347093 Whirlpool Refrigerator Ice Maker In Stock WPL WPW10347093 $301.17

8A

WPW10322873 Whirlpool Refrigerator Drip Tray Backorder WPL WPW10322873 $42.60

9

W11290115 Whirlpool Refrigerator Light In Stock WPL W11290115 $43.08

9

W11817014 Whirlpool Front-Pan Backorder WPL W11817014 $131.67

9

WP2223877 Whirlpool Door Hook In Stock WPL WP2223877 $64.71

9

WPW10291905 Whirlpool Seal In Stock WPL WPW10291905 $13.77

W10507444 Whirlpool Refrigerator Divider Backorder WPL W10507444 $41.42

W11592404 Whirlpool Refrigerator Door Hinge Backorder WPL W11592404 $14.13

WP12729128 Whirlpool Defrost Heater In Stock WPL WP12729128 $79.75

WPW10277949 Whirlpool Refrigerator Filter Cov Backorder WPL WPW10277949 $69.63

WPW10363507 Whirlpool Refrigerator Shroud Backorder WPL WPW10363507 $55.98

WPW10654844 Whirlpool Storage Drawer Backorder WPL WPW10654844 $106.03

BUMPER, DOOR (WHITE) WPL W10407175 Contact Us For Availability

10A

W10407187 Whirlpool Refrigerator Door Bumper Backorder WPL W10407187 $32.45

10B

W11573367 Whirlpool Refrigerator Door Bumper In Stock WPL W11573367 $14.02

11

W10623486 Whirlpool Refrigerator Inverter Box Backorder WPL W10623486 $225.47

11

WPW10612926 Whirlpool Refrigerator Nameplate Backorder WPL WPW10612926 $23.51

11B

W11573362 Whirlpool Screw Assembly Backorder WPL W11573362 $8.89

12

W10248562 Whirlpool Refrigerator Cover Backorder WPL W10248562 $9.45

12

WPW10485096 Whirlpool Refrigerator Pan Stop Backorder WPL WPW10485096 $58.16

12A

WPW10485089 Whirlpool Refrigerator Pan Stop Backorder WPL WPW10485089 $58.16

12A

COVER, RIGHT HINGE (BLACK) WPL W10407157 Contact Us For Availability

12B

WPW10407158 Whirlpool Refrigerator Cover Asse Backorder WPL WPW10407158 $14.33

W11452196 Whirlpool Refrigerator Evaporator M In Stock WPL W11452196 $129.96

W11686800 Whirlpool Water Tube In Stock WPL W11686800 $56.59

W11690684 Whirlpool Ladder Backorder WPL W11690684 $33.26

COVER, LEFT HINGE (WHITE) WPL W10471615 Contact Us For Availability

13A

W10471617 Whirlpool Refrigerator Cover Backorder WPL W10471617 $14.97

W10503218 Whirlpool Refrigerator Funnel Backorder WPL W10503218 $11.21

W10860198 Whirlpool Refrigerator Cantilever B Backorder WPL W10860198 $167.38

W11677723 Whirlpool Support Backorder WPL W11677723 $102.46

WPW10248578 Whirlpool Refrigerator Glass Shel Backorder WPL WPW10248578 $220.78

WPW10308751 Whirlpool Screw Backorder WPL WPW10308751 $5.24

WPW10554299 Whirlpool Refrigerator Heater In Stock WPL WPW10554299 $65.43

15

W10248433 Whirlpool Refrigerator Door Hinge Backorder WPL W10248433 $58.05

15

W10316419 Whirlpool Refrigerator Frame In Stock WPL W10316419 $134.37

15A

W10407275 Whirlpool Refrigerator Door Hinge Backorder WPL W10407275 $54.31

15B

W11240748 Whirlpool Refrigerator Door Hinge Backorder WPL W11240748 $50.70

16

W10236396 Whirlpool Refrigerator Strap In Stock WPL W10236396 $13.74

16

W11624997 Whirlpool Refrigerator Gasket Backorder WPL W11624997 $44.13

16

WPW10598013 Whirlpool Refrigerator Cover In Stock WPL WPW10598013 $72.77

12587703W Whirlpool Refrigerator Cover Backorder WPL 12587703W $14.02

W10850129 Whirlpool Crisper Drawer Backorder WPL W10850129 $100.01

W11661208 Whirlpool Cover Assembly Backorder WPL W11661208 $14.02

ASSEMBLY, ICEBOX (FOAMED) WPL W10492817 Contact Us For Availability

17B

WP12587703AP Whirlpool Refrigerator Filler Backorder WPL WP12587703AP $4.82

W11592405 Whirlpool Door Hinge Backorder WPL W11592405 $16.65

CNTRL-ELEC+CORE Backorder WPL W11813704-includeCORE $261.41

WPW10469927 Whirlpool Refrigerator Housing Backorder WPL WPW10469927 $170.35

WPW10498906 Whirlpool Refrigerator Plate Backorder WPL WPW10498906 $84.93

TRAY, DRIP WPL W10342573 Contact Us For Availability

W10499289 Whirlpool Refrigerator Slide Backorder WPL W10499289 $228.36

W11457241 Whirlpool Drip Pan Kit In Stock WPL W11457241 $81.94

ROLLER-CAB In Stock WPL W11820444 $25.41

COVER, RECEIVER WPL W10258510 Contact Us For Availability

19A

ROLLER-CAB In Stock WPL W11820445 $25.41

19A

SLIDE, PANTRY (RIGHT HAND) WPL W10499294 Contact Us For Availability

W10277839 Whirlpool Refrigerator Cover Backorder WPL W10277839 $50.61

W10505516 Whirlpool Refrigerator Trim Backorder WPL W10505516 $22.21

W10530315 Whirlpool Refrigerator Support Backorder WPL W10530315 $13.20

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $4.82

W10258502 Whirlpool Refrigerator Cover Backorder WPL W10258502 $58.57

W10846539 Whirlpool Fan Motor In Stock WPL W10846539 $145.68

W11315181 Whirlpool Refrigerator Plate Backorder WPL W11315181 $54.13

WPW10364560 Whirlpool Refrigerator Solenoid In Stock WPL WPW10364560 $120.55

21A

W11315180 Whirlpool Refrigerator Plate Backorder WPL W11315180 $14.33

W10258540 Whirlpool Refrigerator Slide Backorder WPL W10258540 $6.90

W10530316 Whirlpool Refrigerator Plate Backorder WPL W10530316 $16.45

W11492867 Whirlpool Evaporator In Stock WPL W11492867 $145.44

W11578915 Whirlpool Condenser Motor In Stock WPL W11578915 $60.03

WPW10637668 Whirlpool Refrigerator Front Gril Backorder WPL WPW10637668 $93.99

22A

WPW10637669 Whirlpool Refrigerator Front Gril Backorder WPL WPW10637669 $87.45

22B

WPW10637671 Whirlpool Refrigerator Front Gril In Stock WPL WPW10637671 $72.45

23

W10870822 Whirlpool Refrigerator Electronic C In Stock WPL W10870822 $145.66

23

W11673433 Whirlpool Clip Backorder WPL W11673433 $99.38

23

W11683241 Whirlpool Module In Stock WPL W11683241 $150.42

W10248434 Whirlpool Refrigerator Door Hinge Backorder WPL W10248434 $57.81

W10491355 Whirlpool Refrigerator Air Gasket Backorder WPL W10491355 $15.89

W10530307 Whirlpool Refrigerator Track Backorder WPL W10530307 $58.50

WPW10400825 Whirlpool Refrigerator Retainer Backorder WPL WPW10400825 $19.51

24A

W10407279 Whirlpool Refrigerator Door Hinge In Stock WPL W10407279 $54.31

24B

W10878115 Whirlpool Refrigerator Door Hinge Backorder WPL W10878115 $50.12

25

W11233912 Whirlpool Refrigerator Slide In Stock WPL W11233912 $128.67

25

W11637688 Whirlpool Heater In Stock WPL W11637688 $54.60

25

WPW10347087 Whirlpool Refrigerator Ice Chute In Stock WPL WPW10347087 $31.63

27

WPW10236512 Whirlpool Refrigerator Support Backorder WPL WPW10236512 $90.80

27

WPW10258520 Whirlpool Refrigerator Flipper Backorder WPL WPW10258520 $53.58

27

WPW10306786 Whirlpool Refrigerator Inverter B Backorder WPL WPW10306786 $224.60

28

W10423560 Whirlpool Refrigerator Screw Backorder WPL W10423560 $8.89

28

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $63.61

28

WPW10280983 Whirlpool Refrigerator Insulation In Stock WPL WPW10280983 $61.76

29

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $10.62

29

WPW10389152 Whirlpool Support In Stock WPL WPW10389152 $13.89

29

WPW10406719 Whirlpool Refrigerator Shroud Backorder WPL WPW10406719 $52.27

30

W11189618 Whirlpool Refrigerator Wire Harness Backorder WPL W11189618 $99.08

30

W11482027 Whirlpool Refrigerator Back Cover Backorder WPL W11482027 $75.77

30

WPW10635022 Whirlpool Refrigerator Adapter Backorder WPL WPW10635022 $68.31

31

W10278140 Whirlpool Refrigerator Unit Cover Backorder WPL W10278140 $68.46

31

W10389154 Whirlpool Refrigerator Retainer Backorder WPL W10389154 $17.09

32

W10854958 Whirlpool Refrigerator Screw In Stock WPL W10854958 $4.80

32

WPW10499015 Whirlpool Refrigerator Water Tube Backorder WPL WPW10499015 $84.39

32

SUPPORT, DAMPER WPL W10389149 Contact Us For Availability

33

WPW10248595 Whirlpool Damper Control Assembly In Stock WPL WPW10248595 $134.21

33

WPW10626970 Whirlpool Refrigerator Tube Backorder WPL WPW10626970 $117.39

33

TUBE, DRAIN WPL W10503562 Contact Us For Availability

W10442183 Whirlpool Refrigerator Wire Harness Backorder WPL W10442183 $86.94

W11190819 Whirlpool Refrigerator Cover Backorder WPL W11190819 $14.02

W11760073 Whirlpool Condenser Backorder WPL W11760073 $122.87

COUPLER, DOOR WPL W10505294 Contact Us For Availability

35

W10212137 Whirlpool Refrigerator Grommet Backorder WPL W10212137 $8.35

35

WPW10494227 Whirlpool Refrigerator Power Cord Backorder WPL WPW10494227 $57.62

35

WPW10501260 Whirlpool Refrigerator Evaporator In Stock WPL WPW10501260 $109.71

36

WPW10392172 Whirlpool Refrigerator Gasket Backorder WPL WPW10392172 $16.84

37

W11209890 Whirlpool Refrigerator Water Tube Backorder WPL W11209890 $77.32

37

WPW10280988 Whirlpool Refrigerator Gasket In Stock WPL WPW10280988 $5.30

38

WPW10320706 Whirlpool Refrigerator Gasket In Stock WPL WPW10320706 $17.02

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $37.41

350930 Whirlpool White Spray Paint In Stock WPL 350930 $30.02

350942 Whirlpool Spray Paint Backorder WPL 350942 $64.04

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $20.75

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $56.75

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $19.58

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $21.50

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $32.12

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $80.02

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $87.85

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $92.18

W10578603 Whirlpool Refrigerator Wire Harness Backorder WPL W10578603 $98.12

W10859326 Whirlpool Refrigerator Wire Harness Backorder WPL W10859326 $85.22

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $80.29

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $119.63

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $43.17

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $67.02

WPW10277799 Whirlpool Refrigerator Wire Harne In Stock WPL WPW10277799 $43.29

VALVE, ACCESS WPL 978029 Contact Us For Availability

MISCELLANEOUS, KIT, FOAM SLAB (30" X 32 1/2" WPL 876029 Contact Us For Availability

MISCELLANEOUS, TAPE, VINYL (3/4 X 108") WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT. WHITE) WPL 799344 Contact Us For Availability

TORX SCREW WRENCH, TORX KEY WPL 1117510 Contact Us For Availability
