Model Maytag MFI2569VEB2 REFRIGERATOR – Common Parts & Diagrams

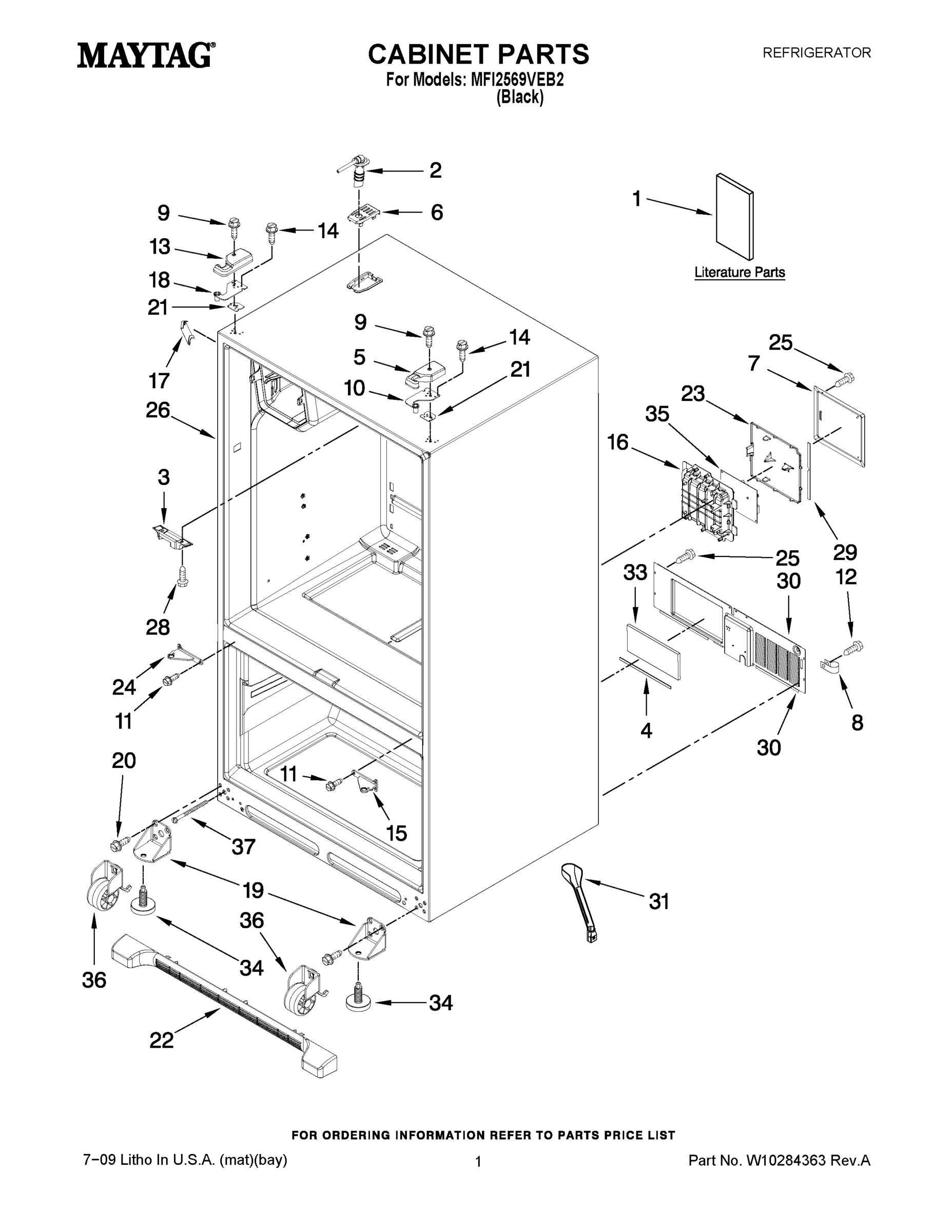

01 - CABINET PARTS

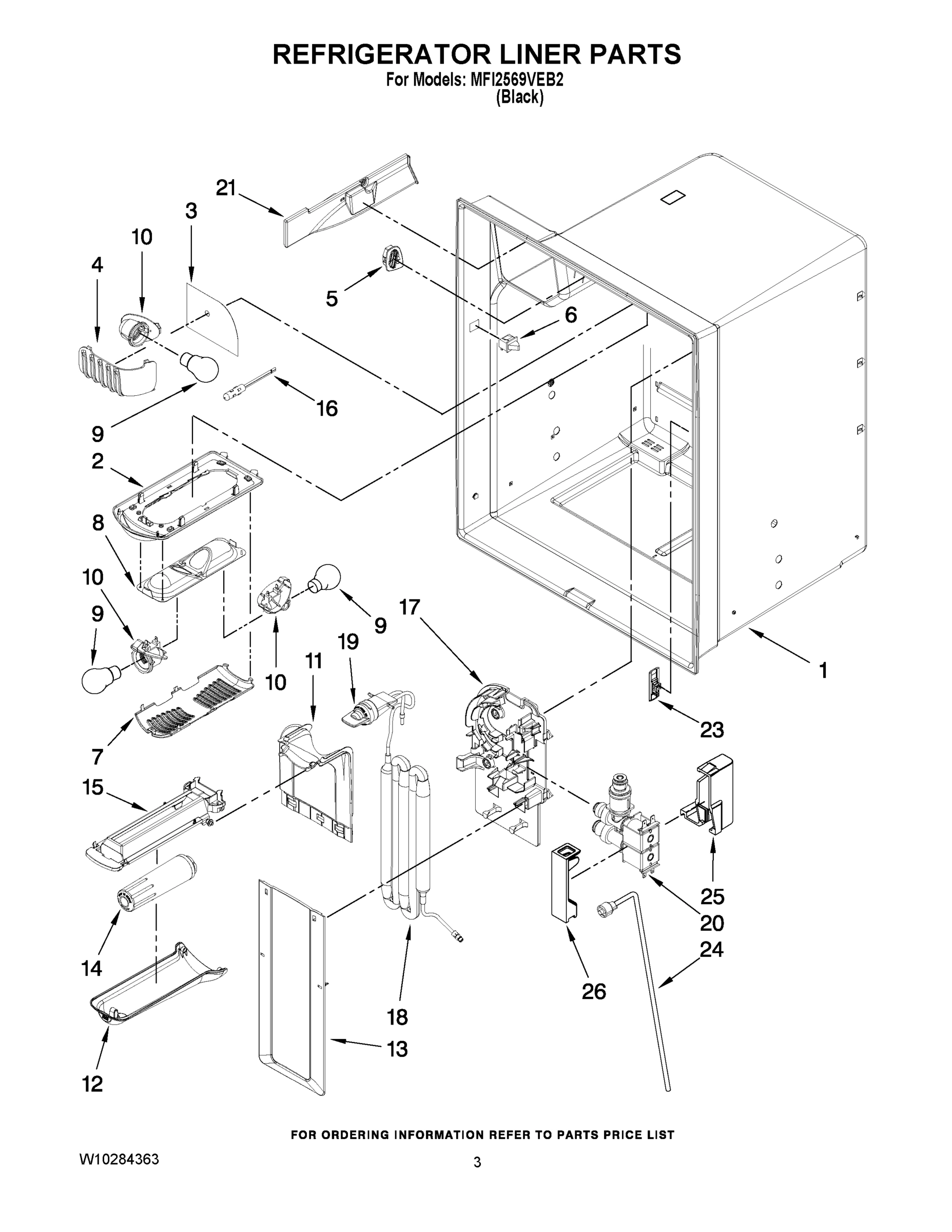

02 - REFRIGERATOR LINER PARTS

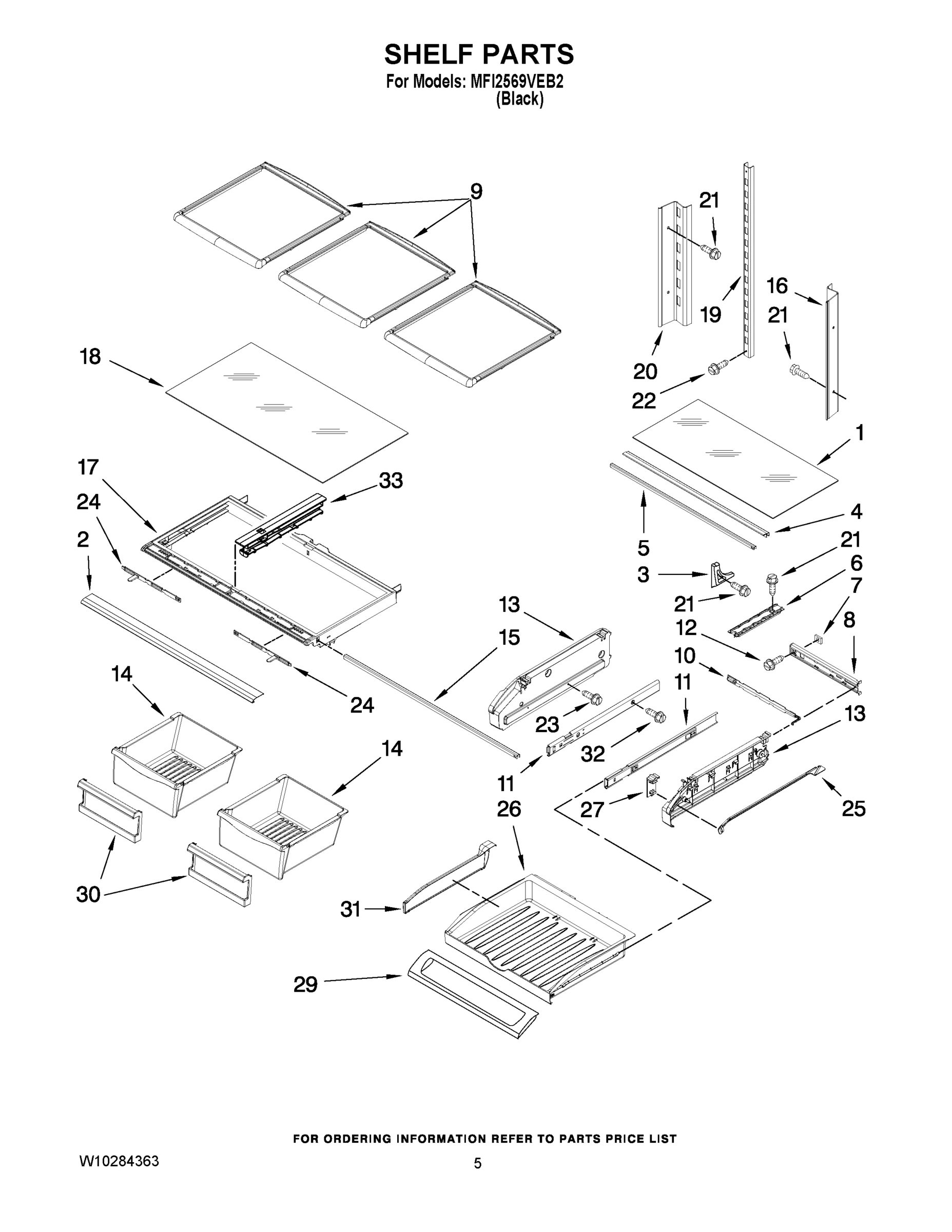

03 - SHELF PARTS

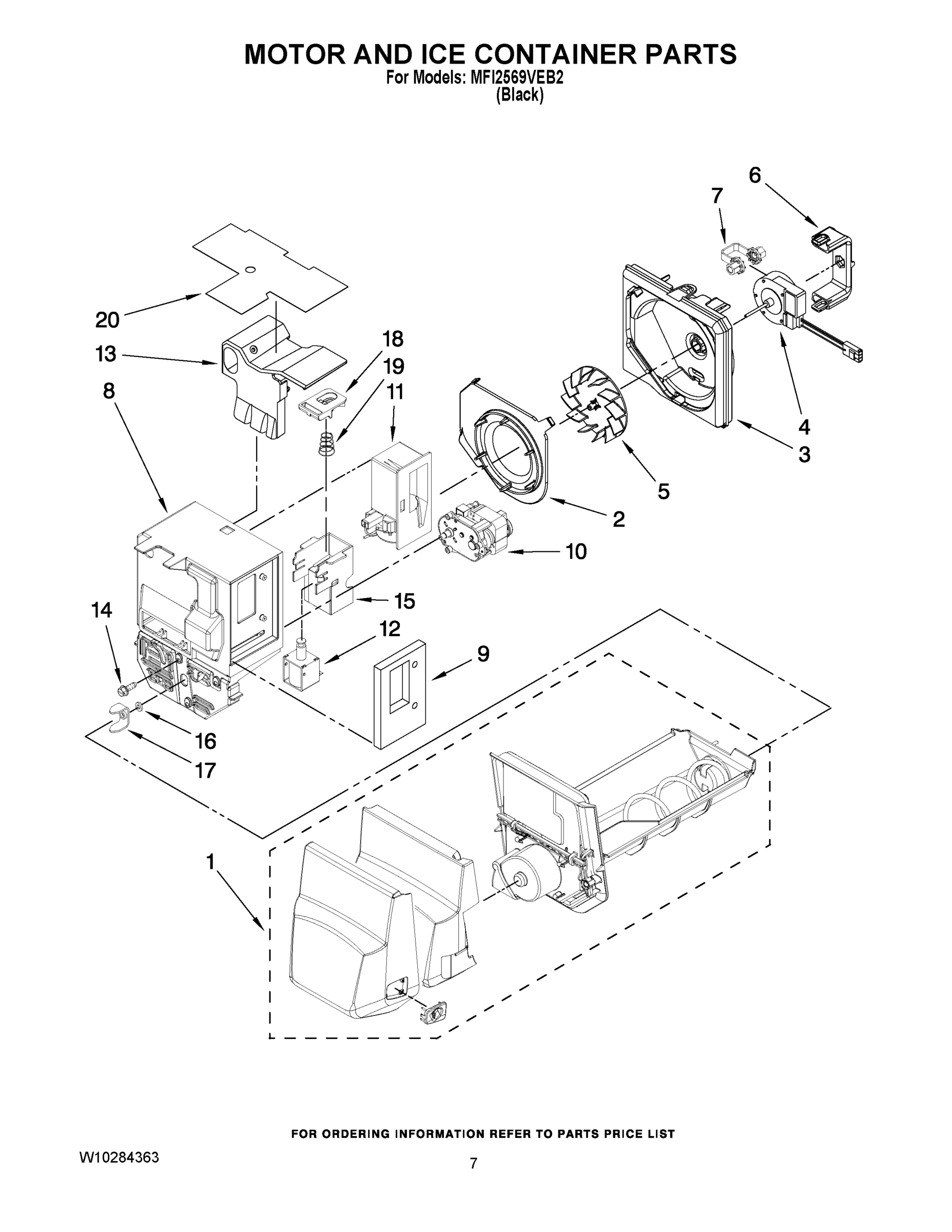

04 - MOTOR AND ICE CONTAINER PARTS

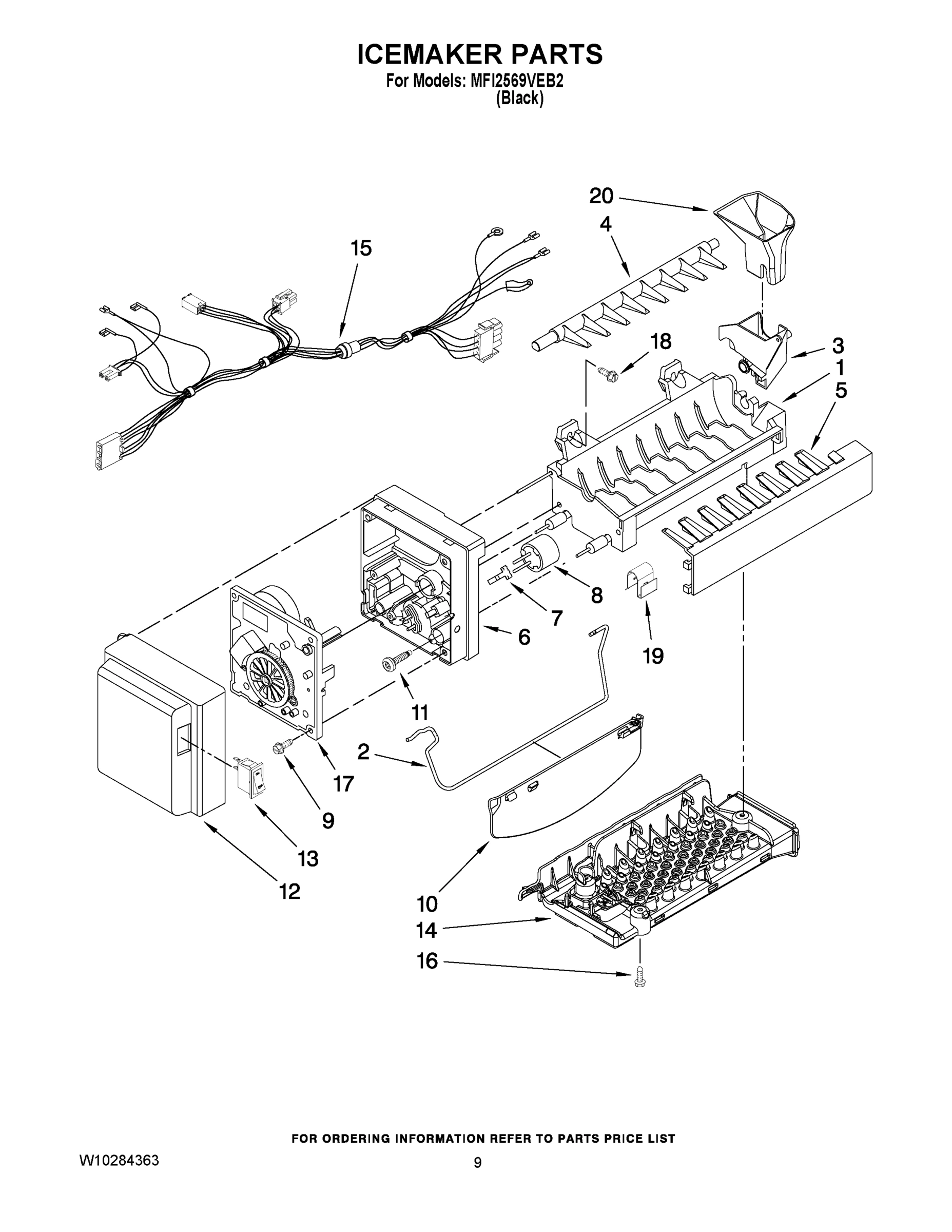

05 - ICEMAKER PARTS

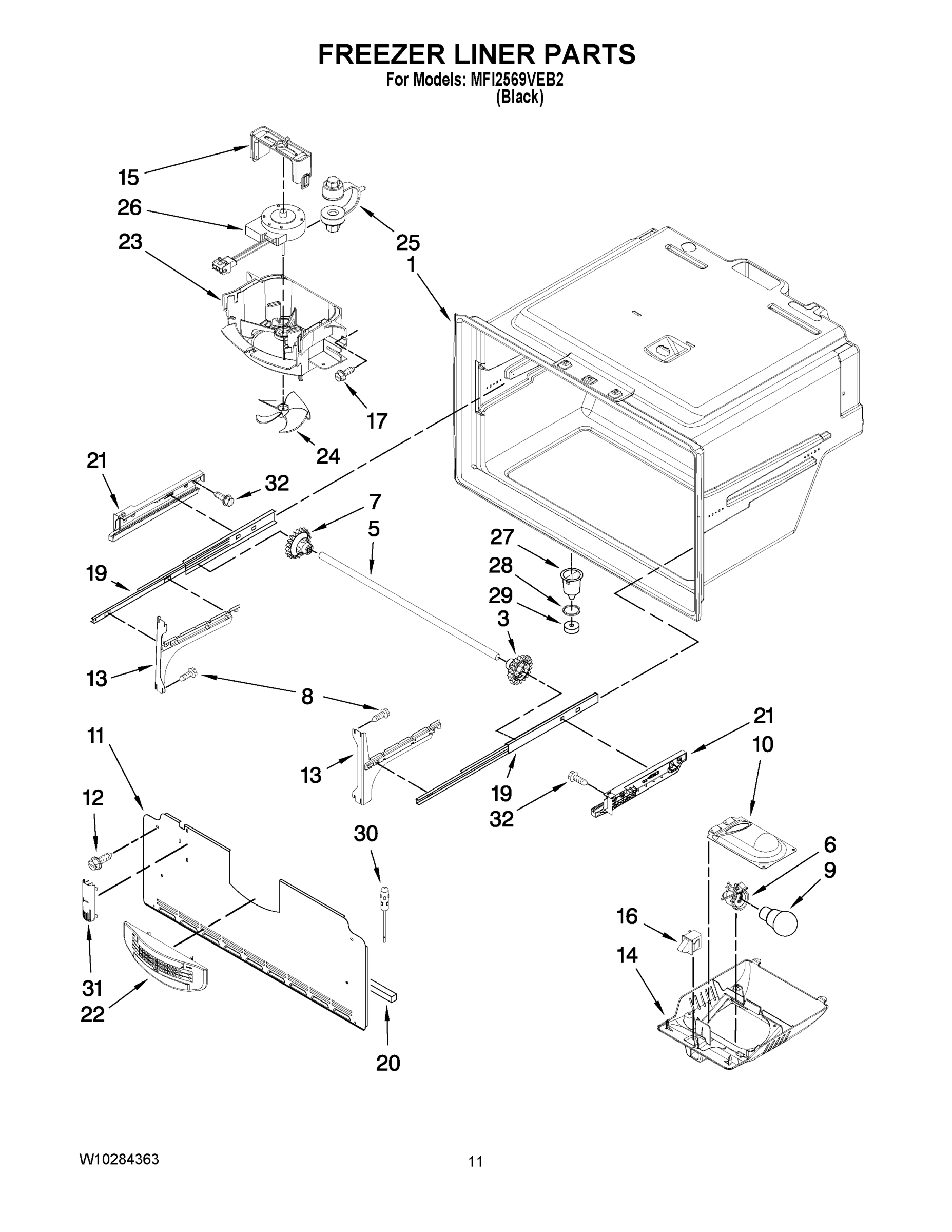

06 - FREEZER LINER PARTS

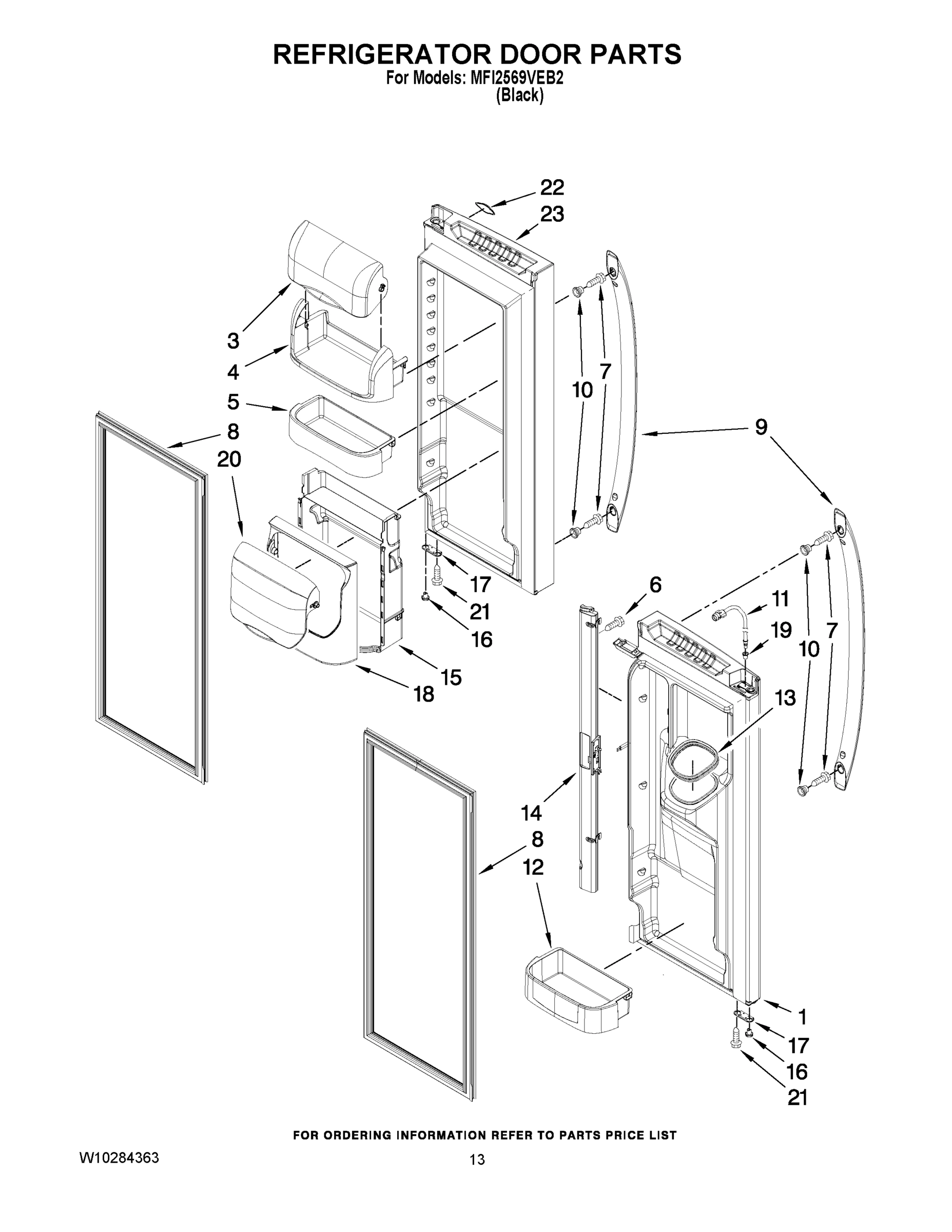

07 - REFRIGERATOR DOOR PARTS

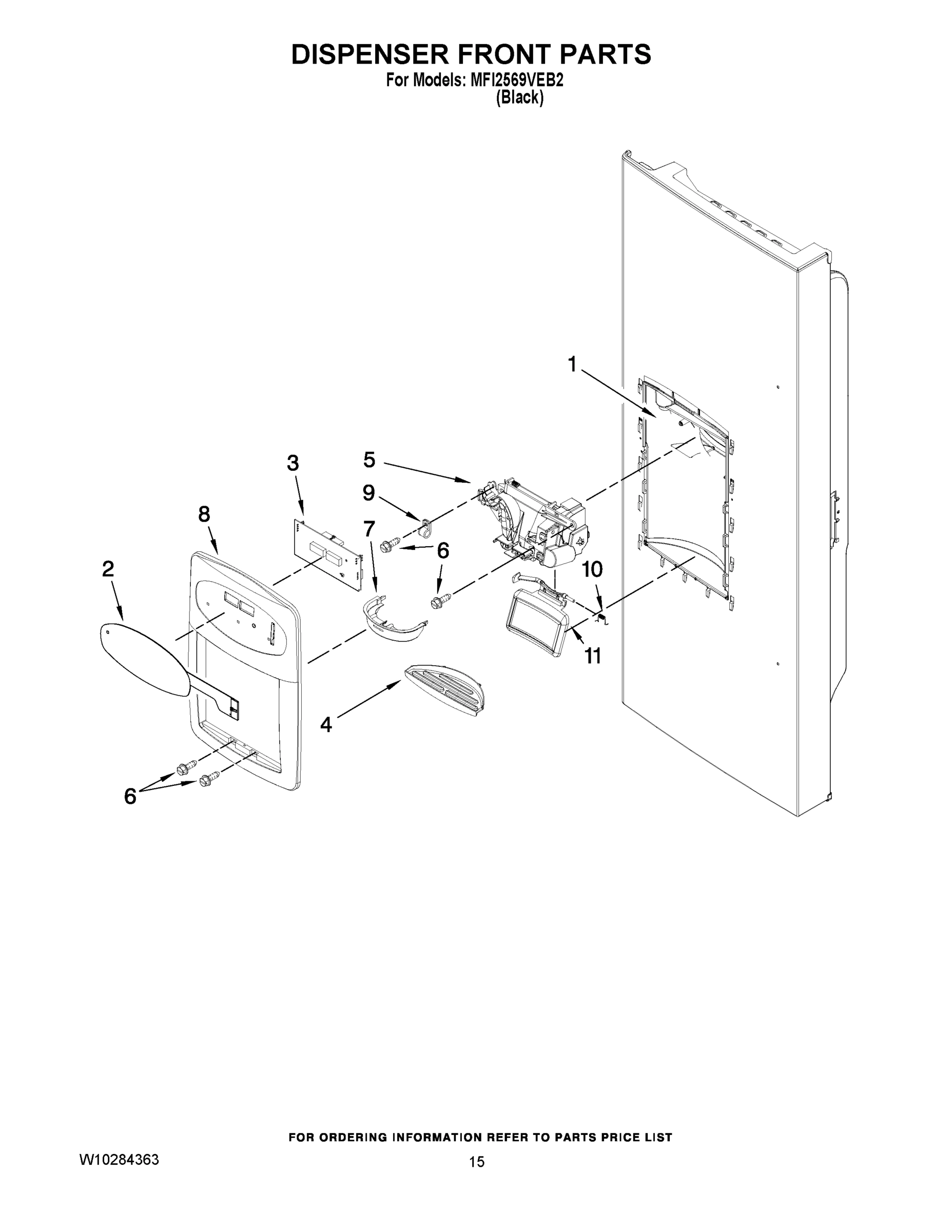

08 - DISPENSER FRONT PARTS

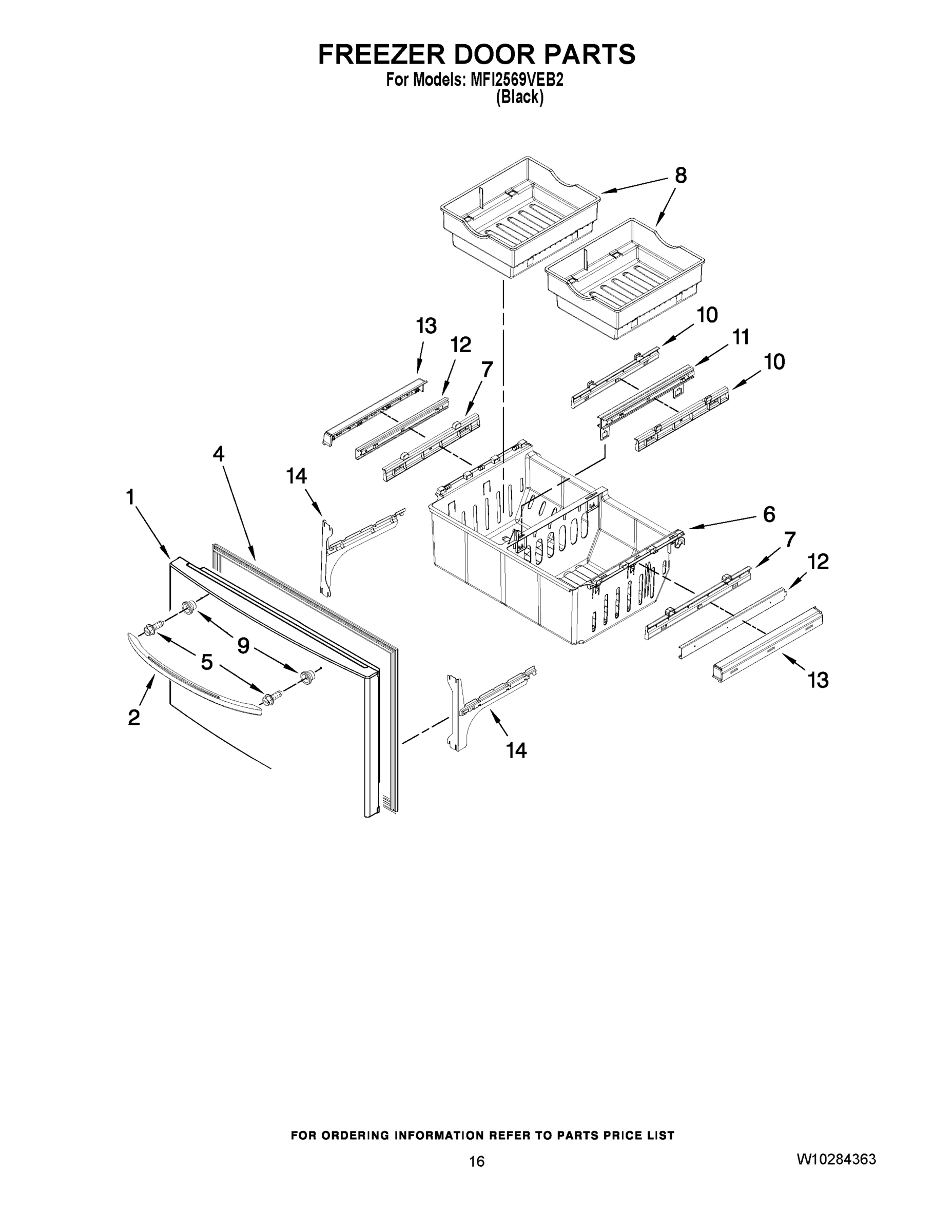

09 - FREEZER DOOR PARTS

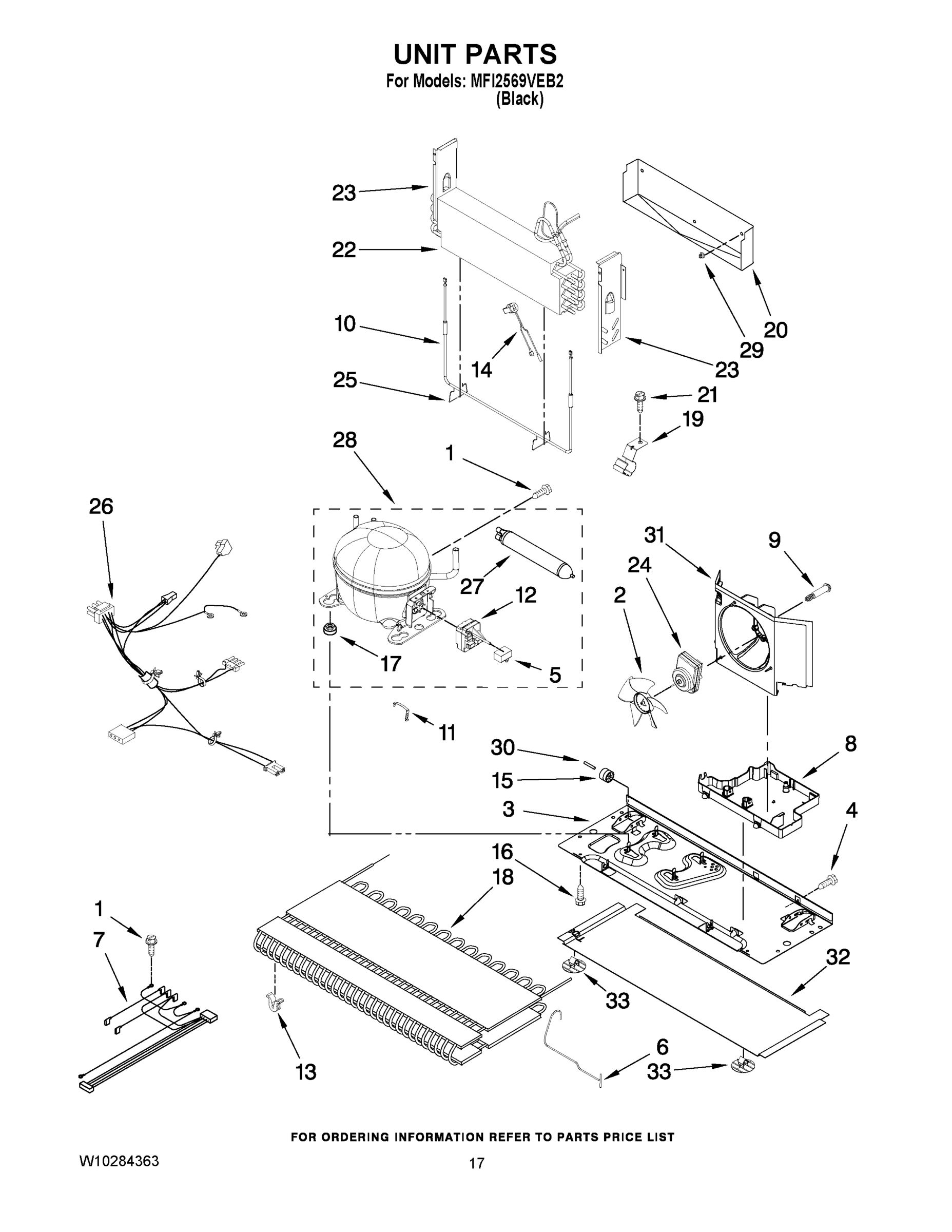

10 - UNIT PARTS
11 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MFI2569VEB2 REFRIGERATOR
1
GLASS, PANTRY MAY 12204824 Contact Us For Availability
1
MAY 13012605 MAY 13012605 Contact Us For Availability
1
MOLD & HEATER ASSEMBLY (ALSO ORDER 542638 GRE MAY W10122527 Contact Us For Availability
1
DOOR, LEFT (BLACK) MAY 12978068BQ Contact Us For Availability
1
MAY 12977834BQ MAY 12977834BQ Contact Us For Availability
1
MAY 12992301 MAY 12992301 Contact Us For Availability
2
MAY 12905803 MAY 12905803 Contact Us For Availability
2
MAY W10231345 MAY W10231345 Contact Us For Availability
2
MAY W10121282 MAY W10121282 Contact Us For Availability
2
MAY W10175514 MAY W10175514 Contact Us For Availability
2
MAY W10164469 MAY W10164469 Contact Us For Availability
2
HANDLE, DOOR (BLACK) MAY W10197303 Contact Us For Availability
2
MAY 12825803 MAY 12825803 Contact Us For Availability
3
MAY 12691605 MAY 12691605 Contact Us For Availability
3
SUPPORT,CRISPER(2) MAY 13062602 Contact Us For Availability
3
MAY W10121281 MAY W10121281 Contact Us For Availability
3
Cup, Fill MAY 628515 Contact Us For Availability
3
MAY 12804701SP MAY 12804701SP Contact Us For Availability
3
MAY 12939601 MAY 12939601 Contact Us For Availability
3
MAY W10210985 MAY W10210985 Contact Us For Availability
4
MAY 12990511 MAY 12990511 Contact Us For Availability
4
MAY 12921801 MAY 12921801 Contact Us For Availability
4
Support, Pantry(2) MAY 12655902SP Contact Us For Availability
4
MAY W10162697 MAY W10162697 Contact Us For Availability
4
MAY 627843 MAY 627843 Contact Us For Availability
4
MAY 12369502SP MAY 12369502SP Contact Us For Availability
4
MAY W10164979 MAY W10164979 Contact Us For Availability
4
MAY W10164044 MAY W10164044 Contact Us For Availability
5
MAY 13008201 MAY 13008201 Contact Us For Availability
5
MAY 12227305WD MAY 12227305WD Contact Us For Availability
5
MAY W10123444 MAY W10123444 Contact Us For Availability
5
MAY 2182124 MAY 2182124 Contact Us For Availability
5
MAY 12812903WD MAY 12812903WD Contact Us For Availability
5
MAY 12945801SP MAY 12945801SP Contact Us For Availability
5
MAY 12991703 MAY 12991703 Contact Us For Availability
5
MAY 13005703B MAY 13005703B Contact Us For Availability
5
MAY 2264017 MAY 2264017 Contact Us For Availability
6
MAY 12981401B MAY 12981401B Contact Us For Availability
6
MAY 12466103 MAY 12466103 Contact Us For Availability
6
TRACK, PANTRY MAY 12531901 Contact Us For Availability
6
SCREW (3) MAY 12990513 Contact Us For Availability
6
MAY 12956603SP MAY 12956603SP Contact Us For Availability
6
MAY 2194712 MAY 2194712 Contact Us For Availability
6
Socket, Light MAY 12570701V Contact Us For Availability
6
MAY 12924801SP MAY 12924801SP Contact Us For Availability
6
MAY W10217747 MAY W10217747 Contact Us For Availability
7
MAY 12961602 MAY 12961602 Contact Us For Availability
7
MAY 12905902 MAY 12905902 Contact Us For Availability
7
MAY 12656901 MAY 12656901 Contact Us For Availability
7
MAY W10151687 MAY W10151687 Contact Us For Availability
7
MAY 2315522 MAY 2315522 Contact Us For Availability
7
MAY 12958301 MAY 12958301 Contact Us For Availability
7
MAY 12925403SP MAY 12925403SP Contact Us For Availability
7
Harness, Evap Heater MAY W10119239 Contact Us For Availability
8
MAY M0108107 MAY M0108107 Contact Us For Availability
8
MAY 12806601V MAY 12806601V Contact Us For Availability
8
MAY 12656202 MAY 12656202 Contact Us For Availability
8
MAY 12958408SP MAY 12958408SP Contact Us For Availability
8
Thermostat (Also Order 542369 Cement) MAY 628397 Contact Us For Availability
8
GASKET, DOOR (LEFT DOOR) (BLACK) MAY W10163898 Contact Us For Availability
8
MAY W10164982 MAY W10164982 Contact Us For Availability
8
MAY W10215085 MAY W10215085 Contact Us For Availability
9
Screw, Hinge Cover MAY 12992602 Contact Us For Availability
9
MAY W10194422V MAY W10194422V Contact Us For Availability
9
SHELF, GLIDE (3) MAY 12883507 Contact Us For Availability
9
MAY 12920001SP MAY 12920001SP Contact Us For Availability
9
MAY W10194422 MAY W10194422 Contact Us For Availability
9
Door Handle (Black) MAY W10197298 Contact Us For Availability
9
MAY 13001201 MAY 13001201 Contact Us For Availability
9
MAY M0108106 MAY M0108106 Contact Us For Availability
9
MAY W10216919 MAY W10216919 Contact Us For Availability
10
MAY 12963205ED MAY 12963205ED Contact Us For Availability
10
SLIDE, TEMPERATURE MAY 12655402 Contact Us For Availability
10
MAY 12955405 MAY 12955405 Contact Us For Availability
10
MAY W10121440 MAY W10121440 Contact Us For Availability
10
MAY 12476401SP MAY 12476401SP Contact Us For Availability
10
MAY W10170832 MAY W10170832 Contact Us For Availability
10
MAY 12925404SP MAY 12925404SP Contact Us For Availability
10
MAY 12729123 MAY 12729123 Contact Us For Availability
11
SCREW, CENTER HINGE MAY 12992201 Contact Us For Availability
11
Cover, Water Tank (Upper) MAY 12960101 Contact Us For Availability
11
MAY 13058101V MAY 13058101V Contact Us For Availability
11
MAY W10127427 MAY W10127427 Contact Us For Availability
11
Screw (2) MAY 8533917 Contact Us For Availability
11
MAY 12935801 MAY 12935801 Contact Us For Availability
11
BRACKET/GLIDE ASSEMBLY MAY 12969701 Contact Us For Availability
11
MAY W10204187 MAY W10204187 Contact Us For Availability
12
Lid, Water Filter MAY 12960301 Contact Us For Availability
12
MAY 13028201SP MAY 13028201SP Contact Us For Availability
12
MAY W10121444 MAY W10121444 Contact Us For Availability
12
Bin, Shelf (Gallon) MAY 12840004 Contact Us For Availability
12
MAY 12925101 MAY 12925101 Contact Us For Availability
12
MAY W10197428 MAY W10197428 Contact Us For Availability
13
MAY 12962301B MAY 12962301B Contact Us For Availability
13
COVER, WATER TANK(LOWER) MAY 12960001 Contact Us For Availability
13
ENDCAP, PANTRY (RIGHT) MAY 12656019 Contact Us For Availability
13
ENDCAP, PANTRY (LEFT) MAY 12656106 Contact Us For Availability
13
MAY W10118612 MAY W10118612 Contact Us For Availability
13
MAY 2313326 MAY 2313326 Contact Us For Availability
13
MAY 12999902 MAY 12999902 Contact Us For Availability
13
MAY 12925501SP MAY 12925501SP Contact Us For Availability
13
MAY 12925502SP MAY 12925502SP Contact Us For Availability
13
GROMMET, COND (4) MAY W10137529 Contact Us For Availability
14
Screw, Top Hinge MAY 12992403 Contact Us For Availability
14
PAN, CRISPER (2) MAY 12804601SP Contact Us For Availability
14
MAY W10121269 MAY W10121269 Contact Us For Availability
14
MAY W10122147 MAY W10122147 Contact Us For Availability
14
MAY W10122148 MAY W10122148 Contact Us For Availability
14
MAY 13027902SP MAY 13027902SP Contact Us For Availability
14
MAY 12722813B MAY 12722813B Contact Us For Availability
14
MAY 12639311SP MAY 12639311SP Contact Us For Availability
15
HINGE, CENTER (RT) (BLACK) MAY 13000008ED Contact Us For Availability
15
MAY 12955901 MAY 12955901 Contact Us For Availability
15
Brace, Crisper MAY 12642303WD Contact Us For Availability
15
MAY 12958602SP MAY 12958602SP Contact Us For Availability
15
MAY W10117806 MAY W10117806 Contact Us For Availability
15
MAY 12956601 MAY 12956601 Contact Us For Availability
15
MAY 12945601SP MAY 12945601SP Contact Us For Availability
15
Roller (2) MAY 12477102 Contact Us For Availability
16
MAY 12957601 MAY 12957601 Contact Us For Availability
16
LADDER, SIDE RH MAY 13039301 Contact Us For Availability
16
MAY 420107A700 MAY 420107A700 Contact Us For Availability
16
MAY 12466111SP MAY 12466111SP Contact Us For Availability
16
MAY 12028505B MAY 12028505B Contact Us For Availability
16
MAY 12992101 MAY 12992101 Contact Us For Availability
17
COVER, CORNER (2) (BLACK) MAY 12587703B Contact Us For Availability
17
MAY 12956001 MAY 12956001 Contact Us For Availability
17
MAY 12796301SP MAY 12796301SP Contact Us For Availability
17
Screw, Fan Shroud To Basket MAY 12990504 Contact Us For Availability
17
YOKE, ICE (DISPENSER) MAY 63052A001 Contact Us For Availability
17
MAY W10223929 MAY W10223929 Contact Us For Availability
17
MAY 12968202B MAY 12968202B Contact Us For Availability
17
Grommet (4) MAY 10835903SP Contact Us For Availability
18
MAY 12963204ED MAY 12963204ED Contact Us For Availability
18
TANK & VALVE HEAD ASSEMBLY MAY 12956202 Contact Us For Availability
18
GLASS, CRISPER COVER MAY 12204830 Contact Us For Availability
18
MAY 12958502SP MAY 12958502SP Contact Us For Availability
18
Screw (3) MAY 489276 Contact Us For Availability
18
MAY 12945501SP MAY 12945501SP Contact Us For Availability
18
MAY W10135026 MAY W10135026 Contact Us For Availability
19
MAY 12906303WD MAY 12906303WD Contact Us For Availability
19
PLUG, BYPASS MAY 12664501SP Contact Us For Availability
19
MAY 12435809 MAY 12435809 Contact Us For Availability
19
MAY 12942401SP MAY 12942401SP Contact Us For Availability
19
Clip MAY 628379 Contact Us For Availability
19
SLIDE, DRAWER (2) MAY W10120018 Contact Us For Availability
19
MAY 12996601 MAY 12996601 Contact Us For Availability
19
MAY 10547003 MAY 10547003 Contact Us For Availability
20
Screw (8) MAY 12991302 Contact Us For Availability
20
MAY 12956102 MAY 12956102 Contact Us For Availability
20
LADDER, SIDE (RIGHT) MAY W10251965 Contact Us For Availability
20
LADDER, SIDE (LEFT) MAY W10251966 Contact Us For Availability
20
MAY W10142628 MAY W10142628 Contact Us For Availability
20
MAY W10121434 MAY W10121434 Contact Us For Availability
20
MAY A3189396 MAY A3189396 Contact Us For Availability
20
MAY 12945701SP MAY 12945701SP Contact Us For Availability
20
MAY 12225403WD MAY 12225403WD Contact Us For Availability
21
Shim, Top Hinge (Left) MAY 12999501 Contact Us For Availability
21
Shim, Top Hinge (Right) MAY 12999502 Contact Us For Availability
21
MAY 12960901 MAY 12960901 Contact Us For Availability
21
MAY 12990521 MAY 12990521 Contact Us For Availability
21
MAY W10159938 MAY W10159938 Contact Us For Availability
21
MAY W10159939 MAY W10159939 Contact Us For Availability
21
MAY 12990701 MAY 12990701 Contact Us For Availability
22
MAY 12880103B MAY 12880103B Contact Us For Availability
22
Screw MAY 12990515 Contact Us For Availability
22
MAY 12959901 MAY 12959901 Contact Us For Availability
22
Nameplate MAY W10170766 Contact Us For Availability
22
MAY 12959803 MAY 12959803 Contact Us For Availability
23
MAY 12957701SP MAY 12957701SP Contact Us For Availability
23
MAY 12987301 MAY 12987301 Contact Us For Availability
23
MAY 12990512 MAY 12990512 Contact Us For Availability
23
Shroud, Evap Fan MAY 12951401 Contact Us For Availability
23
DOOR, RIGHT (BLACK) MAY 12978070BQ Contact Us For Availability
23
Dam (Left Side) MAY 12963002SP Contact Us For Availability
23
Dam (Right Side) MAY 12963102SP Contact Us For Availability
24
MAY 12962204 MAY 12962204 Contact Us For Availability
24
HINGE, CENTER (LT) (BLACK) MAY 13000007ED Contact Us For Availability
24
MAY 12530805SP MAY 12530805SP Contact Us For Availability
24
Blade, Fan (Evaporator) MAY 12986101 Contact Us For Availability
24
MAY 12825101 MAY 12825101 Contact Us For Availability
25
Screw, Cover MAY 12990702 Contact Us For Availability
25
MAY W10118193 MAY W10118193 Contact Us For Availability
25
BAR, TEMPERATURE CONTROL MAY 12655304 Contact Us For Availability
25
Grommet, Fan Motor (2) MAY 12951101 Contact Us For Availability
26
MAY W10118194 MAY W10118194 Contact Us For Availability
26
MAY 12731302 MAY 12731302 Contact Us For Availability
26
MAY W10257096 MAY W10257096 Contact Us For Availability
26
MAY W10234027 MAY W10234027 Contact Us For Availability
27
KNOB, TEMPERATURE CONTROL CRISPER FRAME MAY 12655204V Contact Us For Availability
27
MAY D7753903 MAY D7753903 Contact Us For Availability
27
Drier MAY W10143759 Contact Us For Availability
28
Screw, Block MAY 12990302 Contact Us For Availability
28
SEAL, O RING MAY M0500703 Contact Us For Availability
28
Compressor (Includes items 11,12,17,27) MAY W10134623 Contact Us For Availability
29
Gasket, HV Control MAY 12957801 Contact Us For Availability
29
MAY 12656815 MAY 12656815 Contact Us For Availability
29
GASKET, DRAIN TUBE MAY B8381501 Contact Us For Availability
29
MAY 10623002 MAY 10623002 Contact Us For Availability
30
MAY W10211858 MAY W10211858 Contact Us For Availability
30
FRONT-CRISPER MAY 12802602SP Contact Us For Availability
30
Axle, Roller (2) MAY 12477202 Contact Us For Availability
31
MAY W10210988 MAY W10210988 Contact Us For Availability
31
MAY 12731901 MAY 12731901 Contact Us For Availability
31
MAY 12815301 MAY 12815301 Contact Us For Availability
31
SHROUD MAY W10189184 Contact Us For Availability
32
Screw, Adapter MAY 12990501 Contact Us For Availability
32
EXTENSION, BASEPAN MAY W10206338 Contact Us For Availability
33
Fiber, Acoustic MAY 12820505 Contact Us For Availability
33
RAIL-CENTER CRSPR. MAY 12796401 Contact Us For Availability
33
MAY W10206339 MAY W10206339 Contact Us For Availability
34
MAY 10354002 MAY 10354002 Contact Us For Availability
35
MAY 12920724 MAY 12920724 Contact Us For Availability
36
MAY 12580304 MAY 12580304 Contact Us For Availability
37
BOLT, ROLLER ADJUST MAY 12606103 Contact Us For Availability
100
MAY W10190981 MAY W10190981 Contact Us For Availability
NI
REFRIGERANT CHARGE (5.25 OZS. (R-134A)) MAY N/P Contact Us For Availability
NI
MAY 10244904SP MAY 10244904SP Contact Us For Availability
NI
HARNESS FZ-LIGHT MAY 12952005SP Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
Cleaner, Stnls Steel Magic MAY 20000008 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
Customer Touch-Up Material (Enamel, White (13 MAY 350930 Contact Us For Availability
NI
Customer Touch-Up Material (Enamel, Black (13 MAY 350939 Contact Us For Availability
NI
Customer Touch-Up Material (Primer, White (13 MAY 350942 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
MAY 606755 MAY 606755 Contact Us For Availability
NI
MAY 67007112 MAY 67007112 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 72017 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 72032 Contact Us For Availability
NI
Refinishing Material (Enamel, Black (1 Qt. Un MAY 799340 Contact Us For Availability
NI
REFINISHING MATERIAL (ENAMEL, WHITE (1 QT. UN MAY 799344 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
NI
MAY 876029 MAY 876029 Contact Us For Availability
NI
MAY 876305 MAY 876305 Contact Us For Availability
NI
MAY 876370 MAY 876370 Contact Us For Availability
NI
MAY 978941 MAY 978941 Contact Us For Availability
× ![]()
