  • Whirlpool MED9700SQ0 Parts List

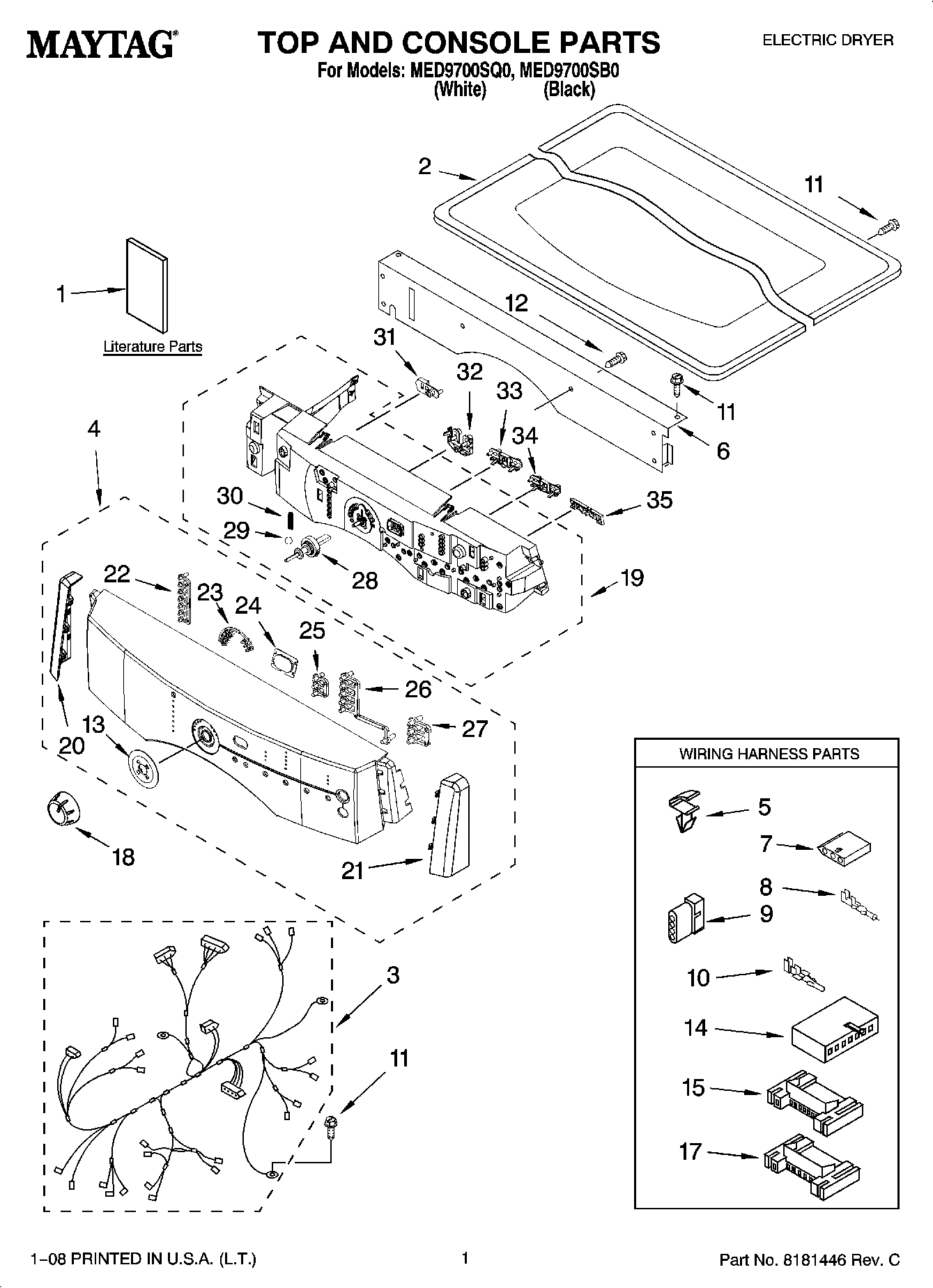

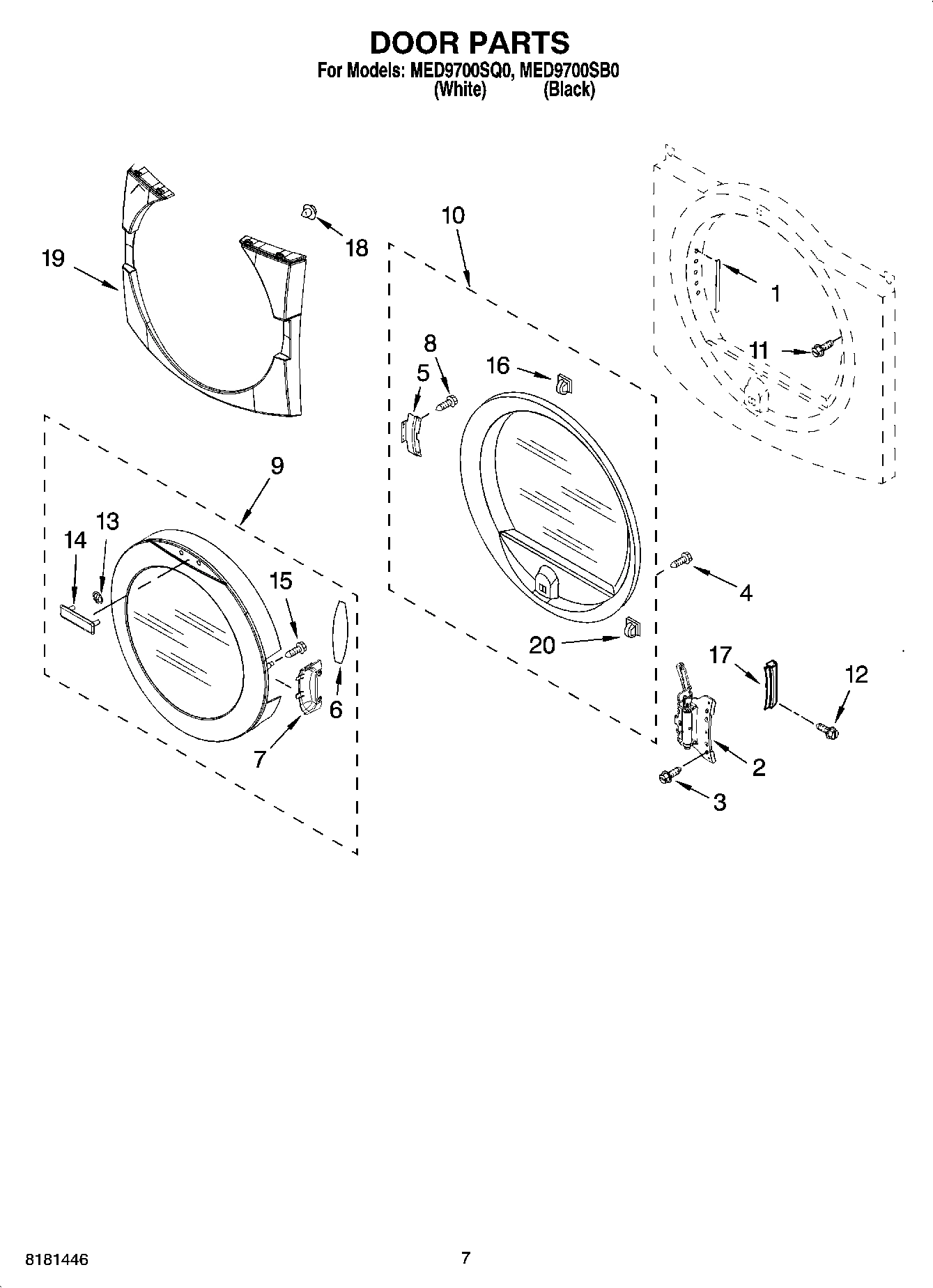

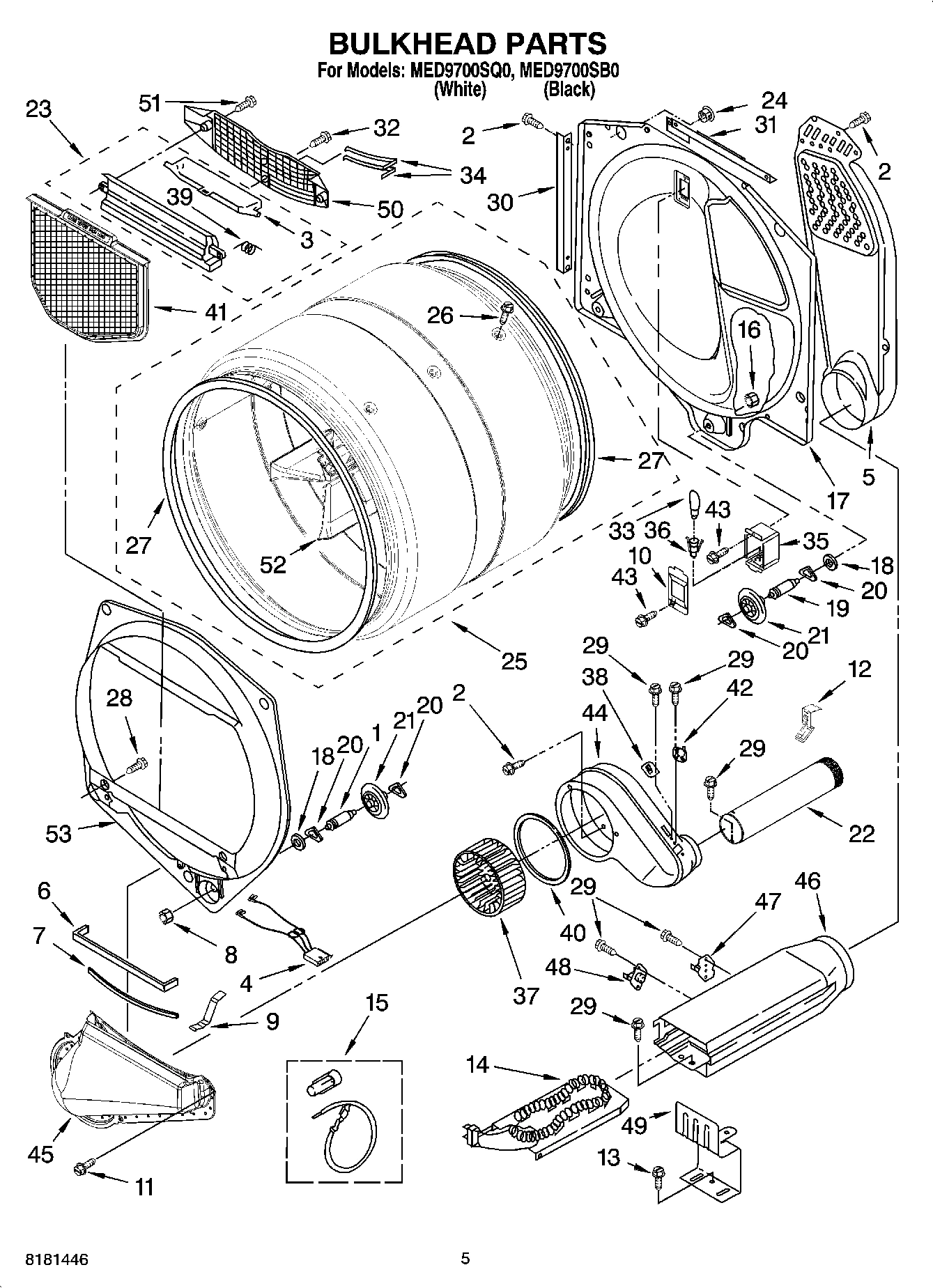

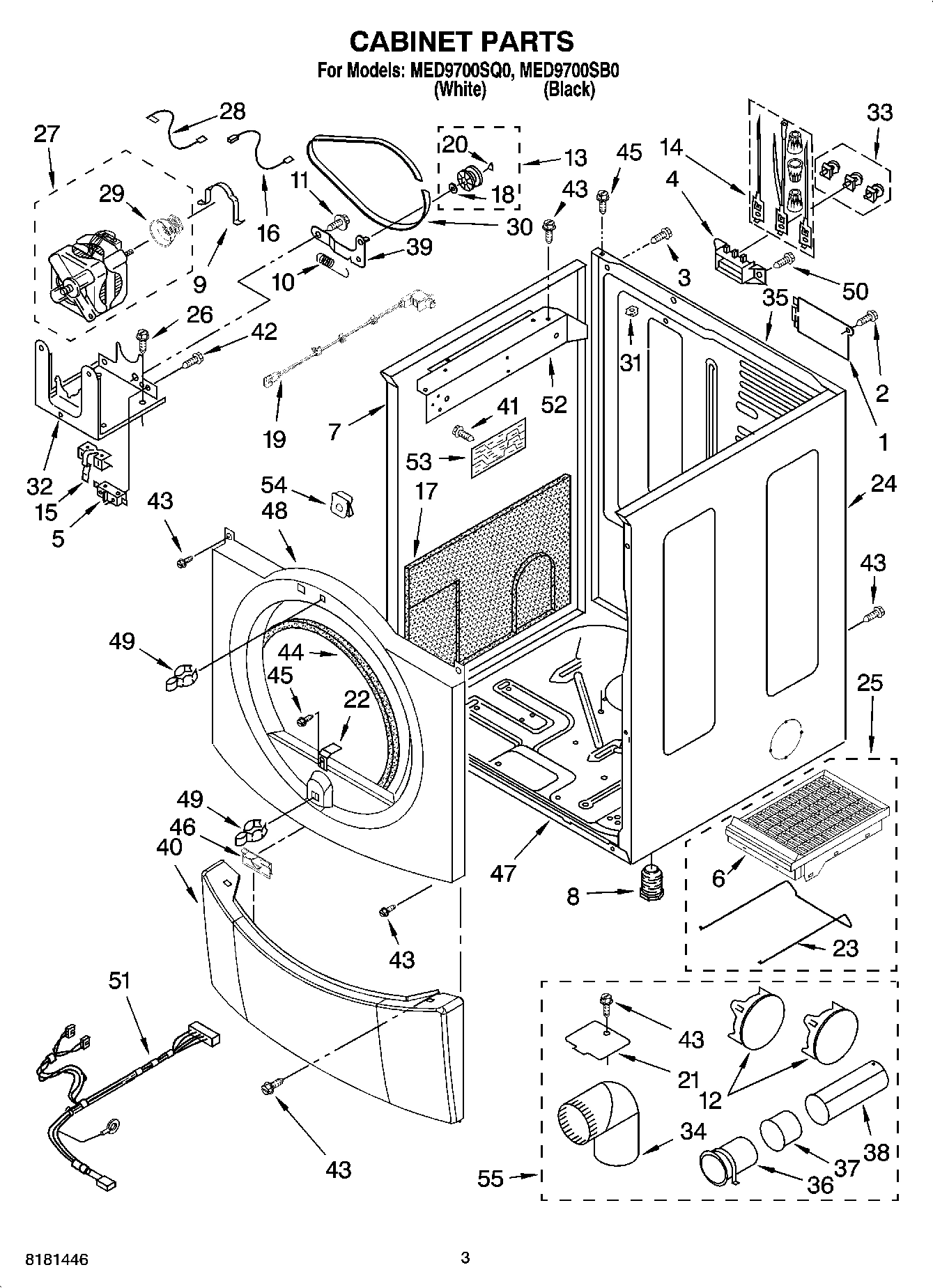

Model Whirlpool MED9700SQ0 ELECTRIC DRYER – Common Parts & Diagrams

1
Plug-Strip Hinge Hole
Plug-Strip Hinge Hole WPL 8563855 Contact Us For Availability
View on Model
1
Tech Sheet
Tech Sheet WPL 8563816 Contact Us For Availability
View on Model
1
Guide, Quick Start
Guide, Quick Start WPL W10099080 Contact Us For Availability
View on Model
1
Use & Care Guide
Use & Care Guide WPL W10150616 Contact Us For Availability
View on Model
2
Top (White)
Top (White) WPL 8519251 Contact Us For Availability
View on Model
2
Top (Black)
Top (Black) WPL 8579997 Contact Us For Availability
View on Model
3
Harness, Main
Harness, Main WPL 8576530 Contact Us For Availability
View on Model
4
Screw, 8-18 x 5/8
Screw, 8-18 x 5/8 WPL 9742177 Contact Us For Availability
View on Model
4
Panel, Console (Includes Bezel, Light Indicat
Panel, Console (Includes Bezel, Light Indicat WPL W10098940 Contact Us For Availability
View on Model
4
Panel, Console (Includes Bezel, Light Indicat
Panel, Console (Includes Bezel, Light Indicat WPL W10098960 Contact Us For Availability
View on Model
5
Bracket, Handle
Bracket, Handle WPL 8529539 Contact Us For Availability
View on Model
6
Pad, Door Handle
Pad, Door Handle WPL 8541011 Contact Us For Availability
View on Model
6
Bracket, Console
Bracket, Console WPL 8519271 Contact Us For Availability
View on Model
7
Connector Sensor
Connector Sensor WPL 353424 Contact Us For Availability
View on Model
7
Handle, Door (White)
Handle, Door (White) WPL W10133974 Contact Us For Availability
View on Model
7
Handle, Door (Black)
Handle, Door (Black) WPL 8557268 Contact Us For Availability
View on Model
9
Door & Window Assembly (Includes Illus. 6, 7,
Door & Window Assembly (Includes Illus. 6, 7, WPL W10098830 Contact Us For Availability
View on Model
9
Door & Window Assembly (Includes Illus. 6, 7,
Door & Window Assembly (Includes Illus. 6, 7, WPL W10133985 Contact Us For Availability
View on Model
10
Inner Door Assembly (Includes Illus. 5, 8 16
Inner Door Assembly (Includes Illus. 5, 8 16 WPL 8557501 Contact Us For Availability
View on Model
13
Bezel, Cycle
Bezel, Cycle WPL 8542690 Contact Us For Availability
View on Model
14
Medallion
Medallion WPL W10116209 Contact Us For Availability
View on Model
14
Connector, 7-Circuit
Connector, 7-Circuit WPL 3936150 Contact Us For Availability
View on Model
15
Screw
Screw WPL 8533957 Contact Us For Availability
View on Model
17
Cover-Hinge, Rotating (White)
Cover-Hinge, Rotating (White) WPL 8566486 Contact Us For Availability
View on Model
17
Cover-Hinge, Rotating (Black)
Cover-Hinge, Rotating (Black) WPL 8579980 Contact Us For Availability
View on Model
18
Clip, Trim Panel
Clip, Trim Panel WPL 8547091 Contact Us For Availability
View on Model
18
Knob Assembly (Black)
Knob Assembly (Black) WPL 8580138 Contact Us For Availability
View on Model
18
Knob, Assembly (White)
Knob, Assembly (White) WPL W10133964 Contact Us For Availability
View on Model
19
User Interface (Includes Illus. 28, 29 & 30)
User Interface (Includes Illus. 28, 29 & 30) WPL 8558455 Contact Us For Availability
View on Model
19
Trim & Clip Assembly (White)
Trim & Clip Assembly (White) WPL 8562596 Contact Us For Availability
View on Model
19
Trim & Clip Assembly (Black)
Trim & Clip Assembly (Black) WPL 8579981 Contact Us For Availability
View on Model
20
EndCap(LH) (White)
EndCap(LH) (White) WPL 8562598 Contact Us For Availability
View on Model
20
EndCap (LH) (Black)
EndCap (LH) (Black) WPL 8580135 Contact Us For Availability
View on Model
21
EndCap (RH) (White)
EndCap (RH) (White) WPL 8562597 Contact Us For Availability
View on Model
21
EndCap (RH) (Black)
EndCap (RH) (Black) WPL 8580134 Contact Us For Availability
View on Model
22
Ramp, Door
Ramp, Door WPL 8529053 Contact Us For Availability
View on Model
22
Light Indicator (Status)
Light Indicator (Status) WPL 8542682 Contact Us For Availability
View on Model
23
Dry Rack Support
Dry Rack Support WPL 8521961 Contact Us For Availability
View on Model
23
Light Indicator (Cycle)
Light Indicator (Cycle) WPL 8542683 Contact Us For Availability
View on Model
24
Lens, Display
Lens, Display WPL 8542691 Contact Us For Availability
View on Model
25
Light Indicator (Dryness Level)
Light Indicator (Dryness Level) WPL 8542684 Contact Us For Availability
View on Model
26
Light Indicator (Temperature)
Light Indicator (Temperature) WPL 8542685 Contact Us For Availability
View on Model
27
Light Indicator (XCare/EOC)
Light Indicator (XCare/EOC) WPL 8542686 Contact Us For Availability
View on Model
28
Shaft, Cycle Selector
Shaft, Cycle Selector WPL 8542717 Contact Us For Availability
View on Model
29
Bearing, Knob
Bearing, Knob WPL 8542716 Contact Us For Availability
View on Model
30
Spring, Knob
Spring, Knob WPL 8542715 Contact Us For Availability
View on Model
31
Pushbutton, (Control) (Silver (For Black Mode
Pushbutton, (Control) (Silver (For Black Mode WPL 8580140 Contact Us For Availability
View on Model
31
Pushbutton, (Control) (Silver)
Pushbutton, (Control) (Silver) WPL W10133970 Contact Us For Availability
View on Model
32
Pushbutton, (Drytime) (White)
Pushbutton, (Drytime) (White) WPL W10100390 Contact Us For Availability
View on Model
32
Pushbutton, (Drytime) (Silver)
Pushbutton, (Drytime) (Silver) WPL 8579989 Contact Us For Availability
View on Model
33
Pushbutton, (Dryness/Temp) (White)
Pushbutton, (Dryness/Temp) (White) WPL 8562604 Contact Us For Availability
View on Model
33
Pushbutton, (Dryness/Temp) (Silver)
Pushbutton, (Dryness/Temp) (Silver) WPL 8579991 Contact Us For Availability
View on Model
34
Pushbutton, (XCare/EOC) (White)
Pushbutton, (XCare/EOC) (White) WPL 8562605 Contact Us For Availability
View on Model
34
WPL 8579993
WPL 8579993 WPL 8579993 Contact Us For Availability
View on Model
35
WPL 8579994
WPL 8579994 WPL 8579994 Contact Us For Availability
View on Model
35
WPL W10133971
WPL W10133971 WPL W10133971 Contact Us For Availability
View on Model
47
WPL 8519207
WPL 8519207 WPL 8519207 Contact Us For Availability
View on Model
48
WPL 8565907
WPL 8565907 WPL 8565907 Contact Us For Availability
View on Model
48
WPL 8579974
WPL 8579974 WPL 8579974 Contact Us For Availability
View on Model
51
WPL 8299925
WPL 8299925 WPL 8299925 Contact Us For Availability
View on Model
52
Baffle, Drum
Baffle, Drum WPL W10113136 Contact Us For Availability
View on Model
52
WPL 8519273
WPL 8519273 WPL 8519273 Contact Us For Availability
View on Model
53
WPL 8546219
WPL 8546219 WPL 8546219 Contact Us For Availability
View on Model
54
WPL 62825
WPL 62825 WPL 62825 Contact Us For Availability
View on Model
54
WPL ARI4629A73
WPL ARI4629A73 WPL ARI4629A73 Contact Us For Availability
View on Model
NI
PAINT, PRESSURIZED SPRAY (12 oz.) (Black)
PAINT, PRESSURIZED SPRAY (12 oz.) (Black) WPL 786020 Contact Us For Availability
View on Model
NI
Kit, Hold Down
Kit, Hold Down WPL 8529894 Contact Us For Availability
View on Model
NI
ACCESSORY PARTS
ACCESSORY PARTS WPL ARI4630A45 Contact Us For Availability
View on Model
