Model Whirlpool MDG25PDAGW0 GAS DRYER – Common Parts &amp; Diagrams

1

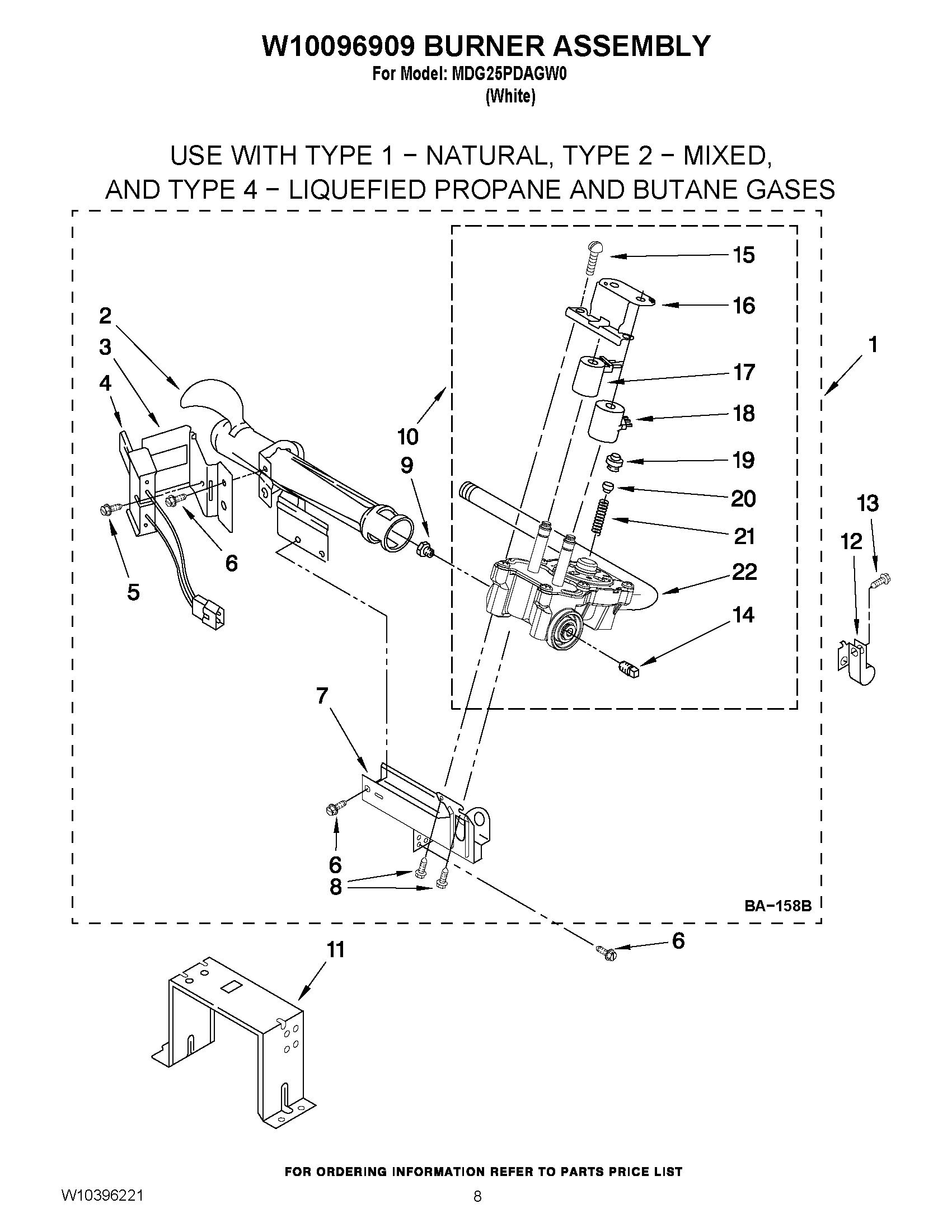

W10096909 Whirlpool Gas Burner Backorder WPL W10096909 $264.92

2

WP693140 Whirlpool Burner Backorder WPL WP693140 $132.83

3

W10181925 Whirlpool Door Backorder WPL W10181925 $11.57

3

WP694298 Whirlpool Bracket Backorder WPL WP694298 $15.81

4

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $42.56

4

WPW10167627 Whirlpool Thermal Cutoff Backorder WPL WPW10167627 $71.17

4

Screw, 8-18 x 5/8 WPL 9742177 Contact Us For Availability

5

3400618 Whirlpool Screw Backorder WPL 3400618 $4.41

5

W11168650 Whirlpool Air Duct Backorder WPL W11168650 $105.51

5

WPW10366705 Whirlpool Screw Backorder WPL WPW10366705 $5.02

6

W11706993 Whirlpool Seal Backorder WPL W11706993 $16.14

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $4.56

6

Screw, 10-16 x 1/2 WPL W10080320 Contact Us For Availability

7

Base, Burner WPL 3389871 Contact Us For Availability

8

WPW10159996 Whirlpool Screw Backorder WPL WPW10159996 $4.82

8

NUT, 3/8 X 16 (R.H.) WPL W10080210 Contact Us For Availability

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $5.30

9

ORIFICE, BURNER (TYPE 1) WPL 234660 Contact Us For Availability

10

WP8281918 Whirlpool Gas Valve Backorder WPL WP8281918 $232.45

11

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $5.02

11

Bracket, Support WPL 3389889 Contact Us For Availability

12

3978776 Whirlpool Bracket Backorder WPL 3978776 $61.09

12

W11790400 Whirlpool Console Backorder WPL W11790400 $167.84

13

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $5.30

13

WPW10286878 Whirlpool Window Backorder WPL WPW10286878 $182.87

14

279318 Whirlpool Terminal In Stock WPL 279318 $56.86

14

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

14

W10295523 Whirlpool Plug Backorder WPL W10295523 $15.58

15

694421 Whirlpool Screw Assembly Backorder WPL 694421 $8.13

15

8564011 Whirlpool Bracket Backorder WPL 8564011 $12.06

15

WP693995 Whirlpool Screw In Stock WPL WP693995 $4.45

16

WP8580059 Whirlpool Window Backorder WPL WP8580059 $69.36

16

WPW10080190 Whirlpool Nut In Stock WPL WPW10080190 $5.30

16

Bracket, Coil WPL 694538 Contact Us For Availability

17

WP307930 Whirlpool Coil Valve Backorder WPL WP307930 $80.79

17

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $91.99

17

WP8534022 Whirlpool Screw Backorder WPL WP8534022 $4.82

W11236646 Whirlpool Washer Assembly In Stock WPL W11236646 $11.95

WP8565018 Whirlpool Hinge Backorder WPL WP8565018 $81.11

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $4.82

WPY307931 Whirlpool Valve Coil Backorder WPL WPY307931 $88.41

19

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.35

19

WPW10163915 Whirlpool Door Seal In Stock WPL WPW10163915 $87.86

20

3347825 Whirlpool Plate Backorder WPL 3347825 $4.67

20

WP694423 Whirlpool Regulator Backorder WPL WP694423 $4.82

21

WP694422 Whirlpool Spring Backorder WPL WP694422 $16.83

21

WPW10314173 Whirlpool Dryer Drum Support Whee In Stock WPL WPW10314173 $18.60

22

8565083 Whirlpool Ramp Assembly Backorder WPL 8565083 $67.96

22

W10097610 Whirlpool Pipe Backorder WPL W10097610 $20.41

23

W11197085 Whirlpool Outer Housing Backorder WPL W11197085 $24.82

23

WP8565122 Whirlpool Strike Assembly Backorder WPL WP8565122 $4.82

23

WPW10135255 Whirlpool Switch Backorder WPL WPW10135255 $165.37

24

W11113654 Whirlpool Pad In Stock WPL W11113654 $17.02

24

WP8573824 Whirlpool Funnel Backorder WPL WP8573824 $124.03

25

W11215531 Whirlpool Base Backorder WPL W11215531 $231.82

26

W10225180 Whirlpool Rear Panel Backorder WPL W10225180 $142.16

26

W10853898 Whirlpool Screw Backorder WPL W10853898 $4.82

26

WPW10137457 Whirlpool Screw In Stock WPL WPW10137457 $5.00

27

W10416574 Whirlpool Motor Drive Backorder WPL W10416574 $231.14

28

W10137398 Whirlpool Block Backorder WPL W10137398 $22.61

28

W11637765 Whirlpool Cover Backorder WPL W11637765 $45.76

28

WP8066208 Whirlpool Clip Backorder WPL WP8066208 $4.82

29

W10167237 Whirlpool Motor Pulley Backorder WPL W10167237 $77.19

30

WPW10131172 Whirlpool Belt In Stock WPL WPW10131172 $29.95

31

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $29.61

31

WP3397659 Whirlpool Terminal Block In Stock WPL WP3397659 $14.75

32

W11676491 Whirlpool Base Backorder WPL W11676491 $82.89

33

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $21.53

33

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $22.04

34

W11096090 Whirlpool Wire Harness Backorder WPL W11096090 $8.85

34

WPW10416072 Whirlpool Elbow Backorder WPL WPW10416072 $15.21

35

8578825 Whirlpool Bracket Backorder WPL 8578825 $14.48

35

W11283272 Whirlpool Washer Dryer Access Door In Stock WPL W11283272 $88.04

36

WP8563747 Whirlpool Exhaust Pipe Backorder WPL WP8563747 $65.33

37

W10166308 Whirlpool Harness Wire Backorder WPL W10166308 $77.64

37

WPW10331278 Whirlpool Exhaust Pipe Backorder WPL WPW10331278 $56.29

37

WPW10349492 Whirlpool Wheel In Stock WPL WPW10349492 $61.61

38

WP8563749 Whirlpool Exhaust Pipe Backorder WPL WP8563749 $63.22

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $56.83

39

WPW10344192 Whirlpool Idler Pulley In Stock WPL WPW10344192 $67.52

40

W10137448 Whirlpool Cushion Backorder WPL W10137448 $23.26

40

WP8540621 Whirlpool Toe Panel Backorder WPL WP8540621 $124.22

41

W11715721 Whirlpool Screw Assembly Backorder WPL W11715721 $4.96

42

3400934 Whirlpool Screw Backorder WPL 3400934 $6.75

43

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $6.02

44

W10888146 Whirlpool Housing In Stock WPL W10888146 $55.62

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $17.25

46

W11315680 Whirlpool Electronic Control Backorder WPL W11315680 $426.91

46

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $33.02

47

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $4.67

47

WP8563727 Whirlpool Bracket Backorder WPL WP8563727 $121.61

48

8565043 Whirlpool Plug Backorder WPL 8565043 $67.96

49

Screw, 10-16 x 1/2 WPL W10080710 Contact Us For Availability

50

FRONT PANEL (INCLUDES ILLUS. 44) WPL W10255282 Contact Us For Availability

51

W11236387 Whirlpool Switch Backorder WPL W11236387 $22.89

52

Foam-Seal (IEC) WPL 8318396 Contact Us For Availability

53

WP3391943 Whirlpool Foot Boot Backorder WPL WP3391943 $4.82

54

WP3405160 Whirlpool Belt Assembly In Stock WPL WP3405160 $22.02

55

W10181903 Whirlpool Bracket Backorder WPL W10181903 $18.02

57

W10851673 Whirlpool Transformer Backorder WPL W10851673 $309.80

58

W11676450 Whirlpool Screw Backorder WPL W11676450 $8.89

65

W10751202 Whirlpool Transformer Backorder WPL W10751202 $153.91

66

WPL W10080820 WPL W10080820 Contact Us For Availability

350930 Whirlpool White Spray Paint In Stock WPL 350930 $30.02

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

4392067 Whirlpool Dryer Repair Kit In Stock WPL 4392067 $39.73

49621 Whirlpool Leveling Feet In Stock WPL 49621 $4.42

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $19.58

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $58.79

8212450A Whirlpool Dryer Rack Assembly Backorder WPL 8212450A $51.16

8572546 Whirlpool Washer Duet Sport Epic Stac In Stock WPL 8572546 $40.02

W10223807 Whirlpool Adapter Backorder WPL W10223807 $52.70

W10470674 Whirlpool Dryer Side Vent Exhaust K In Stock WPL W10470674 $73.41

W10571757 Whirlpool Dryer LP Gas Conversion K Backorder WPL W10571757 $25.71

W11224254 Whirlpool Test Kit In Stock WPL W11224254 $9.23

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE UNCUT) WPL 799344 Contact Us For Availability

WPL W10153836 WPL W10153836 Contact Us For Availability

Hold Down Kit WPL 8529894 Contact Us For Availability
