Model Whirlpool MDG10PSAGL ELECTRIC DRYER – Common Parts & Diagrams

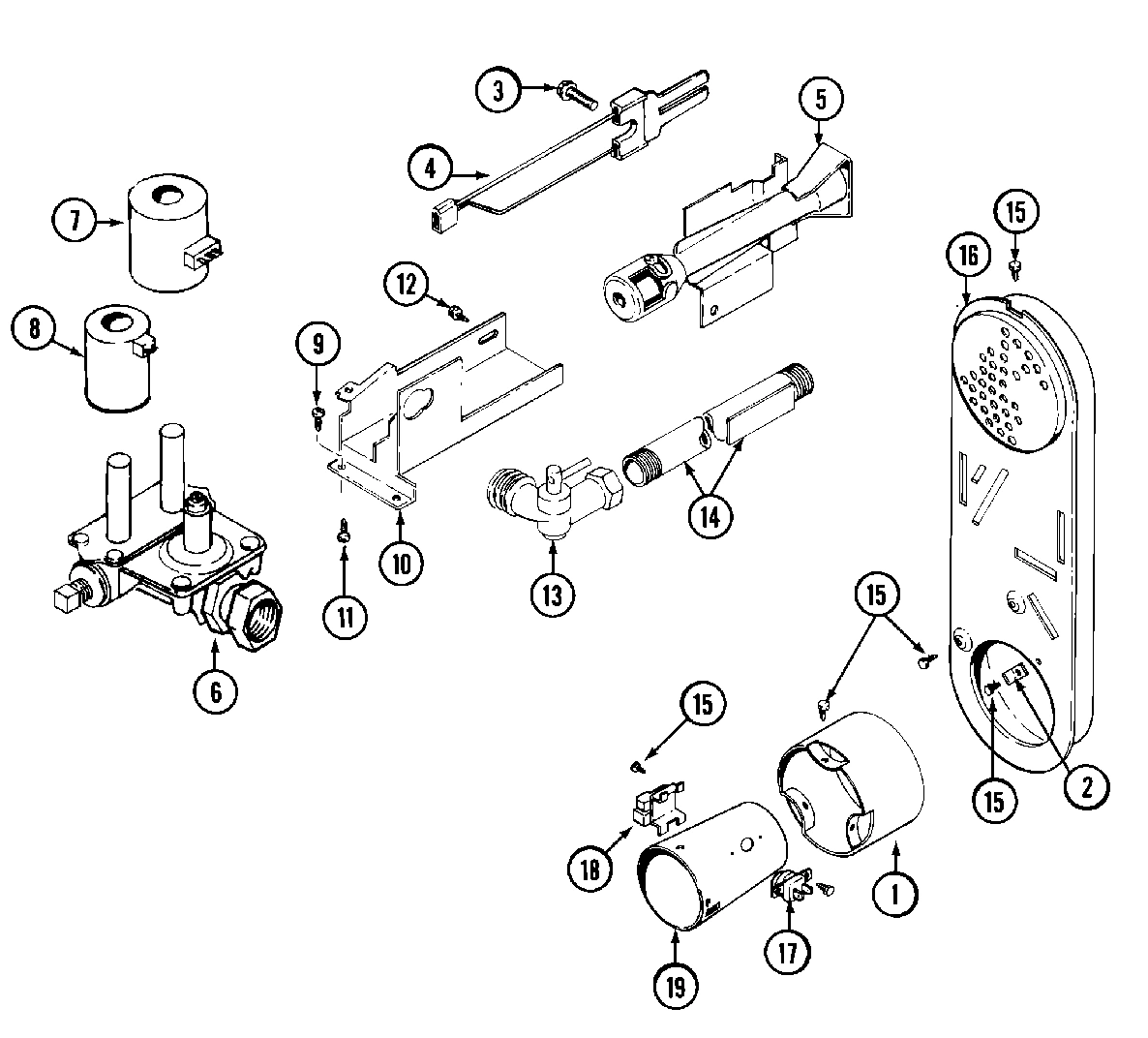

07 - GAS VALVE

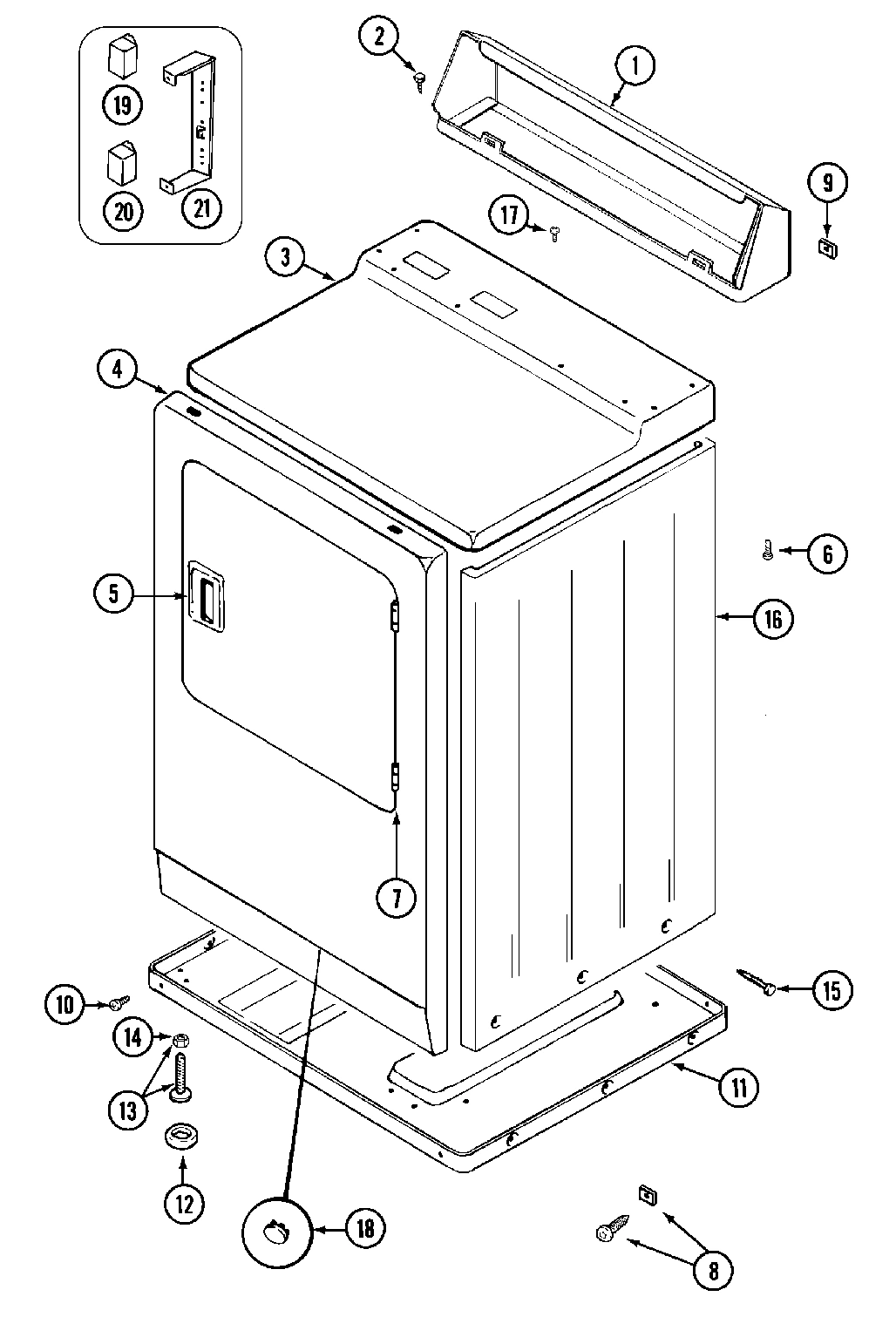

03 - CABINET-FRONT

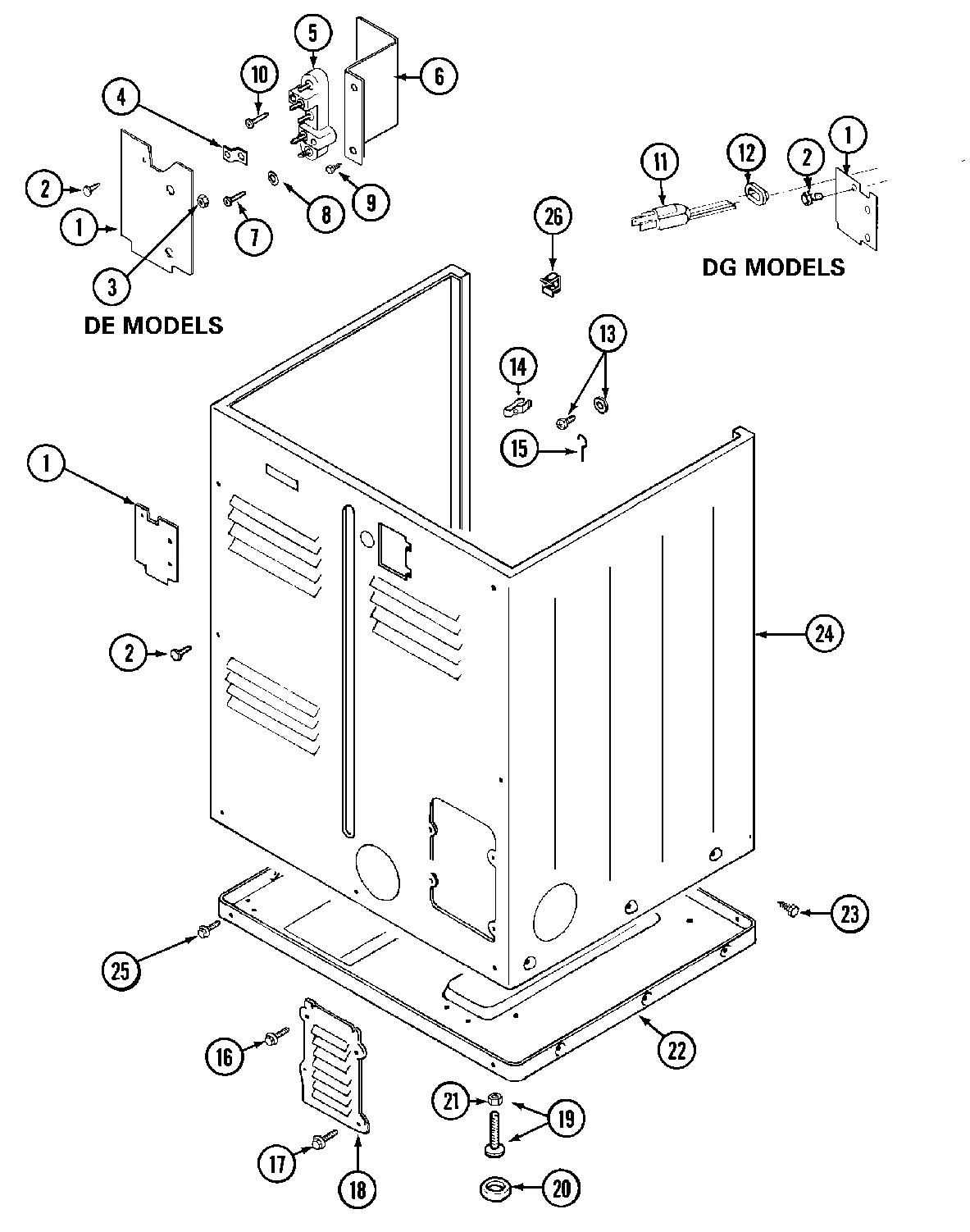

05 - CABINET-REAR

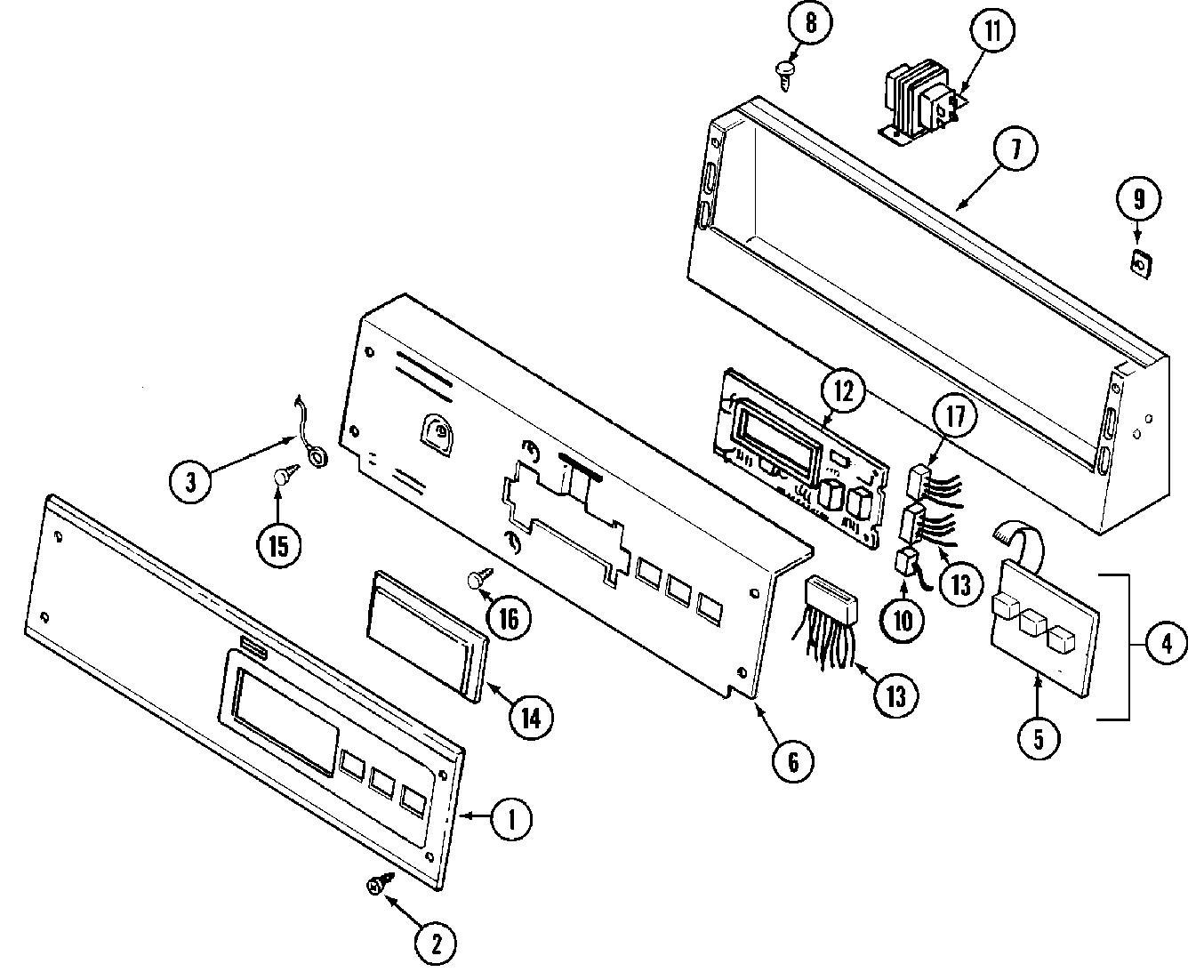

01 - CONTROL PANEL
04 - DOOR

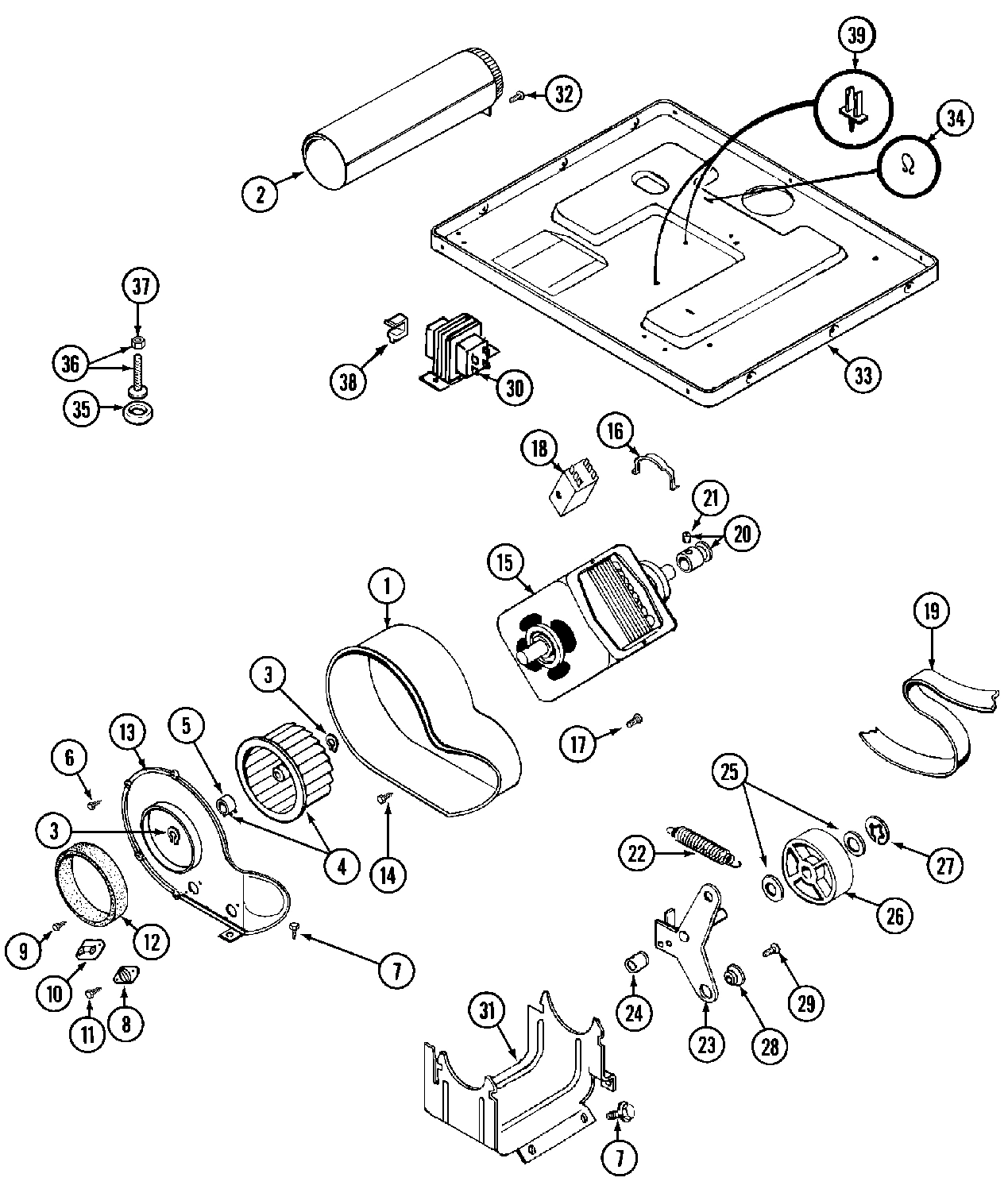

08 - MOTOR DRIVE

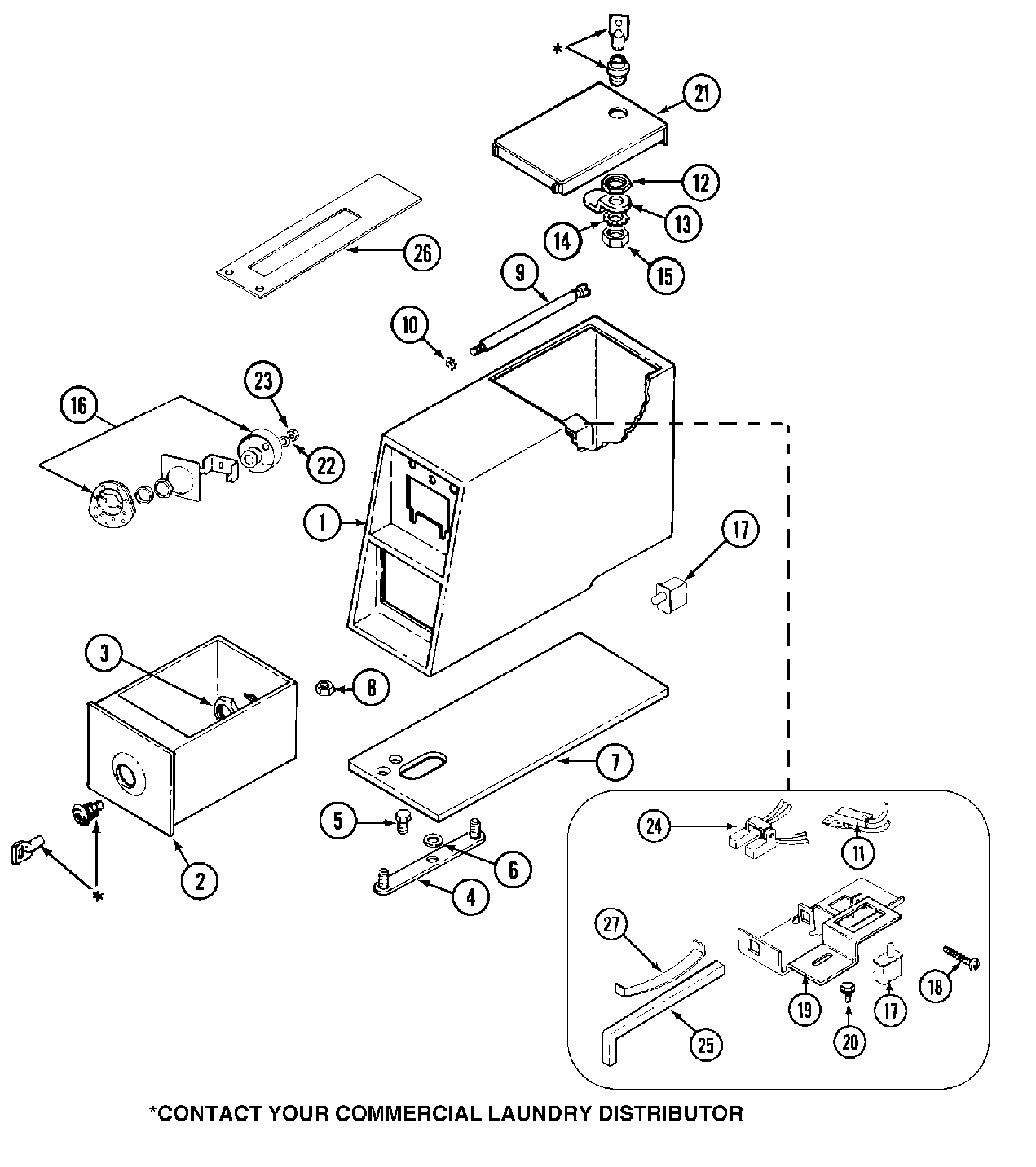

02 - CONTROL CENTER

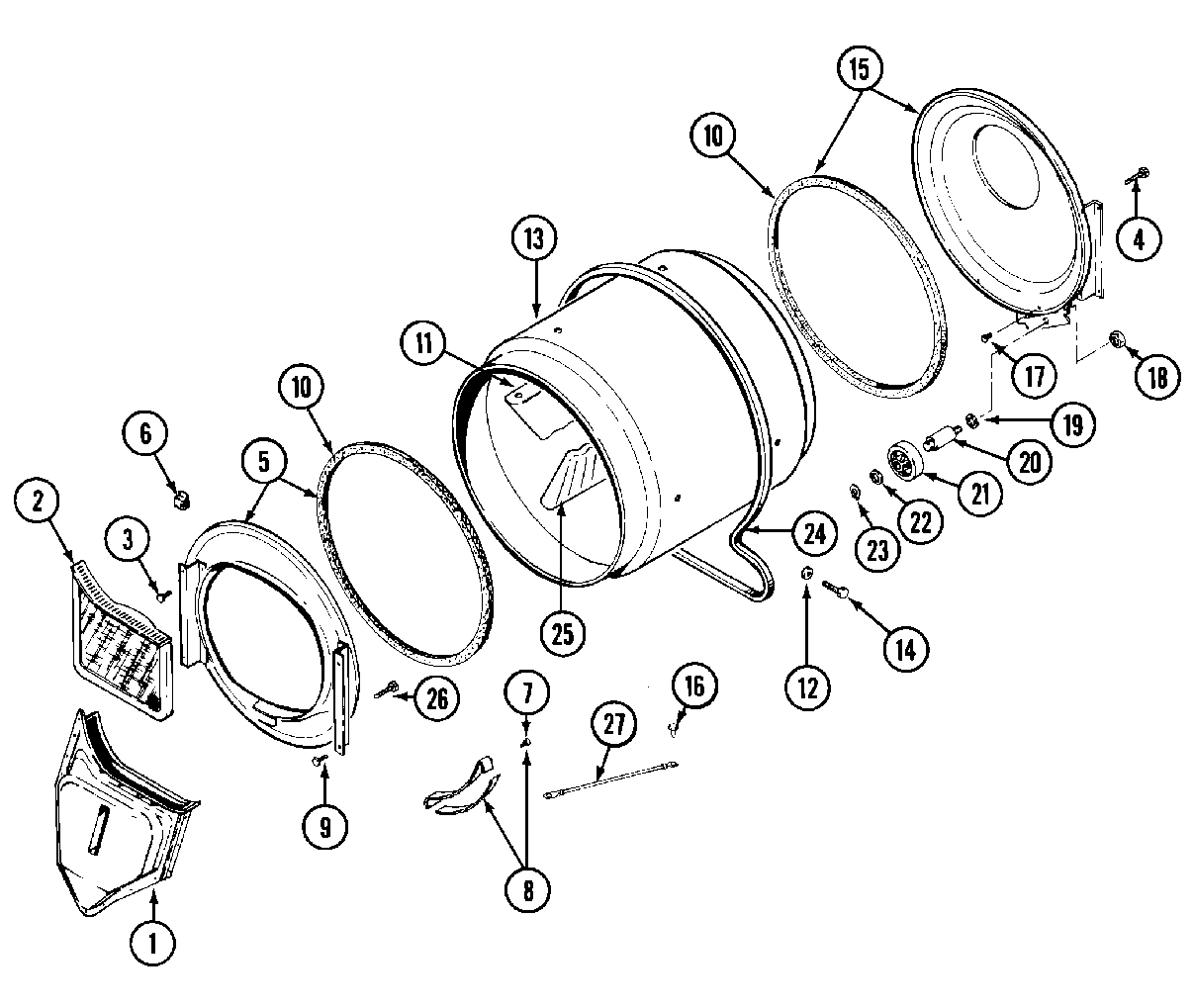

06 - TUMBLER
Common parts from model Whirlpool MDG10PSAGL ELECTRIC DRYER
001
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
001
COVER, TERMINAL WPL Y312905 Contact Us For Availability
001
PANEL, CONTROL WPL 33001020 Contact Us For Availability
001
SCREW WPL Y314062 Contact Us For Availability
001
CASE, COIN SLIDE (WHT) WPL 22001405 Contact Us For Availability
001
(ALM) WPL 22001406 Contact Us For Availability
001
OUTLEY DUCT ASSEMBLY WPL 33001016 Contact Us For Availability
002
HINGE, DOOR WPL 33001230 Contact Us For Availability
002
EXHAUST DUCT ASSEMBLY WPL Y303442 Contact Us For Availability
002
VAULT, COIN (WHT) WPL 207913 Contact Us For Availability
002
FILTER, LINT WPL 33001170 Contact Us For Availability
003
COVER, TOP (WHT) WPL 33001163 Contact Us For Availability
003
(ALM) WPL 33001164 Contact Us For Availability
003
SCREW, TUMBLER SUPPORT WPL NLA Contact Us For Availability
003
WIRE, GROUND WPL 205810 Contact Us For Availability
003
DOOR (WHT) WPL 33001240 Contact Us For Availability
003
(ALM) WPL 33001257 Contact Us For Availability
004
(ALM) WPL 33001254 Contact Us For Availability
004
SCREW, TUMBLER FRONT & BACK WPL Y313561 Contact Us For Availability
004
STRAP, GROUND WPL Y312184 Contact Us For Availability
004
CONTROL SWITCH ASSEMBLY WPL 306694 Contact Us For Availability
005
HANDLE, DOOR (WHT) WPL 33001241 Contact Us For Availability
005
BLOCK, TERMINAL WPL 400008 Contact Us For Availability
005
SEAL, DOOR WPL 33001131 Contact Us For Availability
005
FRONT, TUMBLER (W/SEAL) WPL 33001179 Contact Us For Availability
006
SCREW, TOP COVER WPL 214354 Contact Us For Availability
006
PLUG, SIGHT HOLE (WHT) WPL 33001132 Contact Us For Availability
006
(ALM) WPL 33001168 Contact Us For Availability
006
BRACKET, TERMINAL BLOCK WPL Y312904 Contact Us For Availability
006
CLIP, CABLE WPL Y310376 Contact Us For Availability
006
WASHER, STRAP SCREW WPL 910309 Contact Us For Availability
007
GASKET, METER CASE WPL 214660 Contact Us For Availability
008
LOCKWASHER, TERMINAL BLOCK WPL 910181 Contact Us For Availability
008
THERMISTOR TEMP CONTROL WPL 306056 Contact Us For Availability
009
FASTENER, CONSOLE (PANEL) WPL 215075 Contact Us For Availability
009
CLIP, SCREW WPL 215003 Contact Us For Availability
009
BOLT, LOCKING WPL 215559 Contact Us For Availability
010
BRACKET, GAS VALVE WPL 314566 Contact Us For Availability
010
CONNECTOR, EDGEBOARD WPL 22001361 Contact Us For Availability
010
SWITCH, DOOR WPL 33001436 Contact Us For Availability
010
LOCKWASHER, LOCKING BOLT WPL 910387 Contact Us For Availability
011
CORD, POWER WPL 33001285 Contact Us For Availability
011
HARNESS, WIRE (SENSOR SW`S.) WPL 208045 Contact Us For Availability
011
TRANSFORMER WPL 207766 Contact Us For Availability
011
SEAL, FRONT PANEL WPL 314937 Contact Us For Availability
011
BAFFLE (SHORT) WPL 33001012 Contact Us For Availability
012
GROMMET, POWER CORD WPL 216183 Contact Us For Availability
012
BATTERY WPL 33001249 Contact Us For Availability
012
SPACER, CONTROL BOARD WPL Y215513 Contact Us For Availability
012
WASHER, BAFFLE WPL 314158 Contact Us For Availability
013
SHUT-OFF, GAS VALVE WPL Y303349 Contact Us For Availability
013
CONNECTOR, EDGEBOARD WPL 314531 Contact Us For Availability
013
WIRE HARNESS, MAIN WPL 33001283 Contact Us For Availability
013
WIRE HARNESS, MAIN WPL 33001428 Contact Us For Availability
013
COVER, BLOWER HOUSING WPL 314778 Contact Us For Availability
013
DRYER TUMBLER, W/O BAFFLES WPL 33001108 Contact Us For Availability
014
SCREW, TUMBLER BAFFLE WPL Y310759 Contact Us For Availability
014
PIPE & BRACKET ASSEMBLY WPL Y303383 Contact Us For Availability
014
CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability
014
COVER, DISPLAY WPL 33001208 Contact Us For Availability
015
BACK, TUMBLER (W/SEAL) WPL 33001178 Contact Us For Availability
015
WIRE, GROUND WPL 204807 Contact Us For Availability
015
COVER, HINGE HOLE (WHT) WPL 33001175 Contact Us For Availability
015
(ALM) WPL 33001176 Contact Us For Availability
015
MOTOR (240V-50H) WPL Y304656 Contact Us For Availability
016
INLET DUCT ASSEMBLY WPL Y308504 Contact Us For Availability
016
SCREW, CONTROL BOARD WPL 215526 Contact Us For Availability
016
FASTENER, INNER DOOR WPL Y313910 Contact Us For Availability
017
SCREW & FASTENER ASSEMBLY WPL 204439 Contact Us For Availability
017
SCREW, TUMBLER BACK WPL Y310632 Contact Us For Availability
018
COVER, ACCESS WPL Y312951 Contact Us For Availability
018
DOOR, INNER (W/SEAL) WPL 33001243 Contact Us For Availability
018
(PROD. No. 303358-8 & 303358-9) WPL 306207 Contact Us For Availability
019
COMBUSTION CONE ASSEMBLY WPL Y308549 Contact Us For Availability
019
RELAY, MOTOR (DPDT) WPL 206421 Contact Us For Availability
019
BRACKET, SENSOR SWITCH WPL 33001253 Contact Us For Availability
020
RELAY, HEATER (SPST) WPL 306398 Contact Us For Availability
020
PULLEY, MOTOR (W/SET SCREW) WPL 305186 Contact Us For Availability
020
CLIP, BRACKET SCREW WPL 211605 Contact Us For Availability
021
SCREW, MOTOR RELAY WPL 212949 Contact Us For Availability
021
BRACKET, RELAYS WPL 314627 Contact Us For Availability
021
SCREW, SET WPL Y053241 Contact Us For Availability
021
DOOR, ACCESS (WHT) WPL 204216 Contact Us For Availability
021
(ALM) WPL 204216L Contact Us For Availability
022
BASE ASSEMBLY WPL Y303361 Contact Us For Availability
022
IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability
023
NUT, LOCK CAM WPL 22001355 Contact Us For Availability
023
LOCKWASHER, DOUBLE ``D`` WPL 216203 Contact Us For Availability
024
SWITCH, OPTIC ASSY. (6 WIRE) WPL 206799 Contact Us For Availability
025
ROD, ACTUATOR WPL 216442 Contact Us For Availability
027
SPRING, SWITCH ROD WPL 33001252 Contact Us For Availability
027
WIRE, GROUND WPL 901220 Contact Us For Availability
030
TRANSFORMER WPL 22001417 Contact Us For Availability
030
TRANSFORMER WPL 307928 Contact Us For Availability
033
BASE ASSEMBLY WPL Y305084 Contact Us For Availability
034
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
036
LEG & NUT WPL W10176519 No Longer Available
039
RETAINER, WIRE WPL 315471 Contact Us For Availability
× ![]()
