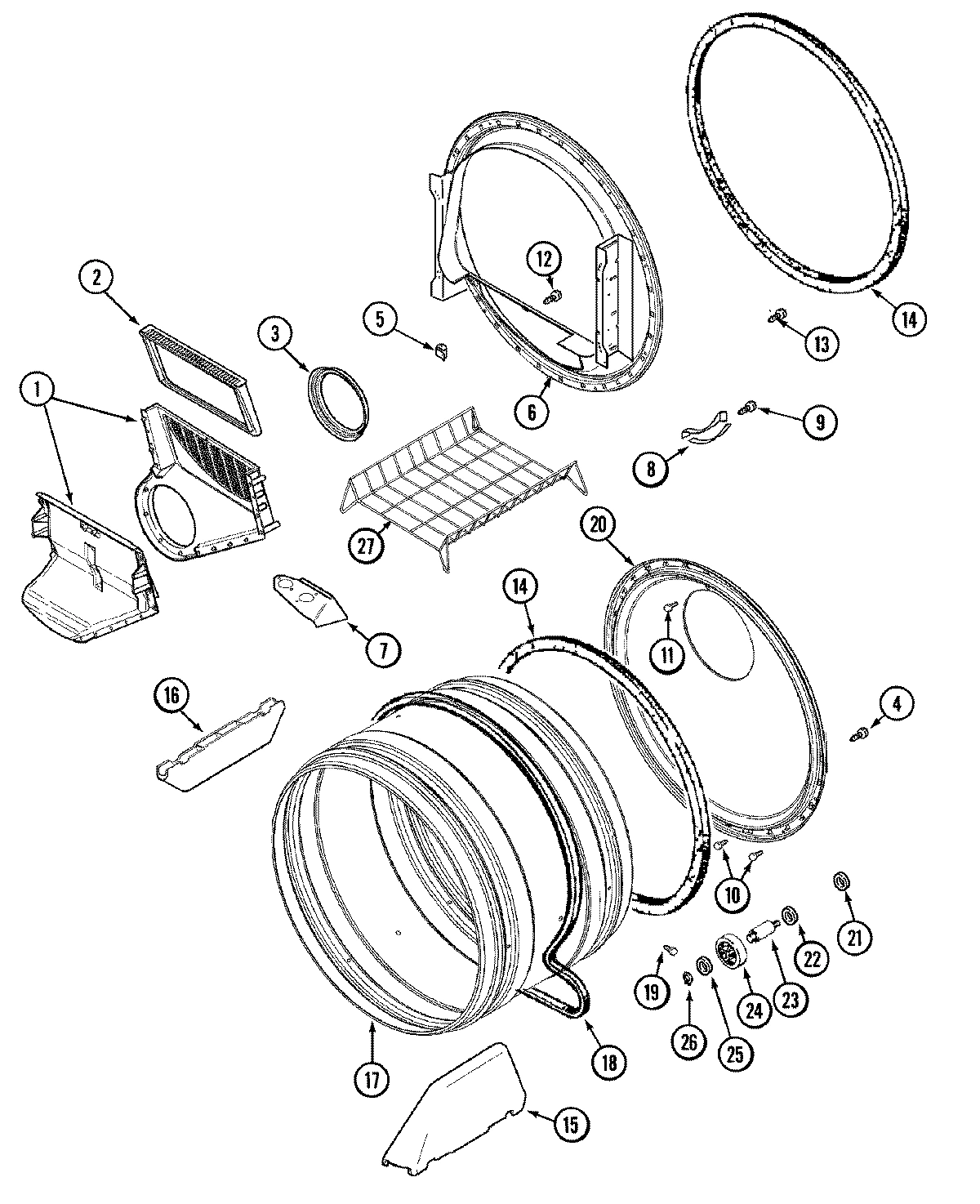

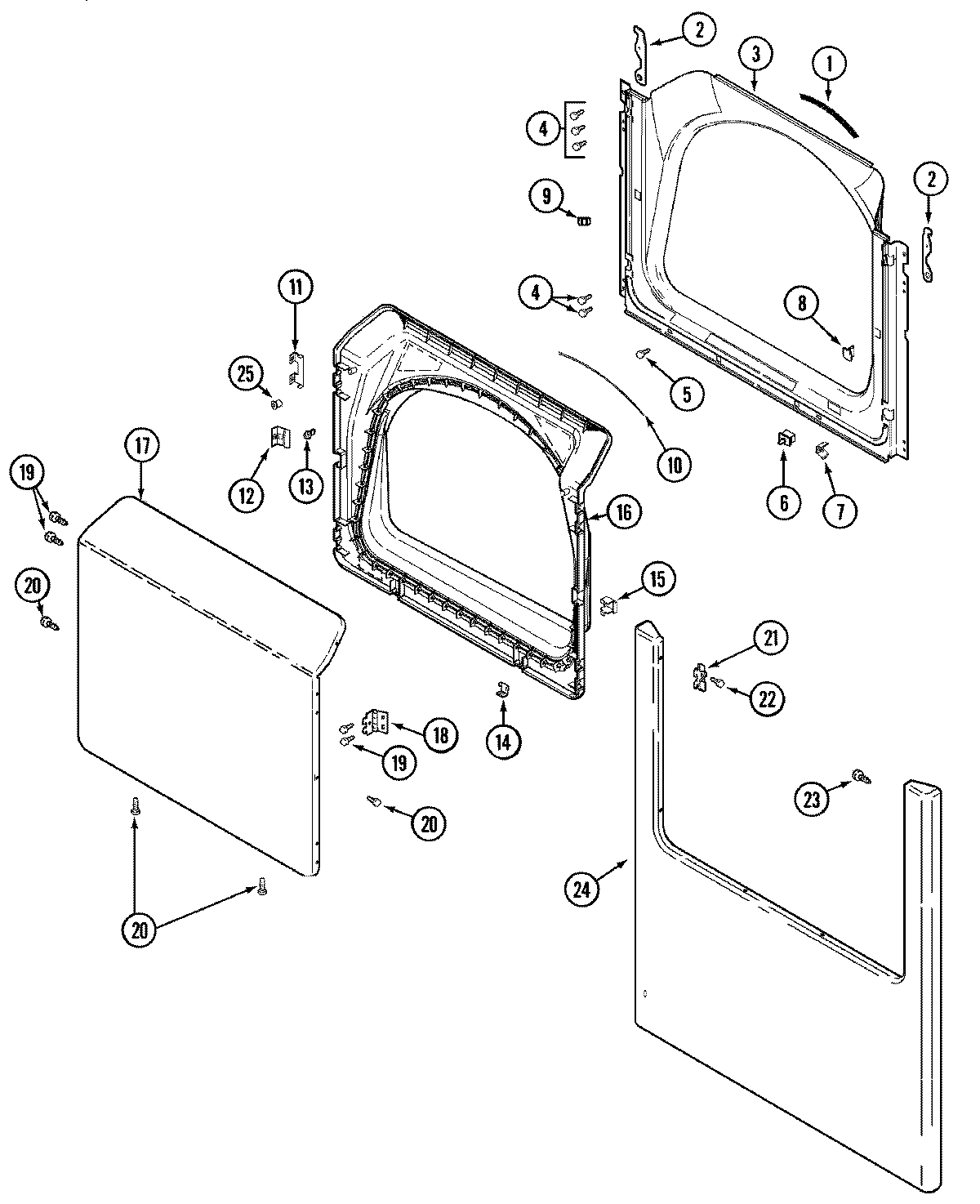

Model Whirlpool MDE5000AYQ ELECTRIC DRYER – Common Parts &amp; Diagrams

1

OUTLET DUCT ASSEMBLY WPL 33001799 Contact Us For Availability

1

SEAL, SHROUD WPL 33001767 Contact Us For Availability

2

WP33001808 Whirlpool Lint Filter In Stock WPL WP33001808 $39.64

2

HOOK, SECURITY WPL 22002247 Contact Us For Availability

2

DUCT ASSY., INLET WPL 33001803 Contact Us For Availability

3

SEAL, BLOWER WPL 33001758 Contact Us For Availability

3

SHROUD (BSQ) WPL 33002379 Contact Us For Availability

3

HEATER ENCLOSURE WPL 314995 Contact Us For Availability

4

33001790 Whirlpool Blower Wheel In Stock WPL 33001790 $21.72

4

W11573574 Whirlpool Screw In Stock WPL W11573574 $11.38

4

WP33001762 Whirlpool Dryer Thermal Fuse In Stock WPL WP33001762 $39.97

4

SCREW (No.10-3/8``) WPL 33002190 Contact Us For Availability

4

INSULATOR, TERMINAL WPL 314998 Contact Us For Availability

5

WPY308612 Whirlpool Heating Element In Stock WPL WPY308612 $233.86

5

CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability

5

SCREW, SHROUD WPL 33001768 Contact Us For Availability

6

W10169313 Whirlpool Door Switch Kit In Stock WPL W10169313 $21.70

6

FRONT, TUMBLER (W/SEAL) WPL 33001802 Contact Us For Availability

6

SHIELD, RADIANT WPL 314999 Contact Us For Availability

7

COVER, THERMOSTAT (ELEC ONLY) WPL 33001837 Contact Us For Availability

7

BRACKET, HINGE WPL 33001760 Contact Us For Availability

7

SCREW WPL 314554 Contact Us For Availability

8

306508 Whirlpool Dryer Front Glide Kit In Stock WPL 306508 $6.28

8

LA-1003 Whirlpool Dryer Door Catch and Metal In Stock WPL LA-1003 $13.15

8

WP303396 Whirlpool Thermostat In Stock WPL WP303396 $32.51

8

WP307249 Whirlpool Thermostat In Stock WPL WP307249 $100.00

9

306436 Whirlpool Washer Dryer Door Catch and In Stock WPL 306436 $3.54

9

WP210720 Whirlpool Rivet Backorder WPL WP210720 $8.89

9

WP307178 Whirlpool Element In Stock WPL WP307178 $261.68

10

WP33002094 Whirlpool Door Seal Backorder WPL WP33002094 $90.86

10

WPY307173 Whirlpool Wire Jumper Backorder WPL WPY307173 $4.82

11

SCREW, No.8 X 9/16 CTSK WPL 210932 Contact Us For Availability

11

CLIP, DOOR (DOUBLE) WPL 22002038 Contact Us For Availability

12

WP33001793 Whirlpool Bracket Spring Backorder WPL WP33001793 $4.82

12

CLIP, GROUNDING WPL 22002244 Contact Us For Availability

12

SCREW----NA WPL 312311 Contact Us For Availability

WP33002917 Whirlpool Screw Backorder WPL WP33002917 $4.82

COVER, BLOWER HOUSING----NA WPL 33001873 Contact Us For Availability

STRIKE, DOOR (MALE) WPL 33001761 Contact Us For Availability

BRACKET, THERMAL FUSE WPL 315346 Contact Us For Availability

WP33001807 Whirlpool Felt Seal In Stock WPL WP33001807 $12.54

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

SCREW WPL 314818 Contact Us For Availability

CLIP, DOOR (SINGLE) WPL 22002039 Contact Us For Availability

CONVERSION KIT (240V TO 208V) WPL Y308590 Contact Us For Availability

15

WP33002032 Whirlpool Drum Baffle In Stock WPL WP33002032 $21.91

15

PLUG, INNER DOOR WPL 33001763 Contact Us For Availability

16

WP33001755 Whirlpool Drum Baffle In Stock WPL WP33001755 $26.50

16

WPY015825 Whirlpool Motor Clip Backorder WPL WPY015825 $13.87

16

DOOR, INNER/ W SEAL (BSQ) WPL 33002397 Contact Us For Availability

17

W10410997 Whirlpool Drive Motor In Stock WPL W10410997 $123.19

17

TUMBLER WPL 33001889 Contact Us For Availability

17

PANEL, DOOR (BSQ-W/MEDALLION) WPL 33002431 Contact Us For Availability

33002459 Whirlpool Idler Spring Backorder WPL 33002459 $4.82

WP33001759 Whirlpool Door Hinge Backorder WPL WP33001759 $56.66

WP33002535 Whirlpool Dryer Drive Belt In Stock WPL WP33002535 $24.91

GROMMET WPL 33002157 Contact Us For Availability

19

WP6-3705180 Whirlpool Idler Pulley Lever In Stock WPL WP6-3705180 $53.48

19

WP98006631 Whirlpool Screw Backorder WPL WP98006631 $4.82

19

SCREW, BAFFLE WPL 33001788 Contact Us For Availability

20

WPY312527 Whirlpool Dryer Idler Shaft Washer In Stock WPL WPY312527 $6.84

20

BACK, TUMBLER (W/SEAL) WPL 33001801 Contact Us For Availability

20

SCREW (No.8-18 OUTER DOOR (BSQ) WPL 33002351 Contact Us For Availability

21

WP33001443 Whirlpool Hex Nut Backorder WPL WP33001443 $4.82

21

BEARING, IDLER ASSEMBLY WPL 33001783 Contact Us For Availability

21

COVER, HINGE HOLE (BSQ) WPL 33002349 Contact Us For Availability

22

WP33001787 Whirlpool Screw Backorder WPL WP33001787 $7.38

22

WP354987 Whirlpool C-Clip In Stock WPL WP354987 $6.38

23

WP315772 Whirlpool Sleeve In Stock WPL WP315772 $7.92

24

12001541 Whirlpool Dryer Drum Roller Kit In Stock WPL 12001541 $11.73

24

WPY014874 Whirlpool Screw Backorder WPL WPY014874 $4.82

24

PANEL, FRONT (BSQ) WPL 22002663 Contact Us For Availability

25

WP312535 Whirlpool Washer Backorder WPL WP312535 $7.09

25

SUPPORT, MOTOR WPL 33002466 Contact Us For Availability

25

BUSHING, INNER DOOR WPL 33001771 Contact Us For Availability

26

WP9703438 Whirlpool Snap Retaining Ring In Stock WPL WP9703438 $2.43

26

SCREW----NA WPL Y313561 Contact Us For Availability

27

BASE WPL 33001845 Contact Us For Availability

27

RACK, DRYING WPL 33001917 Contact Us For Availability

28

SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability

29

ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available

30

WP62739 Whirlpool Nut Backorder WPL WP62739 $4.82

32

CLIP, LOWER FRONT PANEL WPL 22002239 Contact Us For Availability

33

SCREW WPL Y310632 Contact Us For Availability

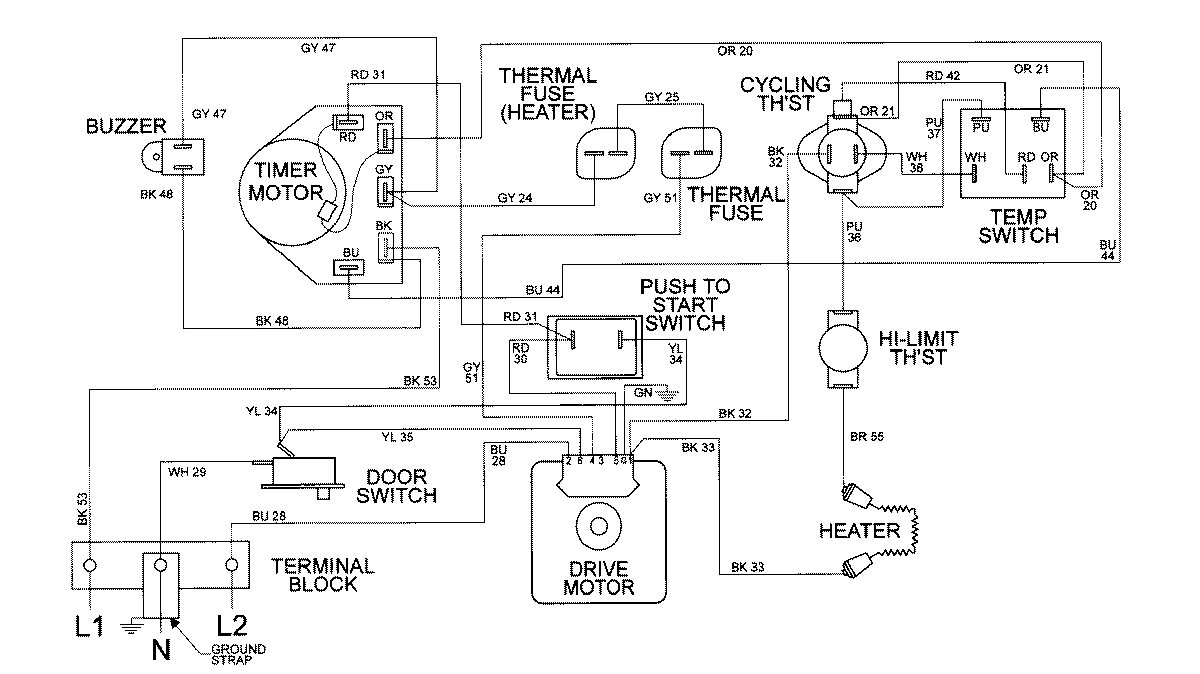

NI

WIRING INFORMATION WPL 15002303 Contact Us For Availability
