Model Whirlpool MDE14PSADW ELECTRIC DRYER – Common Parts & Diagrams

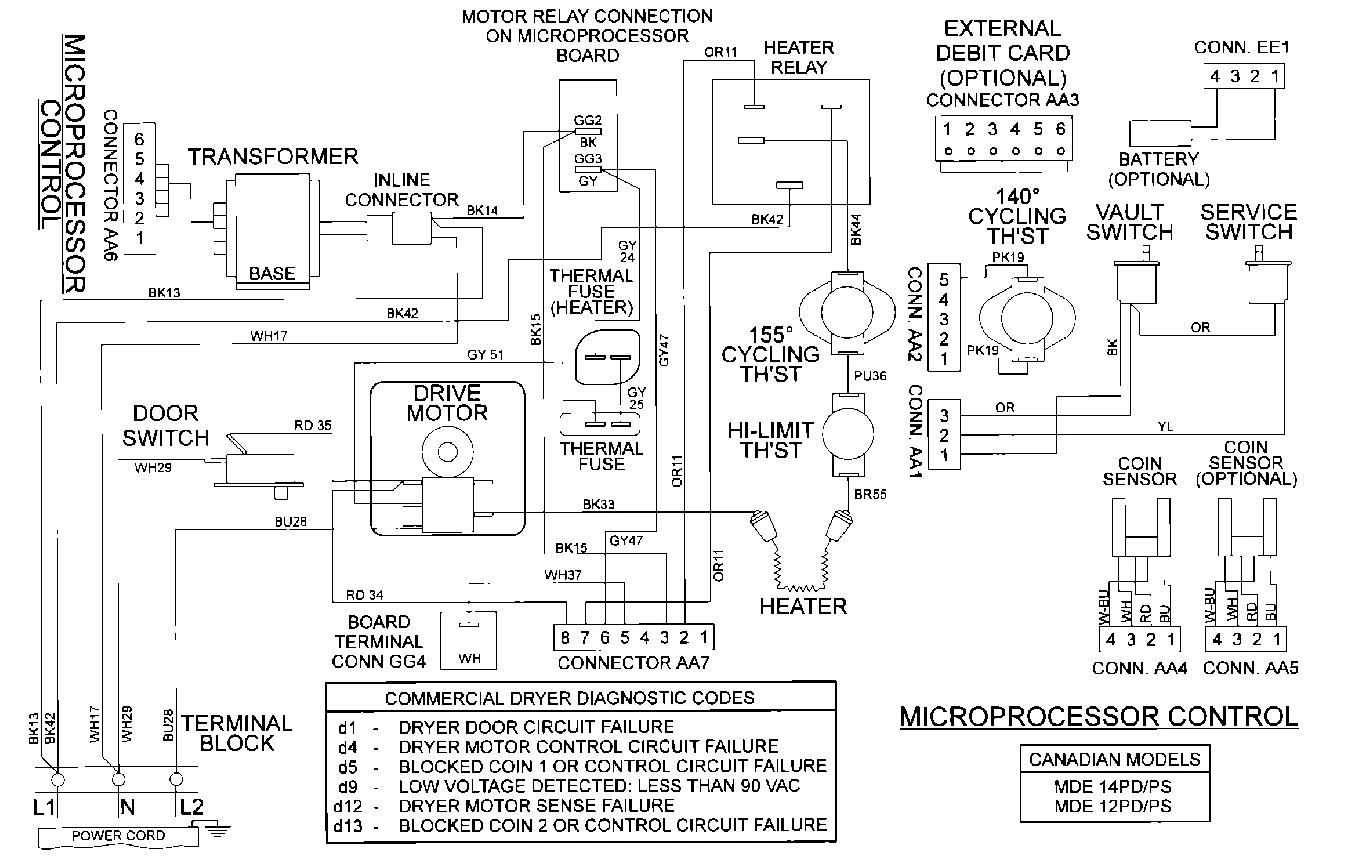

05 - WIRING INFORMATION
04 - HEATER

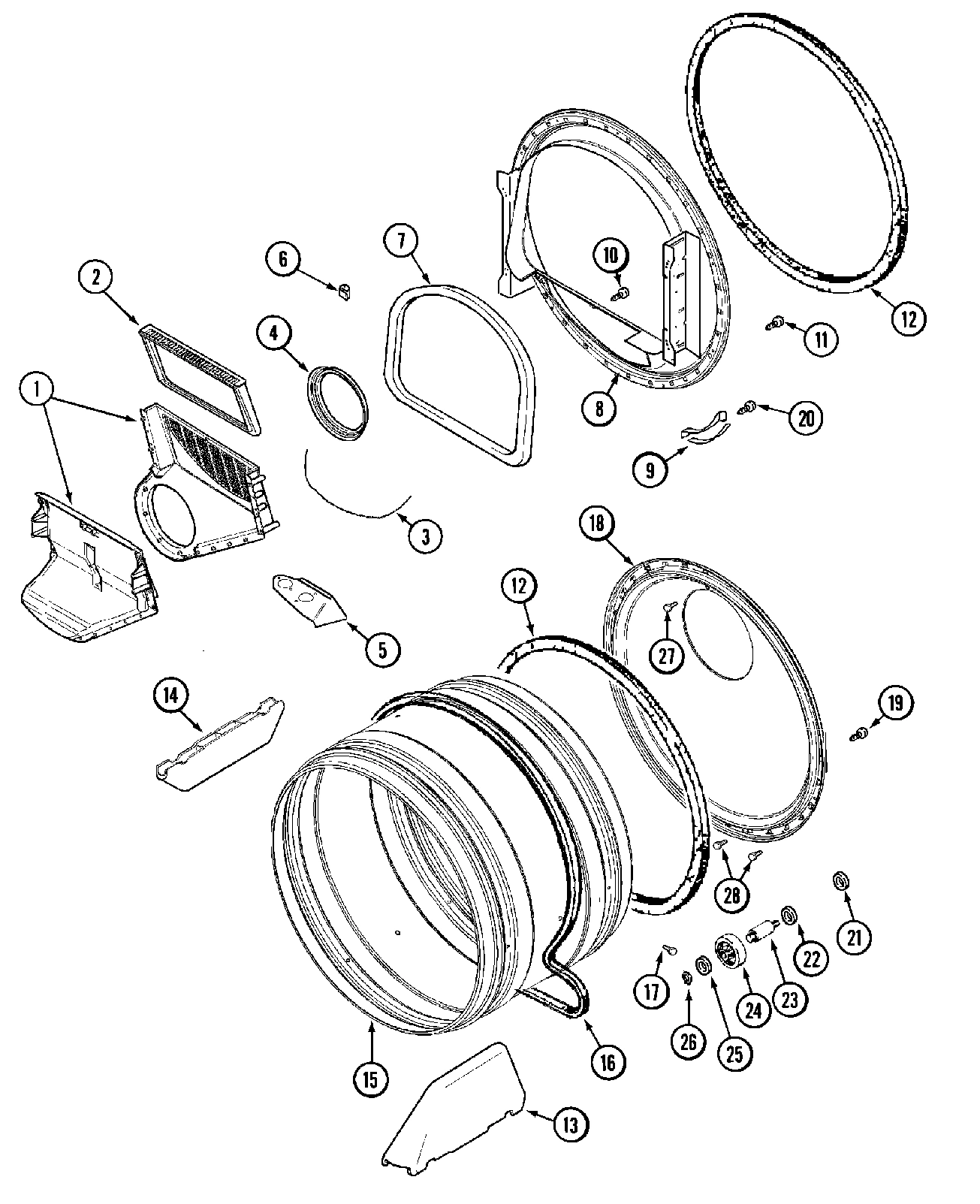

06 - TUMBLER

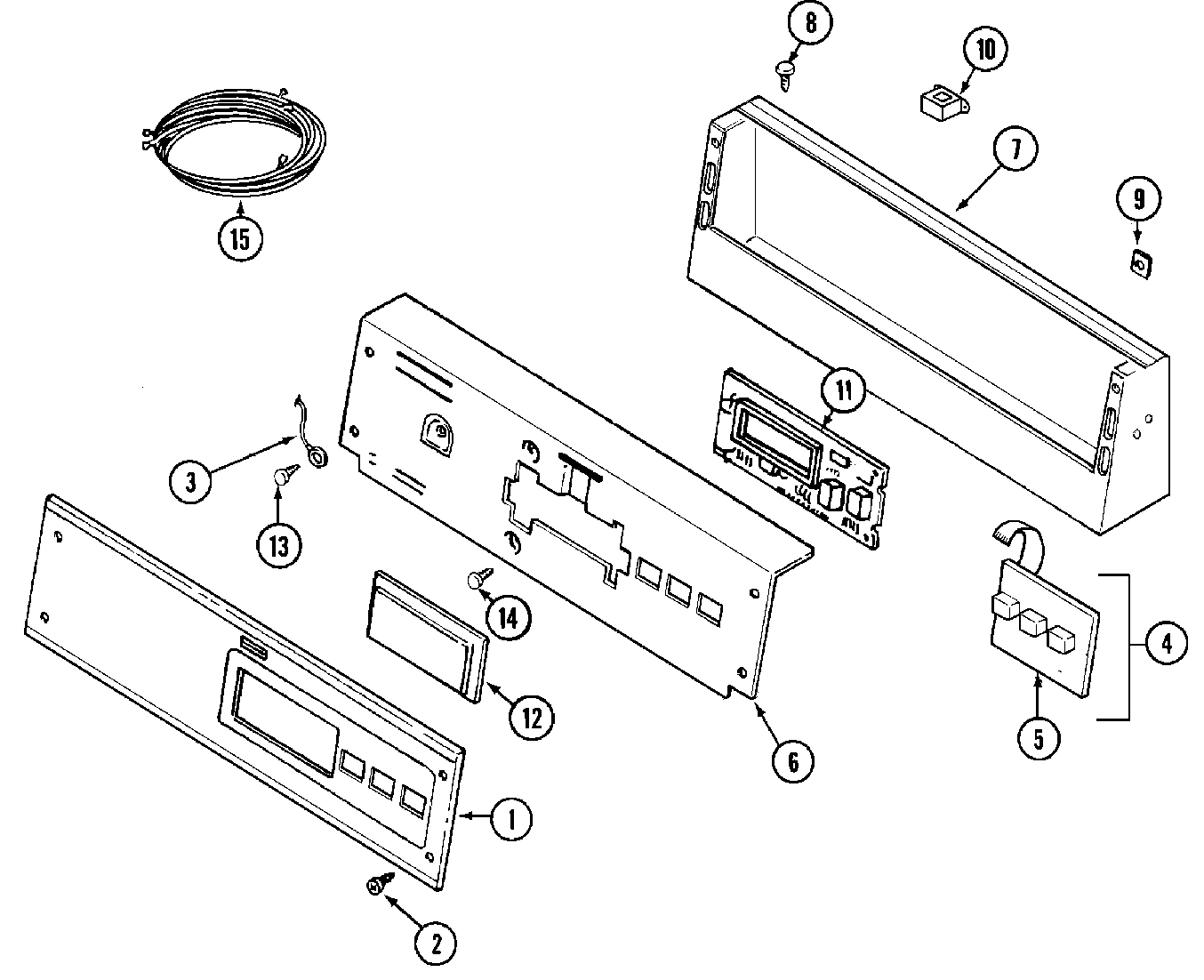

01 - CONTROL PANEL

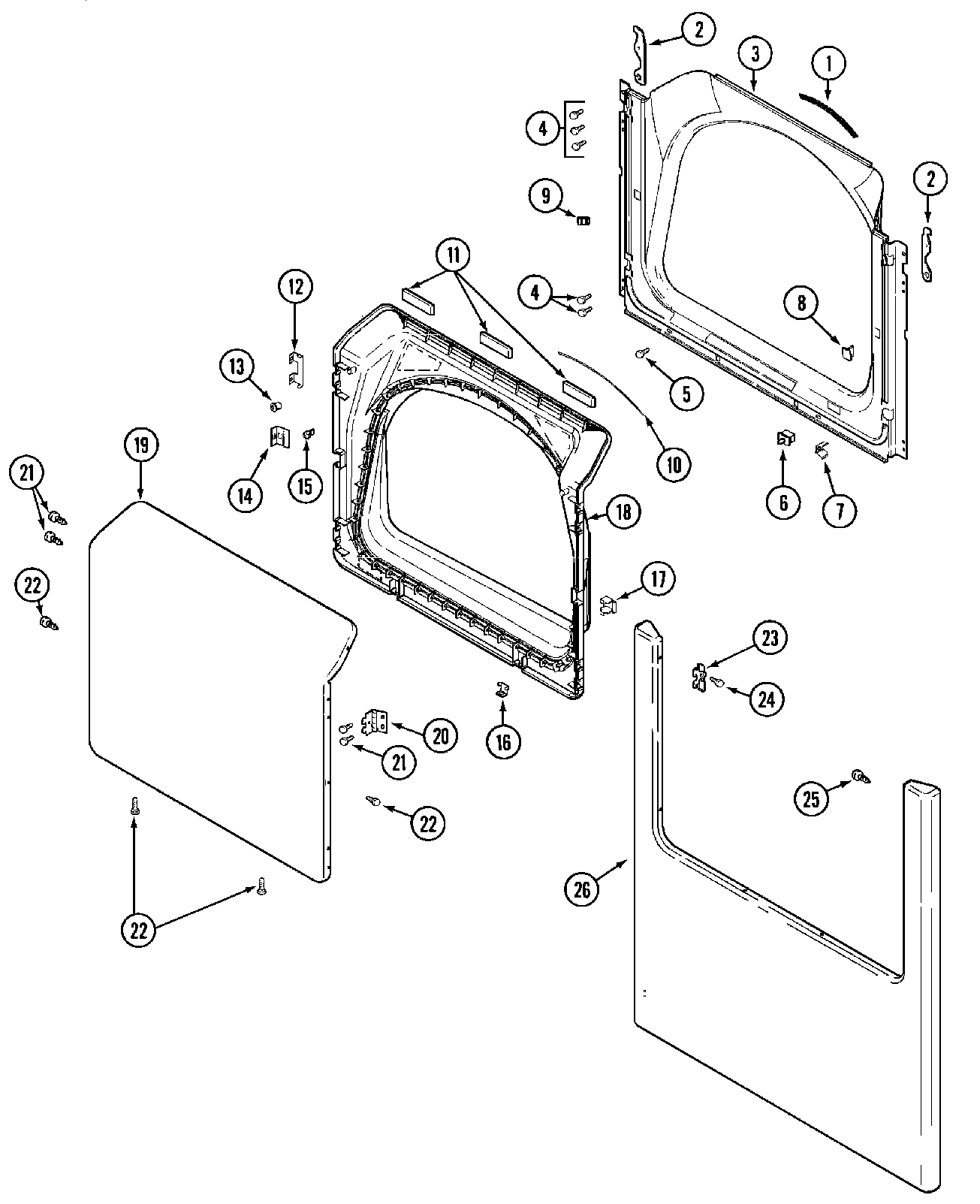

03 - DOOR

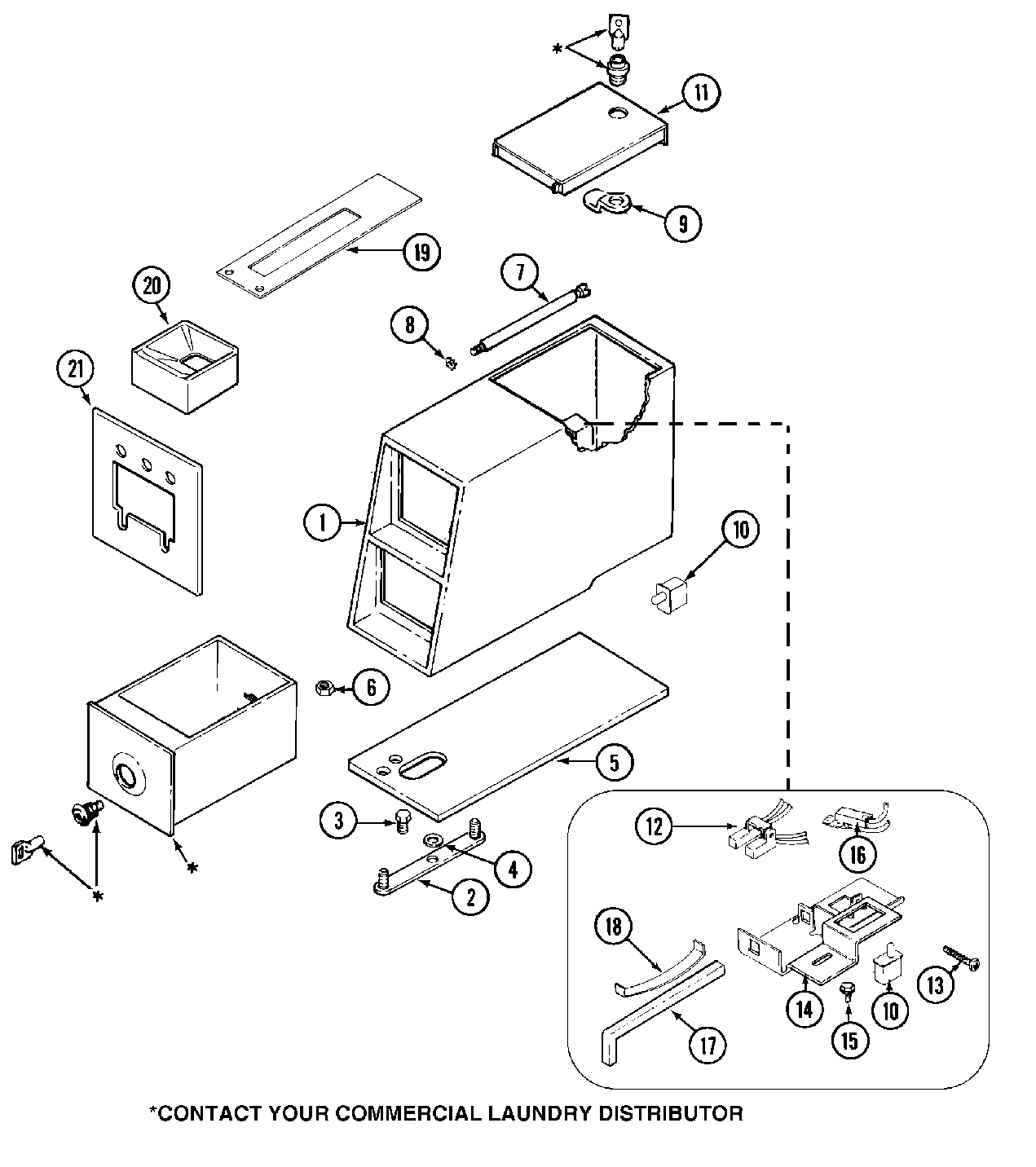

02 - CONTROL CENTER
Common parts from model Whirlpool MDE14PSADW ELECTRIC DRYER
001
OUTLET DUCT ASSEMBLY WPL 33001799 Contact Us For Availability
001
SEAL, SHROUD WPL 33001767 Contact Us For Availability
001
PANEL, CONTROL WPL 33001784 Contact Us For Availability
001
DUAL FACEPLATE WPL 22003815 Contact Us For Availability
002
DUCT ASSY., INLET WPL 33001803 Contact Us For Availability
002
HOOK, SECURITY WPL 22002033 Contact Us For Availability
002
STRAP, MOUNTING WPL 22001810 Contact Us For Availability
003
HEATER ENCLOSURE WPL 314995 Contact Us For Availability
003
WIRE, GROUND WPL 22001959 Contact Us For Availability
003
SHROUD (WHT) WPL 33001778 Contact Us For Availability
003
(ALM) WPL 33001779 Contact Us For Availability
004
INSULATOR, TERMINAL WPL 314998 Contact Us For Availability
004
SEAL, BLOWER WPL 33001758 Contact Us For Availability
004
CONTROL SWITCH ASSEMBLY WPL 306694 Contact Us For Availability
004
WASHER, MOUNTING STRAP WPL 910309 Contact Us For Availability
005
COVER, THERMOSTAT (ELEC ONLY) WPL 33001837 Contact Us For Availability
005
SCREW, SHROUD & OUTLET DUCT WPL 33001768 Contact Us For Availability
005
GASKET, CONTROL CENTER (WHT) WPL 22002072 Contact Us For Availability
006
SHIELD, RADIANT WPL 314999 Contact Us For Availability
006
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
006
DEFLECTOR, WATER (W/ADHESIVE) WPL 22001511 Contact Us For Availability
006
BRACKET, BACK (WHT) WPL 33001785 Contact Us For Availability
006
BRACKET, BACK (ALM) WPL 33001786 Contact Us For Availability
006
BRACKET, BACK (WHT) WPL 33002519 Contact Us For Availability
007
CONSOLE (WHT) WPL 22002329 Contact Us For Availability
007
CONSOLE (ALM) WPL 22002330 Contact Us For Availability
007
CONSOLE (WHT) WPL 22003089 Contact Us For Availability
007
BRACKET, HINGE WPL 33001760 Contact Us For Availability
008
FRONT, TUMBLER (W/SEAL) WPL 33001802 Contact Us For Availability
008
LOCKWASHER, LOCKING BOLT WPL 910387 Contact Us For Availability
009
CLIP, SCREW WPL 215003 Contact Us For Availability
010
SCREW, TRANSFORMER WPL 211251 Contact Us For Availability
011
SPACER CIRCUIT BOARD WPL Y215513 Contact Us For Availability
011
PAD, DOOR WPL 33001268 Contact Us For Availability
011
DOOR, ACCESS (WHT) WPL 22001910 Contact Us For Availability
012
CLIP, DOOR (DOUBLE) WPL 22002038 Contact Us For Availability
013
BRACKET, THERMAL FUSE WPL 315346 Contact Us For Availability
013
BUSHING, INNER DOOR WPL 33001771 Contact Us For Availability
014
SCREW, CONTROL BOARD WPL 215526 Contact Us For Availability
014
BRACKET, SENSOR SWITCH WPL 33001253 Contact Us For Availability
015
CONVERSION KIT (240V TO 208V) WPL Y308590 Contact Us For Availability
015
TUMBLER WPL 33001794 Contact Us For Availability
015
WIRE HARNESS, MAIN WPL 33001773 Contact Us For Availability
015
WIRE HARNESS, MAIN WPL 33001878 Contact Us For Availability
015
STRIKE, DOOR (MALE) WPL 33001761 Contact Us For Availability
015
CLIP, BRACKET SCREW WPL 211605 Contact Us For Availability
016
CLIP, DOOR (SINGLE) WPL 22002039 Contact Us For Availability
016
HARNESS, SENSOR SWITCH WPL 22001966 Contact Us For Availability
017
SCREW, BAFFLE WPL 33001788 Contact Us For Availability
017
PLUG, INNER DOOR WPL 33001763 Contact Us For Availability
017
ROD, ACTUATOR WPL 216442 Contact Us For Availability
018
BACK, TUMBLER (W/SEAL) WPL 33001801 Contact Us For Availability
018
DOOR, INNER/ W SEAL (WHT) WPL 33001750 Contact Us For Availability
018
(W/SEAL-ALM) WPL 33001751 Contact Us For Availability
018
SPRING, SWITCH WPL 33001252 Contact Us For Availability
019
SCREW (No.10-3/8``) WPL 33002190 Contact Us For Availability
019
DOOR, OUTER (WHT-W/DAMPER) WPL 22001979 Contact Us For Availability
019
(ALM-W/DAMPER) WPL 22001980 Contact Us For Availability
019
ACTUATOR KIT WPL 22001812 Contact Us For Availability
020
WELD ASSY., FUNNEL WPL 22002533 Contact Us For Availability
020
BOLT, CARRIAGE WPL 22002534 Contact Us For Availability
021
BRACE, COIN SLIDE WPL NLA Contact Us For Availability
021
PLATE, ADAPTER (WHT) (REMOVED AT SERIES 21) WPL 22001879 Contact Us For Availability
021
(REMOVED AT SERIES 21) WPL 22001904 Contact Us For Availability
022
SCREW No.8-18AB WAFER HD WPL 22002063 Contact Us For Availability
023
(ALM) WPL 33001765 Contact Us For Availability
025
CLIP, GROUNDING WPL 22002244 Contact Us For Availability
026
PANEL, FRONT (WHT) WPL 22002087 Contact Us For Availability
026
PANEL, FRONT (WHT) WPL 22002241 Contact Us For Availability
026
(ALM) WPL 22002242 Contact Us For Availability
027
SCREW, INLET DUCT WPL 210932 Contact Us For Availability
027
FASTENER, FRONT PANEL WPL 213280 Contact Us For Availability
027
CLIP, LOWER FRONT PANEL WPL 22002239 Contact Us For Availability
× ![]()
