Model Whirlpool MDE12CSAGW GAS DRYER – Common Parts & Diagrams
05 - TUMBLER
08 - HEATER

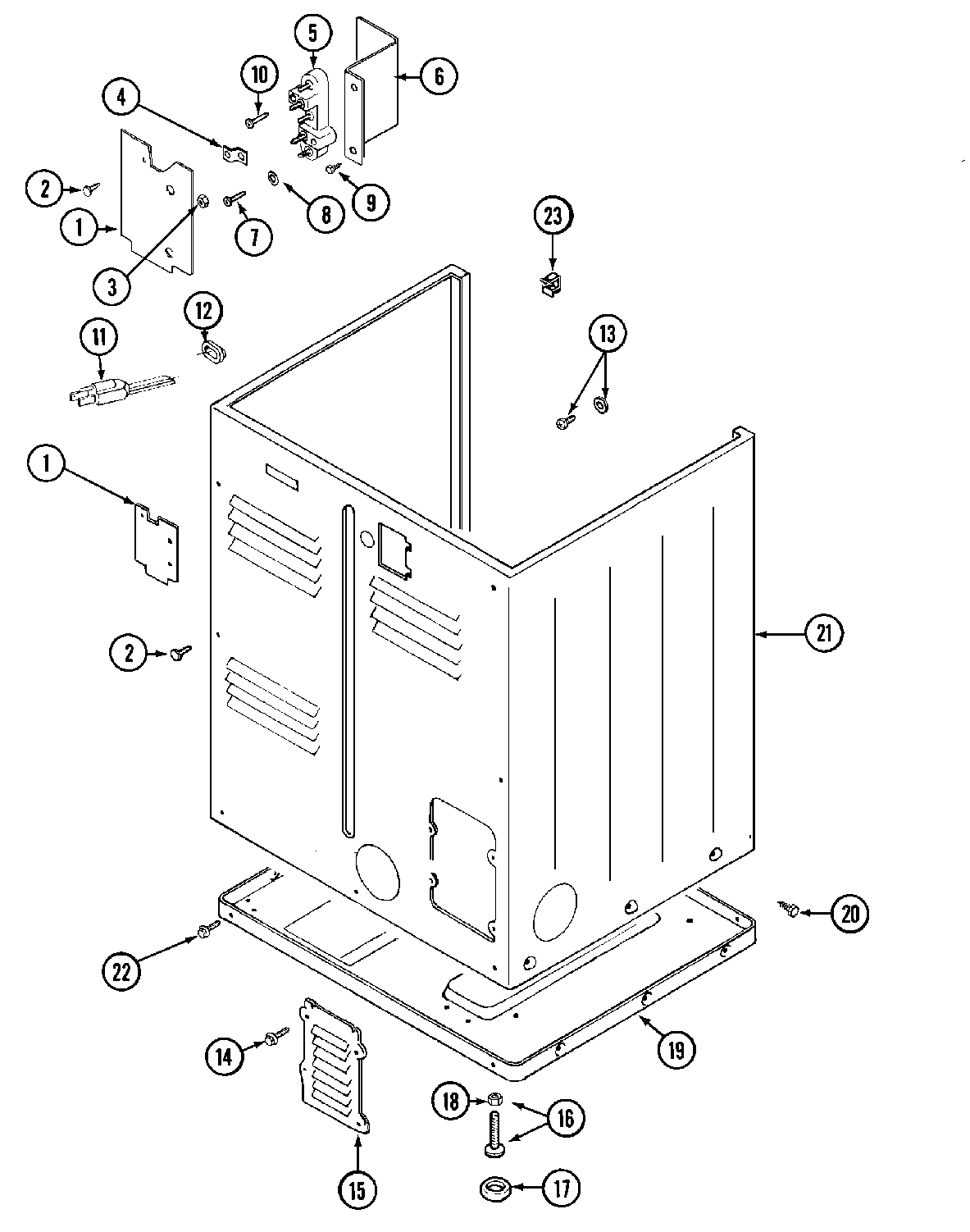

09 - CABINET-REAR

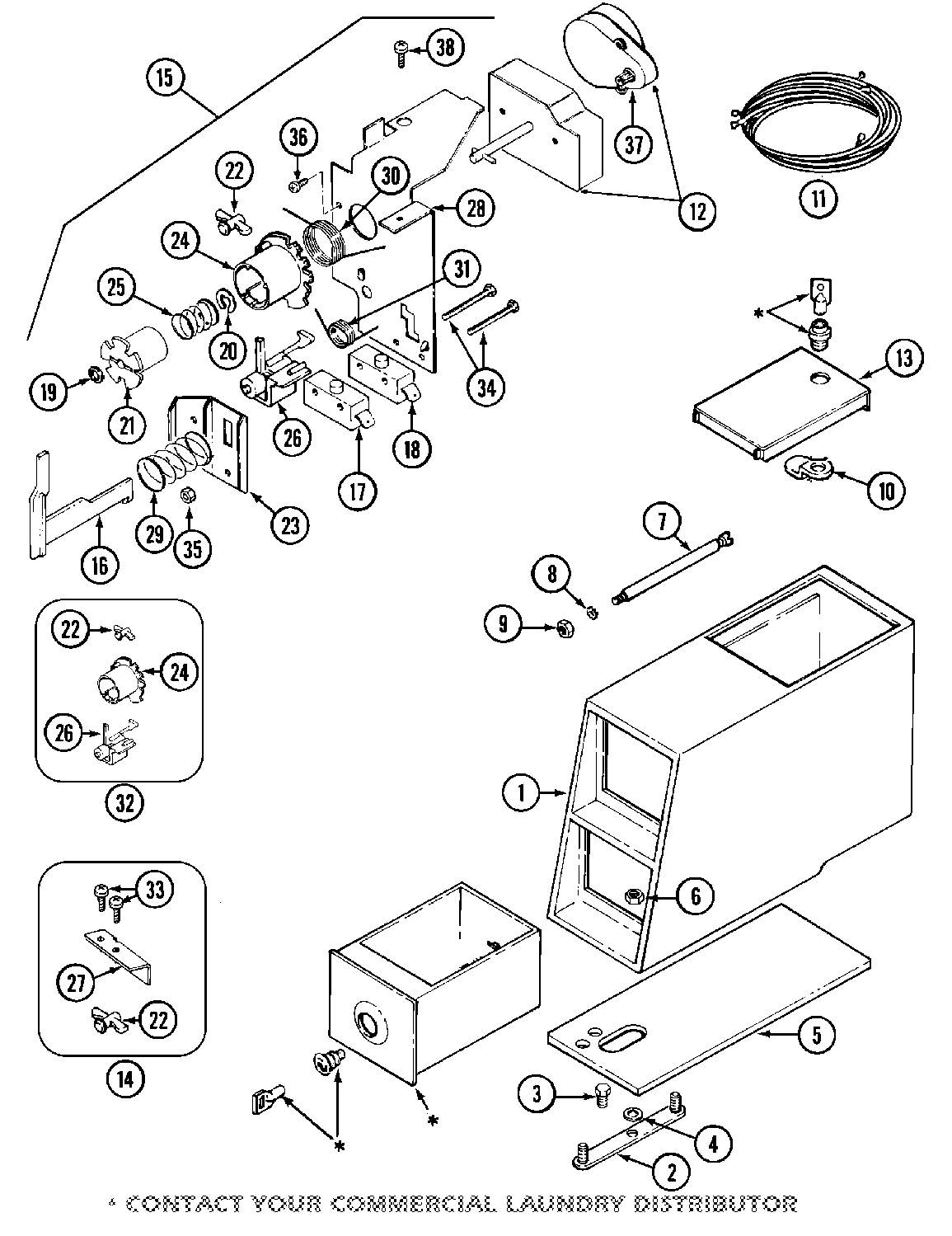

02 - CONTROL CENTER
04 - DOOR

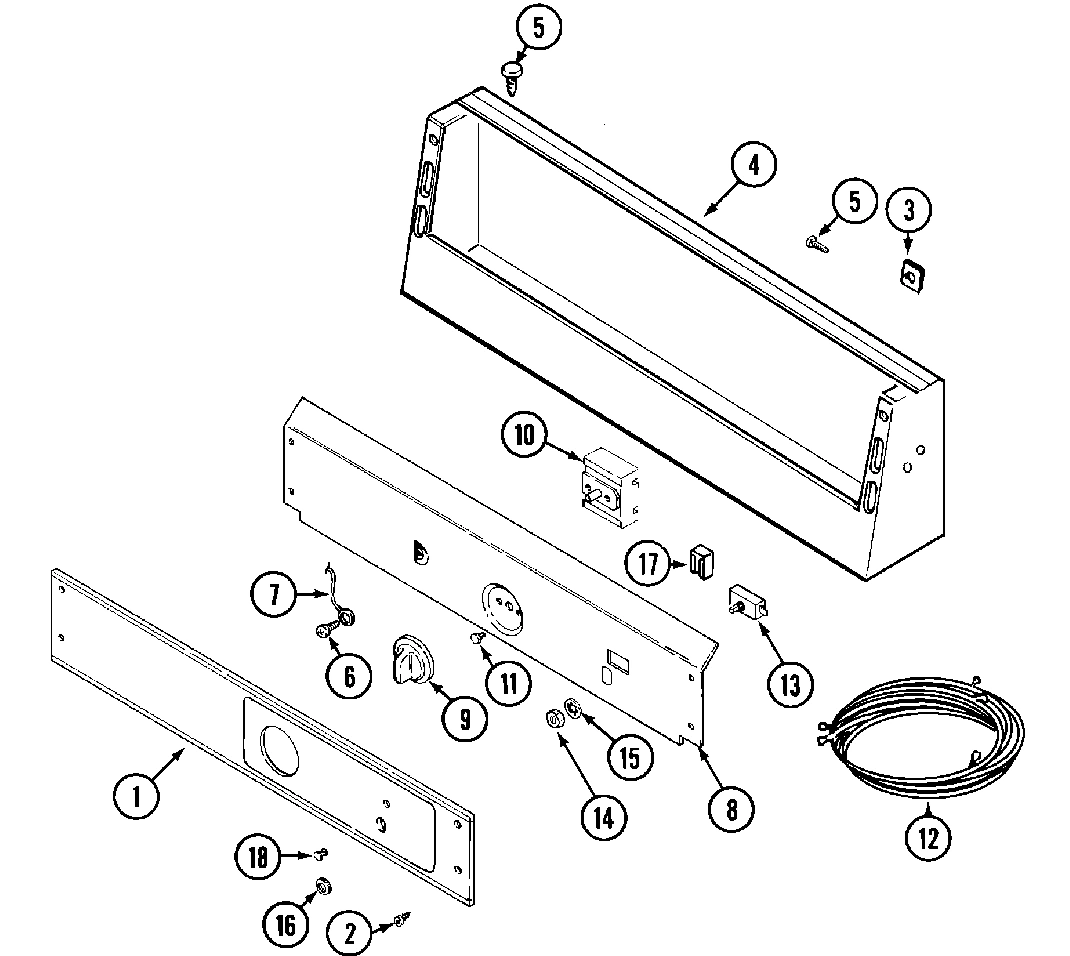

01 - CONTROL PANEL

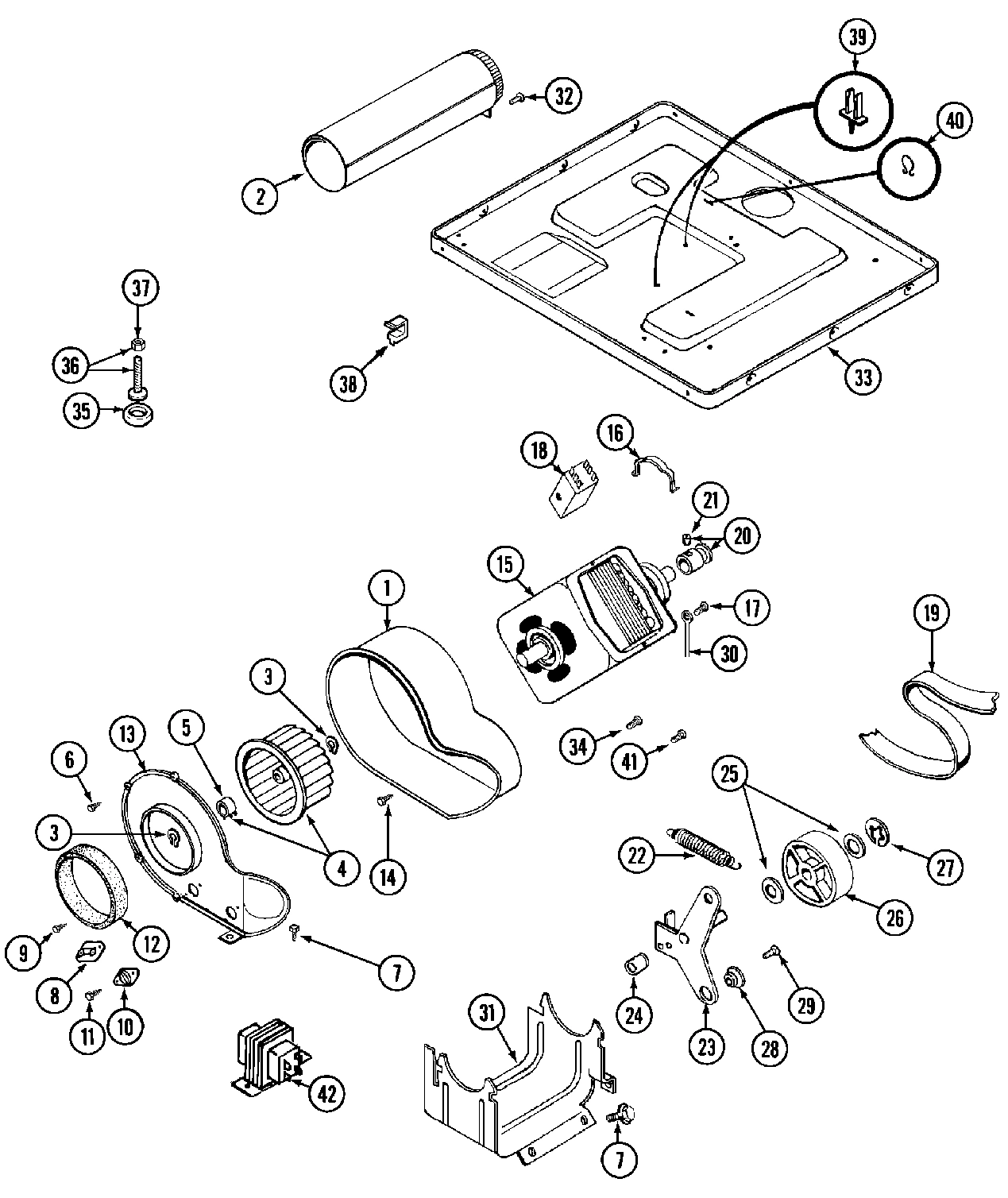

06 - MOTOR DRIVE

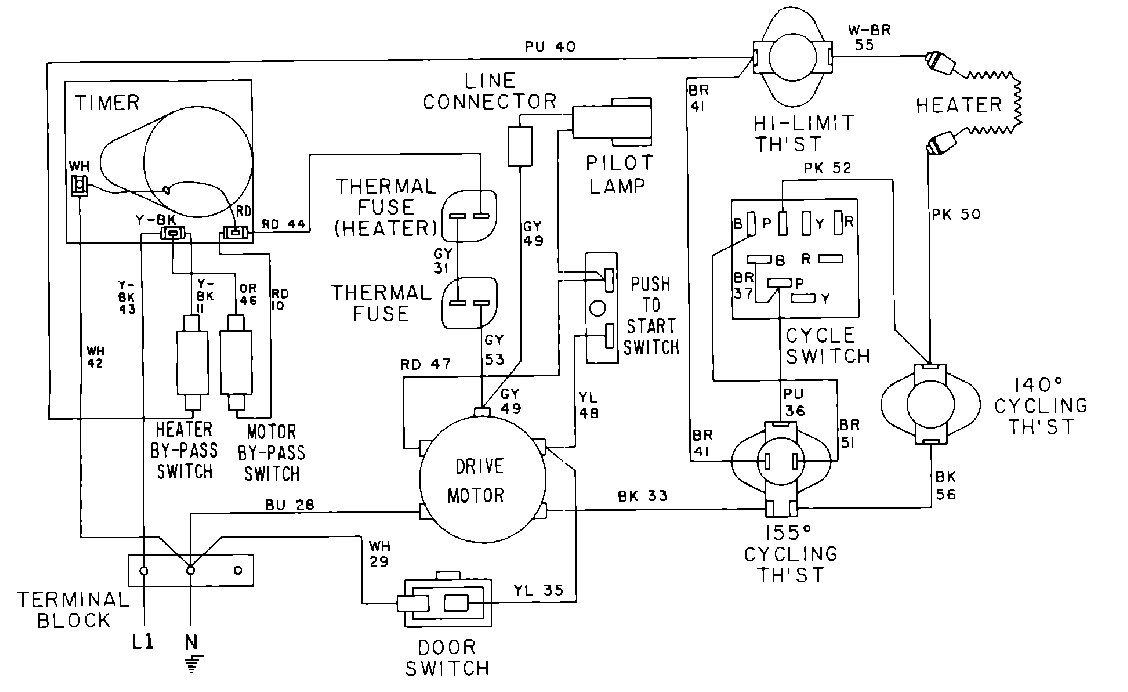

07 - WIRING INFORMATION

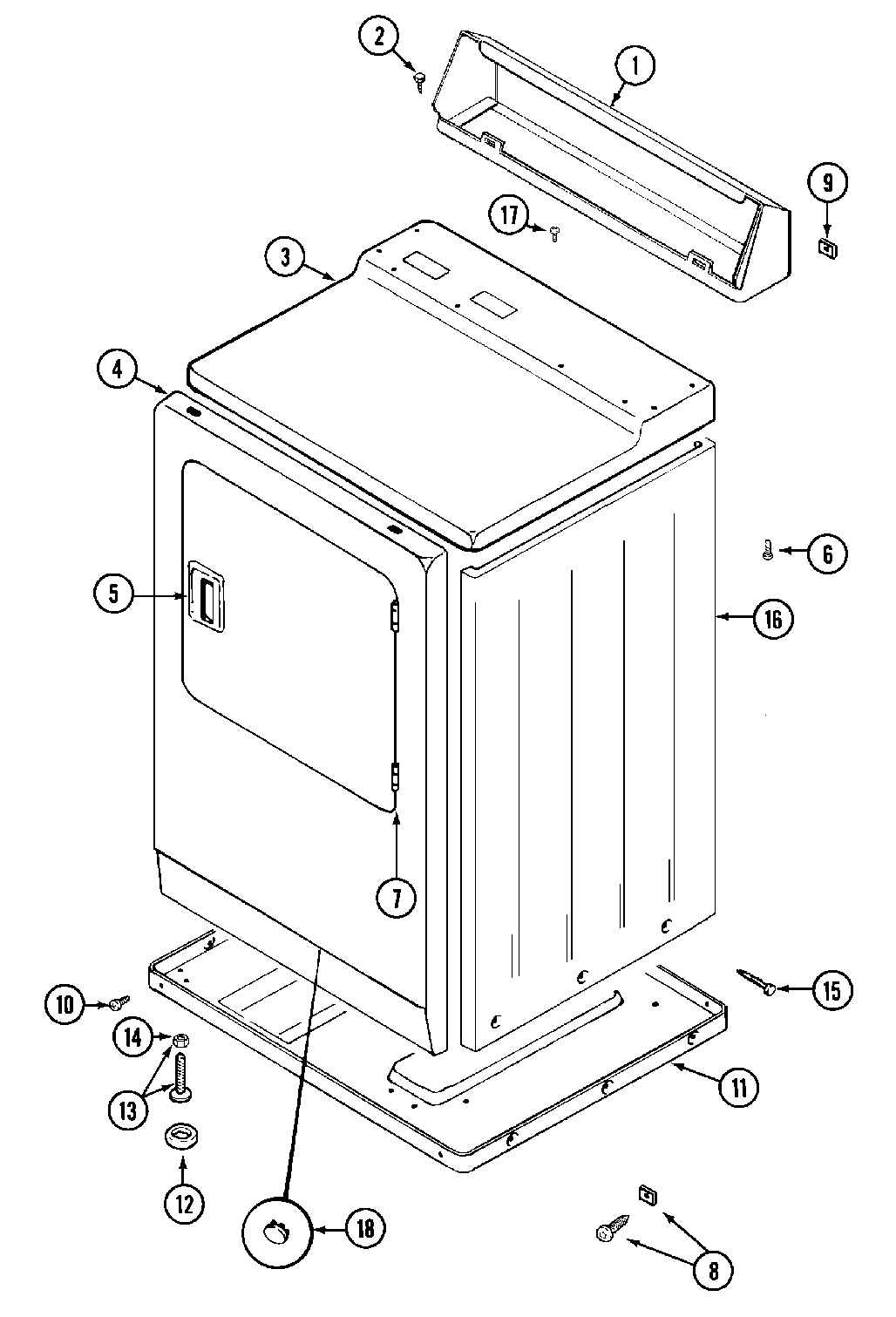

03 - CABINET-FRONT
Common parts from model Whirlpool MDE12CSAGW GAS DRYER
001
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
001
COVER, TERMINAL WPL Y312905 Contact Us For Availability
001
SCREW,HINGE,DOOR,& PANEL WPL Y314062 Contact Us For Availability
001
PANEL, CONTROL WPL 33001707 Contact Us For Availability
002
DUCT, INLET WPL 308503 Contact Us For Availability
002
STRAP, MOUNTING WPL 22001810 Contact Us For Availability
002
EXHAUST DUCT ASSEMBLY WPL Y303442 Contact Us For Availability
003
ENCLOSURE, HEATER WPL 314995 Contact Us For Availability
003
DOOR (WHT) WPL 33001240 Contact Us For Availability
003
FASTENER, CONTROL PANEL WPL 215003 Contact Us For Availability
003
COVER, TOP (WHT) WPL 33001703 Contact Us For Availability
004
INSULATOR, TERMINAL WPL 314998 Contact Us For Availability
004
STRAP, GROUND WPL Y312184 Contact Us For Availability
004
WASHER, STRAP SCREW WPL 910309 Contact Us For Availability
005
HANDLE, DOOR (WHT) WPL 33001241 Contact Us For Availability
005
GASKET, COIN VAULT (WHT) WPL 22001870 Contact Us For Availability
005
SEAL, DOOR WPL 33001131 Contact Us For Availability
006
SHIELD, RADIANT WPL 314999 Contact Us For Availability
006
BRACKET, TERMINAL BLOCK WPL Y312904 Contact Us For Availability
006
PLUG, DOOR (WHT) WPL 33001132 Contact Us For Availability
006
SCREW, TOP COVER WPL 214354 Contact Us For Availability
007
HINGE, DOOR WPL 33001230 Contact Us For Availability
007
GROUND WIRE WPL 205810 Contact Us For Availability
008
LOCKWASHER, LOCKING BOLT WPL 910387 Contact Us For Availability
008
PLATE, BACK-UP (WHT) WPL 314912 Contact Us For Availability
008
THERMOSTAT, MULTI-TEMP WPL 306966 Contact Us For Availability
008
COVER, THERMOSTAT WPL 315122 Contact Us For Availability
009
HEATER ASSEMBLY (240-50) WPL 307180 Contact Us For Availability
009
KNOB, SELECTOR WPL 306938 Contact Us For Availability
009
FASTENER, CONSOLE WPL 215075 Contact Us For Availability
010
SCREW, CABINET WPL Y310632 Contact Us For Availability
010
SCREW, CABINET WPL Y313561 Contact Us For Availability
010
SWITCH, DOOR WPL 33001892 Contact Us For Availability
011
CORD, POWER WPL 308966 Contact Us For Availability
011
CORD, POWER WPL 33001285 Contact Us For Availability
011
LOCKNUT, EARED FOR CANADIAN WPL 33001425 Contact Us For Availability
011
BASE ASSEMBLY WPL Y303361 Contact Us For Availability
011
WIRE HARNESS, TIMER WPL 33001195 Contact Us For Availability
011
SEAL, FRONT PANEL WPL 314937 Contact Us For Availability
012
GROMMET, CORD EXPORT WPL 216183 Contact Us For Availability
012
TIMER (240V-50HZ) WPL 33001274 Contact Us For Availability
012
HARNESS, WIRE (240-50) WPL 33001531 Contact Us For Availability
012
HARNESS, WIRE (240-50 COMM) WPL 33001563 Contact Us For Availability
013
ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available
013
BRACKET, THERMAL FUSE WPL 315346 Contact Us For Availability
013
GROMMET, DOUBLE WPL 22001881 Contact Us For Availability
013
LATCH, ACCESS DOOR WPL 22001882 Contact Us For Availability
013
SCREW WPL 22001883 Contact Us For Availability
013
DOOR, ACCESS (WHT) WPL 22001910 Contact Us For Availability
013
COVER, BLOWER HOUSING WPL 314778 Contact Us For Availability
014
SCREW, TUMBLER BAFFLE WPL Y310759 Contact Us For Availability
014
CONVERSION KIT (240V TO 208V) WPL Y308590 Contact Us For Availability
014
ACTUATOR KIT WPL 33001688 Contact Us For Availability
014
NUT, SWITCH WPL Y312706 Contact Us For Availability
014
SCREW, BLOWER HOUSING WPL 314818 Contact Us For Availability
015
BACK, TUMBLER (W/SEAL) WPL 33001178 Contact Us For Availability
015
COVER, ACCESS WPL Y312951 Contact Us For Availability
015
TORSION TIMER ASSEMBLY WPL 33001276 Contact Us For Availability
015
COVER, HINGE HOLE (WHT) WPL 33001175 Contact Us For Availability
015
MOTOR WPL Y304656 Contact Us For Availability
016
CABINET (WHT) WPL NLA Contact Us For Availability
016
FASTENER, INNER DOOR WPL Y313910 Contact Us For Availability
016
NUT, KNURLED WPL Y312702 Contact Us For Availability
017
SWITCH, BY-PASS (MOTOR) WPL 305798 Contact Us For Availability
018
SWITCH, BY-PASS (HEATER) WPL Y305799 Contact Us For Availability
018
DOOR, INNER (W/SEAL) WPL 33001243 Contact Us For Availability
018
(PROD. No. 303358-8 & 303358-9) WPL 306207 Contact Us For Availability
018
SWITCH, MOTOR EXTERNAL START (No.303358-2, 30 WPL Y303877 Contact Us For Availability
018
SWITCH, MOTOR EXTERNAL START (PROD. No. 30335 WPL Y303879 Contact Us For Availability
018
PLUG, FRONT PANEL (WHT) WPL 33001614 Contact Us For Availability
019
RETAINER, SPRING WPL 211790 Contact Us For Availability
020
CLIP, SPRING RETAINER WPL Y312270 Contact Us For Availability
020
PULLEY, MOTOR (W/SET SCREW) WPL 305186 Contact Us For Availability
021
DRIVER, INDEX WHEEL WPL 314330 Contact Us For Availability
021
SCREW, SET WPL Y053241 Contact Us For Availability
022
PEG, TINE ADJUSTMENT WPL 314335 Contact Us For Availability
022
IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability
023
BRACKET, SWITCH & SLIDER WPL 314339 Contact Us For Availability
024
WHEEL, INDEX WPL 314546 Contact Us For Availability
026
ACTUATOR, SWITCH WPL 314548 Contact Us For Availability
027
BRACKET, COIN SLIDE WPL 33001708 Contact Us For Availability
028
BRACKET, TIMER WPL 33001207 Contact Us For Availability
030
WIRE, GROUND WPL 901220 Contact Us For Availability
030
SPRING, TORSION RETURN WPL 314331 Contact Us For Availability
031
SPRING, ACTUATOR WPL 314332 Contact Us For Availability
032
ACTUATOR KIT WPL 306104 Contact Us For Availability
033
BASE ASSEMBLY WPL Y305084 Contact Us For Availability
034
SCREW, BY-PASS SWITCHES WPL 315277 Contact Us For Availability
037
MOTOR, TIMER (240-50) WPL 306527 Contact Us For Availability
038
CLIP, CABLE WPL Y310376 Contact Us For Availability
039
RETAINER, WIRE WPL 315471 Contact Us For Availability
040
PLATE, ADAPTOR (WHT) WPL 22001917 Contact Us For Availability
040
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
042
TRANSFORMER WPL 307928 Contact Us For Availability
× ![]()
