Model Maytag MDE11MNADW ELECTRIC DRYER – Common Parts & Diagrams

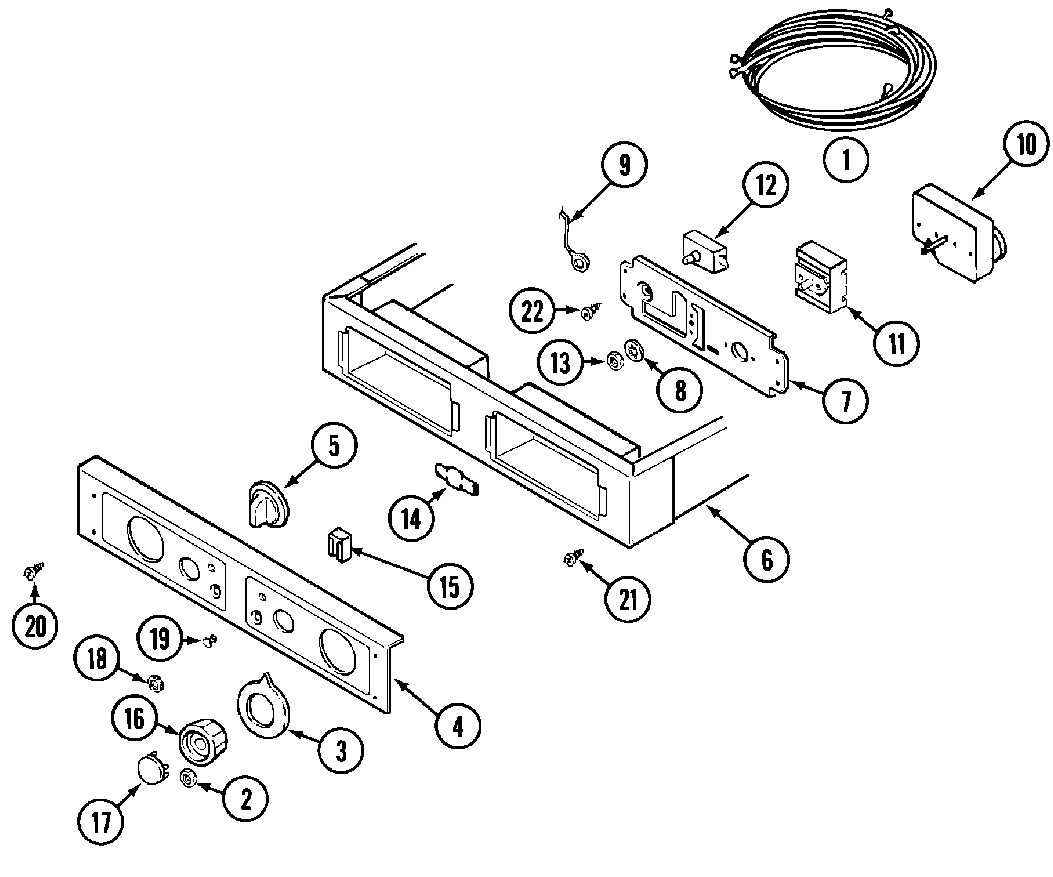

01 - CONTROL PANEL & SUPPORT ASSY.

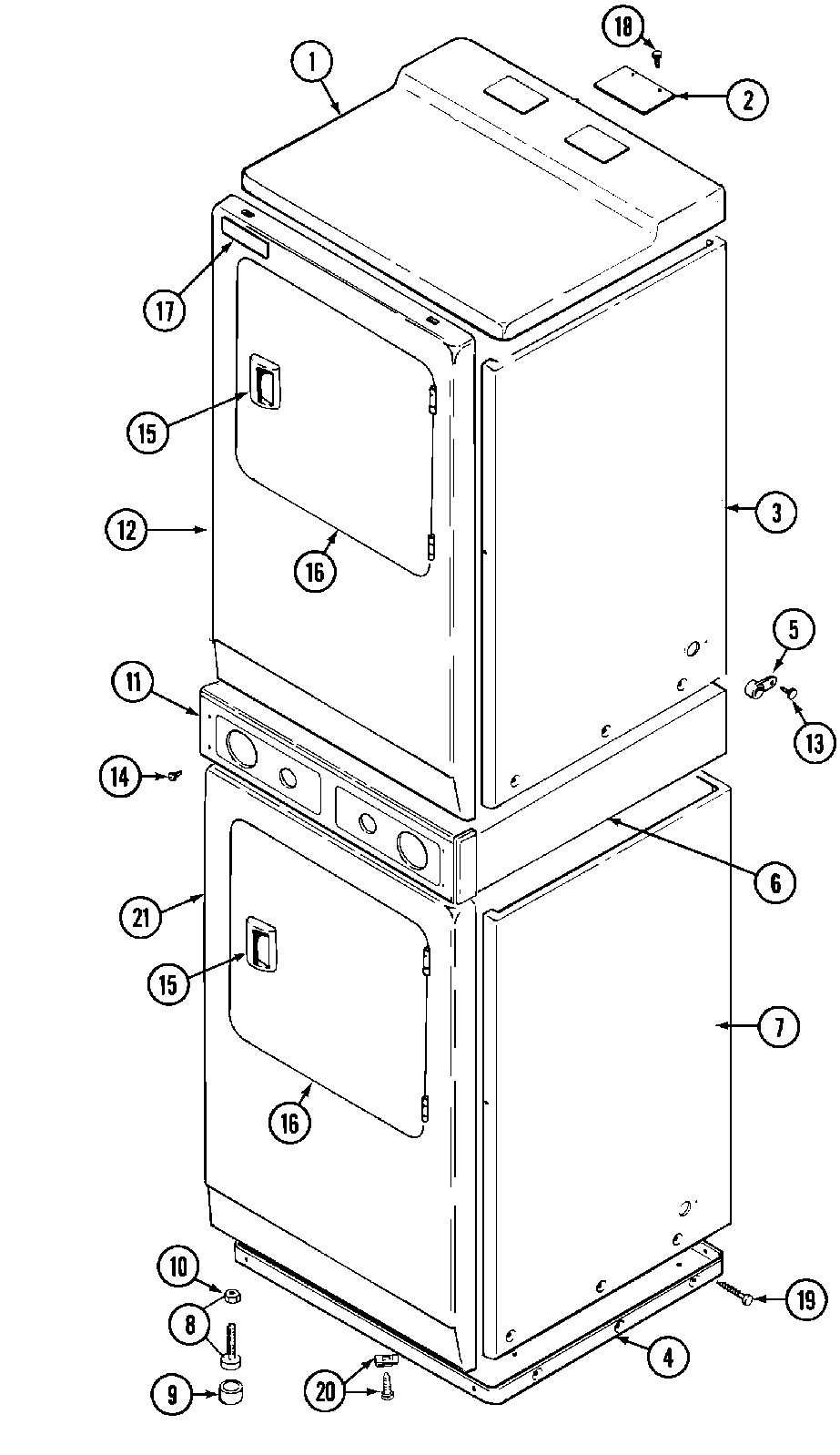

02 - FRONT

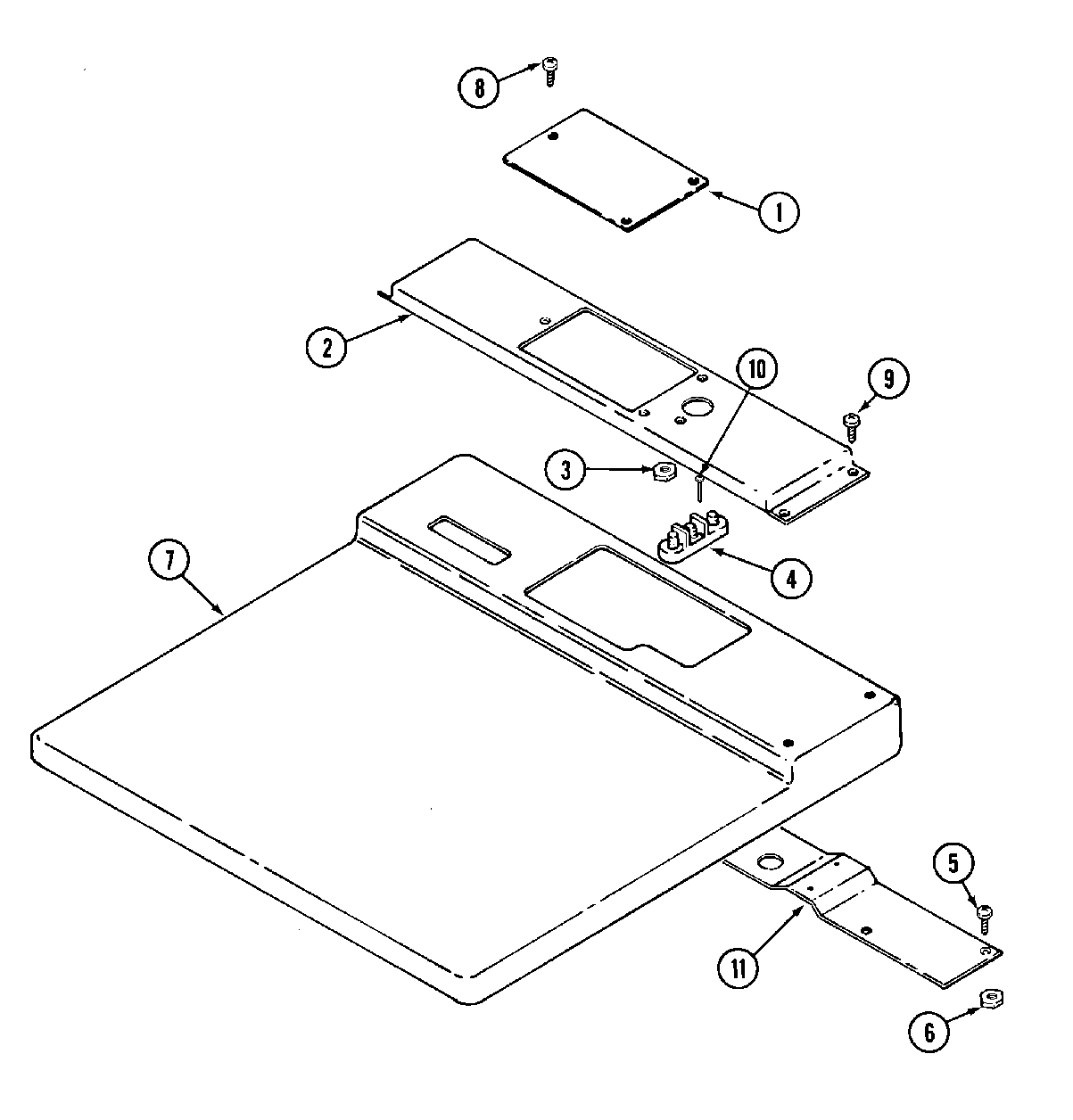

03 - TOP COVER (MDE11MNADW)
04 - DOOR

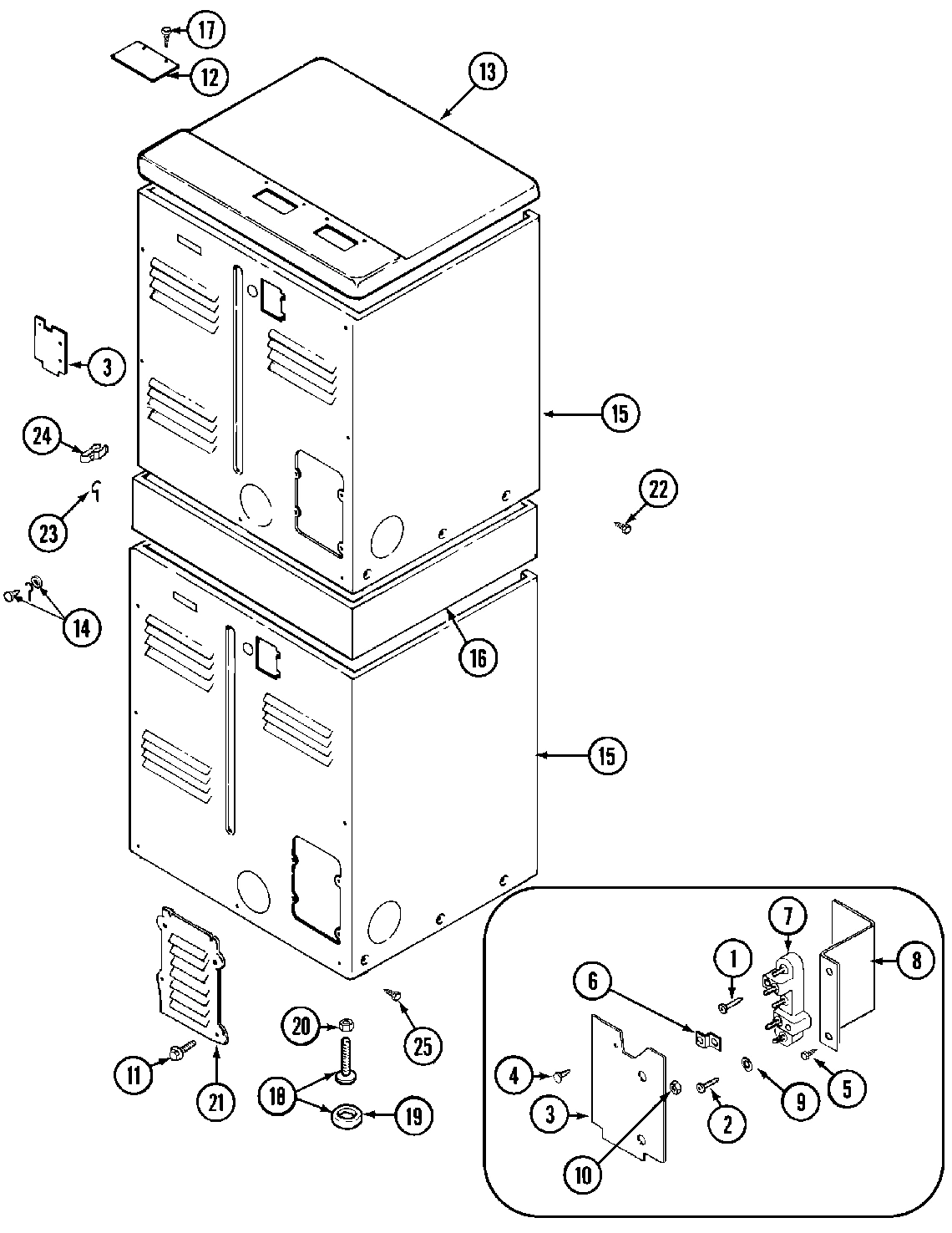

05 - REAR
06 - TUMBLER
07 - HEATER
08 - MOTOR DRIVE

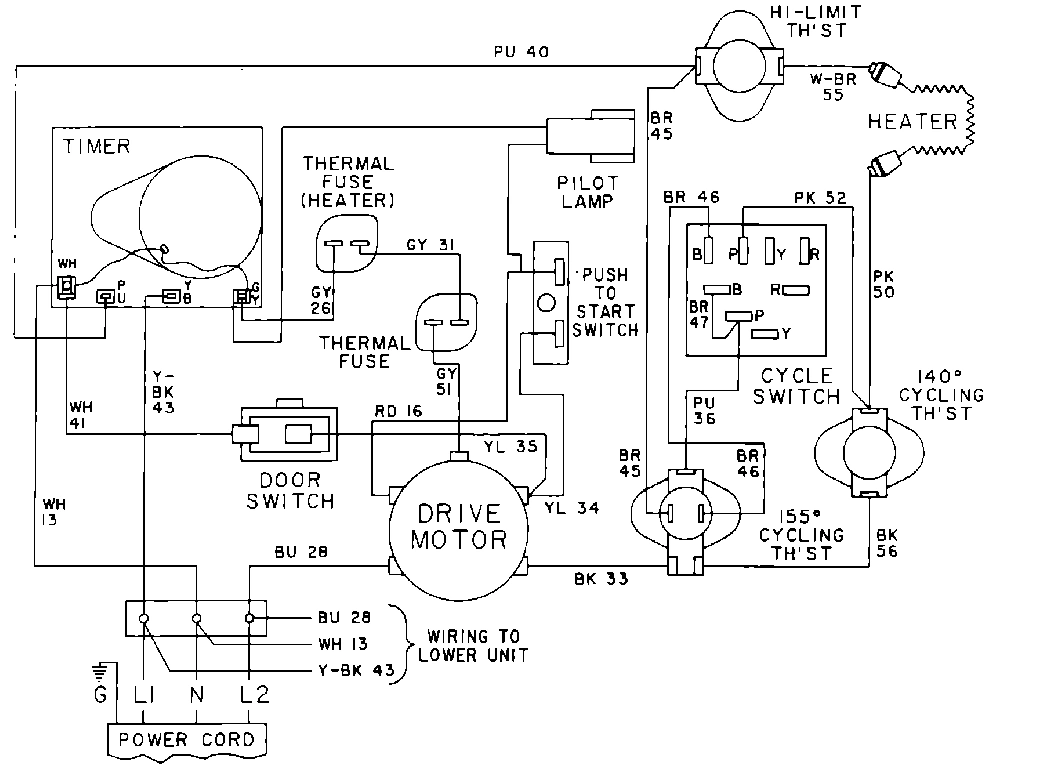

09 - WIRING INFORMATION
Common parts from model Maytag MDE11MNADW ELECTRIC DRYER
001
OUTLET DUCT ASSEMBLY MAY 33001016 Contact Us For Availability
001
WIRING INFORMATION MAY NLA Contact Us For Availability
001
MAY Y312893 MAY Y312893 Contact Us For Availability
002
MAY 33001230 MAY 33001230 Contact Us For Availability
002
MAY 33001170 MAY 33001170 Contact Us For Availability
002
INLET DUCT ASSEMBLY MAY 308503 Contact Us For Availability
002
EXHAUST DUCT ASSEMBLY MAY Y303442 Contact Us For Availability
003
MAY 314995 MAY 314995 Contact Us For Availability
003
DIAL, TIMER INDICATOR MAY 33001500 Contact Us For Availability
003
MAY 33001240 MAY 33001240 Contact Us For Availability
003
MAY Y312905 MAY Y312905 Contact Us For Availability
004
MAY 400008 MAY 400008 Contact Us For Availability
004
MAY 315346 MAY 315346 Contact Us For Availability
005
MAY 33001179 MAY 33001179 Contact Us For Availability
005
LOCKWASHER, PLATE SCREW MAY 22001354 Contact Us For Availability
005
SCREW, TERMINAL BRACKET MAY Y312209 Contact Us For Availability
005
MAY 33001131 MAY 33001131 Contact Us For Availability
006
MAY Y312184 MAY Y312184 Contact Us For Availability
007
MAY Y304578 MAY Y304578 Contact Us For Availability
007
SCREW, HOUSING COVER MAY Y313561 Contact Us For Availability
007
MAY 314998 MAY 314998 Contact Us For Availability
008
THERMOSTAT, CYCLING (155 DEG.) MAY 306967 Contact Us For Availability
008
FASTENER, SPRING MAY 212982 Contact Us For Availability
008
BRACKET, TERMINAL MAY Y312904 Contact Us For Availability
008
HEATER SUB-ASSEMBLY (208V) (W/1, 3, 7 & 10) MAY 307187 Contact Us For Availability
008
WIRE HARNESS, THERMOSTAT MAY 33001306 Contact Us For Availability
009
MAY Y311270 MAY Y311270 Contact Us For Availability
009
MAY 314999 MAY 314999 Contact Us For Availability
010
MAY Y307296 MAY Y307296 Contact Us For Availability
011
MAY 33001012 MAY 33001012 Contact Us For Availability
011
MAY 314937 MAY 314937 Contact Us For Availability
011
GROMMET, PLATE HOLE MAY 33001303 Contact Us For Availability
011
MAY 33001316 MAY 33001316 Contact Us For Availability
011
(CANADA) MAY 308217 Contact Us For Availability
012
WASHER, BAFFLE SCREW MAY 314158 Contact Us For Availability
013
MAY 33001161 MAY 33001161 Contact Us For Availability
013
TOP COVER ASSEMBLY (WHT) MAY 33001165 Contact Us For Availability
013
TUMBLER MAY 33001108 Contact Us For Availability
013
COVER, BLOWER HOUSING MAY 314778 Contact Us For Availability
014
SCREW, TUMBLER BAFFLE MAY Y310759 Contact Us For Availability
014
MAY Y308590 MAY Y308590 Contact Us For Availability
014
SCREW, BLOWER HOUSING MAY 314818 Contact Us For Availability
015
MAY 33001178 MAY 33001178 Contact Us For Availability
015
MAY 33001175 MAY 33001175 Contact Us For Availability
016
CLIP, INNER DOOR SCREW MAY Y313910 Contact Us For Availability
017
SCREW, TOP COVER PLATE MAY Y313559 Contact Us For Availability
017
MAY 910343 MAY 910343 Contact Us For Availability
018
PANEL, INNER DOOR (W/SEAL) MAY 33001243 Contact Us For Availability
018
MAY 312538 MAY 312538 Contact Us For Availability
018
(PROD. No. 303358-8 & 303358-9) MAY 306207 Contact Us For Availability
018
SWITCH, MOTOR EXTERNAL START (PROD. No. 30335 MAY Y303877 Contact Us For Availability
018
SWITCH, MOTOR EXTERNAL START (PROD. No. 30335 MAY Y303879 Contact Us For Availability
019
MAY 33001132 MAY 33001132 Contact Us For Availability
020
SCREW & CLIP ASSEMBLY MAY 204439 Contact Us For Availability
020
MAY Y305185 MAY Y305185 Contact Us For Availability
021
MAY Y312951 MAY Y312951 Contact Us For Availability
021
ROLLER (W/BEARING) MAY Y303373 Contact Us For Availability
021
SCREW, SET MAY Y053241 Contact Us For Availability
022
MAY Y303945 MAY Y303945 Contact Us For Availability
023
MAY 311155 MAY 311155 Contact Us For Availability
024
MAY 301548 MAY 301548 Contact Us For Availability
024
SCREW, CLAMP MAY 313122 Contact Us For Availability
025
WASHER, IDLER SHAFT MAY Y312527 Contact Us For Availability
026
SCREW, OUTLET DUCT MAY Y314110 Contact Us For Availability
028
MAY Y312894 MAY Y312894 Contact Us For Availability
030
MAY 901220 MAY 901220 Contact Us For Availability
033
BASE ASSEMBLY (LWR) MAY 306530 Contact Us For Availability
033
(UPR) MAY Y307482 Contact Us For Availability
036
LEG, ADJUSTABLE (W/NUT)---S MAY Y302699 Contact Us For Availability
038
MAY Y310376 MAY Y310376 Contact Us For Availability
039
RETAINER, WIRE HARNESS MAY 315471 Contact Us For Availability
040
MAY 410490 MAY 410490 Contact Us For Availability
042
MAY 315122 MAY 315122 Contact Us For Availability
043
SCREW, THERMOSTAT COVER MAY Y310632 Contact Us For Availability
× ![]()
